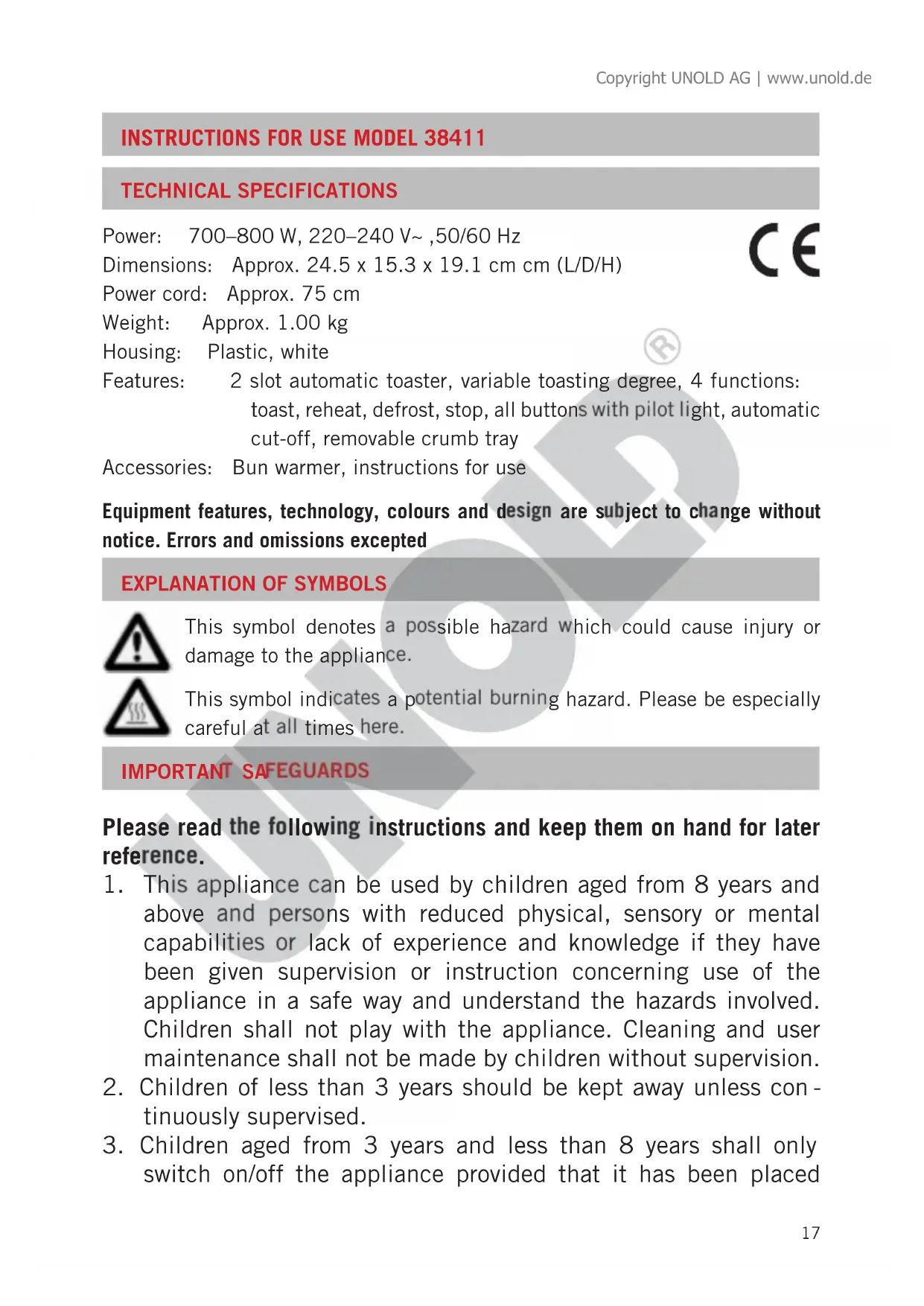

USER MANUAL 38411 UNOLD

TECHNICAL SPECIFICATIONS Power: 700–800 W, 220–240 V~ ,50/60 Hz Dimensions: Approx. 24.5 x 15.3 x 19.1 cm cm (L/D/H) Power cord: Approx. 75 cm Weight: Approx. 1.00 kg Housing: Plastic, white Features: 2 slot automatic toaster, variable toasting degree, 4 functions: toast, reheat, defrost, stop, all buttons with pilot light, automatic cut-off, removable crumb tray Accessories: Bun warmer, instructions for use Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here. IMPORTANT SAFEGUARDS Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children of less than 3 years should be kept away unless con

tinuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed Copyright UNOLD AG | www.unold.de18 or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user mainte

4. Children should be supervised in order to ensure that they do not

play with the appliance.

5. Keep the appliance out of the reach of children.

6. Connect appliance only to an AC power supply with voltage cor

responding to the voltage on the rating plate.

7. Do not operate this appliance with an external timer or remote

8. Never immerse the appliance or the power cord in water or other

9. Do not clean the toaster or power cord in a dishwasher.

10. The toaster should never come into contact with water or other

liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.

11. Never touch the appliance or power cord with wet hands.

12. For safety reasons, never place the appliance on hot surfaces, a

metal tray or a wet surface.

13. This appliance is intended for domestic and similar use such as:

staff kitchen areas in shops, offices and other working environ

ments; agricultural enterprises; by clients in hotels, motels and other accommodation facilities; bed and breakfast accommodations and holiday homes.

14. Do not place the appliance or power cord near open flames dur

Always use the toaster on a level, uncluttered and heat-resistant surface.

16. Make sure that the power cord does not hang over the edge

of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

17. Route the power cord so that there is no possibility of the cord

being pulled or tripped over. Copyright UNOLD AG | www.unold.de19

18. Use the toaster only indoors.

19. When in use, never cover the toaster with aluminum foil or other

materials that could cause the appliance to overheat.

20. Do not touch any hot surfaces, to prevent burns. Always use the

handles and control knobs.

21. Never use the appliance near flammable materials such as cur

Do not move the appliance as long as it is in operation or con- nected to power supply, to prevent injuries.

Never operate the appliance without the crumb tray; empty the tray regularly.

24. Do not toast foods that can melt.

25. Do not insert excessively large foods or any metal foils, silver

ware or tools in the appliance. They could cause a fire or short circuit.

Do not use the appliance with accessories of other manufactur

ers or brands, to prevent damage.

Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

28. Clean the appliance after every use.

29. Check the appliance, the plug and the power cord regularly for

wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service. Unauthorized repairs can result in serious risks to the user and void the warranty.

30. If the supply cord is damaged, it must be replaced by the manu

facturer or its service agent or a similarly qualified person in order to avoid a hazard. CAUTION: The appliance becomes very hot during operation Never open the housing of the appliance. Keep body parts and utensils out of the bread slots. This can result in electric shock. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. Copyright UNOLD AG | www.unold.de20

TIPS FOR IDEAL TOASTING RESULTS

1. Different types of bread have varying moisture content. Therefore, the same

toast darkness setting can produce different results.

2. For bread that is slightly dry, use a lower toast darkness setting.

3. For fresh bread or whole grain bread, use a higher toast darkness setting.

4. Bread with an irregular surface requires a higher toast darkness setting.

5. Thick bread slices need more time for toasting; it may even be necessary to

toast the bread a second time.

6. When toasting raisin bread, remove all raisins from the surface, since oth-

erwise they could burn.

7. Cut rolls in half before toasting.

8. If you toast only one slice, please select a low toast darkness setting.

9. If you toast several slices one after the other, the bread will be somewhat

darker at the same toast darkness setting.

1. Remove all packaging materials and any transport safeguards. Keep

packaging materials away from children – danger of suffocation!

1. Check to make sure that all accessories are present.

2. Clean the toaster with a damp cloth, as described in the chapter “Cleaning

3. Check to make sure that all parts are assembled correctly and the appliance

is stable. Make sure that there is sufficient space between the toaster and walls or other appliances, since the toaster becomes hot during operation.

4. Connect the appliance via the power cord to the power supply (220–240 V~,

5. Before toasting bread the first time, conduct one toasting cycle without

bread. Press the toast lever down until it locks into place.

6. When the toasting cycle is completed, the toast lever automatically jumps

up. Now you can starting toasting bread. Copyright UNOLD AG | www.unold.de21

OPERATION - TOASTING

1. Prepare the toaster as described in the section “Before using the appliance

2. Place the bread slices in the slots in the toasting chamber.

3. Set the desired toast darkness with the darkness control. You can select

from seven toast darkness settings: level 1 is very light and level 6 is very dark. For golden brown toast set the lever in the middle position.

4. Press the toast lever down until it locks into place. The toaster starts toast-

5. You can interrupt the toasting cycle any time by pressing the (Stop)

6. When the bread has been toasted to the set darkness, it is automatically

ejected. The appliance shuts off automatically. CAUTION: The appliance becomes very hot during operation! STOPP

1. Place the bread slices in the slots in the toasting chamber.

2. If you wish to warm up rolls, place the bun warmer on the toaster so it is

level and then place the rolls on top. To fold the bun warmer again, gen- tly press the left and right brackets to the outside, so that the holders can engage.

3. Press the toast lever down until it locks into place.

4. Then press the button right away.

5. The bread or roll is warmed without being toasted.

6. You can interrupt the warming cycle any time by pressing the (Stop)

7. After completion of the warming cycle the bread is automatically ejected.

The appliance shuts off automatically.

8. Please note that you cannot set the toast darkness when using the warming

function. The warming function can be used to warm up bread or rolls without toasting. STOPP Copyright UNOLD AG | www.unold.de22

1. Place the bread slices in the slots in the toasting chamber.

2. If you wish to thaw up rolls, place the bun warmer on the toaster so it is level

and then place the rolls on top.

3. Select the desired toast darkness setting.

4. We recommend the following toast darkness settings:

Low for bread from the refrigerator or thin frozen bread slices. Medium for frozen waffles or rolls High for thicker frozen bread slices and for rolls and thick toast slices.

5. Press the toast lever down until it locks into place.

6. Then press the button right away.

7. The bread or roll is thawed and toasted.

8. You can interrupt the cycle any time by pressing the (Stop) button.

9. After completion of the thawing cycle the bread is automatically ejected.

The appliance shuts off automatically. The thawing function first thaws out the bread and then toasts it, which means that the thawing cycle lasts somewhat longer than the normal toasting cycle. CLEANING Before cleaning, always turn off the appliance and unplug it from the electrical outlet. Allow the appliance to cool before cleaning it.

1. Do not immerse the appliance and power cord in water or other liquids or

wash them in the dishwasher.

2. Wipe off the toaster with a damp cloth and a little dishwashing detergent.

Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

3. To remove stuck bread slices, unplug the toaster and turn it over and shake

lightly. Never attempt to remove stuck bread slices with sharp or pointed tools or silverware.

4. Remove crumbs and any small pieces of bread from the crumb tray regu-

larly. To do this, pull the crumb tray on the side all the way out and empty it. Wipe the crumb tray with a damp cloth, then dry it thoroughly and push it back into the appliance.

5. The appliance must be completely dry before you use it again.

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the re- sponsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de GUARANTEE CONDITIONS Copyright UNOLD AG | www.unold.de24
