USER MANUAL 38326 UNOLD

Illustration of a UNOLD 3000 instant toaster with two golden grates on top (no text or symbols on the device itself)

TOASTER 2ER RETRO

Bedienungsanleitung

Modern kitchen appliance with digital display and bucket containing food (no visible text or symbols)

Product photo of a white industrial machine with a metal basket and small glassware nearby (no visible text or symbols)

UNOLD®

Care + Style

Product photo of a red and black electric toothbrush with a black clip, no visible text or symbols

Product photo of a pink hair dryer with black cord and bulb (no text or symbols visible)

UNOLD®

Fan + Heat

Close-up of a desktop fan with visible blades and base, no text or symbols present

Red electric fan with cooling fan and control panel (no visible text or symbols)

INHALTSVERZEICHNIS

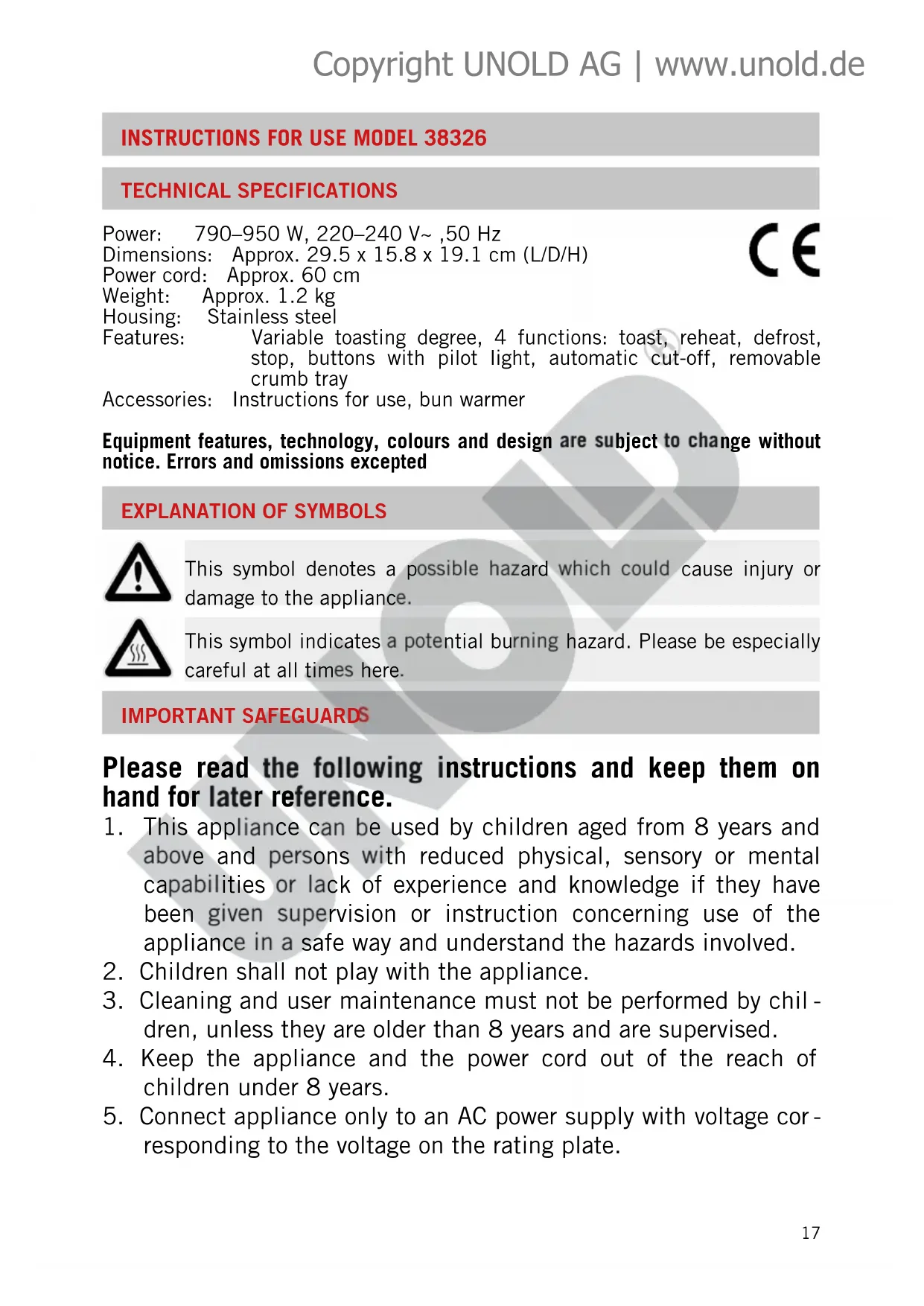

Instructions for use Model 38326

Technical Specifications.... 17

Explanation of symbols.... 17

Important Safeguards....17

Tips for ideal toasting results 20

Before using the appliance the first time... 20

Operation - Toasting 21

Operation - Warming 21

Operation - Thawing.... 22

Cleaning 22

Guarantee Conditions.... 23

Waste Disposal/Environmental Protection .. 23

Service 16

Exterior view of a UNOLD-style toaster with two golden-brown food items on top (no text or symbols visible on the device itself)

VOR DEM ERSTEN BENUTZEN

Interior view of a white electric heater with visible circuitry and power plug (no text or symbols)

Symbol of a trash bin with crossed x and y lines, no text or numbers present

INFORMATIONEN FÜR DEN FACHHANDEL

Dimensions: Approx. 29.5 x 15.8 x 19.1 cm (L/D/H)

Power cord: Approx. 60 cm

Weight: Approx. 1.2 kg

Housing: Stainless steel

Features: Variable toasting degree, 4 functions: toast, reheat, defrost, stop, buttons with pilot light, automatic cut-off, removable crumb tray

Accessories: Instructions for use, bun warmer

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years.

5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.

6. Do not operate this appliance with an external timer or remote control system.

7. Never immerse the appliance or the power cord in water or other liquids.
8. Do not clean the toaster or power cord in a dishwasher.
9. The toaster should never come into contact with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.
10. Never touch the appliance or power cord with wet hands.
11. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
12. This appliance is intended for domestic and similar use such as:

■ staff kitchen areas in shops, offices and other working environments;

■ agricultural enterprises;
■ by clients in hotels, motels and other accommodation facilities;
■ bed and breakfast accommodations and holiday homes.

1. Bread can burn. Never use the appliance near or below combustible materials such as curtains.
2. Do not place the appliance or power cord near open flames during operation.
3. Always use the toaster on a level, uncluttered and heat-resistant surface.
4. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.
5. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
6. Use the toaster only indoors.
7. When in use, never cover the toaster with aluminium foil or other materials that could cause the appliance to overheat.
8. Do not touch any hot surfaces, to prevent burns. Always use the handles and control knobs.

9. Do not move the appliance as long as it is in operation or connected to power supply, to prevent injuries.

10. Never operate the appliance without the crumb tray; empty the tray regularly.

11. Do not toast foods that can melt.
12. Do not insert excessively large foods or any metal foils, silverware or tools in the appliance. They could cause a fire or short circuit.
13. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
14. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.
15. Clean the appliance after every use.
16. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service. Unauthorised repairs can result in serious risks to the user and void the warranty.
17. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

CAUTION:

The appliance becomes very hot during operation

Never open the housing of the appliance. Keep body parts and utensils out of the bread slots. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR IDEAL TOASTING RESULTS

1. Different types of bread have varying moisture content. Therefore, the same toast darkness setting can produce different results.
2. For bread that is slightly dry, use a lower toast darkness setting.
3. For fresh bread or whole grain bread, use a higher toast darkness setting.
4. Bread with an irregular surface requires a higher toast darkness setting.
5. Thick bread slices need more time for toasting; it may even be necessary to toast the bread a second time.
6. When toasting raisin bread, remove all raisins from the surface, since otherwise they could burn.
7. Cut rolls in half before toasting.
8. If you toast only one slice, please select a low toast darkness setting.
9. If you toast several slices one after the other, the bread will be somewhat darker at the same toast darkness setting.
10. To toast frozen bread, waffles, etc. please use the thaw button.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children – danger of suffocation!
2. Check to make sure that all accessories are present.
3. Clean the toaster with a damp cloth, as described in the chapter "Cleaning and care".
4. Check to make sure that all parts are assembled correctly and the appliance is stable. Make sure that there is sufficient space between the toaster and walls or other appliances, since the toaster becomes hot during operation.
5. Connect the appliance via the power cord to the power supply (220–240 V\~, 50/60 Hz).
6. Before toasting bread the first time, conduct one toasting cycle without bread. Press the toast lever down until it locks into place.
7. When the toasting cycle is completed, the toast lever automatically jumps up. Now you can starting toasting bread.

1. Prepare the toaster as described in the section "Before using the appliance the first time".
2. Place the bread slices in the slots in the toasting chamber.
3. Set the desired toast darkness with the darkness control. You can select from seven toast darkness settings: level 1 is very light and level 7 is very dark. For golden brown toast set the lever in the middle position.
4. Press the toast lever down until it locks into place. The toaster starts toasting.
5. You can interrupt the toasting cycle any time by pressing the STOPP (S top) button.
6. When the bread has been toasted to the set darkness, it is automatically ejected. The appliance shuts off automatically.

CAUTION:

The appliance becomes very hot during operation!

OPERATION - WARMING

The warming function can be used to warm up bread or rolls without toasting.

1. Place the bread slices in the slots in the toasting chamber.
2. If you wish to warm up rolls, place the bun warmer on the toaster so it is level and then place the rolls on top. To fold the bun warmer again, gently press the left and right brackets to the outside, so that the holders can engage.
3. Pres s the fast leverdown until it locks into place.
4. Then press the button right away.
5. The bread or roll is warmed without being toasted.
6. You can interrupt the warming cycle any time by pressing the √ ( S t o p ) button.
7. After completion of the warming cycle the bread is automatically ejected. The appliance shuts off automatically.
8. Please note that you cannot set the toast darkness when using the warming function.

CAUTION: The appliance becomes very hot during operation!

OPERATION - THAWING

The thawing function first thaws out the bread and then toasts it, which means that the thawing cycle lasts somewhat longer than the normal toasting cycle.

1. Place the bread slices in the slots in the toasting chamber.
2. Press the toast lever down until it locks into place.
3. Select the desired toast darkness setting.
4. We recommend the following toast darkness settings:

Low for bread from the refrigerator or thin frozen bread slices.

Medium for frozen waffles or rolls

High for thicker frozen bread slices and for rolls and thick toast slices.

1. Then press the button right away.
2. The bread or roll is thawed and toasted.
3. You can interrupt the cycle any time by pressing the STOP (Stop) button.
4. After completion of the thawing cycle the bread is automatically ejected.

The appliance shuts off automatically.

CAUTION:

The appliance becomes very hot during operation!

CLEANING

Before cleaning, always turn off the appliance and unplug it from the electrical outlet.

Allow the appliance to cool before cleaning it.

1. Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.
2. Wipe off the toaster with a damp cloth and a little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.
3. To remove stuck bread slices, unplug the toaster and turn it over and shake lightly. Never attempt to remove stuck bread slices with sharp or pointed tools or silverware.
4. Remove crumbs and any small pieces of bread from the crumb tray regularly. To do this, pull the crumb tray on the side all the way out and empty it. Wipe the crumb tray with a damp cloth, then dry it thoroughly and push it back into the appliance.
5. The appliance must be completely dry before you use it again.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 38326

SPÉCIFICATION TECHNIQUE

Puissance : 790 - 950 W, 220–240 V\~, 50 Hz

Dimensions : Env. 29,5 x 15,8 x 19,1 cm (l/p/h)

CONDITIONS DE GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

ISTRUZIONI PER L'USO MODELLO 38326

DATI TECNICI

Potenza: 790 - 950 W, 220–240 V\~, 50 Hz

Ingombro: 29,5 x 15,8 x 19,1 cm circa (L/P/A)

Cavo: 60 cm circa

Peso: 1,2 kg circa

Corpo: Acciaio inox

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

MANUAL DE INSTRUCCIONES MODELO 38326

DATOS TÉCNICOS
