Product type	2-slice toaster
Brand	Unold
Model	Shine 38410
Power supply	220-240 V ~, 50/60 Hz
Power	Not specified
Weight	Approx. 1.00 kg
Cable length	Approx. 70 cm
Housing material	Plastic, white
Browning control	6 adjustable levels
Functions	Toast, reheat, defrost, stop
Indicator lights	All buttons with indicator lamp
Automatic shut-off	Yes
Crumb tray	Removable
Included accessories	Bun warmer rack
Care and cleaning	Clean with a damp cloth; do not immerse; removable crumb tray
Safety	Do not use near water; do not insert metal objects; hot surface
Warranty	24 months (household use), 12 months (professional use)

Frequently Asked Questions - Shine 38410 UNOLD

How to use the toaster for the first time?

Remove all packaging, clean the appliance with a damp cloth, then run the toaster empty once by pushing the toast lift down. Do not set the browning level during this first cycle.

How to adjust the browning level?

Use the rotary selector to choose from 6 levels: 1 for very light toast, 6 for very dark toast. The middle gives golden brown toast.

What to do if a slice of bread gets stuck?

First unplug the appliance, then turn it over and shake it gently. Never use sharp objects or cutlery to remove stuck bread.

How to use the reheat function?

Place the bread or rolls (with the rack) into the toaster, push the toast lift down, then immediately press the reheat button. The bread will be warmed without being toasted.

How to use the defrost function?

Place the frozen bread, set the desired browning level, push the toast lift down, then immediately press the defrost button. The toaster will defrost and then toast the bread.

How to clean the toaster?

Let the appliance cool down, unplug it, then wipe the exterior with a damp cloth and mild detergent. Never immerse the appliance in water. Empty the crumb tray regularly.

Can I use the toaster without the crumb tray?

No, never use the appliance without the crumb tray. Remove it regularly to empty crumbs and wipe it before replacing.

Can the appliance be used by children?

Children under 8 years of age should not use the appliance without supervision. Children over 8 may use it if supervised and have understood the safety instructions. Keep the appliance out of reach of children under 8.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its after-sales service, or a qualified person to avoid any risk.

What is the warranty for this toaster?

The warranty is 24 months for household use and 12 months for professional use, from the date of purchase. It covers material and manufacturing defects. Keep the receipt.

USER MANUAL Shine 38410 UNOLD

White UNOD 30-degree toaster with two golden-brown cutlery, placed on a flat surface (no text or symbols visible)

TOASTER Shine White

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 38410

Impressum:

Modern kitchen appliance with digital display and bucket containing red chili sauce (no visible text or symbols)

Illustration of a modern wheat bread machine with a bucket and kitchen utensils (no text or symbols visible)

UNOLD

Care + Style

Product photo of a red and black electric toothbrush with a black clip, next to a black conical tool (no text or symbols visible)

Close-up of a metallic iron cutting tool with a white cable, no visible text or symbols

UNOLD®

Fan + Heat

Close-up of a desktop electric fan with visible blades and base (no text or symbols)

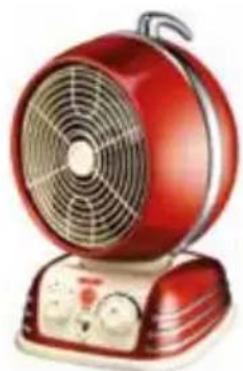

Red electric fan with a circular grille and control panel (no visible text or symbols)

INHALTSVERZEICHNIS

Technical Specifications....17

Explanation of symbols....17

Important Safeguards....17

Tips for ideal toasting results 20

Before using the appliance the first time...20

Operation - Toasting....21

Operation - Warming 21

Operation - Thawing....22

Cleaning 22

Guarantee Conditions....23

Waste Disposal/Environmental Protection .. 23

Service 16

Close-up of a toaster oven with food being inserted, showing a tray filled with granular material (no text or symbols visible)

EINZELTEILE

DE Ab Seite 8

1 Toasthebel
2 Röstgradkontrolle
3 Taste Stop
4 Taste AUFTAUEN
5 Taste AUFWÄRMEN
6 Krümelschublade

EN Page 17

1 Toast lever
2 Toast darkness control
3 Stop button/Stop
4 Thaw button/AUFTAUEN
5 Warm button/AUFWÄRMEN
6 Crumb tray

FR Page 24

Power: 700–800 W, 220–240 V\~, 50/60 Hz

Dimensions: Approx. 24.5 x 15.6 x 19.1 cm (L/D/H)

Power cord: Approx. 70 cm

Weight: Approx. 1.00 kg

Housing: Plastic, white

Features: 2 slot automatic toaster, variable toasting degree, 4 functions: toast, reheat, defrost, stop, all buttons with pilot light, automatic cut-off, removable crumb tray

Accessories: Bun warmer, instructions for use

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years.

5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.

6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.
8. Do not clean the toaster or power cord in a dishwasher.
9. The toaster should never come into contact with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.
10. Never touch the appliance or power cord with wet hands.
11. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
12. This appliance is intended for domestic and similar use such as:

■ staff kitchen areas in shops, offices and other working environments;
■ agricultural enterprises;
■ by clients in hotels, motels and other accommodation facilities;
■ bed and breakfast accommodations and holiday homes.

1. Bread can burn. Never use the appliance near or below combustible materials such as curtains.
2. Do not place the appliance or power cord near open flames during operation.
3. Always use the toaster on a level, uncluttered and heat-resistant surface.
4. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.
5. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
6. Use the toaster only indoors.
7. When in use, never cover the toaster with aluminum foil or other materials that could cause the appliance to overheat.
8. Do not touch any hot surfaces, to prevent burns. Always use the handles and control knobs.

9. Do not move the appliance as long as it is in operation or connected to power supply, to prevent injuries.

10. Never operate the appliance without the crumb tray; empty the tray regularly.

11. Do not toast foods that can melt.
12. Do not insert excessively large foods or any metal foils, silverware or tools in the appliance. They could cause a fire or short circuit.
13. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
14. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.
15. Clean the appliance after every use.
16. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service. Unauthorized repairs can result in serious risks to the user and void the warranty.
17. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

CAUTION:

The appliance becomes very hot during operation

Never open the housing of the appliance. Keep body parts and utensils out of the bread slots. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR IDEAL TOASTING RESULTS

1. Different types of bread have varying moisture content. Therefore, the same toast darkness setting can produce different results.
2. For bread that is slightly dry, use a lower toast darkness setting.
3. For fresh bread or whole grain bread, use a higher toast darkness setting.
4. Bread with an irregular surface requires a higher toast darkness setting.
5. Thick bread slices need more time for toasting; it may even be necessary to toast the bread a second time.
6. When toasting raisin bread, remove all raisins from the surface, since otherwise they could burn.
7. Cut rolls in half before toasting.
8. If you toast only one slice, please select a low toast darkness setting.
9. If you toast several slices one after the other, the bread will be somewhat darker at the same toast darkness setting.
10. To toast frozen bread, waffles, etc. please use the thaw button.
11. To warm rolls, please use the bun warmer.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Clean the toaster with a damp cloth, as described in the chapter “Cleaning and care”.
4. Check to make sure that all parts are assembled correctly and the appliance is stable. Make sure that there is sufficient space between the toaster and walls or other appliances, since the toaster becomes hot during operation.
5. Connect the appliance via the power cord to the power supply (220–240 V\~, 50/60 Hz).
6. Before toasting bread the first time, conduct one toasting cycle without bread. Press the toast lever down until it locks into place.
7. When the toasting cycle is completed, the toast lever automatically jumps up. Now you can starting toasting bread.

1. Prepare the toaster as described in the section “Before using the appliance the first time”.
2. Place the bread slices in the slots in the toasting chamber.
3. Set the desired toast darkness with the darkness control. You can select from seven toast darkness settings: level 1 is very light and level 6 is very dark. For golden brown toast set the lever in the middle position.
4. Press the toast lever down until it locks into place. The toaster starts toasting.
5. You can interrupt the toasting cycle any time by pressing the STOPP (S top) button.
6. When the bread has been toasted to the set darkness, it is automatically ejected. The appliance shuts off automatically.

CAUTION:

The appliance becomes very hot during operation!

OPERATION - WARMING

The warming function can be used to warm up bread or rolls without toasting.

1. Place the bread slices in the slots in the toasting chamber.
2. If you wish to warm up rolls, place the bun warmer on the toaster so it is level and then place the rolls on top. To fold the bun warmer again, gently press the left and right brackets to the outside, so that the holders can engage.
3. Press the toast lever down until it locks into place.
4. Then press the button right away.
5. The bread or roll is warmed without being toasted.
6. You can interrupt the warming cycle any time by pressing the (Stop) button.
7. After completion of the warming cycle the bread is automatically ejected. The appliance shuts off automatically.
8. Please note that you cannot set the toast darkness when using the warming function.

OPERATION - THAWING

The thawing function first thaws out the bread and then toasts it, which means that the thawing cycle lasts somewhat longer than the normal toasting cycle.

1. Place the bread slices in the slots in the toasting chamber.
2. If you wish to thaw up rolls, place the bun warmer on the toaster so it is level and then place the rolls on top.
3. Select the desired toast darkness setting.
4. We recommend the following toast darkness settings:

Low for bread from the refrigerator or thin frozen bread slices.

Medium for frozen waffles or rolls

High for thicker frozen bread slices and for rolls and thick toast slices.

1. Press the toast lever down until it locks into place.

2. Then press the button right away.

3. The bread or roll is thawed and toasted.

4. You can interrupt the cycle any time by pressing the (Stop) STOP button.

5. After completion of the thawing cycle the bread is automatically ejected.

The appliance shuts off automatically.

CLEANING

Before cleaning, always turn off the appliance and unplug it from the electrical outlet.

Allow the appliance to cool before cleaning it.

1. Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.
2. Wipe off the toaster with a damp cloth and a little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.
3. To remove stuck bread slices, unplug the toaster and turn it over and shake lightly. Never attempt to remove stuck bread slices with sharp or pointed tools or silverware.
4. Remove crumbs and any small pieces of bread from the crumb tray regularly. To do this, pull the crumb tray on the side all the way out and empty it. Wipe the crumb tray with a damp cloth, then dry it thoroughly and push it back into the appliance.
5. The appliance must be completely dry before you use it again.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 38410

SPÉCIFICATION TECHNIQUE

Puissance : 700–800 W, 220–240 V\~, 50/60 Hz

Dimensions : Env. 24,5 x 15,6 x 19.1 cm (l/p/h)

CONDITIONS DE GARANTIE
