MQ5B150 - Food Processor SIEMENS - Free user manual and instructions

Product type	Food processor (immersion blender with grinder attachment)
Brand	Siemens
Model	MQ5B150
Material of the shaft	Plastic and stainless steel
Power	600 W (estimated)
Power supply	Mains 220-240 V, 50/60 Hz
Main functions	Blending, mixing, puréeing, preparing mayonnaise, sauces, cocktails, baby food, soups, grinding cooked fruits and vegetables, grinding (with optional universal grinder)
Control	Operation by continuous pressure on the activation button
Included accessories	Blending shaft, blending beaker
Optional accessories	Universal grinder (ref. 640698 or 640686)
Beaker dishwasher-safe	Yes
Blending shaft dishwasher-safe	Yes (or brush washing)
Cleaning of the base unit	Wipe with a damp cloth, do not immerse
Safety	Limited immersion (shaft/unit joint), sharp blades, hot liquid splashing (<80°C)
Spare parts	Available from Siemens after-sales service
Warranty	According to retailer conditions, upon presentation of proof of purchase
Disposal	Compliant with European directive 2012/19/EU (WEEE)
Country of origin	Not specified
Dimensions (L × W × H)	Not specified
Weight	Not specified

Frequently Asked Questions - MQ5B150 SIEMENS

How to assemble the Siemens MQ5B150 immersion blender?

Place the blending shaft onto the base unit and turn counterclockwise until it clicks. Unwind the cord fully before use.

What foods can I prepare with this blender?

You can prepare mayonnaise, sauces, cocktails, baby food, puréed soups, and grind cooked fruits and vegetables. It is not suitable for mashed potatoes.

How to avoid splashing while blending?

First immerse the blending shaft in the food, then press the activation button. Always turn off the appliance before removing it from the mixture.

Can I blend hot liquids?

Yes, but wait until their temperature drops below 80°C. Remove the pot from the heat before using the immersion blender.

How to clean the blending shaft?

The blending shaft can be washed in the dishwasher or with a brush under running water. Let it dry standing upright, blade facing up, to allow water to drain.

Can the base unit be washed in the dishwasher?

No, only wipe it with a damp cloth. Never immerse the base unit in water and do not use a steam cleaner.

What to do if plastic parts discolor?

Some foods like red cabbage can stain the plastic. Remove these stains with a few drops of cooking oil.

Can I use a universal grinder with this model?

Yes, the universal grinder (ref. 640698 or 640686) is compatible and can be ordered from after-sales service. It allows grinding harder foods.

What are the important safety instructions?

Do not touch the blades with fingers, use a brush to clean them. Never operate the appliance empty. Unplug it before any assembly/disassembly or cleaning.

Where to find spare parts or after-sales service?

Contact your retailer or Siemens after-sales service. The contact details are in the instructions (e.g., for France: 0 892 698 110). Keep the proof of purchase for warranty.

USER MANUAL MQ5B150 SIEMENS

Register your product online

de Deutsch 3

en English 6

fr Français....9

it Italiano 12

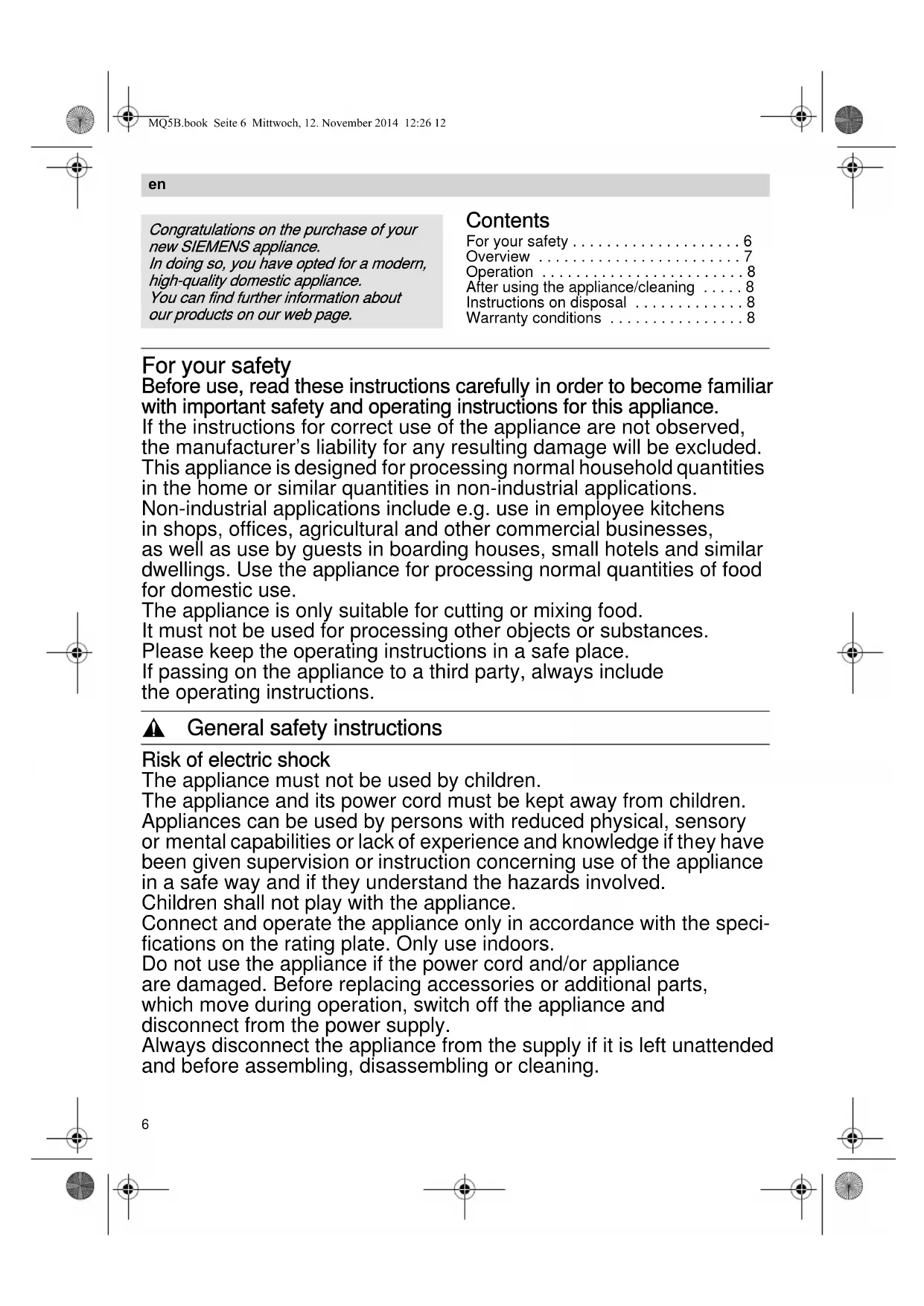

Congratulations on the purchase of your new SIEMENS appliance.

In doing so, you have opted for a modern, high-quality domestic appliance.

You can find further information about our products on our web page.

Contents

For your safety 6

Overview 7

Operation 8

After using the appliance/cleaning ..... 8

Instructions on disposal 8

Warranty conditions 8

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses,

as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use.

The appliance is only suitable for cutting or mixing food.

It must not be used for processing other objects or substances.

Please keep the operating instructions in a safe place.

If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Risk of electric shock

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors.

Do not use the appliance if the power cord and/or appliance are damaged. Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

en

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock

Do not use the hand blender with damp hands and do not operate it at no load.

Do not immerse the appliance in liquid above the blender foot-base unit connection point. Never immerse the base unit in liquids and do not clean in the dishwasher.

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot.

Never clean the blades with bare hands. Use a brush.

Risk of scalding!

Caution when processing hot liquids.

Liquids may splash during processing.

Important!

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

Never place blender foot on hot surfaces or use in very hot food.

Leave hot food to cool down to at least 80 °C before processing with the blender! Before using the hand blender in a cooking pot, take the pot off the hotplate.

Overview

Please fold out the illustrated pages.

Fig. A

1 Base unit

2 ON button

The hand blender remains switched on as long as the ON button is pressed.

3 Blender foot

Attach the blender foot and lock into position.

i some models:

4 Universal cutter

(separate operating instructions)

If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 640698 or 640686).

With the universal cutter use the appliance at full power (according to the recipe).

You can find the recipe in the operating instructions of the universal cutter.

en

Operation

For blending mayonnaise, sauces, drinks, baby food and for cutting cooked fruit and vegetables.

For puréeing soups.

i The hand blender is not suitable for the preparation of mashed potatoes.
- Completely unwind the power cord.
- Place the blender foot (3) on the base unit (1) and rotate in an anti-clockwise direction.
- Insert the mains plug.
- Place food in a plastic jug.
- Firmly hold the hand blender and jug. To prevent the ingredients from splashing, do not press the ON button (2) until the blender foot has been immersed in the ingredients.

i Always switch off the hand blender before taking it out of the processed food.

After using the appliance/cleaning

Warning!

Never immerse the base unit in water and do not clean in the dishwasher.

Do not use a steam cleaner!

• Remove mains plug.
• Wipe the base unit with a damp cloth and then wipe dry.
  ● The blender jug can be cleaned in the dishwasher.
• Clean the blender foot in the dishwasher or with a brush under running water.
• Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out.

i If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Instructions on disposal

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment – WEEE.

The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
