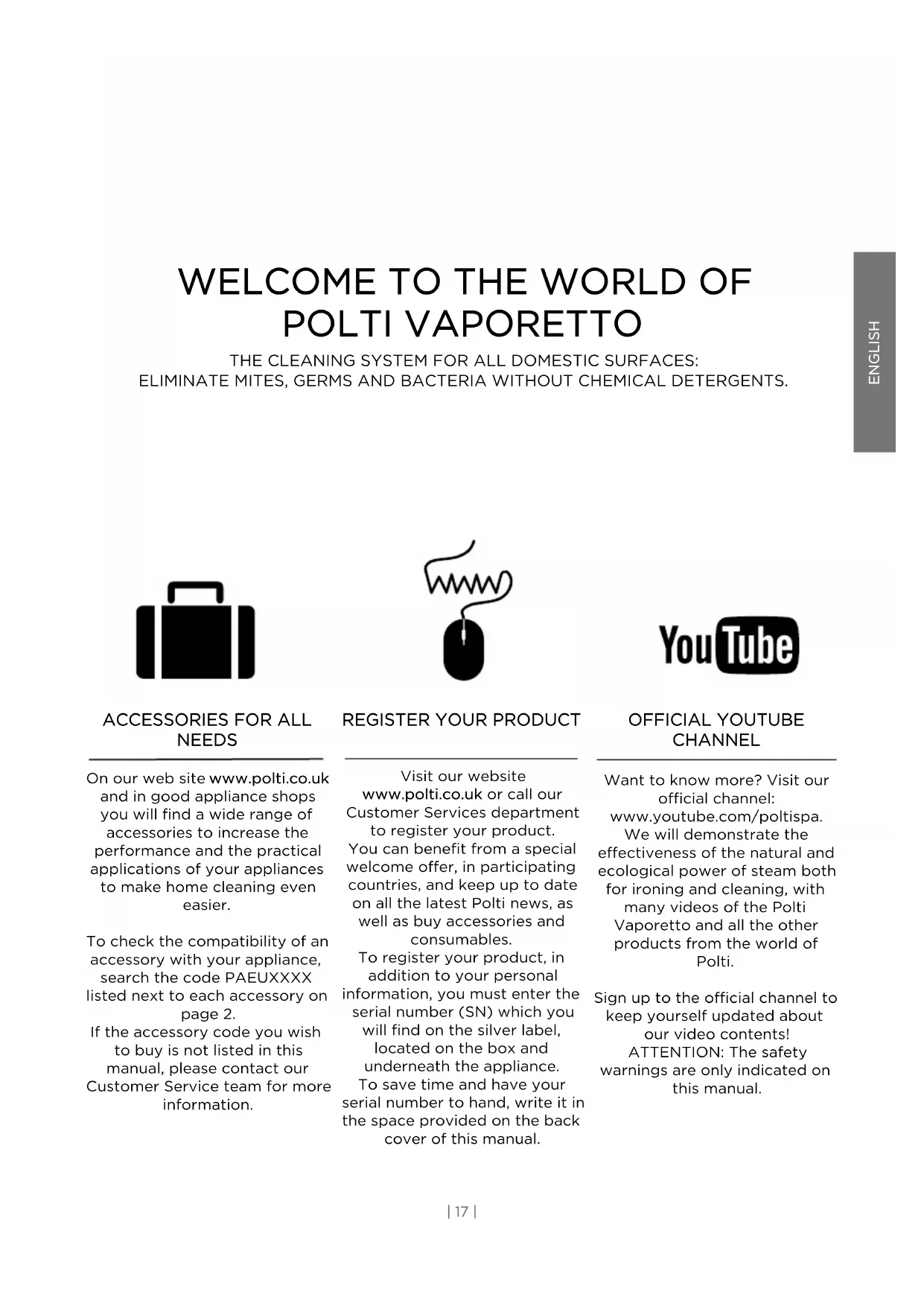

USER MANUAL Vaporettino First POLTI

NEEDS On our web site www.polti.co.uk and in good appliance shops you will find a wide range of accessories to increase the performance and the practical applications of your appliances to make home cleaning even easier. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX listed next to each accessory on page 2. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.co.uk or call our Customer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables. To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the appliance. To save time and have your serial number to hand, write it in the space provided on the back cover of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We will demonstrate the effectiveness of the natural and ecological power of steam both for ironing and cleaning, with many videos of the Polti Vaporetto and all the other products from the world of Polti. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety warnings are only indicated on this manual.SAFETY WARNINGS

IN THIS MANUAL, AND ON THE APPLIANCE ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the socket before the tank/boiler is filled with water.

• During use there is pressure inside the boiler. Do not remove the boiler cap if the equipment is switched ON. ENGLISH | 18 |• To carry out any maintenance or cleaning requiring access to the boiler, ensure that the appliance is switched off at the power switch and disconnected from the mains for at least two hours.

• Always unplug the appliance if it is not in use.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.

• Keep the appliance out of reach of children when it is plugged in or cooling down.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• The appliance must not be left unattended if plugged in to the mains.

• Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

• This appliance is intended exclusively for indoor domestic use. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the basic precautions listed in this manual. RISKS CONNECTED TO THE POWER SUPPLY – ELECTROCUTION

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use. ENGLISH | 19 |• Do not overload sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

• Do not pull or jerk the cable or expose it to tensions (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid crushing the cables in doors and windows. Do not pull the cable tight around corners. Avoid treading on the cable. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

• Do not substitute the plug on the power cable.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Never immerse the cleaner in water or other fluid. ENGLISH | 20 |RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, corrosive substances and/or explosives or perfumes into the boiler.

• Only pour water or the water mix indicated in the section “Which water to use in the boiler” into the boiler.

• Do not direct the steam jet onto toxic substances, acids, solvents, detergents or corrosive substances.

• Do not direct the steam jet onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.

• Do not position the product near electromagnetic fields such as induction plates.

• Re-wind the cable when the appliance is not in use.

• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the steam hoses/vacuum tubes.

• Do not obstruct the openings and grills on the product.

• Do not direct the steam jet on any part of the body of people or animals.

• Do not direct the steam jet onto clothes while they are being worn.

• Cloths and rags and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Wait a few minutes and check that they have cooled before handling them. Therefore, avoid contact with the skin if they have just been steamed.

• During use, keep the base in a horizontal position on stable surfaces. The steam lock on the handle guarantees greater safety, as it prevents the accidental activation of steam delivery by ENGLISH | 21 |children or people who are unaware of the function of the appliance. When steam is not being used, engage the steam lock. To continue steam delivery, return the switch to its original position.

• Always use the appliance with the safety cap supplied or an original replacement part. Using non-original Polti safety caps can lead to accidents.

• When accessing the pressurised boiler (removing the cap, filling up), ensure that the appliance has been switched off at the power switch and disconnected from the mains for at least two hours, allowing it to cool. There is a risk of accidents while the boiler is switched on/hot and pressurised.

• Do not connect the appliance with the safety cap removed. Carefully tighten the safety cap before plugging in and turning on the appliance.

• Before turning on the appliance, check that there is nothing blocking the mouth of the boiler (filler bottle, funnel, or other objects), and that the safety cap is closed.

• Check that the safety cap is correctly tightened; if steam is escaping from the cap, switch off the boiler, unplug the power cable, wait for two hours for the appliance to cool, and then unscrew. Check the condition of the safety cap and seal. If the cap is in good condition, screw it back on completely. If steam continues to escape from the cap, leave it to cool for 2 hours, then take the appliance to the nearest authorised service centre.

• Periodically check the condition of the safety cap and seal. Impact and being dropped may compromise the safety of the cap. Replace with an original spare part or replace the seal.

• If the cap spins freely, this indicates that the boiler is still pressurised and therefore hot. Never force the cap open, whether the appliance is switched on or the boiler is switched off and the appliance is disconnected from the mains. Always wait for the boiler to cool for 2 hours before opening the cap without forcing it.

• Do not use tools to unscrew the cap. If the cap cannot be removed, even once the appliance has cooled, go to your ENGLISH | 22 |nearest authorised service centre.

• WARNING Never fill the boiler as soon as the safety cap has been opened when the boiler is still hot, even if the appliance is unplugged from the mains. On contact with the hot, empty boiler, cold water will evaporate producing a spray of steam which can cause burns. Only fill the boiler when cold and always keep your face away from the boiler mouth when filling.

• The use of non-original Polti caps and disregard for the instructions in this manual constitutes improper use. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. ENGLISH

| 23 |CORRECT USE OF THE PRODUCT

This appliance is intended for home use as a steam cleaner as described and in accordance with the instructions provided in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the website www.polti.co.uk. Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Polti Vaporetto may contain some residual water in the boiler. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE

BOILER This appliance has been designed to function with medium-hardness tap water between 8°f and 20°f. If the tap water is very hard, do not just use demineralised water but a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase.

Warning: check the hardness of the water at

the technical office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Kalstop (PAEU0094) anti-limescale product, distributed by Polti, and available for sale at all major domestic-appliance stores or online at www.polti.co.uk. Do not use distilled water, undiluted demineralised water, rain water or water containing additives (e.g. starch, perfumes), scented water or water produced by other domestic appliances, by water softeners and filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

1.2 Fill the boiler with up to 200 ml of water,

1.3 Carefully screw the safety cap back on,

checking that it is completely closed (3). This operation must always be carried out when the boiler has cooled and with the power cable disconnected from the mains.

Only for Polti Vaporetto Diffusion it’s possible to combine steam with FrescoVapor, a natural deodorant which, in addition to releasing a pleasant fragrance, eliminates bad odours. Please refer to the instructions given in section 7 for how to use FrescoVapor products.

1.5 Connect the cable plug to an earthed

power supply of the correct voltage (8).

1.6 The “Steam Ready” lamp will turn on. Wait

for the steam ready indicator lamp to go out (approx. 5 minutes). The appliance is ready for use. It is a good idea to check that the boiler is empty before filling it.

WARNING: Never exceed the maximum

boiler fill level of 200 ml; always use the jug supplied.

WARNING: If steam is escaping from the

safety cap, switch the appliance off and unplug it from the mains. Wait for two hour for the appliance to cool before unscrewing the cap and screwing it back on. ENGLISH

| 24 |2. CONNECTION OF ACCESSORIES

2.1 FLEX (only for model Polti Vaporetto

• To join the flex to the appliance, bring the arrow on the flex into line with the single notch on the appliance and then rotate the flex body in the direction of the arrow, until it clicks into place (12).

• To release the flex, pull the little lever above it and rotate in the opposite direction from before (13).

• In turn, the lance can be connected to the flex and therefore all other accessories supplied.

To attach the lance, bring the arrow on the lance into line with the single notch on the appliance and then rotate the lance in the direction of the arrow until it clicks into place (14). The following accessories can be attached to the lance:

• window-washing accessory, curved nozzle, round brushes, spatula and accessory for grouting. Simply insert them into the lance tip and rotate until they lock into place (15).

3.1 Make sure that section 1 has been

Only for model Polti Vaporetto Diffusion connect the flex to the appliance (it’s possible connect the lance to the flex in order to reach parts that are difficult to reach, as indicated in point 2.1)and to the Window- washer accessory as indicated in point 2.2. Only for model Polti Vaporetto First connect the flex to the appliance.

3.3 Ensure that the steam lock on the handle

is deactivated (10).

3.4 Press and hold the steam trigger on the

handle (11) and steam the surface abundantly to dissolve the dirt.

Only for model Polti Vaporetto Diffusion wiping the window-washer frame over it to eliminate the dirt, without steaming. Only for model Polti Vaporetto First wiping the surface with a dry cloth.

4. CLEANING UPHOLSTERY

(mattresses, sofas, car interiors, etc.)

4.1 Make sure that section 1 has been

Only for model Polti Vaporetto Diffusion connect the lance to the appliance (it’s possible connect the lance to the flex in order to reach parts that are difficult to reach, as indicated in point 2.1) and to the Window- washer accessory as indicated in point 2.2. Applied the cloth to the Window-washer accessory (16).

4.3 Ensure that the steam lock on the handle

is deactivated (10).

4.4 Press the steam button on the appliance

and steam the surfaces.(11).

Only for model Polti Vaporetto First connect the lance to the appliance. Ensure that the steam lock on the handle is deactivated. Press the steam button on the appliance and steam the surfaces. Wiping the surface with a dry cloth.

5. CLEANING BATHROOM FIXTURES,

GROUTING AND KITCHEN WORKTOPS

5.1 Make sure that section 1 has been

5.2 Connect the lance to the appliance as

indicated in point 2.2. (it’s possible connect the lance to the flex in order to reach parts that are difficult to reach, as indicated in point 2.1).

5.3 Connect to the lance, as explained in 2.2,

the accessory most suitable for the purpose :

• curved nozzle for reaching even more inaccessible points

• round brushes recommended for removing encrusted dirt from very narrow surfaces.

• spatula (only for Polti Vaporetto Diffusion) for removing stubborn encrusted dirt

• Accessory for grouting (only for Polti Vaporetto Diffusion) for cleaning tile grouting.

5.4 Ensure that the steam lock on the handle

is deactivated (10).

5.5 Press the steam button on the appliance

and steam the surfaces.(11).

WARNING: To clean glass surfaces in

particularly cold seasons, preheat the windows starting to vacuum from a distance of about 50 cm from the surface.

WARNING: Before cleaning leather or

fabrics with steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.

WARNING: Do not use the brass brush on

particularly delicate surfaces. ENGLISH

6.1 Make sure that section 1 has been

6.2 Connect the lance to the appliance as

indicated in point 2.2. (it’s possible connect the lance to the flex in order to reach parts that are difficult to reach, as indicated in point 2.1).

6.3 Press and hold the steam trigger on the

handle and direct the jet onto a cloth.

6.4 Use the cloth previously steamed to clean

the surface, avoiding prolonged use on the same spot.

(only for model Polti Vaporetto Diffusion) FrescoVapor is a air freshener that contains natural substances. When mixed with steam it releases a fresh perfume in every space and, thanks to its special composition, it is able to eliminate bad odours. To use FrescoVapor, proceed as follows:

• Unscrew the cap (4) of the deodorant reservoir and fill it with FrescoVapor (5).

• Screw the tank cap back on taking care to fasten it correctly (6).

• It’s possible to adjust the quantity of FrescoVapor to be mixed with the steam by turning the knob, close to the steam button (7).

• In the OFF position, the deodorant is not mixed.

• At the “min” position, a minimum quantity of deodorant will be mixed with the steam.

• At the “max” position, a maximum quantity of deodorant will be mixed with the steam. The surface will be slightly damper, since FrescoVapor mixes with the steam being dispensed. Contents: 200 ml FrescoVapor is on sale at household appliance stores, at Polti authorised service centres or on the site www.polti.co.uk.

When the appliance does not release steam anymore, this means there is no more water in the boiler. To continue with use, proceed as follows:

Unplug from the mains electricity.

• Act on the steam request lever until steam flow ceases.

• Wait ten minutes and remove the safety cap, unscrewing it without force.

• Leave the appliance to cool for at least 10 minutes.

• Filling the boiler as indicated on section 1.

• Carefully screw the safety cap back on, checking that it is completely closed.

WARNING: Do not swallow. Keep out of the

WARNING: Never put FrescoVapor in the

boiler. Only use water in the boiler, following the instructions listed in the section 1.

WARNING: Before using FrescoVapor on

upholstery, leather, special fabrics and wood surfaces, consult the manufacturer’s instructions and always carry out a test on a hidden part or sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.

WARNING: Never fill the boiler as soon as

the safety cap has been opened when the boiler is still hot, even if the appliance is unplugged from the mains. On contact with the hot, empty boiler, cold water will evaporate producing a spray of steam which can cause burns. Only fill the boiler when cold and always keep your face away from the boiler mouth when filling.

WARNING: Before cleaning the surface,

always do a test on a hidden part and see how it reacts to the application of steam.

WARNING: Do not direct the steam jet

directly onto surfaces.

WARNING: If, during unscrewing, the cap

spins freely or if steam is escaping, immediately stop the operation, ensuring that the boiler is switched off and the power cable is unplugged from the mains. Wait for the appliance to cool (two hour) and unscrew the cap before removal. TAKE CARE OF YOUR FACE !!! ENGLISH | 26 |9. GENERAL MAINTENANCE Before carrying out any maintenance on the device, always unplug it from the power mains making sure that the product has cooled down before proceeding. To clean the outside of the appliance, only use a damp cloth and tap water. All accessories can be cleaned using running water, ensuring they are completely dry before the next use. Do not use detergents of any type. After using the brushes, we recommend letting the bristles cool down in their natural position, in order to avoid any deformation.

10. KALSTOP optional

Kalstop is thelimescale product for appliances with boiler for ironing and steam cleaning. Regular use of Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy.

11.1 Turn off the appliance and disconnect

from the mains electricity.

11.2 Wait for the appliance to cool down

completely before storing it. ENGLISH | 27 |

The appliance does not turn on. No power. Check the cable, plug and socket. Does not dispense steam. Boiler out of wat. Steam lock activated. Add water to the tank. Deactivate the steam lock on the handle. Does not steam and the safety cup can not be unscrewed. Steam button broken. Take it to Authorized Service Centre. FrescoVapor perfume is not released when using steam. (only for Polti Vaporetto Diffusion) FrescoVapor knob regulation in OFF position. Please check the Frescovapor level. Turn the FrescoVapor regulation knob in min or max regulation. Fill the Frescovapor tank. FrescoVapor has been to inserted into the boiler. -------------- Take it to Authorized Service Centre. If problems persist or are not listed above, please contact a Polti Authorised Service Centre (www.polti.co.uk for the updated list) or contact Customer Services.| 28 | ENGLISH WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold against to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres or contact Customer Services with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.co.ukBIENVENUE DANS LE MONDE DE POLTI VAPORETTO LE SYSTÈME QUI NETTOIE LES SURFACE DE LA MAISON, EN NEUTRALISANT ET EN ÉLIMINANT LES ACARIENS, LES GERMES ET LES BACTÉRIES SANS DÉTERGENTS CHIMIQUES. | 29 | FRANÇAIS
