USER MANUAL BCSFS515 PIONEER

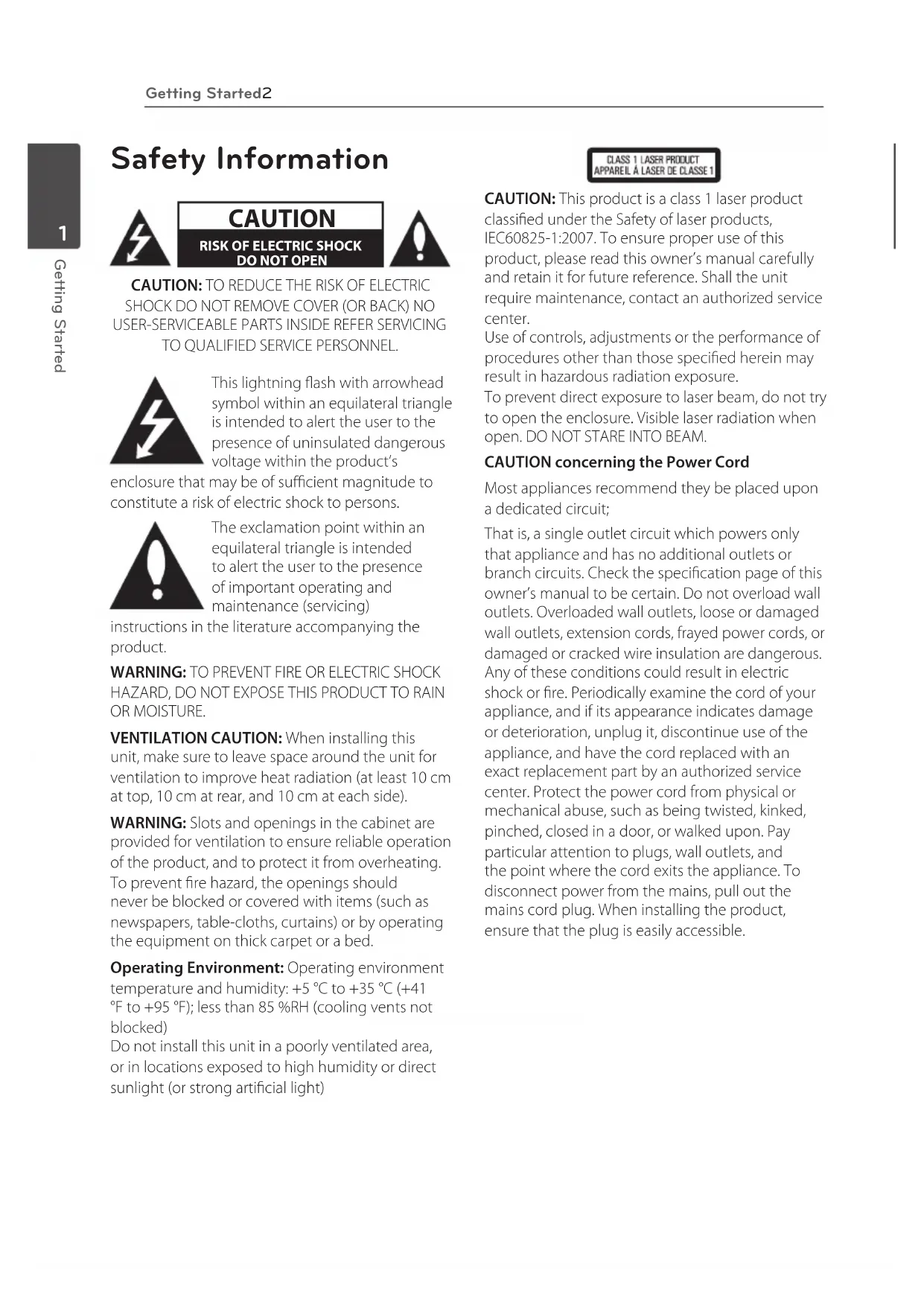

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
VENTILATION CAUTION: When installing this
unit, make sure to leave space around the unit for
ventilation to improve heat radiation (at least 10 cm
at top, 10 cm at rear, and 10 cm at each side).
WARNING: Slots and openings in the cabinet are
provided for ventilation to ensure reliable operation
of the product, and to protect it from overheating.
To prevent re hazard, the openings should
never be blocked or covered with items (such as
newspapers, table-cloths, curtains) or by operating
the equipment on thick carpet or a bed.
Operating Environment: Operating environment
temperature and humidity: +5 °C to +35 °C (+41
°F to +95 °F); less than 85 %RH (cooling vents not
Do not install this unit in a poorly ventilated area,
or in locations exposed to high humidity or direct
sunlight (or strong articial light)
CAUTION: This product is a class 1 laser product
classied under the Safety of laser products,
IEC60825-1:2007. To ensure proper use of this
product, please read this owner’s manual carefully
and retain it for future reference. Shall the unit
require maintenance, contact an authorized service
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
HB516-RD1_BDEUPPK_ENG.indd 2 2011-06-02 �� 11:01:22Getting Started 3
This device is equipped with a portable battery or
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
Do not use or store batteries in direct sunlight or
other excessively hot place, such as inside a car
or near a heater. This can cause batteries to leak,
overheat, explode or catch re. It can also reduce
the life or performance of batteries.
When disposing of used batteries, please comply
with governmental regulations or environmental
public instruction's rules that apply in your
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
Information for users on collection and disposal
of old equipment and used batteries
These symbols on the products, packaging, and/
or accompanying documents mean that used
electrical and electronic products and batteries
should not be mixed with general household
For proper treatment, recovery and recycling of
old products and used batteries, please take them
to applicable collection points in accordance with
your national legislation.
By disposing of these products and batteries
correctly, you will help to save valuable resources
and prevent any potential negative eects on
human health and the environment which could
otherwise arise from inappropriate waste handling.
For more information about collection and
recycling of old products and batteries, please
contact your local municipality, your waste disposal
service or the point of sale where you purchased
These symbols are only valid in the European
For countries outside the European Union:
If you wish to discard these items, please contact
your local authorities or dealer and ask for the
correct method of disposal.
HB516-RD1_BDEUPPK_ENG.indd 3 2011-06-02 �� 11:01:22Getting Started4
For Wireless product European Union Notice
PIONEER hereby declares that
this/these product(s) is/are in
compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC, 2004/108/EC, 2006/95/EC
RF Radiation Exposure Statement
This equipment should be installed and operated
with minimum distance 20 cm between the
radiator and your body.
WARNING: To prevent a re hazard, do not place
any naked ame sources (such as a lighted candle)
WARNING: Before plugging in for the rst time, read
the following section carefully.
The voltage of the available power supply
diers according to country or region. Be sure
that the power supply voltage of the area
where this unit will be used meets the required
voltage (e.g., 230 V or 120 V) written on the rear
STANDBY/ON switch on this
unit will not completely shut o all power from
the AC outlet. Since the power cord serves as
the main disconnect device for the unit, you will
need to unplug it from the AC outlet to shut
down all power. Therefore, make sure the unit
has been installed so that the power cord can be
easily unplugged from the AC outlet in case of
an accident. To avoid re hazard, the power cord
should also be unplugged from the AC outlet when
left unused for a long period of time (for example,
CAUTION: This product is for general household
purposes. Any failure due to use for other than
household purposes (such as long-term use for
business purposes in a restaurant or use in a car or
ship) and which requires repair will be charged for
even during the warranty period.
Because AACS (Advanced Access Content
System) is approved as content protection
system for Blu-ray Disc format, similar to use of
CSS (Content Scramble System) for DVD format,
certain restrictions are imposed on playback,
analog signal output, etc., of AACS protected
contents. The operation of this product and
restrictions on this product may vary depending
on your time of purchase as those restrictions
may be adopted and/or changed by AACS after
the production of this product.
Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for Blu-ray Disc format, which imposes certain
restrictions including playback restrictions for
BD-ROM Mark and/or BD+ protected contents.
To obtain additional information on AACS, BD-
ROM Mark, BD+, or this product, please contact
an authorized Customer Service Center.
Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
HB516-RD1_BDEUPPK_ENG.indd 4 2011-06-02 �� 11:01:22Getting Started 5
The colour system of this player diers according to
currently playing discs.
For example, when the player plays the disc
recorded in the NTSC colour system, the image is
output as an NTSC signal.
Only the multi system colour TV can receive all
signals output from the player.
If you have a PAL colour system TV, you will see
just distorted images when using discs or video
contents recorded in NTSC.
The multi system colour TV changes the colour
system automatically according to input signals.
In case that the colour system is not changed
automatically, turn it o and then on to see
normal images on screen.
Even if the disc recorded in NTSC colour system
are well displayed on your TV, these may not be
recorded correctly on your recorder.
HB516-RD1_BDEUPPK_ENG.indd 5 2011-06-02 �� 11:01:22Table of Contents6
8 – Playable Discs and symbols used in
9 – About the “7” Symbol Display
10 – Supplied Accessories
10 – Accessories of speaker box
10 – Accessories of speaker box
10 – Accessories of speaker box
11 – File compatibility
12 – AVCHD (Advanced Video Codec High

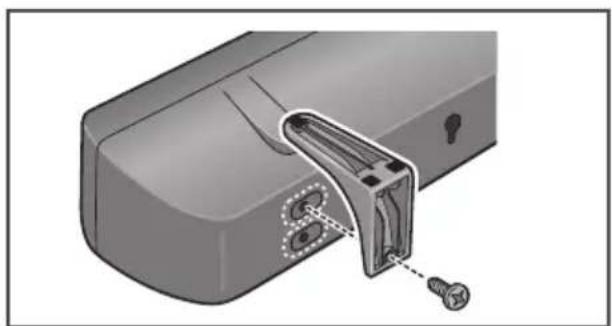

16 Assemble the speakers
16 – Speaker Setup for BCS-SB616
18 – Wall mounting the speaker for
19 – Additional notes on speaker
placement for BCS-SB616

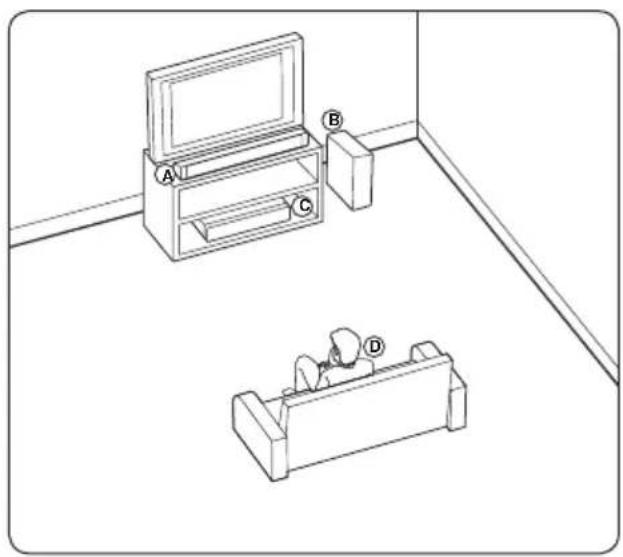

19 – Positioning the system for

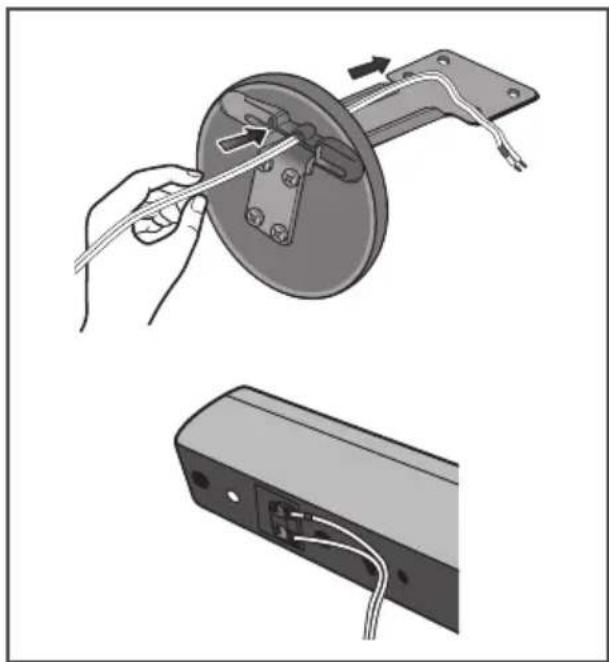

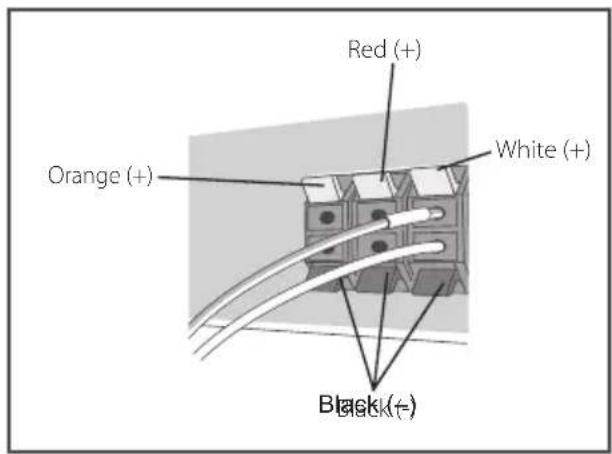

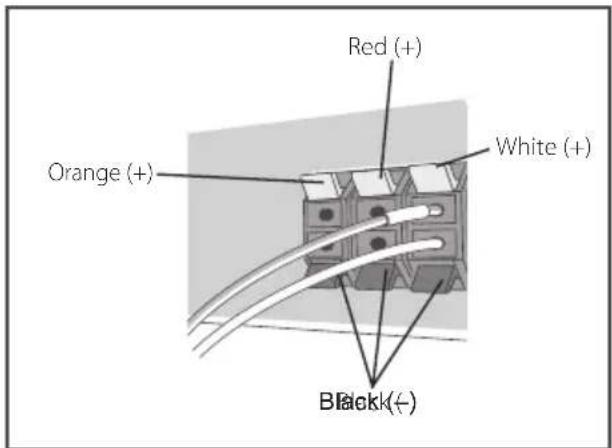

20 – Speaker Setup for BCS-FS515

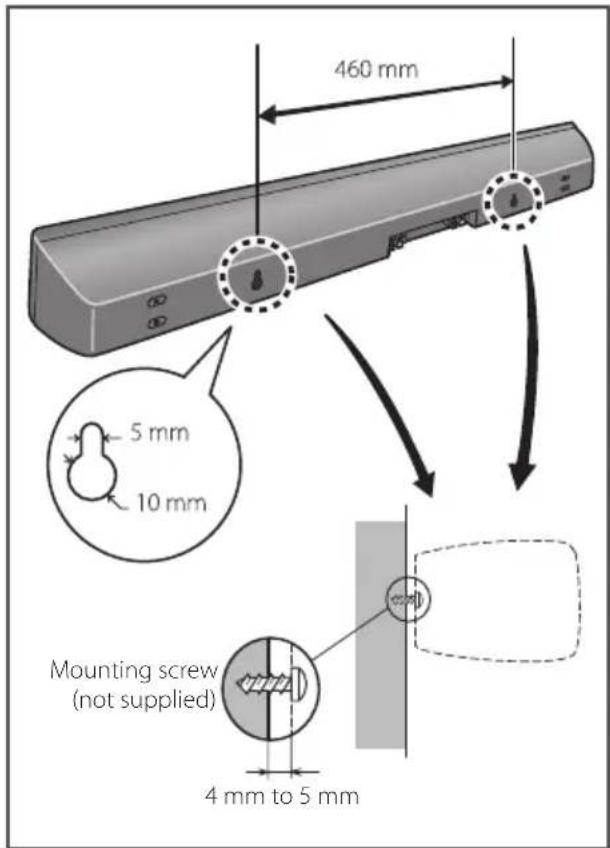

23 – Wall mounting the speakers for
24 – Additional notes on speaker
placement for BCS-FS515

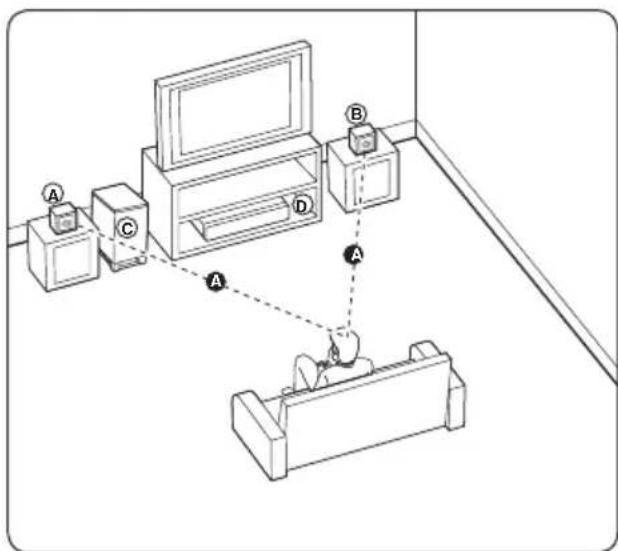

24 – Positioning the system for BCS-FS515
25 Connecting to Your TV

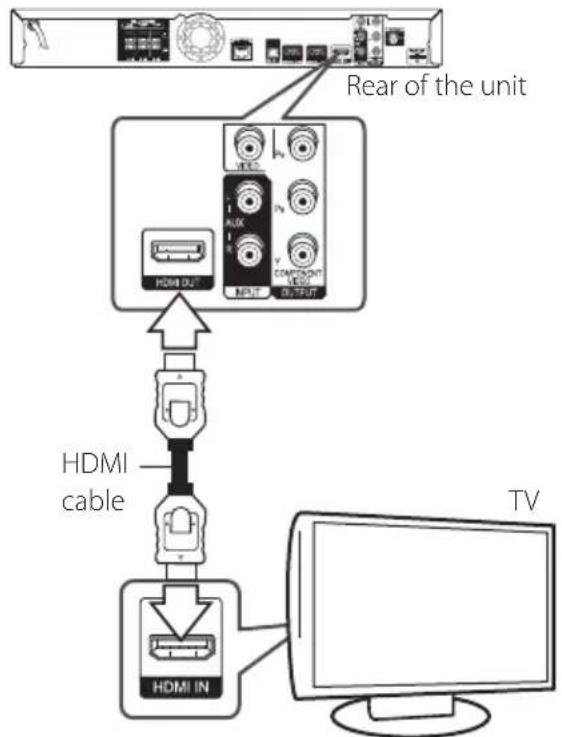

25 – HDMI Connection

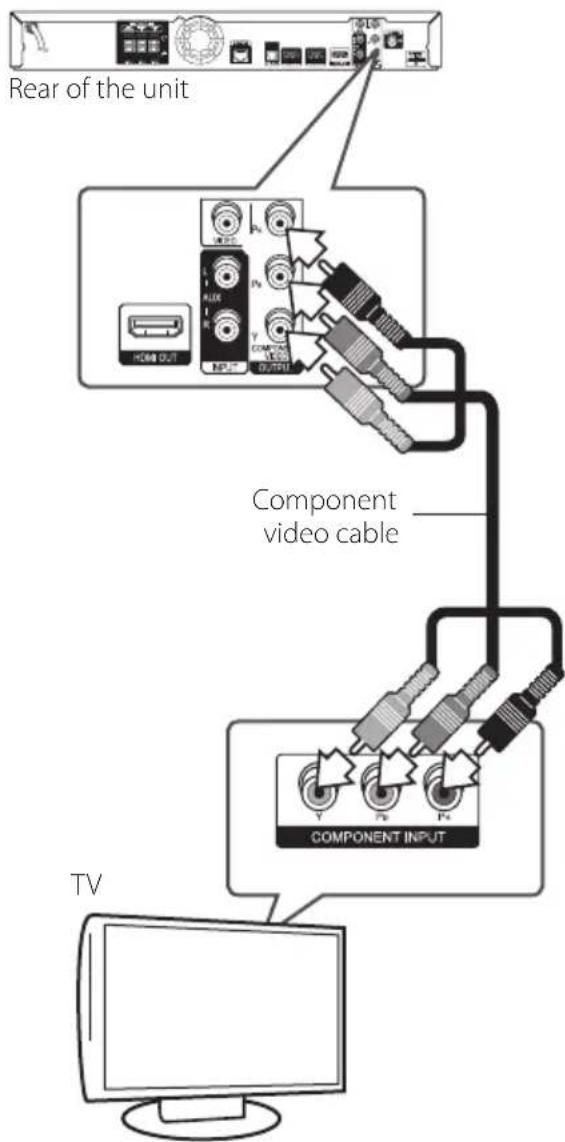

27 – Video Connection

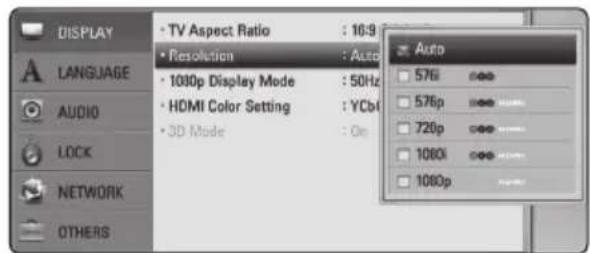

28 – Resolution Setting

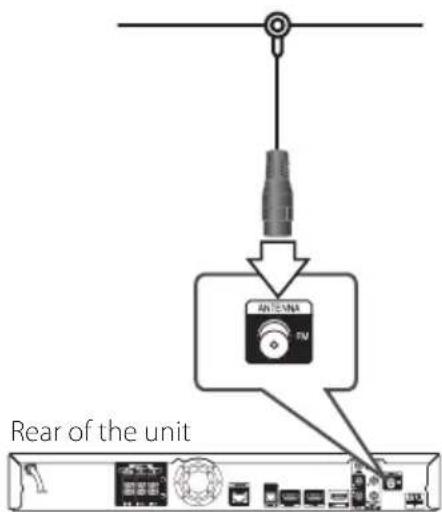

28 Antenna connection
29 Connections with external device

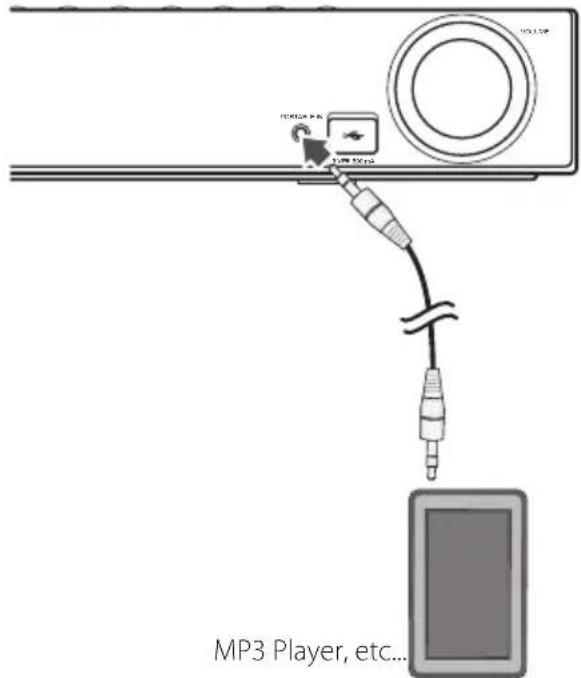

29 – PORTABLE IN connection

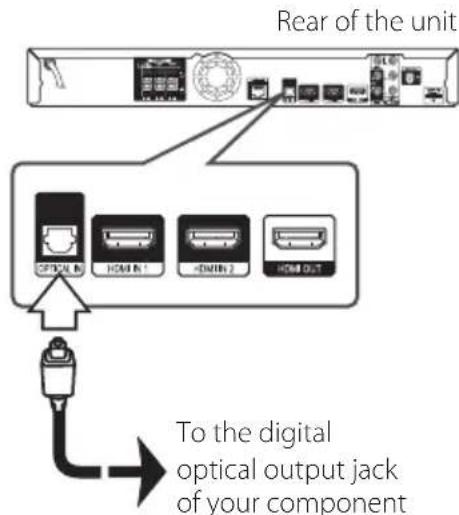

30 – OPTICAL IN connection

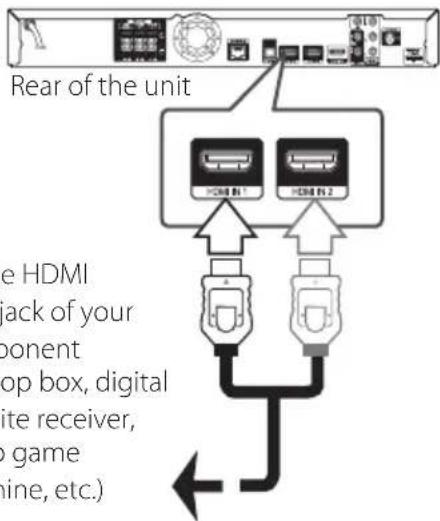

30 – HDMI IN 1/2 connection
31 Connecting to your Home Network
31 – Wired network connection
32 – Wired Network Setup

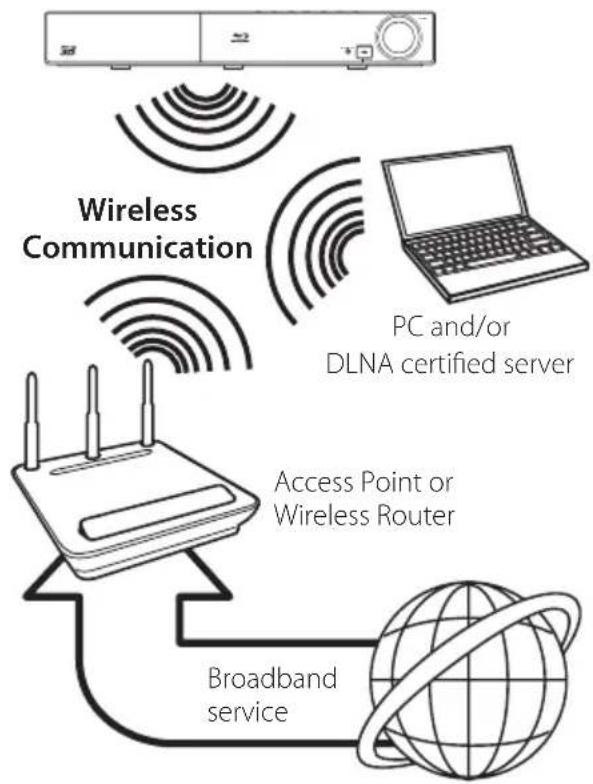

33 – Wireless Network Connection

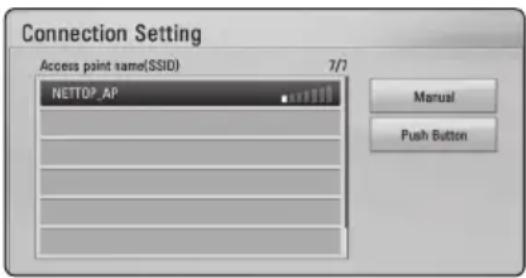

33 – Wireless Network Setup
36 USB device connection

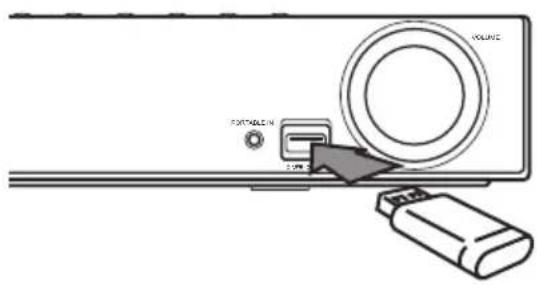

36 – Playback content in the USB device

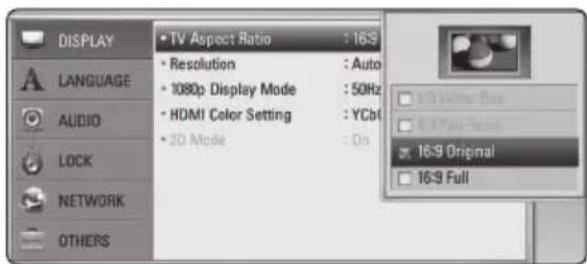

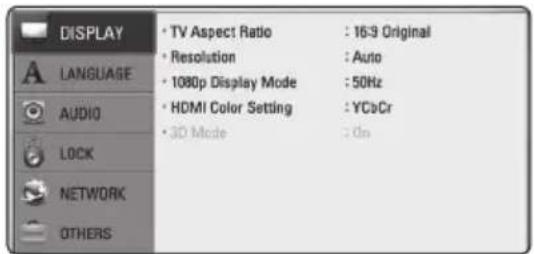

37 – Adjust the Setup Settings
44 – Playing a file on a disc/USB device
45 – Playing Blu-ray 3D disc
45 – Enjoying BD-Live™
46 – Playing a file on a network server
47 – Basic operations for video and audio
47 – Basic operations for photo content
47 – Using the disc menu
48 – Resume playback
49 Advanced Playback
49 – Repeat Playback
49 – Repeating a specific portion
49 – Enlarge the playback image
50 – Using the search menu
51 – Selecting a subtitle file
51 – Last Scene Memory

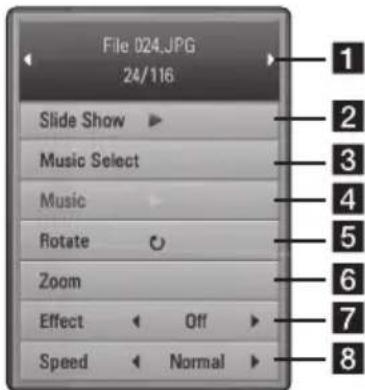

52 – Options while viewing a photo

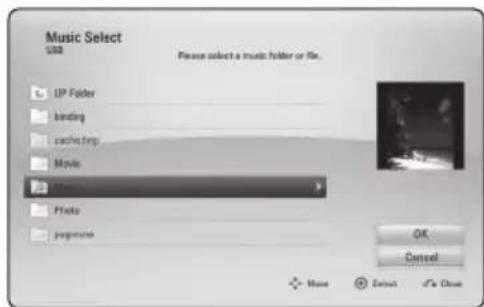

52 – Listening to music while slide show

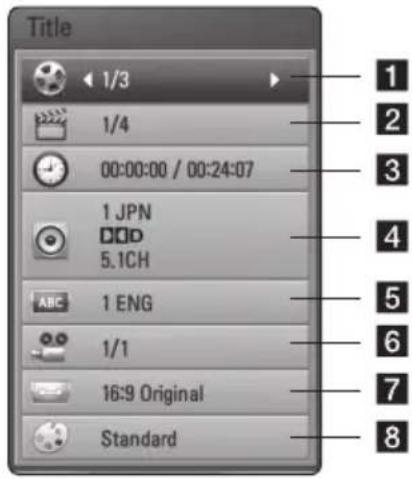

53 On-Screen display
53 – Displaying content information on-
54 – Playing from selected time
54 – Hearing a different audio
54 – Selecting a subtitle language
54 – Watching from a different angle
55 – Changing the TV Aspect Ratio

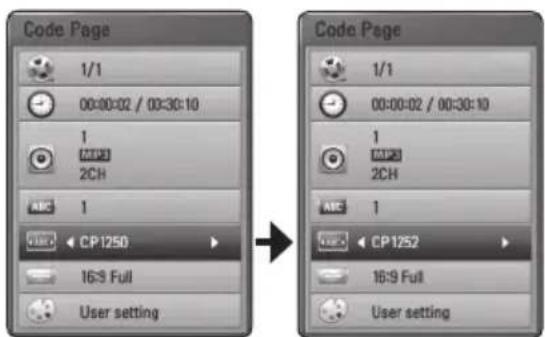

55 – Changing subtitle code page

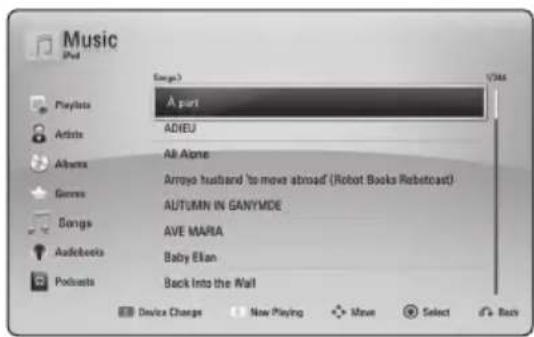

57 – Enjoying iPod on the screen
58 – Enjoying the iPod IN mode
59 – Presetting the Radio Stations
59 – Deleting a saved station
59 – Deleting all the saved stations
59 – Improving poor FM reception
59 – See information about a radio station

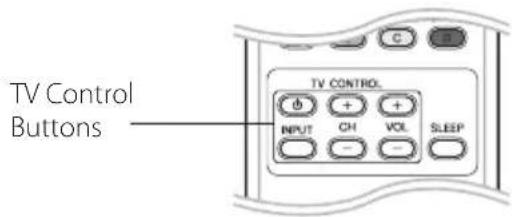

64 Controlling a TV with the Supplied
64 – Setting up the remote to control your
67 Trademarks and Licenses
Playable Discs and symbols used in this manual
Discs such as movies that can be purchased or
BD-R/RE discs that are recorded in BDAV format.
BD-R/RE discs that contain Movie, Music or
Discs such as movies that can be purchased or
Video mode and nalized only
Supports the dual layer disc also
Finalized AVCHD format
VR mode and nalized only
Indicates special notes and operating features.
Indicates cautions for preventing possible
Depending on the conditions of the
recording equipment or the CD-R/RW (or
DVD±R/RW) disc itself, some CD-R/RW (or
DVD±R/RW) discs cannot be played on the
Depending on the recording software & the
nalization, some recorded discs (CD-R/RW,
DVD±R/RW, BD-R/RE) may not be playable.
BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a
DVD or CD Recorder may not play if the
disc is damaged or dirty, or if there is dirt or
condensation on the player’s lens.
If you record a disc using a personal
computer, even if it is recorded in a
compatible format, there are cases in which
it may not play because of the settings of
the application software used to create the
disc. (Check with the software publisher for
more detailed information.)
This player requires discs and recordings to
meet certain technical standards in order to
achieve optimal playback quality.
Pre-recorded DVDs are automatically set to
these standards. There are many dierent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and
these require certain pre-existing conditions
to ensure compatible playback.
Customers should note that permission
is required in order to download MP3 /
WMA les and music from the Internet.
Our company has no right to grant such
permission. Permission should always be
sought from the copyright owner.
You have to set the disc format option
to [Mastered] in order to make the
discs compatible with the players when
formatting rewritable discs. When setting
the option to Live File System, you cannot
use it on the player. (Mastered/Live File
System : Disc format system for Windows
Vista® and Windows 7®)
BDXL cannot be supported.
” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
Supplied Accessories
Accessories of speaker box
Colour-coded Speaker
Accessories of speaker box
Speaker cable (1) Large non-skid pads
Accessories of speaker box
Colour-coded Speaker
Large screws (4) Speaker stand bases
(.txt), DVD Subtitle System (.txt)
Sampling Frequency Bitrate Note
within 32 - 48 kHz (WMA),
within 16 - 48 kHz (MP3)
within 20 - 320 kbps
not supported on this
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
Progressive and lossless
compression photo image les
HB516-RD1_BDEUPPK_ENG.indd 11 2011-06-02 �� 11:01:25Getting Started12Getting Started 1
y The le name is limited to 180 characters.
y Maximum les/folder: Less than 2 000 (total number of les and folders)
y Depending on the size and number of the les, it may take several minutes to read the contents on the media.
y File compatibility may dier depending on the server.
y The le requirements on page 11 are not always compatible. There may have some restrictions by le features and media server’s ability.
y Playing a movie subtitle les are not supported on this player.
y The les from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly.
y This unit cannot support the ID3 Tag embedded MP3 le.
y The total playback time of audio le indicated on the screen may not correct for VBR les.
y HD movie les contained on the CD or USB 1.0/1.1 may not played properly. Blu-ray Disc, DVD or USB 2.0 are recommended to play back HD movie les.
y This player supports H.264/MPEG-4 AVC prole Main, High at Level 4.1. For a le with higher level, the warning message will appear on the screen.
y This player does not support les that are recorded with GMC *
AVCHD (Advanced Video
Codec High Definition)
y This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
y The AVCHD format is a high denition digital video camera format.
y The MPEG-4 AVC/H.264 format is capable of compressing images at higher eciency than that of the conventional image compressing format.
y This player can playback AVCHD discs using “x.v.Colour” format.
y Some AVCHD format discs may not play depending on the recording condition.
y AVCHD format discs need to be nalized.
y “x.v.Colour” oers a wider colour range than normal DVD camcorder discs. About DLNA This Player is a DLNA Certied digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media server (PC and Consumer Electronics).The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.The DLNA certication logo makes it easy to nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information. HB516-RD1_BDEUPPK_ENG.indd 12 2011-06-02 �� 11:01:25Getting Started 13
High denition display that has COMPONENT or
BD-ROM disc with high denition content.
HDMI or HDCP capable DVI input on your display
device is required for some content (as specied

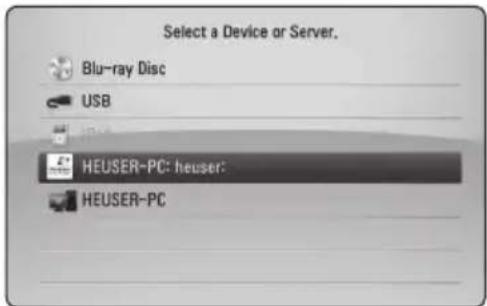

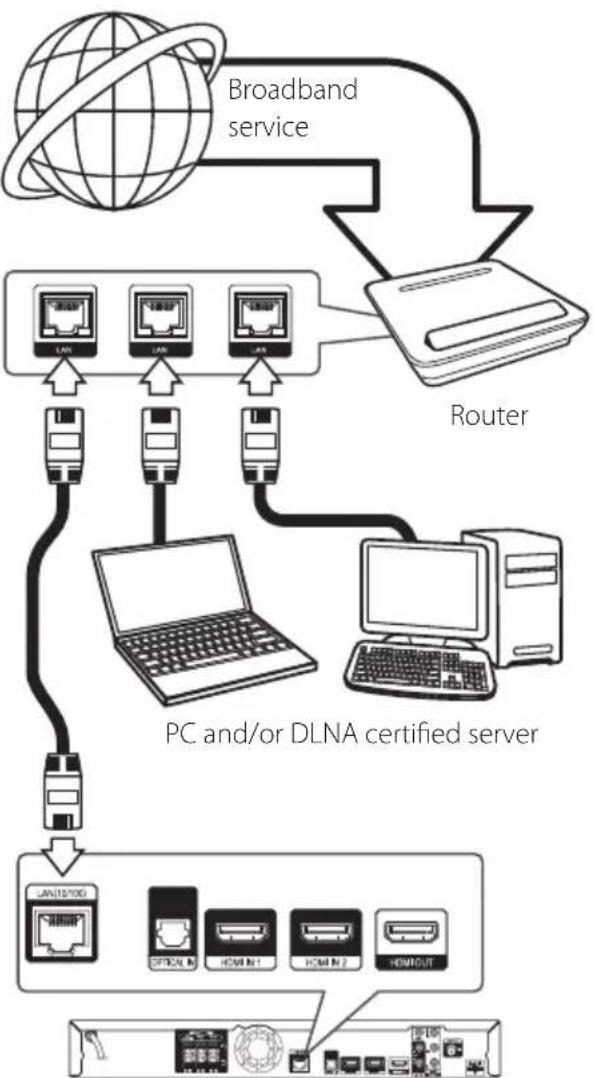

For playing les on your PC’s share folder via your
home network, the PC requires below.
Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required)
Windows 7® (no Service Pack required)
1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors
Network environment: 100 Mb Ethernet, WLAN
(IEEE 802.11a/b/g/n)
More than 1 folder on your PC has to be shared.
Visit support link of your operating system for
more information on le share settings.
This unit has a regional code printed on the rear of
the unit. This unit can play only BD-ROM or DVD
discs labeled same as the rear of the unit or “ALL”.
Because BD-ROM is a new format, certain disc,
digital connection and other compatibility issues
are possible. If you experience compatibility
problems, please contact an authorized
Customer Service Center.
This unit allows you to enjoy functions such
as picture-in-picture, secondary audio and
Virtual packages, etc., with BD-ROM supporting
BONUSVIEW (BD-ROM version 2 Prole 1 version
1.1/ Final Standard Prole). Secondary video and
audio can be played from a disc compatible with
the picture-in-picture function. For the playback
method, refer to the instructions in the disc.
Viewing high-denition content and up-
converting standard DVD content may require a
HDMI-capable input or HDCP-capable DVI input
on your display device.
Some BD-ROM and DVD discs may restrict the
use of some operation commands or features.
Dolby TrueHD, Dolby Digital Plus and DTS-HD are
supported with maximum 5.1 channels if you
use HDMI connection for the audio output of the
You can use a USB device to store some disc
related information, including downloaded on-
line content. The disc you are using will control
how long this information is retained.
HB516-RD1_BDEUPPK_ENG.indd 13 2011-06-02 �� 11:01:25Getting Started14Getting Started 1

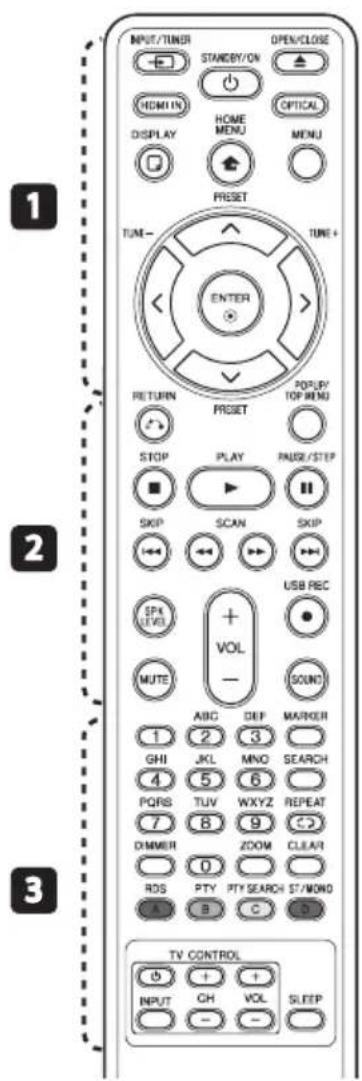

Battery Installation Remove the battery cover on the rear of the Remote Control, and insert an R03 (size AAA) battery with 4 and 5 matched correctly.• • • • • • • • • a

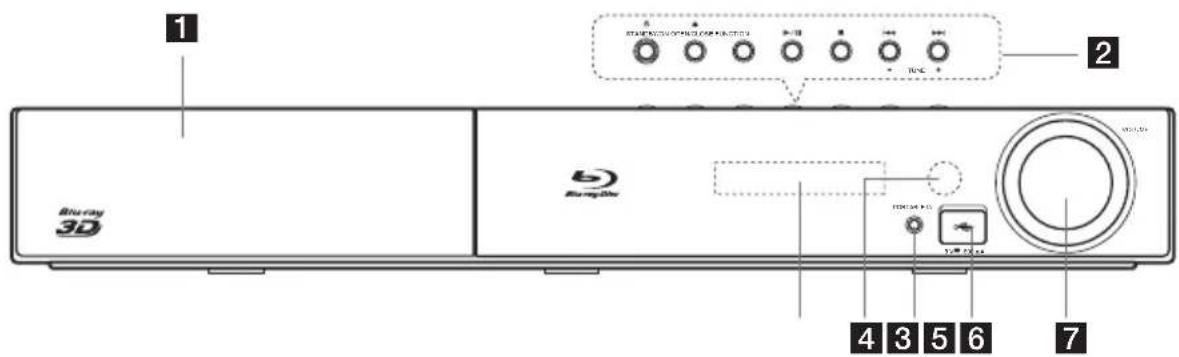

Switches the player ON or OFF.

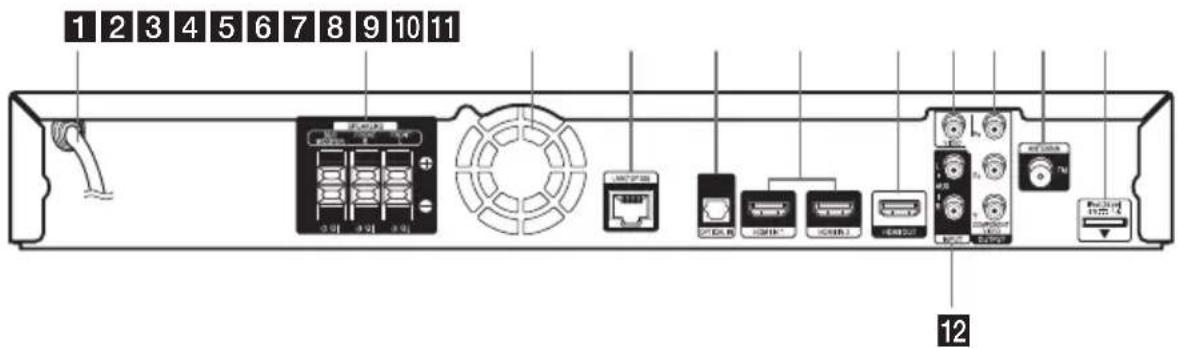

OUTPUT (PROGRESSIVE SCAN)

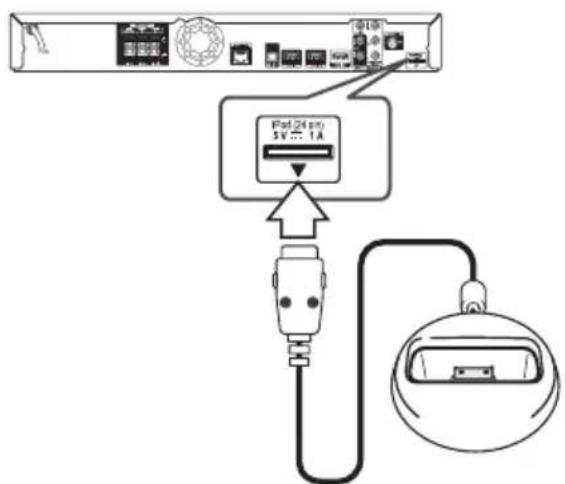

Connect to the furnished iPod cradle.

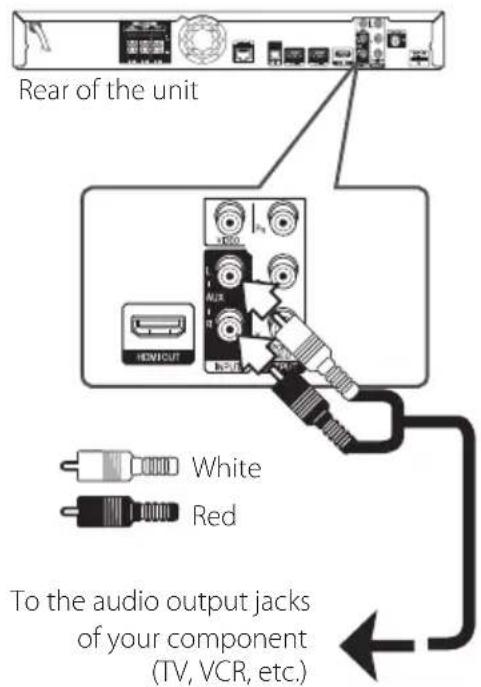

AUX (L/R) INPUT HB516-RD1_BDEUPPK_ENG.indd 15 2011-06-02 �� 11:01:252 Connecting Connecting16Connecting 2

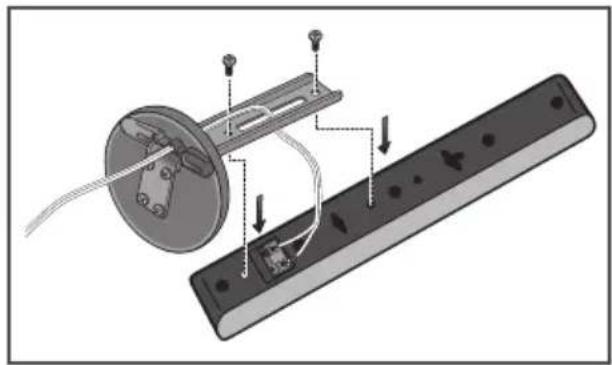

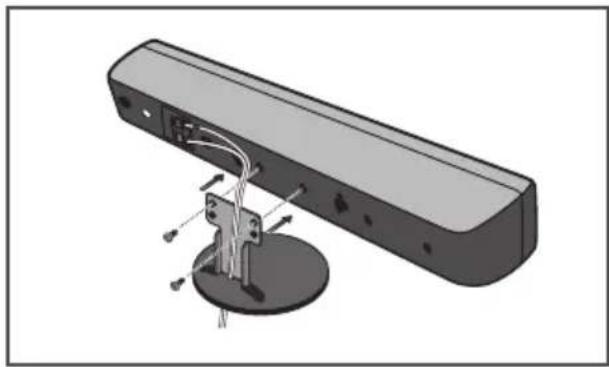

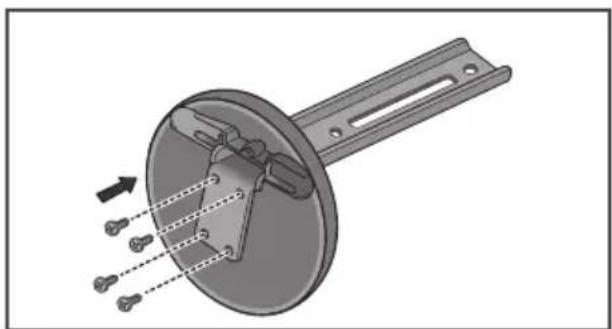

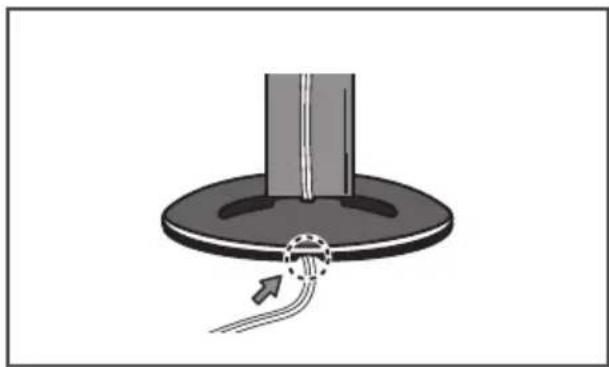

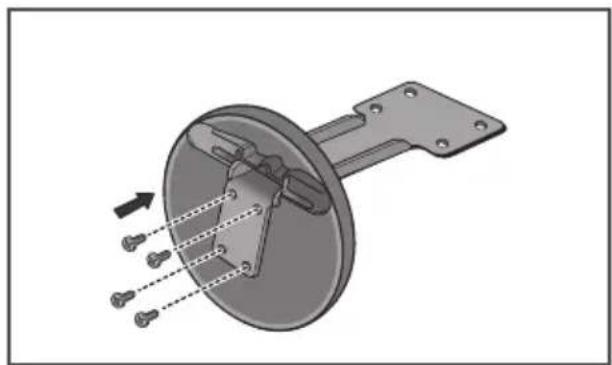

Assemble the speakers
Speaker Setup for BCS-SB616

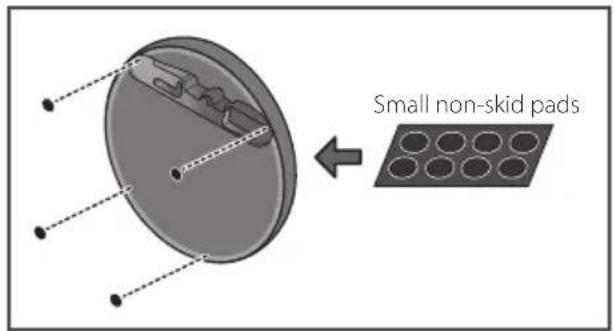

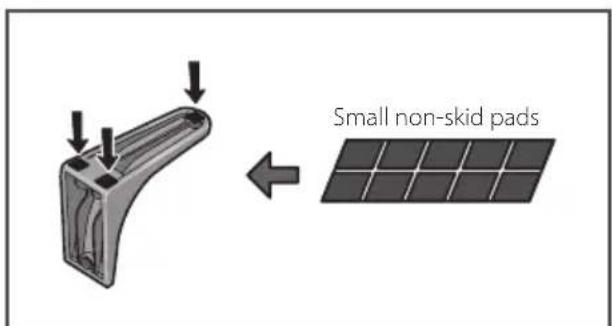

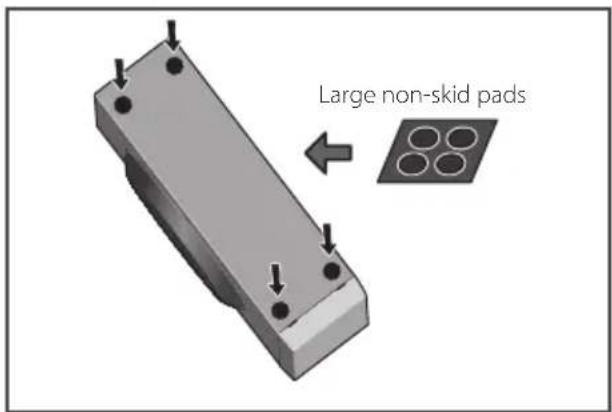

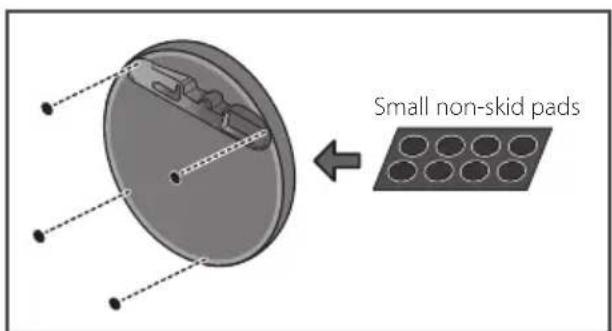

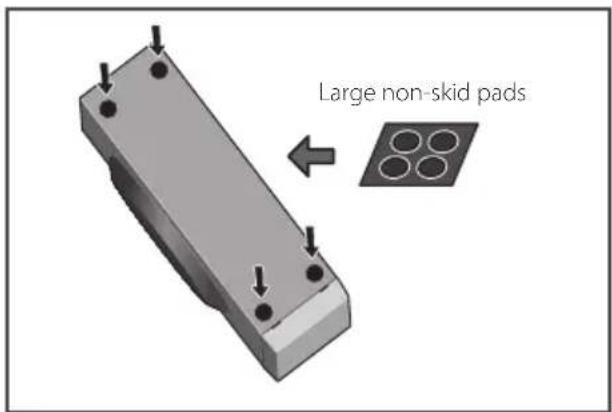

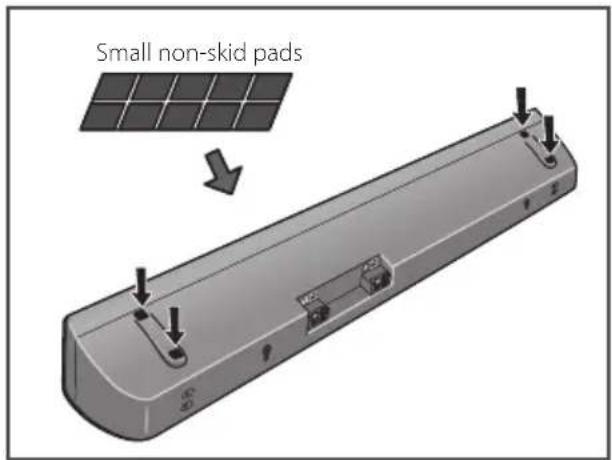

Preparing the speakers For subwoofer:Use the supplied adhesive to attach four large pads to the base of subwoofer.Large non-skid padsFor front speaker:Assembling the speaker stands and securing your front speaker.1. Use the supplied adhesive to attach three small pads to the base (bottom) of each speaker stand.Small non-skid padsIf you decide not to use the speaker stands, use the supplied adhesive to attach four small pads to the base of the speaker.Small non-skid pads2. Attach the speaker stand bases to the speaker.Attach both right and left speaker stands to the rear of the speaker. The height of the speaker stands can be adjusted in two levels; select the height you prefer, and x in position.
y Be careful not to tighten screws excessively.
y If excessive force is used to tighten screws, the threads of screw may be damaged. Use a middle-sized manual screwdriver during assembly.
y Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws.
y Conrm that no foreign matter is stuck to the stand or the speaker during assembly.
y If the unit is assembled with foreign matter stuck between the stand and the speaker the unit may not be assembled securely, resulting in tipping or falling. ,>

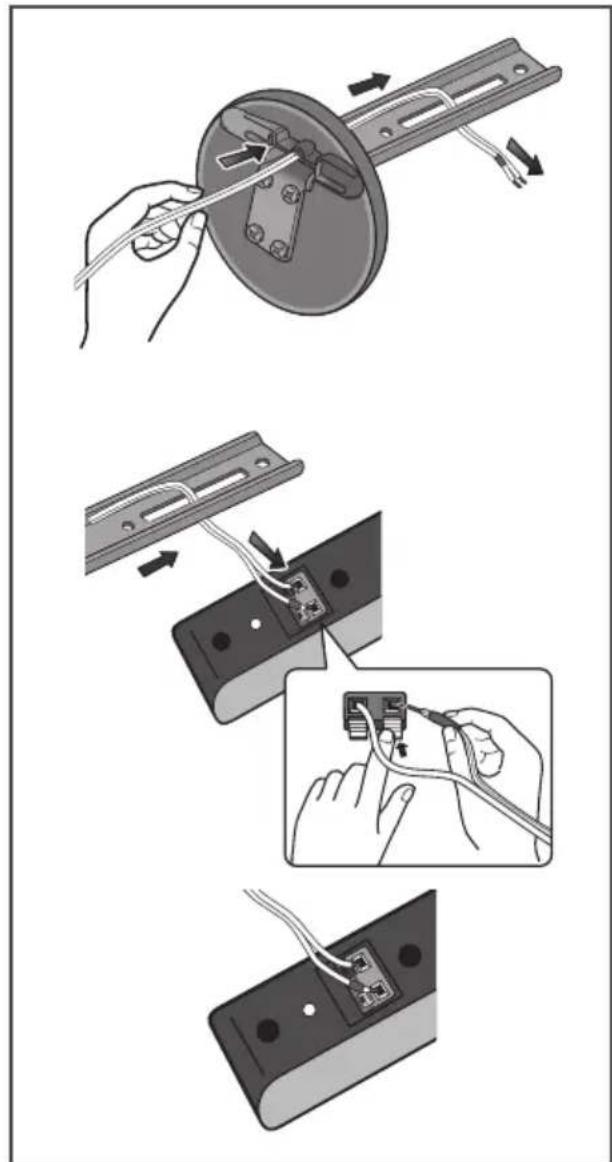

3. Connect each speaker.
Connect the wires to the speaker.

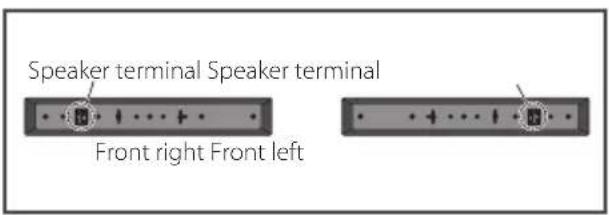

The rear of the speaker has channel terminals
(Right/Left), together with color-coded labels.
Match the color-coded wire with the color
indicator on the label, then insert the
colorcoded wire into the red (+) side and the
other wire into the black (–) side.
Connect the white wire with gray line into (+)
side and the other wire into (–) side. To connect
the cable to the player, press each plastic nger
pad to open the connection terminal. Insert the
wire and release the nger pad.

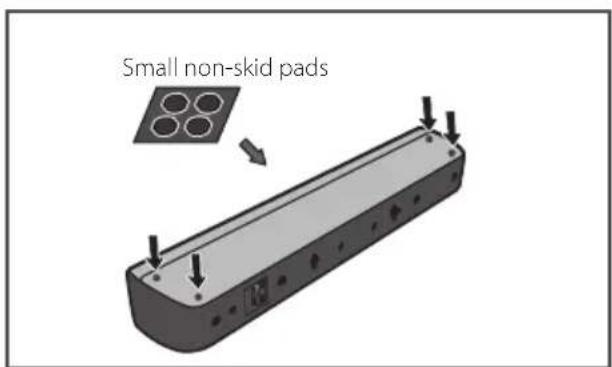

small non-skid pads Large non-skid pads
Do not connect any speakers other than
those supplied to this system.
Do not connect the supplied speakers to
any amplier other than the one supplied
with this system. Connection to any other
amplier may result in malfunction or re.
Please connect the speaker cable of
subwoofer (purple) to orange of the player.
These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric
shock when connecting or disconnecting
the speaker cables, disconnect the power
cord before touching any uninsulated parts.

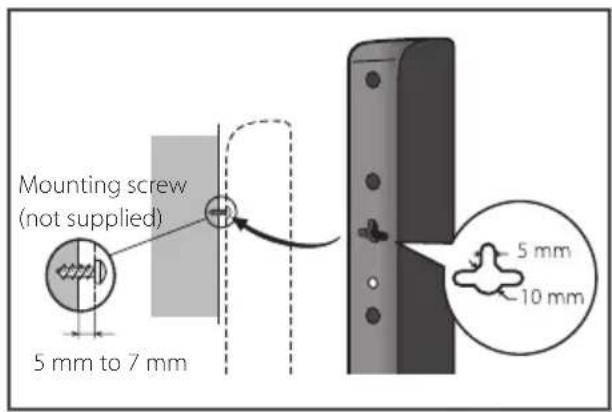

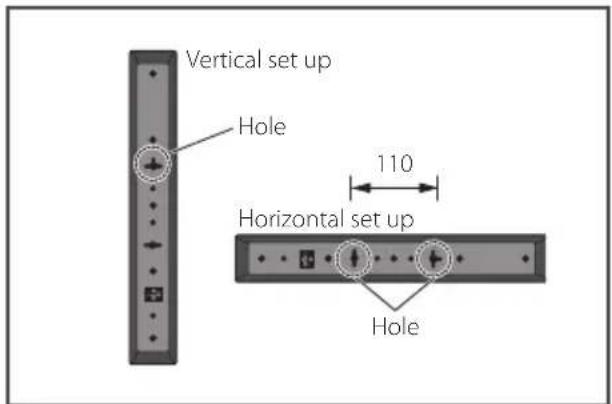

Wall mounting the speaker for
The speaker have the mounting holes which can
be used to mount the speaker on the wall.
Remember that the speaker system is heavy and
that its weight could cause the screws to work
loose, or the wall material to fail to support it,
resulting in the speaker falling. Make sure that
the wall you intend to mount the speaker on is
strong enough to support them. Do not mount
on plywood or soft surface walls.
Mounting screws are not supplied. Use screws
suitable for the wall material and support the
weight of the speaker.
If you are unsure of the qualities and
strength of the wall, consult a professional
Pioneer is not responsible for any accidents
or damage that result from improper
When mounting the speaker on a wall,
install it so that it is parallel to the oor.
When mounting the speaker on a wall, do
not attach the accessory speaker stands.
Caution Mounting screw (not supplied)4 mm to 5 mm HB516-RD1_BDEUPPK_ENG.indd 18 2011-06-02 �� 11:01:26Connecting 19
Additional notes on speaker
placement for BCS-SB616
Install the speaker below the TV, in the center
Do not rest the speaker on the TV itself.
Make sure that all the bare speaker wire is
twisted together and inserted fully into the
speaker terminal. If any of the bare speaker wire
touches the back panel it may cause the power
to cut o as a safety measure.
The front speaker and subwoofer are not
magnetically shielded and so should not be
placed near a TV or monitor. Magnetic storage
media (such as oppy discs and tape or video
cassettes) should also not be kept close to the
front speaker and subwoofer.
Do not attach the subwoofer to a wall or ceiling.
They may fall o and cause injury.
Positioning the system for
BA C D A B C D AAADBCAA B C D Front speaker
AAADBCAA B C D Subwoofer:
The position of the subwoofer is not so critical,
because low bass sounds are not highly directional.
But it is better to place the subwoofer near the
front speaker. Turn it slightly toward the center of
the room to reduce the wall reections.
AAADBCAA B C D Listening position
Be careful to make sure children do not
put their hands or any objects into the
*subwoofer duct: A hole for plentiful bass
The speakers contain magnet parts, so
colour irregularity may occur on the TV
screen or PC monitor screen. Please use the
speakers away from the TV screen or PC
Speaker Setup for BCS-FS515
Preparing the speakers
Use the supplied adhesive to attach four large pads
to the base of subwoofer.
Assembling the speaker stands and securing your
For vertical instllation
1. Use the supplied adhesive to attach 4 small
pads to the speaker stand base.
2. Insert the large pole from the holes behind the
base and secure with the 4 screws.
3. Insert the speaker cord from the hole behind
the base through to the pole and connect it to
the speaker terminal. After connecting, put the
speaker wire in the gap on the back side of the
Match the colour-corded wire with the colour
indicator on the label, then insert the colour-
corded wire into the red (+) side and the other
wire into the black (–) side.
HB516-RD1_BDEUPPK_ENG.indd 20 2011-06-02 �� 11:01:27Connecting 21
4. Secure the speaker and the pole with 2 screws.
Ensure that the speaker wire does not get
pinched between the speaker and the pole.
For horizontal installation
1. Use the supplied adhesive to attach 4 small
pads to the speaker stand base.
2. Insert the small pole from the holes behind the
base and secure with the 4 screws.
3. Insert the speaker cord from the hole behind
the base through to the pole and connect it to
the speaker terminal. After connecting, put the
speaker wire in the gap on the back side of the
Match the colour-corded wire with the colour
indicator on the label, then insert the colour-
corded wire into the red (+) side and the other
wire into the black (–) side.
4. Secure the speaker and the pole with 2 screws.
Ensure that the speaker wire does not get
pinched between the speaker and the pole. The
height of the speaker stands can be adjusted in
two levels; select the height you prefer, and x
5. After connecting, put the speaker wire in the
back of the base of the stand.
HB516-RD1_BDEUPPK_ENG.indd 21 2011-06-02 �� 11:01:2822
6. Connect the wires to the player.
Connect the white wire with gray line into (+)
side and the other wire into (–) side. To connect
the cable to the player, press each plastic nger
pad to open the connection terminal. Insert the
wire and release the nger pad.
small non-skid pads Large non-skid pads
For direct installation
Use the supplied adhesive to attach 4 pads to the
base of the front speakers.
Do not connect any speakers other than
those supplied to this system.
Do not connect the supplied speakers to
any amplier other than the one supplied
with this system. Connection to any other
amplier may result in malfunction or re.
Please connect the speaker cable of
subwoofer (purple) to orange of the player.
These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric
shock when connecting or disconnecting
the speaker cables, disconnect the power
cord before touching any uninsulated parts.
Wall mounting the speakers
Remember that the speaker system is heavy and
that its weight could cause the screws to work
loose, or the wall material to fail to support it,
resulting in the speaker falling. Make sure that
the wall you intend to mount the speakers on is
strong enough to support them. Do not mount
on plywood or soft surface walls.
Mounting screws are not supplied. Use screws
suitable for the wall material and support the
weight of the speaker.
If you are unsure of the qualities and
strength of the wall, consult a professional
Pioneer is not responsible for any accidents
or damage that result from improper
Caution Mounting screw (not supplied)5 mm to 7 mm Attaching the speakers
The front speaker can be hung vertically or
horizontally on the wall. Use one hole to hang it
vertically and two holes to hang it horizontally. The
illustration below shows the front right speaker.
Hole Vertical set up Hole
110 Horizontal set up When installing the speaker horizontally, set it up
so that the speaker terminal on the back side of the
speaker is on the outside on the end of the surface,
farthest away from the other speaker. Front right Front leftSpeaker terminal Speaker terminal HB516-RD1_BDEUPPK_ENG.indd 23 2011-06-02 �� 11:01:28Connecting24
Additional notes on speaker
placement for BCS-FS515
Install the main front left and right speakers at an
equal distance from the TV.
Make sure that all the bare speaker wire is
twisted together and inserted fully into the
speaker terminal. If any of the bare speaker wire
touches the back panel it may cause the power
to cut o as a safety measure.
The front speakers and subwoofer is not
magnetically shielded and so should not be
placed near a TV or monitor. Magnetic storage
media (such as oppy discs and tape or video
cassettes) should also not be kept close to the
front speakers and subwoofer.
Do not attach the subwoofer to a wall or ceiling.
They may fall o and cause injury.
Positioning the system for
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions dier from the actual unit for
explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
AAADBCAA B C D Front right speaker (R):
Place the front speakers to the sides of the monitor
or screen and as ush with the screen surface as
AAADBCAA B C D Subwoofer:
The position of the subwoofer is not so critical,
because low bass sounds are not highly directional.
But it is better to place the subwoofer near the
front speakers. Turn it slightly toward the center of
the room to reduce the wall reections.
Be careful to make sure children do not
put their hands or any objects into the
*subwoofer duct: A hole for plentiful bass
The speakers contain magnetic parts, so
colour irregularity may occur on the TV
screen or PC monitor screen. Please use the
speakers away from the TV screen or PC
Connecting to Your TV Make one of the following connections, depending on the capabilities of your existing equipment.
y Component Video connection (page 27)
y Video connection (page 27)
y Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.
y Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.
y Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel.
y Do not connect your player via your VCR. The image could be distorted by the copy protection system. ,
HDMI Connection If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI™ Cable with Ethernet). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.Rear of the unit TV HDMI cableSet the TV’s source to HDMI (refer to TV’s Owner’s manual). Additional Information for HDMI
y When you connect a HDMI or DVI compatible device make sure of the following:
- Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.
- The connected device’s video input is set correctly for this unit.
- The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.
y Not all HDCP-compatible HDMI or DVI devices will work with this player.
- The picture will not be displayed properly with non-HDCP device. HB516-RD1_BDEUPPK_ENG.indd 25 2011-06-02 �� 11:01:28Connecting26
If a connected HDMI device does not accept
the audio output of the player, the HDMI
device’s audio sound may be distorted or
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 28.)
Select the type of video output from the
option on the [Setup] menu (see page 38).
Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the player and then turn it
When the HDMI connection with HDCP
is not veried, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
If there are noises or lines on the screen,
please check the HDMI cable (length is
generally limited to 4.5 m(15 ft.)).
The ARC function enables an HDMI capable TV to
send the audio stream to HDMI OUT of this player.
To use this function:
Your TV must support the ARC function and
the ARC of this player must be set to On (Initial
The setting method of ARC may dier depending
on the TV. For details about ARC function, refer
You must use the HDMI cable (Type A, High
Speed HDMI™ Cable with Ethernet).
You must connect with the HDMI IN of TV that
You can connect only one Home Theater to TV
compatible with ARC.
The ARC function does not warrant that the
function works in all cases even if the above
conditions are satised.
When you use the ARC function, CEC (Consumer
Electronics Control) may work. If you do not want
to use CEC, you can stop it work by setting "ARC O" on Home Menu. In this case, it is needed to
connect TV and this player by an optical cable to
send the audio stream to this player.
HB516-RD1_BDEUPPK_ENG.indd 26 2011-06-02 �� 11:01:29Connecting 27
Component Video Connection
Connect the COMPONENT VIDEO OUT jacks on the
player to the corresponding input jacks on the TV
using component video cable. You can hear the
sound the through the system’s speaker.
TV When you use COMPONENT VIDEO OUT
connection, you can change the resolution for
the output. (Refer to “Resolution setting” on

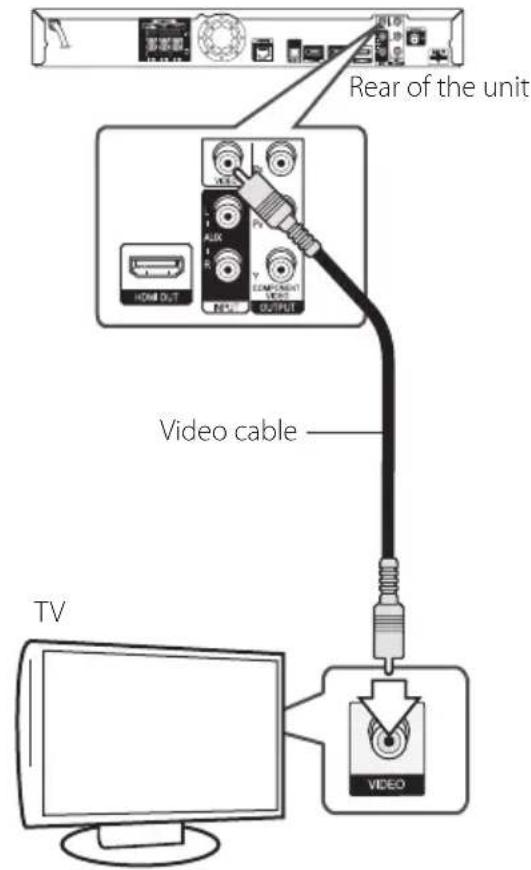

Connect the VIDEO OUT jack on the player to the
video in jack on the TV using a video cable. You can
hear the sound through the system’s speakers.
Resolution Setting The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUTPUT jacks. You can change the resolution using [Setup] menu.1. Press HOME MENU ( n
). 2. Use A/D to select the [Setup] and press ENTER (
b ). The [Setup] menu appears.3. Use W/S to select [DISPLAY] option then press D to move to the second level. 4. Use W/S to select the [Resolution] option then press ENTER ( b ) to move to the third level.5. Use W/S to select the desired resolution then press ENTER ( b ) to conrm your selection.
y If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:1. Press B to open the disc tray.2 Press Z (STOP) for more than 5 seconds.
y Since several factors aect the resolution of video output, see “Video Output Resolution” on page 69. ,
Antenna connection Connect the supplied antenna for listening to the radio.Rear of the unitAfter connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna. ,
You can enjoy the sound from an external
component through the speakers of this system.
Connect the analog audio output jacks of your
component into the AUX L/R (INPUT) on this unit.
And then select the [AUX] option by pressing
INPUT/TUNER and ENTER (
You can also use the FUNCTION button on the front
PORTABLE IN connection
You can enjoy the sound from your portable audio
player through the speakers of this system.
Connect the headphones (or line out ) jack of the
portable audio player into the PORTABLE IN socket
of this unit. And then select the [PORTABLE] option
by pressing INPUT/TUNER and ENTER (
You can also use the FUNCTION button on the front
OPTICAL IN connection
You can enjoy the sound from your component
with a digital optical connection through the
speakers of this system.
Connect the optical output jack of your component
into the OPTICAL IN jack on the unit. And then
select the [OPTICAL] option by pressing INPUT/
You can also use the FUNCTION button on the front
HDMI IN 1/2 connection
You can enjoy the pictures and sound from your
component through this connection.
Connect the HDMI OUT jack of your component
into the HDMI IN 1 or 2 jack on this unit. And then
select the [HDMI IN 1/2] option by pressing INPUT/
You can also use the FUNCTION button on the front
panel to select the input mode.
To the HDMI OUT jack of your
(set-top box, digital
You cannot change the video resolution in
the HDMI IN 1/2 mode. Change the video
resolution of the connected component.
If the video output signal is abnormal when
your personal computer is connected to
HDMI IN 1/2 jack, change the resolution
of your personal computer to 576p, 720p,
The video signal from the HDMI input
cannot be output from the component or
composite video outputs.
The player sends audio from the HDMI
inputs to both the HDMI output and to the
Home Network This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as BD-LIVE interactivity and Online content services. Wired network connection Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.Please refer to the documentation for your network device for further instructions.Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.
y When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.
y Do not connect a modular phone cable to the LAN port.
y Since there are various connection congurations, please follow the specications of your telecommunication carrier or internet service provider.
y If you want to access content from PCs or DLNA servers, this player must be connected to the same local area network with them via a router. ,
Note Rear of the unitRouterBroadband servicePC and/or DLNA certied server HB516-RD1_BDEUPPK_ENG.indd 31 2011-06-02 �� 11:01:31Connecting32
If there is a DHCP server on the local area network
(LAN) via wired connection, this player will
automatically be allocated an IP address. After
making the physical connection, a small number of
home networks may require the player’s network
setting to be adjusted. Adjust the [NETWORK]
Before setting the wired network, you need to
connect the broadband internet to your home

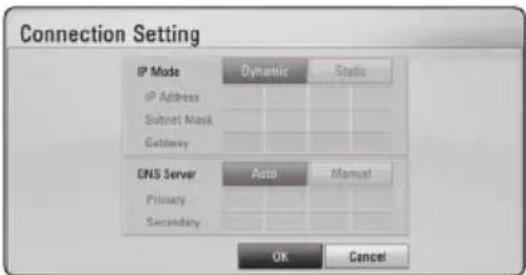

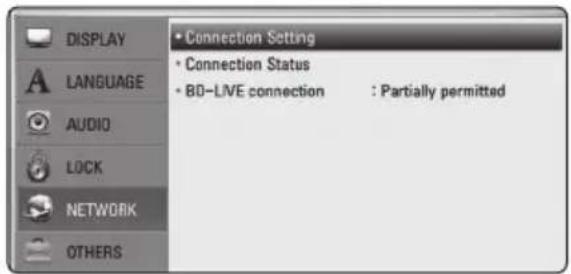

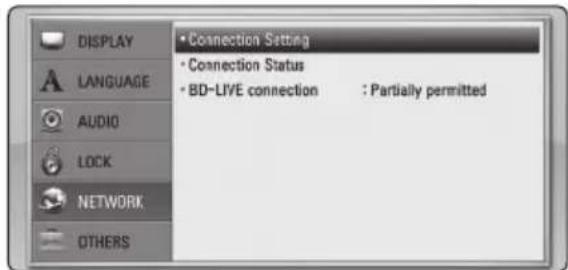

1. Select [Connection Setting] option in the
2. The [Connection Setting] menu appear on the
to select the [Wired] and
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
If there is no DHCP server on the network and
you want to set the IP address manually, select
[Static] then set [IP Address], [Subnet Mask],
[Gateway] and [DNS Server] using
and numerical buttons. If you make a
5. The player will ask you to test the network
connection. Select [OK] and press ENTER (
complete the network connection.

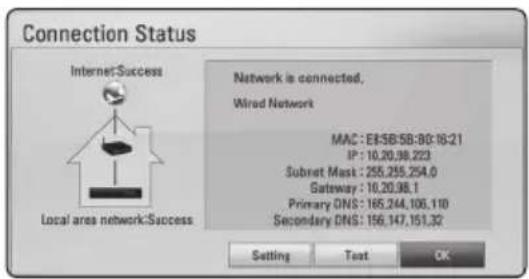

step 5 above, the network connection status is
displayed on the screen.
You can also test it on the [Connection Status]
in the [Setup] menu.
HB516-RD1_BDEUPPK_ENG.indd 32 2011-06-02 �� 11:01:31Connecting 33Connecting 2
Wireless Network Connection Another connection option is to use an Access Point or a wireless router. The network conguration and connection method may vary depending on the equipment in use and the network environment.This player is equipped with an IEEE 802.11n (Dual-band, 5 GHz and 2.4 GHz band) wireless module, which also supports the 802.11a/b/g standards. For the best wireless performance, we recommend using a IEEE 802.11n certied Wi-Fi network (access point or wireless router). VOLUMEPORTABLE IN5 V 500 mA Wireless
Communication PC and/or DLNA certied serverAccess Point or Wireless RouterBroadband serviceRefer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.For best performance, a direct wired connection from this player to your home network’s router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be aected by other electronic devices in the home.Available frequency range and channels for 5 GHz band are listed as below. But, there may have the dierences and restrictions depending on the country. Try setting your access point with other channel if you have diculties in wireless network connection.Area Frequency RangeNorth America5.15-5.25 GHz (ch. 36-48), 5.725-5.825 GHz (ch. 149-161), 5.825- 5.850 (ch.165)Europe, UAE 5.15-5.25 GHz (ch. 36-48)Others 5.15-5.25 GHz (ch. 36-48), 5.725-5.825 GHz (ch. 149-161), 5.825- 5.850 (ch.165) ,
Wireless Network Setup For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network. Preparation Before setting the wireless network, you need to:
- connect the broadband internet to the wireless home network.
- set the access point or wireless router.
- note the SSID and security code of the network.1. Select [Connection Setting] option in the [Setup] menu then press ENTER ( b
2. The [Connection Setting] menu appear on the
to select [Wireless] and press
3. Select [Yes] and press ENTER (
The new connection settings reset the current
4. The player scans the all available access points
or wireless routers within range and display
point or wireless router on the list, and then
If you have security on your access point or
wireless router, verify that the WEP or WPA key
that was entered into the player matches the
router’s information exactly. You need to input
the security code as necessary.
WEP security mode generally have 4 keys
available on an access point or wireless
router’s setting. If your access point or
wireless router use WEP security, enter the
security code of the key “No.1” to connect
on your home network.
An Access Point is a device that allows you
to connect to your home network wirelessly.
If your access point or wireless router
supports the PIN Code conguration
method based on WPS(Wi-Fi Protected
Setup), press yellow (C) coloured button and
note the code number on the screen. And
then, enter the PIN number on a setting
menu of your access point or wireless router
to connect. Refer to the documentation for
your network device.
[Manual] – Your access point may not be
broadcasting its access point name (SSID).
Check your router settings through your
computer and either set your router to
broadcast SSID, or manually enter the access
point name (SSID) in [Manual].
[Push Button] – If your access point or
wireless router that supports the Push Button
Conguration method, select this option and
press the Push Button on your access point or
wireless router within 120 counts. You do not
need to know the access point name (SSID) and
security code of your access point or wireless
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
If there is no DHCP server on the network and
you want to set the IP address manually, select
[Static] then set [IP Address], [Subnet Mask],
[Gateway] and [DNS Server] using
and numerical buttons. If you make a
6. Select [OK] and press ENTER (
7. The player will ask you to test the network
connection. Select [OK] and press ENTER (
complete the network connection.
step 7 above, the network connection status is
displayed on the screen. You can also test it on
the [Connection Status] in the [Setup] menu.
Notes on Network Connection:
Many network connection problems during
set up can often be xed by re-setting the
router or modem. After connecting the player
to the home network, quickly power o and/
or disconnect the power cable of the home
network router or cable modem. Then power on
and/or connect the power cable again.
Depending on the internet service provider (ISP),
the number of devices that can receive internet
service may be limited by the applicable terms
of service. For details, contact your ISP.
Our company is not responsible for any
malfunction of the player and/or the internet
connection feature due to communication
errors/malfunctions associated with your
broadband internet connection, or other
connected equipment.
The features of BD-ROM discs made available
through the Internet Connection feature are not
created or provided by our company, and our
company is not responsible for their functionality
or continued availability. Some disc related
material available by the Internet Connection
may not be compatible with this player. If you
have questions about such content, please
contact the producer of the disc.
Some internet contents may require a higher
bandwidth connection.
Even if the player is properly connected and
congured, some internet contents may not
operate properly because of internet congestion,
the quality or bandwidth of your internet service,
or problems at the provider of the content.
Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
Any fees charged by an ISP including, without
limitation, connection charges are your
A 10 Base-T or 100 Base-TX LAN port is required
for wired connection to this player. If your
internet service does not allow for such a
connection, you will not be able to connect the
You must use a Router to use xDSL service.
A DSL modem is required to use DSL service and
a cable modem is required to use cable modem
service. Depending on the access method of and
subscriber agreement with your ISP, you may not
be able to use the internet connection feature
contained in this player or you may be limited
to the number of devices you can connect at
the same time. (If your ISP limits subscription to
one device, this player may not be allowed to
connect when a PC is already connected.)
The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
The wireless network operate at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can be
aected by interference from them.
Turn o all unused network equipment in
your local home network. Some devices may
generate network trac.
For the purpose of the better transmission,
placing the player from the access point as close
In some instances, placing the access point or
wireless router at least 0.45 m (1.5 ft.) above the
oor may improve the reception.
Move closer to the access point if possible or re-
orient the player so there is nothing between it
and the access point.
The reception quality over wireless depends on
many factors such as type of the access point,
distance between the player and access point,
and the location of the player.
Set your access point or wireless router to
HB516-RD1_BDEUPPK_ENG.indd 35 2011-06-02 �� 11:01:32Connecting36Connecting 2

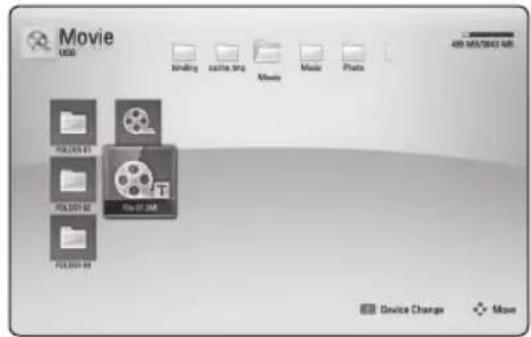

USB device connection This player can play movie, music and photo les contained in the USB device. Playback content in the USB
device 1. Insert a USB device to the USB port until it ts into place.VOLUMEPORTABLE IN 5 V 500 mA 2. Press HOME MENU ( n
). 3. Select [Movie], [Photo] or [Music] using A/D
, and press ENTER ( b

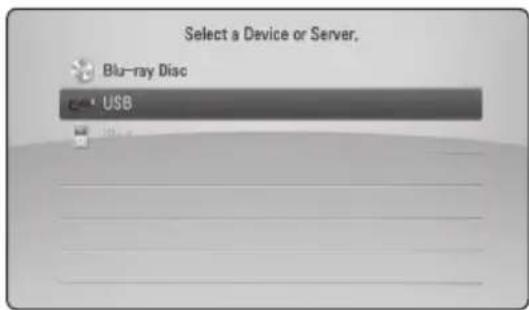

). 4. Select the [USB] option using W/S , and press ENTER ( b
). 5. Select a le using W/S/A/D, and press PLAY or ENTER ( b ) to play the le.6. Withdraw the USB device carefully.
y This player supports USB ash drive/external HDD formatted in FAT16, FAT32 and NTFS when accessing les (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB ash drive/external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.
y The USB device can be used for the local storage for enjoying BD-LIVE discs with Internet.
y This unit can support up to 8 partitions of the USB device.
y Do not extract the USB device during operation (play, etc.).
y A USB device which requires additional program installation when you have connected it to a computer, is not supported.
y USB device: USB device that supports USB1.1 and USB2.0.
y Movie, music and photo les can be played. For details of operations on each le, refer to relevant pages.
y Regular back up is recommended to prevent data loss.
y If you use a USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognized.
y Some USB device may not work with this unit.
y Digital camera and mobile phone are not supported.
y USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device. ,
HB516-RD1_BDEUPPK_ENG.indd 36 2011-06-02 �� 11:01:323 System Setting System Setting 37System Setting 3

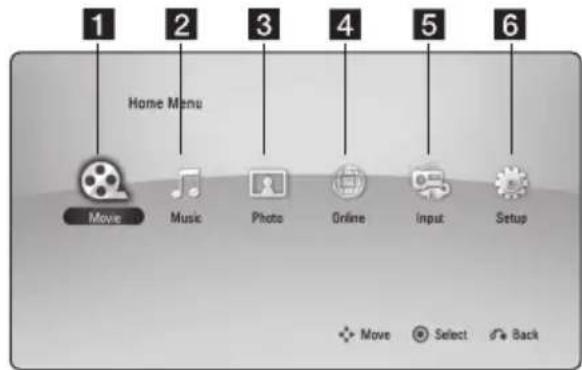

Adjust the Setup Settings You can change the settings of the player in the [Setup] menu.1. Press HOME MENU ( n
). 2. Use A/D to select the [Setup] and press ENTER (
b ). The [Setup] menu appears.3. Use W/S to select the rst setup option, and press D to move to the second level.4. Use W/S to select a second setup option, and press ENTER ( b ) to move to the third level.5. Use W/S to select a desired setting, and press ENTER ( b ) to conrm your selection. [DISPLAY] Menu
TV Aspect Ratio Select a TV aspect ratio option according to your TV type.[4:3 Letter Box]Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.[4:3 Pan Scan]Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Both sides of the picture are cut o.[16:9 Original]Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.[16:9 Full]Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to ll the entire screen.You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p. ,
Sets the output resolution of the Component and
HDMI video signal. Refer to page 28 and 69 for
details about the resolution setting.
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV.
When the resolution is set to 1080p, select
[24 Hz] for smooth presentation of lm material
(1080p/24 Hz) with a HDMI-equipped display
compatible with 1080p/24 Hz input.
When you select [24 Hz], you may
experience some picture disturbance when
the video switches video and lm material.
In this case, select [50 Hz].
Even when [1080p Display Mode] is set to
[24 Hz], if your TV is not compatible with
1080p/24 Hz, the actual frame frequency of
the video output will be 50 Hz to match the
video source format.
Since several factors aect the resolution of
video output, see "Video Output Resolution"
Select the type of output from the HDMI OUT jack.
For this setting, please refer to the manuals of your
Select when connecting to a HDMI display
Select when connecting to a DVI display
Blu-ray 3D disc playback will output as 2D
mode like a normal BD-ROM disc playback.
Blu-ray 3D disc playback will output as 3D
Select a language for the [Setup] menu and on-
Disc Menu/Disc Audio/
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
Refers to the original language in which the
) to select another language.
according to the language code list on page
[O] (Disc Subtitle only)
Depending on the disc, your language setting

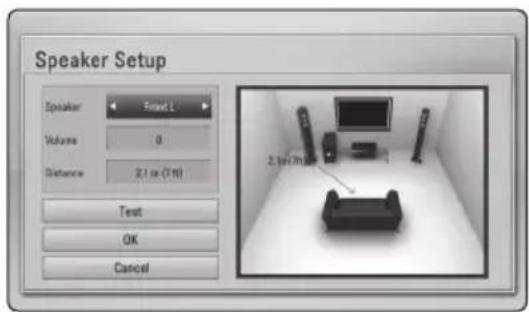

To obtain the best possible sound, use the speaker
setup display to specify the volume of the speakers
you have connected and their distance from your
listening position. Use the test to adjust the volume
of the speakers to the same level.
Select a speaker that you want to adjust.
Adjust the output level of each speaker.
Adjust the distance between each speaker and
the listening position.
[Test/ Stop test tone]
The speakers will emit a test tone.
Conrms the setting.
Cancels the setting.

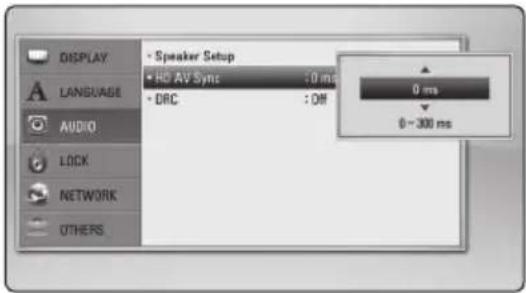

Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it eectively ‘waits’ for the picture to arrive: this
is called HD AV Sync. Use
down through the delay amount, which you can
set at anything between 0 and 300 ms.
DRC (Dynamic Range Control)
This function allows you to listen to a movie at a
lower volume without losing clarity of sound.
Turns o this function.
Compress the dynamic range of the Dolby
The dynamic range of the Dolby TrueHD audio
output is specied by itself.
And the dynamic range of the Dolby Digital
and Dolby Digital Plus are operated as same as
The DRC setting can be changed only when a
disc is not inserted or the unit is in complete
The [LOCK] settings aect only Blu-ray Disc and
To access the any features in [LOCK] settings, you
must enter the 4-digit security code you have
If you have not entered a password yet, you are
prompted to do so. Enter a 4-digit password twice,
) to create a new password.
You can create or change the password.
) to create a new password.
) to create a new password.
If you forget your password
If you forget your password, you can clear it using
the following steps:
1. Remove any disc that might be in the player.
2. Select [Password] option in the [Setup] menu.
3. Use Number buttons to enter “210499”. The
password is cleared.
If you make a mistake before pressing ENTER
Blocks playback of rated DVD based on their
content. (Not all discs are rated.)
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
If you select [Unlock], parental control is not
active and the disc plays in full.
Set an age limit of BD-ROM play. Use number
buttons to input an age limit for BD-ROM viewing.
All BD-ROM can be played.
Prohibits play of BD-ROM with corresponding
ratings recorded on them.
The [Blu-ray Disc Rating] will be applied
only for the Blu-ray disc that containing the
Advanced Rating Control.
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
The [NETWORK] settings are needed to use the BD-
Live and Online content services.
If your home network environment is ready to
connect the player, the player needs to be set the
wired or wireless network connection for network
communication. (See “Connecting to your Home
Network” on pages 31-35.)
If you want to check the network status on this
player, select the [Connection Status] options and
to the network and the internet have been
Internet access is permitted for all BD-LIVE
[Partially permitted]
Internet access is permitted only for BD-
LIVE contents which have content owner
certicates. Internet access and AACS Online
functions are prohibited for all BD-LIVE
contents without a certicate.
Internet access is prohibited for all BD-LIVE
[On] or [O]. The ARC function enables an HDMI
capable TV to send the audio stream to HDMI OUT
of this player. Refer to page 26 for details about this
DivX® VOD ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX, Inc. This is an ocial DivX Certied®
device that plays DivX video. Visit divx.com for more
information and software tools to convert your les
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
Displays the registration code of your player.
Deactivate your player and display the
All the downloaded videos from DivX VOD
with this player’s registration code can only be
played back on this unit.
The screen saver appears when you leave the
player in Stop mode for about ve minutes. If
you set this option to [On], the unit automatically
turns o within 25 minutes since the Screen Saver
is displayed. Set this option to [O] to leave the
screen saver until the unit is operated by the user.
You can reset the player to its original factory
[BD-LIVE Storage Clear]
Initializes the BD-LIVE contents from the
connected USB storage.
If you reset the player to its original factory
settings using [Factory Set] option, you have
to set all the activation for the Online services
and network settings again.
Displays the current software version.
) to view the notice of Network
repeatedly until the desired mode appears on the
front panel display or the TV screen. The displayed
items for the equalizer maybe dierent depending
on sound sources and eects.
[Mode 1]: Gives you suitable sound setting with
connecting slim type of speakers (S-BD515FS).
[Mode 2]: Gives you suitable sound setting with
connecting bar type of speakers (S-BD616SB).
[Bypass]: Software with multichannel surround
audio signals is played according to the way it was
[Bass Blast]: Reinforce the bass sound eect from
front left and right speaker and subwoofer.
[Clear Voice]: This mode makes voice sound clear,
improving the quality of voice sound.
[Game]: You can enjoy more virtual sound while
playing video games.
[Night]: This may be useful when you want to
watch movies at low volumes late at night.
[Mus. ReTouch]: When listening to MP3 les or
other compressed music, you can enhance the
sound. This mode is available only to 2 channel
sources. For Dolby Digital, Dolby Digital Plus and
Dolby True HD, it is available to 2 channel and
multichannel sources.
[Loudness]: Improves bass and treble sound.
a [Movie] - Plays video contents. b [Music] - Plays audio contents. c [Photo] - Plays photo contents. d [Online] - Displays the Online Home screen. e [Input] - Changes input mode. f [Setup] - Adjusts the system settings. Playing a Disc
ert 1. Press B (OPEN/CLOSE), and place a disc on the disc tray.2. Press B (OPEN/CLOSE) to close the disc tray.For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.3. Press HOME MENU ( n
). 4. Select [Movie] or [Music] using A/D , and press ENTER ( b
). 5. Select [Blu-ray Disc], [DVD], [VR] or [Audio] option using W/S , and press ENTER ( b
y Playback functions described in this manual are not always available in every les and media. Some functions can be restricted depending on many factors.
y Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback.
y Unnalized DVD VR format discs may not be played in this player.
y Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs. ,
Playing a file on a disc/USB
yui This player can play movie, music and photo les contained in the disc or USB device.1. Insert a data disc on the tray or connect a USB device.2. Press HOME MENU ( n
This player can play the Blu-ray 3D discs which
contains separate views for the left and right eyes.
In order to playback Blu-ray 3D title in
stereoscopic 3D mode, you need to:
Check your TV is 3D capable and has HDMI
Wear 3D glasses to enjoy the 3D experience
Cable with Ethernet) between the player’s
1. Press HOME MENU (
), and set the [3D Mode]
(OPEN/CLOSE), and place a disc on the
(OPEN/CLOSE) to close the disc tray.
The playback starts automatically.
4. Refer to the owner’s manual of your 3D-ready
TV for the further instruction.
You may need to adjust the display settings and
focus on your TV’s setting for the improved 3D
time may cause dizziness or tiredness.
It is not recommended to watch a movie in
3D mode for inrm, child (particularly under
6) and pregnant woman.
If you are experiencing headache, tiredness
or dizziness while viewing contents in 3D,
it is strongly recommended to stop the
playback and rest until you feel normal.
BD-ROM supporting BD-Live (BD-ROM version 2
Prole 2) that has a network extension function
allows you to enjoy more functions such as
downloading new movie trailers by connecting this
unit to the internet.
1. Check the network connection and settings
2. Insert a USB storage device to the USB port on
A USB storage device is needed to download
3. Press HOME MENU (
), and set the [BD-LIVE
Depending on a disc, the BD-Live function may
not be operated if [BD-LIVE connection] option
is set to [Partially Permitted].
4. Insert a BD-ROM with BD-Live.
The operations are dier depending on the disc.
Refer to the manual supplied with the disc.
Do not extract the connected USB device
while content is being downloaded or a Blu-
ray disc is still in the disc tray. Doing so may
damage the connected USB device and BD-
Live features may not operate properly with
the damaged USB device anymore. If the
connected USB device seems damaged from
such an action, you can format the connected
USB device from the PC and reuse it with this
Some BD-Live contents may be restrictively
accessed in some territories by contents
provider’s own decision.
It may take up to several minutes to load
and start enjoying BD-Live contents.
Playing a file on a network
This player can play movie, music and photo les
located in a PC or a DLNA server through your
1. Check the network connection and settings
4. Select a DLNA media server or a share folder
on your PC on the list using
If you want to rescan available media server,
The le requirements are described on page
The thumbnail of the unplayable les can
be displayed, but those cannot be played
The subtitle le name and movie le name
have to be the same and located at the
The playback and operating quality may be
aected by your home network condition.
You may experience connection problems
depending on your server’s environment.
DTCP-IP cannot be supported.

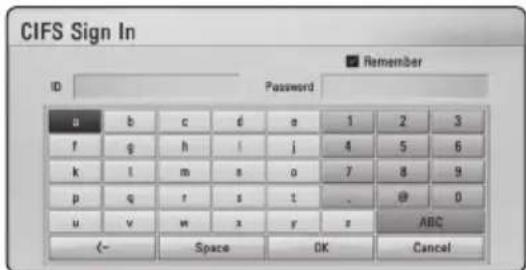

Entering a network user ID and the
Depending on your PC’s environment, you may
need to enter a network user ID and the password
for accessing a shared folder.
1. The keyboard menu appears automatically if the
network user ID and the password are required.
to select a character then
) to conrm your selection on
the virtual keyboard.
To enter a letter with an accent mark, press
) to display the extended character
[Cancel] – Returns to the previous screen.
[Space] – Inserts a space at the cursor position.
[<–] – Deletes the previous character at the
3. When you nish entering the network user ID
and password, select [OK] using
) to access the folder.
The network user ID and password will be
remembered after accessing the folder for your
convenience. If you do not want the network user
ID and password to be remembered, press red (A)
coloured button to un-tick the [Remember] check
box before accessing the folder.
HB516-RD1_BDEUPPK_ENG.indd 46 2011-06-02 �� 11:01:33Operating 47
Basic operations for video and
(STOP) while playback.
(PAUSE/STEP) while playback.
(PLAY) to resume playback.
(PAUSE/STEP) while movie playback.
(PAUSE/STEP) repeatedly to play Frame-by-
to play fast forward or fast reverse
You can change the various playback speeds by
To slow down the playing speed
While the playback is paused, press
to play various speeds of slow motion.
To skip to the next/previous
During playback, press
next chapter/track/le or to return to the beginning
of the current chapter/track/le.
twice briey to step back to the previous
In the le list menu of a server, there may have
many types of contents in a folder together. In this
to go to the previous or
next content with same type.
Basic operations for photo
To play a slide show
(PLAY) to start slide show.
(STOP) while slide show.
(PAUSE/STEP) while slide show.
(PLAY) to re-start the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press
to go to the previous or next photo.
loading a disc which contains a menu. If you want
buttons to navigate through
To display the Pop-up menu
Some BD-ROM discs contain Pop-up menu that
appears while playback.
Press POPUP/TOP MENU while playback, and use
buttons to navigate through menu
The unit records the point where you pressed the
(Resume Stop)” appears on the screen briey,
(PLAY) to resume playback (from the scene
(Complete Stop)” appears on the screen. The unit
will clear the stopped point.
The resume point may be cleared when a
button is pressed (for example;
On BD-ROM discs with BD-J, the resume
playback function does not work.
(STOP) once during BD-ROM
interactive title playback, the unit will be in
Complete Stop mode .
erotu During playback, press REPEAT ( h ) repeatedly to select a desired repeat mode. Blu-ray Disc/DVDs j A- – Selected portion will be repeated continually. j Chapter – The current chapter will be played back repeatedly. j Title – The current title will be played back repeatedly.To return to normal playback, press REPEAT ( h
) repeatedly to select [O].Audio CDs/Music les ; Track– The current track or le will be played back repeatedly. : All – All the tracks or les will be played back repeatedly. l – The tracks or les will be played back in random order. l: All – All the tracks or les will be played back repeatedly in random order. k A-B – Selected portion will be repeated continually. (Audio CD only)To return to normal playback, press CLEAR.
y If you press V once during Repeat Chapter/Track playback, the repeat playback cancels.
y This function may not work on some disc or title. ,
Repeating a specific portion
erot This player can repeat a portion you have selected.1. While playback, press REPEAT ( h ) to select [A-] at the beginning of the portion you wish to repeat.2. Press ENTER ( b ) at the end of the portion. Your selected portion will be repeated continually. 3. To return to normal playback, press REPEAT (
h ) repeatedly to select [O].
y You cannot select a portion less than 3 seconds.
y This function may not work on some disc or title. ,
Enlarge the playback image
You can start playback from up to nine memorized
point. The Marker icon appears on the TV screen
2. Repeat step 1 to add up to nine markers.
To recall a marked scene
1. Press SEARCH and the search menu appears on
2. Press a number button to select a marker
number that you want to recall. Playback starts
from the marked scene.
1. Press SEARCH and the search menu appears on
to highlight a marker number.
to select a marked scene that you
3. Press CLEAR and the marked scene is erased
from the search menu.
This function may not work depending on
discs, titles, server ability.
All marked points are cleared if the title
is in complete stop (
) mode, the title is
changed or if you unload the disc.
If the total length of the title is less than 10
seconds, this function is not available.
Using search menu, you can easily to nd the point
where you want to start playback.
1. During playback, press SEARCH to display the
to skip the playback 15 seconds
forward or backward. You can select a point that
you want to skip by pressing and holding
To start playback from a marked
1. Press SEARCH and the search menu appears on
to highlight a marker number. Use
to select a marked scene that you want
) to start playback from the
This function may not work depending on
discs, titles, server ability.
This function may not work depending on
the le type and ability of the media server.
Selecting a subtitle file
If the subtitle le name is dierent from the movie
le name, you need to select the subtitle le on the
[Movie] menu before playing the movie.
to select the subtitle le you
wish to play in the [Movie] menu.
) again to deselect the subtitle
le. Selected subtitle le will be displayed when
you play the movie le.
(STOP) while playback, the
subtitle selection is cancelled.
This function is not available for playing le
on a server via home network.
This unit memorizes the last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the unit or switch
o the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.
Last Scene Memory function for a previous
disc is erased once a dierent disc is played.
This function may not work depending on
On BD-ROM discs with BD-J, the last scene
memory function does not work.
This unit does not memorize settings of
a disc if you switch o the unit before
commencing to play it.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
a Current photo/Total number of photos
to view previous/next photo.
d Music –Press ENTER (
to select a transition
eect between photos in a slide show.
to select a delaying
speed between photos in a slide show.
Listening to music while slide
You can display photo les while listening to music
1. While viewing a photo in full screen, press
to select [Music Select] option, and
to select a device, and press ENTER
Device that you can select are dier depending
on the location of the photo le you are
displaying in full screen.
Photo location Available Device
Disc, USB Disc, USB Share Folder (PC) Share Folder (PC)
to select a le or a folder you wish to
When selecting music le from a server, folder
selection is not available. Only le selection is
to select [OK], and press ENTER (
complete music selection.
HB516-RD1_BDEUPPK_ENG.indd 52 2011-06-02 �� 11:01:34Operating 53Operating 4
On-Screen display You can display and adjust various information and settings about the content. Displaying content information
eroy 1. While playback, press DISPLAY ( m ) to show various playback information.a Title – current title number/total number of titlesb Chapter – current chapter number/total number of chaptersc Time – elapsed playing time/total playback time d Audio – selected audio language or channele Subtitle – selected subtitle.f Angle – selected angle/total number of anglesg TV Aspect Ratio – selected TV aspect Ratioh Picture Mode – selected picture mode2. Select an option using W/S
. 3. Use A/D to adjust the selected option value.4. Press RETURN ( x ) to exit the On-Screen display.
y If no button is pressed for a few seconds, the on-screen display disappears.
y A title number cannot be selected on some discs.
y Available items may dier depending on discs or titles.
y If an interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed. ,
Playing from selected time
) during playback. The time
search box shows the elapsed playing time.
2. Select the [Time] option and then input the
required start time in hours, minutes, and
seconds from left to right.
For example, to nd a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
to skip the playback 60 seconds
forward or backward.
) to start playback from selected
This function may not work on some disc or
This function may not work depending on
the le type and ability of the DLNA server.
Hearing a different audio
1. During playback, press DISPLAY (
to select the [Audio] option.
to select desired audio language,
audio track or audio channel.
Some discs allow you to change audio
selections only via the disc menu. In this
case, press POPUP/TOP MENU or MENU
button and choose the appropriate audio
from the selections on the disc menu.
Immediately after you have switched sound,
there may be a temporary discrepancy
between the display and actual sound.
On BD-ROM disc, the multi audio format
(5.1CH or 7.1CH) is displayed with [MultiCH]
in the on-screen display.
Selecting a subtitle language
1. During playback, press DISPLAY (
to select the [Subtitle] option.
to select desired subtitle language.
) to exit the On-Screen
Some discs allow you to change subtitle
selections only via the disc menu. If this is the
case, press POPUP/TOP MENU or MENU button
and choose the appropriate subtitle from the
Watching from a different
If the disc contains scenes recorded at dierent
camera angles, you can change to a dierent
camera angle during playback.
1. During playback, press DISPLAY (
to select desired angle.
) to exit the On-Screen
Changing the TV Aspect Ratio
You can change the TV aspect ratio setting while
1. During playback, press DISPLAY (
to select the [TV Aspect Ratio]
to select desired option.
) to exit the On-Screen
Even if you change the value of the [TV Aspect
Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is
If the subtitle is displayed in broken letter, you can
change the subtitle code page to view the subtitle
1. During playback, press DISPLAY (
to select the [Code Page] option.
to select desired code option.
) to exit the On-Screen
Changing the Picture Mode
You can change the [Picture mode] option while
1. During playback, press DISPLAY (
to select the [Picture Mode] option.
to select desired option.
) to exit the On-Screen

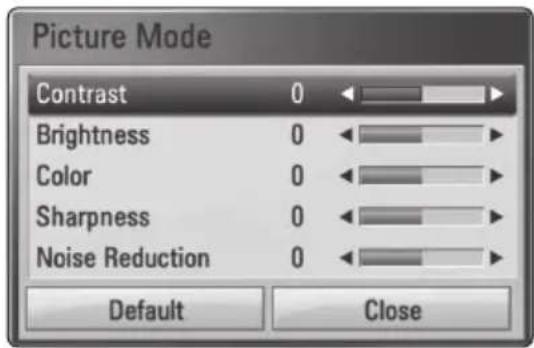

Setting the [User] option
1. During playback, press DISPLAY (
to select the [Picture Mode] option.
to select the [User setting] option,
to adjust the [Picture Mode]
reset the all video adjustments.
to select the [Close] option,
You can record one desired track or all of the tracks
in Audio CD to a USB storage device.
1. Insert a USB storage device to the USB port on
(OPEN/CLOSE), and place an Audio CD
(OPEN/CLOSE) to close the disc tray.
The playback starts automatically.
X USB REC button on the remote control.
You can record all musics in the audio CD.
to select [CD Recording] option, and
to select a track you wish to copy on
Repeat this step to select tracks as many as you
Selects all the tracks on an
Selects an encoding option
from the pop-up menu
(128 kbps, 192 kbps, 320 kbps
Cancels the recording and
returns to the previous screen.

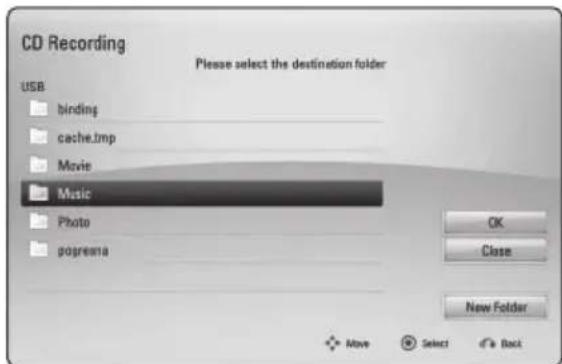

to select a destination folder
If you want to create a new folder, use
to select [New Folder] and press
Enter a folder name using virtual keyboard, and
) while [OK] is selected.
to select [OK], and press
) to start Audio CD recording.
If you want to stop in progressing Audio CD
recording, press ENTER (
9. A message appears when Audio CD recording is
completed. Press ENTER (
) to check the audio
le created in the destination folder.
The table below shows the average
recording time from an music track with 4
minutes of playback time to a audio le with
192 kbps as an example.
stop mode while playback
Recording times in the table above are
Actual recording time for USB storage
device varies depending on the USB storage
Make sure that there is minimum of 50 MB
free space is needed when recording into
the USB storage device.
The length of the audio should be longer
than 20 seconds for the proper recording.
Do not turn o this player or extract the
connected USB storage device during Audio
The making of unauthorized copies of
copy-protected material, including computer
programmes, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal oense.
This equipment should not be used
You can enjoy the sound with your iPod. For details
about iPod, refer to the iPod’s User Guide.
To view iPod’s Videos and Photos on the TV
Be sure to use the video connection through
the VIDEO OUT jack on the rear panel of this
unit. Select the appropriate video input mode
Depending on the iPod, make sure that select
Videos > Video settings, and then set TV Out
to Ask or On from your iPod.
For details about Video Settings, refer to the
The viewing photos is available only if this unit
is in iPod IN mode and you can view photos
only as a slide show. You have to start a slide
show on your iPod to view a photo on a TV.
For details about a slide show, refer to the iPod
Before connecting the iPod, turn this unit o and
reduce the volume of this unit to its minimum.
1. Connect the cradle so that the mark
downwards. Put your iPod on it.
Connect the iPod rmly.
If you turn this unit on, your iPod is
automatically turned on and recharging starts.
2. Select a le using
Enjoying iPod on the screen
1. Connect the iPod rmly.
2. Press HOME MENU (
If you connected the other device
Enjoying the iPod IN mode
You can operate your iPod by using the supplied
remote control and controls on your iPod.
1. Connect the cradle so that the mark
downwards. Put your iPod on it.
Connect the iPod rmly.
If you turn this unit on, your iPod is
automatically turned on and recharging starts.
2. Press INPUT/TUNER to select [iPod in] mode.
M To pause while it is playing.
To resume playing, press
Fast-forward or rewind a song
V Skip the playback forward or
This system is compatible with the audio and
video of the iPod (4th generation), iPod nano,
iPod classic, iPod mini, iPod touch and iPhone
(iPod shue is not supported.).
“Connected iPod model is not supported.”
your iPod is not available for the function
the communication between this unit
and your iPod is failed.
Undock & re-dock your iPod in this unit.
your iPod is not connected rmly.
this unit recognises your iPod as
your iPod is exceptionally low on power.
The battery needs to be charged.
If you charge the battery while iPod
is extremely low in power, it may take
Compatibility with your iPod may vary
depending on the type of your iPod.
iPod touch and iPhone have any dierence
in operation other than iPod. You may need
any additional control to use them with this
unit. (e.g. “slide to unlock”)
If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod dock of this unit and then use it.
This unit has been developed and tested
for the software version of iPod/iPhone
indicated on the website of Pioneer.
Installing software versions other than
indicated on the website of Pioneer to your
iPod/iPhone may result in incompatibility
The video quality depends on the video
sources on your iPod.
If you have a problem with your iPod, please
visit www.apple.com/support/iPod.
Be sure that the antennas are connected.
(Refer to the page 28)
Listening to the radio
1. Press INPUT/TUNER until TUNER (FM) appears in
the display window. The last received station is
2. Press and hold TUNE (-/+) for about two
seconds until the frequency indication starts to
change. Scanning stops when the unit tunes in
a station. Or Press TUNE (-/+) repeatedly.
3. Adjust the volume by rotating VOLUME on
the front panel or by pressing VOL (+/-) on the
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned
1. Press INPUT/TUNER until the TUNER (FM)
appears in the display window.
2. Select the desired frequency by using TUNE
) a preset number will ash in
). The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting a saved station
2. Press CLEAR, the preset number will blink in the
3. Press CLEAR again, to delete the selected preset
Deleting all the saved stations
Press and hold CLEAR for two seconds.
“ERASE ALL” will ash up. Press CLEAR again. Then all
the saved stations are deleted.
Improving poor FM reception
Press blue (D) (ST/MONO) coloured button on the
remote control. This will change the tuner from
stereo to mono and usually improve the reception.
See information about a radio
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about the
radio station being listened to. Press RDS repeatedly
to cycle through the various data types:
(Programme Service Name)
The name of the channel will appear in
will appear in the display.
A text message contains special
information from the broadcast station.
This text may scroll across the display.
(Time controlled by the channel)
This shows the time and date as
broadcast by the station.
HB516-RD1_BDEUPPK_ENG.indd 59 2011-06-02 �� 11:01:35Operating60
You can use various content services via Internet
with the Online feature.
1. Check the network connection and settings
Detailed information of each service,
contact to the content provider or visit
support link of the service.
The content of Online services and service
related information, including user interface,
is subject to changes. Please refer to the
web site of each service for most up-to-date
Using Online features with wireless
network connection may result in improper
streaming speed by interference from
household devices that are using radio
Please note that the related privacy policy
will be applied to your privacy and legal
rights of you when you provide the online
services with user names, passwords,
or other login information or personal
information and when Pioneer stores them.
Please refer to Pioneer Privacy Policy on the
The Power does not turned on.
Plug the power cord into the wall outlet securely.
The unit does not start
Insert a playable disc. (Check the disc type, colour system, and
Place the disc with the playback side down.
Place the disc on the disc tray correctly inside the guide.
Cancel the Rating function or change the rating level.
The angle cannot be changed.
Multi-angles are not recorded on the DVD Video being played.
Cannot play movie, photo or
The les are not recorded in a format that the unit can play.
The unit does not support the codec of the movie le.
The remote control does not
The remote control is not pointed at the remote sensor of the unit.
The remote control is too far from the unit.
There is an obstacle in the path of the remote control and the unit.
The batteries in the remote control are exhausted.
The unit is plugged in, but the
power will not turn on or o.
You can reset the unit as follows.
1. Press and hold the STANDBY/ON button for at least ve seconds. This
will force the unit to power o then turn the unit back on.
2. Unplug the power cord, wait at least ve seconds, and then plug it in
The unit is not operating
BD-LIVE feature does not work.
The connected USB storage may not have enough space. Connect
the USB storage with at least 1GB free space.
Ensure that the unit is correctly connected to the local area network
and can access the internet (see page 31-35).
Your broadband speed may not fast enough to use the BD-LIVE
features. Contact your Internet Service Provider (ISP) and increase the
broadband speed is recommended.
The [BD-LIVE connection] option in the [Setup] menu is set to
[Prohibited]. Set the option to [Permitted].
Streaming video services (such
as YouTube™, etc.) are often
stopped or “buer” during
Your broadband service speed may not be fast enough to stream
video services. Contact your Internet Service Provider (ISP) and
increase the broadband speed is recommended.
Shared folder or les from your
PC or a media server are not
displayed on the device list.
The rewall or anti-virus software on your media server is running.
Turn o the rewall or anti-virus software running on your PC or
The player is not connected to the local area network that your PC or
the media server are connected.
Cannot connect the player to
the access point or wireless
The wireless communication may be interrupted from household
devices that are using radio frequencies. Move the player away from
Access point is not displayed
on the “Access point name” list.
The access point or wireless LAN router may not broadcast its SSID.
Set your access point to broadcast its SSID through your computer.
Your network device such as access point may not set with available
frequency range and channel that this player can support.
Try setting the frequency range and channel on the network device
There is no picture.
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
Connect the video connection securely.
Check the [HDMI Color Setting] in the [Setup] menu is set to the
appropriate item that conforms to your video connection.
Your TV may not support the resolution you have set on the player.
Change the resolution that your TV accepts.
The player’s HDMI OUT jack is connected to a DVI device that does
not support copyright protection.
Picture noise appears
You are playing a disc recorded in a colour system that is dierent
Set the resolution which your TV accepts.
Blu-ray 3D disc playback does
not output 3D views.
Connect the player to your TV with HDMI cable (Type A, High Speed
HDMI™ Cable with Ethernet).
Your TV may not support “HDMI 3D mandatory format”.
The [3D Mode] option in the [Setup] menu is set to [O ].
There is no sound or the sound
The unit is in scan, slow motion, or pause mode.
The sound volume is low.
Check the speaker cable connection. (page 16)
Note that information on this product is available on the Pioneer website. Please check the website for
information on updating or servicing this player.
HB516-RD1_BDEUPPK_ENG.indd 63 2011-06-02 �� 11:01:366 Appendix Appendix64Appendix 6
Controlling a TV with
Control You can control your TV using the buttons below.TV Control ButtonsBy pressing You can 1 (TV POWER) Turn the TV on or o.INPUTSwitch the TV’s input source between the TV and other input sources.CH +/–Scan up or down through memorized channels.VOL +/–Adjust the volume of the TV. Depending on the unit being connected, you may not be able to control your TV using some of the buttons. ,
Setting up the remote to
control your TV You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below). Manufacturer Code NumberPioneer 1 (Default)Sony 2, 3Panasonic 4, 5Samsung 6, 7LG 8, 92. Release the 1 (TV POWER) button to complete setting.Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number yo have set may be reset to the default setting. Set the appropriate code number again. HB516-RD1_BDEUPPK_ENG.indd 64 2011-06-02 �� 11:01:36Appendix 65
Choose an area code from this list.
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Latvian, Lettish 7686
BONUSVIEW™ and the logos are trademarks of
the Blu-ray Disc Association.
is a trademark of DVD Format/Logo
Licensing Corporation.
Oracle and Java are registered trademarks of
Oracle and/or its aliates. Other names may be
trademarks of their respective owners.
HDMI, the HDMI logo, and High-Denition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
DivX®, DivX Certied® and associated logos
are trademark of DivX, Inc., and are used under
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and worldwide
patents issued & pending. DTS and the Symbol
are registered trademarks,& DTS-HD, DTS-HD Master Audio | Essential and the DTS logos
are trademarks of DTS, Inc. Product includes
software. © DTS, Inc. All Rights Reserved.
DLNA™, the DLNA Logo and DLNA CERTIFIED™
are trademarks, service marks, or certication
marks of the Digital Living Network Alliance.
The Wi-Fi CERTIFIED Logo is a certication mark
of the Wi-Fi Alliance.
The Wi-Fi Protected Setup Mark is a trademark of
“x.v.Colour”, and are
trademarks of Sony Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
HB516-RD1_BDEUPPK_ENG.indd 67 2011-06-02 �� 11:01:37Appendix68
“Made for iPod” and “Made for iPhone” mean
that an electronic accessory has been designed
to connect specically to iPod, or iPhone,
respectively, and has been certied by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards. Please note that the use
of this accessory with iPod or iPhone may aect
wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S.
and other countries.
YouTube™ is a trademark of Google Inc.
Picasa™ Web Albums is a trademark of Google
This product includes technology owned by
Microsoft Corporation and cannot be used or
distributed without a license from Microsoft
Video Output Resolution
When the non-copy protected media is playing back
When the copy protected media is playing back
If you select a resolution manually and then
connect the HDMI jack to TV and your TV does
not accept it, the resolution setting is set to
If you select a resolution that your TV does not
accept, the warning message will appear. After
resolution change, if you cannot see the screen,
please wait 20 seconds and the resolution
will automatically revert back to the previous
be automatically set to either 24 Hz or 50
Hz depending both on the capability and
preference of the connected TV and based on
the native video frame rate of the content on the
COMPONENT VIDEO OUT Connection
Blu-ray Disc, DVD video stream could prevent up-
scaling on analog output.
VIDEO OUT connection
The resolution of the VIDEO OUT jack is always
outputted at 576i resolution.
HB516-RD1_BDEUPPK_ENG.indd 69 2011-06-02 �� 11:01:38Appendix70
Power consumption 85 W (In Standby mode: Less than 0.3 W)
Dimensions (W x H x D) Approx. 430 x 64 x 304 mm
Net Weight (Approx.) 3.4 kg
Operating temperature 5 °C to 35 °C Operating humidity 5 % to 85 %
FM Tuning Range 87.5 to 108.0 MHz
Wavelength 405 nm / 650 nm
Signal system Standard PAL/NTSC colour TV system
Frequency response 20 Hz to 18 kHz (48 kHz, 96 kHz, 192 kHz sampling)
Harmonic distortion Less than 0.05 %
Dynamic range More than 80 dB LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX Wireless LAN (internal antenna)
Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless
networking access, compatible with 802.11a/b/g Wi-Fi networks.
Bus Power Supply (USB) DC 5 V
Speakers for BCS-SB616
130.5 x 420 x 375 mm
Impedance Rated 3 Ω Net Weight 4.4 kg
Speakers for BCS-FS515
Front speaker (Left/ Right)
(lengthwise putting)
Impedance Rated 4 Ω Net Weight 0.9 kg
Impedance Rated 3 Ω Net Weight 4.4 kg
Design and specications are subject to change without notice.
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide
spray near the unit.
Wiping with strong pressure may damage the
Do not leave rubber or plastic products in
contact with the unit for a long period of time.
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
Do not touch the playback side of the disc. Hold
the disc by the edges so that ngerprints do not
get on the surface. Never stick paper or tape on the
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.
HB516-RD1_BDEUPPK_ENG.indd 72 2011-06-02 �� 11:01:38Appendix 73
All information, data, documents, communications,
downloads, les, text, images, photographs,
graphics, videos, webcasts, publications, tools,
resources, software, code, programs, applets,
widgets, applications, products and other content
(“Content”) and all services and oerings (“Services”)
provided or made available by or through any
third party (each a “Service Provider”) is the sole
responsibility of the Service Provider from whom it
The availability of and access to Content and
Services furnished by the Service Provider through
the PIONEER Device are subject to change at
any time, without prior notice, including, but not
limited to the suspension, removal or cessation of
all or any part of the Content or Services.
Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-to-date
information. PIONEER is neither responsible nor
liable for customer service related to the Content
and Services. Any question or request for service
relating to the Content or Services should be made
directly to the respective Content and Service
Please note that PIONEER is not responsible for
any Content or Services provided by the Service
Provider or any changes to, removal of, or cessation
of such Content or Services and does not warrant
or guaranty the availability of or access to such
Content or Services.
The licenses for the open source software used
on this player can be found at the end of this
OUTPUT (PROGRESSIVE SCAN)
du code PIN WPS (WiFi Protected Setup,
(Time controlled by the channel -
5,978,762; 6,226,616; 6,487,535; 7,392,195;
images, photographiques, dessins, vidéos, diusions
web, publications, outils, ressources, logiciels,
instructions, programmes, applets, widgets,
applications, produits et autres formes de contenu
DirectFB, cairo, mpeg, gail, glib, gnuTLS,
http://www.oss-pioneer.com/homeav/hts/
Copyright © Trantor Standard Systems
expat : Copyright © 2006 Expat
Copyright © 2000 Keith Packard
Copyright © 2005 Keith Packard
Unicode: copyright © 1995-2010
Eric Young (eay@cryptsoft.com).
pcre : Copyright © 1997-2010 University
Equipment Corporation
Copyright 2000 SuSE, Inc.
Copyright 2008 Aaron Plattner,
of the University of California.
Copyright © 1988-1997 Sam Leer
Copyright © 1991-1997 Silicon
UnitTest++ : Copyright © 2006 Noel
Copyright © 2001-2002 Thomas
copie, modication, fusion, publication,
Street, Fifth Floor, Boston, MA 02110-1301,
Copyright © 1991, 1999 Free Software
51 Franklin Street, Fifth Floor, Boston, MA 02110-
12 – AVCHD (Advanced Video Codec High
AVCHD (Advanced Video
OUTPUT (PROGRESSIVE SCAN)
com/de/support/iPod.
Logo Licensing Corporation.
6,226,616; 6,487,535; 7,392,195; 7,272,567;
Software, Code, Programme, Applets, Widgets,
12 – AVCHD (Advanced Video Codec High
(.txt), DVD Subtitle System (.txt)
AVCHD (Advanced Video
OUTPUT (PROGRESSIVE SCAN)
personal computer a 576p, 720p, 1080i
router LAN wireless.
Licensing Corporation.
6,226,616; 6,487,535; 7,392,195; 7,272,567;
“Made for iPod” e “Made for iPhone” indicano
DIMENSIONI (L x A x P) Approx. 430 x 64 x 304 mm
(.txt), DVD Subtitle System (.txt)
OUTPUT (PROGRESSIVE SCAN)
(Resume Stop)”, pulse
www.apple.com/support/iPod.
Logo Licensing Corporation.
6,226,616; 6,487,535; 7,392,195; 7,272,567;
WAARSCHUWING: Voorkom brandgevaar
12 – AVCHD (Advanced Video Codec High
AVCHD (Advanced Video
OUTPUT (PROGRESSIVE SCAN)
ARC (Audio Return Channel)-
[Test/Stop testtoon]
5,974,380; 5,978,762; 6,226,616; 6,487,535;
720p 720p 576i of 576p
1080i 1080i 576i of 576p
1080p/24 Hz 1080p / 24 Hz 576i of 576p
1080p/50 Hz 1080p/50 Hz 576i of 576p
video's, webcasts, publicaties, hulpprogramma's,
The following GPL executables and LGPL
libraries used in this product are subject to
the GPL2.0/LGPL2.1 License Agreements:
GPL EXECUTABLES: Linux kernel, bash,
DirectFB, cairo, mpeg, gail, glib, gnuTLS,
You can get corresponding open source
code from the following URL.
http://www.oss-pioneer.com/homeav/hts/
We are unable to answer any question
about the source code for the open source
This product includes
Crypt Data Packaging : Copyright ©
expat: copyright © 2006 expat
Copyright © 2000 Keith Packard
Copyright © 2005 Patrick Lam
International Components for Unicode:
copyright © 1995-2010 International
Business Machines Corporation and
jpeg : This software is based in part
on the work of the Independent
JPEG Group copyright © 1991 – 1998,
cryptographic software written by
Eric Young (eay@cryptsoft.com).
software written by Tim Hudson
(tjh@cryptsoft.com).
software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)
pcre : Copyright © 1997-2010 University
Equipment Corporation
Copyright 2000 SuSE, Inc.
Copyright 2000 Keith Packard,
member of The XFree86 Project, Inc.
Copyright 2008 Aaron Plattner,
Regents of the University of California
Copyright © 1988-1997 Sam Leer
Copyright © 1991-1997 Silicon
Llopis and Charles Nicholson
Copyright © 2001-2002 Thomas
Broyer, Charlie Bozeman and Daniel
