USER MANUAL 162347 PRINCESS

Line drawing of a mechanical component with a circular top and side brackets (no text or symbols)

162347

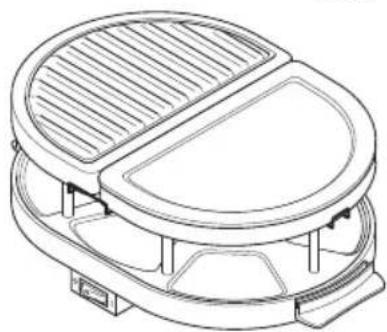

Line drawing of a dual-chamber electric cooker or fan assembly (no text or symbols)

162348

162347 162348 A

9 3 9 ① ② ① ② 8 162347

B1

3 4 11 10 8 11 8 162348

B2

Gefeliciteerd!

You have purchased a Princess appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.

Instructions for use

The instructions for use have been collected in the corresponding section. Be familiar with the safety instructions when you consult the instructions for use.

Safety instructions

Warning!

• When using mains-powered appliances, basic safety instructions must always be followed to reduce the risk of fire, electric shock and personal injury.
• Do not use the appliance near bathtubs, showers, basins or other vessels containing water.

Read the entire manual carefully before use.

• The intended use is described in this manual. The use of any accessory or the performance of any operation with this appliance other than recommended can cause a risk of personal injury.
• Keep this manual for future reference. Children should be supervised to ensure that they do not play with the appliance.
• The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

This appliance is intended to be used in • indoor only and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

Use

Always be careful when using the appliance. Beware of hot parts. The accessible surfaces can become hot when the appliance is operating.

The outer surface can become hot when the appliance is operating.

Always protect the appliance from water or • excessive humidity.

Do not operate the appliance if your hands • are wet. Do not operate the appliance if you are barefoot.

Carefully guide the mains cable to make • sure that it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Never pull the mains cable to disconnect • the mains plug from the mains. Keep the mains cable away from heat, oil and sharp edges.

Do not remove any part or accessory when the mains plug is connected to the mains.

Always first disconnect the mains plug from the mains.

If the mains cable becomes damaged • during use, immediately disconnect the mains plug from the mains. Do not touch the mains cable before disconnecting the mains plug from the mains.

Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety of others

Do not allow children or any person • unfamiliar with these instructions to use the appliance.

Do not allow children or animals to come • near the work area. Do not allow children or animals to touch the appliance or mains cable. Close supervision is necessary when the appliance is used near children.

After use

• Disconnect the mains plug from the mains and let the appliance cool down before leaving it unattended and before replacing, cleaning or inspecting any parts of the appliance.
• Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Inspect the appliance for breakage of parts, damage to switches and other conditions that can affect the operation.
  Do not use the appliance if any part is • damaged or defective.
• Have any damaged or defective part repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.
• Before use, check the mains cable for wear or damage.
  Do not use the appliance if the mains cable • or mains plug is damaged or defective. If the mains cable or mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Safety instructions for grill and raclette sets

Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance.

- Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 mm^2 ).

- For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA.

- Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable. Only use the appropriate connector to operate the appliance.

Place the appliance on a stable and flat surface.

Place the appliance on a heat-resistant • and splash-proof surface.

Do not place the appliance on a hob.

Make sure that there is sufficient space • around the appliance to allow heat to escape and provide sufficient ventilation.

Make sure that the appliance does not • come into contact with flammable material.

Keep the appliance away from heat sources.

Do not immerse the appliance in water or • other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket.

If the appliance is immersed in water or other liquids, do not use the appliance again.

Do not cover the appliance.

Do not use charcoal or similar combustible • fuels.

Do not let metal cutlery touch the grill plate, • the grill stone and the pans to prevent damage to the non-stick coating.

Beware of steam and splashes when • putting food on the hot grill plate, the hot grill stone and the hot pans.

Caution: Hot grease can splash from the • grill plate and the grill stone.

Do not pour cold water onto the hot grill • plate, the hot grill stone and the hot pans.

The water will splash and damage the grill plate, the grill stone and the pans.

Always be careful when touching the • appliance. Use oven gloves if you need to touch the appliance during or shortly after use.

The grill plate, the grill stone and the pans • become very hot during use. Do not touch the hot grill plate, the hot grill stone and the hot pans. Only hold the pans by the handgrips when the pans are hot.

- Make sure that your hands are dry before touching the appliance.

- Do not move the appliance while it is switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down.

Do not use the appliance near birds • (e.g. tropical birds such as parrots). The grill plate is finished with a non-stick coating based on PTFE. Upon heating, the coating may release small amounts of gases which are fully harmless for people. However, the nervous systems of birds are extremely sensitive to these gases.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or ( ± ) and is coloured GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

Warning! This appliance must be earthed.

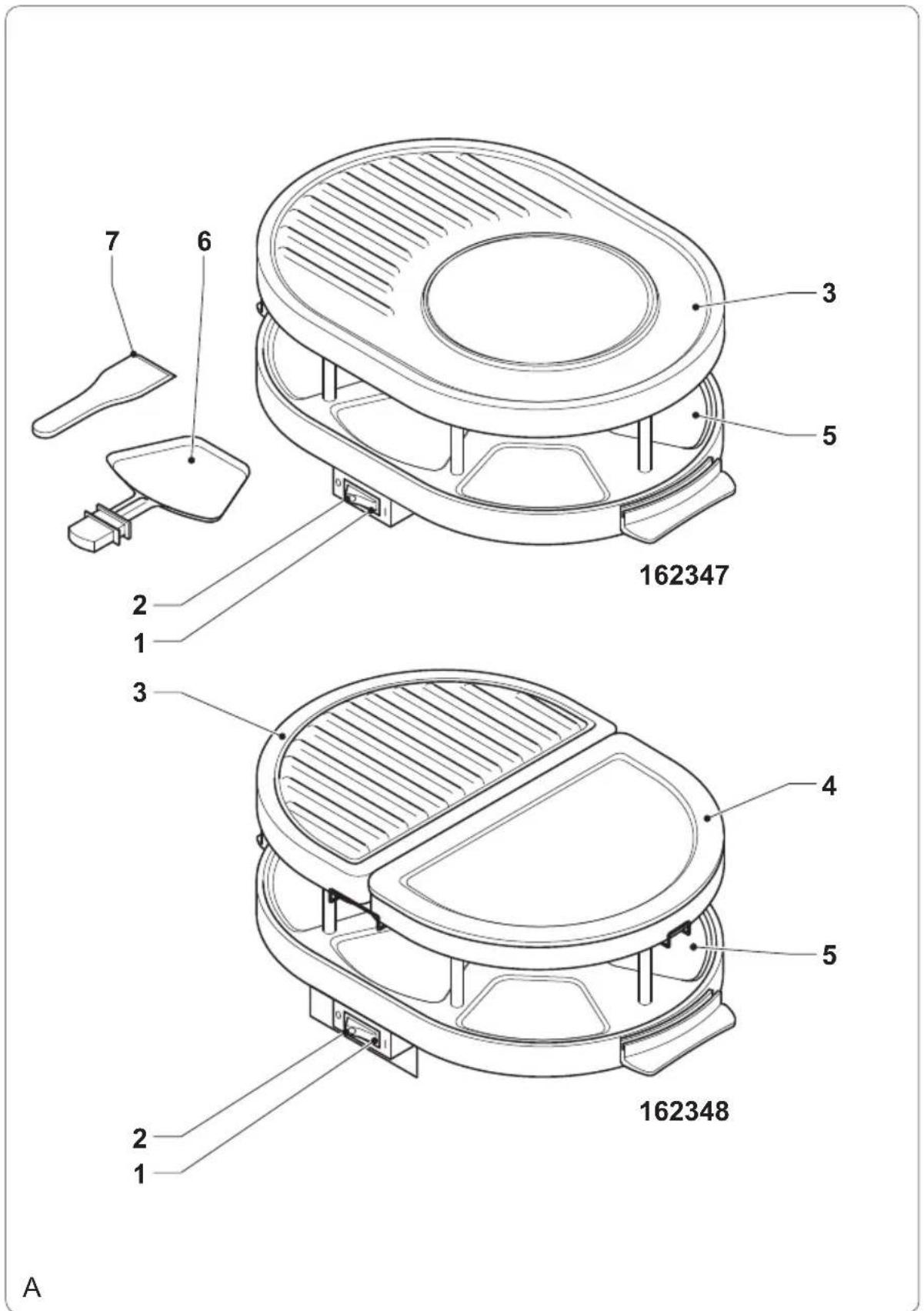

Description (fig. A)

Your 162347/162348 Princess grill and raclette set has been designed for grilling and racletting. The appliance is suitable for indoor use only.

1. On/off switch
2. On/off indicator
3. Grill plate
4. Grill stone

5. Bottom plate

6. Pan

7. Spatula

Initial use

Warning!

- Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Clean the appliance. Refer to the section • "Cleaning and maintenance".

Clean the accessories. Refer to the section • "Cleaning and maintenance".

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket.

Switch on the appliance with a high temperature.

Allow the appliance to cool down completely.

Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation.

Assembly

Warning!

- Before assembly, always remove the mains plug from the wall socket.

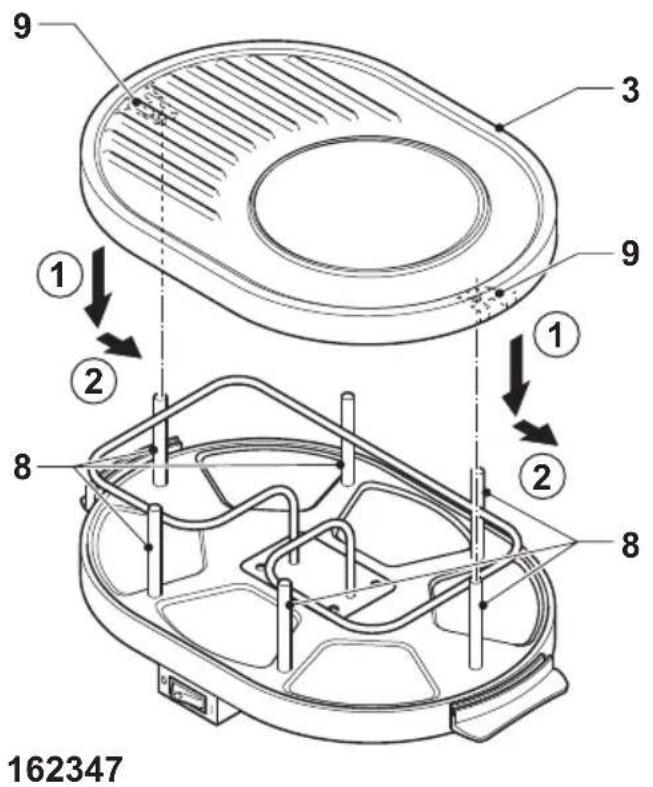

162347 (fig. B1)

The appliance is equipped with a grill plate with a non-stick coating.

Place the appliance on a stable and flat surface.

Place the grill plate (3) onto the pins (8). Make sure that the pins (8) are inserted into the holes (9) in the grill plate (3).

Lock the grill plate (3) by pushing it to the • left or to the right as far as possible.

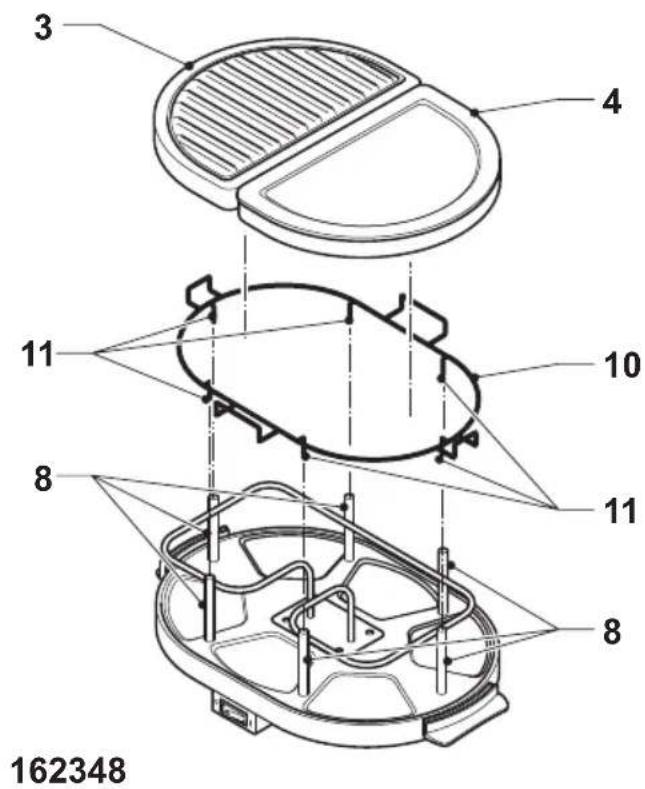

162348 (fig. B2)

The appliance is equipped with a grill plate with a non-stick coating. The appliance is equipped with a grill stone.

Place the appliance on a stable and flat surface.

Place the holder (10) onto the appliance. • Make sure that the legs (11) are inserted into the pins (8).

• Place the grill plate (3) onto one side of the holder (10).
• Place the grill stone (4) onto the other side of the holder (10).

Use

Switching on and off (fig. A)

• To switch on the appliance, set the on/off switch (1) to the 'I' position.
  The on/off indicator (2) comes on.
• To switch off the appliance, set the on/off switch (1) to the 'O' position.
  The on/off indicator (2) goes off.

Hints for use

• Prepare the ingredients.
- Clean the grill plate and the grill stone with a damp cloth.
- Place the appliance on a stable and flat surface.
- Spread a small amount of edible oil onto the grill plate or grill stone using a soft brush or a piece of kitchen paper. Wait for the oil to soak in. Wipe off any excess oil.
- Insert the mains plug into the wall socket.
- Switch on the appliance.
- Wait for approximately 20 minutes until the grill plate has reached the required temperature. Wait for approximately 30 minutes until the grill stone has reached the required temperature.
- Note: Small pieces will grill or fry better and more quickly than large pieces.
- Experiment with the required cooking time to achieve the best results.
• After use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Grilling

Grilling is a cooking technique which is used to prepare meat, fish and other food on a grill plate or a grill stone. Grilling can be easily combined with racletting.

Warning!

- Only start preparing food when the heating elements are fully heated.

Racletting

Racletting is a traditional Swiss cooking technique which is based on dishes prepared with melted cheese and potatoes. The grill plate or the grill stone is used to keep the potatoes warm and to grill meat, fish and other food. The pans are placed under the heating elements to prepare individual portions with melted cheese and ingredients of choice. Racletting can be easily combined with grilling.

Warning!

- Only start preparing food when the heating elements are fully heated.

Recipe (4 persons)

Ingredients Quantity

Potatoes 8 (equal size)
Pickled onions 1 jar (340 g)
Gherkins 1 jar (340 g)
Dried beef (Bündnerfleisch) 200 g
Smoked raw ham 200 g
Raclette cheese 600 g
Freshly ground pepper according to taste

Do not peel potatoes. Thoroughly scrub the • potatoes. Cook the potatoes.

Cut the potatoes into slices. Put the sliced • potatoes onto the grill plate to keep them warm.

Put a few potato slices into the pan. •

Cover the potato slices with a few slices of raclette cheese.

Sprinkle some pepper onto the raclette • cheese (according to taste).

Place the pan onto the bottom plate.

Allow the raclette cheese to melt.

- Add the pickled onions, the gherkins, the dried beef, and the smoked raw ham.

Defrosting

Caution!

- Do not use the heating elements of the appliance for defrosting food. If you use the heating elements for defrosting food, the food is slowly cooked instead of merely defrosted.

In order to defrost food, put the food on the grill plate. Make sure that the mains plug is not inserted into the wall socket.

Defrosting food on the grill plate is considerably faster than defrosting food on, for example, a ceramic or plastic dish.

Cleaning and maintenance

Warning!

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not use sharp objects to clean the accessories.
• It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.

Regularly check the appliance for possible damage.

Clean the grill plate and the grill stone after • each use:

• Remove any residues with a paper towel.
• Clean the grill plate and the grill stone in soapy water.
• Thoroughly dry the grill plate and the baking plate.

Clean the bottom plate and the heating elements with a damp cloth.

Clean the outside of the appliance with a damp cloth.

Clean the pans and the spatulas in soapy • water. Thoroughly dry the pans and the spatulas.

Store the appliance in a dry place, out of • the reach of children.

Disclaimer

Subject to change; specifications can be changed without further notice.
