USER MANUAL Simply White Table Chef 102613 PRINCESS

apparaat is ondergedompeld in water of

de netstekker uit het stopcontact. Gebruik

apparaat is ondergedompeld in water of

gasten in hotels, motels, bed and breakfasts

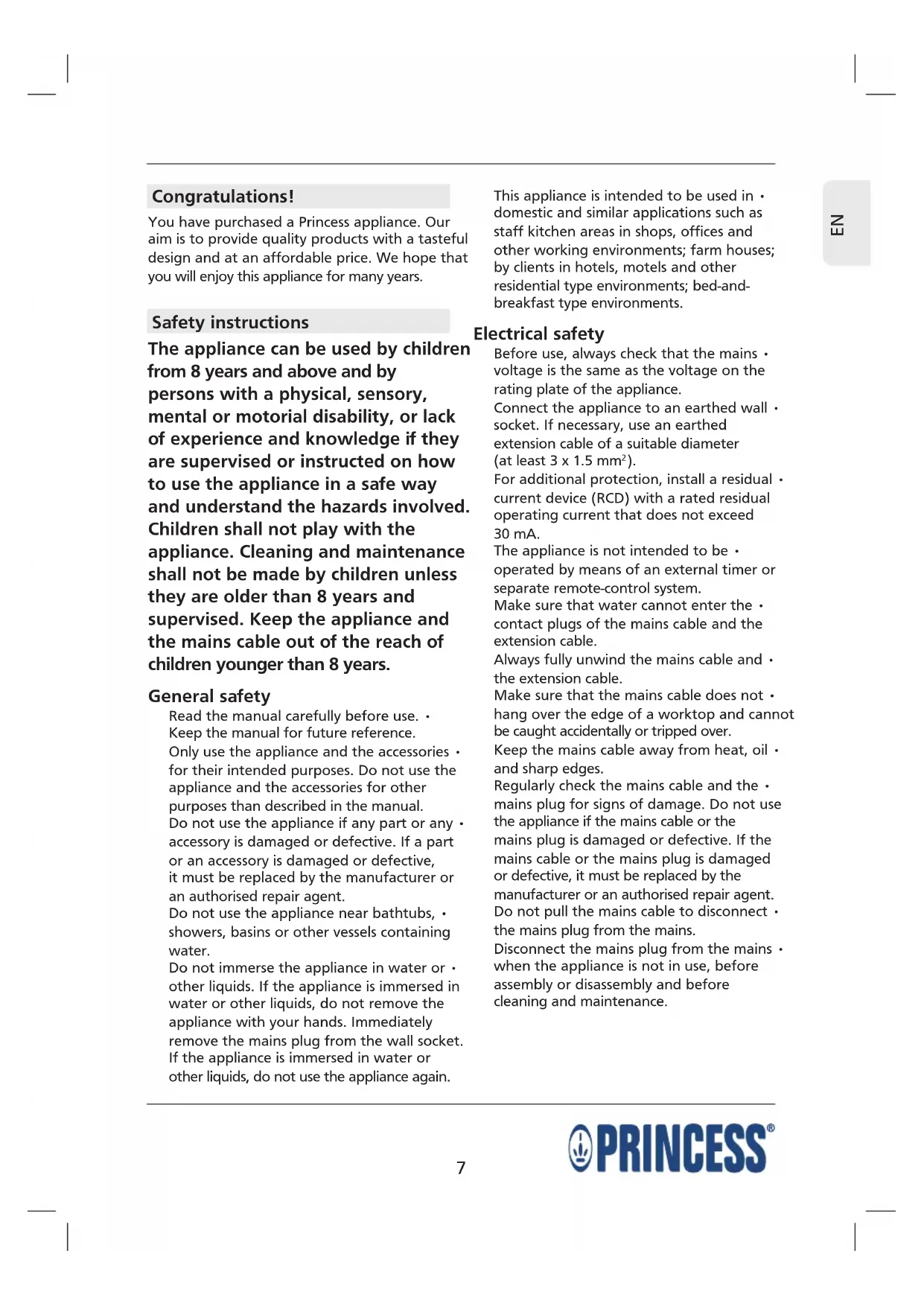

You have purchased a Princess appliance. Our

aim is to provide quality products with a tasteful

design and at an affordable price. We hope that

you will enjoy this appliance for many years.

The appliance can be used by children

from 8 years and above and by

persons with a physical, sensory,

mental or motorial disability, or lack

of experience and knowledge if they

are supervised or instructed on how

to use the appliance in a safe way

and understand the hazards involved.

Children shall not play with the

appliance. Cleaning and maintenance

shall not be made by children unless

they are older than 8 years and

supervised. Keep the appliance and

the mains cable out of the reach of

children younger than 8 years.

Read the manual carefully before use. •

Keep the manual for future reference.

Only use the appliance and the accessories •

for their intended purposes. Do not use the

appliance and the accessories for other

purposes than described in the manual.

Do not use the appliance if any part or any •

accessory is damaged or defective. If a part

or an accessory is damaged or defective,

it must be replaced by the manufacturer or

an authorised repair agent.

Do not use the appliance near bathtubs, •

showers, basins or other vessels containing

Do not immerse the appliance in water or •

other liquids. If the appliance is immersed in

water or other liquids, do not remove the

appliance with your hands. Immediately

remove the mains plug from the wall socket.

If the appliance is immersed in water or

other liquids, do not use the appliance again.

This appliance is intended to be used in •

domestic and similar applications such as

staff kitchen areas in shops, offices and

other working environments; farm houses;

by clients in hotels, motels and other

residential type environments; bed-and-

breakfast type environments.

Before use, always check that the mains •

voltage is the same as the voltage on the

rating plate of the appliance.

Connect the appliance to an earthed wall •

socket. If necessary, use an earthed

extension cable of a suitable diameter

(at least 3 x 1.5 mm

For additional protection, install a residual •

current device (RCD) with a rated residual

operating current that does not exceed

The appliance is not intended to be •

operated by means of an external timer or

separate remote-control system.

Make sure that water cannot enter the •

contact plugs of the mains cable and the

Always fully unwind the mains cable and •

the extension cable.

Make sure that the mains cable does not •

hang over the edge of a worktop and cannot

be caught accidentally or tripped over.

Keep the mains cable away from heat, oil •

Regularly check the mains cable and the •

mains plug for signs of damage. Do not use

the appliance if the mains cable or the

mains plug is damaged or defective. If the

mains cable or the mains plug is damaged

or defective, it must be replaced by the

manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect •

the mains plug from the mains.

Disconnect the mains plug from the mains •

when the appliance is not in use, before

assembly or disassembly and before

cleaning and maintenance.8

EN Safety instructions for Table Chef

Place the appliance on a stable and flat •

Place the appliance on a heat-resistant and •

splash-proof surface.

Do not place the appliance on a hob.•

Make sure that there is sufficient space •

around the appliance to allow heat to

escape and provide sufficient ventilation.

Do not cover the appliance.•

Keep the appliance away from heat sources.•

Make sure that the appliance does not •

come into contact with flammable material.

Do not use charcoal or similar combustible •

Do not operate the appliance if your hands •

are wet. Do not operate the appliance if

Caution: Hot grease can splash from the •

Beware of steam and splashes when putting •

food on the hot grill plate.

Do not pour cold water onto the hot grill •

plate. The water will splash and damage

Beware of hot parts. The surfaces marked •

with a caution symbol for hot surfaces are

liable to become hot during use. The

accessible surfaces can become hot when the

appliance is operating. The outer surface can

become hot when the appliance is operating.

The grill plate becomes very hot during use. •

Do not touch the hot grill plate. Only touch

the handgrips when the grill plate is hot.

Use oven gloves if you need to touch the •

appliance during or shortly after use.

Do not let metal cutlery touch the grill plate •

to prevent damage to the non-stick coating.

Do not move the appliance while it is •

switched on or is still hot. Remove the

mains plug from the wall socket and wait

until the appliance has cooled down.

Do not use the appliance near birds •

(e.g. tropical birds such as parrots). The grill

plate is finished with a non-stick coating

based on PTFE. Upon heating, the coating

may release small amounts of gases which

are fully harmless for people. However,

the nervous systems of birds are extremely

sensitive to these gases.

Store the appliance in a dry place when •

not in use. Make sure that children do not

have access to stored appliances.

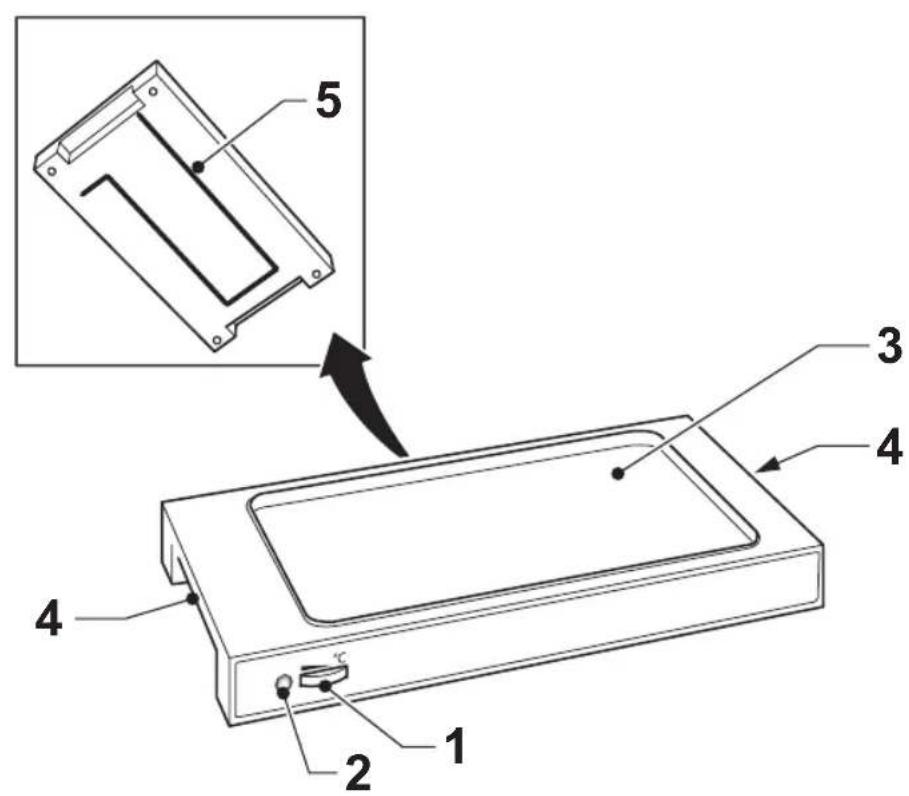

Description (fig. A)

Your 102613 Princess Table Chef has been

designed for frying or grilling food without

using fat. The appliance is equipped with a grill

plate with a non-stick coating. The appliance is

suitable for indoor use only. The appliance is

suitable for domestic use only.

Before you proceed, we need you to pay

attention to the following notes:

- Make sure that there is sufficient space

around the appliance to allow heat to

escape and provide sufficient ventilation.

Clean the appliance. •

Refer to “Cleaning and maintenance”.

Clean the accessories. •

Refer to “Cleaning and maintenance”.

Place the appliance on a stable and flat •

Insert the mains plug into the wall socket.•

Switch on the appliance with a high •

Allow the appliance to cool down completely.•

Note: If you switch on the appliance for the

first time, the appliance may emit a little

smoke and a characteristic smell for a short

period. This is normal operation.

Switching on and off (fig. A)

Insert the mains plug into the wall socket.•

To switch on the appliance, turn the •

thermostat dial (1) to set the required

temperature. The temperature indicator

(2) remains on while the grill plate (3) is

EN The temperature indicator (2) goes off

when the grill plate (3) has reached the

required temperature.

While the appliance is switched on, the •

temperature indicator (2) will illuminate

and extinguish as the thermostat switches

the heating elements on and off to

maintain the required temperature.

To switch off the appliance, turn the •

thermostat dial (1) fully to the right.

Remove the mains plug from the wall socket.•

Setting the temperature (fig. A)

Turn the thermostat dial (1) to the left to •

increase the temperature of the grill

Turn the thermostat dial (1) to the right •

to decrease the temperature of the grill

Hints for optimum use

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use the appliance when the mains

cable is located in the cable storage.

Prepare the ingredients.•

Clean the grill plate with a damp cloth.•

Place the appliance on a stable and flat •

Insert the mains plug into the wall socket.•

Turn the thermostat dial to set the •

required temperature.

Wait for approximately 10 minutes until •

the grill plate has reached the required

Note: Small pieces will grill or fry better •

and more quickly than large pieces.

Set the thermostat to suit the ingredients. •

Experiment with the required cooking time

and the required temperature to achieve

After use, switch off the appliance, remove •

the mains plug from the wall socket and

wait until the appliance has cooled down.

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use the heating elements of the

appliance for defrosting food.

If you use the heating elements for

defrosting food, the food is slowly cooked

instead of merely defrosted.

In order to defrost food, put the food on the

grill plate. Make sure that the mains plug is

not inserted into the wall socket. Defrosting

food on the grill plate is considerably faster

than defrosting food on, for example, a

ceramic or plastic dish.

Cleaning and maintenance

Before you proceed, we need you to pay

attention to the following notes:

- Before cleaning or maintenance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not immerse the appliance in water or

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

Regularly check the appliance for possible •

Clean the grill plate after each use:•

- Remove any residues with a paper towel.

- Clean the grill plate with a damp cloth.

- Thoroughly dry the grill plate.

Clean the outside of the appliance with •

a damp cloth. Dry the outside of the

appliance with a clean, dry cloth.

Put the mains cable in the cable storage at •

the underside of the appliance.

After cleaning, put the appliance in the •

Store the appliance in a dry place, out of •

the reach of children.

U.K. Wiring instructions

The wires in the mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL BROWN LIVE GREEN/YELLOW EARTH10

EN As the colours of the wire in the mains lead of

this appliance may not correspond with the

colour markings identifying the terminals on

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter N or coloured black.

The wire which is coloured BROWN must be

connected to the terminal which is marked

with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW

must be connected to the terminal which is

marked with the letter E or ( ) and is coloured

GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp

(BS1362) fuse must be fitted, or if any other

type of plug is used, a 13Amp fuse must be

fitted, either in the plug or adaptor, or on the

Warning! This appliance must be earthed.

Subject to change; specifications can be

changed without further notice.11
