Product type	Oscillating multifunction sander
Brand	Fein
Model	MultiMaster Start
Main functions	Dry sanding, cutting of thin sheets, scraping
Power supply	Mains (power cable with plug)
Electrical safety	Double insulation, 30 mA residual current device (RCD) recommended
Required personal protection	Safety glasses, hearing protection, dust mask, gloves
Oscillation angle	Not specified
Oscillation speed	Adjustable by frequency selection
Tool change	Clamping lever with 45° rotation steps
Weight	Not specified
Maintenance	Clean ventilation slots with dry compressed air
Spare parts available	Fastening element, clamping screw, working tools (backing pads, blades, abrasive sheets)
Warranty	Legal warranty and FEIN manufacturer's warranty
Standards	CE, EN 60745
Intended use	Sanding small surfaces, cutting sheet metal, wood and plastic
Storage temperature	Not specified

Frequently Asked Questions - MultiMaster Start Fein

How to change the working tool on the Fein MultiMaster Start?

To change the tool, use the clamping lever. Turn the fastening element to release the used tool, then mount the new tool by aligning the notches. Close the clamping lever all the way. Be careful not to pinch your fingers when the lever snaps back.

What protective equipment should I wear during use?

Always wear safety glasses, hearing protection (high noise), a dust mask suitable for the materials being worked, and gloves to protect your hands from sharp edges.

Can I use non-FEIN accessories with this tool?

No, only use accessories recommended by FEIN. Using unsuitable accessories may cause overheating, tool damage, or injury.

How to clean the power tool?

Clean the ventilation slots regularly with dry oil-free compressed air. Do not use metal objects to avoid damaging the insulation. For conductive dust, blow frequently and use a residual current device.

What to do if the power cable is damaged?

If the cable is damaged, it must be replaced by a special cable available from FEIN customer service. Do not use the tool with a damaged cable to avoid electric shock.

How to sand effectively with the MultiMaster Start?

Use a high oscillation frequency. Apply light and constant pressure over the entire pad surface. Do not sand only with the tip. For even wear, you can rotate the abrasive sheet by 120°.

Can I cut metal with this tool?

Yes, it is possible to cut thin sheet metal plates in dry conditions. Use a suitable blade and choose a high oscillation frequency. Be sure to wear gloves and glasses.

What is the warranty of the Fein MultiMaster Start?

The tool benefits from the legal warranty in effect in the country of purchase, as well as the FEIN manufacturer's warranty (see enclosed declaration). Keep the proof of purchase for any claim.

How to store the tool after use?

Remove the working tool, close the clamping lever and press in the fastening element. Store the tool in a dry and clean place, protected from moisture and dust.

Is the tool suitable for renovation work?

Yes, the MultiMaster Start is ideal for renovation work thanks to its sanding, cutting and scraping functions. It allows working in hard-to-reach corners and edges. Use the appropriate accessories for each task.

USER MANUAL MultiMaster Start Fein

OBJ DOKU-0000000343-001.In Page 1. Tuesday, September 14, 2010 8:02 AM

Dr. Schreiber Manager of R&D department

FEIN Service

C. & E. FEIN GmbH

Hans-Fein-Straße 81

Illustration of two electric shock absorbers with visible blades and mounting brackets (no text or symbols)

OBJ BUCH-0000000018-001.book Page 2 Tuesday, September 14, 2010 11:23 AM

2

	FMM250 FMM250Q
	7 229 36 7 229 37
P_1	W 250 250
P_2	W 130 130
n_S	/min 11000 – 20000 11000 – 20000
	°	1
	kg 1.2 1.4
L_wA	dB 85 85
K_wA	dB 3 3
L_pA	dB 74 74
K_pA	dB 3 3
L_pCpeak	dB 96 96
K_pCpeak	dB 3 3

6 1

6

de 11 pt 30 tr 49 sl 69 et 90 th 108 en 14 el 33 hu 52 sr 72 lt 93 ja 112 fr 17 da 37 cs 56 hr 75 lv 96 hi 115 it 20 no 40 sk 59 ru 78 zh(CM) 99 ar 120 nl 24 sv 43 pl 62 uk 82 zh(CK) 102 es 27 fi 46 ro 66 bg 86 ko 105

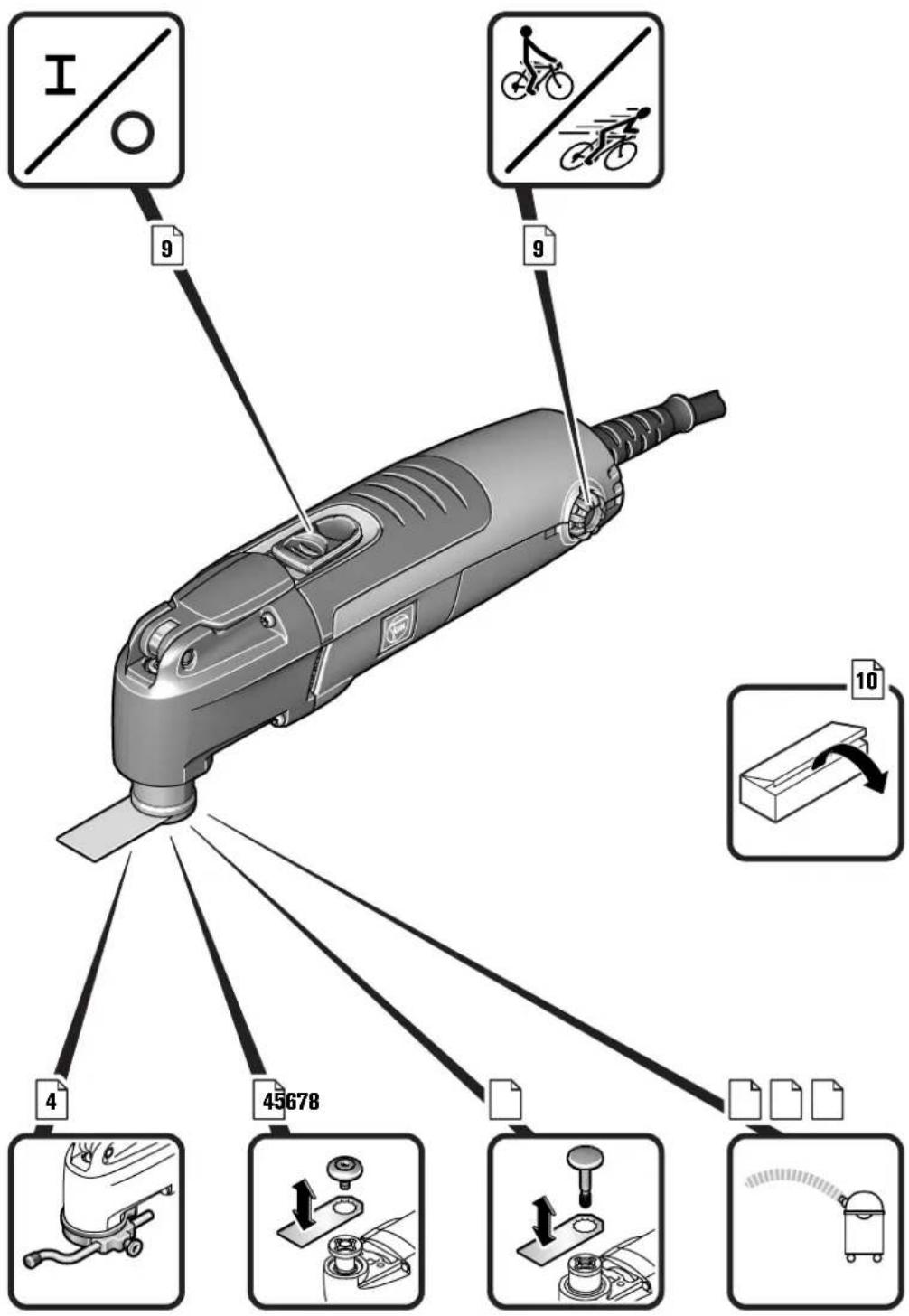

3

I O 9 9 4 45678 10

OBJ BUCH-0000000018-001.book Page 4 Tuesday, September 14, 2010 11:23 AM FMM250

OBJ BUCH-0000000018-001.book Page 5 Tuesday, September 14, 2010 11:23 AM

5

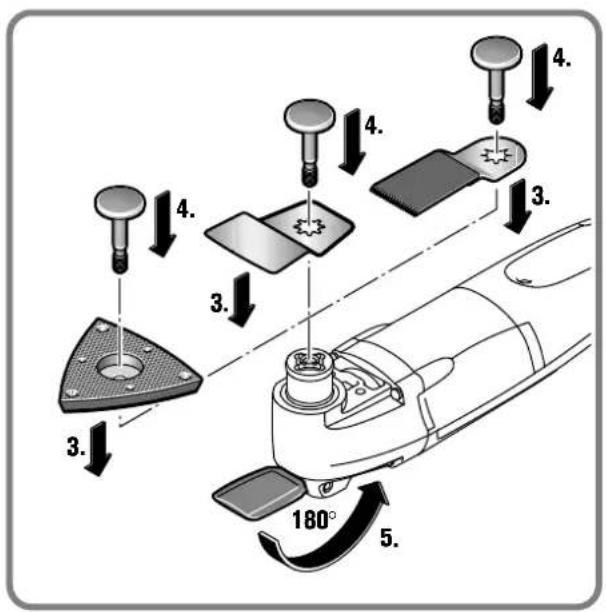

FMM250Q 1. 180° 2.

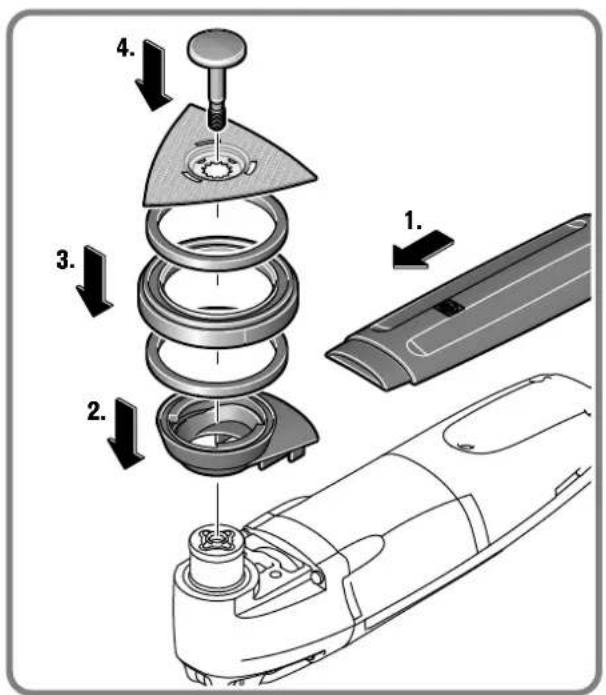

OBJ BUCH-0000000018-001.book Page 6 Tuesday, September 14, 2010 11:23 AM FMM250 3. 1. 2. 4. 3. 1. 2.

OBJ BUCH-0000000018-001.book Page 7 Tuesday, September 14, 2010 11:23 AM

7

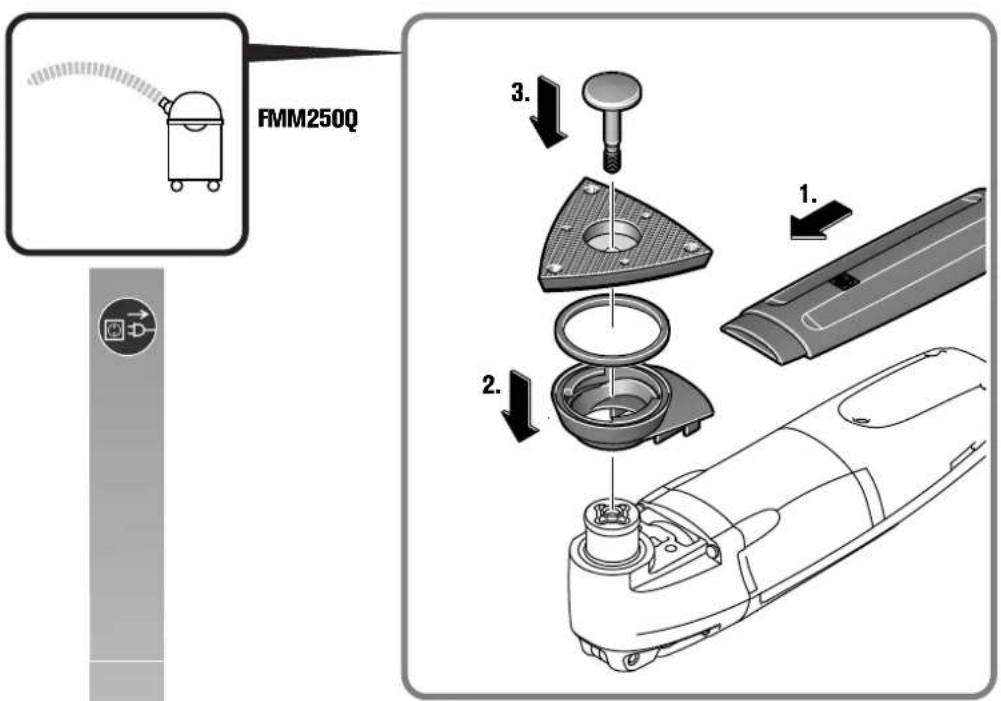

FMM250Q 3. 1. 2.

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

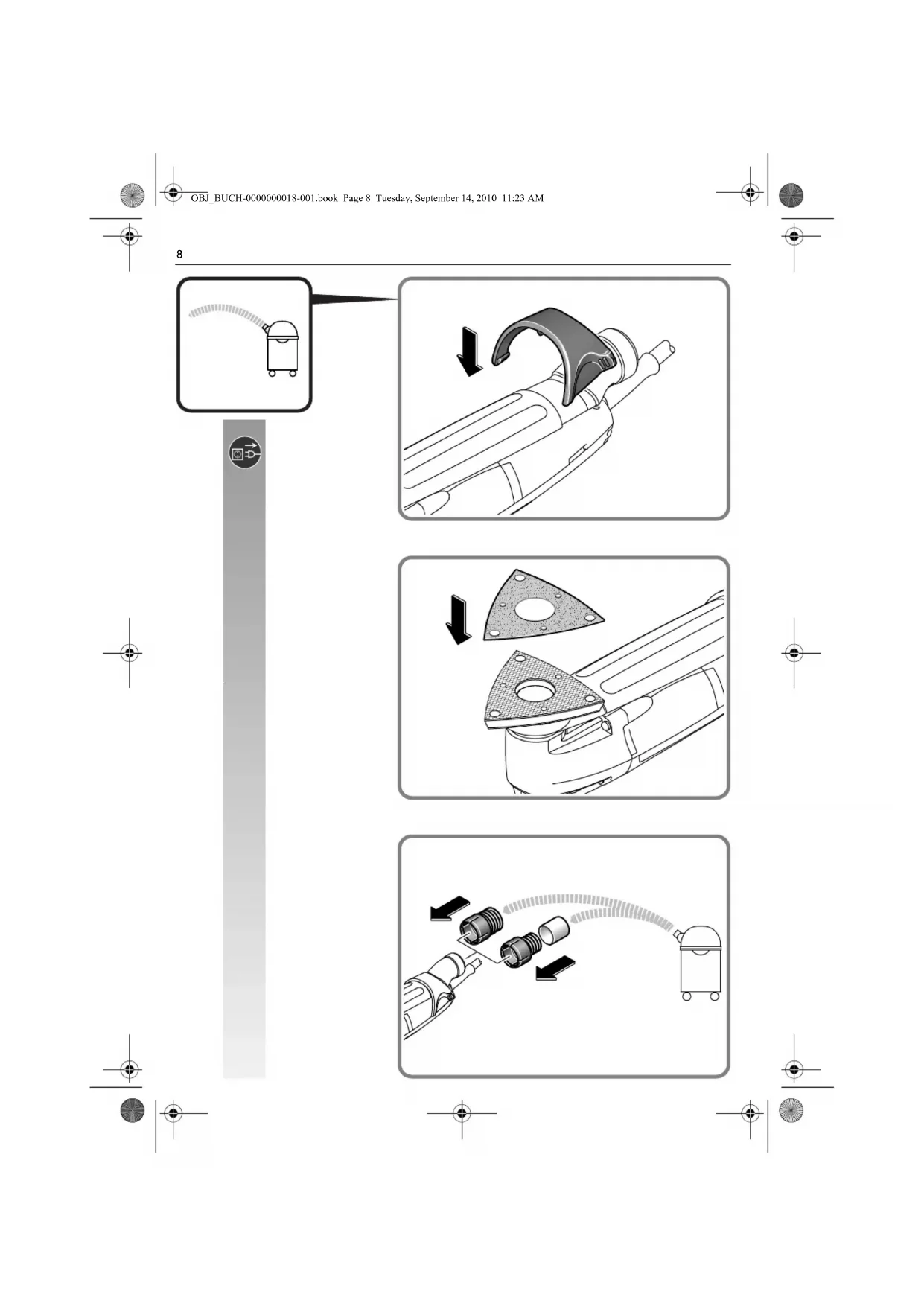

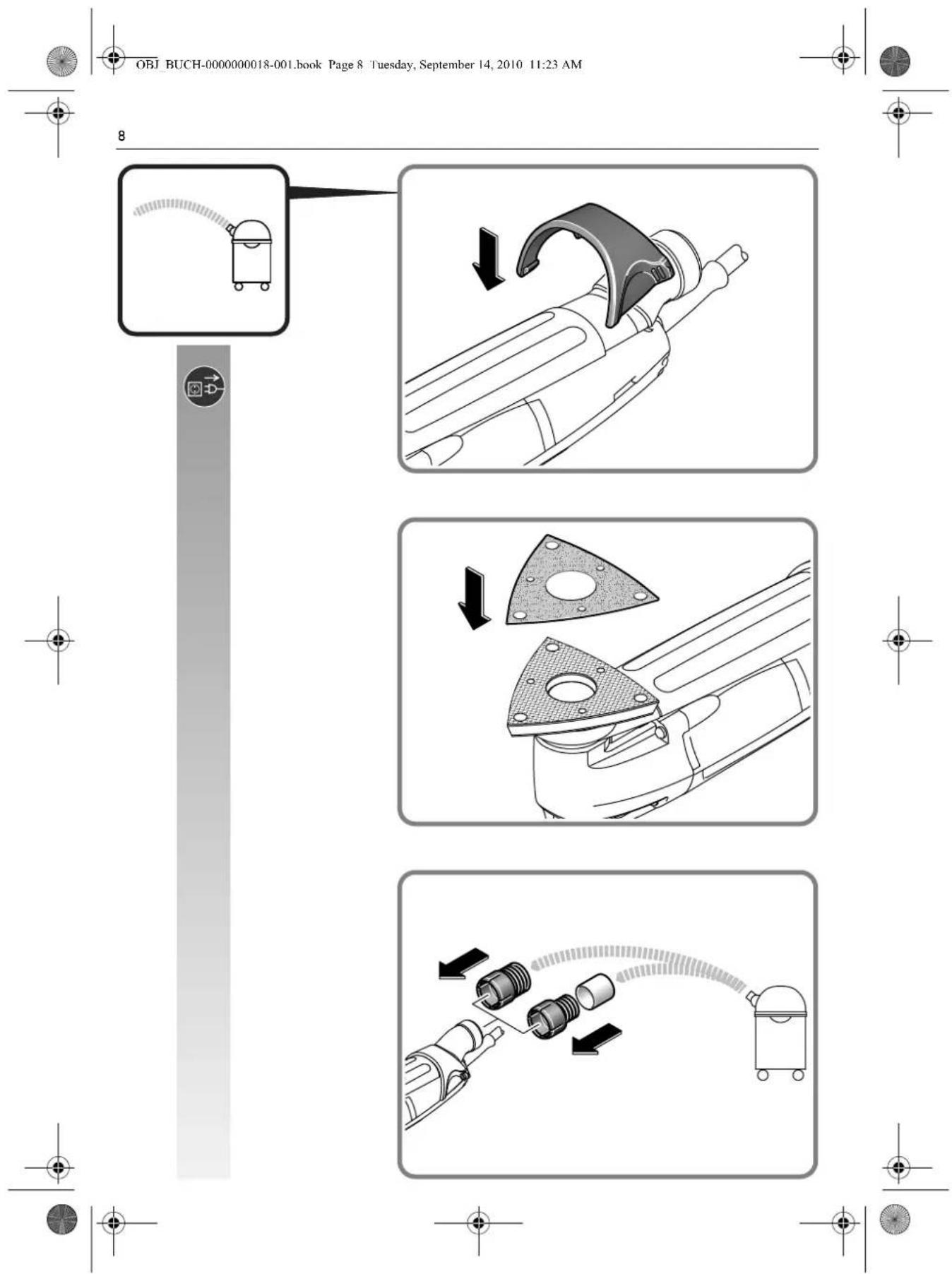

OBJ BUCH-0000000018-001.book Page 8 Tuesday, September 14, 2010 11:23 AM 8

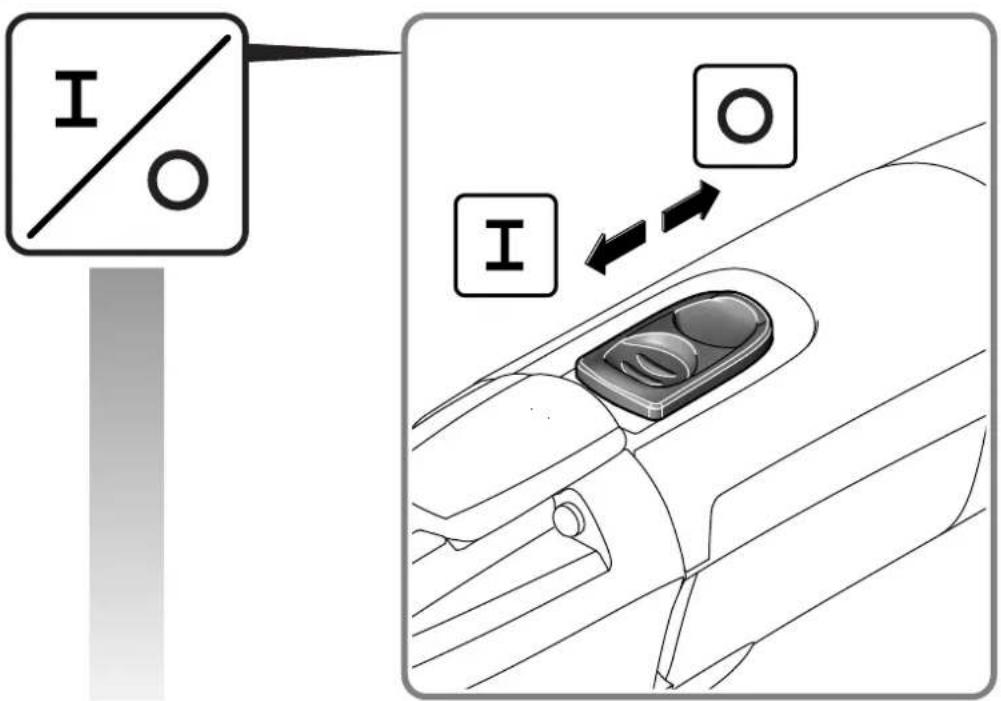

I O I O

Diagram illustrating bicycle lane crossing and safety measures, showing a crosswalk with 6 steps and a car collision scenario.

OBJ BUCH-0000000018-001.book Page 10 Tuesday, September 14, 2010 11:23 AM FMM250

Original Instructions for MULTIMASTER.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Do not touch the saw blade. Danger of sharp application tools moving back and forth.
	Warning against sharp edges of application tools, such as the cutting edges of the cutter blades.
	Observe the instructions in the text or graphic opposite!
	Before commencing this working step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
	Use ear protection during operation.
	Use a dust mask during operation.
	Use protective gloves during operation.
	Observe the information in the adjacent text!
	Confirms the conformity of the power tool with the directives of the European Community.
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environment-friendly recycling.
	Product with double or reinforced insulation
	Low oscillation rate
	High oscillation rate

Character Unit of measure, international		Unit of measure, national	Explanation
P_1	W	W	P	o	w
P_2	W	W	O	u	t
U/V	V	R	a	t	e
/Hz Hz Frequency
n_S	/min /min Rated oscillation rate
	° ° Oscillation angle
	kg kg	Weight according to EPTA-Procedure 01/2003
L_wA	dB	dB	Sound power level
L_pA	dB	dB	Sound pressure level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty

e

p

d

r

u

Character Unit of measure, international		Unit of measure, national	Explanation
m/s	2	m/s^2	Vibrational emission value according to EN 60745 (vector sum of three directions)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s^2	Basic and derived units of measure from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

for sanding small surfaces, corners and edges, for sawing thin parts of steel sheet, wood and plastic, for scraping, polishing, rasping, cutting and separating without water in weather-protected environments, using the application tools and accessories recommended by FEIN.

Special safety instructions.

Hold the power tool by the insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. A cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

Grasp the power tool in such a safe manner that your body never comes into contact with the application tool, especially while working with application tools such as saw blades or other blades pointed toward the grasping range. Touching sharp tips or cutting edges can lead to injuries.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of sanding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container In time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

en

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Emission values for vibration

Vibration a
Classification of FEIN application tools according to vibration class	Weighted acceleration*
VC0 < 2.5 m/s	2
VC1 < 5 m/s	2
VC2 < 7 m/s	2
VC3 < 10 m/s	2
VC4 < 15 m/s	2
VC5 > 15 m/s	2
Ka3 m/s	2

* These values are based on a work cycle consisting of no-load and full-load operation of the same duration. For information on the vibration class assigned to the application tool, please see the enclosed data sheet 3 41 30 335 06 0.

Operating instructions.

Do not use accessories not specifically intended and recommended for this power tool by FEIN. The use of non-original FEIN accessories can lead to overheating of the power tool and destroy it.

Guide the power tool toward the work piece only when switched on.

The application tool can be offset in 45° steps and fastened in the most favourable working position.

Changing the tool (FMM250Q) (see page 5).

! Firmly press in the fastening element to the stop. Then lock the clamping lever.

Protect your hand and fingers against bruising them when locking the clamping lever. The clamping lever snaps back vigorously by means of spring force.

Notes on sanding.

Press the power tool with the sanding sheet briefly and firmly against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear.

When only one tip or corner of the sanding sheet is worn, it can be removed again and reattached turned by 120°.

Work with the entire surface of the sanding plate, not only with the tip. Select a high oscillating frequency. Sand with continuous motion applying moderate pressure. Applying overly pressure does not increase the rate of removal, it only wears off the sanding sheet faster.

Notes on sawing.

Select a high oscillating frequency. Round saw blades can be released and clamped offset again, to allow for uniform wearing off.

Notes on scraping.

Select a moderate to high oscillating frequency.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool.

The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the FEIN customer service centre.

FMM250Q: For storage of the power tool, remove the application tool, shut the clamping lever, and then press in the fastening element.

If required, you can change the following parts yourself: Fastening element (FMM250Q), clamping bolt (FMM250), application tools

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration. The delivery scope of your power tool may include only a part of the accessories described or shown in this instruction manual.

Declaration of conformity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.
