USER MANUAL FET5112 FAGOR

vous familiariser plus rapidement avec son fonctionnement.

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on

technical advances to their technical and functional features and appearance.

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will

allow you to quickly familiarise yourself with its operation.

Da wir unsere Produkte ständig verbessern möchten, behalten wir uns das Recht vor, ihre technischen, funktionellen und

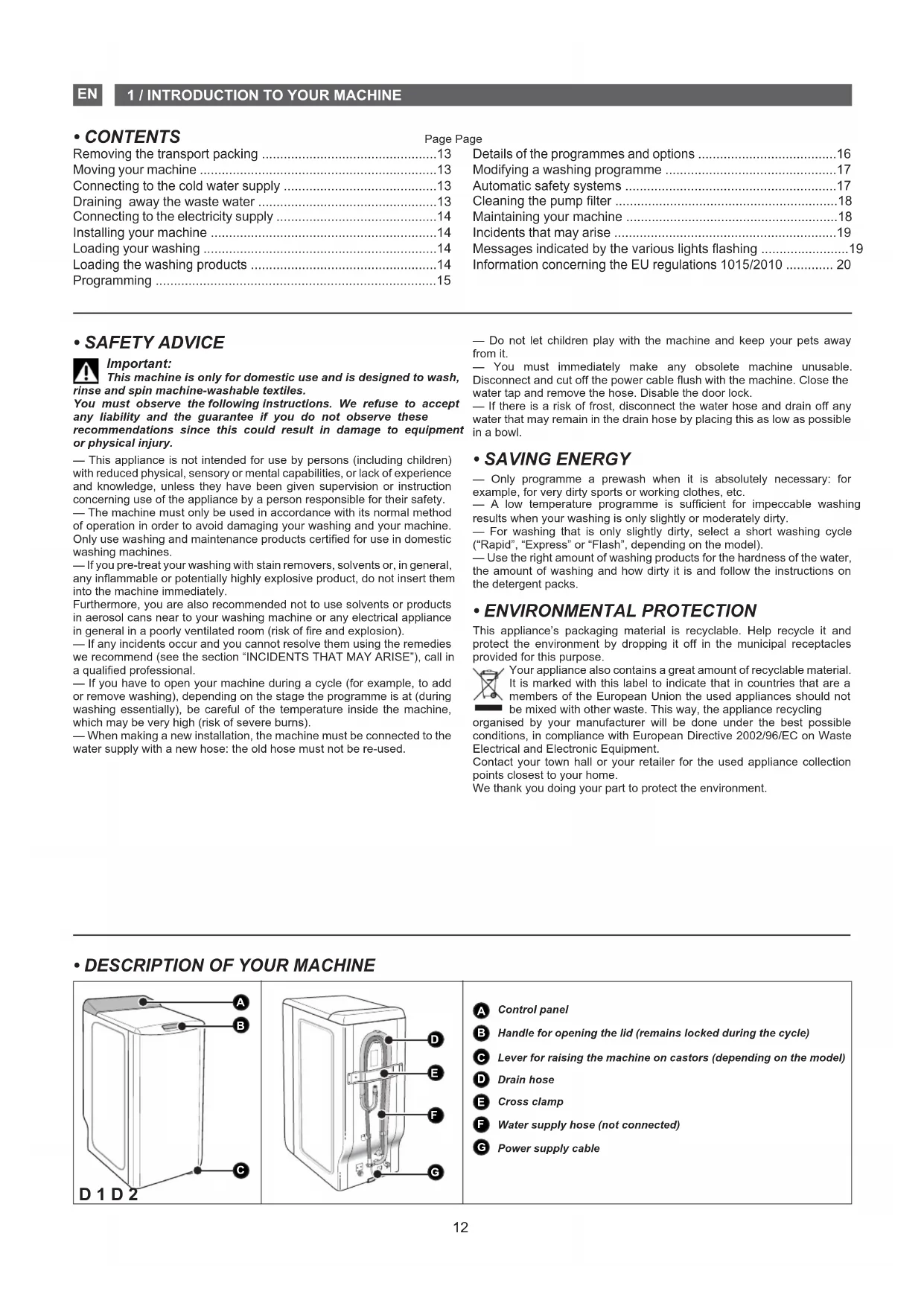

• INFORMATION PRODUIT

D E F G Control panel

Handle for opening the lid (remains locked during the cycle)

Water supply hose (not connected)

Lever for raising the machine on castors (depending on the model)

Removing the transport packing 13

Moving your machine 13

Connecting to the cold water supply 13

Draining away the waste water 13

Connecting to the electricity supply 14

Installing your machine 14

Loading your washing 14

Loading the washing products 14

Details of the programmes and options 16

Modifying a washing programme 17

Automatic safety systems 17

Cleaning the pump lter 18

Maintaining your machine 18

Incidents that may arise 19

Messages indicated by the various lights ashing 19

Information concerning the EU regulations 1015/2010 20

• SAFETY ADVICE Important:

This machine is only for domestic use and is designed to wash,

rinse and spin machine-washable textiles.

You must observe the following instructions. We refuse to accept

any liability and the guarantee if you do not observe these

recommendations since this could result in damage to equipment

— This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

— The machine must only be used in accordance with its normal method

of operation in order to avoid damaging your washing and your machine.

Only use washing and maintenance products certied for use in domestic

— If you pre-treat your washing with stain removers, solvents or, in general,

any inammable or potentially highly explosive product, do not insert them

into the machine immediately.

Furthermore, you are also recommended not to use solvents or products

in aerosol cans near to your washing machine or any electrical appliance

in general in a poorly ventilated room (risk of re and explosion).

— If any incidents occur and you cannot resolve them using the remedies

we recommend (see the section “INCIDENTS THAT MAY ARISE”), call in

a qualied professional.

— If you have to open your machine during a cycle (for example, to add

or remove washing), depending on the stage the programme is at (during

washing essentially), be careful of the temperature inside the machine,

which may be very high (risk of severe burns).

— When making a new installation, the machine must be connected to the

water supply with a new hose: the old hose must not be re-used.

— Do not let children play with the machine and keep your pets away

— You must immediately make any obsolete machine unusable.

Disconnect and cut off the power cable ush with the machine. Close the

water tap and remove the hose. Disable the door lock.

— If there is a risk of frost, disconnect the water hose and drain off any

water that may remain in the drain hose by placing this as low as possible

— Only programme a prewash when it is absolutely necessary: for

example, for very dirty sports or working clothes, etc.

— A low temperature programme is sufcient for impeccable washing

results when your washing is only slightly or moderately dirty.

— For washing that is only slightly dirty, select a short washing cycle

(“Rapid”, “Express” or “Flash”, depending on the model).

— Use the right amount of washing products for the hardness of the water,

the amount of washing and how dirty it is and follow the instructions on

the detergent packs.

• ENVIRONMENTAL PROTECTION This appliance’s packaging material is recyclable. Help recycle it and

protect the environment by dropping it off in the municipal receptacles

provided for this purpose.

Your appliance also contains a great amount of recyclable material.

It is marked with this label to indicate that in countries that are a

members of the European Union the used appliances should not

be mixed with other waste. This way, the appliance recycling

organised by your manufacturer will be done under the best possible

conditions, in compliance with European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment.

Contact your town hall or your retailer for the used appliance collection

points closest to your home.

We thank you doing your part to protect the environment.• MOVING YOUR MACHINE

• Mounting it on castors

If your machine is equipped with removable castors, you will be able

to move it quite easily.

To mount it on castors, swivel the lever on the bottom of the machine

from the right to the far left (Diagram D9).

The machine must not rest on the “front” castors while it is

operating: remember to return the lever to its initial position.

• CONNECTING TO THE COLD WATER SUPPLY Connect the supply hose (Diagram D10):

— At one end to the connection on the back of the machine

— On the other end to a tap tted with a threaded end 20mm dia. x 27

If you use a self-piercing tap, the useful aperture must have a minimum

- Maximum water pressure: 1 MPa or 10 bars

• Replacing a water supply hose

When replacing the hose, ensure that the hose is tightly fastened and that

there is a seal at both ends.

• DRAINING AWAY THE WASTE WATER Fit the hose bracket provided inside your machine to the end of the drain

hose and then connect the hose (Diagram D11):

— Either, temporarily, over a sink or a bathtub.

— Or permanently to a ventilated U-bend.

If your installation does not have a ventilated U-bend, check that the

connection is not sealed. In fact, to avoid any waste water owing back

into the machine, you are strongly recommended to leave an air gap

between the machine’s drain hose and the drainpipe.

In any case, the drain hose bracket must be placed at a height of 65 to

90cm higher than the base of the machine.

Ensure that the drain hose is tied rmly in place with cord to

avoid the bracket coming loose during draining and causing a ood.

For correct draining of the waste water, make sure that the drain hose

is as straight as possible. In fact, the more bends the less effective

The waste water can be drained away to the ground provided that the

drain hose passes through a point 65 to 90cm higher than the base of

the machine (Diagram D12).

• REMOVING THE TRANSPORT CLAMPS Important:

Before using the machine in any way, you must rst perform

the following operations.

These comprise removing all the components designed to immobilise the

drum in your machine during transport.

These so-called “releasing” operations are necessary for your

machine to operate correctly and to conform to the prevailing safety

If they are not carried out completely, this could cause severe

damage to your machine while it is operating.

— Remove the washing machine from its plinth (check that the wedge

supporting the motor is not still inserted in the machine) (Diagram

— Remove the 4 screws with a screwdriver (Diagram D4)

— Remove the cross clamp by removing the 2 screws (Diagram D5)

using a 10 or 13mm spanner (depending on the model). (Ensure that you

remove the two plastic braces xed on the cross clamp at the same

time as the clamp itself).

— Replace the screws in their initial positions.

You must block off the two holes using the hole covers

provided (supplied in the accessories bag) (Diagram D6)

— Remove the drum-tank assembly locking wedge (Diagram D7).

— Release the drum doors, locked in the lower position, by pressing down

on both eaves simultaneously.

Remove the pipe support collars You must block off the

holes revealed with the hole covers supplied in the accessories

We would recommend that you keep all the locking components

since these must be retted if you must subsequently transport your

Your machine has been scrupulously checked before it left the

factory. You may therefore notice a little water still remaining in the

tank or the products box.

2• LOADING YOUR WASHING Perform these actions in the following order:

— Check that the Programme selector is correctly positioned on « ».

— Lift the opening handle on the front of the machine.

— Open the drum by pressing the button on the front door.

• Insert your washing

For optimum washing performance, place your washing, preferably sorted

and folded, in the drum, distributing it evenly without heaping it up. Mix

large and small items to obtain an optimum, well-balanced spin.

Ensure that the drum is correctly closed.

Check that the three hooks and the border of the button are

• LOADING THE WASHING PRODUCTS Important:

– The «WASH» container may contain powder or liquid but liquid

detergent should not be used for programmes WITH Prewash and/or

WITH «delayed start» (depending on the model).

— Concentrated softener should be diluted with warm water.

— Concentrated bleach must be diluted.

— To ll the product containers correctly, place the lid fully open.

— Do not exceed the MAX level.

• Dispensing the detergent

The amount of detergent to be used depends on the hardness of the water,

the extent to which your washing is soiled and the amount of washing to

Please refer to the dosing instructions on your pack of detergent. Warning:

in most cases, the detergent manufacturer’s recommendations apply to

the drum lled to the maximum. Adjust the dosage correctly to the weight

of the washing you have placed in the machine.

These recommendations will help you to avoid using too much detergent,

which causes foam to be produced. Too much foam can reduce your

machine’s performance and increase the length of the washing cycle and

the consumption of water.

• Detergents for woollens and delicate fabrics

You are recommended to use an appropriate detergent for washing these

fabrics (avoid placing such detergents directly on the drum because they

have an aggressive action on the metal).

• Before your rst wash

Before making your rst wash, we recommend that you carry out a

“COTTON 90 wash without pre-wash” and with no washing in the drum,

using a 1/2 measure of your usual detergent in order to eliminate any

residues from manufacturing that may remain in your machine.

• CONNECTING TO THE ELECTRICITY SUPPLY Important:

For your safety, you must comply with the instructions below.

— Before connecting your machine, you must ensure that your installation’s

electrical characteristics match those of your machine (see the details

provided on the information plate afxed to the back of the machine).

The electrical installation must comply with the prevailing standards and

the Electricity Board’s regulations in the country concerned, particularly

as regards Earthing and installation in shower rooms.

We cannot be held responsible for any incident caused by the

machine being incorrectly earthed.

Advice on the electrical installation of your machine

— Do not use an extension lead, adapter or multiple socket.

— Never cut out the Earth wire.

— The socket must be readily accessible but out of the reach of children.

If in any doubt, please contact your installer.

Your machine conforms to European Directives 2006/95/

CE (Low Voltage Directive) and 2004/108/CE (Electromagnetic

• INSTALLING YOUR MACHINE Important:

If you are installing your machine next to another machine or a

unit, we recommend that you leave a gap between them to allow for

We also strongly recommend that you do NOT:

— Install your machine in a damp, poorly ventilated room.

— Install your machine in an area where it could be subject to water

— Install your machine on a carpeted oor.

If you cannot avoid doing this, please take every precaution to avoid

blocking air circulation at the bottom of the machine in order to ensure that

the internal components are well ventilated.

• Levelling the machine:

Use a spirit level to check that the oor is horizontal: maximum slope 2°,

i.e. a discrepancy of approximately 1cm over the width and of 1.5cm over

the depth of the machine.

Some machines are tted with two adjustable feet at the front to enable

you to compensate for any unevenness in the oor. Proceed as follows to

adjust the feet to level and stabilize your machine:

— Set the machine on its castors (or tilt it slightly backwards if it does not

have retractable castors)

— Screw in or unscrew the feet to adjust the height to suit the shape of

the oor (Diagram D13)

— Set the machine back on its feet and check that it is stable.

• TEXTILE MAINTENANCE CODES

— Washing : Never exceed the indicated temperatures

— Use of cold diluted bleach possible:

— Iron: Low Medium High

— Dry clean: mineral spirit ,perchlorethylene , all solvents

— NB: A crossed-out code indicates that it is forbidden

4• Programming a washing cycle: Indicator lights and position of the selectors

— Turn the selector to choose the most suitable programme and washing temperature for

the type of fabric to be washed.

NB: Turning the selector to any position other than « » provides power to the machine.

«Wash» light ashing

(If you have selected rinse only or spin only,

it is the «Rinse» light that ashes

— Using the selector , choose:

- Either a suitable spin speed for your type of washing.

«hand wash» programmes.

The cycle will nish with a gentle spin at 100 rpm.

- Or stop with tub full of water.

Your machine will stop with the tub full of water before the nal spin.

— Select immediate start by pressing «start/pause» ... «Wash» light permanently lit

(The lights illuminate in succession to show

which phase the cycle is at)

— ... or use the selector to select starting delayed by 1 to 19 hours and then press «start/

The lights ash in succession until the cycle

• Adding or removing an item during the cycle (impossible during spin):

— Add or remove the items of laundry*.

— Press the «start/pause» button to restart the cycle.

(*) the time the lid remains locked depends on the temperature inside the machine and, for

safety reasons, may take several minutes if you are interrupting a cycle at more than 40°C.

NB: If you have selected a delayed start, you can access the drum instantly at any time in the

period before the washing cycle starts without having to interrupt and restart the cycle.

Light permanently lit

• Cancelling while programming, washing or during a pause:

Set the selector to the « » position.

This can be done at any time during the cycle or during programming, or even during a pause.

In all cases, after cancelling you must reprogramme everything from the start.

- If you have cancelled during the washing phase, remember to empty the water, if necessary.

All the lights unlit

NB: After spinning, some models automatically position the drum opening at the top to provide

easy access to the washing. This operation lasts at most 3 minutes.

— Then, the «Stop» light comes on permanently, indicating that the cycle is over.

Set the selector to the « » position.

You can now open the lid and remove your washing.

• PROGRAMMING Information:

All the buttons are on

microswitches and do not remain

Before starting your machine,

check that the power cable is plugged

in and the water tap is open. Also

ensure that the drum doors are closed

correctly and the machine’s lid is shut.

During the «End of Cycle» phase,

any action on one of the controls (the

selectors or the buttons) returns you to

«Programming» mode. As a safety

measure, when the cycle is over, we

recommend that you unplug the power

cable and turn off the water tap.

For more details on the various functions, please refer to the sections «DETAILS OF THE PROGRAMMES» and «DETAILS OF THE OPTIONS».

After a power failure, when the power is restored, the washing cycle automatically resumes at the point where it was interrupted.

Nature of the washing and

Delayed start setting

• SOME EXAMPLES OF PROGRAMMES To select the most suitable programme for your type of washing, follow the instructions on the labels that most textiles bear.

: These functions can be used alone or in combinations: no illogical combinations can be made.

* The cycle times are provided for an average value “without options”. They may vary according to the wash load, the temperature, etc.

— If you programme a “Prewash”, you must add 18 to 25 minutes.

— If you programme “Extra rinse”, you must add 17 minutes.

• TEST PROGRAMMES ACCORDING TO DELEGATED REGULATION (EU) No. 1061/2010

- Standard cotton programme at 60°C: cottons 60 °C : no option - max spin

- Standard cotton programme at 40°C: cottons 40 °C : no option - max spin

• DETAILS OF THE PROGRAMMES The main programmes provided by the machine are as follows:

• COTTON If your washing comprises hard-wearing white or coloured COTTONS.

When washing coloureds do not exceed a maximum temperature

NB: During the rst few minutes of the programme, your machine

automatically evaluates the washing load you have introduced and adapts

the water consumption and the length of the programme accordingly to

provide a perfect wash.

• SYNTHETICS If your washing comprises of DELICATE COLOURS, HARD-WEARING SYNTHETICS or MIXED FIBRES.

PREWASH COTTON Specially designed for heavily soiled washing (mud, blood, etc.).

A specic initial agitation in cold water precedes a phase of heating to 40°C.

This agitation phase in cold water enables the particles soiling the washing

to be removed before the water is heated.

Detergent must be placed in the « » container in the products

NB: A programme with agitation and spin phases specially adapted to these

• HAND WASH If your washing comprises SILK or PARTICULARLY DELICATE FABRICS.

NB: A programme with a very gentle mechanical action and no intermediate

spins between rinses.

The cycle ends with a very gentle, progressive spin restricted to 600 rpm.

A separate rinse followed by a choice of:

— Either spin and drain

— Or drain only («Drip-dry» option)

— Or a stop with the drum full of water.

followed by a spin or

ensure that you select a suitable spin speed for the type of washing in

This programme enables you to refresh a small load of 2.5 kg of lightly

soiled washing composed of WHITES, COTTONS, COLOUREDS or

HARD-WEARING SYNTHETICS.

The cycle time is restricted to around 30 minutes.

In this programme, the washing temperature is automatically programmed

For this programme, the doses of detergent should be reduced

• Maintaining your machine’s performance (Maintaining the pump lter):

You must clean the drain pump lter regularly (for how to do this, see the section «CLEANING THE PUMP FILTER»).

Your machine’s performance can be affected if you do not clean the pump lter regularly.

Additional programmes

This 40°C cycle washes a normal 3 kg load of cotton and mixed fabrics in

45 minutes, ensuring perfect washing results and maximum energy saving.

• DETAILS OF THE OPTIONS

This option washes your laundry more gently, but with an identicalwashing

performance. The spin speed is slower so that your laundrycreases less.

Allows to reduce the average cycle time by 20%.

• Drip Dry (spin speed «100»)

This function, for very delicate linen, enables you to remove spinning and to

pass directly to the draining of the washing machine.

This function enables you to remove the washing from your machine before

the spin phase or to delay this phase with your washing remaining in water

to prevent creasing.

NB: When the machine is stopped with the tub full of water, the «rinse»

cycle progress light ashes.

— If you want to drain after spinning, use the selector to choose a

suitable spin speed for your type of washing.

The programme will end automatically.

— If you just want to drain, turn the selector to «drip dry» (position

You can delay the start of your programme by 1, 3, 6, 9, 12, 15 or 19 hours

so that you can benet from cheap rate electricity or to have the cycle nish

To do this, use the selector to choose the time you want the cycle to start

- Even if you forget to press the

button after selecting

this option, your choice will still be accepted after a few seconds.

- The three cycle progress lights (lava., aclarado and n.) ash in succession

from left to right during the whole of the waiting period before the cycle

• MODIFYING A WASHING PROGRAMME

• During programming:

Anything can be changed before the «

» button is pressed.

• After the cycle has started:

You can change the type of textile (for example, switch from “COTTON” to

“SYNTHETICS”, etc.). In this case, check that the options you previously

selected are still there.

You must conrm your new selection by pressing the «

The machine may then possibly drain off some of its water.

• Throughout the cycle:

Depending on your model, the following changes are possible without

— You can change the temperature for the same type of textile.

NB: If the temperature achieved by the washing cycle is higher than your

new selection, heating the water stops immediately and the cycle continues.

— You can alter the spin speed throughout the cycle.

— You can select «drip dry» («100») and «full drum stop» throughout the

«rinse» cycle progress light illuminates).

— You can deactivate all the options throughout the cycle provided that their

action has not already nished

• During delayed start

— Any kind of programme modication is accepted during a delayed start’s

— You can alter the length of a delayed start throughout the waiting period

before the cycle effectively starts.

- During this period, selecting a new time cancels out the previous selection.

The new period selected is accepted based on the last selection made.

- If you want to cancel the delayed start completely during this period, set

the selector to the «100» position and then briey press the

— You can only activate the «prewash» and «anti-creasing» options during

a delayed start’s waiting period.

• When the cycle is over:

When the «end» light is permanently lit, you can programme a new cycle

without having to reset the selector to the position « ».

For this, all you have to do is turn one of the selectors or press one of the

The «wash» light starts to ash.

The machine is then ready to be reprogrammed.

• AUTOMATIC SAFETY SYSTEMS

• Lid opening safety system:

As soon as washing commences, the lid on your machine is locked.

When the cycle is nished or when the machine has stopped with the drum

full of water, the lid unlocks.

If you wish to open the lid during the cycle, press button briey and

wait 1-2 minutes for the safety system to unlock the lid.

Depending on when you wish to open the lid during the cycle,

this time delay may be a little longer because a cooling down period

may also have to be included.

In fact, to avoid your being severely burnt, the lid safety system will

not open during the cycle unless the temperature inside the machine

is below a certain threshold.

• Water safety system:

During operation, constant control of the water prevents any overows.

• Spin safety system:

Your washing machine is tted with a safety system that restricts the spin

when poor load distribution is detected.

In this case, your washing may be insufciently spun. Redistribute your

washing in the drum and programme a new spin.

You machine can detect when too much foam is being produced during

At such times, spinning stops and the machine drains.

The cycle then restarts, adapting the spin rates and possibly adding an

5• CLEANING THE PUMP FILTER This lter collects the small objects you may have inadvertently left in your

clothes and prevents them from disrupting the pump’s operation.

To clean the lter, proceed as follows:

Open the drum doors. At the back of the drum, you will see a plastic

- Insert a rod (a pencil or a screwdriver, for example) into the hole in the

- Press down vertically with the rod, while pushing the component over

to the right until it is released from its housing .

Remove the component

Turn the drum slightly towards the front of the machine, with the doors

You can access the pump lter through the openings freed by removing

the plastic component .

Remove the lter from its housing (Diagram D17)

Remove the various objects it may have in it

Rinse it under the tap (Diagram D18)

Re-insert it, pushing it rmly into its housing after checking that the

Re-insert the plastic component , ensuring that it is positioned correctly

in the openings at the bottom of the drum and pushing it to the left until it is

• CLEANING THE MACHINE Important:

To clean the casing, the control panel and all the plastic parts

in general, use a sponge or a soft cloth dampened only with water

Alcohol-based products (alcohol, thinners, etc.)

• CARE OF THE INTERNAL COMPONENTS To ensure better hygiene, we recommend that you:

Leave the lid open for a short time after washing.

Clean the plastic and rubber access components to the tank pproximately

once a month using a slightly chlorinated product. Run a rinsing cycle to

remove any residue of this product.

Run a washing cycle at 90°C at least once a month.

• CLEANING THE PRODUCTS’ BOX Clean the products’ box regularly.

Press the bosses on each side of the box simultaneously to extract it

from its housing (Diagram D20)

Remove the siphons from the rear of the box and separate the box

from its front cover (Diagram D21)

Rinse everything under the tap (taking care to empty any excess water

remaining inside the box)

Ret all the box’ components, ensuring that the box section itself is

properly clipped into the cover and then re-insert the complete assembly

into its location under the machine’s lid.

• PERIODIC CHECKS To avoid any water damage, we recommend that you regularly check the

condition of the water and drain hoses. If you notice the slightest cracking,

do not hesitate to replace the hoses with identical ones available from

the manufacturer or his After-Sales Service. For how to replace the water

supply hose, please refer to the section «CONNECTING TO THE COLD WATER SUPPLY».

• REPLACING THE POWER SUPPLY CABLE Warning:

For your safety, the power cable and, depending on the model,

the complete electric box and its associated cable must only be

replaced by the manufacturer’s After-Sales Service or a qualied

Before calling for your breakdown engineer, we would recommend that

you do the following:

- Set the Programme selector to the

position and remove the electrical

plug for at least 10 seconds.

- Reconnect the plug and restart a washing cycle.

If the fault displayed persists, call your breakdown engineer and remember

to tell him which indicator lights were lit.

Do not restart a washing cycle if the drum remains locked or if

you notice water around your machine of if you notice a burning sme.

• AFTER-SALES SERVICE:

Possible maintenance on your washing machine should be undertaken by:

— either your dealer,

— or another qualied mechanic who is an authorized agent for the brand

When making an appointment, state the complete reference of your

equipment (model, type and serial number). This information appears on

the manufacturer’s nameplate attached to the rear of the equipment.

• INCIDENTS THAT MAY OCCUR

• The cycle does not start

– You have not pressed the «

– There is no power to the machine:

- Check that the plug is correctly in the socket

- Check the circuit breaker and the fuses.

– The water tap is closed

– The machine’s lid is not closed properly

• A puddle of water forms around the machine

First of all remove the plug and the fuse and shut off the water

While the machine is operating, the permanent level control prevents the

water from overowing. If, despite this, water comes out of your machine,

– The drain hook is wrongly positioned in the drain pipe.

– The water supply hose is not sealed tightly at the machine or tap end:

- Check that the seals are in place and the connections are tight.

• Heavy vibration during spin

– All the transport materials have not been removed correctly from the

- Check that all the transport wedges have been removed (see

. «REMOVING THE TRANSPORT CLAMPS»).

– The oor is not level.

– Your machine is resting on its two «front» castors (depending on the

- Reset your machine on its feet by pushing the castor engagement lever

• The washing is not spun or not spun enough

You have selected a programme with no spin, for example «drip-dry»

– The spin safety system has detected poor distribution of the washing in

- Untangle the washing and programme a new spin.

• The machine does not drain

– You have programmed «Full drum stop»

– The pump lter is blocked:

- Clean it (see «CLEANING THE PUMP FILTER» for the relevant

– The drain hose is kinked or squashed

• The lid does not open

– The programme has not yet nished

The lid remains locked throughout the programme.

• The drum doors open very slowly

(On machines tted with gently opening doors)

– Your machine has not operated for a long time

– It is located in too cold a position.

– Detergent residue (powder) is blocking the hinges

- In all cases, everything returns to normal after the doors have opened

As a general rule, whatever the anomaly detected, you should

stop the machine, unplug the power cable and shut off the water tap.

6 / INCIDENTS AND MEANING OF PARTICULAR LIGHTS FLASHING EN

• MESSAGES INDICATED BY THE VARIOUS LIGHTS FLASHING

• Incidents indicated, which you can rectify yourself

In this section, we explain how you can rectify these incidents very

Your machine automatically detects some operating incidents and indicates

these by particular options lights ashing.

Lights ashing Causes / Remedies

The water tap is closed. Check that the water

button again to restart the cycle. This incident may

also be caused by the drain hose being poorly

connected (see the section «DRAINING AWAY THE WASTE WATER»).

The pump lter is clogged. Clean the pump lter

» button again to restart the cycle.

Also check the drain hose’s position in the drain:

the connection must not be airtight (see the section

«DRAINING AWAY THE WASTE WATER»).

Lid not closed properly. Check that the lid is

closed and then press the «

again to restart the cycle.

Drum blocked. Check that a small item of laundry

(e.g. a handkerchief or a sock, etc.) has not

slipped down between the tub and the drum and

is stopping the drum from turning. To access the

bottom of the tub, please refer to the section

«CLEANING THE PUMP FILTER».

7 / INFORMATION CONCERNING THE EU REGULATIONS 1015/2010EN In accordance with EU regulation 1015/2010, below you will nd additional product information. The purpose of this information is to provide details on

the energy-saving directives to which all appliances sold in the EU must conform.

• WASHING YOUR CLOTHES CORRECTLY Care labels on items of clothing specify appropriate detergents, temperatures and settings.

Type of cloth Programme Detergent

Detergent with a bleaching product

Detergent for coloured laundry without a

Detergent for delicate laundry

• PRODUCT INFORMATION

• Residual moisture of the laundry

To nd the spin-drying efciency of your appliance, consult its energy label and refer to the table below:

Spin drying efciency class Residual moisture D in %

A (very efcient) D<45

• Programmes for tests dened by (EU) delegated regulation 1061/2010

These programmes are suitable for cleaning averagely soiled cotton cloth and are more efcient in terms of both energy and water consumption.

Class and maximum load

according to your model

Maximum load of dry laundry (kg)

Cotton 60°C full loa

* Programme without options, max. spin.

For energy-saving purposes, the actual washing temperature can vary from the temperature of the selected programme.

• Electricity consumption in on and 'left-on' modes

Off-mode: < 0,5 W 'Left-on' mode: < 0,8 W1 / VORSTELLUNG DES GERÄTS DE

• COTONE If your washing comprises hard-wearing white or coloured COTTONS.
