Product Type	IP Surveillance Camera
Brand	Intellinet
Model	IDC752IR
Resolution	1280 x 720 (HD)
Sensor	CMOS 1/4"
Night Vision	IR LED, range up to 20 meters
Lens	3.6 mm
Viewing Angle	70°
Connectivity	Ethernet 10/100 RJ45
Power Supply	12 V DC or PoE (802.3af)
Protocols	TCP/IP, DHCP, HTTP, Bonjour
Default IP Address	192.168.1.221
Included Software	IP Installer, NVR surveillance software
OS Compatibility	Windows, MacOS, Linux
Dimensions (L x W x H)	100 x 70 x 50 mm
Weight	200 g
Operating Temperature	-10°C to 50°C
Certifications	CE, FCC Class B, WEEE
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not immerse in water. Keep out of reach of children.
Spare Parts / Repairability	No user-serviceable parts. Contact after-sales service.
General Information	Network camera for indoor/outdoor surveillance (indoor use recommended). Warranty: www.intellinet-network.com/warranty.

Frequently Asked Questions - IDC752IR Intellinet

How do I find the camera's IP address?

Use the IP Installer software provided on the CD. It searches for all cameras on the network and displays their IP address. By default, the camera uses DHCP. If no DHCP server is found, the default IP address is 192.168.1.221.

How do I access the camera via a browser?

Open your browser and enter the camera's IP address (e.g., http://192.168.1.221). A Java applet may be requested - allow access. You will then see the live image.

What if the camera is not detected by IP Installer?

Check that the camera is powered on and connected to the network. Wait up to three minutes after powering on. Try restarting the camera by unplugging and reconnecting the power.

Can I use PoE power supply?

Yes, if your switch or injector is PoE (802.3af) compliant, you can power the camera via the Ethernet cable. Otherwise, use the supplied power adapter.

How do I restore factory settings?

Use the IP Installer software: select the camera and click 'Restore Factory Defaults'. You can also press and hold the reset button (if present) for 10 seconds.

How do I configure the camera without DHCP?

If no DHCP server is available, the camera uses the fixed IP address 192.168.1.221. Configure your computer on the same subnet (e.g., 192.168.1.100) and access the web interface.

Is the camera compatible with Mac?

Yes, on MacOS, use Safari and the Bonjour service. The camera appears in Bonjour favorites under 'Web Pages'. Double-click to access it.

How do I update the firmware?

Download the firmware from the Intellinet website. Use the IP Installer or the web interface (menu 'Administration' > 'Firmware Upgrade') to upload the file.

What if the image is blurry or dark?

Check the focus settings (if manual lens) and clean the window. In low light, the IR LEDs turn on automatically. Make sure no obstacle blocks the IR illumination.

Where can I find the full user manual?

The full manual is available on the supplied installation CD. You can also download it in PDF format from the Intellinet website (www.intellinet-network.com).

USER MANUAL IDC752IR Intellinet

Four black-and-white surveillance cameras with red checkmarks and antennas, displayed against a plain background (no text or symbols visible)

Quick Install Guide

ENGLISH

Kurzanleitung

DEUTSCH

Guía de instalación

rápida ESPAÑOL

Guide de demarrage

rapide FRANÇAIS

upute za brzu

instalaciju HRVATSKI

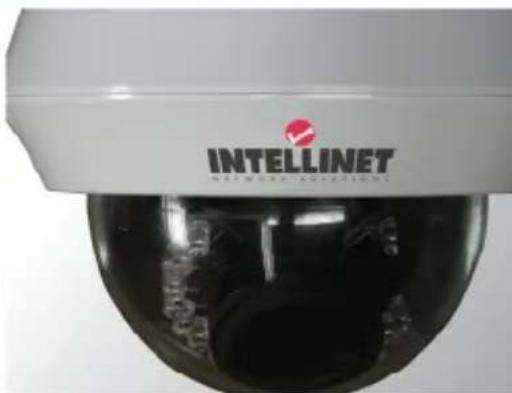

Close-up of a white surveillance camera with IntelInet logo and lens array (no text or symbols on body)

Collage of surveillance cameras and vehicle images with Chinese text labels, likely from a mobile app interface.

INTELLINET NEWMOS SOLUTIONS

ENGLISH

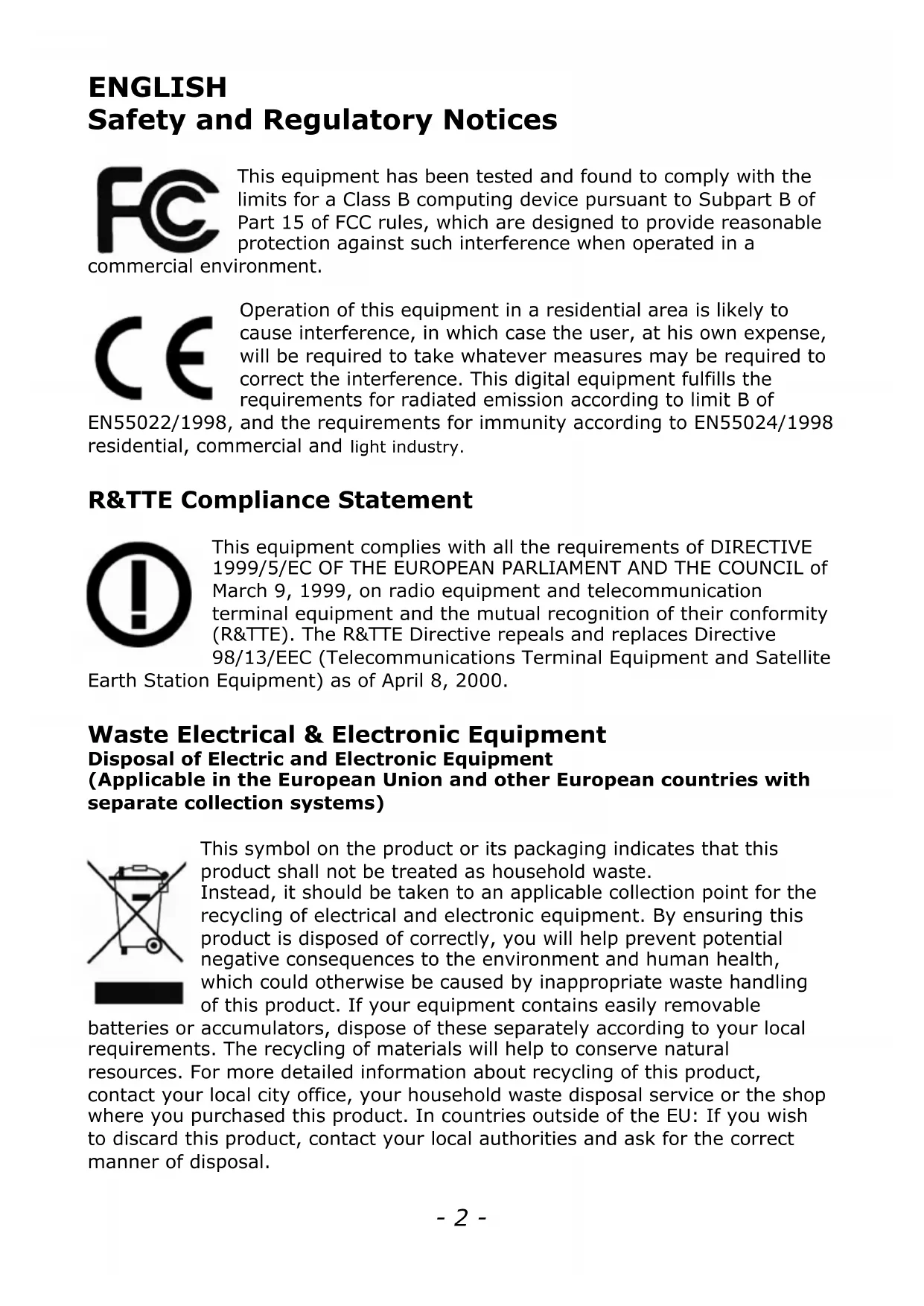

Safety and Regulatory Notices

This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a

commercial environment.

Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures may be required to correct the interference. This digital equipment fulfills the requirements for radiated emission according to limit B of EN55022/1998, and the requirements for immunity according to EN55024/1998 residential, commercial and light industry.

R&TTE Compliance Statement

!

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999, on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces Directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite

Earth Station Equipment) as of April 8, 2000.

Waste Electrical & Electronic Equipment

Disposal of Electric and Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This symbol on the product or its packaging indicates that this product shall not be treated as household waste.

Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable

batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. In countries outside of the EU: If you wish to discard this product, contact your local authorities and ask for the correct manner of disposal.

Connecting to the Camera

Connect the RJ45 network cable from the camera's LAN port to your network; e.g., the router or a LAN switch, then power on the camera. The boot sequence will take about one minute. You will need to use the camera's power adapter, unless your camera supports PoE. In that case you can connect the RJ45 cable to a PoE-enabled switch or injector to power the camera.

By default, the network camera (or video server) searches for a DHCP server on the network and obtains an IP address automatically. A very common DHCP server is a router, a device that is found on most networks.

The presence of a DHCP server on your network simplifies the installation and users with limited knowledge of TCP/IP networks can install the network camera in minutes. If no DHCP server is found, the network camera will revert to its default IP address: 192.168.1.221.

On Windows systems, you want to use the IP Installer utility that finds the camera on the network and lets you make changes to the configuration.

Once the camera is set up properly, it can be accessed with the computer's Web browser. The following sections describe the procedure for Windows, MacOS and Linux users.

Windows XP, Vista and Windows 7/8

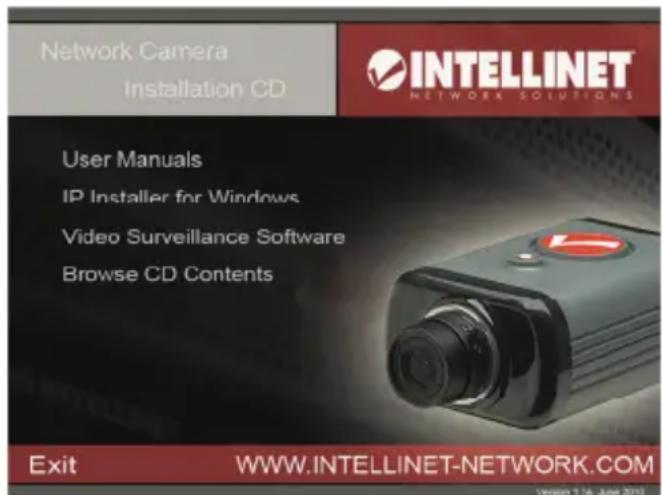

Insert the Installation CD into the CD or DVD drive. After a few moments, the CD will automatically start and display the screen to the right. If that does not happen, you need to browse the CD with Windows Explorer and double-click the autorun.exe file.

Network Camera Installation CD INTELLINET NETWORK SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 16 June 2013

1. User Manuals

The user manual for the INTELLINET NETWORK SOLUTIONS Network Camera is available in electronic form on the installation CD, along with user manuals in different languages.

If you encounter differences between the screen shots shown in the user manual and the actual screen contents, it is recommended that you open the manual from the CD, as it may be a newer edition than the printed version.

2. IP Installer for Windows

This utility is designed to find the network camera on your network and lets you make changes to the configuration.

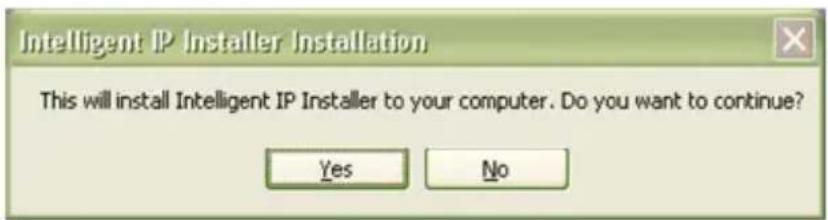

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Click on "Yes" to begin the installation.

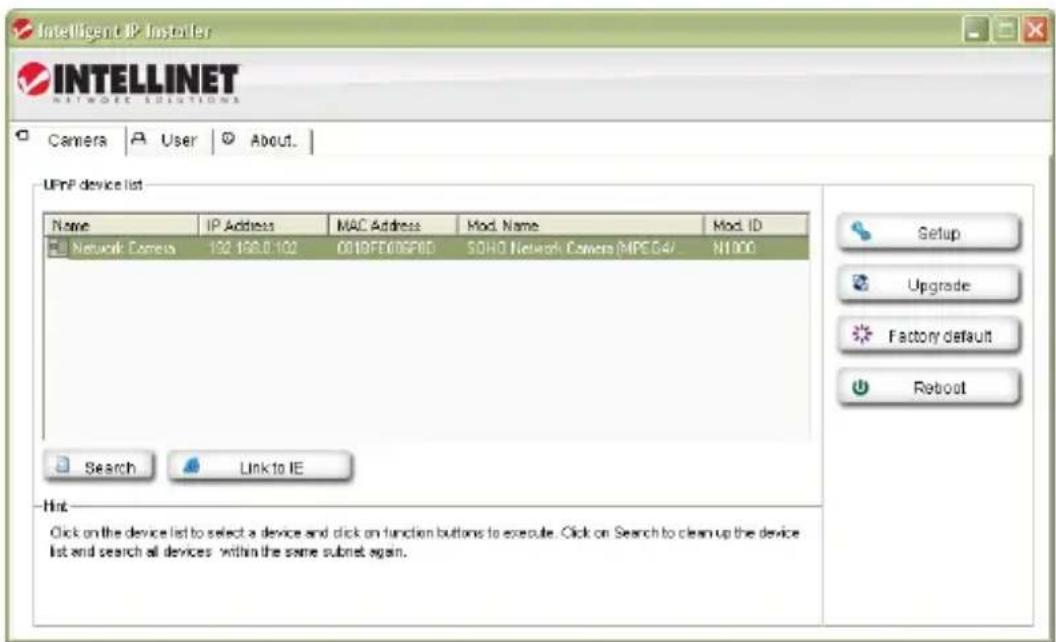

Intelligent IP Installer INTELLINET NETWORK SOLUTIONS Camers User About. UPnP device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.198.0.102 0019FT00SPID SOHO Network Camera (MPEG4) NI100 Search Link to IE Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot

When the program starts, you are presented with the screen shown above. The IP Installer utility lists all cameras that can be found on your network. With this utility you can make changes to the configuration, perform a firmware upgrade, restore the camera to factory default values, and reboot the camera. Note: It may take up to three minutes for IP Installer to show a camera that has been recently (re-)started.

Refer to the user manual for more detailed instructions on the camera setup.

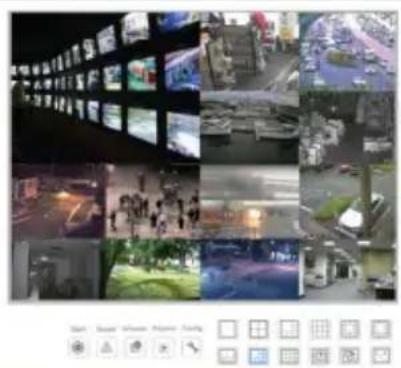

3. Video Surveillance Software

Refer to user manual on the CD for the 16-channel NVR (network video recorder).

MacOS

The installation on Apple systems running MacOS X does not involve the INTELLINET installation CD. The INTELLINET NETWORK SOLUTIONS network camera supports Apple's Bonjour service.

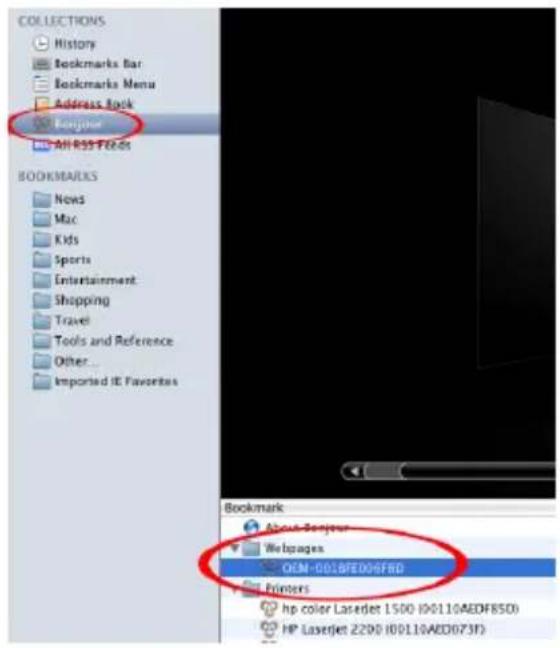

COLLECTIONS History Bookmarks Bar Bookmarks Menu Address Book Bookjoin All RSS FEeds BOOKMARKS News Mac Kids Sports Entertainment Shopping Travel Tools and Reference Other... Imported IE Favorites Bookmark About Reviewer Webpages OEM-001BFDOSFBD Primers hp color Laserjet 1500 (90110AEDF85D) HP Laserjet 2200 (90110AED073F)

Open the Safari Web browser and open the Bookmarks toolbar, where you will find the Bonjour link. The Network Camera is shown in the category Webpages. In order to connect to the camera, double-click the circled link.

Safari then connects to the camera and a message may appear: "An applet from 'xxxxx' is requesting unrestricted access to your computer."

Click on "Allow" and you will see the camera live image a few moments later.

Refer to the user manual for more detailed instructions on the camera setup.

Linux

The installation on Linux systems does not require any special software. The network camera is compatible to Web browsers such as Firefox and Konqueror.

The initial installation requires the setup of the camera's IP address. As the camera by default obtains an IP address from a DHCP server in the network (e.g., a router), you can access the camera as soon as you have obtained the IP address from the router's DHCP client log. Alternatively, you may use Bonjour (mDNSResponder), which is also available for Linux.

If no DHCP server is connected to your network, the camera reverts to its default IP address: 192.168.1.221. In order to gain access to the camera, you need to change the IP settings of your system manually. Set up the IP address to be in range of 192.168.1.xxx (where xxx is not 221). Then open your Web browser and connect to address http://192.168.1.221. Log in to the camera and click on the Settings link to open the administrator menu. Refer to section 5.2 Settings Page in the user manual for more details.

Hardware Installation and Additional Information

For additional information about the installation process, the configuration and functions of the camera or network video server, please refer to the user manual on the INTELLINET installation CD.

DEUTSCH

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Network Camera Installation CD INTELLINET NETWORK SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 1 to June 2015

1. User Manuals [Handbücher]

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Intelligent IP Installer INTELLINET NETWORKS SOLUTIONS Camera User About. UPnP device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192 198.0.102 0019E00SPID 50HO Network Camera (MPEG4) N1000 Search Link to IE Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again.

Network Camera Installation CD INTELLINET NETWORKS SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 1 to June 2015

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Intelligent IP Installer INTELLINET NOTE SOLUTIONS Camers User About. UPnP device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 132.168.0.102 COTBFED06FBD SOHO Network Camera (MPEG4/.. NT000 Search Link to IE Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot

successivement, l'utilisateur est invité à prendre les mesures nécessaires. This digital equipment fulfills the requirements for radiated emission according to limit B of EN55022/1998, and the requirements for immunity according to EN55024/1998 residential, commercial and light industry.

R&TTE Conformité

Network Camera Installation CD INTELLINET NETWORK SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 1, No. June 2010

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

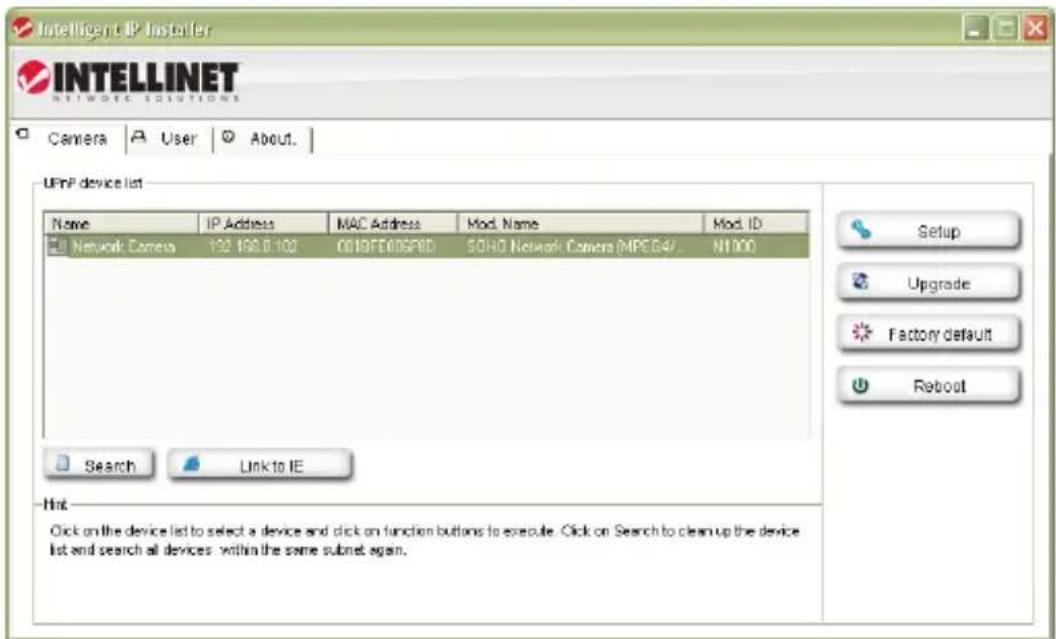

Intelligent IP Installer INTELLINET NETWORKS SOLUTIONS Camera User About. UPF device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.168.0.102 0019FE00SPRD SOHO Network Camera (MPEG4) N1100 Search Link to IE -Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Kliknite "Yes" za početak instalacije.

Intelligent IP Installer INTELLINET NETWORKS SOLUTIONS Camera User About. UPF device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.108.0.102 0019E00SPRD SOHO Network Camera (MPEG4) N1000 Search Link to IE -Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot

Kada se program pokrene, pojavit će se ekran kao na slici iznad. IP Installer prikazuje sve kamere koje se nalaze na mreži. Možete promijeniti postavke konfiguracije, nadograditi firmware, vratiti kameru na tvorničke postavke i ponovno pokrenuti kameru. Napomena: IP Installeru može trebati do tri minute da prikaže kameru koja je bila nedavno ponovno pokrenuta.

Pogledajte upute za uporabu za detaljnije pojašnjenje postavki kamere.

3. Software za video nadzor

Pogledajte upute za uporabu na CD-u za 16-kanalni NVR (mrežni video snimač).

MacOS

Na Apple uređajima koji koriste MacOS X, INTELLINET instalacijski CD ne sadrži instalacijski postupak. INTELLINET NETWORK SOLUTIONS mrežna kamera podržava Apple's Bonjour servis.

Otvorite Safari Web preglednik i otvorite Bookmarks alatnu traku, gdje ćete pronaći Bonjour poveznicu.

COLLECTIONS History Bookmarks Bar Bookmarks Menu Address Book Enclose All RSS Fees BOOKREADS News Mac Kids Sports Entertainment Shopping Travel Tools and Reference Other... Imported IE Favorites Bookmark About Enclose Webpages OCM-001BFED00FRED hinoters hp color Laserjet 1500 (00110AEDFBSD) HP Laserjet 2200 (00110AED073F)

Mrežna kamera je prikazana u kategoriji "Webpages". Za spajanje na kameru, dvostruki klik na zaokruženu poveznicu.

Safari se priključuje na kameru i pojavljuje se poruka: "An applet from 'xxxxx' is requesting unrestricted access to your computer."

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Collegare la telecamera

Network Camera Installation CD INTELLINET NETWORK SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 1 to June 2010

1. Manuali utente

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Intelligent IP Installer INTELLINET NETWORK SOLUTIONS Camers User About. UPnP device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.168.0.102 0019FE00SP6D 50HD Network Camera (MPEG4/ N100) Search Link to IE -Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices: within the same subnet again. Setup Upgrade Factory default Reboot

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Intelligent IP Installer INTELLINET NETWORKS SOLUTIONS Camera User About. UPnP device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.1930.102 0610FEI0GFD 50HO Network Camera (MPEG4) N1000 Search Link to IE -Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Network Camera Installation CD INTELLINET NETWORK SOLUTIONS User Manuals IP Installer for Windows Video Surveillance Software Browse CD Contents Exit WWW.INTELLINET-NETWORK.COM Version 16 June 2018

2. IP Installer pre Windows

Intelligent IP Installer Installation This will install Intelligent IP Installer to your computer. Do you want to continue? Yes No

Intelligent IP Installer INTELLINET NETWORKS SOLUTIONS Camera User About. UPF device list Name IP Address MAC Address Mod. Name Mod. ID Network Camera 192.168.0.102 0019FE00SPRD SOHO Network Camera (MPEG4) N1100 Search Link to IE -Hint Click on the device list to select a device and click on function buttons to execute. Click on Search to clean up the device list and search all devices within the same subnet again. Setup Upgrade Factory default Reboot
