USER MANUAL HR7772 PHILIPS

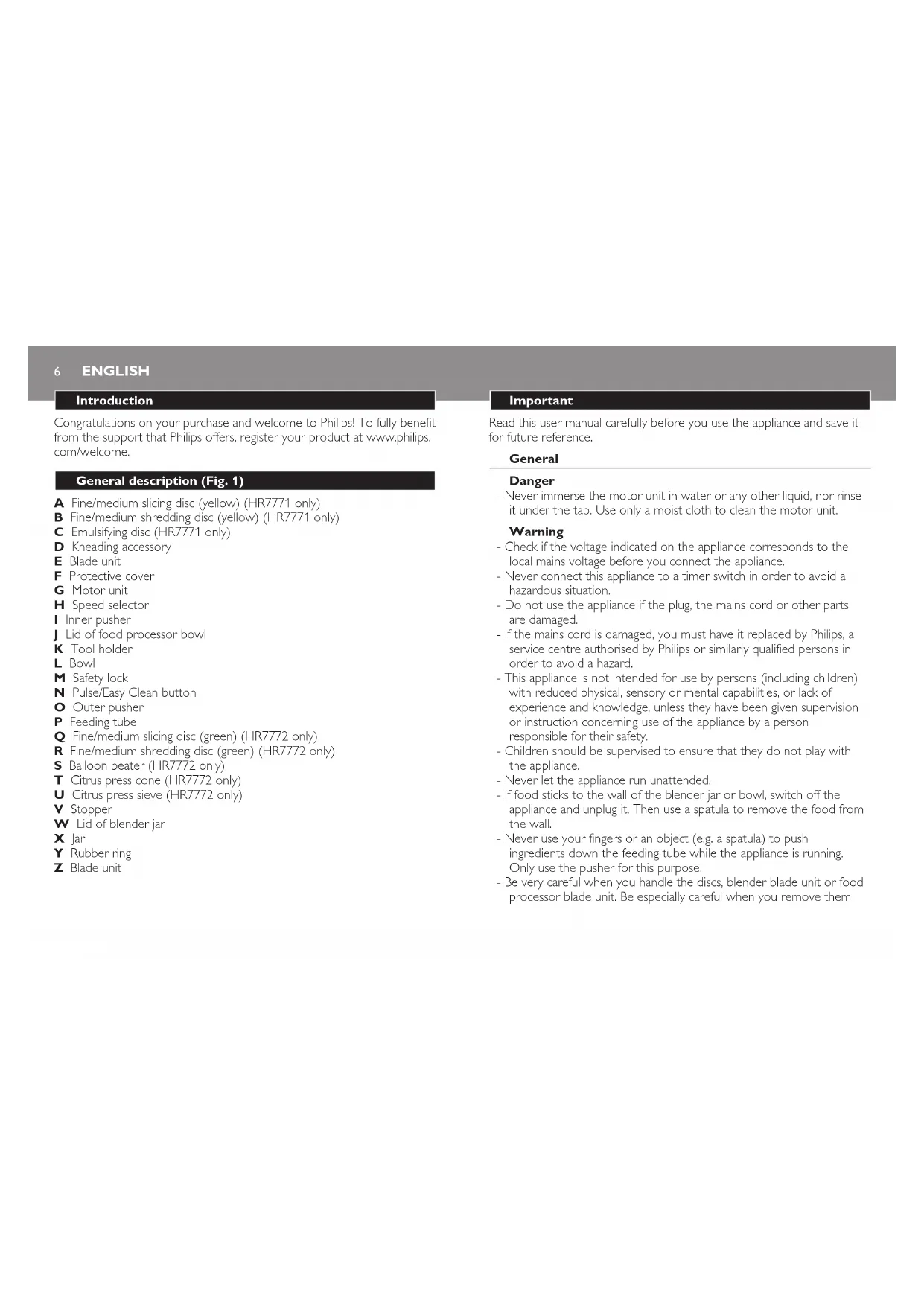

Register your product and get support at

Congratulations on your purchase and welcome to Philips! To fully benefit

from the support that Philips offers, register your product at www.philips.

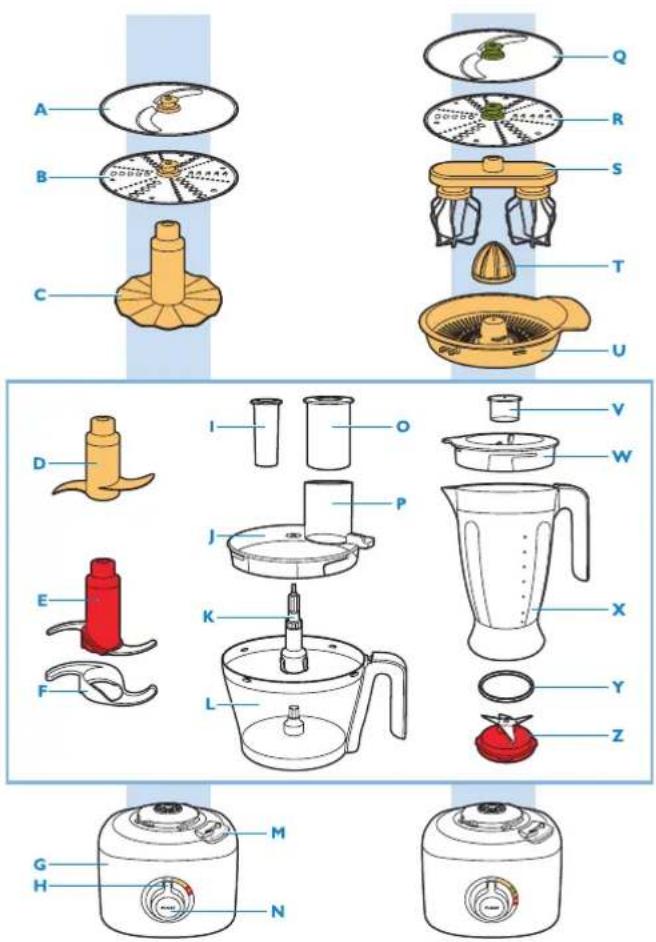

B Fine/medium shredding disc (yellow) (HR7771 only)

C Emulsifying disc (HR7771 only)

D Kneading accessory

J Lid of food processor bowl

Q Fine/medium slicing disc (green) (HR7772 only)

R Fine/medium shredding disc (green) (HR7772 only)

S Balloon beater (HR7772 only)

T Citrus press cone (HR7772 only)

U Citrus press sieve (HR7772 only)

W Lid of blender jar

Read this user manual carefully before you use the appliance and save it

for future reference.

it under the tap. Use only a moist cloth to clean the motor unit.

- Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

- Never connect this appliance to a timer switch in order to avoid a

hazardous situation.

- Do not use the appliance if the plug, the mains cord or other parts

- If the mains cord is damaged, you must have it replaced by Philips, a

service centre authorised by Philips or similarly qualified persons in

order to avoid a hazard.

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

- Children should be supervised to ensure that they do not play with

- Never let the appliance run unattended.

- If food sticks to the wall of the blender jar or bowl, switch off the

appliance and unplug it. Then use a spatula to remove the food from

- Never use your fingers or an object (e.g. a spatula) to push

ingredients down the feeding tube while the appliance is running.

Only use the pusher for this purpose.

- Be very careful when you handle the discs, blender blade unit or food

processor blade unit. Be especially careful when you remove themfrom the bowl or blender jar, when you empty the bowl or jar and

when you clean them. Their cutting edges are very sharp.

- Never switch off the appliance by turning the blender jar, the bowl or

their lids. Always switch off the appliance by turning the speed

- Switch off the appliance before you detach any accessory.

- Unplug the appliance immediately after use.

- Always unplug the appliance before you reach into the blender jar

with your fingers or an object (e.g. a spatula).

- Wait until moving parts stop running before you remove the lid of

- Never use any accessories or parts from other manufacturers or that

Philips does not specifically recommend. If you use such accessories

or parts, your guarantee becomes invalid.

- Do not exceed the maximum level indication on the jar and the bowl.

- Consult the table in this user manual for the correct quantities and

- Certain ingredients may cause discolourations on the surface of the

parts. This does not have a negative effect on the parts. The

discolourations usually disappear after some time.

- Never fill the blender jar or food processor bowl with ingredients

- This appliance is intended for household use only.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according to the

instructions in this user manual, the appliance is safe to use based on

scientific evidence available today.

Thermal safety cut-out

This appliance is equipped with a thermal safety cut-out that automatically

cuts off the power supply to the appliance in case of overheating.

If the appliance stops running:

1 Remove the mains plug from the wall socket.

2 Let the appliance cool down for 1 hour.

3 Put the mains plug back into the wall socket.

4 Switch on the appliance again.

Please contact your Philips dealer or an authorised Philips service centre

if the thermal safety cut-out activates too often.

Built-in safety lock

This feature ensures that you can only switch on the appliance if you

have assembled the blender jar or the bowl correctly on the motor unit

and the lid correctly on the blender jar or bowl. If the blender jar or bowl

and its lid are assembled correctly (see chapter ‘Using the appliance’), the

built-in safety lock will be unlocked.

Thoroughly clean the parts that come into contact with food before you

use the appliance for the first time (see chapter ‘Cleaning’).

- The appliance is equipped with a built-in safety lock that prevents it

from functioning if the blender or food processor is not assembled

1 Put the bowl on the motor unit (1) and turn it clockwise to fix it

Note: The bowl is assembled correctly when the handle is directly above the

2 Put the tool holder with the desired accessory in the bowl (blade

unit, kneading accessory, emulsifying disc, balloon beater, citrus

press or one of the discs). See the appropriate section below.

3 When you use the blade unit, the kneading accessory or the

balloon beater, put the ingredients to be processed in the bowl.

Note: Do not fill the bowl beyond the MAX indication.

4 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it

Note: Make sure the projection on the lid locks into the slot of the bowl

5 When you use one of the discs, add the ingredients through the

feeding tube and push them down with the pusher.

6 Select the speed setting that corresponds with the colour of the

accessory in the bowl. See the appropriate section below.

7 When you have finished processing, turn the speed selector to

Feeding tube and pusher

- Use the feeding tube to add liquid and/or solid ingredients. (Fig. 5)

- Use the outer pusher to push solid ingredients down the feeding

- If the ingredients you are going to shred or slice have a small

diameter, put the outer pusher in the feeding tube to make the

feeding tube smaller. Then use the inner pusher to push the

ingredients down the feeding tube. (Fig. 7)

Tip: You can also use the inner and outer pusher to close the feeding tube.

This prevents ingredients from escaping through the feeding tube.

You can use the blade unit to chop, mix, blend or puree ingredients.

1 Remove the protective cover from the blade (Fig. 8).

The cutting edges are very sharp. Do not touch them.

2 Put the tool holder in the bowl. (Fig. 9)

3 Put the blade unit on the tool holder in the bowl (Fig. 10).

4 Put the ingredients in the bowl. Pre-cut large pieces of food into

pieces of approx. 3 x 3 x 3cm (Fig. 11).

Note: Always put the tool holder with the blade unit in the bowl before you

5 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it

(‘click’) (Fig. 12).

6 Put the pusher in the feeding tube.

7 Select the speed that corresponds with the colour of the

accessory (Fig. 13).

8 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 4).

- When you chop onions, press the pulse/Easy Clean button a few

times to prevent the onions from becoming too finely

- Do not let the appliance run too long when you chop (hard) cheese

or chocolate. Otherwise these ingredients become too hot, start to

melt and turn lumpy.

- Do not use the blade unit to chop very hard ingredients like coffee

beans, turmeric, nutmeg and ice cubes, as this may cause the blade to

- The standard processing time for all chopping jobs is 30-60 seconds.

- If food sticks to the blade or to the wall of the bowl, switch off the

appliance and unplug it. Then use a spatula to remove the food from

the blade or from the wall of the bowl.

You can use the kneading accessory to knead yeast dough for bread and

The standard processing time for all kneading jobs is 30-180 seconds.

1 Put the tool holder in the bowl (Fig. 9).

2 Put the kneading accessory on the tool holder. (Fig. 15)Note: Always put the tool holder with the kneading accessory in the bowl

before you add the ingredients.

3 Put the ingredients in the bowl (Fig. 16).

4 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it

5 Put the pusher in the feeding tube.

6 Select the speed that corresponds with the colour of the

accessory (Fig. 13).

7 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 4).

Slicing and shredding discs

Never process hard ingredients like ice cubes with the discs.

The cutting edges of the discs are very sharp. Do not touch them.

1 Put the tool holder in the bowl (Fig. 9).

2 Place the desired disc (slicing or shredding disc) on the tool

4 Put the ingredients in the feeding tube. (Fig. 20)

- Pre-cut large ingredients into chunks that fit in the feeding tube.

- Fill the feeding tube evenly for the best results.

- When you have to process a large amount of ingredients,

process small batches and empty the bowl between batches.

- If the ingredients you are going to shred or slice have a small

diameter, put the outer pusher in the feeding tube to make the

feeding tube smaller. Then use the inner pusher to push the

ingredients down the feeding tube.

5 Select the speed that corresponds with the colour of the

accessory (Fig. 13).

6 Press the pusher lightly onto the ingredients in the feeding tube.

7 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 4).

- When you shred or granulate soft ingredients, use a low speed to

prevent the ingredients from turning into puree.

- Do not let the appliance run too long when you shred (hard) cheese.

If you do, the cheese becomes too hot, starts to melt and turns

- Do not use the discs to process chocolate. Only use the blade

unit for this purpose.

Emulsifying disc (HR7771 only)

You can use the emulsifying disc to whip cream and to whisk eggs, egg

whites, instant pudding, mayonnaise and sponge cake mixtures.

1 Put the tool holder in the bowl (Fig. 9).

(‘click’) (Fig. 23).

Put the pusher in the feeding tube.

5 Select the speed that corresponds with the colour of the

accessory (Fig. 24).

6 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 25).

- Do not use the emulsifying disc to prepare cake mixtures with butter

or margarine or to knead dough. Use the kneading accessory for

- Make sure the bowl and the emulsifying disc are dry and free from

grease when you whisk egg whites. Make sure the egg whites are at

Balloon beater (HR7772 only)

You can use the balloon beater to whip cream and to whisk eggs, egg

whites, instant pudding, mayonnaise, sponge cake mixture and other soft

1 Put the tool holder in the bowl (Fig. 9).

2 Put the balloon beater on the tool holder in the bowl (Fig. 26).

4 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it

(‘click’) (Fig. 28).

Put the pusher in the feeding tube.

5 Select the speed that corresponds with the colour of the

accessory (Fig. 29).

6 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 30).

7 Always clean the balloon beater after use.

See chapter cleaning for instructions on how to take the balloon beater

apart and how to clean it.

- Do not use the balloon beater to prepare cake mixtures with butter

or margarine or to knead dough. Use the kneading accessory for

- Make sure the bowl and the balloon beater are dry and free from

grease when you whisk egg whites. Make sure the egg whites are at

The blender is intended for:

- Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed

- Mixing soft ingredients, e.g. pancake batter or mayonnaise.

- Pureeing cooked ingredients, e.g. for making baby food.

1 Place the rubber ring on the blade unit (Fig. 31).

2 Place the blade unit in the bottom of the blender jar (1) and screw

the blade unit clockwise (2) (Fig. 32).

3 Place the blender jar on the motor unit (1) and turn it clockwise to

fix it (2). The handle has to point to one of the four corners of the

motor unit (Fig. 33).

Do not exert too much pressure on the handle of the blender jar.

Never fill the blender jar with ingredients hotter than 80ºC.

To avoid spillage, never fill the jar above the maximum level indication,

particularly not when you blend hot liquids.

5 Place the lid on the blender jar (1) and turn it clockwise to fix it

6 Select the speed that corresponds with the colour of the

accessory (Fig. 13).

Never open the lid when the blade rotates.

Never put your hand or any object in the jar while the blender is

Always let the appliance cool down to room temperature after you

have processed two batches.

7 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 4).

- While the appliance is running, you can put liquid or solid ingredients

in the blender jar through the opening in the lid (Fig. 36).

- The longer you let the appliance run, the finer the blending result will

- Pre-cut solid ingredients into smaller pieces before you put them in

the blender jar. If you want to prepare a large quantity, process small

batches of ingredients instead of a large quantity at once.- To crush ice cubes, put the cubes in the jar, close the lid and press the

pulse/Easy Clean button.

- Some ingredients, e.g. fruits, are easier to blend if you add some liquid

- When you blend soup, use cooked ingredients.

- If you are not satisfied with the results, let the appliance run briefly a

number of times by pressing the pulse/Easy Clean button. You can

also try to get a better result by stirring the ingredients with a spatula

(not while the blender is running), or by pouring out some of the

contents in order to process a smaller amount.

- When you process a liquid that is hot or tends to foam (e.g. milk), do

not put more than 1 litre in the blender jar to avoid spillage.

- If food sticks to the wall of the blender jar, switch off the appliance

and unplug it. Then use a spatula to remove the food from the wall.

Citrus press (HR7772 only)

You can use the citrus press to squeeze fresh fruit juices. Pulp, pips and

skins are removed from the juice.

1 Put the tool holder in the bowl (Fig. 9).

2 Put the citrus press on the tool holder in the bowl (Fig. 37).

Note: Make sure the projection on the sieve locks into the slot of the bowl

3 Select the speed that corresponds with the colour of the

accessory (Fig. 29).

4 Press the citrus fruit onto the cone (Fig. 38).

Note: Stop pressing from time to time to remove the pulp from the sieve.

Note: When you want to remove pulp from the sieve turn the speed selector

to 0 to switch off the appliance.

5 When you have finished processing, turn the speed selector to 0

and unplug the appliance (Fig. 30).

1 Make sure the appliance is switched off and unplugged.

2 Clean the motor unit with a moist cloth.

Never immerse the motor unit in water nor rinse it under the tap.

3 Clean the parts that have come into contact with food in hot water

with some washing-up liquid immediately after use.

Clean the blade unit of the food processor, the discs, the blade unit of

the blender very carefully. The cutting edges are very sharp.

Note: All parts, except the motor unit, can also be cleaned in the dishwasher.

- Make sure that the cutting edges of the blades and the discs do not

come into contact with hard objects. This could cause them to

- You can pull the beaters out of the balloon beater to clean them

Easy cleaning of the food processor bowl and blender jar

1 Pour lukewarm water (not more than 0.5 litres) and some washing-

up liquid into the food processor bowl or blender jar. (Fig. 39)

2 Place the lid on the food processor bowl or blender jar (1) and

turn it clockwise to fix it (2).

3 Press the pulse/Easy Clean button (Fig. 14).

4 Let the appliance run for at least 30 seconds until the food

processor bowl or blender jar is clean.

5 Detach the blender jar or food processor bowl and rinse it with

Balloon beater (HR7772)

Always clean the balloon beater immediately after use.

The balloon beater can be cleaned in the dishwasher. You can also pull the

beaters out of the balloon beater to clean them separately.

1 Pull the beaters out of the balloon beater housing. (Fig. 40)

2 To reassemble, push the beaters back into the balloon beater

Always clean the citrus press immediately after use.

The citrus press can be cleaned in the dishwasher. You can also pull the

cone from the sieve to clean them separately.

1 Pull the cone from the sieve (Fig. 41).

2 To reassemble, push the cone back on the sieve of the citrus press.

1 Push the cord into the cord storage compartment on the back of

the motor unit. (Fig. 42)

- Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an official collection point for

recycling. By doing this, you help to preserve the

environment (Fig. 43).

If you need service or information or if you have a problem, please visit

the Philips website at www.philips.com or contact the Philips Consumer

Care Centre in your country (you find its phone number in the

worldwide guarantee leaflet). If there is no Consumer Care Centre in

your country, go to your local Philips dealer.

This chapter summarises the most common problems you could

encounter with the appliance. If you are unable to solve the problem with

the information below, contact the Consumer Care Centre in your country.

Make sure the food processor or blender jar and

its lid are assembled correctly (‘click’).Make sure

that the tool holder has been inserted properly if

you are using any accessory with the food

processor bowl. If you use the blender jar, make

sure that the handle of the blender points to one

of the four corners of the motor unit. Keep the

lid fixed to avoid spillage. If you use the food

processor, make sure that the bowl handle is

directly above the closed lock symbol. The bowl

lid is correctly assembled when the projection is

locked into the slot of the bowl handle. If all parts

are assembled correctly, the appliance starts to

operate when you select a speed with the speed

selector or press the pulse/Easy Clean button.

The thermal safety cut-out has probably cut off

the power supply to the appliance because the

appliance has overheated. 1) Unplug the

appliance. 2) Let the appliance cool down for 1

hour. 3) Put the mains plug in the socket. 4)

Switch on the appliance again.

Check the colour of the attachment and choose

the corresponding speed with the speed selector.

Make sure the emulsifying disc, balloon beater or

kneading accessory is assembled properly onto

the tool holder. Also make sure the food

processor bowl and the lid are assembled

properly (‘click’).Problem Solution

Make sure that the tool holder has been inserted

properly. Make sure the projection on the sieve is

locked in the slot of the bowl handle. When the

projection is locked in the slot, the appliance starts

to operate when you select the correct speed.

If the sieve is damaged, do not use the citrus

press anymore. Contact the Philips Consumer

Care Centre in your country (you find its phone

number in the worldwide guarantee leaflet) to

order a new sieve. If there is no Consumer Care

Centre in your country, go to your local Philips

Nourishing vegetable soup from Budapest

To be processed in the blender:

To be added during cooking:

1 Assemble the blender jar onto the motor unit. Put the kohlrabi,

potatoes, celery, carrots and water in the blender in this order.

Blend the ingredients for 10 seconds at the speed appropriate for

the blender for a coarse soup or longer for a finer soup.

2 Put the blended ingredients in a pan and bring to the boil. Add

crème fraîche, dal, pork and herbs. Cook for 30 minutes while

stirring constantly.

Always let the appliance cool down to room temperature after you

have processed two batches.

- 1/2 packet of quick yeast

1 Put the tool holder in the bowl and place the kneading accessory

2 Put all the dry ingredients in the bowl and add the water and the oil.

3 Close and lock the lid (‘click’). Select the speed that corresponds to

the kneading accessory and let the appliance run until the dough

has become a well-mixed ball. This takes about 2 minutes.

4 Put the dough in a bowl, cover it with a damp cloth and let it rise

for about 40 minutes until it has doubled in volume.

5 Dust your worktop with flour, roll the dough and create two pizza

dough bases and put them on a greased baking tray.

6 Cover the pizza dough bases with tomato sauce and your favourite

topping. You can use cheese, ham, salami, bacon, mushrooms, tuna

fish, onions, artichokes, bell pepper etc. Spread some oregano and

pour olive oil over the pizzas and bake them.

Tip: You can use the shredding disc to shred about 200g cheese (Parmesan or

Gouda).Put the tool holder in the bowl and place the shredding disc on the

tool holder. Close and lock the lid (‘click’). Cut the cheese into pieces that fit

into the feeding tube and shred the cheese.

Cucumber salad with yoghurt sauce

- 2 cups parsley leaves

- 1 cup natural yoghurt

- 1 tablespoon mustard

- Salt and black pepper to taste

1 Put the tool holder in the bowl and place the slicing disc on the

2 Close and lock the lid (‘click’). Slice the cucumber. See chapter

‘Using the appliance’ under ‘Slicing and shredding discs’ for the

Tip: Use the thin-slice side of the slicing disc to cut thin slices. Do not exert

too much pressure on the pusher.

3 Put the sliced cucumber into a serving bowl.

4 Put the tool holder in the bowl and place the blade unit on the tool

5 Put the parsley in the bowl. Close and lock the lid (‘click’).

6 Chop the parsley. Press the pulse/Easy Clean button to have better

control over the chopping process.

7 Add the yoghurt, mustard, salt and pepper and process for a few

more seconds until a homogeneous mixture is obtained.

8 Mix the sauce with the cucumber slices and refrigerate the

cucumber salad before serving.

1 Chill the cream for at least 2 hours before processing.

2 Put the tool holder in the bowl and place the emulsifying disc

(HR7771 only) or the balloon beater (HR7772 only) on the tool

3 Put the cream in the bowl.

4 Close and lock the lid (‘click’). Process the cream until the desired

consistency is obtained. Select the speed setting that corresponds

with the colour of the accessory.

Tip: Refrigerate the whipped cream before serving. You can serve whipped

cream on cakes, ice cream, fruits, coffee, or use it as a filling for cakes, etc.

- 250g cooked chicken meat

- 250g cooked potatoes

- 250g cooked french beans

1 Assemble the blender jar onto the motor unit. Put the ingredients

in the blender. Blend the ingredients for 25 seconds at the speed

appropriate for the blender.

If you want to prepare a larger quantity of baby food, let the appliance

cool down for 60 minutes after processing the ingredients for each batch.

Maximum quantities and processing times (Fig. 44)Introduction

Félicitations pour votre achat et bienvenue dans l’univers Philips ! Pour

N Bouton Pulse/Easy Clean

N Tombol Pulse/Easy Clean
