iStation TimeCurve - Docking station Logic3 - Free user manual and instructions

Product type	Docking station with radio alarm clock
Brand	Logic3
Model	iStation TimeCurve
Power supply	Mains adapter with interchangeable plugs (UK 3-pin and Euro 2-pin)
Radio	FM with 6 presets
Alarm	Adjustable with repeat (5 days or 7 days)
Snooze	Yes, 5 minutes
Sleep timer	15, 30, 45 or 60 minutes
Auxiliary input	3.5 mm jack (cable not included)
iPod/iPhone compatibility	Yes (docking station)
Display	LED with dimming (3 levels)
Approximate dimensions	20 x 15 x 10 cm
Approximate weight	500 g
Antenna	Deployable cable
Hotel mode	Yes (activation by simultaneous press of Alarm + Volume Up)
Spare parts available	AC adapter (ref. YAD011B UK, YAD011E Euro)
Customer service	[e-mail], [phone]

Frequently Asked Questions - iStation TimeCurve Logic3

How to set the time on the iStation TimeCurve?

Press and hold the Time button until the time flashes. Use the Tuning or Volume buttons to set the format (12h/24h), hour, minutes, then year, month, date, and day. Press Preset/Set after each setting and once more to save.

How to set the alarm?

Press Alarm once. The volume and source flash. Adjust the volume with the Volume buttons, then press Alarm to choose the repeat (OFF, 5 days, 7 days). Press Power/Source to select the source (iPod/iPhone, FM or AUX). Press Preset/Set to set the hour and minutes, then confirm.

How to listen to FM radio?

Deploy the antenna cable. Turn on the device by pressing and holding Power/Source, then press briefly to select FM. Use the Tuning buttons to search for stations (short press for manual, long for auto). To save a preset, hold Preset/Set, choose a number with Tuning or Volume, then press Preset/Set.

Why doesn't the alarm sound?

Check that the repeat is set to 5 days (Mon-Fri) or 7 days, not OFF. Make sure the alarm source is correctly selected (iPod/iPhone, FM or AUX). If using iPod/iPhone, check it is properly connected and playback is active.

What to do if no sound comes from the device?

Check that the iPod/iPhone is properly inserted and the volume is sufficient. Disconnect any Line-IN cable as it cuts the sound from the docking station. Ensure the selected source (iPod, FM, AUX) is active. For iPod, try updating its firmware via iTunes.

How to use the auxiliary input (AUX)?

Plug a 3.5mm cable (not included) from your audio device to the Line IN jack on the back. Press Power/Source until AUX appears on the display. The station then acts as a speaker. Remember to remove the cable to use the iPod docking station.

How to adjust the dimmer level (backlight)?

When the alarm is active, press the Snooze/Dimmer button to cycle through three brightness levels.

How to use the sleep function (Sleep)?

From an active source (iPod, FM or AUX), press and hold the Alarm button for one second. The Z² icon appears. Set the duration with the Tuning or Volume buttons (OFF, 15, 30, 45, 60 minutes). The device will turn off automatically.

How to activate Hotel mode?

Press the Alarm and Volume Up buttons simultaneously. Hotel mode locks certain settings. To deactivate, repeat the same combination.

Where to find spare parts for the iStation TimeCurve?

Spare parts, such as the power adapter (ref. YAD011B for UK, YAD011E for Euro), are available on the website www.logic3.com. For assistance, contact technical support at [phone] or by email at [e-mail].

USER MANUAL iStation TimeCurve Logic3

Thank you for purchasing the Logic3 i-Station TimeCurve. As with all Logic3 products it has been built to the highest manufacturing standards and tested throughout its development, to ensure you get the best possible product. Please read through and familiarize yourself with this manual before you use the i-Station TimeCurve.

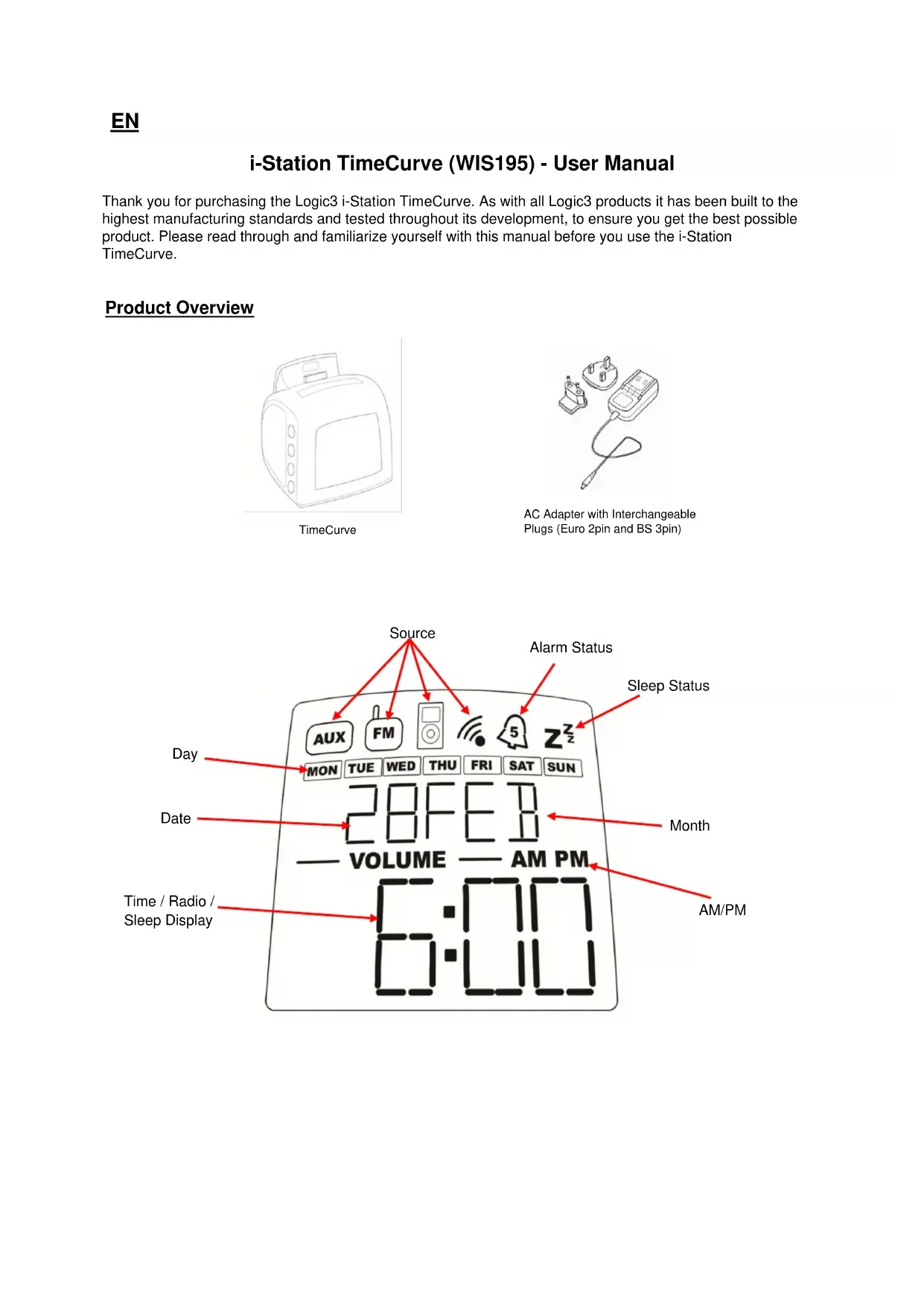

Product Overview

Line drawing of a toaster oven (no text or symbols)

TimeCurve

Line drawing of a handheld electronic device with a plug, cable, and connector (no text or symbols)

AC Adapter with Interchangeable Plugs (Euro 2pin and BS 3pin)

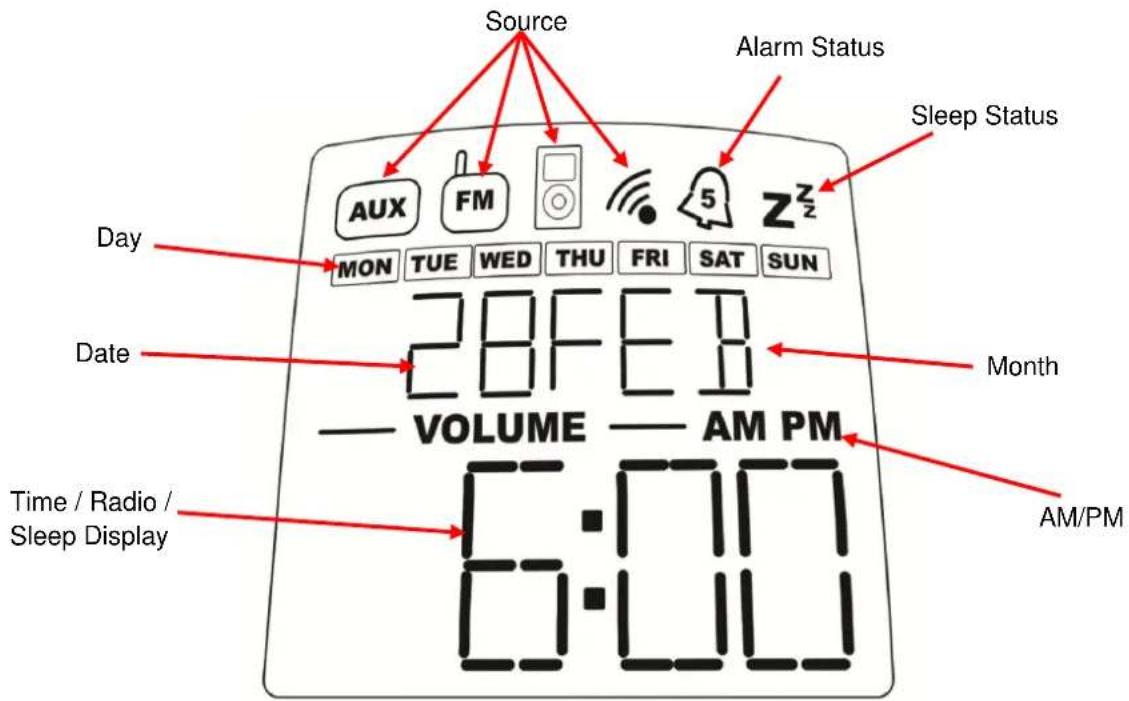

Source Alarm Status Sleep Status Day MON TUE WED THU FRI SAT SUN 28FEB Date VOLUME — AM PM Time / Radio / Sleep Display 6:00 AM/PM

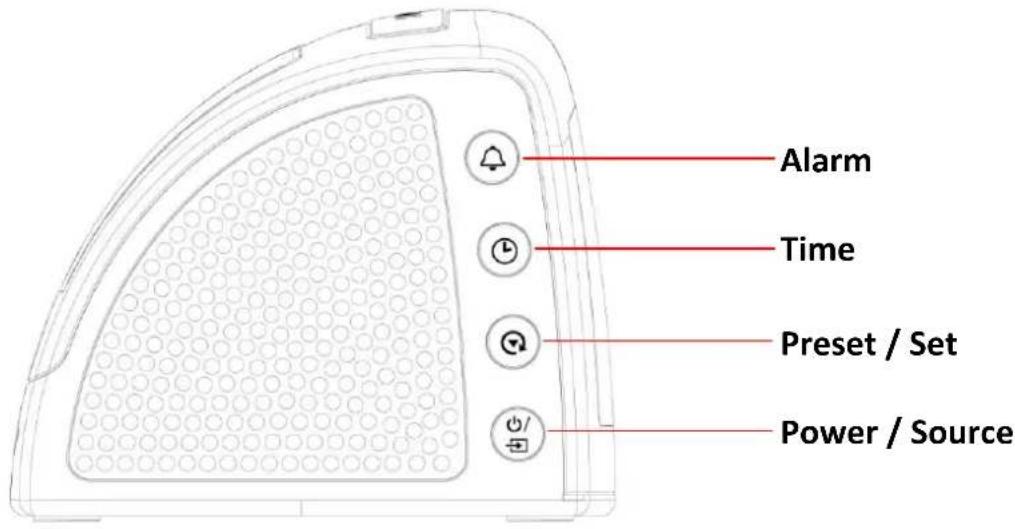

Alarm Time Preset / Set Power / Source

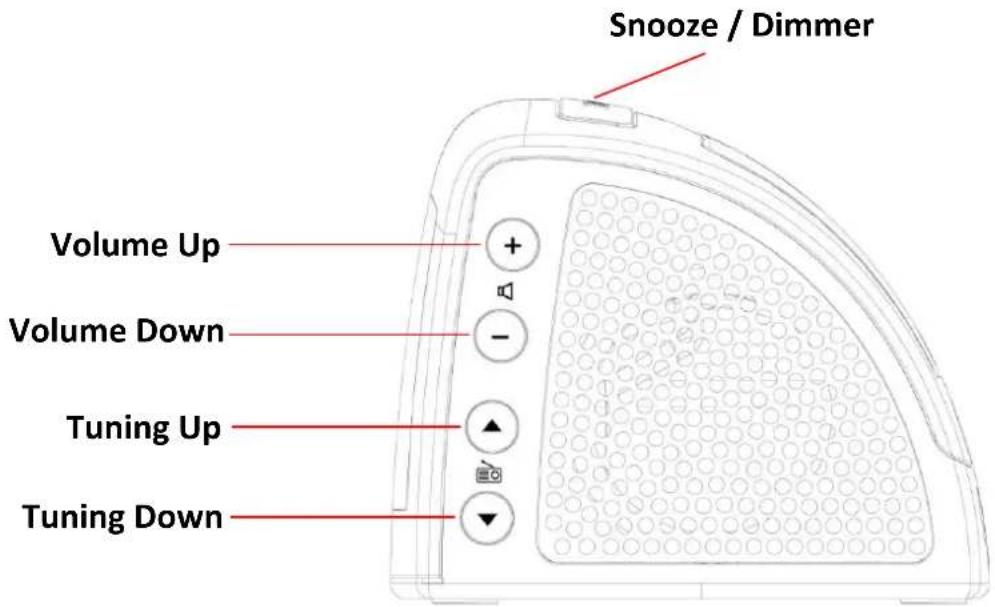

Snooze / Dimmer Volume Up Volume Down Tuning Up Tuning Down

NOTE: For all iPhone/iPod touch models, please go to itunes and download the i-Station TimeCurve APP before proceeding to set up.

Set up of i-Station TimeCurve

1. Select and fit the correct plug adapter to suit your power supply (UK 3pin / Euro 2 Pin).
2. Connect the mains AC Adapter to the TimeCurve (DC in).
3. Plug the adapter to your mains supply and turn ON the power.

Setting of Time/Date

1. Press and hold the 'Time' button (Time will flash)
2. Using the 'Volume button' set the time format (24hr/12hr).
3. Press the 'Preset/Set' button (Hour Unit will Flash)
4. Using the 'Tuning' or 'Volume' buttons set the Hour.
5. Press the 'Preset/Set' button (Minutes Unit will Flash)
6. Using the 'Tuning' or 'Volume' buttons set the Minutes.
7. Press the 'Preset/Set' button (Year will flash)
8. Using the 'Tuning' or 'Volume' buttons set the Year.
9. Press the 'Preset/Set' button (Month will flash)
10. Using the 'Tuning' or 'Volume buttons set the Month.
11. Press the 'Preset/Set' button (Date will flash)
12. Using the 'Tuning' or 'Volume' buttons set the Date.
13. Press the 'Preset/Set' button (Day will flash)
14. Using the 'Tuning' or 'Volume' buttons set the Day.
15. Press the 'Preset/Set' button to save the settings.

Setting of Alarm

1. Press 'Alarm' button once, Volume and Source will flash on the display (if no buttons are pressed for 10 seconds the display will return to the current time display).
2. Using the 'Volume' buttons set the volume level of the Alarm.
3. Press 'Alarm' button to set the Recurrence of the Alarm

OFF

5 Days (Mon-Fri Alarm is acve)

7 Days (Everyday Alarm is acve)

1. Press 'Power/Source' button to set the source you wish to wake up to
2. Press the 'Preset/Set' button (Hour Unit will Flash)
3. Using the 'Tuning' or 'Volume' buttons set the Hour.
4. Press the 'Preset/Set' button (Minutes Unit will Flash)
5. Using the 'Tuning' or 'Volume' buttons set the Minutes
6. Press the 'Preset/Set' button to save the settings.

Setting of Sleep mode

The Sleep time can be adjusted to the user's preference.

1. In any source mode Press and hold the 'Alarm' button for 1second.
2. Sleep time will be displayed on the screen.
3. Using the 'Tuning' or 'Volume' buttons set the duration of the Sleep mode (OFF, 15, 30, 45, 60)
4. Once you have selected your Sleep time an Z^ icon will be displayed on the top right of the display.
5. Display will automatically return to the current time display after 10 seconds.
6. The Sleep time will be counted down, to show the remaining Sleep time press and hold the 'Alarm' button.

Setting the Radio

Only 6 Preset can be saved at any one time.

1. Un- tie the antenna cable and position the antenna as high up as possible.
2. Press and hold the 'Power/Source' button to turn on the Radio.
3. Select Radio by pressing the 'Power/Source' Button.
4. Using the 'Tuning' buttons set the required radio frequency (Pressing the 'Tuning' button once will manually Tune the radio, Press and Hold the 'Tuning' button will Auto search the radio)
5. Press and hold the 'Preset/Set' button (Program number will then flash)
6. Using the 'Tuning' or 'Volume' buttons set the Program number you wish to save the radio station to.
7. Press the 'Preset/Set' button to save the settings.

To Recall a Preset Radio Station

1. Press the 'Preset/Set' Button and the Program number will appear on the display
2. Pressing the 'Preset/Set' button again will toggle through the Preset stations (P1, P2, P3, P4, P5, P6)
3. If no buttons are pressed for 10 seconds the display will return to the current time display

Switching Off the Alarm/Snooze Function

1. Press the 'Snooze/Dimmer' button when the alarm is ringing, the alarm will be silenced for 5 minutes.
2. To switch OFF the Alarm when the Alarm has gone off Press the 'Power/Source' button.

Selecting a source (iPhone/iPod, Radio or AUX)

1. Press the 'Power/Source' button.

2. Press the 'Power/Source' button again until you have selected your source

To adjust the Display dimmer level

1. Press the 'Snooze/Dimmer' button (when the alarm is not ringing), there are 3 levels of dimming.

Set Up of Line in

The i-Station TimeCurve also offers the ability to allow other portable audio devices such as iPod shuffle, MP3, MiniDisc and Portable CD Players to be connected for use as a speaker system.

1. Connect a 3.5mm Audio-In cable (not included) into the headphone socket of your audio device and to the 'Line IN' connection on the back of the unit.
2. Press the 'Power/Source' button to select the 'AUX' function. The 'AUX' symbol will appear on the front display.
3. You can now use the WIS195 to play sound from your external audio devices.

NOTE: Remember to remove the line in cable when using the docking station as the line in cable will override any sound coming from the docking station.

Hotel Mode

Press the 'Alarm' and the 'Volume Up Button simultaneously to toggle hotel mode operation.

Trouble Shooting

Problem	What Should I do?
FM Radio not clear / Radio station not found	Re-position the antenna cable until the station sounds clearer
Alarm is not ringing daily	Ensure the 7 or 5 day alarm setting is active (see Setting of Alarm)
iPod/iPhone is not waking up as the Alarm	Ensure the Alarm source is set to iPod/iPhone (see Setting of Alarm)
No Sound	Ensure the line in cable is not plugged into the rear of the TimeCurve
	Check Play status on the iPhone/iPod.
	Please try updating the firmware for your iPhone/iPod using the latest iTunes which is available fromwww.apple.com/ipod/download

Spare Part List

Part No.	Item code	Item Name	Price
1	YAD011B	AC ADAPTOR (UK 3PIN PLUG)	For prices visit our website at www.logic3.com
2	YAD011E	AC ADAPTOR (EURO 2PIN PLUG)

Please use Item Codes above, when searching for Spare Parts on our Website www.logic3.com

Should you have any setup problems with the i-Station TimeCurve (WIS195) please contact our Technical Support Hotline on [phone] – National/International call rates apply or Email [e-mail] - Spare parts are available for some models at our website www.logic3.com
