Product type	Surveillance camera
Brand	Lupus Electronics
Model	LE138
Image sensor	1/3 inch CCD, 8.5 mm
Resolution	540 TVL, 752 x 582 pixels (PAL)
Minimum illumination	0.02 Lux (IR off), 0 Lux (IR on)
Focal length	3.6 mm (viewing angle 92.6°)
Signal-to-noise ratio	Min. 48 dB
Automatic shutter	1/50 to 1/110,000 s
Gamma	0.45
Infrared illumination	Max. 20 m, 24 LEDs, 850 nm
White balance	Automatic (AWB)
Gain control	Automatic (AGC)
Power supply	12 V DC, AC adapter included
Power consumption	95 mA (IR off), 315 mA (IR on)
Operating temperature	-10°C to 50°C
Dimensions (L x H)	133 x 51 mm
Protection class	IP68
Certifications	CE EMC, FCC CLASS A, RoHS
Mount	3-axis mount (wall/ceiling), sun shield included
Package contents	Camera, sun shield, 3-axis mount, screws and anchors, manual
Maintenance and cleaning	Disconnect before cleaning; use a soft cloth moistened with alcohol for the sensor
Safety	Use only the original adapter; professional installation recommended; do not expose to rain
Spare parts and repairability	Use original parts; contact supplier for any repairs

Frequently Asked Questions - LE138 Lupus Electronics

How to install the Lupus Electronics LE138 camera?

Attach the mount to the wall or ceiling using the provided screws and anchors. Run the cable through the wall to conceal it. Adjust the angle by loosening the screw on the 3-axis mount, position the camera, then tighten the screw.

What is the night vision range?

The maximum infrared range is 20 meters thanks to 24 infrared LEDs at 850 nm. In IR mode, the minimum illumination is 0 Lux, allowing vision in total darkness.

What does IP68 rating mean?

The IP68 rating means the camera is completely protected against dust and can be continuously submerged in water beyond 1 meter. It is therefore suitable for outdoor use.

How to clean the camera sensor?

First disconnect the camera. Gently clean the sensor surface with a soft cloth moistened with alcohol if accidentally touched. Avoid touching the sensor directly.

What type of power supply is required?

The camera operates on 12 V DC. The AC adapter is included in the package. Use only the original adapter to avoid any electrical risk.

Is the camera suitable for outdoor use?

Yes, thanks to its IP68 protection class and temperature range of -10°C to 50°C, the LE138 can be installed outdoors, provided that direct exposure to weather or prolonged sunlight is avoided.

How to adjust the viewing angle?

The 3-axis mount allows fine adjustment. Loosen the fixing screw, orient the camera to the desired angle (pan, tilt, rotation), then tighten the screw to lock the position.

What is the camera resolution?

The resolution is 540 TVL (TV lines) with a definition of 752 x 582 pixels in PAL format, providing a clear and detailed image for surveillance.

Does the camera have an audio microphone?

According to the manual, the camera does not include a microphone. It is designed solely for video capture. For audio, a complementary model would be needed.

What to do in case of malfunction?

First check the power supply and connections. If the problem persists, contact your supplier. Do not open the camera yourself; entrust any repairs to a qualified professional. Use only original spare parts.

USER MANUAL LE138 Lupus Electronics

Specifications Techniques:

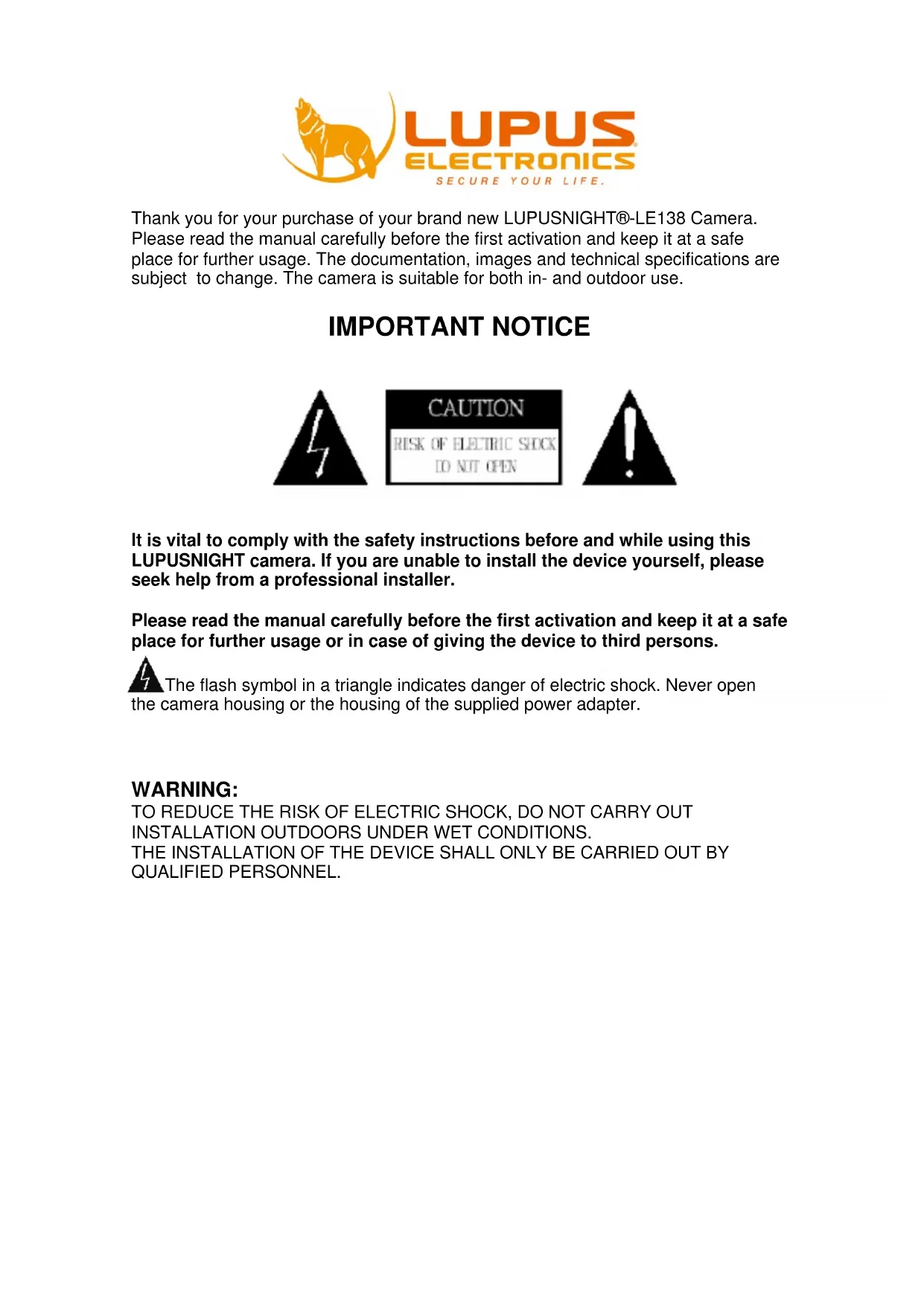

Thank you for your purchase of your brand new LUPUSNIGHT®-LE138 Camera. Please read the manual carefully before the first activation and keep it at a safe place for further usage. The documentation, images and technical specifications are subject to change. The camera is suitable for both in- and outdoor use.

IMPORTANT NOTICE

It is vital to comply with the safety instructions before and while using this LUPUSNIGHT camera. If you are unable to install the device yourself, please seek help from a professional installer.

Please read the manual carefully before the first activation and keep it at a safe place for further usage or in case of giving the device to third persons.

The flash symbol in a triangle indicates danger of electric shock. Never open the camera housing or the housing of the supplied power adapter.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT CARRY OUT INSTALLATION OUTDOORS UNDER WET CONDITIONS. THE INSTALLATION OF THE DEVICE SHALL ONLY BE CARRIED OUT BY QUALIFIED PERSONNEL.

USAGE AND INSTALLATION NOTE:

This camera is a weather proof high quality video surveillance camera. Please note the following safety instructions:

• Do not focus the camera to the sun.
• Do not focus the camera to a spotlight.
• Handle the camera carefully and protect it from strong vibrations or hits.
• Do not touch internal components or wiring
• Do not install the camera close to strong electrical currents which could undermine its image quality.
• Do not attach the camera to an aluminium or iron surface without insulating it from the surface.
• Always comply with max. humidity and temperature conditions.
• This device must not be operated by persons with physical, sensorical or mental disabilities or persons with limited experience or knowledge unless these persons are supervised by a person specifically assigned to care for their safety. The devise shall under no circumstances be operated by children.
• The camera contains wiring which may lead to strangulation or small items which may be swallowed. Please keep the camera, its packaging and associated items away from children.

In case of malfunction

In case of malfunction, please pull the powerplug and contact your dealer. Further usage may increase the risk of fire or electric shock.

Intended usage

The camera is intended for conventional video surveillance by day and night. It is designed for both in- and outdoor use. Please make sure that privacy rights of third persons be not infringed at any time. The surveillance of persons without their explicit knowledge and consent is prohibited by law in many countries.

This product must not be used for any other purpose save those set out in the user manual. Contravention may lead to loss of warranty and guarantee as well as the exclusion of liability. This includes changes to and modifications of the product.

Orderly disposal:

Do not dispose of this product with your domestic waste!

This device complies with the EU regulation on electronic waste and therefore must not be diposed of with domestic waste. Please dispose of this product with your local waste disposal for electronic devices.

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

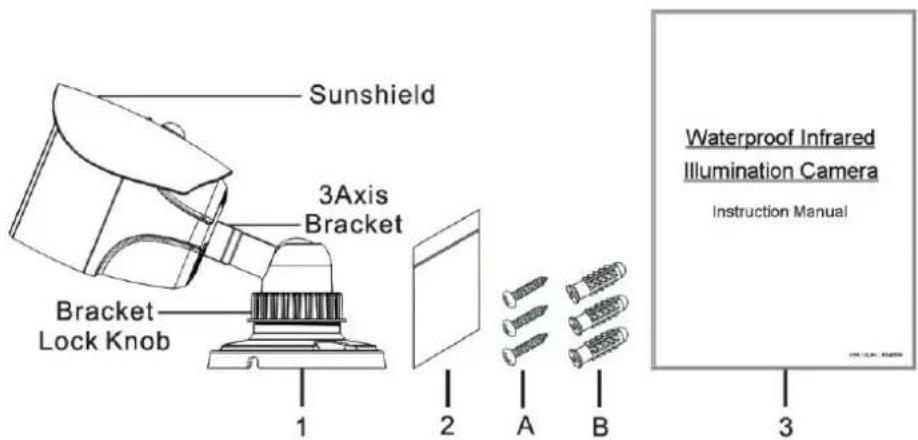

Scope of Delivery:

1 x LE138 video surveillance camera
1 x sun shield
1 x 3-axial bracket
1 x pack with 3 screws and 3 dowels
1 x user manual

Installation:

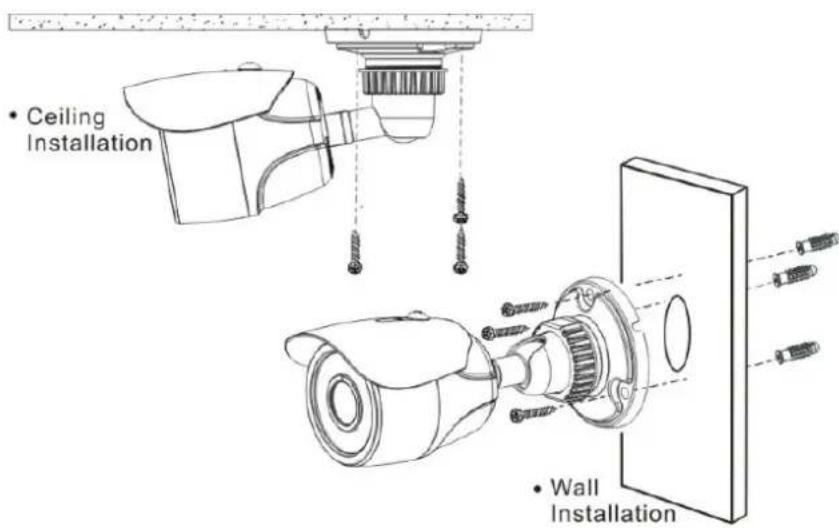

The camera can be installed on a wall or ceiling. The cable is routed through the bracket and thus protected from vandalism. The savest way to install your camera is to mount it directly on a cable channel in wall or ceiling.

Alternatively, you can pass the cable through the outlet on the bottom side of the bracket.

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

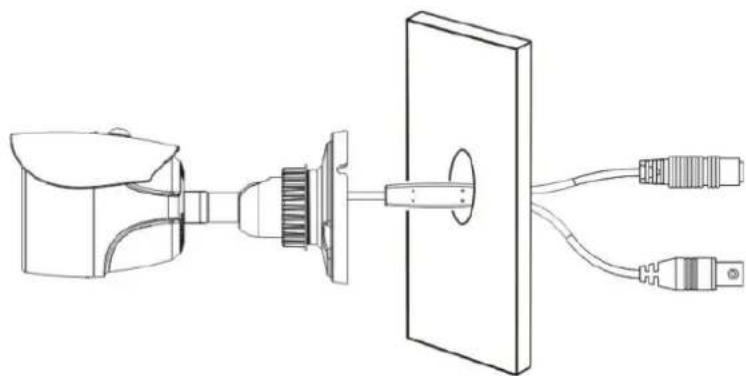

Pass the cable through the channel in the wall as shown below.

Use the included screws and dowels to fix the camera.

Hint : Make sure that the underside of the bracket is flush with the surface to seal it against outside influences.

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

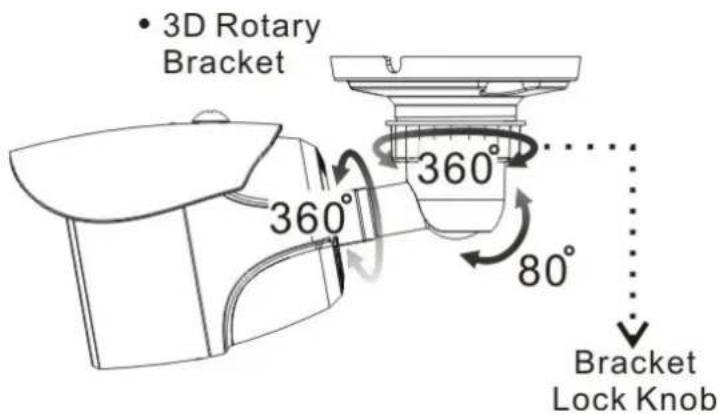

Adjustment of the 3-axial bracket:

loose the weel around the ankle to adjust the camera. As soon as you found the right position, please close the weel again.

Technical Specifications:

• Image sensor: 1/3 inch 8.5 mm CCD Sensor:
  540TVL
  Resolution PAL: 752x582 pixel
  Min. Illumination: 0,02 Lux (F1.2, IR off), 0 Lux (IR on)
  3.6mm focal length (92.6^)
  S/N value: min. 48dB
  Automatic shutter: 1 / 50 1 / 110,000
  Gamma value: 0.45
  Infrared illumination: max. 20 meters, 24 LED's, 850nm.
  Automatic white balance (AWB)
  Automatic gain control (AGC)
  Voltage: 12V DC
  Power consumption: 95mA (IR OFF), 315mA (IR ON)
• Operating temperature: -10 bis 50^
  Incl. power adapter
  Incl. wall/ ceiling bracket
• dimensions: 133( L) × 51( ) mm
  Safety class: IP68
  Certifications: CE EMC, FCC CLASS A, RoHs
