LE139 - Surveillance Camera Lupus Electronics - Free user manual and instructions

Product type	Surveillance camera
Brand	Lupus Electronics
Model	LE139
Dimensions	133 (L) × 51 (∅) mm
Power supply	12V DC
Power consumption	95 mA (IR off), 315 mA (IR on)
Image sensor	1/3" (8.5mm) Color Sony Exview HAD II CCD
Resolution	650 TVL (color), 700 TVL (black and white)
Minimum illumination	0.01 Lux (IR off), 0 Lux (IR on)
Focal length	4.3 mm (approx. 82° angle)
Infrared range	Up to 20 meters
Number of IR LEDs	24
Auto shutter	1/50 ~ 1/110,000
White balance	Automatic (AWB)
Gain control	Automatic (AGC)
Operating temperature	-10°C to 50°C
Protection class	IP68
Certifications	CE, FCC, RoHS
Package contents	Camera, sunshade, 3-axis bracket, screws and wall plugs, manual
Maintenance and cleaning	Unplug before cleaning; use a soft cloth dampened with alcohol; do not touch the sensor surface
Installation	Wall or ceiling, fix with provided screws, route the cable through the bracket
Spare parts and repairability	Not specified by the manufacturer

Frequently Asked Questions - LE139 Lupus Electronics

How to install the LE139 camera?

Install the camera on a wall or ceiling using the provided 3-axis bracket. Route the cable through the bracket to conceal it. Use the included screws and wall plugs for a secure fix. Ensure the surface is flat and solid.

What is the infrared range?

The infrared range is up to 20 meters thanks to its 24 IR LEDs of 850 nm.

What image resolution?

The camera offers 650 TVL in color and 700 TVL in black and white with a Sony Exview HAD II CCD sensor.

Is the camera waterproof?

Yes, it has an IP68 protection class, making it suitable for outdoor use.

What type of power supply is needed?

The power supply is 12V DC. The power adapter is included in the package.

How to clean the camera?

Always unplug the camera before cleaning. Use a soft cloth dampened with alcohol to clean the surface. Do not touch the sensor surface.

Can it be used outdoors?

Yes, thanks to its IP68 class and temperature range of -10°C to 50°C, it is perfectly suited for outdoor use.

What to do if the image flickers?

Avoid variable light sources (fluorescent lamps, reflections). Ensure the camera is not exposed to rapidly changing light.

How to adjust the camera angle?

Loosen the screw on the 3-axis bracket, orient the camera to the desired angle (360° on each axis), then retighten the screw.

What accessories are included with the LE139?

The package includes: the camera, a sunshade, a 3-axis bracket, a bag of screws and wall plugs, and the user manual.

USER MANUAL LE139 Lupus Electronics

Exterior view of a modern security camera (no signage)

Benutzerhandbuch

Installation:

Technical line drawing of a mechanical assembly with a central connector and two separate cables (no text or symbols)

Exterior view of a modern security camera with LUPUS ELECTRONICS branding (no additional text or symbols visible)

Installation:

Technical line drawing of a device with a connector, motor, and cable (no text or symbols)

Exterior view of a modern security camera with LUPUS ELECTRONICS branding (no additional text or symbols visible)

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

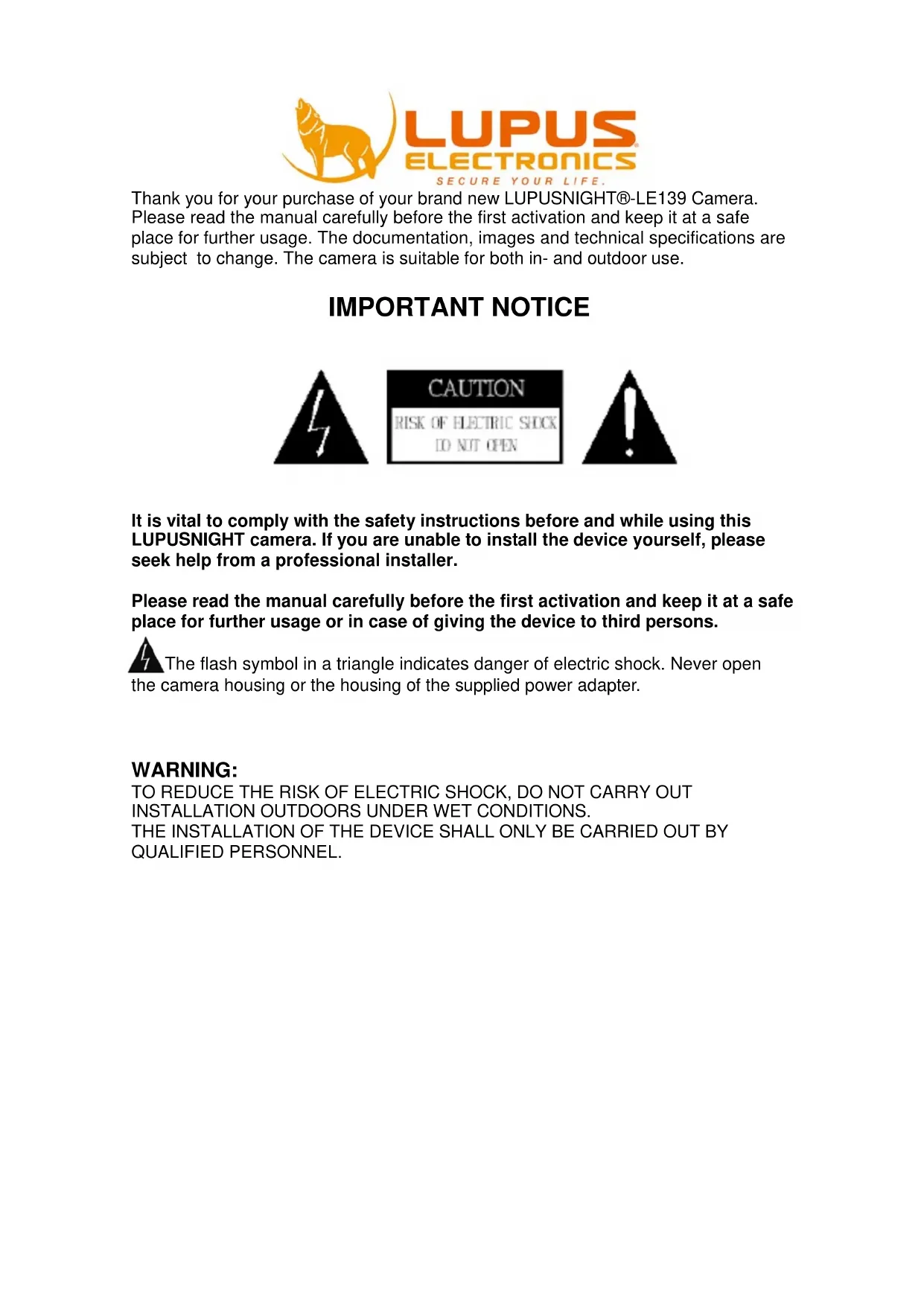

Thank you for your purchase of your brand new LUPUSNIGHT®-LE139 Camera. Please read the manual carefully before the first activation and keep it at a safe place for further usage. The documentation, images and technical specifications are subject to change. The camera is suitable for both in- and outdoor use.

IMPORTANT NOTICE

It is vital to comply with the safety instructions before and while using this LUPUSNIGHT camera. If you are unable to install the device yourself, please seek help from a professional installer.

Please read the manual carefully before the first activation and keep it at a safe place for further usage or in case of giving the device to third persons.

The flash symbol in a triangle indicates danger of electric shock. Never open

the camera housing or the housing of the supplied power adapter.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT CARRY OUT INSTALLATION OUTDOORS UNDER WET CONDITIONS. THE INSTALLATION OF THE DEVICE SHALL ONLY BE CARRIED OUT BY QUALIFIED PERSONNEL.

USAGE AND INSTALLATION NOTE:

This camera is a weather proof high quality video surveillance camera. Please note the following safety instructions:

• Do not focus the camera to the sun.
• Do not focus the camera to a spotlight.
• Handle the camera carefully and protect it from strong vibrations or hits.
• Do not touch internal components or wiring

- Do not install the camera close to strong electrical currents which could undermine its image quality.

- Do not attach the camera to an aluminium or iron surface without insulating it from the surface.

• Always comply with max. humidity and temperature conditions.

- This device must not be operated by persons with physical, sensorical or mental disabilities or persons with limited experience or knowledge unless these persons are supervised by a person specifically assigned to care for their safety. The devise shall under no circumstances be operated by children.

- The camera contains wiring which may lead to strangulation or small items which may be swallowed. Please keep the camera, its packaging and associated items away from children.

In case of malfunction

In case of malfunction, please pull the powerplug and contact your dealer. Further usage may increase the risk of fire or electric shock.

Intended usage

The camera is intended for conventional video surveillance by day and night. It is designed for both in- and outdoor use. Please make sure that privacy rights of third persons be not infringed at any time. The surveillance of persons without their explicit knowledge and consent is prohibited by law in many countries.

This product must not be used for any other purpose save those set out in the user manual. Contravention may lead to loss of warranty and guarantee as well as the exclusion of liability. This includes changes to and modifications of the product.

Orderly disposal:

Do not dispose of this product with your domestic waste!

This device complies with the EU regulation on electronic waste and therefore must not be disposed of with domestic waste. Please dispose of this product with your local waste disposal for electronic devices.

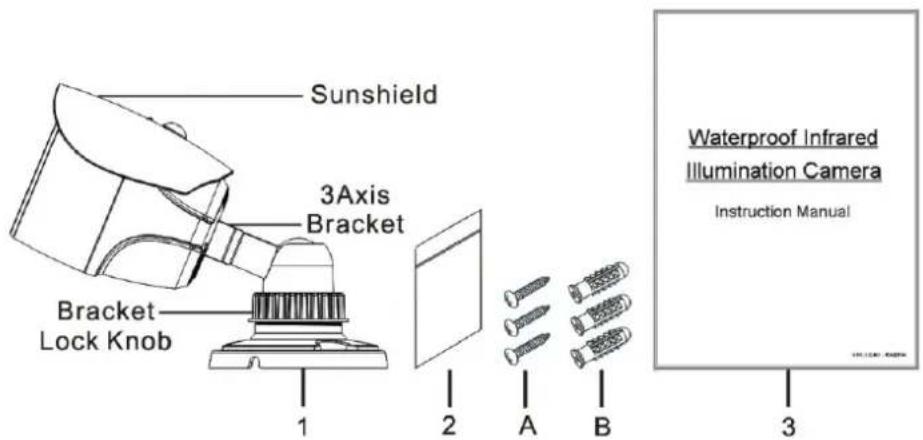

Scope of Delivery:

1 x LE139 video surveillance camera
1 x sun shield
1 x 3-axial bracket
1 x pack with 3 screws and 3 dowels
1 x user manual

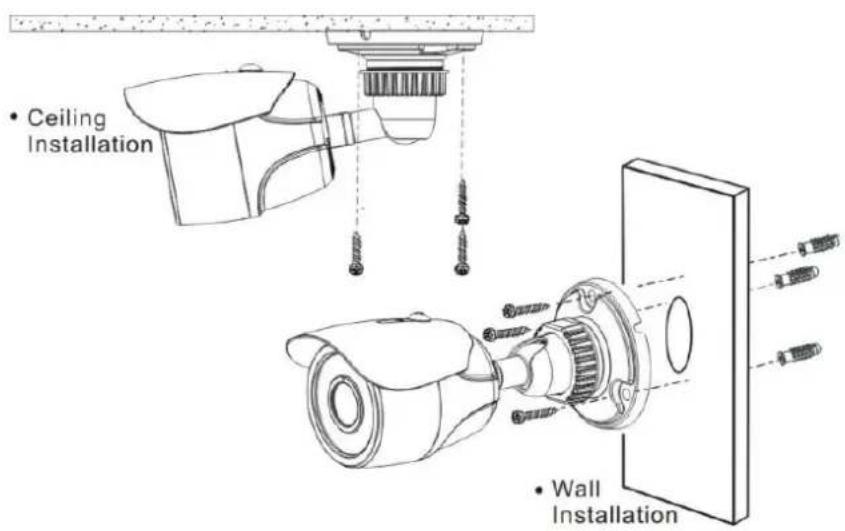

Installation:

The camera can be installed on a wall or ceiling. The cable is routed through the bracket and thus protected from vandalism. The savest way to install your camera is to mount it directly on a cable channel in wall or ceiling.

Alternatively, you can pass the cable through the outlet on the bottom side of the bracket.

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

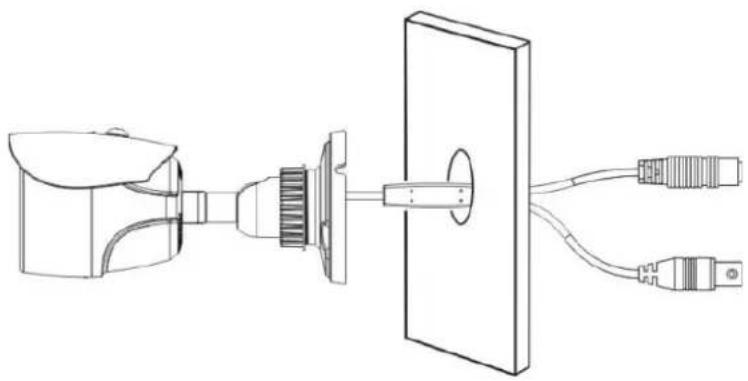

Pass the cable through the channel in the wall as shown below.

Technical line drawing of a device with a connector and cable, no text or symbols present

Use the included screws and dowels to fix the camera.

Hint : Make sure that the underside of the bracket is flush with the surface to seal it against outside influences.

LUPUS

ELECTRONICS

SECURE YOUR LIFE.

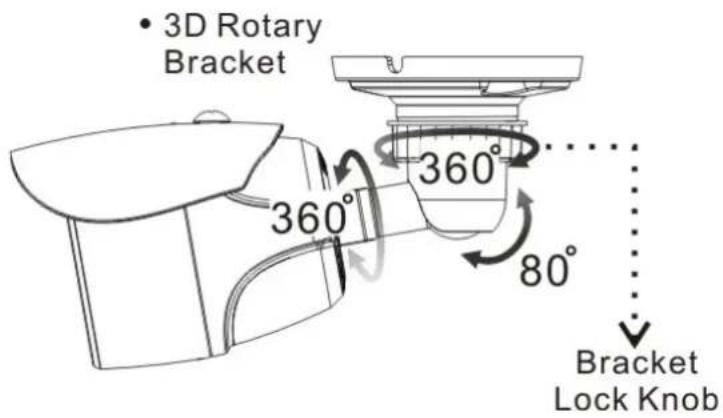

Adjustment of the 3-axial bracket:

loose the weel around the ankle to adjust the camera. As soon as you found the right position, please close the weel again.

Technical Specifications:

• Image sensor: 1/3 inch 8,5 mm Sony® EXview HAD II CCD
• 650TVL (Color), 700TVL (b&w)
- DSP: Sony® EFFIO-E™
• Resolution PAL: 976x582 pixel
• Min. Illumination: 0,01 Lux (F1.2, IR off), 0 Lux (IR on)
• 4.3mm focal length (ca. 82°)
• S/N value: min. 48dB
• Automatic shutter: 1/50 \~ 1/110,000
• Gamma value: 0,45
• Infrared illumination: max. 20 meters, 24 LED's, 850nm.
• Automatic white balance (AWB)
• Automatic gain control (AGC)
• Voltage: 12V DC
• Power consumption: 95mA (IR OFF), 315mA (IR ON)
• Operating temperature: -10 bis 50°C
- Incl. power adapter
• Incl. wall/ ceiling bracket
• dimensions: 133(L) × 51(∅) mm
- Safety class: IP68
• Certifications: CE EMC, FCC CLASS A, RoHs
