USER MANUAL iRadio 460+ Noxon

• Read through the operating manual carefully and keep it in a safe place.

• Observe all warnings and follow the instructions to avoid damage.

• Use this device indoors only.

• Placethedeviceonalevel,drysurfacetopreventreandelectricalshockhazards as well as possible damage to the player itself.

• Do not use the device close to water or other liquids.

• Keepthedeviceawayfromdirectsunlight,radiators,openamesandothersources of heat.

• Only use the accompanying power supply cable. If you are not going to use the deviceforanextendedperiod,disconnectitfromthepowersupply.Toavoidshort circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.

• Ifthedevicehasbeen exposed to extreme differencesintemperature,allowitto adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.

• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaningproductsastheymaydamagethenishoftheunit.

• To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you. Environment

• The product contains batteries that are subject to European Directive 2006/66/EC and must not be disposed of in the normal household waste.

Scope of delivery Start by making sure that the contents of the package are complete. The NOXON packa- ge should contain at least the following items:

• Remote control with battery inserted

• Quick Start Guide (DE, EN, FR, IT, ES, NL) Quick Start Guide for pros This Quick Start Guide shows you how to get started using your NOXON device. You will nddetaileddescriptionsandspecialcongurationsintheadvancedmanual,whichyou can download from our website (www.terratec.com). Pretest Like any network device, your NOXON needs to be connected to your network before you can get started. What do you need?

• AfastInternetconnection(forexample,DSL,ideallywithaatrate).

• A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router

• A network cable, if you do not want a wireless Internet connection for your device

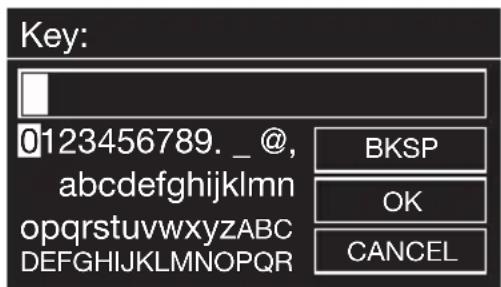

• For WLAN integration: your network key (WEP, WPA or WPA2) This key, just like any key, protects your network from unauthorised access and was ge- nerated when your network was set up. To allow NOXON access to a key-protected net- work, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key. Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance. The scope of delivery of the NOXON iRadio 460+ includes an additional speaker. If you have an iRadio 400+, you can add the optional se- cond speaker, which is available in the TERRATEC Webshop.1514 NOXON iRadio 400+ / 460+ Overview

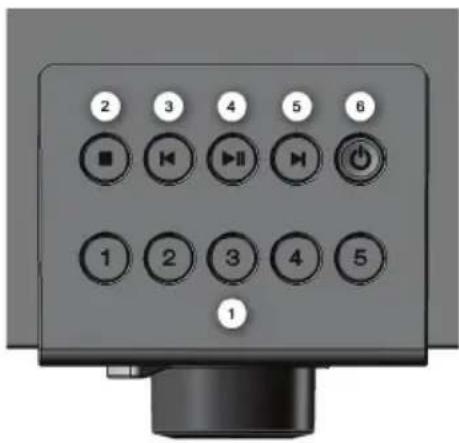

1. Navigation dial with push function for selection:

Scroll through the menu by turning the dial in the list view. Turning the dial during playback changes the volume. To select a menu item, press the dial once.

1. Station keys 1 to 5:Here,youcansaveuptove

of your favourite stations for quick access.

2. Stop: Stops playback.

3. Skip Back: Jumps to the previous track.

4. Play/Pause: Starts and pauses playback.

5. Skip Forward:Jumpstothenexttrack.

6. Standby On/Off: Here, you can wake up the iRa-

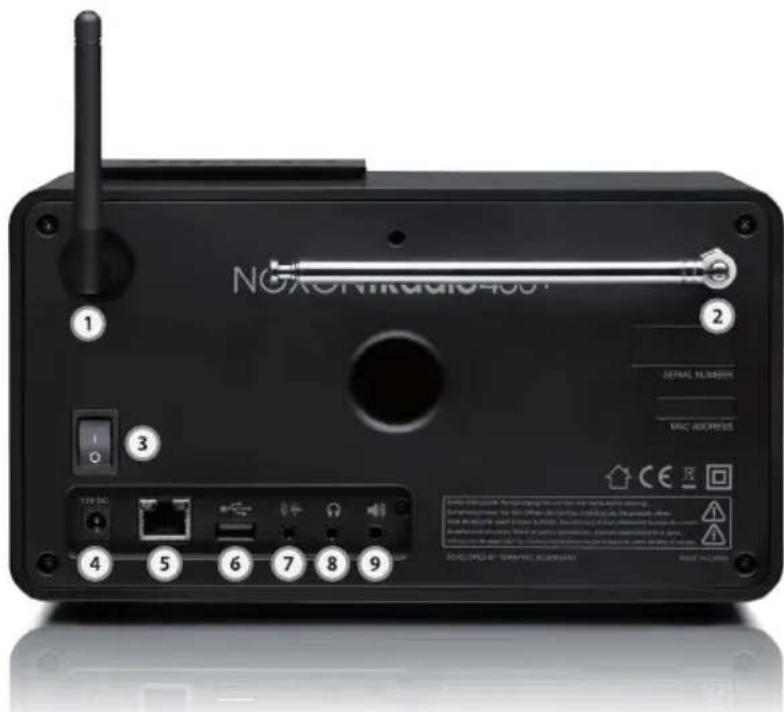

1. WLAN antenna: For wireless reception, please connect the WLAN antenna provided

2. FM antenna: You can connect the provided telescopic antenna here. If you want to

connect a cable here instead, please use the provided antenna adapter.

3. POWER switch: Disconnects your iRadio from mains.

4. POWER: Connect the provided line adapter to this jack.

5. LAN: For wired network operation, use this RJ45 jack.

6. USB:UsetheUSBporttoconnectmemorydeviceslikeexternalharddiscsormem-

orysticks.YourNOXONsupportsbothUSB1.xand2.0devices.

7. LINE OUT:Youcanconnectthis3.5mmstereojacktoanamplieroractivespeak-

ers. When this jack is occupied, the internal speakers are muted.

8. HEADPHONE: Here, you can connect your headphones if you want to have the

sound of the iRadio all to yourself. If the headphones are connected, the internal speakers are muted.

9. SPEAKER OUT: You can connect a second speaker here. If a speaker is plugged

into the socket, the device switches to stereo mode automatically. Please note that a second speaker only should be connected to the SPEAKER OUT when the device is switched off to ensure a proper function.1716 NOXON iRadio 400+ / 460+

1. POWER switch:Thisshouldbeself-explanatory;).

2. POWER: Connect the provided power cable to this jack.

3. LAN: For wired network operation, use this RJ45 jack.

4. LINE OUT:Youcanconnectthis3.5mmstereojacktoanamplieroractivespea-

kers. When this jack is occupied, the internal speakers are muted.

5. HEADPHONE: Here, you can connect your headphones if you want to have the

sound of the iRadio 400+ all to yourself. If the headphones are connected, the inter- nal speakers are muted.

6. SPEAKER OUT*: You can connect a second speaker here. If a speaker is plugged

into the socket, the device switches to stereo mode automatically. For the NO- XON iRadio 460+, the additional speaker is included in the scope of delivery; for the NOXON iRadio 400+, the speakers are available for purchase as options in the TERRATEC Webshop (www.terratec.net/de/shop.html).

7. WLAN antenna: For wireless reception, you have to connect the WLAN antenna

provided here. *Attention: Please note that a second speaker only should be connected to the SPEAKER OUT when the device is switched off to ensure a smooth function without any fault.English Nederlands Espanol Italiano Francais DeutschEnglish

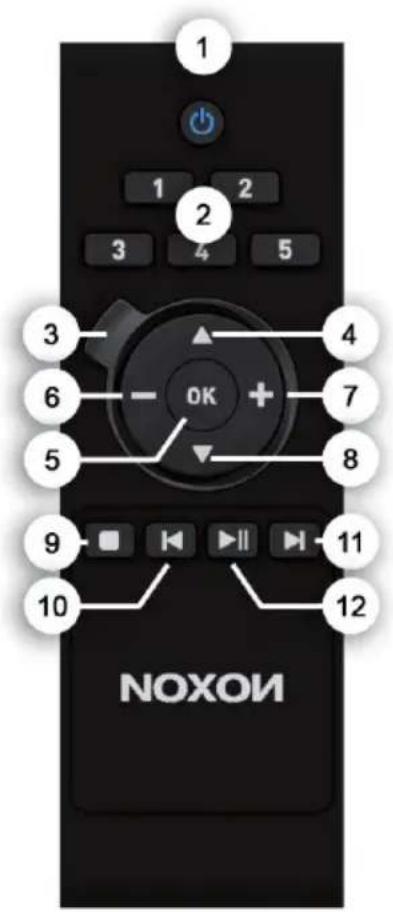

The remote control The operating elements and functions provided here are almost identical to those on the iRadio. Note:Beforeusingthedeviceforthersttime,youhavetoremovetheretainingtabof the battery.

2. Station keys 1 to 5

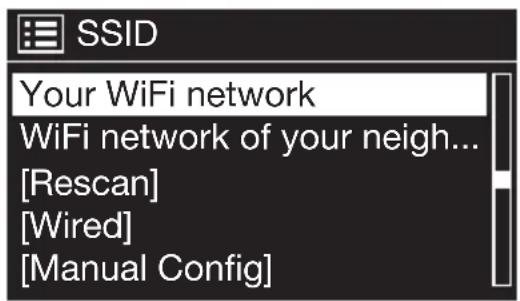

Setup Once your iRadio has been activated initially, follow these steps to link it to your network forthersttime: You are greeted by the setup wizard, which asks politely if you want to start it up.1918 NOXON iRadio 400+ / 460+ Setup wizard Start now? YES NO Use the navigation dial to select a language for themenuandconrm–asinallothermenus– the selection by pressing the navigation dial. Then, enter the time format (12/24-hour). However,werecommendthatyousetthedateandtimeimmediately(Day,Month,Year, Time), as well as the WLAN region you are located in. Once you have done so, all that remains to be done is to connect to the network. Don‘t worry, even this should not be complicated – the network wizard will give you all the help you need. We‘llexplaintheinsandoutsofthisinthedetailedmanuallateron.Fornow,weoffer just a brief overview (after all, you are still in the „Overview“ chapter), as we do not want to bore anybody. SSID Your WiFi network WiFi network of your neigh... [Rescan] [Wired] [Manual Config] The setup wizard gives you the ability to choose between the cable connection and the wireless WLAN port. If you prefer the cable version, select [Wired]. The setup wizard connects to your router auto- matically and that‘s it – you‘re in! However, if the iRadio is integrated via WLAN, please select your WLAN network on the display. After selecting the desired network, you then have to enter the password to connect to the WLAN. Key: BKSP

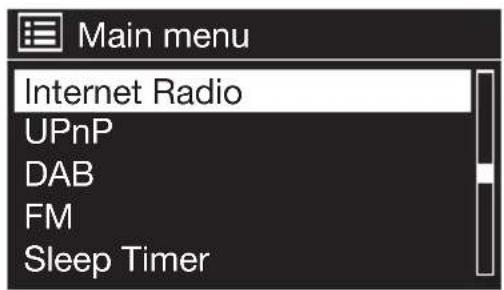

There,you‘renishedalready!Justpressthenavigationdialagaintogotothemain menu – and use your NOXON iRadio to plunge into the wonderful world of Internet ra- dio. Note:Werecommendcheckingthedevice‘srmwarefromtimetotimetoensurethatyou have the latest version and to update it if necessary – only in this way can you access the latestfunctionsofyourdevice.We‘llexplainhowtodosolateroninthismanual. Listen and enjoy Afteryouhavesetthedeviceupsuccessfully,the(almost)innitevarietyofInternetradio isatyourngertips. Main menu Internet Radio UPnP DAB

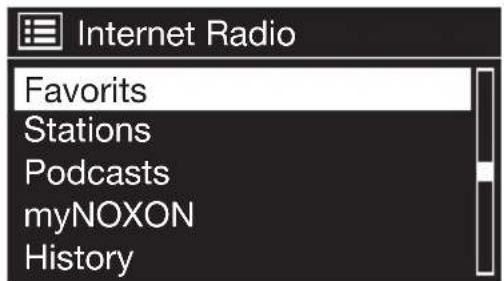

Sleep Timer From the main menu, select „Internet Radio“ and conrmtheselection. Internet Radio Favorits Stations Podcasts myNOXON History In the submenu that follows, navigate to the stati- on of your choice according to your personal tas- te. To accommodate the large number of stations available from around the world, our data- base is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.2120 NOXON iRadio 400+ / 460+ Internet radio 09:23 SWR 3 German radio network featuring rock and pop music. To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popu- lar stations etc. and is updated on an ongoing ba- sis. Volume

To adjust the volume during playback, use the na- vigation dial or the and keys on the remote control. DAB, DAB+ and FM In addition to numerous Internet radio stations your iRadio can receive all stations broad- castedonDAB,DAB+andFM!Pleasenotethatyouneedanadequatereceptionfacility (antenna or cable) for this. DAB and DAB+ might not be broadcasted area-wide or even not at all in your country. Connection Establishingtheconnectionisreallyeasy:Justuseastandardantennacablewithcoax plugs (not included) to connect the tuner jack of your iRadio and your antenna or cable socket. Scan stations Starting from the main menu, use the navigation wheel to locate the submenu “DAB” and conrmyourchoicebypressingthenavigationwheelonce.Choose“FullScan”asthe nextstep,whichwillmaketheiRadiondallDABandDAB+stationsavailableinyour area for you. Station list Inthe“DAB”menuyouwillalsondthesubmenu“Stationlist”.Thislistshowsallthe stations that have been found by the scan performed earlier. Just press the navigation wheel to start listening to a selected station. Pressing the wheel further times will show diverseinformationabouttheactivestation.Youcannavigatetothenextorprevioussta- tion with the Skip Back/Skip Forward buttons located on the iRadio or the remote control withouttheneedtoreturntothestationlistrst. If you come across a station you especially like, you can save it by pressing one of theEnglish Nederlands Espanol Italiano Francais DeutschEnglish

favourites buttons on the iRadio or the remote control for a longer period. You can recall saved stations at any time by pressing the corresponding favourites button shortly wit- hout taking the detour via the menus. Prune invalid If a station name shows a questions mark in front of it, the iRadio cannot receive this station anymore. This can be caused by a loss in reception quality or by a restructuring on the part of the broadcasting companies. In order to clear the station list of such entries which just make it less well-arranged, choosethesubmenu“Pruneinvalid”inthe“DAB”menuandconrmthesecurityquery with “Yes”. Station order The submenu “Station order” in the “DAB” menu lets you decide whether you would like to have your stations sorted alphanumerically or by ensembles (these are groups of se- veral stations broadcasted together in one ‚package‘). Have fun with your new NOXON iRadio! Here‘s how to reach TERRATEC: http://www.terratec.net/en/drivers-and-support.html2322 NOXON iRadio 400+ / 460+ Remarques importantes ! Sécurité
