Feature	Details
Product type	Digital radio
Reception modes	DAB+, FM
Connectivity	Bluetooth, USB, AUX
Power supply	Mains, rechargeable battery
Dimensions	200 x 120 x 100 mm
Weight	1.2 kg
Usage	Listening to radio stations, audio streaming via Bluetooth
Maintenance	Regular cleaning, firmware updates
Safety	Use only with the supplied adapter, avoid moisture
Additional information	2-year warranty, technical support available

Frequently Asked Questions - Nova M Noxon

How do I set the time on the Noxon Nova M?

To set the time, press the 'Menu' button, select 'Settings', then 'Clock'. Use the navigation buttons to adjust the hour and minute, then press 'OK' to confirm.

Why is the radio not receiving any stations?

Check that the antenna is properly extended and oriented. Also ensure you are in an area with good radio coverage. If the problem persists, try performing an automatic station search.

How do I perform an automatic station search?

Press the 'Menu' button, select 'Search', then choose 'Automatic search'. The radio will scan and store all available stations.

How do I connect the radio to my Wi-Fi network?

Go to the 'Settings' menu, select 'Wi-Fi', then choose your network. Enter your Wi-Fi password when prompted and press 'OK' to connect.

What should I do if the radio does not turn on?

Check that the power adapter is properly plugged in and the outlet is working. If using batteries, make sure they are installed correctly and not depleted.

How do I reset the Noxon Nova M to factory settings?

Access the 'Settings' menu, select 'Reset', and confirm by choosing 'Reset to factory settings'. This will erase all stored stations and restore original settings.

The sound quality is poor, what can I do?

Check that the radio is properly positioned to receive the signal. You can also adjust the audio settings in the 'Settings' menu to improve sound quality.

How do I update the software of the Noxon Nova M?

Connect the radio to the internet, go to the 'Settings' menu, then select 'Software update'. Follow the on-screen instructions to download and install available updates.

USER MANUAL Nova M Noxon

Exterior view of a modern microwave oven with a digital screen displaying app icons (no readable text or symbols on the device itself)

Wichtige Hinweise!

Sicherheit

Diagram showing three labeled circular components: a rectangle, a ring with a handle, and a separate circle with numbered labels ①, ②, and ③.

Close-up of a mechanical clamp with a metal rod and wrench, mounted on a black surface (no text or symbols visible)

Die Fernbedienung

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

Senderliste

• Read through the operating manual carefully and keep it in a safe place.
• Observe all warnings and follow the instructions to avoid damage.
  • Use this device indoors only.
• Place the device on a level, dry surface to prevent fire and electrical shock hazards as well as possible damage to the player itself.
• Do not use the device close to water or other liquids.
• Keep the device away from direct sunlight, radiators, open flames and other sources of heat.
• Only use the accompanying power supply cable. If you are not going to use the device for an extended period, disconnect it from the power supply. To avoid short-circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.
• If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.
• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaning products as they may damage the finish of the unit.
• To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you.

Environment

• The product contains batteries that are subject to European Directive EC and must not be disposed of in the normal household waste.
• This product fulfils EC Directive EC and must not be disposed of in th normal household waste.
• Please obtain information on correct disposal from your local authorities – this will help protect the environment!

Scope of delivery

Start by making sure that the contents of the package are complete. The NOXON package should contain at least the following items:

• NOXON NOVA M
  • Power supply cable
  • Remote control with battery
  • FM telescopic antenna
  • Quick Start Guide (DE, EN, FR, IT, ES, NL)

Quick Start Guide for pros

This Quick Start Guide shows you how to get started using your NOXON device. You will find detailed descriptions and special configurations in the advanced manual, which you can download from our website (www.noxonradio.com).

Pretest

Like any network device, your NOXON needs to be connected to your network before you can get started.

What do you need?

• A fast Internet connection (for example, DSL, ideally with a flat rate).
- A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router
• For WLAN integration: your network key (WEP, WPA or WPA2)

This key, just like any key, protects your network from unauthorised access and was generated when your network was set up. To allow NOXON access to a key-protected network, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key.

Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance.

NOXON NOVA M

Overview

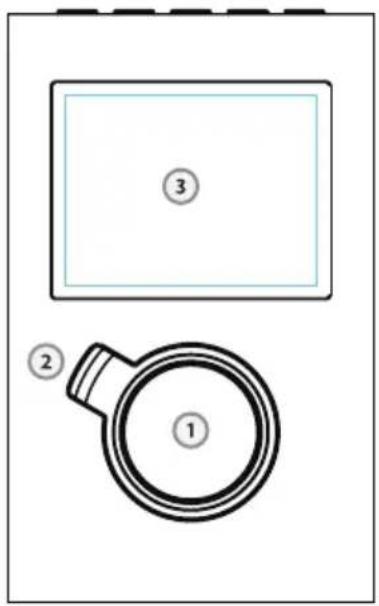

Diagram showing three labeled components: a rectangular box with circular features, a circular component with a handle, and a separate circular component with numbered labels 1, 2, and 3.

1. Navigation dial with push function for selection: Scroll through the menu by turning the dial in the list view. To select a menu item, press the dial once.
2. Back button: This takes you one step back the selection.
3. Display

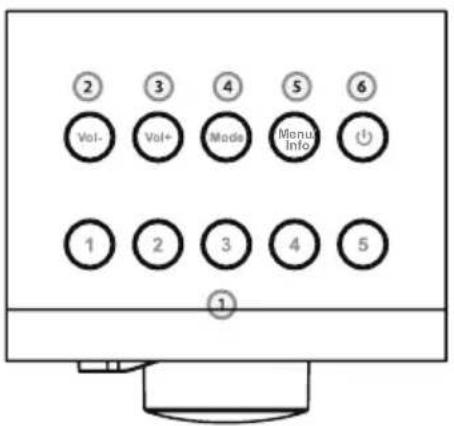

2 Vol- 3 Vol+ 4 Mode 5 Menu Info 6 1 2 3 4 5 1

1. Prest stations 1 - 5
2. Volume minus
3. Volume plus
4. Mode – change between internet radio DAB, FM, Aux-in and music player reception
5. Menu/Info – receive more information about the program
6. Standby On/Off

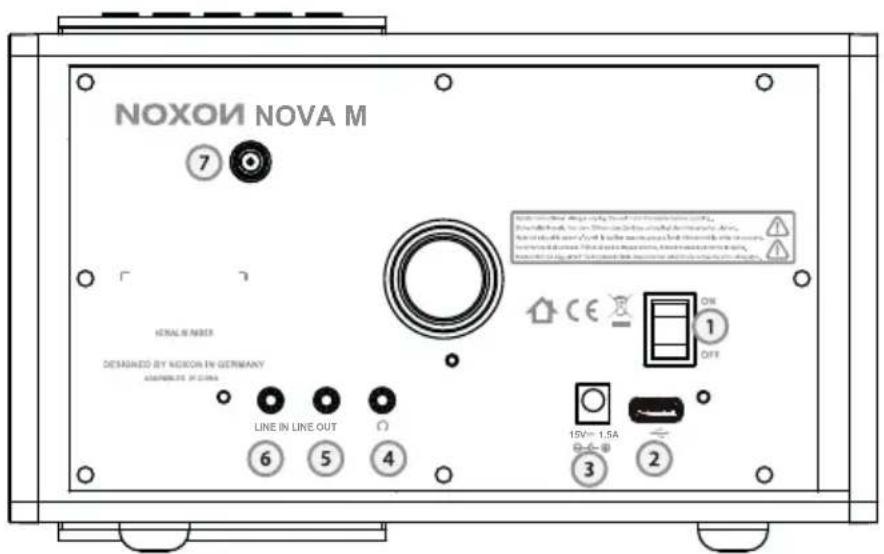

NOXON NOVA M 7 GENERAL NUMBER DESIGNED BY NOXON IN GERMANY ASSEMBLIC IN CHINA LINE IN LINE OUT 6 5 4 15V~1.5A 3 2 ON 1 OFF

1. Standby On/Off – here, you can wake up the NOXON NOVA M or put it back to sleep.
2. USB: – Here, you can connect USB mass storage media.
3. POWER: Connect the provided power adapter to this jack.
4. Earphone jack: 3.5mm jack for headphone or earphone
5. LINE OUT: Connect this analog jack (RCA) with a analog amplifier.
6. LINE-IN: Here you can connect via Line In a mass storage media
7. FM/ DAB Antenna: You can connect the provided telescopic antenna here. If you want to connect a cable here instead, please use the provided antenna adapter.

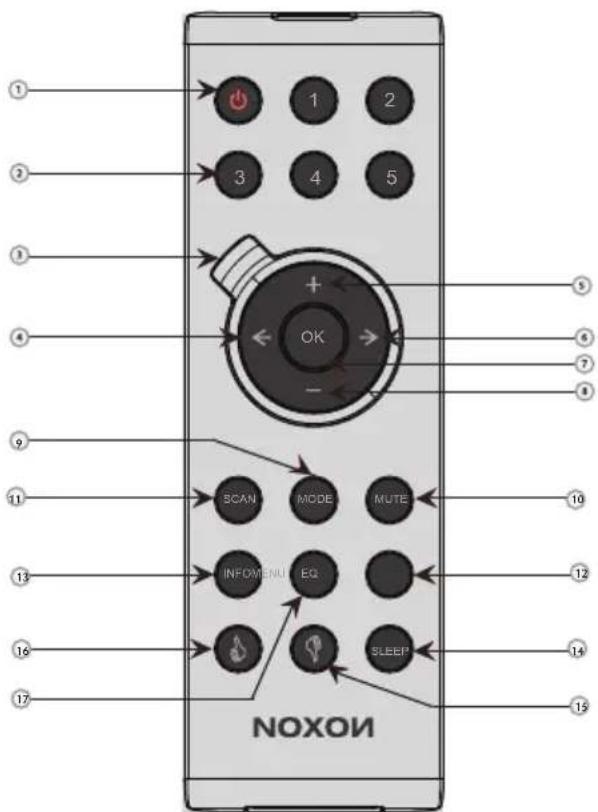

Remote Controller

NOXON 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 SCAN MODE MUTE INFOMENU EG SLEEP

1. Standby On/Off
2. Numeric keypad / preset stations
3. Back button: This takes you one step back the selection.
4. Scroll through the men forward
5. Volume lauder
6. Scroll through the men back
7. Select with ok
8. Volume quieter
9. Mode (DAB-, FM-, Internet radio, USB, Aux-IN)
10. Mute / Sound off
11. Scan for radio channels
12. Main menu
13. Info
14. Sleep / Snooze
15. TBA
16. TBA
17. Equalizer

Setup

Once your NOXON NOVA M has been activated initially, follow these steps to link it to your network for the first time: You are greeted by the setup wizard, which asks politely if you want to start it up. Use the navigation dial to select a language for the menu and confirm – as in all other menus – the selection by pressing the navigation dial.

Then, enter the time format (12/24-hour).

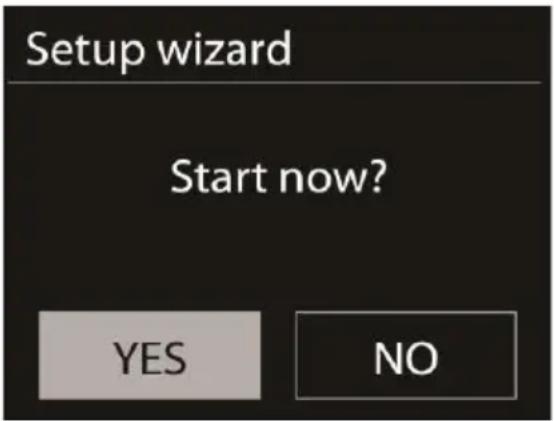

Setup wizard Start now? YES NO

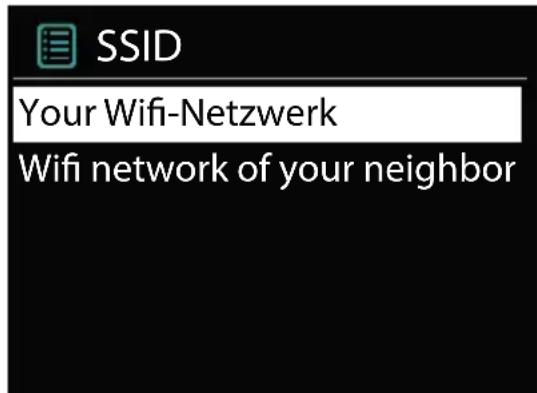

SSID Your Wifi-Netzwerk Wifi network of your neighbor

However, we recommend that you set the date and time immediately (Day, Month, Year, Time), as well as the WLAN region you are located in.

Once you have done so, all that remains to be done is to connect to the network. Don't worry, even this should not be complicated – the network wizard will give you all the help you need.

We'll explain the ins and outs of this in the detailed manual later on. For now, we offer just a brief overview (after all, you are still in the „Overview“ chapter), as we do not want to bore anybody.

The setup wizard gives you the ability to connect the NOXON NOVA M via wireless WLAN port. Please select your WLAN network on the display. After selecting the desired network, you then have to enter the password to connect to the WLAN.

Navigate through the selection in the usual way using the navigation dial, push function and Back button. When you have finished entering the key, confirm with OK. You likewise reach this field via the navigation dial.

There, you're finished already! Just press the navigation dial again to go to the main menu – and use your NOXON NOVA M to plunge into the wonderful world of Internet radio.

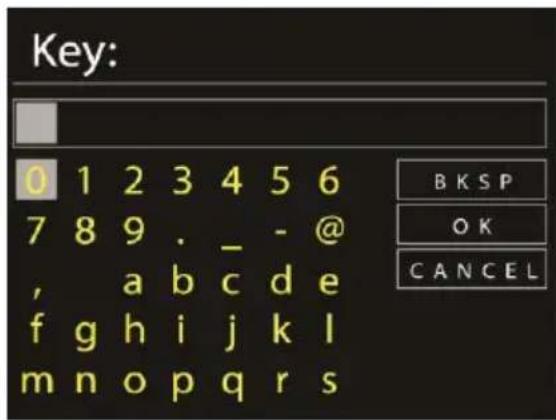

Key: 0 1 2 3 4 5 6 7 8 9 . _ - @ , a b c d e f g h i j k l m n o p q r s B K S P O K C A N C E L

Note: We recommend checking the device's firmware from time to time to ensure that you have the latest version and to update it if necessary – only in this way can you access the latest functions of your device.

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

Listen and enjoy

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

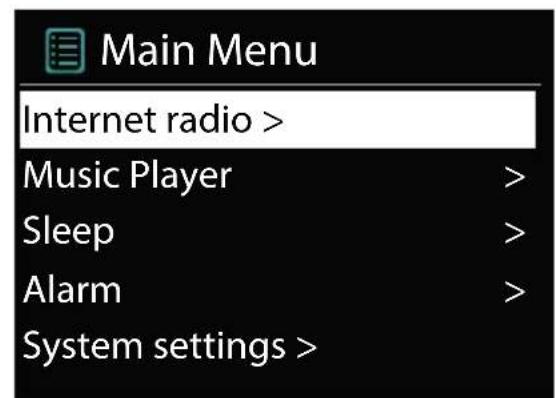

Main Menu Internet radio > Music Player > Sleep > Alarm > System settings >

From the main menu, select „Internet Radio“ and confirm the selection.

In the submenu that follows, navigate to the station of your choice according to your personal taste.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

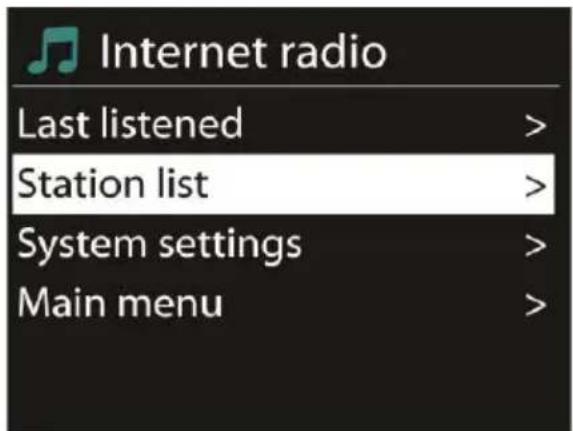

Internet radio Last listened > Station list > System settings > Main menu >

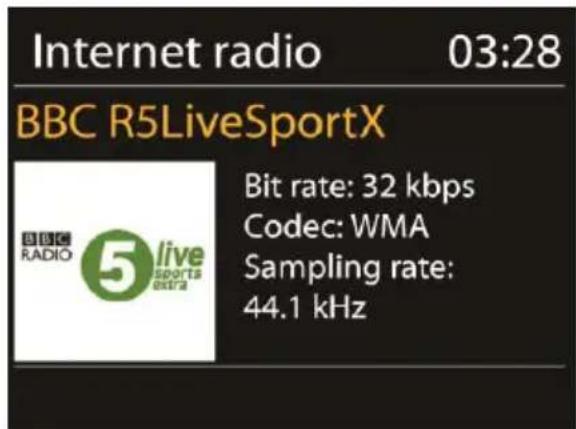

Internet radio 03:28 BBC R5LiveSportX BIT rate: 32 kbps Codec: WMA Sampling rate: 44.1 kHz

Volume

15

To adjust the volume during playback, use the button vol+ and vol- on the NOXON NOVA M or the keys +/- on the remote control.

DAB, DAB+ and FM

In addition to numerous Internet radio stations your NOXON NOVA M can receive all stations broadcasted on DAB, DAB+ and FM! Please note that you need an adequate reception facility (antenna or cable) for this. DAB and DAB+ might not be broadcasted area-wide or evennot at all in your country.

Connection

Establishing the connection is really easy: Just use a standard antenna cable with coax plugs (not included) to connect the tuner jack of your NOXON NOVA M and your antenna or cablesocket.

Scan stations

Starting from the main menu, use the navigation wheel to locate the submenu “DAB” and confirm your choice by pressing the navigation wheel once. Choose “Full Scan” as the next step, which will make the NOXON NOVA M find all DAB and DAB+ stations available in your area for you.

DAB

Stations: 15

Scanning

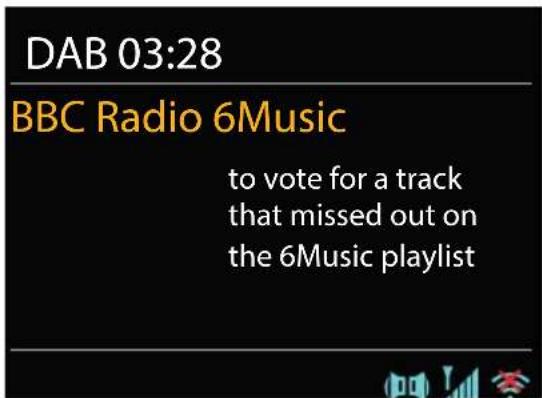

DAB 03:28

BBC Radio 6Music

to vote for a track that missed out on the 6Music playlist

Station list

In the “DAB” menu you will also find the submenu “Station list”. This list shows all the stations that have been found by the scan performed earlier. Just press the navigation wheel to start listening to a selected station. Pressing the wheel further times will show diverse information about the active station. You can navigate to the next or previous station with the Skip Back/Skip Forward buttons located on the NOXON NOVA M or the remote control without the need to return to the station list first.

If you come across a station you especially like, you can save it by pressing one of the favourites buttons on the NOXON NOVA M or the remote control for a longer period. You can recall

saved stations at any time by pressing the corresponding favourites button shortly without taking the detour via the menus.

Prune invalid

If a station name shows a questions mark in front of it, the NOXON NOVA M cannot receive this station anymore. This can be caused by a loss in reception quality or by a restructuring

on the part of the broadcasting companies.

In order to clear the station list of such entries which just make it less well-arranged, choose the submenu “Prune invalid” in the “DAB” menu and confirm the security query with “Yes”.

Station order

The submenu “Station order” in the “DAB” menu lets you decide whether you would like to have your stations sorted alphanumerically or by ensembles (these are groups of several stations broadcasted together in one ,package').

Have fun with your new NOXON NOVA M!

Here's how to reach NOXON:

http://www.noxonradio.de/en/support

Support-Hotline: 02157 - 8179 0

NOTE: The structure and function of the software can be changed with a firmware update! Please do not remove the power cable during the firmware update process!

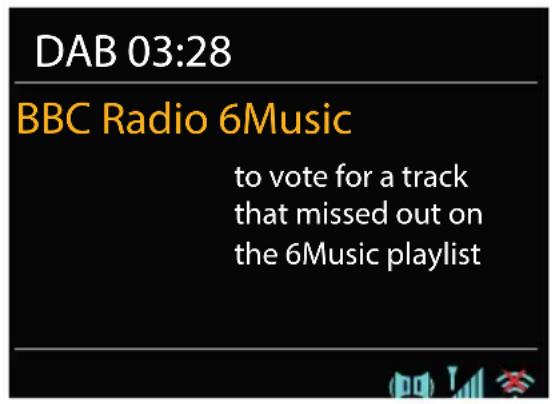

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist
