Product Type	Internet Radio, DAB/DAB+, FM
Brand	Noxon
Model	iRadio 400 plus
Power Supply	Included power adapter (power cord)
Network Connectivity	Wi-Fi (WLAN) and Ethernet (RJ45)
Tuner	DAB/DAB+ and FM (telescopic antenna included)
USB Port	Yes, for USB flash drives and external hard drives
Audio Output	Line out (3.5 mm stereo jack)
Headphone Jack	Yes (3.5 mm), cuts off internal speakers
External Speaker Output	Yes (SPEAKER OUT), for optional second speaker
Internal Speakers	Yes, stereo (with optional external speaker)
Display	Display screen (station, artist, title information)
Remote Control	Yes, with battery (remove safety tab before use)
Favorite Buttons	5 station buttons (on unit and remote)
Navigation	Rotary knob with selector and Back button
Antennas	Internal WLAN antenna (connected) and included telescopic FM antenna
Menu Languages	Multilingual (French, German, English, Spanish, Italian, Dutch, etc.)
Setup Wizard	Yes, for network, date/time, and language
Firmware Update	Possible via Internet (regularly recommended)
Package Contents	Unit, power supply, remote control with battery, WLAN antenna, manual (DE, EN), quick start guide (DE, EN, ES, FR, IT, NL)
Safety	Indoor use, avoid water and heat, unplug during thunderstorms
Cleaning	Dry or slightly damp, lint-free cloth
Environment	Compliant with WEEE and battery directives (2002/96/EC, 2006/66/EC)

Frequently Asked Questions - IRadio 400 plus Noxon

How to connect the Noxon iRadio 400 plus to my Wi-Fi network?

During initial startup, the setup wizard guides you. Select your network from the list of detected networks, then enter the security key (WEP, WPA, or WPA2) using the rotary knob. If your network is not secured, no key is needed. Confirm and the connection is established.

What types of radio can I listen to with this device?

You can listen to web radio via the Internet, digital radio DAB/DAB+, and FM radio. For DAB+ and FM, connect the included telescopic antenna to the tuner socket.

How to save a favorite station?

While listening to a station, press and hold (about 2 seconds) one of the 5 station buttons (on the unit or remote). The station is then stored. To access it later, briefly press that same button.

Can I use headphones with the iRadio 400 plus?

Yes, plug headphones into the HEADPHONE jack (3.5 mm). The internal speakers are then automatically cut off for private listening.

How to perform a DAB station search?

In the main menu, select DAB, then Full scan. The unit scans for all available DAB/DAB+ stations. Once the scan is complete, access the station list to choose your station.

What to do if the device does not find DAB stations?

Make sure the telescopic antenna is properly connected and extended. Check that you are in an area covered by DAB+ (not guaranteed everywhere). You can also perform an Invalid prune in the DAB menu to clean up the list of inaccessible stations.

How to update the firmware?

Connect the device to the Internet. In the main menu, look for the Firmware update option (usually in settings). Follow the on-screen instructions. Regular updates are recommended to benefit from new features.

Can I connect an external speaker?

Yes, via the SPEAKER OUT jack on the back of the unit. For the iRadio 460+ model, an external speaker is included. For the 400+, it is available as an option. When an external speaker is connected, stereo mode is activated automatically.

How to clean the Noxon iRadio 400 plus?

Use a dry or slightly damp, lint-free cloth. Never use cleaning products or solvents, as they may damage the surface of the device.

What to do in case of prolonged absence or thunderstorm?

It is recommended to unplug the device from the mains to avoid damage from lightning or power surges. Additionally, if the device has experienced significant temperature variations, let it rest for about an hour before reconnecting to avoid condensation.

USER MANUAL IRadio 400 plus Noxon

• Read through the operating manual carefully and keep it in a safe place.
• Observe all warnings and follow the instructions to avoid damage.
  Use this device indoors only.
• Place the device on a level, dry surface to prevent fire and electrical shock hazards as well as possible damage to the player itself.
• Do not use the device close to water or other liquids.
• Keep the device away from direct sunlight, radiators, open flames and other sources of heat.
• Only use the accompanying power supply cable. If you are not going to use the device for an extended period, disconnect it from the power supply. To avoid short circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.
• If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.
• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaning products as they may damage the finish of the unit.
• To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you.

Environment

• The product contains batteries that are subject to European Directive 2006/66/EC and must not be disposed of in the normal household waste.
  This product fulfils EC Directive 2002/96/EC and must not be disposed of in the normal household waste.
• Please obtain information on correct disposal from your local authorities – this will help protect the environment!

Scope of delivery

Start by making sure that the contents of the package are complete. The NOXON package should contain at least the following items:

• NOXON iRadio 400+
  Power supply
  Remote control with battery inserted
  WLAN antenna
  Quick Start Guide (DE, EN, FR, IT, ES, NL)

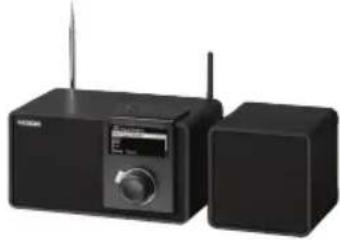

The scope of delivery of the NOXON iRadio 460+ includes an additional speaker. If you have an iRadio 400+ , you can add the optional second speaker, which is available in the TERRATEC Webshop.

Quick Start Guide for pros

This Quick Start Guide shows you how to get started using your NOXON device. You will find detailed descriptions and special configurations in the advanced manual, which you can download from our website (www.terratec.com).

Pretest

Like any network device, your NOXON needs to be connected to your network before you can get started.

What do you need?

• A fast Internet connection (for example, DSL, ideally with a flat rate).
• A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router
• A network cable, if you do not want a wireless Internet connection for your device
• For WLAN integration: your network key (WEP, WPA or WPA2)

This key, just like any key, protects your network from unauthorised access and was generated when your network was set up. To allow NOXON access to a key-protected network, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key.

Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance.

NOXON iRadio 400+ / 460+

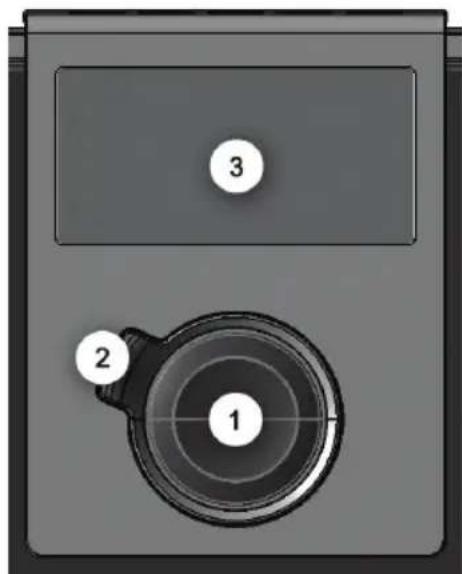

Overview

1. Navigation dial with push function for selection: Scroll through the menu by turning the dial in the list view. Turning the dial during playback changes the volume. To select a menu item, press the dial once.
2. Back button: This takes you one step back in the selection.
3. Display

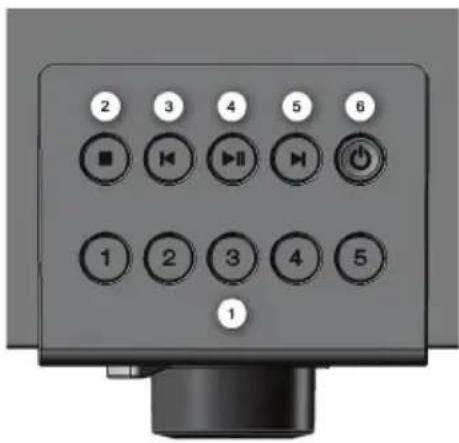

1. Station keys 1 to 5: Here, you can save up to five of your favourite stations for quick access.
2. Stop: Stops playback.
3. Skip Back: Jumps to the previous track.
4. Play/Pause: Starts and pauses playback.
5. Skip Forward: Jumps to the next track.
6. Standby On/Off: Here, you can wake up the iRadio or put it back to sleep.

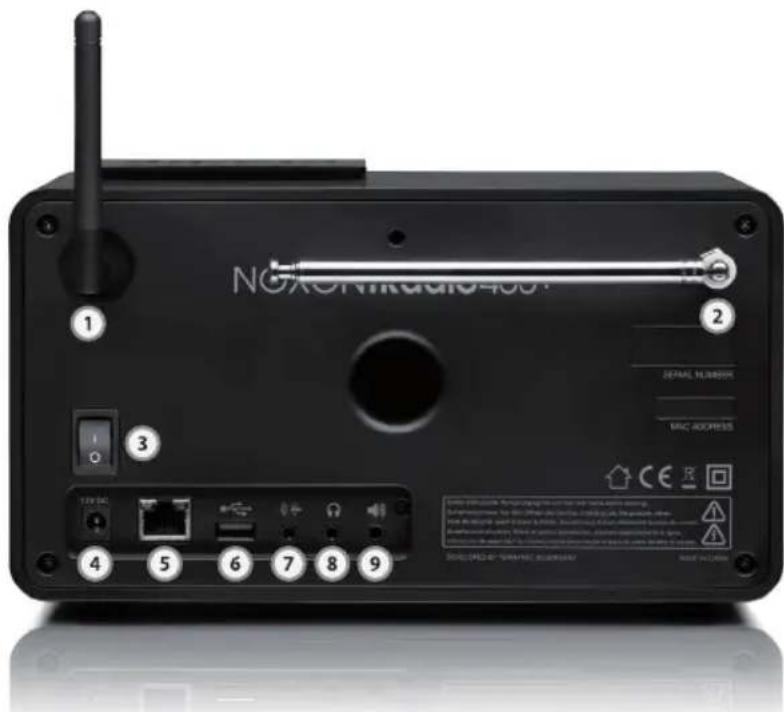

1. WLAN antenna: For wireless reception, please connect the WLAN antenna provided here.
2. FM antenna: You can connect the provided telescopic antenna here. If you want to connect a cable here instead, please use the provided antenna adapter.
3. POWER switch: Disconnects your iRadio from mains.
4. POWER: Connect the provided line adapter to this jack.
5. LAN: For wired network operation, use this RJ45 jack.
6. USB: Use the USB port to connect memory devices like external hard discs or memory sticks. Your NOXON supports both USB 1.x and 2.0 devices.
7. LINE OUT: You can connect this 3.5mm stereo jack to an amplifier or active speakers. When this jack is occupied, the internal speakers are muted.
8. HEADPHONE: Here, you can connect your headphones if you want to have the sound of the iRadio all to yourself. If the headphones are connected, the internal speakers are muted.
9. SPEAKER OUT: You can connect a second speaker here. If a speaker is plugged into the socket, the device switches to stereo mode automatically. Please note that a second speaker only should be connected to the SPEAKER OUT when the device is switched off to ensure a proper function.

NOXON iRadio 400+ / 460+

1. POWER switch: This should be self-explanatory );
2. POWER: Connect the provided power cable to this jack.
3. LAN: For wired network operation, use this RJ45 jack.
4. LINE OUT: You can connect this 3.5mm stereo jack to an amplifier or active speakers. When this jack is occupied, the internal speakers are muted.
5. HEADPHONE: Here, you can connect your headphones if you want to have the sound of the iRadio 400+ all to yourself. If the headphones are connected, the internal speakers are muted.
6. SPEAKER OUT*: You can connect a second speaker here. If a speaker is plugged into the socket, the device switches to stereo mode automatically. For the NOXON iRadio 460+, the additional speaker is included in the scope of delivery; for the NOXON iRadio 400+, the speakers are available for purchase as options in the TERRATEC Webshop (www.terratec.net/de/shop.html).
7. WLAN antenna: For wireless reception, you have to connect the WLAN antenna provided here.

*Attention: Please note that a second speaker only should be connected to the SPEAKER OUT when the device is switched off to ensure a smooth function without any fault.

NOXON

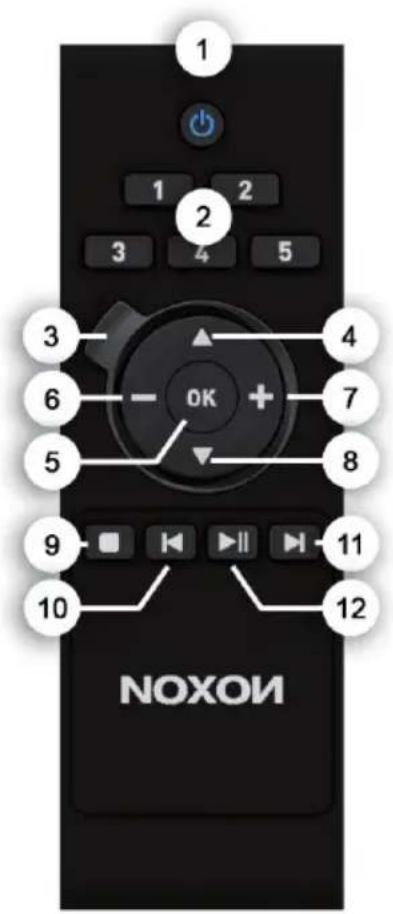

The remote control

The operating elements and functions provided here are almost identical to those on the iRadio.

Note: Before using the device for the first time, you have to remove the retaining tab of the battery.

1. Standby On/Off
2. Station keys 1 to 5
3. Back Button (navigate back)
4. Navigate up
5. Selection
6. Volume lower
7. Volume higher
8. Navigate down
9. Stop
10. Skip Back
11. Skip Forward
12. Play/Pause

Setup

Once your iRadio has been activated initially, follow these steps to link it to your network for the first time:

You are greeted by the setup wizard, which asks politely if you want to start it up.

NOXON iRadio 400+ / 460+

Use the navigation dial to select a language for the menu and confirm - as in all other menus - the selection by pressing the navigation dial.

Then, enter the time format (12/24-hour).

However, we recommend that you set the date and time immediately (Day, Month, Year, Time), as well as the WLAN region you are located in.

Once you have done so, all that remains to be done is to connect to the network. Don't worry, even this should not be complicated – the network wizard will give you all the help you need.

We'll explain the ins and outs of this in the detailed manual later on. For now, we offer just a brief overview (after all, you are still in the "Overview" chapter), as we do not want to bore anybody.

The setup wizard gives you the ability to choose between the cable connection and the wireless WLAN port.

If you prefer the cable version, select [Wired]. The setup wizard connects to your router automatically and that's it - you're in!

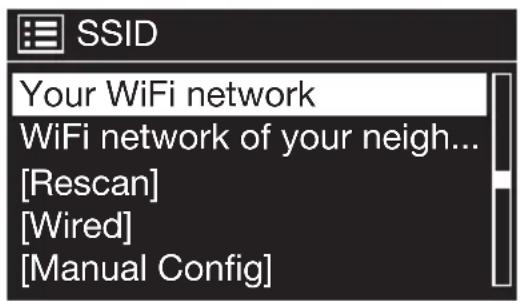

However, if the iRadio is integrated via WLAN, please select your WLAN network on the display.

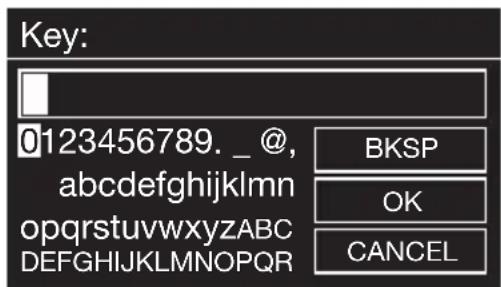

After selecting the desired network, you then have to enter the password to connect to the WLAN.

Navigate through the selection in the usual way using the navigation dial, push function and Back button.

When you have finished entering the key, confirm with OK. You likewise reach this field via the navigation dial.

NOXON

There, you're finished already! Just press the navigation dial again to go to the main menu - and use your NOXON iRadio to plunge into the wonderful world of Internet radio.

Note: We recommend checking the device's firmware from time to time to ensure that you have the latest version and to update it if necessary - only in this way can you access the latest functions of your device. We'll explain how to do so later on in this manual.

Listen and enjoy

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

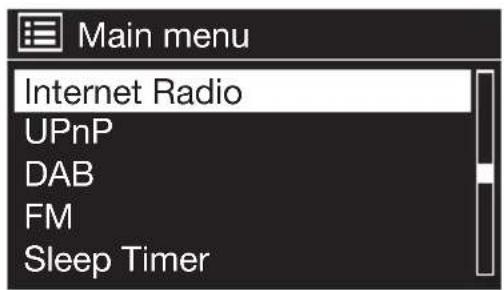

From the main menu, select „Internet Radio“ and confirm the selection.

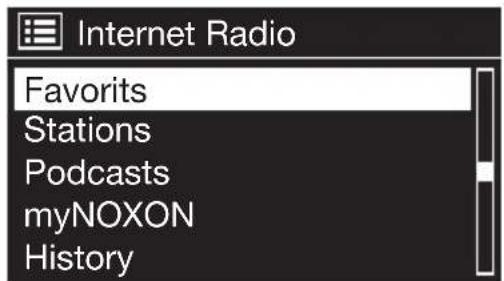

In the submenu that follows, navigate to the station of your choice according to your personal taste.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

NOXON iRadio 400+ / 460+

Internet radio 09:23

SWR 3

German radio network featuring rock and pop music.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

Volume

15

To adjust the volume during playback, use the navigation dial or the +and keys on the remote control.

DAB, DAB+ and FM

In addition to numerous Internet radio stations your iRadio can receive all stations broadcasted on DAB, DAB+ and FM! Please note that you need an adequate reception facility (antenna or cable) for this. DAB and DAB+ might not be broadcasted area-wide or even not at all in your country.

Connection

Establishing the connection is really easy: Just use a standard antenna cable with coax plugs (not included) to connect the tuner jack of your iRadio and your antenna or cable socket.

Scan stations

Starting from the main menu, use the navigation wheel to locate the submenu "DAB" and confirm your choice by pressing the navigation wheel once. Choose "Full Scan" as the next step, which will make the iRadio find all DAB and DAB+ stations available in your area for you.

Station list

In the "DAB" menu you will also find the submenu "Station list". This list shows all the stations that have been found by the scan performed earlier. Just press the navigation wheel to start listening to a selected station. Pressing the wheel further times will show diverse information about the active station. You can navigate to the next or previous station with the Skip Back/Skip Forward buttons located on the iRadio or the remote control without the need to return to the station list first.

If you come across a station you especially like, you can save it by pressing one of the

favourites buttons on the iRadio or the remote control for a longer period. You can recall saved stations at any time by pressing the corresponding favourites button shortly without taking the detour via the menus.

Prune invalid

If a station name shows a questions mark in front of it, the iRadio cannot receive this station anymore. This can be caused by a loss in reception quality or by a restructuring on the part of the broadcasting companies.

In order to clear the station list of such entries which just make it less well-arranged, choose the submenu "Prune invalid" in the "DAB" menu and confirm the security query with "Yes".

Station order

The submenu "Station order" in the "DAB" menu lets you decide whether you would like to have your stations sorted alphabetically or by ensembles (these are groups of several stations broadcasted together in one, package').

Have fun with your new NOXON iRadio!

Here's how to reach TERRATEC:

http://www.terratec.net/en/drivers-and-support.html
