USER MANUAL Interior 501A MAGNAT

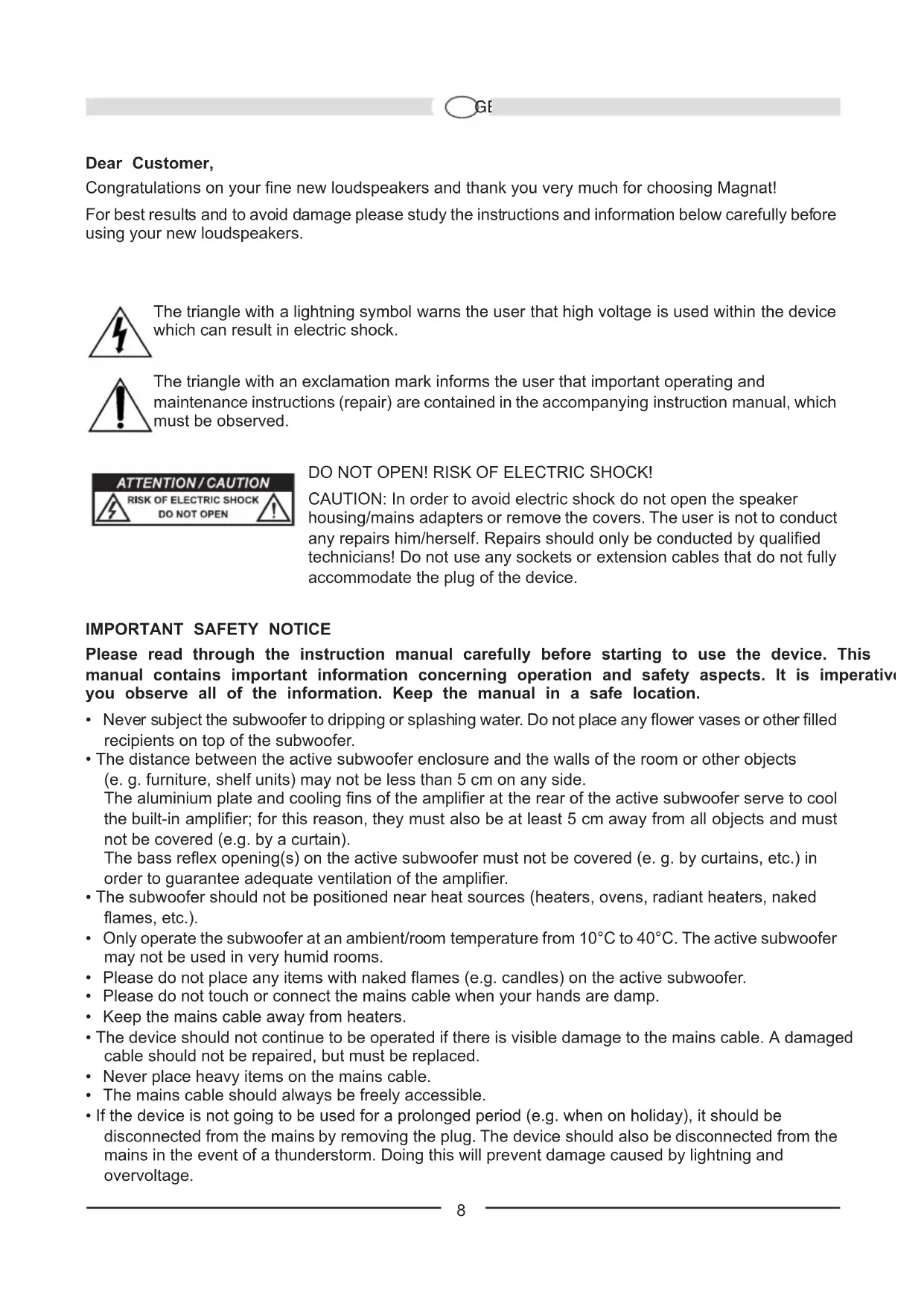

DDear Customer, Congratulations on your fine new loudspeakers and thank you very much for choosing Magnat! For best results and to avoid damage please study the instructions and information below carefully before using your new loudspeakers. The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock. The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed. DO NOT OPEN! RISK OF ELECTRIC SHOCK! CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

IMPORTANT SAFETY NOTICE

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

• Never subject the subwoofer to dripping or splashing water. Do not place any flower vases or other filled recipients on top of the subwoofer.

• The distance between the active subwoofer enclosure and the walls of the room or other objects (e. g. furniture, shelf units) may not be less than 5 cm on any side. The aluminium plate and cooling fins of the amplifier at the rear of the active subwoofer serve to cool the built-in amplifier; for this reason, they must also be at least 5 cm away from all objects and must not be covered (e.g. by a curtain). The bass reflex opening(s) on the active subwoofer must not be covered (e. g. by curtains, etc.) in order to guarantee adequate ventilation of the amplifier.

• The subwoofer should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.).

• Only operate the subwoofer at an ambient/room temperature from 10°C to 40°C. The active subwoofer may not be used in very humid rooms.

• Please do not place any items with naked flames (e.g. candles) on the active subwoofer.

• Please do not touch or connect the mains cable when your hands are damp.

• Keep the mains cable away from heaters.

• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.

• If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage. GBGB 8• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.

• Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards. GENERAL NOTES ON CONNECTING YOUR MAGNAT SATELLITE SPEAKERS The connectors are located at the rear of the satellite speakers. They are equipped with a clamping mechanism for cables cross-sections of up to 1 mm². To connect the satellites, please use normally available 2 x 0.75 mm² – 2 x 1 mm² loudspeaker cables. The cables are to be cut to the required length, the ends stripped and the end of the wires twisted to make it easier to connect them to the terminals. Always turn off the amplifier or receiver before connecting or disconnecting loudspeaker cables. For good sound the cables must be connected so that the speakers are “in phase”. This means that the black negative terminals on the speakers (-) must be connected to the negative (-) terminals on the amplifier, the positive (+) speaker terminals to the positive (+) amplifier terminals. Before switching on the system double-check all your connections and make sure that the terminal screws are tight and that there are no short circuits caused by stray wire filaments – this could cause serious damage to your amplifier! Fig. 1 shows you use of the supplied support for the satellites and the center. Fig. 2 shows the use of the supplied wall mounts for the satellites and the center speaker. POSITIONING The centre, front and rear loudspeakers are marked on the back. The satellite connected to the centre output should be positioned on top of or beneath your TV set. The front satellites are placed to the left and the right of the TV set, preferably at equal distance and at ear-height. The satellites connected to the rear/surround outputs should be located to the left and right behind the listening position and slightly above ear-height. Placement of the subwoofer is generally not critical. It should, if possible, be located near the front satellites.

CONNECTION TO AN AV RECEIVER

Connection of the system to an AV receiver is shown in figure 3 (receiver without a subwoofer output), figure 4 (receiver with low-level subwoofer output). Note: In the receiver set-up, the front, centre, and rear loudspeaker channels should be set to ‘small’. Some receivers also provide the option of setting the cross-over frequency between the subwoofer and satellites. If this is the case, please set this frequency to 150 Hz or the frequency that comes closest to 150 Hz. Please consult the user manual supplied with your receiver.

THE ACTIVE SUBWOOFER

Figure 5 shows the subwoofer’s controls: Mains connection (1) The subwoofer is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable. GBGB 9Operating mode switch (3), operating state LED (4), power switch (2) AV input (5) Connect your receiver's low-level subwoofer output (sub-pre-out) to the subwoofer's AV input (see Fig. 4). You will require a mono-cinch cable for this (not supplied). High-level inputs (9) For connection to the high-level (speaker) outputs of the receiver/amplifier, refer to Fig. 3. Level control (8) This control is used to set the bass volume according to your preferences. Proceed as follows:

1. Set the bass control of your amplifier into its centre (linear) position.

2. Important: Set the level control to its left stop (lowest volume).

3. Now, play back some music and set the volume control of the amplifier to the desired level.

4. Set the subwoofer level control to the desired bass level.

Cross-over frequency control (7) Used to set the upper limit of the subwoofer operating range. In combination with your INTERIOR satellites, this control should be set to 150 Hz. Phase switch (6) In normal use the phase switch should be set to 0°. However, in rare cases it may be advantageous to set the phase to 180° (e.g. if the subwoofer is far away from the front satellites or in the event of unfavourable acoustics in the room). Generally speaking: the setting where the lower base tone area has a fuller sound is the correct one. Fuse (10) Only use a fuse with the parameters indicated inside the triangle next to the fuse holder, on the rear of the amplifier. Power switch ON Power switch OFF Operating mode switch ON Subwoofer is in permanent operation, the LED is green. Favourable setting for the reproduction of programmes with long quiet passages (this prevents the subwoofer from switching off unintentionally). The subwoofer is switched off, LED is off. This is the setting for when subwoofer isn't used over long periods. Operating mode AUTO The automatic switching on/off is activated (recom- mended setting). The subwoofer switches on automatically when it re- ceives a signal from the receiver, the LED turns green. It automatically switches to standby after receiving no signals for some minutes, the LED turns red.

GBHOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS All Magnat loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position – i.e. with unaltered or “linear” amplifier output. Higher settings of the tone controls increase the amount of energy supplied to the loudspeakers. This may lead to speaker damage, at high volumes. USE THE VOLUME CONTROL WITH CARE! If the output of your amplifier is significantly higher than the rated power handling capacity of your speakers extremely high volumes can physically destroy your speakers. This doesn’t actually happen often but you should be aware that it is possible. Weak amplifiers with low output ratings can actually be more dangerous for your speakers at medium volumes. This sounds strange but the reason is quite simple: Weak amplifiers get overloaded much faster than powerful ones and this causes measurable and audible distortion, which is more dangerous for loudspeakers than anything else. Always turn the volume down immediately as soon as you hear distortion! If you like listening to loud music make sure that your amplifier can deliver at least as much power as the speakers’ power-handling rating. SPECIFICATIONS Front / Rear Centre Configuration: Two-way Two-way Power handling capacity RMS / Max.: 50/100 watts 60/120 watts Impedance: 4 – 8 ohm 4 – 8 ohm Frequency range: 90 – 32 000 Hz 80 – 32 000 Hz Cross-over frequency: 5000 Hz 5000 Hz Recommended amplifier power: > 15 watts > 15 watts Efficiency (2.8 V/1 m): 88 dB 89 dB Dimensions (WxHxD): 90 x 110 x 110 mm 210 x 90 x 110 mm Weight: 0.9 kg 1.6 kg Accessories: Wall mount Wall mount Support Support Subwoofer Configuration: bass reflex, downfire Output power RMS/Max.: 40/100 watts Frequency range: 32 – 200 Hz Cross-over frequency: 50 – 150 Hz, adjustable Dimensions (WxHxD): 225 x 380 x 350 mm Weight: 8.5 kg Accessories: mains cable

• Folgeschäden an fremden Geräten • Kostenerstattung bei Schadensbehebung durch Dritte ohne unser vorheriges Einverständnis. Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. Due to high quality MA- GNAT HiFi products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 5- years warranty for MAGNAT HiFi products. The equipments are checked and tested continously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.

2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequen- tial damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.

3. Unauthorized tampering with the equipment will invalidate this guarantee.
