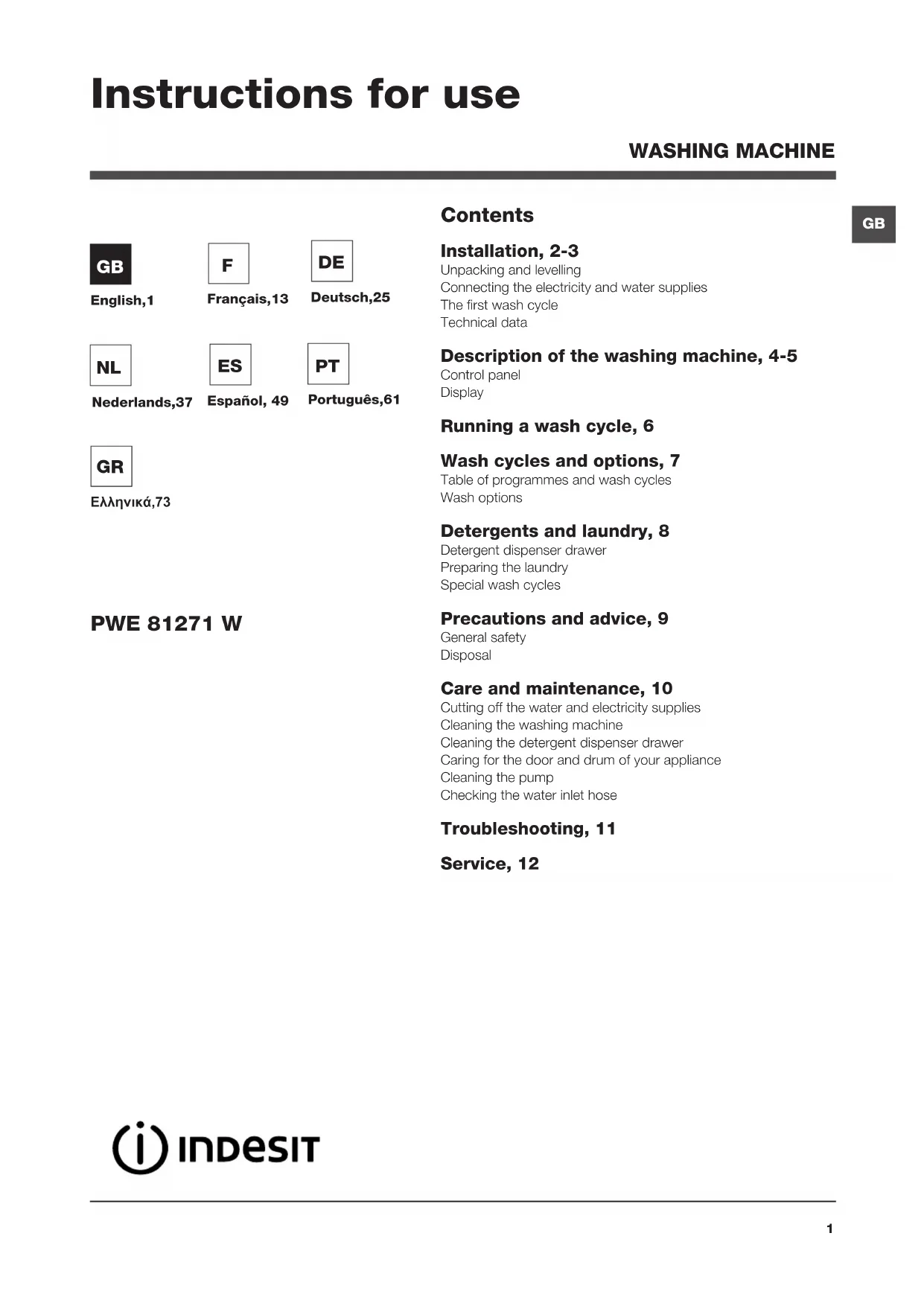

USER MANUAL PWE 81271 W (EU) INDESIT

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Description of the washing machine, 4-5

Running a wash cycle, 6

Wash cycles and options, 7

Table of programmes and wash cycles

Detergents and laundry, 8

Detergent dispenser drawer

Preparing the laundry

Precautions and advice, 9

Care and maintenance, 10

Cutting off the water and electricity supplies

Cleaning the washing machine

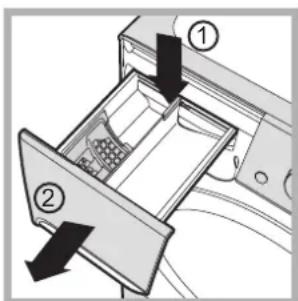

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Checking the water inlet hose

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred

or moved, make sure that the instruction manual remains

with the machine so that the new owner is able to

familiarise himself/herself with its operation and features.

! Read these instructions carefully: they contain vital

information relating to the safe installation and operation of

Unpacking and levelling Unpacking 1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been

damaged during the transportation process. If it has been

damaged, contact the retailer and do not proceed any

further with the installation process.

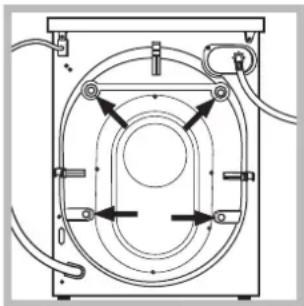

3. Remove the 4 protective

transportation) and the

rubber washer with the

corresponding spacer,

located on the rear part of

the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washing machine needs to be moved to

! Packaging materials should not be used as toys for

children. Levelling 1. Install the washing machine on a flat sturdy floor, without

resting it up against walls, furniture cabinets or anything

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening or

loosening the adjustable front

feet (see figure); the angle

of inclination, measured in

relation to the worktop, must

Levelling the machine correctly will provide it with stability,

help to avoid vibrations and excessive noise and prevent it

from shifting while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow a sufficient

ventilation space underneath the washing machine.

Connecting the electricity and water

supplies Connecting the water inlet hose 1. Connect the inlet hose

by screwing it to a cold

water tap using a 3/4 gas

threaded connection (see

Before performing the

connection, allow the

water to run freely until it is

2. Connect the inlet hose

to the washing machine

by screwing it onto the

corresponding water inlet

of the appliance, which is

situated on the top right-

hand side of the rear part of

the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range

of values indicated in the Technical data table (see next

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.3

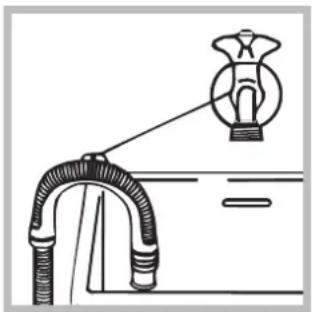

GB Connecting the drain hose Connect the drain hose,

without bending it, to a

drain duct or a wall drain

situated between 65 and

100 cm from the floor;

alternatively, placed it over

the edge of a basin, sink

or tub, fastening the duct

supplied to the tap (see

figure). The free end of

the hose should not be

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length. Electrical connections Before plugging the appliance into the electricity socket,

• the socket is earthed and complies with all applicable

• the socket is able to withstand the maximum power

load of the appliance as indicated in the Technical data

table (see opposite);

• the power supply voltage falls within the values

indicated in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing

machine. If this is not the case, replace the socket or the

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave

the appliance exposed to rain, storms and other weather

! When the washing machine has been installed, the

electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by

authorised technicians.

Warning! The company shall not be held responsible in the

event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using wash cycle number 2.

Technical data ModelPWE 81271 WDimensionswidth 59.5 cmheight 85 cmdepth 60 cmCapacityfrom 1 to 8 kg Electrical connectionsplease refer to the technical data plate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 62 litresSpin speedup to 1200 rotations per minuteTest wash cycles in accordance with directives 1061/2010 and 1015/2010.programme 2; temperature 60°C and 40°C.Test Programmes according to EN 60456programme 2; temperature 60°C;using a load of 8 kg.This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compa-tibility)- 2006/95/EC (Low Voltage)- 2002/96/ECTRRUCH4

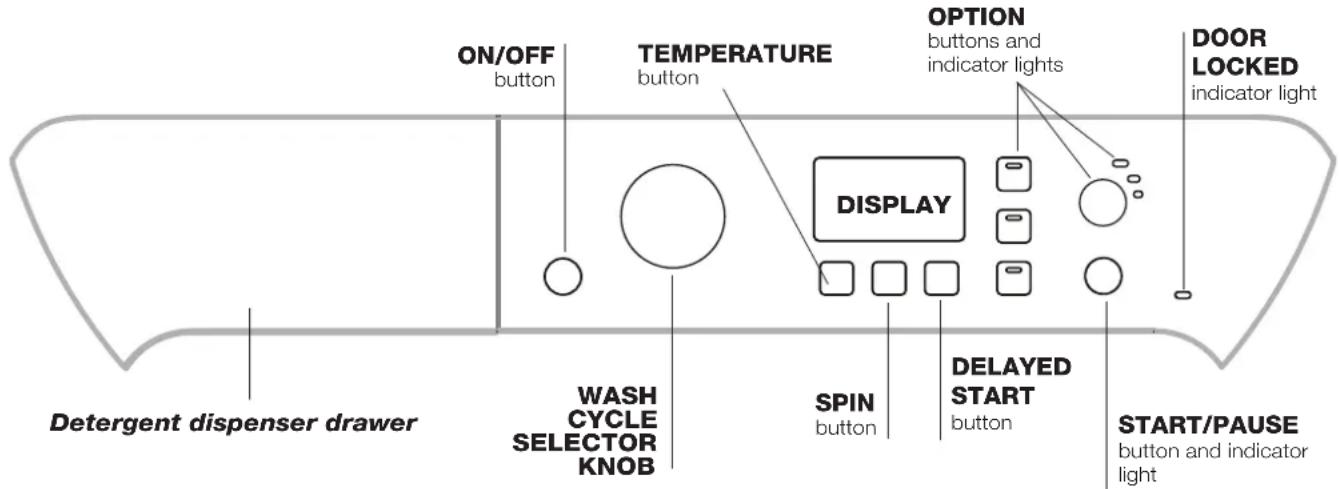

GB Description of the washing

button and indicator light

DISPLAY DELAYED START button OPTION buttons and indicator lights

indicator light Detergent dispenser drawer: used to dispense

detergents and washing additives ( see “Detergents and

ON/OFF button: press this briefly to switch the

machine on or off. The START/PAUSE indicator light which

flashes slowly in a blue colour shows that the machine is

switched on. To switch off the washing machine during the

wash cycle, press and hold the button for approximately 3

seconds; if the button is pressed briefly or accidentally the

machine will not switch off.

If the machine is switched off during a wash cycle, this

wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the

desired wash cycle (see “Table of programmes and wash

OPTION buttons and indicator lights: press to select the

available options. The indicator light corresponding to the

selected option will remain lit.

SPIN button: press to reduce or completely exclude

the spin cycle; the value appears on the display.

TEMPERATURE button: press to reduce or

completely exclude the temperature; the value appears on

DELAYED START button: press to set a delayed start

for the selected wash cycle; the delay period appears on

START/PAUSE button and indicator light: when the

blue indicator light flashes slowly, press the button to start

a wash cycle. Once the cycle has begun the indicator light

will remain lit in a fixed manner. To pause the wash cycle,

press the button again; the indicator light will flash in an

amber colour. If the symbol is not illuminated, the door

may be opened (wait approximately 3 minutes). To start

the wash cycle from the point at which it was interrupted,

press the button again.

DOOR LOCKED indicator light:

The lit symbol indicates that the door is locked. To prevent

any damage, wait until the symbol turns off before opening

the door (wait approximately 3 minutes).

To open the door while a cycle is in progress, press the

START/PAUSE button; if the DOOR LOCKED symbol is

switched off the door may be opened.

This washing machine, in compliance with new energy

saving regulations, is fitted with an automatic standby

system which is enabled after about 30 minutes if no

activity is detected. Press the ON-OFF button briefly and

wait for the machine to start up again.

Consumption in off-mode: 1W Consumption in Left-on: 1W5

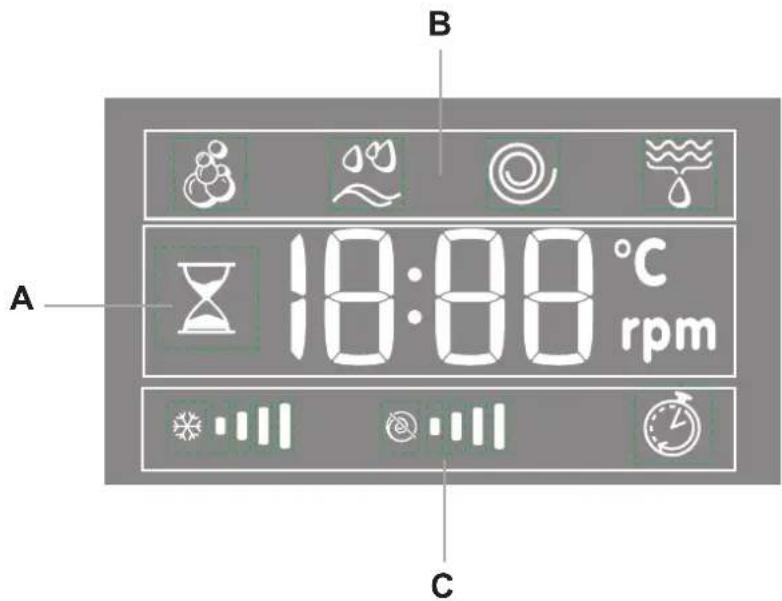

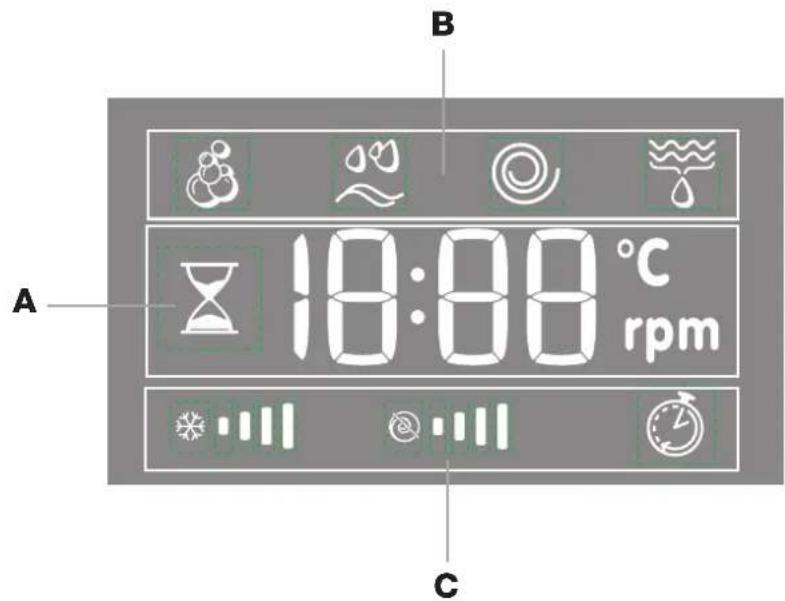

B C A The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED START option has been set, the countdown to the start of the selected wash cycle will appear.

Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the

machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle.

The hour-glass flashes while the machine is processing data, depending on the wash cycle and level selected. After

a maximum of 10 minutes, the “hour-glass” icon remains lit in a fixed manner and the final amount of time remaining is

displayed. The hour-glass icon will then switch off approximately 1 minute after the final amount of time remaining has

The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle

appear in section B:

The icons corresponding to “temperature”, “spin” and “delayed start” (working from the left) are displayed in section C.

The “temperature” bars indicate the maximum temperature level which may be selected for the set cycle.

The “spin” bars indicate the maximum spin level which may be selected for the set cycle.

The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.6

GB Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button;

the START/PAUSE indicator light will flash slowly in a

2. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed

the maximum load value indicated in the table of

programmes and wash cycles on the following page.

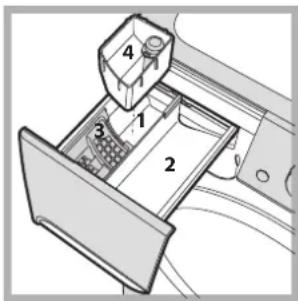

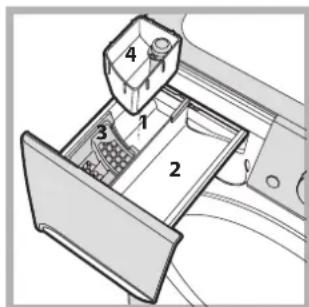

3. MEASURE OUT THE DETERGENT. Pull out the

detergent dispenser drawer and pour the detergent into

the relevant compartments as described in “Detergents

5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle. A

temperature and spin speed is set for each wash cycle;

these values may be adjusted. The duration of the cycle

will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant

maximum temperature and spin speed values set for

the selected cycle, or the most recently-used settings

if they are compatible with the selected cycle. The

temperature can be decreased by pressing the

button, until the cold wash “OFF” setting is reached.

The spin speed may be progressively reduced by

pressing the button, until it is completely excluded

(the “OFF” setting). If these buttons are pressed again,

the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected cycle, press the

corresponding button repeatedly until the required delay

period has been reached. When this option has been

activated, the symbol lights up on the display. To

remove the delayed start setting, press the button until

the text “OFF” appears on the display.

Modify the cycle settings.

• Press the button to enable the option; the indicator

light corresponding to the button will switch on.

• Press the button again to disable the option; the

indicator light will switch off.

! If the selected option is not compatible with the set

wash cycle, the indicator light will flash and the option

will not be activated.

! If the selected option is not compatible with a previously

selected one, the indicator light corresponding to the first

function selected will flash and only the second option will

be activated; the indicator light for the option which has

been activated will be illuminated.

Note: if the option has been selected, none of the

incompatible options may be activated.

! The options may affect the recommended load value

and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/

PAUSE button. The corresponding indicator light will

turn blue, remaining lit in a fixed manner, and the door

will be locked (the DOOR LOCKED symbol will be lit).

To change a wash cycle while it is in progress, pause

the washing machine using the START/PAUSE button

(the START/PAUSE indicator light will flash slowly in an

amber colour); then select the desired cycle and press

the START/PAUSE button again.

To open the door while a cycle is in progress, press

the START/PAUSE button; if the DOOR LOCKED

symbol is switched off the door may be opened (wait

approximately 3 minutes). Press the START/PAUSE

button again to restart the wash cycle from the point at

which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be

indicated by the text “END” on the display; when the

DOOR LOCKED symbol switches off the door may be

opened (wait approximately 3 minutes). Open the door,

unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button. The cycle will be stopped

and the machine will switch off.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

before every spin and to distribute the load in a uniform

manner, the drum rotates continuously at a speed which

is slightly greater than the washing rotation speed. If,

after several attempts, the load is not balanced correctly,

the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washing machine performs

the distribution process instead of spinning. To encourage

improved load distribution and balance, we recommend

small and large garments are mixed in the load.7

GB Wash cycles and options

Table of programmes and wash cycles Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consumption kWh Total water ltCycle durationPrewashMain wash BleachFabricsoftenerDaily Programs 1 Cottons with Pre-wash: extremely soiled whites. 90° 1200  

 8 53 2,72 95 190 2 White Cottons: extremely soiled whites. 90° 1200 -  8 53 2,45 83 175 2 White Cottons (1): heavily soiled whites and resistant colours. 60° 1200 -  8 53 1,343 71 185 2 White Cottons (1-2): heavily soiled whites and delicate colours. 40° 1200 -  8 53 1,015 84 180 3 Cottons: heavily soiled whites and resistant colours. 60° 1200 -  8 - - - 140 4

Coloured Cottons (3): lightly soiled whites and delicate colours. 40° 1200 -   8 53 0,79 61 95 5

Synthetics (4): heavily soiled resistant colours. 40° 800 -   3,5 44 0,50 55 956 Jeans40° 800 - 

 4 - - - 757 Shirts40° 600 -  2 - - - 70 8 Mix-Cool 30’: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).Cold water800 - 

 3 71 0,10 36 30Special cycles 9 Wool: for wool, cashmere, etc. 40° 800 - 

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

The “PRIME” technology optimises energy, water and time consumption

according to the quantity of garments actually inserted in the machine.

Moreover, pressing the

button allows for selecting the following options:

- Water: allows for reducing water consumption without having to

renounce impeccable results (recommended for heavily soiled garments).

- Energy: automatically selected by “PRIME”, this option reduces

energy consumption (recommended for normally soiled garments).

- Time: allows for reducing wash cycle duration (recommended for

lightly soiled garments).

! This may only be used in conjunction with wash cycles 1, 2, 3, 4, 5 (all

three levels) and 6, 7, 8 (- Energy and - Time levels).

By selecting this option, the efficiency of the rinse is increased and optimal

detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with wash cycles 8,

By selecting this function, the wash and spin cycles will be modified in order to

reduce the formation of creases. At the end of the cycle the washing machine

will perform slow rotations of the drum, while the EASY IRON and START/

PAUSE indicator lights will flash (blue and orange respectively).

To end the cycle, press the START/PAUSE button or the EASY IRON button.

For wash cycles number 10-12, the machine will end the cycle while the

laundry is soaking; the EASY IRON and START/PAUSE indicator lights will

flash. To drain the water so that the laundry may be removed, press the

START/PAUSE button or the EASY IRON button.

! It cannot be used in conjunction with wash cycles 8, 9, 13,

This function is particularly useful for

the removal of stubborn stains. Insert

extra compartment 4 (supplied with

the appliance) into compartment

1. When pouring in the bleach, be

careful not to exceed the “max”

level marked on the central pivot

(see figure). To bleach laundry with

no other washing action, pour the

bleach into extra compartment 4,

select the “Rinse” cycle

activate the “Stain removal” option

. To bleach during a wash cycle,

pour in the detergent and any fabric softener you wish to use, select the

desired wash cycle and enable the “Stain removal”

extra compartment 4 excludes the pre-wash function.

! It cannot be used in conjunction with wash cycles 1, 6, 8, 9, 10, 11,

For all Test Institutes:1) Test wash cycle in compliance with regulation 2010/1061: set wash cycle 2 with a temperature of 60°C and 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be

used for garments which can be washed at 60°C and 40°C. The actual washing temperature may differ from the indicated value. 2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.4) Synthetic program along: set wash cycle 5 with a temperature of 40°C. 1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 2 with a temperature of 60°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. TRRUCH8

GB Detergents and laundry

Detergent dispenser drawer

Successful washing results also depend on the correct

dose of detergent: adding too much detergent will not

necessarily result in a more efficient wash, and may in

fact cause build up on the inside of your appliance and

contribute to environmental pollution.

! Do not use hand washing detergents because these

create too much foam.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

dispenser drawer and pour

in the detergent or washing

additive, as follows.

Compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra

compartment 4 has been removed.

Compartment 2: Washing detergent (powder or

Liquid detergent should only be poured in immediately

prior to the start of the wash cycle.

Compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to the

weight of the laundry when dry:

Durable fabrics: max. 8 kg

Silk: max. 2 kg How much does your laundry weigh? 1 sheet 400-500 g

Jeans: turn the garments inside out before washing and

use liquid detergent. Use wash cycle 6.

Shirts: use special wash cycle 7 to wash shirts in various

fabrics and colours.

It guarantees maximum care is taken of the garments and

minimises the formation of creases.

this wash cycle was designed to wash

lightly soiled garments quickly: it lasts just 30 minutes and

therefore saves both energy and time. By selecting wash

cycle 8, it is possible to wash different fabrics (except for

wool and silk items) using a cold cycle, up to a maximum

Wool: wash cycle 9 can be used to wash all woollen

garments in the machine, even those carrying the “hand wash

only” label. To achieve the best results, use a special

detergent and do not exceed the maximum load of 2 kg.

Silk: use special wash cycle 10 to wash all silk garments.

We recommend the use of special detergent which has been

designed to wash delicate clothes.

Curtains: we recommend you fold the curtains and place

them in a pillow case or mesh bag. Use wash cycle 10.

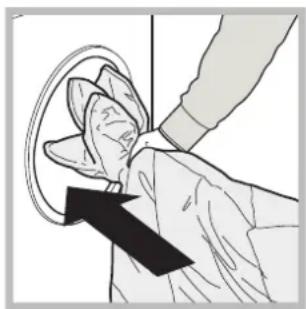

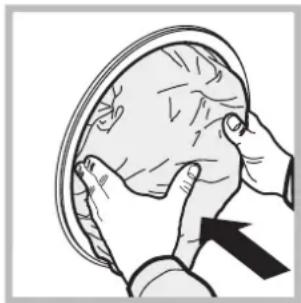

Duvets: to wash double or single duvets (the weight of which

should not exceed 3 kg), cushions or clothes padded with

goose down such as puffa jackets, use the special wash cycle

number 11 “Duvets”. We recommend that duvets are placed

in the drum with their edges folded inwards (see figure) and

that no more than ¾ of the total volume of the drum is used.

To achieve the best results, we recommend that a liquid detergent

is used and placed inside the detergent dispenser drawer.

12): is studied for washing water-

repellent fabrics and winter jackets (e.g. Gore-Tex,

polyester, nylon); for best results, use a liquid detergent

and dosage suitable for a half-load; pre-treat necks, cuffs

and stains if necessary; do not use softeners or detergents

containing softeners. Stuffed duvets cannot be washed

with this programme.

13): is for washing sports

shoes; for best results, do not wash more than 2 pairs

GB Precautions and tips

! This washing machine was designed and constructed

in accordance with international safety regulations. The

following information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging the

appliance from the electricity socket. Hold the plug and pull.

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach

extremely high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any

circumstances access the internal mechanisms in an

attempt to repair it yourself.

• Always keep children well away from the appliance while

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

• Disposing of the packaging materials:

observe local regulations so that the packaging may be

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that

household appliances should not be disposed of using

the normal solid urban waste cycle. Exhausted appliances

should be collected separately in order to optimise the cost

of re-using and recycling the materials inside the machine,

while preventing potential damage to the atmosphere and

to public health. The crossed-out dustbin is marked on all

products to remind the owner of their obligations regarding

separated waste collection. For more information relating

to the correct disposal of household appliances, owners

should contact their local authorities or appliance dealer.10

GB 2. Unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal.3. Clean the inside thoroughly.4. Screw the lid back on.5. Reposition the panel, making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use second-hand hoses.

Care and maintenance

Cutting off the water and electricity

supplies • Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.• Unplug the washing machine when cleaning it and during all maintenance work. Cleaning the washing machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser drawer To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure).Wash it under running water; this procedure should be repeated frequently. Caring for the door and drum of your

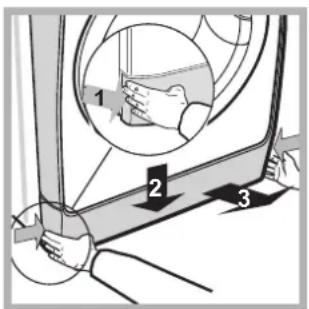

appliance • Always leave the porthole door ajar in order to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump. ! Make sure the wash cycle has finished and unplug the appliance.To access the pre-chamber:1. Take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures).

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Service (see “ Service”),

make sure that the problem cannot be not solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not fill

with water (the text “H2O” flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a

lot during the spin cycle.

The washing machine leaks.

The “option” and START/PAUSE

indicator lights flash rapidly and an

error code appears on the display (e.g.:

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the

appliance off and contact the Technical Assistance Service. If the dwelling is on one

of the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special anti-

draining valves are available in shops and help to prevent this inconvenience.

• The wash cycle does not include draining: some cycles require the draining

process to be enabled manually.

• The EASY IRON option is enabled: To complete the wash cycle, press the

START/PAUSE button (see “Wash cycles and options”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and then

switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text “for

washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before contacting the Technical Assistance Service:

• Check whether you can solve the problem alone (see “Troubleshooting”).

• Restart the wash cycle to check whether the problem has been solved.

• If this is not the case, contact an authorised Technical Assistance Centre.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the

front of the appliance by opening the door.FR

 3 71 0,10 36 30Speciale was 9
