Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Description of the washing machine

and starting a wash cycle, 4-5

Starting a wash cycle

Table of wash cycles

Setting the temperature

Setting the spin speed

Detergents and laundry, 8

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Precautions and tips, 9

Load balancing system

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

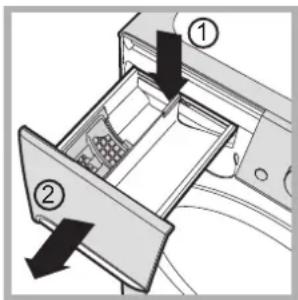

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Checking the water inlet hose

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred

or moved, make sure that the instruction manual remains

with the machine so that the new owner is able to familiari-

se himself/herself with its operation and features.

! Read these instructions carefully: they contain vital infor-

mation relating to the safe installation and operation of the

Unpacking and levelling Unpacking 1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been

damaged during the transportation process. If it has been

damaged, contact the retailer and do not proceed any

further with the installation process.

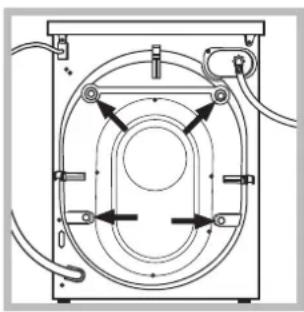

3. Remove the 4 protective

screws (used during tran-

sportation) and the rubber

washer with the correspon-

ding spacer, located on the

rear part of the appliance

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washing machine needs to be moved to ano-

! Packaging materials should not be used as toys for

children. Levelling 1. Install the washing machine on a flat sturdy floor, without

resting it up against walls, furniture cabinets or anything

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening

or loosening the adjusta-

ble front feet (see figure);

the angle of inclination,

measured in relation to the

worktop, must not exceed

Levelling the machine correctly will provide it with stability,

help to avoid vibrations and excessive noise and prevent it

from shifting while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow a sufficient

ventilation space underneath the washing machine.

Connecting the electricity and water

supplies Connecting the water inlet hose 1. Connect the supply pipe

by screwing it to a cold

water tap using a ¾ gas

threaded connection (see

Before performing the con-

nection, allow the water to

run freely until it is perfectly

2. Connect the inlet hose

to the washing machine by

screwing it onto the corre-

sponding water inlet of the

appliance, which is situa-

ted on the top right-hand

side of the rear part of the

appliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values

indicated in the Technical details table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

3 Connecting the drain hose

Connect the drain hose,

without bending it, to a drai-

nage duct or a wall drain

located at a height between

65 and 100 cm from the

alternatively, rest it on

the side of a washbasin

or bathtub, fastening the

duct supplied to the tap

(see figure). The free end

of the hose should not be

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length. Electrical connections Before plugging the appliance into the electricity socket,

• the socket is earthed and complies with all applicable

• the socket is able to withstand the maximum power load

of the appliance as indicated in the Technical data table

• the power supply voltage falls within the values indicated

in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing

machine. If this is not the case, replace the socket or the

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave

the appliance exposed to rain, storms and other weather

! When the washing machine has been installed, the elec-

tricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by autho-

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using the wash cycle 2.

Technical data ModelPWC 91271 WDimensionswidth 59.5 cmheight 85 cmdepth 60 cmCapacityfrom 1 to 9 kg Electrical connectionsplease refer to the technical data plate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 62 litresSpin speedup to 1200 rotations per minuteTest wash cycles in accordance with directives 1061/2010 and 1015/2010.programme 2; temperature 60°C and 40°C.This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compa-tibility) - 2006/95/EC (Low Voltage)- 2002/96/EC4

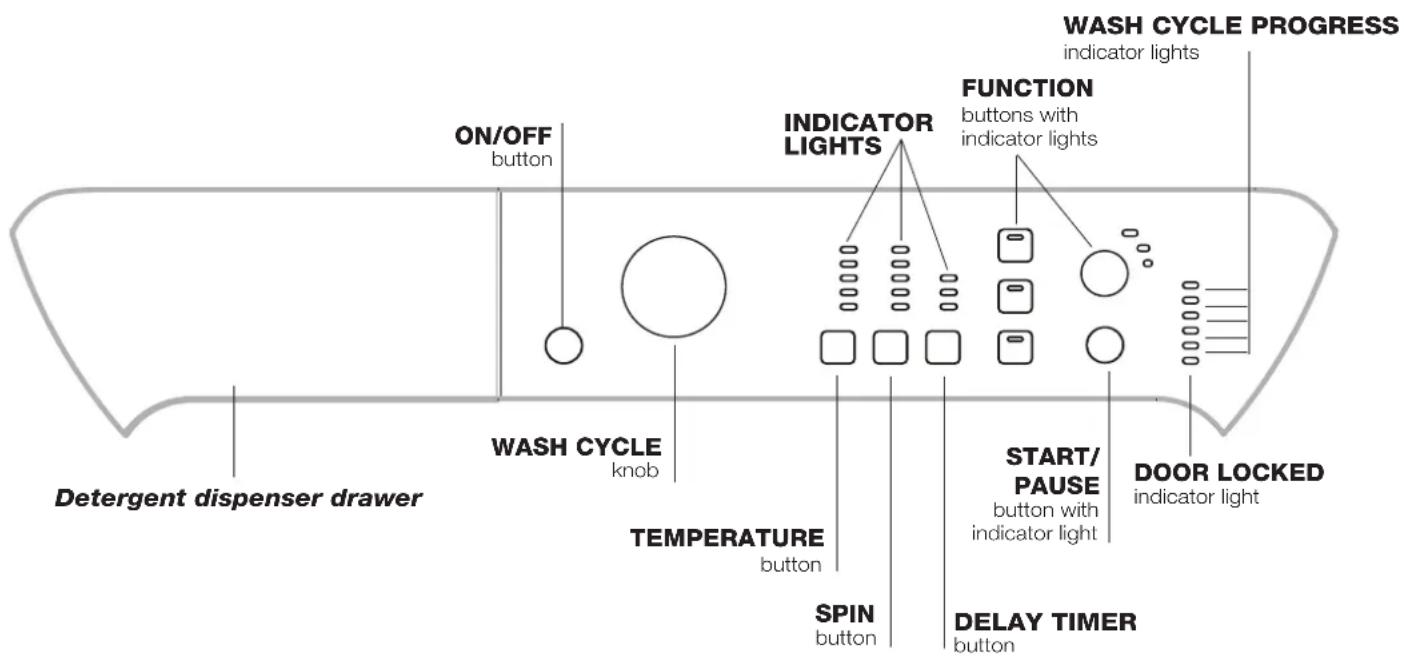

GB Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du-

ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE button: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN button: sets the spin speed or exclude the spin cycle

completely (see “Personalisation”).

DELAY TIMER button: delays the start of the wash cycle

Press the button repeatedly until the indicator light corre-

sponding to the desired delay time turns on.

When the button is pressed for the fourth time, the option

will be deactivated.

N.B.: once the START/PAUSE button has been pressed,

the delay time can only be modified by decreasing it until

the set programme is launched.

! This option is available on all programmes.

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened

(wait approximately 3 minutes).

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 1 W Consumption in Left-on: 1 W Description of the washing

machine and starting a wash cycle

button with indicator light Detergent dispenser drawer

The indicator lights provide important information.

This is what they can tell you:

If the DELAY TIMER function has been activated (see “Per-

sonalisation”), after the wash cycle has been started the

indicator light corresponding to the selected delay period

will begin to flash:

As time passes, the remaining delay will be displayed and

the corresponding indicator light will flash:

The set programme will start once the selected time delay

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has be-

gun, the indicator lights switch on one by one to indicate which

phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the program-

med wash cycle, the corresponding indicator light will flash

and the function will not be activated.

If the selected function is not compatible with another

function which has been selected previously, the indicator

light corresponding to the first function selected will

flash and only the second function will be activated; the

indicator light corresponding to the enabled option will

Note: if the function is active, all other non-compatible

functions cannot be activated.

Door locked indicator light

When the indicator light is on, the porthole door is locked

to prevent it from being opened; make sure the indicator

light is off before opening the door (wait approximately 3

To open the door during a running wash cycle, press the

START/PAUSE button; the door may be opened once the

DOOR LOCKED indicator light turns off.

! If the “functions” and START/PAUSE indicator lights flash

fast and the “current phase” and DOOR LOCKED indicator

lights turn on, there is an anomaly (see “Troubleshooting”).

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only

the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

manner in blu. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new

9. At the end of the wash cycle the indicator light will switch on. The door can be opened once the DOOR LOCK indi-

cator light turns off (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the

drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Description of the wash cycle

Cottons with Prewash: extremely soiled whites. 90° 1200

White Cottons: heavily soiled whites. 90° 1200 -

White Cottons (1): heavily soiled whites and resistant colours. 60° 1200 -

White Cottons (1-2): lightly soiled whites and delicate colours. 40° 1200 -

Cottons: heavily soiled whites and resistant colours. 60° 1200 -

Coloured Cottons (3): lightly soiled whites and delicate colours. 40° 1200 -

Synthetics: heavily soiled resistant colours. 60° 800 -

Synthetics (4): heavily soiled resistant colours. 40° 800 -

Mix-Cool 30’: to refresh lightly soiled garments quickly (not sui-

table for wool, silk and clothes which require washing by hand).

Wool: for wool, cashmere, etc. 40° 800 -

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

For all Test Institutes:

1) Test Programmes according to 1061/2010: set wash cycle 2 with a temperature of 60°C and 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water

consumption; it should be used for garments which can be washed at 60°C and 40°c. The actual washing temperature may

differ from the indicated value.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

4) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such

as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.GB

Setting the temperature

Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash .

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

Setting the spin speed

Press the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

The “PRIME” technology optimises energy, water and time consumption according to the quantity of garments actually inserted in the

machine. Moreover, pressing the button allows for selecting the following options:

- Water: allows for reducing water consumption without having to renounce impeccable results (recommended for heavily

- Energy: automatically selected by “PRIME”, this option reduces energy consumption (recommended for normally soiled

- Time: allows for reducing wash cycle duration (recommended for lightly soiled garments).

! This may only be used in conjunction with wash cycles 1, 2, 3, 4, 5 (all three levels) and 6, 7, 8 (- Energy and - Time levels).

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

! It cannot be used in conjunction with wash cycles 8, , .

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end

of the cycle the washing machine will perform slow rotations of the drum, while the EASY IRON and START/PAUSE indica-

tor lights will flash (blue and orange respectively) and the led will remain lit in a fixed manner. To end the cycle, press the

START/PAUSE button or the EASY IRON button. For wash cycles number 10-12, the machine will end the cycle while the

laundry is soaking; the EASY IRON and START/PAUSE indicator lights will flash. To drain the water so that the laundry may

be removed, press the START/PAUSE button or the EASY IRON button.

! It cannot be used in conjunction with wash cycles 8, 9, 13, , .

Bleaching cycle designed to remove the toughest stains. Please remember to pour the bleach into extra compartment 4 (see

! This function may not be used in conjunction with wash cycles 1, 6, 8, 9, 10, 11, 12, 13, , .

GB Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of

detergent: adding too much detergent will not necessa-

rily result in a more efficient wash, and may in fact cause

build up on the inside of your appliance and contribute to

environmental pollution.

! Do not use hand washing detergents because these

create too much foam.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

Open the detergent dispen-

ser drawer and pour in the

detergent or washing additive,

Before pouring in the detergent,

make sure that extra compart-

ment 4 has been removed.

Compartment 2: Detergent for the wash cycle

Liquid detergent should only be poured in immediately

prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Extra compartment 4: Bleach

! Traditional bleach should be used on sturdy white fa-

brics, and delicate bleach for coloured fabrics, synthetics

This option is particularly useful for the removal of stubborn

stains. Place extra compartment 4 (supplied) into

compartment 1. When pouring in the bleach, be careful

not to exceed the “max” level marked on the central pivot

(see figure). To run the bleach cycle on its own, pour

the bleach into extra compartment 4, set the “Rinse”

programme and activate the “Stain removal” option. To

bleach during a wash cycle, pour in the detergent and any

fabric softener you wish to use, set the desired wash cycle

and enable the “Stain removal” option. The use of extra

compartment 4 excludes the “Prewash”.

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to the weight

of the laundry when dry:

Durable fabrics: max. 9 kg

Silk: max. 2 kg How much does your laundry weigh? 1 sheet 400-500 g

Garments requiring special care

Jeans: turn the garments inside out before washing and use

liquid detergent. Use wash cycle 6.

Shirts: use special wash cycle 7 to wash shirts in various

fabrics and colours. It guarantees maximum care is taken of

the garments and minimises the formation of creases.

Mix-Cool 30’: this wash cycle was designed to wash lightly

soiled garments quickly: it lasts just 30 minutes and therefore

saves both energy and time. By selecting wash cycle 8, it is

possible to wash different fabrics (except for wool and silk

items) using a cold cycle, up to a maximum load of 3 kg.

Wool: The wool wash cycle of this machine has been tested

and approved by The Woolmark Company for the washing

of wool containing garments labelled as “hand wash” provi-

ded that the garments are washed according to the instruc-

tions on the garment label and those issued by the manu-

fa cture r of th is washing ma ch in e.

Curtains: we recommend you fold the curtains and place

them in a pillow case or mesh bag. Use wash cycle 10.

Duvets: to wash double or single duvets (the weight of which

should not exceed 3 kg), cushions or clothes padded with

goose down such as puffa jackets, use the special wash cycle

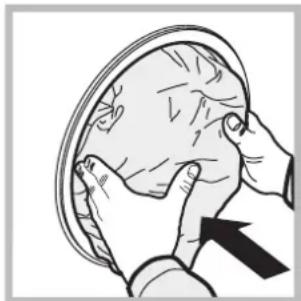

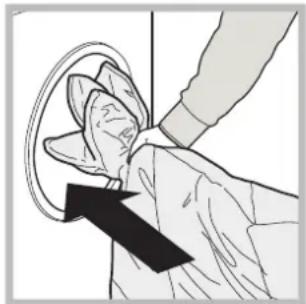

number 11 “Duvets”. We recommend that duvets are placed in

the drum with their edges folded inwards (see figure) and that

no more than ¾ of the total volume of the drum is used. To

achieve the best results, we recommend that a liquid detergent

is used and placed inside the detergent dispenser drawer.

Outwear (wash cycle 12): is studied for washing water-

repellent fabrics and winter jackets (e.g. Gore-Tex, polyester,

nylon); for best results, use a liquid detergent and dosage

suitable for a half-load; pre-treat necks, cuffs and stains if ne-

cessary; do not use softeners or detergents containing softe-

ners. Stuffed duvets cannot be washed with this programme.

Sport Shoes (wash cycle 13): is for washing sports shoes;

for best results, do not wash more than 2 pairs simultaneously.

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance is not intended for use by persons (inclu-

ding children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concer-

ning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that

they do not play with the appliance.

• The washing machine must only be used by adults, in accor-

dance with the instructions provided in this manual.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the

safety lock mechanism designed to prevent accidental

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and

to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the

washing rotation speed. If, after several attempts, the load is

not balanced correctly, the machine spins at a reduced spin

speed. If the load is excessively unbalanced, the washing ma-

chine performs the distribution process instead of spinning.

To encourage improved load distribution and balance, we

recommend small and large garments are mixed in the load.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that

old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected

separately in order to optimise the recovery and

recycling of the materials they contain and reduce

the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.10

GB Care and maintenance 2. Unscrew the lid by rota-ting it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal.3. Clean the inside thoroughly.4. Screw the lid back on.5. Reposition the panel, making sure the hooks are secu-rely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use second-hand hoses.

Cutting off the water and electricity

supplies • Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.• Unplug the washing machine when cleaning it and du-ring all maintenance work. Cleaning the washing machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser drawer To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure).Wash it under running water; this procedure should be repeated frequently. Caring for the door and drum of your

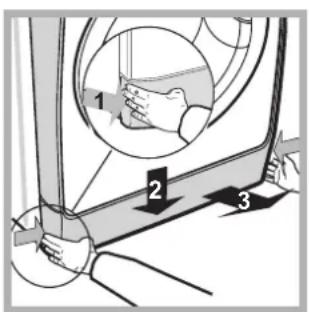

appliance • Always leave the porthole door ajar in order to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump. ! Make sure the wash cycle has finished and unplug the appliance.To access the pre-chamber:1. Take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures).

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be not solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not

take in water (the indicator light for

the first wash cycle stage flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a lot

during the spin cycle.

The washing machine leaks.

The “Functions” indicator lights and the

“start/pause” indicator light flash, while

one of the “phase in progress” indicator

lights and the “door locked” indicator

light will remain lit in a fixed manner.

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set (see “Personalisation”).

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and contact the Assistance Service. If the dwelling is on one of

the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special

anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain

phase to be started manually.

• The “Easy iron” function is enabled: to complete the wash cycle, press the

START/PAUSE button (“Personalisation”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see

“Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and

then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the

guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the

front of the appliance by opening the door.FR
