USER MANUAL Music Twister INTENSO

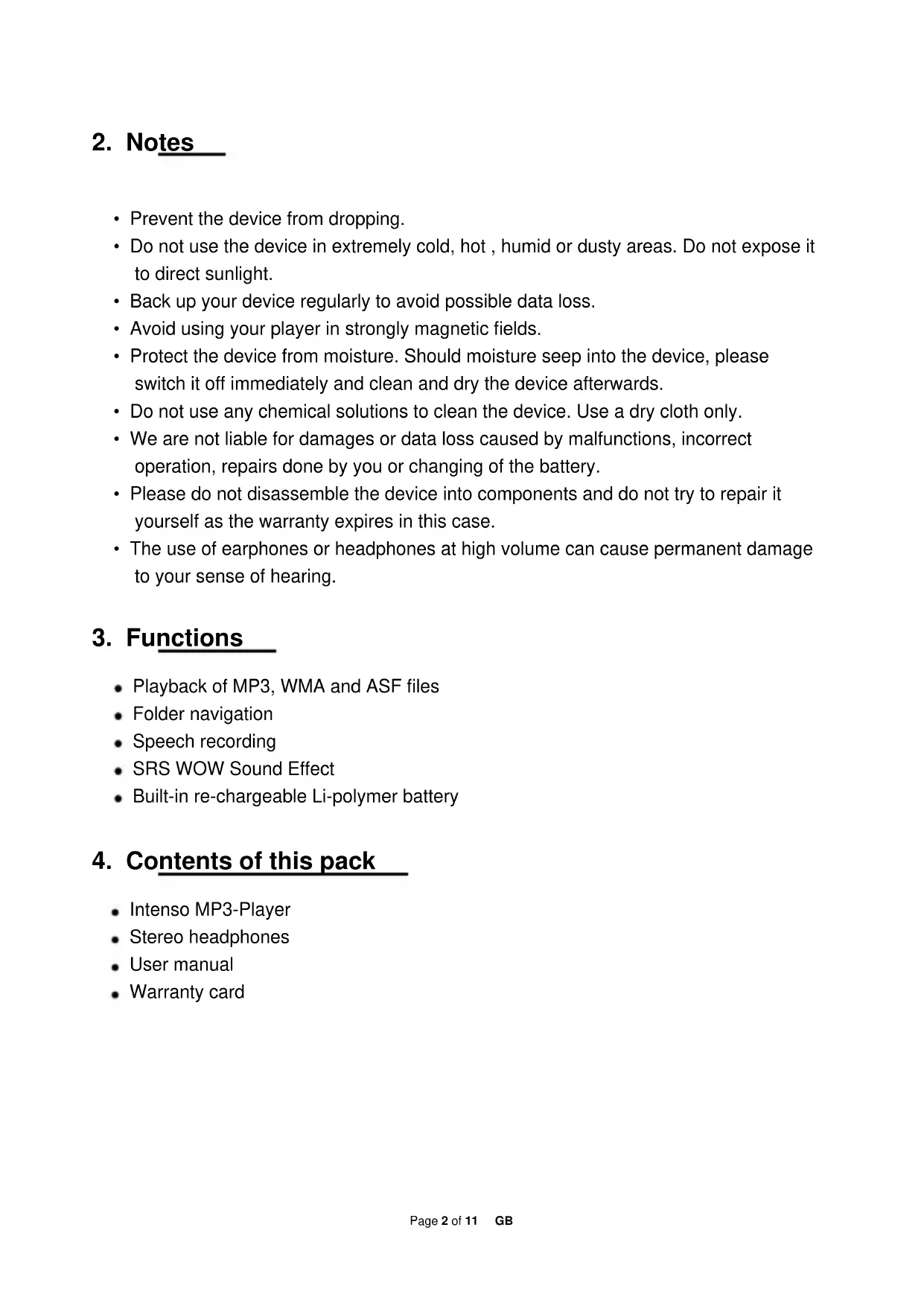

• Prevent the device from dropping.

• Do not use the device in extremely cold, hot , humid or dusty areas. Do not expose it to direct sunlight.

• Back up your device regularly to avoid possible data loss.

• Avoid using your player in strongly magnetic fields.

• Protect the device from moisture. Should moisture seep into the device, please switch it off immediately and clean and dry the device afterwards.

• Do not use any chemical solutions to clean the device. Use a dry cloth only.

• We are not liable for damages or data loss caused by malfunctions, incorrect operation, repairs done by you or changing of the battery.

• Please do not disassemble the device into components and do not try to repair it yourself as the warranty expires in this case.

• The use of earphones or headphones at high volume can cause permanent damage to your sense of hearing.

Playback of MP3, WMA and ASF files Folder navigation Speech recording SRS WOW Sound Effect Built-in re-chargeable Li-polymer battery

4. Contents of this pack

Connect to the PC Please install a driver for OS Windows 98/SE prior to connecting the player with the PC. (download from www.intenso.de). No driver installation is required for OS WIN 2000/XP/ME/Vista. Please proceed as follows: (1) Connect the player with the USB-port of the PC (2) The window "Intenso" opens. Now you can store the data from your hard disk on the player. Safe removal from PC For Windows 2000/XP/ME/Vista: Click with the right mouse button bottom right in the task bar onto the symbol "safe removal of hardware". Select "remove USB flash drive" with the left mouse button from the appearing context menu. Please ensure that the data transfer has been finished completely. Now you can remove the device. For Windows 98/SE: Select the device in the "device manager" using the left mouse button. Now click on the menu item "remove". Please also ensure here that the data transfer has been finished completely. The device can now be disconnected from the PC. Charging the battery: The device has a built-in re-chargeable Li-polymer battery. The battery is charged via the USB connection to your PC. Before using the device for the first time, please make sure that the battery is fully charged. This usually takes about 3 hours. To charge the battery, connect the device to the PC using the USB cable. The charging procedure begins automatically. To check the state of charge, control the symbol on the display of the MP3 player. Note: for optimum performance, the re-chargeable Li-polymer battery must be used regularly. If this is not the case, fully charge the battery at least once per month.Page 4 of 11 GB Controls

On / Off Press and keep the button until the Intenso logo appears on the display. Play / Pause Press the button for playback or stopping of a track. Adjust volume Press the VOL + or - VOL - button in order to increase or lower the volume. Forward / Back Press the / button to go to the previous or to the next track. Fast forward Press and hold down the button to fast forward within the track. Rewind Press and hold down the button to rewind within the track. Key lock In order to prevent the buttons from getting pressed accidentally, move the HOLD- switch to the left. To unlock move the HOLD-switch to the right.

After switching on the MP3 player the main menu appears. Here you can choose between the functions music, recording, playback and setup. Press the / buttons for selection and confirm your selection with the Menu button.

Select Music from the main menu. Now you can playback the stored tracks. Call folder navigation (1) If required, press the button to stop the current playback. (2) Press the menu button to call the "setup" menu. (3) Select "folder" and confirm your selection by pressing the menu button (4) Select pressing the / buttons the required folder and confirm your selection by pressing the menu button. (5) Select with the / buttons the desired track within this folder. Confirm your selection with the menu button in order to start the playback, or press the back button in order to close the selected folder and exit the folder navigation. Delete track To delete a single track do the following: (1) If required, press the button to stop the current playback. (2) Press the Menu button to call the "setup" menu. (3) Select "delete file" and confirm with the menu button. (4) Press the / buttons to select Yes or No. Confirm your selection with the menu button or press the back button to return to the playback mode. Delete all tracks To delete all stored tracks do the following: (1) If required, press the button to stop the current playback. (2) Press the menu buttons to call the "setup" menu. (3) Select "delete all" and confirm with the menu button. (4) Press the / buttons to confirm Yes or No. Confirm your selection with the menu button or press the back button to return to the playback mode.Page 6 of 11 GB A-B Repeat To repeat a special section of a track do the following: (1) During playback of a track press the menu button to go to the "play setup" menu. (2) Press the / buttons to select “A-B repeat” and confirm your selection with the menu button. (3) At the desired start point press the menu button to specify the start of the A-B repeat. (4) At the desired end point press the menu button to specify the end of the A-B repeat. (5) The section between the start and the end point will now be repeated. (6) To end the A-B repeat press the menu button once more. Playback modes: Normal - Plays all tracks once and stops the playback afterwards Repeat track - repeats the current track Folder - Plays all tracks in the selected folder once Repeat folder - Plays and repeats all tracks in the selected folder Repeat all - Plays all tracks and starts again from the beginning Random - plays all tracks in random sequence Intro - plays the first 10 sec. of each track To select a playback mode do the following: (1) During playback of a track press the menu button to go to the "play setup" menu. (2) Press the / buttons to select "repeat" and confirm your selection with the menu button. (3) Press the / buttons to select the desired playback mode. Confirm your selection with the menu button or press the back button to return to the playback mode. Equalizer You can choose from the following sound effects for playback: flat, rock, pop, classic, soft, jazz, DBB and user EQ. To select an equalizer setting do the following: (1) During playback of a track press the menu button to go to the "play setup" menu. (2) Press the / buttons to select "equalizer" and confirm your selection with the menu button.Page 7 of 11 GB (3) Press the / buttons to select the desired equalizer setting. Confirm your selection with the menu button or press the back button to return to the playback mode.

User-defined equalizer (1) During playback of a track press the menu button to go to the "play setup" menu. (2) Press the / buttons to select "equalizer" and confirm your selection with the menu button. (3) Press the / buttons to select “User EQ” and confirm your selection with the menu button. (4) Press the / buttons to change the equalizer column and the VOL+/VOL- to set the desired values. (5) Press the menu button to confirm the settings. SRS and WOW sound effects The MP3-player offers the sound effects SRS and WOW to extend your musical experience. To activate the effects do the following: (1) During playback of a track press the menu button to go to the "play setup" menu. (2) Press the / buttons to select the “SRS WOW mode” and confirm your selection with the menu button. (3) Press the / buttons to select “SRS WOW” and confirm your selection with the menu button. Adjusting WOW settings: a. Select "adjust WOW" and confirm with the menu button. b. Select using the / buttons “SRS 3D”, “TruBass” or “FOCUS” and confirm with the menu button. Press the VOL + or VOL - button to adjust the settings. c. Confirm your settings with the menu button. Note: WOW, SRS and the symbol are trademarks of SRS Labs, Inc. The WOW technology is licensed by SRS Labs, Inc. Exit music mode Press the back button to go to the main menu.Page 8 of 11 GB

In the main menu select the function record. You can record speech via the built-in microphone. record (1) Press the button to start recording. (2) During recording you can stop and/or resume the recording by pressing the button. (3) Press the menu button to stop and save the recording. Attention: Do not switch off the device during recording. The recording will not be saved and is lost. Exit the function record Press the back button to go to the main menu.

10. Playback speech recordings

In the main menu select the function playback. You can playback previously recorded speech. playback (1) Select the desired file using the / buttons and start playback with the button. Exit playback function Press the back button to go to the main menu.Page 9 of 11 GB

To set your MP3 player individually do the following: (1) In the main menu select the function setup. (2) Press the / buttons to select the desired setting (see table). Confirm your selection with the menu button or press the back button to return to the main menu. Setting Description: Display Brightness – adjust display brightness LCD Off time – After the set time has elapsed, the display will be switched to dark in order to save energy. Language Select the desired language. Save energy Off time – The player switches itself off automatically after the preset time provided that the player is not in use. Sleep-Timer – After the set time has elapsed the player will be switched off. Memory info Shows the memory used in percent Firmware version Shows the software version. Firmware Upgrade To upgrade the MP3 player firmware.Page 10 of 11 GB

The display is blank. (1) The battery is empty. Charge the battery. (2) The keys are locked. Unlock the keys with the hold switch. No sound during playback of a file. (1) The volume is too low. Increase the volume. (2) The audio file is defective. Please transfer the file again. No connection can be established with the PC. (1) The driver was not installed properly. Re-install the driver. (2) Please carry out a main board update. (Please refer to the manufacturer`s instructions) The track time displayed keeps on changing. (1) The bit rate of the MP3 file changes during playback. Please use a universal bit rate for compression. The PC shows an error on connection with the player. (1) The player was disconnected during data transfer from the PC. Never disconnect the player during data transfer. The memory indicated by the player does not match the actual memory. (1) Part of the memory is used for software and display properties. MP3 data is not played properly. (1) The MP3 data was compressed in a wrong format, e.g. in MPEG 1 or 2. Delete the file formats that are not supported.Page 11 of 11 GB

Item Parameter: LCD Display 96 x 64 pixel Battery type re-chargeable Li-polymer battery Battery run-time Max. 7 hours Record format ACT Record duration (max.) approx. 280 hours having 1GB free memory Supported music formats
