Video Driver - Mp3 player INTENSO - Free user manual and instructions

Product type	MP3 player with 2-inch TFT LCD screen
Brand / Model	Intenso Video Driver
Dimensions (approx.)	90 x 40 x 10 mm (approx.)
Weight (approx.)	40 g (approx.)
Power supply	Rechargeable lithium-polymer battery via USB
Battery life	Up to 10 hours
Screen	2-inch TFT LCD
Audio formats	MP3, WMA
Video formats	AVI (220x176 pixels)
Photo formats	JPEG (max. 3520x2816 pixels)
Text formats	TXT
Memory cards	microSD up to 2 GB, microSDHC 4/8 GB
Connectivity	USB 2.0
Main functions	MP3/WMA player, AVI video, JPEG photo, text, Tetris game, FM radio (not specified), voice recorder (not specified)
Equalizer	Normal, 3D, rock, pop, classical, bass, jazz, custom
Repeat and shuffle	Yes (multiple modes)
Key lock	Yes (key combination)
Cleaning and maintenance	Dry cloth, no chemicals. Avoid moisture, shocks, extreme temperatures.
Safety	Do not disassemble. High volume may damage hearing. Protect from moisture.
Spare parts and repairability	Built-in battery not replaceable by user. No spare parts provided.
General information	Manual available in multiple languages. Warranty included.

Frequently Asked Questions - Video Driver INTENSO

How to charge the battery?

Connect the device to the computer via the USB cable. Charging starts automatically. The first charge takes about 3 hours. The battery symbol turns green when charging is complete.

What video formats are supported?

Only AVI format with a resolution of 220x176 pixels is supported. Use the provided conversion software to convert other formats.

Why doesn't my computer recognize the device?

Under Windows 98/SE, you need to install a driver available at www.intenso.de. Under Windows 2000/XP/Vista, no driver is necessary. Also check that the plastic protective card of the microSD slot has been removed.

How to use a microSD card?

Insert the card into the slot. In the main menu, choose 'Folder preview', then select 'micro SD card'. Files will be accessible there.

What to do if the screen does not turn on?

Make sure the battery is charged. If the keys are locked, unlock them by pressing the Play/Pause and VOL keys simultaneously. If the problem persists, recharge the battery.

How to adjust the equalizer?

In the 'Settings' menu, choose 'Music' then 'Choose Equalizer'. You can select a preset (normal, rock, pop, etc.) or create a custom equalizer.

Can I read e-books?

Yes, the device reads text files in TXT format. Use the 'Text' mode in the main menu. You can even place bookmarks (up to 9).

How to delete a file?

In the folder preview, select the file to delete. Press and hold the VOL key until a dialog box appears, choose 'Yes' and confirm with the Menu key.

What to do if audio playback produces no sound?

Increase the volume using the VOL key. Check that the earphones are properly connected. If the audio file is damaged, retransfer it from your computer.

How to activate power saving mode?

In 'Screen settings', choose 'Lighting mode' and select 'Power save mode'. The screen will turn off automatically after a few seconds of inactivity.

USER MANUAL Video Driver INTENSO

Intenso Video Driver

A B C D E F G H I J

1. Index....1
2. Cautions.... 2
3. Key Features 2
4. Package Content 2
5. Before Using 3
6. Basic operation....5
7. Playing music....6
8. Playing videos....6
9. Viewing photos 6
10. Reading Text 7
11. Browsing all files....7
12. Deleting a file....7
13. Playing a game....8
14. Customizing Settings 8
15. Troubleshooting.... 10
16. Technical Specifications .... 11
17. Notice 12

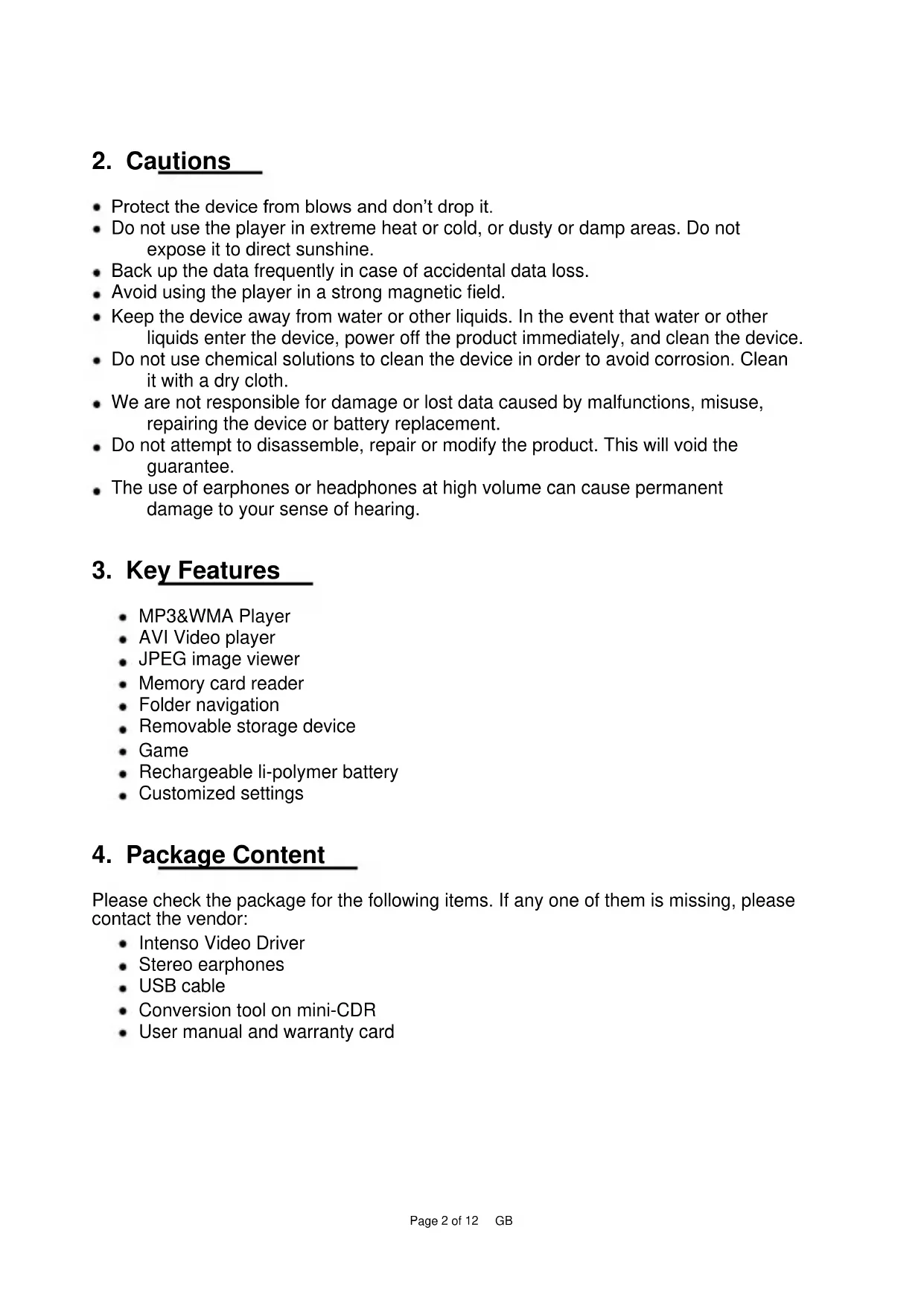

2. Cautions

• Protect the device from blows and don't drop it.
• Do not use the player in extreme heat or cold, or dusty or damp areas. Do not expose it to direct sunshine.
• Back up the data frequently in case of accidental data loss.
• Avoid using the player in a strong magnetic field.
• Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device.
• Do not use chemical solutions to clean the device in order to avoid corrosion. Clean it with a dry cloth.
• We are not responsible for damage or lost data caused by malfunctions, misuse, repairing the device or battery replacement.
• Do not attempt to disassemble, repair or modify the product. This will void the guarantee.
• The use of earphones or headphones at high volume can cause permanent damage to your sense of hearing.

3. Key Features

• MP3&WMA Player
• AVI Video player
• JPEG image viewer
• Memory card reader
• Folder navigation
• Removable storage device
• Game
  • Rechargeable li-polymer battery
• Customized settings

4. Package Content

Please check the package for the following items. If any one of them is missing, please contact the vendor:

• Intenso Video Driver
• Stereo earphones
• USB cable
  • Conversion tool on mini-CDR
• User manual and warranty card

5. Before Using

Connecting to the PC

If your PC's operating system is Windows 98/SE, please install a driver before connecting the player to your PC. (Driver downloads are available at www.intenso.de). It is not necessary to install a driver if your operating system is WIN 2000/XP/ME/Vista.

Please proceed as follows:

(1) Remove the plastic card from the Micro SD Card slot before use.
(2) Connect the player to a USB connector on the PC.
(3) The ‘Intenso’ window opens. You can now save data from your hard disk to the removable medium.

Safe removal from the PC

For Windows 2000/XP/ME/Vista:

Right click the ‘Safely Remove Hardware’ icon in the taskbar at the bottom right. Left click ‘Remove USB storage device’ in the context menu that appears. Please first make sure that the data transfer has been completed.

You can now remove the device.

For Windows 98/SE:

Left click the device in the Device Manager. Now click the menu item 'Remove'. Make sure in this case too that the data transfer has been completed.

You can now disconnect the device from the PC.

Charging the battery:

The device has a built-in rechargeable li-polymer battery. The battery is charged via the USB connection to your PC. Before using the device for the first time, please make sure that the battery is fully charged. This usually takes about 3 hours.

To charge the battery, connect the device to the PC using the USB cable. The charging procedure begins automatically. If you wish to check the current status of the charging procedure, please disconnect the device from the PC. You can see a battery symbol at the top right of the display. If this symbol lights up green, then the battery is fully charged.

Note: for optimum performance, the li-polymer battery must be used regularly. If this is not the case, fully charge the battery at least once per month.

Using the memory card

The device has a memory card slot for reading data from a micro-SD card.

To use a memory card:

(1) Insert a Micro-SD card into the card slot on the unit body.
(2) Press and hold the MENU button to display the main menu.
(3) Select "Navigation" and press the MENU button to enter folder browser mode.
(4) In folder browser mode, you will see two folders named "Inside Memory" and "SD Card". To play the audio or video files stored on the memory card, access the "Inside Memory" folder.

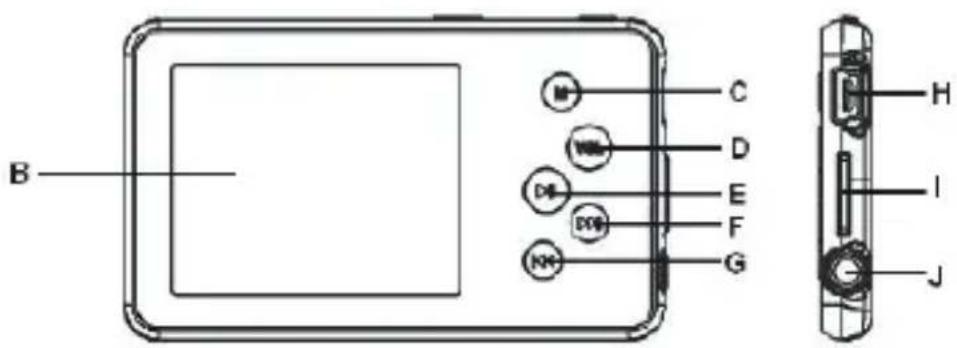

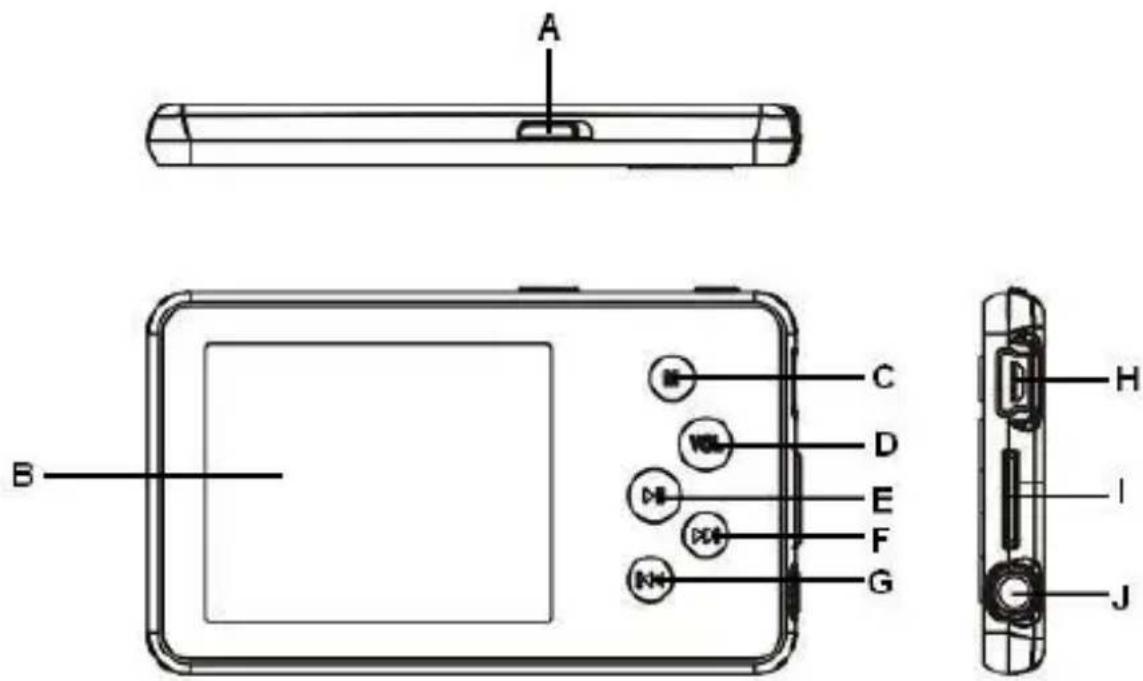

Key Descriptions

A B C D E F G H I J

A. Power Switch: Turn the power on or turn off

B. LCD Display

C. MENU: Hold for a while to enter the main menu. Briefly press to confirm selection or enter folder navigation mode.

D. VOL (volume): Adjust the volume. Also return to the previous screen.

E. Play/Pause: Turn the device on or off. Also play or pause audio files.

F. Next: Play the next track. Also move down.

G. Previous: Play the previous track. Also move up.

H. USB Port: Connect to a computer

I. Memory Card Slot: For inserting a Micro SD-card

J. Earphone Jack

Power On/Off

To switch on,

(1) Slide the ON/OFF Switch to the right to turn on the power.
(2) Press and hold the PLAY/PAUSE button until the display starts.

To switch off,

(1) Press and hold the PLAY/PAUSE button until the display stop.
(2) Slide the ON/OFF Switch to the left to turn off the power.

Note: This player has a power-saving feature which enables the device to power off automatically if it is idle for about 3 minutes.

6. Basic operation

Play/Pause

Press the PLAY/PAUSE button to play or pause.

Adjust Volume

Briefly press the VOL button to see a red volume icon animation. Press the PREVIOUS/NEXT button to decrease or increase volume. Press the VOL button to confirm.

Previous Track

Briefly press the PREVIOUS button.

Next Track

Briefly press the NEXT button.

Fast Forward

Press and hold the NEXT button.

Rewind

Press and hold the PREVIOUS button.

Lock/unlock buttons

Hold down the PLAY/PAUSE and VOL button simultaneously.

A-B Repeat To repeat a specific section of a track,

(1) During play, briefly press the VOL button to enter A-B repeat mode.
(2) Press the MENU button again to select the start point.
(3) Press the MENU button again to select the end point.
(4) To stop A-B repeat, press the MENU button, and then press the VOL button to exit.

7. Playing music

Entering music mode

Press and hold the MENU button to display the main menu. Use the PREVIOUS/NEXT button to select "Music" menu, and press the MENU button to confirm selection. Now you are in MUSIC mode, referring to music playing using the basic operations.

Folder navigation

To navigate through folders:

In MUSIC mode, briefly press the MENU button to enter folder navigation mode. Press the PREVIOUS/NEXT button to select a folder or track, and press the MENU button to confirm selection.

8. Playing videos

(1) Press and hold the MENU button to display the main menu.
(2) Use the PREVIOUS/NEXT button to select "Video" menu, and press the MENU button to enter video player mode.
(3) Press the PREVIOUS/NEXT button to search a video file that you want to play, and press the MENU button to play. For detailed information about playing, see the "Basic Operation" section.
(4) During playing, you can briefly press the MENU button to enter folder navigation mode.

Note: This player can only play AVI videos.

9. Viewing photos

To view photos,

(1) Press and hold the MENU button to display the main menu.
(2) Select "Photo" and press the MENU button to confirm. Press the PREVIOUS/NEXT button to select a folder or image, and press MENU to confirm.
(3) Select the photo that you want to display and press the MENU button to enlarge it to the full screen. In full screen mode, you can press the PREVIOUS/NEXT button to display the previous or the next photo. Press the PLAY/PAUSE to start an automatic slide show, or press the MENU button to enter folder navigation mode.

Note: Some images may not be displayed. Try to use an image viewer (ACDSee for example) to convert them. See “Appendix – Convert image file” for details.

10. Reading Text

Reading

(1) Press and hold the MENU button to display the main menu.
(2) Select "Text" and press the MENU button to confirm.
(3) Press the PREVIOUS/NEXT button to select a .txt file, and press the MENU button to open the selected file.
(4) Press the PREVIOUS/NEXT button to page up or page down, or press the PLAY/PAUSE button to page up or down automatically (by setting the time interval between 1 and 5 in Settings/Auto Slide show/Text).
(5) During reading, you can use the bookmark to mark the page to resume reading later. For information about the bookmark, see "Using the bookmark" section.

Using the bookmark

(1) Go to the page that you want to mark.
(2) Press and hold the VOL button to display a "Save Bookmark" window for saving bookmarks.
(3) Press the PREVIOUS/NEXT button to select one line on the menu and press the MENU button to confirm. The bookmark is saved. It starts from the first line of current page.
(4) To read the page that you marked, briefly press the VOL button to display the "Load Bookmark" window. Select the bookmark and press the MENU button to confirm. You will be guided to that page.

Note: Some TXT files may not be read. This may because the format is not supported. Skip it or reload another file.

11. Browsing all files

To browse all files stored in the player,

(1) Press and hold the MENU button to display the main menu.
(2) Select "Navigation" and press the MENU button to enter browser mode.
(3) Press PREVIOUS/NEXT button to select a file that you want to view, and press the MENU button to play or display it.

12. Deleting a file

To delete a file,

(1) In folder navigation mode, select the file that you want to delete.
(2) Press and hold the VOL button until a dialogue box appears.
(3) Use the PREVIOUS/NEXT button to select "YES" and press the MENU button to confirm.

13. Playing a game

This player provides a popular and fun game - Tetris World. To activate the game, on the main menu, select "Game" and press the MENU button to enter gaming mode. The basic operation is as follows:

Start game Press the PLAY/PAUSE button

Move the block left and right Press NEXT and VOL button

Rotate the block Press PREVIOUS button

Insert the block Press the MENU button

Exit the Game Press the PLAY/PAUSE Button to stop the Game

and hold then the MENU Button

14. Customizing Settings

To customize the player settings:

(1) On the main menu, select the "Settings" option and press the MENU button to enter system settings mode.

(2) Press the PREVIOUS/NEXT button to select the settings option and press the MENU button to confirm or press the VOL button to cancel/return.

Music

Repeat Mode

(1) Once: Play current track once and then stop
(2) Repeat 1: Repeat current track
(3) Folder once: Play all audio files in the current folder and stop after playing
(4) Folder Repeat: Repeat all audio files in the current folder
(5) All Once: Play all audio files stored in the player and stop after playing all
(6) All Repeat: Repeat all audio files stored in the player
(7) Intro: Play the first 10 seconds of every audio file

Play mode

(1) Order: Play audio files in order
(2) Shuffle: Play audio files randomly

EQ Select

Normal, 3D, Rock, Pop, Classical, Bass, Jazz, User EQ

User EQ Set

(User-defined equalizer setting)

(1) Press the VOL button to change EQ column.
(2) Press the PREVIOUS/NEXT button to adjust value.
(3) Repeat pressing the VOL button until the cursor is on the YES button, and then press the MENU button to confirm.
(4) Go to the EQ Select menu, and select User EQ to enable the equalizer setting.

Auto Browse

Text Browse

(Set interval between the previous and the next page when the device is in auto page up/down mode.)

Photo Browse

(Set interval between the previous and the next slide in auto slide show mode.)

Display

Bright Time

5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, Always On.

Lum

(Set the brightness of the screen)

Bright Mode

Normal

Power Save (Turn off the screen when there is no activity within a certain time)

System

About: Information about the product

Upgrade: Upgrade the firmware

Default Set: Restore the player to default setting

Power Off

(Set the continuous playing time before the player is turned off automatically.)

Off, 10 minutes, 15 minutes, 30 minutes, 60 minutes, 120 minutes

Language

(Select language in which the on-screen text is displayed)

Here you can choose between different languages

15. Troubleshooting

Problem - Possible Cause - Solution

- The LCD displays nothing when the device is started.

(1) Battery is too low.
Charge the battery.
(2) The keys are locked.
Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button.

- The player doesn't respond when the Play button is pressed to play an audio file.

(1) The keys are locked by the Hold switch Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button.

- No sound when playing an audio file.

(1) The volume is too low.

Adjust the volume.

(2) Bad audio file.

Delete or skip the file.

• The player cannot be connected to the PC.

(1) The USB port is not supported by PC's motherboard.

Update or replace the PC's motherboard.

- The displayed time is changing constantly.

(1) The bit rate of the MP3 file is changing during playback.

Try to use fixed bit rate to compress the MP3 file.

- The PC has an error when you plug-in and unplug the player.

(1) The player was disconnected from the PC abruptly while transferring files.

Do not disconnect the player from the PC when transferring files.

- Total memory displayed on the player is not in accordance with the marked amount.

(1) Part of memory is used to store programs and display characters.

- Some of MP3 files cannot be played properly.

(1) The MP3 file is compressed by a standard, such as MPEG I Layer 1 or Layer 2 that the player does not support.

1. Delete the unsupported MP3 files.

2. Use MPEG I Layer 3 standard to compress the unsupported MP3 files.

• The video cannot be played.

(1) The file format is not supported.
Make sure the video is in AVI format. If not, use the provided converting tool to convert it.
(2) The video data is corrupted
Skip it or reload another file

• The photo cannot be displayed

(1) The file format is not supported
Try to use an image editor to convert it.
(2) The image resolution is beyond the limitation of the device.
The device supports a maximum resolution of 3520 X 2816 pixels. Make sure the resolution of the image does not exceed this limitation.

• The TXT file cannot be read

(1) The file format is not supported.

Skip it or reload another file.

16. Technical Specifications

Supported Micro SD-Cards

microSD up to 2GB & microSDHC 4 | 8 GB

Battery Type

Rechargeable li-polymer battery

Battery Life

Max. 10 hours

LCD Display

2.0-inch TFT screen

Earphone Power

5mW+5mW

Video Format

AVI 220x176 pixel

Audio Format

MP3, WMA

Photo Format

JPEG

Image Resolution

3520 X 2816 pixels (Max.)

Bit Rate

MP3: 8-320kbps; WMA: 32-384kbps

SNR

90dB

USB Port

USB2.0

Operating Temperature

0^ +55^

Storage Temperature

-20^ +55^

Operating Relative Humidity

20% \~ 90% (40°C)

Storage Relative Humidity

20% \~ 93% (40°C)

17. Notice

(1) Plug & Play is available only with Windows 2000/XP and Vista. Please install the driver in the case of Windows 98/SE.
(2) Make sure all keys are enabled before operation. If they are locked, hold down the PLAY/PAUSE and VOL button to unlock them.
(3) Please charge the battery immediately when the display indicates low battery, or the device will be powered off automatically.
(4) Please disconnect the player from PC properly to avoid data loss.
(5) When the recorded voice file is too large, the response of the device may be slow.
(6) The device does not guarantee compatibility with all memory cards from various manufacturers.
(7) Please remove the plastic card from the micro SD Card Slot before using the video cruiser.
(8) Software Support only for Windows 2000, Windows XP and Windows Vista.

(INTENSO)®

49377 Vechta

Germany

www.intenso.de

CE No No

1. Indice

Simple line drawing of a cylindrical object with a labeled point A and a small rectangular base (no text or symbols beyond the label)

B M C W D E F N G H I J

A. POWER SWITCH

A B C D E F G H I J

Image displaying four types of waste management symbols: circular refresh, warning triangle with explosion, and no litter.

A B C D E F G H I J

Image displaying four types of waste management symbols: circular refresh, warning triangle with explosion, and no litter.

A B C D E F G H I J

A. POWER SWITCH

Bloquear/desbloquear as teclas

Prima simultaneamente as teclas "E" (Play/Pause) e "D" (VOL)

Image displaying four types of waste management symbols: circular refresh, warning triangle with explosion, and no litter.

1. Spis treści

A B C D E F G H I J

Firmware Update: Upgrade firmware

A B C D E F G H I J

Image displaying four types of waste management symbols: circular refresh, warning triangle with explosion, and no litter.
