B575MA - Hand blender FAGOR - Free user manual and instructions

Brand	Fagor
Model	B575MA
Appliance type	Immersion blender
Main functions	Mixing, whipping egg whites, chopping
Included accessories	Blending arm, whisk, chopper bowl with lid and blade, measuring cup
Variable speed	Yes, with regulator and turbo function
Power	Approximately 600 W (estimated)
Power supply	220-240 V, 50/60 Hz (depending on model)
Cord length	Approximately 1.2 m (estimated)
Weight	Approximately 1.3 kg (estimated)
Body material	Plastic
Blade material	Stainless steel
Care and cleaning	Motor unit not immersible, accessories dishwasher safe (except motor unit, chopper lid, coupling and blending arm)
Safety	Unplug before assembly/disassembly; do not immerse motor block; do not touch blades while in operation
Repairability	Authorized after-sales service only, genuine parts
Intended use	Household use only, small quantities
Maximum food temperature (blending arm)	60 °C

Frequently Asked Questions - B575MA FAGOR

How to assemble the blending arm?

Align the blending arm with the motor unit following the positioning marks, then push until you hear a click. To remove, press the release button.

Can I blend hot foods?

Yes, but the food temperature must not exceed 60 °C to avoid damaging the plastic parts.

How to use the whisk for egg whites?

Insert the whisk into the mixer coupling until the notch, then attach the motor unit. Plug in, select a speed and press the on/off button.

How to clean the mixer?

First unplug. The bowl and measuring cup, as well as the whisk, are dishwasher safe. The motor unit, chopper lid, coupling and blending arm must never be immersed: clean them with a damp sponge.

How to use the chopper?

Place the blade in the bowl, add ingredients, close with the lid, then attach the motor unit. Plug in and operate the on/off button. Use turbo for faster chopping.

What to do if the mixer does not start?

Check that the blending arm or accessory is properly clicked in. Make sure the appliance is plugged in and the socket works. If the problem persists, contact authorized after-sales service.

Can I blend very hard ingredients with the chopper?

The chopper is intended for foods such as dried fruits, herbs, hard-boiled eggs or dry bread. Avoid bones or very hard foods that could damage the blade.

How to adjust the speed?

Turn the speed regulator on the motor unit to select the desired speed. Press the Turbo button to reach maximum speed instantly.

Can I use an extension cord?

It is not recommended to use extension cords. If necessary, use an extension cord that complies with safety standards and do not exceed the indicated maximum power.

How to store the appliance?

Clean and dry all parts. Wind the cord without bending. Store the mixer and its accessories in a dry place, out of reach of children.

USER MANUAL B575MA FAGOR

B-415 P 400 W
B-515	M	500 W
B-575	MA
B-615	M	600 W
B-675	MA

Voltage: 230V 50Hz

B-415 P 400 W
B-515	M	500 W
B-575	MA
B-615	M	600 W
B-675	MA

Voltage: 230V 50Hz

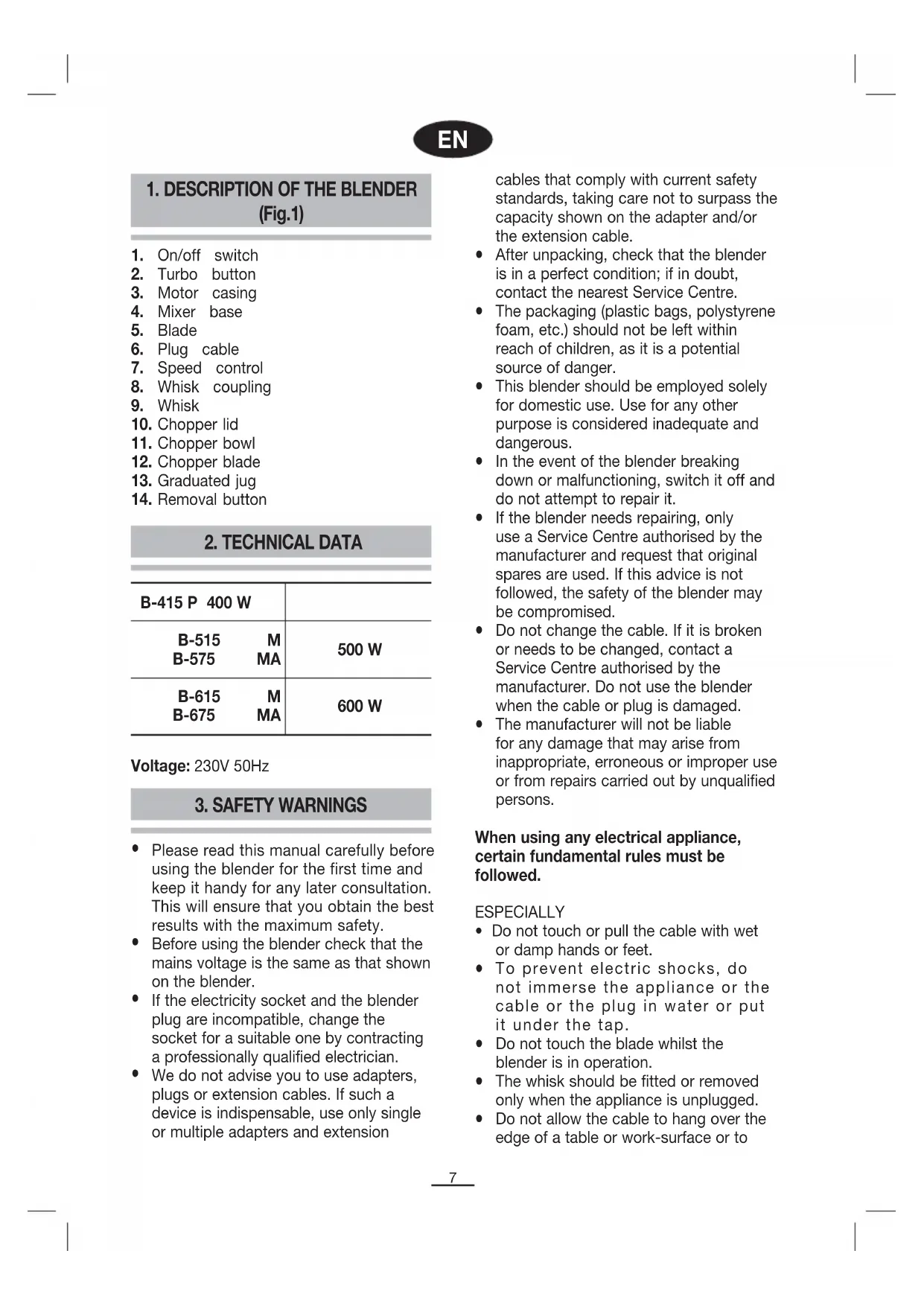

3. SAFETY WARNINGS

B-415 P 400 W
B-515	M	500 W
B-575	MA
B-615	M	600 W
B-675	MA

Voltage: 230V 50Hz

3. SAFETY WARNINGS

• Please read this manual carefully before using the blender for the first time and keep it handy for any later consultation. This will ensure that you obtain the best results with the maximum safety.
• Before using the blender check that the mains voltage is the same as that shown on the blender.
• If the electricity socket and the blender plug are incompatible, change the socket for a suitable one by contracting a professionally qualified electrician.
• We do not advise you to use adapters, plugs or extension cables. If such a device is indispensable, use only single or multiple adapters and extension

cables that comply with current safety standards, taking care not to surpass the capacity shown on the adapter and/or the extension cable.

• After unpacking, check that the blender is in a perfect condition; if in doubt, contact the nearest Service Centre.
• The packaging (plastic bags, polystyrene foam, etc.) should not be left within reach of children, as it is a potential source of danger.
• This blender should be employed solely for domestic use. Use for any other purpose is considered inadequate and dangerous.
• In the event of the blender breaking down or malfunctioning, switch it off and do not attempt to repair it.
• If the blender needs repairing, only use a Service Centre authorised by the manufacturer and request that original spares are used. If this advice is not followed, the safety of the blender may be compromised.
• Do not change the cable. If it is broken or needs to be changed, contact a Service Centre authorised by the manufacturer. Do not use the blender when the cable or plug is damaged.
• The manufacturer will not be liable for any damage that may arise from inappropriate, erroneous or improper use or from repairs carried out by unqualified persons.

When using any electrical appliance, certain fundamental rules must be followed.

ESPECIALLY

• Do not touch or pull the cable with wet or damp hands or feet.
• To prevent electric shocks, do not immerse the appliance or the cable or the plug in water or put it under the tap.
• Do not touch the blade whilst the blender is in operation.
• The whisk should be fitted or removed only when the appliance is unplugged.
• Do not allow the cable to hang over the edge of a table or work-surface or to

come into contact with hot surfaces. - Do not pull the cable to unplug the appliance. - Unplug the blender when it is not in use, before fitting or removing the mixer base and before cleaning it. - Do not allow children to use the appliance. - Before connecting the blender, ensure that the mixer base is correctly fitted to the appliance. - Do not use or place any part of the blender on or near to hot surfaces (gas or electric hotplates or ovens). - This appliance should not be used by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. - Children should be watched to ensure they do not play with the appliance. - For greater protection, we recommend installing a residual current device (RCD) with an operational residual current not exceeding 30 mA. Ask your installer for advice.

4. OPERATION

Preparing for use

This blender is designed to process small quantities of foodstuff and should not be used for any other purpose.

Before using for the first time, clean the casing of the motor with a damp cloth. Wash the shaft and the blade in hot, soapy water; do not immerse the upper part of the shaft. Dry all the pieces thoroughly.

IMPORTANT: Before fitting or removing any of the parts of this blender, unplug it from the mains.

Blender function

The blender can be used to blend light foods, for making sauces, soups, mayonnaise or puree, for example. Insert the blender stem (4) by aligning the

positioning marks and pressing it into the motor body (3) until you hear a click. (Fig.2) NOTE: To remove the blender stem, press the removal button (14).

After adjusting the blender stem (4), plug in the appliance. Place the food you wish to blend in a suitable container, and position the blender as shown in figure 7. Press the On/Off switch (1). On models B-615M and B-675 MA, select the speed by turning the speed controller (7). If you wish, you may press the turbo button (2) to blend at top speed.

IMPORTANT: Do not use the plastic blender stem (model B-415 P only) to blend any food at a temperature of over 60°C.

Egg white beating function (mod. B-575MA, B-675MA)

Insert the egg white beater into the blender coupler until it fits into place (fig.5). Then fit it to the blender body by aligning the positioning marks and pressing it in until you hear a click (fig. 6). Place the blender in the container, plug in the appliance and press the On/Off button to start beating the egg whites. Use the speed controller to select a speed (models B-615M and B-675 MA), or press the turbo function button. You may use the glass (13) or another type of container for beating the egg whites.

Mincing function (mod. B-575 MA, B-675 MA)

The mincer can be used for fruit and nuts, herbs, boiled eggs, dry bread, etc.

Place the mincer blade (12) in the centre of the bowl (fig. 3). Place the ingredients you wish to mince in the mincer bowl.

Place the mincer lid (10) on the mincer jug, making sure it is correctly aligned with the mincer blade. Insert the motor body (3) in the mincer lid (3) by aligning the positioning marks and pressing it in until you hear a click (Fig. 4). Plug in the appliance and press the On/Off button. Use the speed controller (7) to select a speed (models B-615M and B-675 MA only) or press the turbo button (2) for quicker mincing. When you have finished mincing the food, make

sure you remove the blade from the bowl before taking the food out.

Cleaning and maintenance

Disconnect the blender and unplug it from the mains before carrying out any maintenance or cleaning. Wash all the accessories immediately after use in order to prolong their useful life. Take care when handling the blades, as they are very sharp, and keep them out of the reach of children. The jugs (11 and 13) and the egg whisk (9) are dishwasher safe. The rest of the components are not dishwasher-safe. Use a damp kitchen cloth to clean all external parts.

NOTE: NEVER SUBMERGE THE MOTOR BODY, THE MINCER LID, THE BLENDER COUPLER OR THE BLENDER STEM.

Do not allow the cord to hang over the edge of tables or work surfaces, and do not place it on hot surfaces.

5. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection

centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.
