• This appliance is designed exclusively

for household use for cooking, warming

or defrosting food. In the event of non-

compliant usage, the manufacturer is

exempt from all liability.

• In order to prevent deterioration of your

appliance, never operate it empty or

• Before use, check that any containers are

appropriate for use in a microwave oven

(e.g. heat-resistant glass, porcelain, etc.).

• Do not put anything in the lock holes on

the front, as this could cause damage to

your appliance requiring intervention.

• It is not advisable to use metal

containers, forks, spoons, knifes, any

metal attachments, or staples for defrost

bags. However, occasionally you may

warm prepared food in low aluminium

containers (maximum 4 cm) without the

However, the warming time will be slightly

longer. In this case, be careful that the

container is well placed in the centre of

the glass plate and that it is never less

than 1 cm away from the metallic walls or

• For children it is essential:

- when warming teatless bottles, shake

the liquid and test the temperature on

the back of the hand before the child

- in order to avoid serious internal burns,

mix and check the temperature of

children’s food before consumption.

• Warning: Only allow children to operate

3. SAFETY PRECAUTIONS BEFORE CONNECTION:

• Check no damage has been caused

to the appliance during transport (door

dented, seal broken, etc.). If you should

note any damage, contact your supplier

before using the appliance.

• Check the mains voltage. In case of

permanent undervoltage (200 - 210

volts), consult your installing electrician.

• This appliance must be placed on a

work surface at a height of at least 85

• Place the microwave on a flat, horizontal

surface, away from any sources of heat

• Leave a sufficient space between the

appliance and the wall: 5 cm for the side

surfaces, 20 cm above the appliance

and 10 cm behind it.

• Ensure no objects are placed on the

appliance as this could obstruct the

ventilation grilles in the rear part of the

• Ensure the mains plug and socket are

accessible after installation.

• Do not use this appliance outdoors.

ELECTRICAL CONNECTION:

• A mains connection with an earth

terminal and connected in accordance

with applicable safety regulations must

• Your electrical installation should have

a user-accessible device for separating

the appliance from the mains, with a

separation between contacts of at least

• Do not plug in the microwave if the

supply cable or plug are damaged.

In this case, contact your Authorised

Technical Assistance Service.

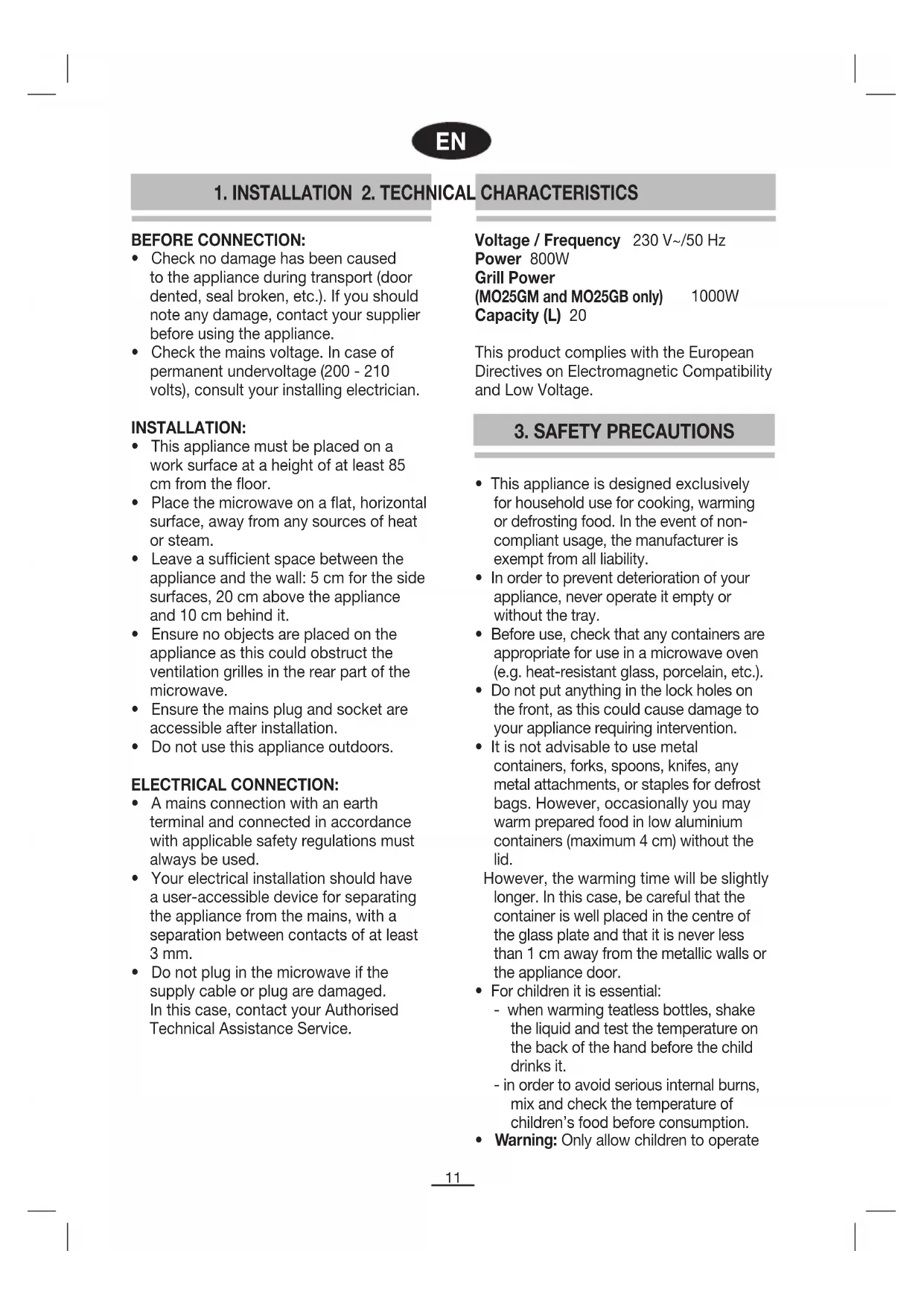

1. INSTALLATION 2. TECHNICAL CHARACTERISTICS Voltage / Frequency 230 V~/50 Hz

Power 800W Grill Power

(MO25GM and MO25GB only)

1000W Capacity (L) 20

This product complies with the European

Directives on Electromagnetic Compatibility

and Low Voltage.the appliance after explaining how to use

it and warning of the risks which may

occur if used incorrectly.

• It should be prohibited to warm or cook

eggs in their shell, boiled or baked as

there is a risk of them exploding and

causing serious burns or irremediable

damage to your oven.

• In most cases it is recommended to cover

food, as the food will be tastier and your

appliance will stay clean. However, before

cooking food or warming liquids in a

bottle or hermetic container you should

remove the cap or top to prevent any risk

• When warming liquids, boiling point may

be reached without the typical steam

bubbles rising to the surface. In order

to prevent boiling over or any risk of

burns, wait 20 seconds before taking the

container out of the appliance or introduce

an element to prevent the liquid from

• In the case of small amounts of food (e.g.

one sausage or croissant), place a glass

of water beside the food item.

• Excessively long times may dry out the

food and carbonise it. To avoid such

incidents, do not use the same times

recommended for cooking in a traditional

• Check the oven frequently when cooking

or warming food in disposable containers

made of plastic, paper or any other

flammable material due to the risk of

• If you see smoke appearing, keep the

oven door closed, and switch off or

disconnect the oven from the power

• Donotusetheovenwiththedoor

open. If the door or the seals are

damaged, the oven must not be used

until it has been repaired by a Certified

• In most cases it is recommendable to

cover the food: it will be tastier and this

also helps keep the microwave clean.

However, before cooking any food or

heating up any liquids in a bottle or

sealed container, remove the cover or lid

to avoid any risk of the food exploding.

• For small amounts of food (a single

sausage, a croissant, etc.), stand a glass

of water beside the food.

• Over-long cooking times may dry up

or char the food. To prevent this from

happening, never use the same cooking

times as for a traditional oven.

• Place the thickest parts of the food

towards the outside of the dish.

• Always check the cooking time. Use the

lowest time indicated, adding more time

if necessary. Overcooked food may give

off smoke or catch fire.

5. RADIO WAVE INTERFERENCE Use of the microwave oven may cause

interference with your radio, TV or similar

equipment. This can be reduced or

eliminated by taking the following measures:

1. Clean the microwave door and the

surface of the seal.

2. Reposition the radio or TV receiving

3. Change the location of the microwave or

the radio/TV receiver.

4. Move the microwave away from the

5. Connect the microwave and the receiver

in different sockets.

• Always make sure that the utensils used

are suitable for microwave use.

• Microwave-permeable material is ideal,

as this allows the energy to flow through

the container to heat up the food.

• Do not use metal utensils or dishes with

metallic patterns on them.13

• TURNTABLE (5): This allows the food to be

evenly cooked without needing to turn it.

- Its rotation is guided by the drive shaft

and the roller support. It turns in either

- If it is not turning, check all the elements

are correctly positioned.

- It can be used as a cooking dish.

- To remove it, press on the outer edge.

• ROLLER SUPPORT (3): Do not attempt

to turn the roller support manually, as this

could damage the drive system. If it is not

rotating correctly, make sure there are no

obstructions under the turntable.

7. DESCRIPTION (Fig. A)

8. FUNCTIONING FUNCTION DIAL (5)

You This dial is used to choose between

the different functions provided by the

This dial allows you to set the operating

times for the microwave.

MICROWAVE FUNCTION The microwave has five power levels

for using the oven only as a microwave.

The power increases as you turn the dial

clockwise. The levels may be classified as

When the rack (9) is used in microwave

function, it must be properly placed on the

Under no circumstances must it be used

with metal containers.

However, you may heat food in a low

aluminium container if you insulate the rack

GRILL FUNCTION (only mod MO-25GB /

operates as a grill.

This function allows you to brown food

such as gratins, meat, etc.

When using the grill, you should protect

your hands when removing food and

use containers that can withstand high

temperatures, such as fireproof glass or

WARNING: The microwave oven becomes

very hot during the gratiné process

therefore keep children away from the

You should wait 25 minutes after use before

• Do not use products made of recycled

paper, as they could contain small metal

fragments that could cause sparks and/

• Round or oval plates are recommended

rather than square or rectangular ones,

as the food at the corners could be

• Thin strips of tin foil can be used to

prevent overcooking of exposed areas.

However, be careful not to use too much

tin foil and make sure it is at a minimum

distance of 2.5 cm from the inside walls

The rack (9) allows you to brown food

at low temperatures when used on grill

COMBINED FUNCTION (only mod.

As its name suggests, this function allows

you to cook using the microwave and grill

functions at the same time. This function

is particularly useful for certain dishes and

the power levels it offers allow you to cook

Microwave Grill Useful for

1. Open the door by pushing the door

2. Place the food in the oven and close the

3. Turn the function setting (5) to the

function and level desired.

4. Choose your timing by turning the timer.

WARNING: The oven starts to function as

soon as you turn the timer.

When you wish to select a function time

of less than 2 minutes, turn the selector

button to at least just past 2 minutes and

then select the correct time.

N.B.: Always turn the timer to zero if you

are going to remove the food before the

cycle ends or when the oven is switched

To pause the oven during operation, press

the door release button (7).

9. IF THE MICROWAVE IS NOT WORKING…

1. Check it is correctly plugged in. If

not, unplug it and wait for around 10

seconds before plugging it in again.

2. Check the fuse and the circuit master

switch. Check the socket is working by

plugging in another appliance.

3. Check the control panel is correctly

programmed and that the timer has

4. Check the door is properly closed.

5. If none of the above solves the problem,

contact the authorised technical service.

10. CLEANING AND MAINTENANCE

• The microwave should be cleaned

regularly, as its surface can be damaged

and this will shorten the lifetime of the

appliance, as well as being dangerous.

• Always unplug the microwave oven

• Use a damp cloth to clean the inside

and outside of the oven, and the frame

and the inside of the door. The frame

and the inside of the door must always

• Do not allow any water to enter the

ventilation grilles.

• Do not use abrasive products, alcohol

or solvents, as these could damage the

• Never wet the control panel. Clean it

with a slightly damp cloth.

• Wash the turntable and the rotating

ring with warm soapy water or in the

• If the oven is very dirty and causes

smells, boil a cup of water containing

lemon juice for 5 minutes. Wash the

walls of the oven with this water and dry

with a soft cloth.15

11. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES At the end of its working

life, the product must not be

disposed of as urban waste.

It must be taken to a special

local authority differentiated

waste collection centre or to

a dealer providing this service. Disposing

of a household appliance separately avoids

possible negative consequences for the

environment and health deriving from

inappropriate disposal and enables the

constituent materials to be recovered to

obtain significant savings in energy and

To remind you that you must collaborate

with a selective collection scheme, the

symbol shown appears on the product

warning you not to dispose of it in

traditional refuse containers.

For further information, contact your local

authority or the shop where you bought the

Medium-low (stredne-

Medium-high (stredne-

"P80" ,"P50" ,"P30" ,"P10" ,"G","C1" "C2".  "P100" ,"P80" ,

10% 30% 50% 80% 100% 

 (20%)  (80%) 
