USER MANUAL MP1530 Difrnce

• Do not subject the device to severe impact or drop it from high position.
• Do not use the player in extreme hot or cold, dusty or damp field. Do not expose it to direct sunshine.
• Back up the data frequently in case of accident data loss.
• Avoid using the player in strong magnetic field.
• Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device.
• Do not use chemical solution to clean the device in order to avoid corrosion. Clean it with a dry cloth.
• We are not responsible for the damages or lost data caused by malfunction, misusing, repairing the device or battery replacement.
• Do not attempt to disassemble, repair or modify the

product. This will invalidate guarantee.

• The design of the player or actual display may be different from what is shown in this manual. It should be subject to the actual display or design.

Key Features

Music Player
Video player
- Image viewer
- Folder Navigation
Voice Recorder

• Removable Storage Device
  Built-in rechargeable li-polymer battery
• Customized settings

Before Using

- Connect to a PC and download audio files

This player is plug & play for WIN2000 or above OS. But for Windows98/SE, you are required to install a driver before connection.

(1) Plug the larger end of the USB cable to the USB port of the PC, and plug the smaller end to the USB port of the player.
(2) When the “” icon appear at the right bottom of the PC screen, double click “My Computer” on the desktop, you see two removable disks that indicate the player. Just use the removable disk as regular local disk, copying files from or to it.

- Removing the player from the PC safely

Please remove the device from the computer in a safe way in order to avoid data loss.

For Windows2000/XP:

(1) Left click the taskbar.

icon at the right hand corner of the

(2) Click the pop-up mini-window with message of "Stop the USB Mass Storage Device - Drive (X)".
(3) When you are prompted to remove the device, pull out the player.

For Win98, please make sure the data transfer is completed before unplugging the player.

- Charge the battery

The device has a built-in lithium-iron rechargeable battery. It is charged via USB connection. You are required to charge it when you use it for the first time. It takes about 3 hours to fully charge the battery.

To charge the battery, connect the larger end of the USB cable to the USB interface of PC, and connect the other smaller end of the USB cable to the USB interface of this player. The device is connected to PC and being charged. If you want to know the charge progress, disconnect the device safely by clicking the “” icon. You see an animating battery icon indicating charge progress. When the icon becomes green, the battery is fully charged.

Please charge the battery immediately when the display

indicates low battery, or the device will be powered off automatically.

Note: For maximum performance, lithium-ion batteries need to be used often. If you don't use the device often, be sure to recharge the battery at least once per month.

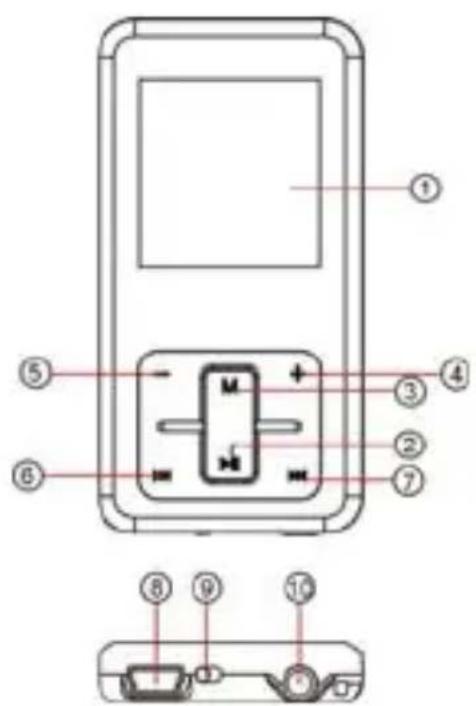

Keys Description

LCD Display
PLAY/PAUSE: Press to play, pause or escape.
MENU: Briefly press to confirm selection. Press and hold to enter the main menu.
VOL+: Increase the volume

VOL: Decrease the volume
PREVIOUS: Play the previous track
NEXT: Play the next track
USB Port
ON/OFF: Push left to turn on the power; push right to turn off the power.
Earphone Jack

Power On/Off

To power on the device, push the ON/OFF button left, and then press and hold the button to turn on the screen.

To power off the device, press and hold the button to turn off the screen, and then push the ON/OFF button right to turn off the power.

Note: This player has a power-saving feature which enables the device to power off automatically if it is idle for about 3 minutes.

Lock/Unlock Buttons

To lock buttons against being pressed accidentally, press and hold the “-” and “M” button together until you see the lock indicator on the screen.

To unlock the buttons, press and hold the “-” and “M” button together again.

Playing music

(1) Turn on the player to see the main menu. (Note:

Pressing and holding the “M” button at any time can send you to the main menu.)

(2) Press / to select "Music" on the menu and then press the "M" button to confirm selection. The music should play immediately.
(3) During music playing, you can execute the following operations.

Function	Operation
Play/Pause	Press the ➔ button to play or pause.
Adjust Volume Press the - / + button to increase or decrease the volume.
Play the previous track	Press the ↗ button.
Play the next track	Press the ↘ button.
Fast Forward Press and hold the button ➔
Rewind Press and hold the button. ↕
A-B Repeat To repeat a specified section of a track, (1) During playing, press and hold the “VOL+” button to select the start point. (2) Press and hold the “VOL+” button again to select the end point. (3) Press and hold the “VOL+” button to stop the section repeat.

(4) Press the “M” button to return to the file explorer mode. You should see the list of music folders and tracks in the current directory. Press the / button to select a folder or track, and press the “M” button to confirm selection or press the button to return to the previous hierarchy of directory.

Playing videos

(1) Press and hold the "M" button to display the main menu.
(2) Press the button to select "Video", and press the "M" button to enter the video player mode.
(3) Press the button to select a video or a folder that contains video files, and press the “M” button to

confirm or press the button to return.

(4) During video playing, you can execute the following operations.

(5)

Function	Operation
Play/Pause	Press the▶按钮 to play or pause.
Adjust Volume Press the - / + button to increase or decrease the volume.
Play the previous video	Shortly press the▶ button.
Play the next video	Shortly press the▶ button.
Fast Forward Press and hold the button.
Rewind Press and hold the button.

(5) Press the “M” button to return to the file explorer mode. You should see the list of video folders and videos in the current directory. Press the / button to select a folder or video, and press the “M” button to confirm selection or press the button to return to the previous hierarchy of directory.

Note: This player can only play AVI videos. For other formats, you need to use the converting tool included on the driver CD to convert them. For detail information about the converter, see AVI Converter Quick User Guide on the CD.

Viewing photos

(1) Press and hold the "M" button to display the main menu.
(2) Press the button to select "Photo" and press the "M" button to confirm.
(3) Press the button to select a folder or image, and press the “M” to confirm or press the button to return.
(4) When you are viewing a photo, you can press the button to display the previous or the next photo.
(5) Press the 11 to start or stop the slide show.
(6) Press the "M" button to return to the file explorer mode.

Note: Depending on the encoding format and resolution, some images may not be displayed. Try to use an image viewer to convert them before viewing.

Reading E-Books

(1) Press and hold the "M" button to display the main menu.
(2) Press the button to select "Text" and press the "M" button to confirm.
(3) Press the button to select a text file, and press the "M" button to open the selected e-book.
(4) When you are reading the e-book, you can: Press the / button to page up or down

manually.

• Press the button to start or stop the slide show. In the slide show mode, the e-book pages up or down automatically (by setting the time interval in Settings/Auto Slide show/Text Browse). If you want to page up or down manually, press the button to stop the slide show.

• Press the "+" button to tag a bookmark on the current page for reading later. The "SaveBookmark" window should appear. Press / to select a location for saving the bookmark, and press the "M" button to confirm or press the button to cancel.

• To go to the page that you marked, press the “-” button to display the “LoadBookmark” window. Press / to select a bookmark and press the “M” button to confirm.

(5) Press the "M" button to stop reading and return to the file explorer mode.

Note: Some TXT file may not be read. This may caused by its unsupported format. Skip it or reload another text file.

Explorer

Browsing all files

To browse all files stored in the player,

(1) Press and hold the "M" button to display the main menu.
(2) Press / to select"Navigation", and press the

"M" button to confirm.

(3) In the file explorer mode, press / to select a folder or file, and press the “M” button to confirm or press the “▶I” button to return.

- Deleting file

To delete a file,

(1) In the file explorer mode, press / to select the file that you want to delete.
(2) Press the " -" button to delete it.
(3) Press / to select "YES" and press "M" to confirm or press the button to cancel.

Voice Recording

(1) Press and hold the "M" button to display the main menu.
(2) Press / to select"Record", and press the "M" button to enter the recorder mode.
(3) Press the button to start recording. During recording, you can press the button to pause or resume recording.
(4) Press the "M" button to stop and save the recording.
(5) To play the recording, press and hold the “M” to display the main menu.
(6) Press 14 / 15 to select "Navigation" and press the "M" button to confirm and enter folder navigation mode.

(7) Press to select the "VOICE" folder and press the "M" button to open it.
(8) Press the 144 button to select the recording file and then press the “M” button to play it. For detail information about playing voice, refer to the “Playing Music” section.

System Settings

To customize the player settings:

(1) On the main menu, select the "Settings" item and press the "M" button to enter the system settings mode.
(2) Press the 14 button to select a setting item and press the “M” button to confirm or press the “▶I” button to cancel and return.

Music	Repeat mode	Once (Play current track once and then stop)
		Repeat One (Repeat current track)
		Folder Once (Play all audio files in the current folder and stop after playing)
		Folder Repeat (Repeat all audio files in the current folder)
		Normal ( Play all audio files stored in the player and stop after playing all )
		Repeat All ( Repeat all audio files stored in the player )
		Intro ( Play the first 10 seconds of every audio file )
	Play mode	Order ( Play audio files in order )
		Shuffle ( Play audio files randomly )
	Preset EQ Normal, 3D, Rock, Pop, Classic, Bass, Jazz, User EQ
Music User- EQ Set (User-defined equalizer setting)	(1) Press the < / ▶ to switch the EQ column. (2) Press the - / + button to adjust the level. (3) Repeat pressing ▶ button until the cursor is on the YES button, and then press the “M” button to confirm. Or, select “No” to quit. (4) Go to the Preset EQ menu, and select User EQ to enable the equalizer setting.
Record	REC Quality High Quality, General Quality
	REC Volume +1、+2、+3、+4、+5
Auto Browse	Text Browse (Set interval between the previous and the next page when the device is in auto page up/down mode.)
	Photo Browse (Set interval between the previous and the next slide in auto slide show mode.)

Display	Backlight Time 5	seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, Always On.
	Brightness (Set the brightness of the screen)
	Backlight mode	Normal Power Save (Turn off the screen when there is no activity within a certain time)
System	About – system information about the player
	Upgrade – upgrade firmware
	Load Default -Restore system settings to default
Power off	Set the continuous working time before the player is turned off automatically.
Language	Select language in which the on-screen text is displayed

Troubleshooting

Problem	Possible Cause	Solution
The LCD displays nothing when the device is started.	Battery is too low.	Charge the battery.
No sound when playing an audio file.	The volume is too low.	Adjust the volume.
	Bad file.	Delete skip the file.
The player cannot be connected to the PC.	The USB interface is not supported by PC's motherboard.	Update or replace the PC's motherboard.
The displayed time is changing constantly.	The bit rate of the MP3 file is changing during playback.	Try to use fixed bit rate to compress the MP3 file.
The PC has error when you plug and unplug the player.	The player is disconnected from the PC abruptly while transferring files.	Do not disconnect the player from the PC when transferring files.
Total memory displayed on the player is not in accordance with the marked amount.	Part of memory is used to store programs and display characters.
Some of MP3 files cannot be played properly.	The MP3 file is compressed by a standard, such as MPEG I Layer 1 or Layer 2 that the player does not support.	1. Delete the unsupported MP3 files. 2. Use MPEG I Layer 3 standard to compress the unsupported MP3 files.
The video cannot be played.	The file format is not supported.	Make sure the video is in AVI format. If not, use the provided converting tool to convert it.
	The data is corrupted	Skipvideo reload another file
The photo cannot be displayed	The file format is not supported	Try to use an image editor to convert it.
	The resolution is beyond limitation of the device.	Theirdagiee supports a maximum resolution of 2048×2048. Make sure resolution of the image does not excess this limitation.
The TXT file cannot be read	The file format is not supported.	Skip it or reload another file.

Technical Specifications

Item	Specification
Hardware IBM PC & Compatible PC, Notebook with USB interface
Operating System	Windows98/SE, Windows Me, Windows 2000/XP or above
Capacity	512MB or above
Battery Type	Rechargeable Li-polymer Battery
Battery Life	About 4 hours for video playing, 8 hours for audio playing
LCD Display	1.5-inch CSTN screen
Earphone P 5mW+5Mw
ower
Video Form at	AVI (XviD)
Audio Form at	MP3, WMA
Photo Form at	JPEG
Image Reso lution	2048×2048 (Max.)
Record For mat	WAV(High: 64kbps/16KHz; General: 32k bps/8KHz)
Bit Rate MP3: 8-320kbps; WMA: 32-384kbps
SNR >90dB
USB Port USB2.0
Operational Temperature	0°C ~ +55°C
Storage Te mperature	-20°C ~ +55°C
Operational Relative Humidity	20% ~ 90% (40°C)
Storage Rel ative Humidi ty	20% ~ 93% (40°C)

Remark: Specifications mentioned above are only for reference and subject to change without prior notice. Please refer to your actual operations.

Package Content

Main Unit, Stereo earphones, USB cable, User Manual, Application CD.
