USER MANUAL CDT 61 X CANDY

and Electronic Equipment (WEEE). Assicurandosi

EC, Waste Electrical Electronic Equipment (WEEE)

VATION DES SUSDITES INSTRUCTIONS.- 20 -

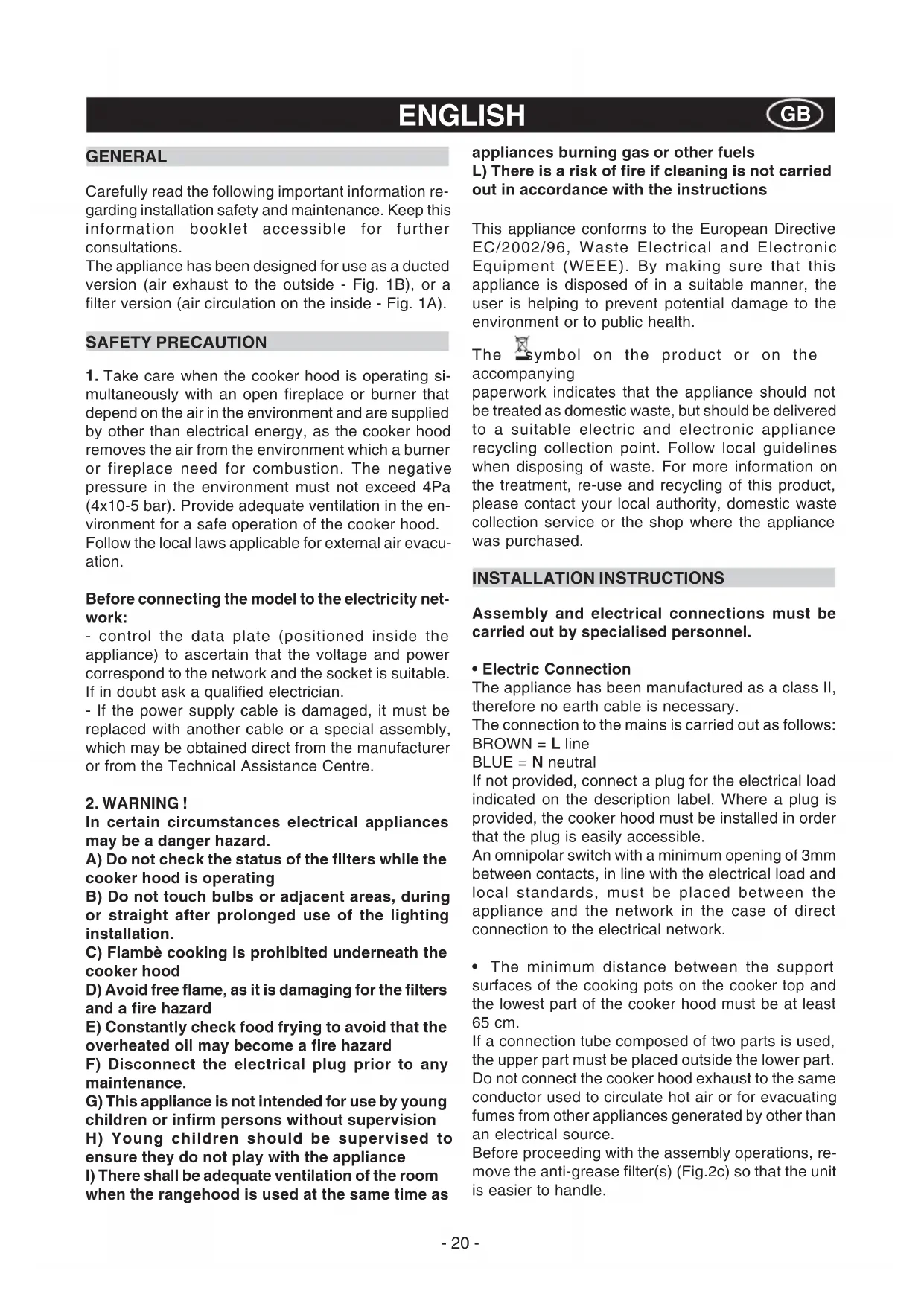

GENERAL Carefully read the following important information re-

garding installation safety and maintenance. Keep this

information booklet accessible for further

The appliance has been designed for use as a ducted

version (air exhaust to the outside - Fig. 1B), or a

filter version (air circulation on the inside - Fig. 1A).

1. Take care when the cooker hood is operating si-

multaneously with an open fireplace or burner that

depend on the air in the environment and are supplied

by other than electrical energy, as the cooker hood

removes the air from the environment which a burner

or fireplace need for combustion. The negative

pressure in the environment must not exceed 4Pa

(4x10-5 bar). Provide adequate ventilation in the en-

vironment for a safe operation of the cooker hood.

Follow the local laws applicable for external air evacu-

Before connecting the model to the electricity net-

- control the data plate (positioned inside the

appliance) to ascertain that the voltage and power

correspond to the network and the socket is suitable.

If in doubt ask a qualified electrician.

- If the power supply cable is damaged, it must be

replaced with another cable or a special assembly,

which may be obtained direct from the manufacturer

or from the Technical Assistance Centre.

In certain circumstances electrical appliances

may be a danger hazard.

A) Do not check the status of the filters while the

cooker hood is operating

B) Do not touch bulbs or adjacent areas, during

or straight after prolonged use of the lighting

C) Flambè cooking is prohibited underneath the

D) Avoid free flame, as it is damaging for the filters

E) Constantly check food frying to avoid that the

overheated oil may become a fire hazard

F) Disconnect the electrical plug prior to any

G) This appliance is not intended for use by young

children or infirm persons without supervision

H) Young children should be supervised to

ensure they do not play with the appliance

I) There shall be adequate ventilation of the room

when the rangehood is used at the same time as

appliances burning gas or other fuels

L) There is a risk of fire if cleaning is not carried

out in accordance with the instructions

This appliance conforms to the European Directive

EC/2002/96, Waste Electrical and Electronic

Equipment (WEEE). By making sure that this

appliance is disposed of in a suitable manner, the

user is helping to prevent potential damage to the

environment or to public health.

The symbol on the product or on the

paperwork indicates that the appliance should not

be treated as domestic waste, but should be delivered

to a suitable electric and electronic appliance

recycling collection point. Follow local guidelines

when disposing of waste. For more information on

the treatment, re-use and recycling of this product,

please contact your local authority, domestic waste

collection service or the shop where the appliance

INSTALLATION INSTRUCTIONS Assembly and electrical connections must be

carried out by specialised personnel.

• Electric Connection

The appliance has been manufactured as a class II,

therefore no earth cable is necessary.

The connection to the mains is carried out as follows:

If not provided, connect a plug for the electrical load

indicated on the description label. Where a plug is

provided, the cooker hood must be installed in order

that the plug is easily accessible.

An omnipolar switch with a minimum opening of 3mm

between contacts, in line with the electrical load and

local standards, must be placed between the

appliance and the network in the case of direct

connection to the electrical network.

• The minimum distance between the support

surfaces of the cooking pots on the cooker top and

the lowest part of the cooker hood must be at least

If a connection tube composed of two parts is used,

the upper part must be placed outside the lower part.

Do not connect the cooker hood exhaust to the same

conductor used to circulate hot air or for evacuating

fumes from other appliances generated by other than

an electrical source.

Before proceeding with the assembly operations, re-

move the anti-grease filter(s) (Fig.2c) so that the unit

is easier to handle.

In the case of assembly of the appliance in the suction

version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust pipe with

a diameter of 150. If a pipe with a smaller diameter is

used, the efficiency of the product may be reduced

and its operation may become noisier

- When installing this product we recommend you

seek the help of another individual.

• Before beginning the assembly procedure, for

easier cooker hood handling, open the packaging,

remove the cooker hood and place it on a convenient

Open the panel by pressing the point indicated in

Remove the aluminium panel by pulling the handle

as indicated in Fig. 2c. If the product is supplied with

active charcoal filters, remove them by pulling the

lever outwards as indicated in Fig. 2d.

The product is supplied pre-assembled. To install it,

- Remove the four screws A as indicated in Fig. 3.

- Separate the bodywork from the frame, removing

the plugs and then the screws B as indicated in Fig. 4.

• Fixing the appliance to a wall

- Position the fixing template on the wall (taking the

minimum distance from the hob into account).

Mark fixing holes and cut them into the material.

- Fix the 2 screws C and the screw anchors (Fig. 6),

without tightening them completely.

- After the necessary adjustments have been made,

fix the motor assembly X in place using the 2 screws

- Fix the air outlet bracket Y to the wall using the 2

- Position the motor assembly X against the wall,

make sure it is in a horizontal position and tighten

the screws C (Fig. 6).

- When carrying out the fixing procedures, use only

screws and screw anchors which are suited to the

type of wall (e.g. reinforced concrete, plasterboard

- If the screws and screw anchors are supplied with

the appliance, make sure that they are suited to the

type of wall to which the hood must be fixed.

- If your model is a filter version, before fixing the

bodywork to the structure, fix the flexible hose C (not

supplied) to the air outlet opening D on the hood and

the air outlet flange E (Fig. 8).

- If your model is a ducted version, remove the grille

F (Fig. 10) only if the air exhaust tube must be passed

through the inside of the air outlet bracket E (Fig. 9).

- Connect the flexible hose C to the air outlet D, which

in turn will be connected to the air exhaust hole made

- Position the bodywork A against the wall (Fig. 7) and

align it with the frame, pushing it upwards (Fig. 11).

- First, fix the side screws D on the bodywork in place

(these are connected to the frame underneath) as

indicated in Fig. 12, then tighten the screws A on the

lower part of the cooker hood as indicated in Fig. 13.

- Electrical connection

Before performing this connection, loosen the 4

screws D on the two boxes and open the cover panels

- Perform the necessary electrical connections

between the cooker hood body and the motor

assembly (Fig. 14A and B).

• We recommend that the cooker hood is switched

on before any food is cooked. We also recommend

that the appliance is left running for 15 minutes after

the food is cooked, in order to thoroughly eliminate

all contaminated air.

The effective performance of the cooker hood

depends on constant maintenance; the anti-grease

filter and the active carbon filter both require special

• The anti-grease filter is used to trap any grease

particles suspended in the air, therefore is subject to

saturation (the time it takes for the filter to become

saturated depends on the way in which the appliance

The acrylic filter, which is found resting on the grille,

should be replaced when the text, visible through the

grille, changes colour and the ink spreads; the new

filter should be fitted in such a way that the text can

be seen through the grille from outside the cooker

If the filters do not have any text on them, or if metal

filters or aluminium panel filters are used, they should

be washed every 2 months in order to prevent the

risk of fire. To wash the filters, proceed as follows:

- Remove the filter from the grille and wash it using a

solution of water and neutral liquid detergent, leaving

- Rinse thoroughly with warm water and leave to dry.

The metal filters and/or aluminium panel are also

dishwasher safe. If the filters are made using

aluminium, or if an aluminium panel is used, after a

few washes the colour may change. This does not

mean they have to be replaced.

If the replacement and washing instructions are not

followed, the anti-grease filters may present a fire

• The active carbon filters are used to purify the air

which is released back into the room. The filters are

not washable or re-usable and must be replaced at

least once every four months. The active carbon filter- 22 -

saturation level depends on the frequency with which

the appliance is used, the type of cooking performed

and the regularity with which the anti-grease filters

• Remove build-up from the fan and other surfaces of

the cooker hood regularly using a cloth moistened

with denatured alcohol or non-abrasive neutral liquid

• The light on the cooker hood is designed for use

during cooking and not for general room illumination.

Extended use of the light reduces the average

duration of the bulb.

• Replacing halogen light bulbs (Fig. 15).

To replace the halogen lamps B, from the inside of

the cooker hood press downwards with two fingers

as shown in Fig. 15.

Replace the bulbs with new ones of the same type.

• COMMANDS: (Fig.16) LUMINOUS the key symbols

are explained below:

A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III F = AUTOMATIC STOP TIMER - 15 minutes

• If your appliance does not have the INTENSIVE

speed function, press key E for two seconds and it

will be activated for 10 minutes after which it will return

to the previously set speed.

When the function is active the LED flashes. To in-

terrupt it before the 10 minutes have expired press

• By pressing key F for two seconds (with the hood

switched off) the “clean air” function is activated. This

function switches the appliance on for ten minutes

every hour at the first speed. As soon as this function

is activated the motor starts up at the first speed for

ten minutes, During this time key F and key C must

flash at the same time.

After ten minutes the motor switches off and the LED

of key F remains switched on with a fixed light until

the motor starts up again at the first speed after fifty

minutes and keys F and C start to flash again for ten

By pressing any key for the exclusion of the hood

light the hood will return immediately to its normal

functioning (e.g. if key D is pressed the “clean air”

function is deactivated and the motor moves to the

2nd speed straight away. By pressing key B the

function is deactivated).

• Active carbon/grease filter saturation:

- When button A flashes at a frequency of 2 seconds,

the grease filters must be cleaned.

- When button A flashes at a frequency of 0.5

seconds, the carbon filters must be replaced.

After the clean filter has been replaced, the electronic

memory must be reset by pressing button A for

approximately 5 seconds, until the light on the button

Electrical and Electronic Equipment (WEEE), zoals

Adhesive brand logo on the lower part of the chimney Silkscreening on body

stainless steel+glass stainless steel

Motor (number x power)

1 x 135W 1 x 135W Lighting (number x power - type)

4x20W - halogen 2 x 40W - bulb lamp

electronic slider mechanical

Air flow EN61591 1st speed (ducted / recirculating) m3/h

Air flow EN61591 2nd speed (ducted / recirculating) m3/h

Air flow EN61591 3rd speed (ducted / recirculating) m3/h

Air flow EN61591 4th speed (ducted / recirculating) m3/h

Max noise level EN60704 (ducted / recirculating) dBa

Noise level sound pressure EN60704 1st speed (ducted / recirculating) dBa

Noise level sound pressure EN60704 2nd speed (ducted / recirculating) dBa

Noise level sound pressure EN60704 3rd speed (ducted / recirculating) dBa

Noise level sound pressure EN60704 4th speed (ducted / recirculating) dBa

Noise level sound power EN60704 1st speed (ducted / recirculating) dBa

Noise level sound power EN60704 2nd speed (ducted / recirculating) dBa

Noise level sound power EN60704 3rd speed (ducted / recirculating) dBa

Noise level sound power EN60704 4th speed (ducted / recirculating) dBa

Filters antigrease (number x type)

Carbon filters (code / description / pcs x pack)

Carbon filters (included / optional)

Timer (included / minutes)

User Manual Languages

1 user manual CZ; 1 standard user manual including GB, FR, GE, SP,

IT, NE, PT Standard user manual including GB, FR, GE, SP, IT, NE, PT Product dimensions

900X mini 690-maxi.1030x 600MM 900Xmin.773 max953x500

Dimensional drawingPhoto

Motor (number x power)

Lighting (number x power - type)

Max Air flow EN61591 (ducted / recirculating) m3/h
