USER MANUAL CDP 6850 CANDY

renderanno utili ai propri prodotti senza compromettere le caratteristiche essenziali.Congratulations!

Thank you for choosing a Candy

appliance; quality dishwashers which

guarantee high performance and

Candy manufacture a vast range

of domestic appliances: washing

machines, washer/dryers, cookers,

microwave ovens, ovens and hobs,

refrigerators and freezers.

Ask your dealer for the catalogue with

the complete range of Candy products.

Please read this booklet carefully as

it provides important information

regarding the safe installation, use,

and maintenance of the machine,

together with some useful advice on

how to achieve the best results from

For future reference please keep this

instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE Your new appliance is fully guaranteed

by the manufacturer for 12 months

against electrical/mechanical break-

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair

of, or interference with, the machine

by any person not authorised by the

manufacturer to carry out service.

C. Any faults which occur due to

any parts which are fitted to the

machine which are not the original

manufacturers parts.

D. Any faults arising from non-domestic

use or unusual or abnormal use of

E. Any faults arising from operation at

F. Any faults arising from incorrect

operation of the machine.

The guarantee applies to Gt Britain

and Northern Ireland only, and is an

addition to your statutory rights.

AFTER SALES SERVICE For service and repairs call your local engineer on our national telephone number:

GIAS Service Tel: 08444 995599

H DIGITAL DISPLAY I "SALT EMPTY" light

9 Width x Height x Depth (cm) 60 x 85 x 60 Depth with door open (cm) 120 EN 50242 place loadCapacity with pans and dishesWater supply pressure (MPa)Fuse / Power input / Supply voltage 15 9 personsMin. 0,08 - Max. 0,8See rating platePower consumption of the off-mode and of the left-on mode: 0,10 W / 0,25 W*Values are measured in a laboratory according to European Standard EN 50242 (consumption mayvary according to conditions of usage).59,8 x 82 x 57,3 117 With working top Without working top14

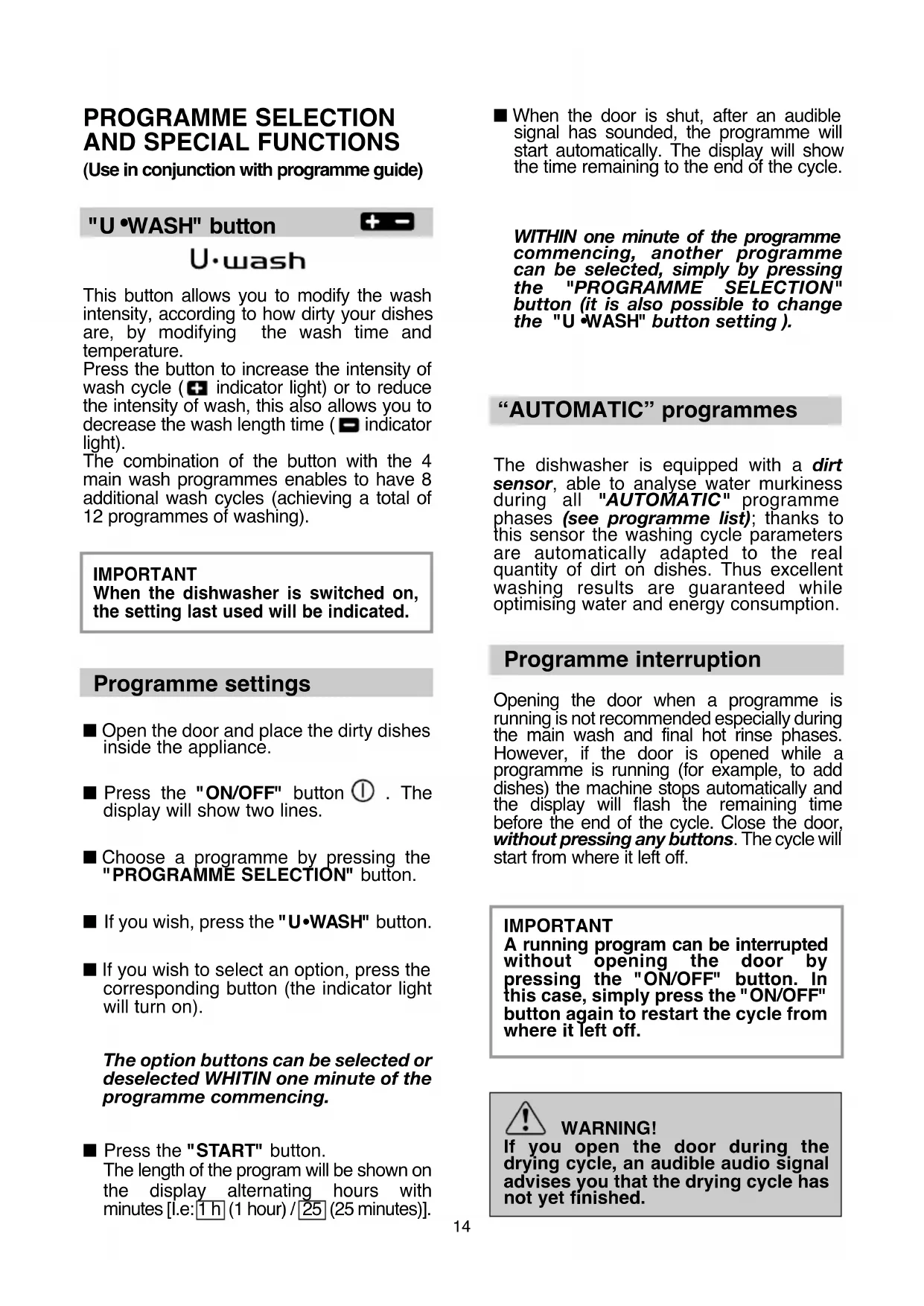

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

This button allows you to modify the wash

intensity, according to how dirty your dishes

are, by modifying the wash time and

Press the button to increase the intensity of

wash cycle ( indicator light) or to reduce

the intensity of wash, this also allows you to

decrease the wash length time ( indicator

The combination of the button with the 4

main wash programmes enables to have 8

additional wash cycles (achieving a total of

12 programmes of washing).

IMPORTANT When the dishwasher is switched on,

the setting last used will be indicated.

■ Open the door and place the dirty dishes

inside the appliance.

■ Press the "ON/OFF" button . The

display will show two lines.

■ Choose a programme by pressing the

■ If you wish, press the "U WASH" button.

corresponding button (the indicator light

The option buttons can be selected or

deselected WHITIN one minute of the

programme commencing.

■ Press the "START" button.

The length of the program will be shown on

the display alternating hours with

minutes [I.e: 1 h (1 hour) / 25 (25 minutes)].

■ When the door is shut, after an audible

signal has sounded, the programme will

start automatically. The display will show

the time remaining to the end of the cycle.

WITHIN one minute of the programme

commencing, another programme

can be selected, simply by pressing

the "PROGRAMME SELECTION"

button (it is also possible to change

the "U WASH" button setting ).

“AUTOMATIC” programmes

The dishwasher is equipped with a dirt

sensor, able to analyse water murkiness

during all "AUTOMATIC" programme

phases (see programme list); thanks to

this sensor the washing cycle parameters

are automatically adapted to the real

quantity of dirt on dishes. Thus excellent

washing results are guaranteed while

optimising water and energy consumption.

Programme interruption

Opening the door when a programme is

running is not recommended especially during

the main wash and final hot rinse phases.

However, if the door is opened while a

programme is running (for example, to add

dishes) the machine stops automatically and

the display will flash the remaining time

before the end of the cycle. Close the door,

without pressing any buttons. The cycle will

start from where it left off.

IMPORTANT A running program can be interrupted

without opening the door by

pressing the "ON/OFF" button. In

this case, simply press the "ON/OFF"

button again to restart the cycle from

If you open the door during the

drying cycle, an audible audio signal

advises you that the drying cycle has

Changing a running programme

Proceed as follows to change or cancel a

■ Hold the "RESET" button down for at

least 5 seconds. "00" will appear on the

display and some audible signals will

■ The running programme will be cancelled.

The display will show two lines.

■ At this point a new programme can be set.

Before starting a new programme,

you should check that there is still

detergent in the dispenser.

If necessary, top up the dispenser.

Programme operations

Whilst a programme is running, the display

shows the time remaining to the end of the

cycle, which is automatically updated.

If there is any break in the power supply

while the dishwasher is operating, a

special memory stores the selected

programme and, when the power is

restored, it continues where it left off.

A 5 second alarm will sound (if not muted)

3 times at 30 second intervals to signal that

the programme has ended.

The display and all the indicator lights will

Dishes can now be removed and the

dishwasher turned off by pressing the

"ON/OFF" button or dishes can be loaded

This button provides an energy and time

saving of 25% on average (according to

the select cycle) reducing the wash water

temperature and the drying time during the

This programme is recommended for light

soil washes, and for slightly wet dishes that

are not fully dry, & improved drying results.

We advise you to leave the door of the

Dishwasher half-open at the end of the

cycle, to allow for a natural circulation of air

inside the dishwasher.

This option optimises the use of "ALL in 1"

("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined

By pressing this button, the selected

washing programme is modified to get best

performance from combined detergents

(furthermore, the salt and rinse aid

shortage lights are de-activated).

Once selected, this option keeps

being on (light on) also for next

washing cycles and it can be de-activate

(light off) only by pressing the button

IMPORTANT This option is recommended when

using the ULTRA RAPID 24' program,

the duration of which will be

extended for about 15 minutes,

allowing the detergent tablets to

achieve a better performance.16

"DELAY START" button

Dishwasher start time can be set with this

button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button ("00"

will appear on the display).

■ Press the button again to increase the

delay in hours (each time the button is

pressed the delay is increased by 1 hour

to a maximum of 23).

■ To start the countdown, press the

The display will show the time remaining

to the begin of the programme.

At the end of the countdown, the programme

will automatically start and the length of the

selected cycle will be shown in the display.

Proceed as follows to cancel a delayed

■ Hold the "RESET" button down for at

least 5 seconds. "00" will appear on the

display and some audible signals will

■ The delayed start and the selected

programme will be cancelled.

The display will show two lines.

■ At this point, a new programme and

option buttons must be set to start a

new programme as indicated in the

"PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END The alarm for the programme end may be

IMPORTANT The dishwasher must ALWAYS be off

before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same

time switch on the dishwasher by

pressing the "ON/OFF" button (a brief

audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds

(during this time 2 audible signals will

3. Release the button when the second

audible signal sounds ("b1" will appear

on the display to indicate that the alarm

4. Press the same button again ("b0" will

appear on the display to indicate that the

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new

To turn the alarm on again, follow the same

AUTOMATIC FAULT SIGNALS Turn off the dishwasher, open the

inlet hose and reset the cycle.

Check if the drain tube is bent or if

the siphon or filters are clogged.

If the problem persists, contact

Check if the drain tube is bent or if

the siphon or filters are clogged.

If the problem persists, contact

Contact Customer Service.

Clean the filter plate.

If the problem persists, contact

FAULTS CAUSE SOLUTION E2

appears on the display and

E3 appears on the display and

E4 appears on the display and

E5,E6,E7,Ef or EL appears

on the display and the alarm

E8 or Ei appear on the display

and the alarm sounds.

No water (inlet hose closed).

The machine cannot drain water.

Electronic control fault.

The water heating element is not

working correctly or the filter plate is

The dishwasher is able to signal a series of faults in the display.

4. Press the same button again ("A1" will

appear on the display to indicate that the

memorization is on).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new

To disable the memorization, follow the

IMPORTANT This dishwasher is equipped with an

anti-overflow safety device which will

automatically discharge any excess

water should a problem occur.

To ensure the correct operation of

the anti-overflow safety device, we

recommend that the dishwasher is

not moved or tilted during operation.

If however it is necessary to tilt or

move the dishwasher, please ensure

that the washing cycle is complete

and that there is no remaining water

inside the dishwasher.

Memorization of the last

The last programme used can be

memorized by following the below:

IMPORTANT The dishwasher must ALWAYS be off

before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same

time switch on the dishwasher by

pressing the "ON/OFF" button (a brief

audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 30 seconds

(during this time, 3 audible signals will

3. Release the button when the THIRD

audible signal sounds ("A0 " will appear

on the display to indicate that the

memorization is off).18

For wash programmes with prewash, it is advisable to add a second dose of detergent (max.

10 g) directly in the machine.

Once a day - for heavily soiled pans and any

other items that have been left all day for

Suitable for heavily soiled items that are to be

washed straight after a meal (Max 8 place load).

Quick wash for dishes which are to be washed

immediately after the meal. Wash load of

Suitable for delicate crockery and glassware. Also

for less soiled items excluding pans.

Short cold pre-wash for items that are stored in

the dishwasher until you are ready to wash a full

Once a day - for normal soiled pans and any other

items that have been left all day for washing.

Programme for normally soiled tableware (the

most efficient in terms of its combined energy and

water consumption for that type of tableware).

Programme standardised to EN 50242.

An antibacterial cycle, intended for washing and

sterilising dishes (even heavily stained ones)

babies’ bottles etc.

Intended for rapid washing of very dirty dishes.

Intended for everyday dishwashing. Two final

rinses ensure a high level of hygiene and

Fast cycle, for “normally” dirty dishes - intended

for frequent washes and normal loads.

= "AUTOMATIC" programmes /( ) = "AUTOMATIC" PROGRAMMES ARE OPTIMISED THANKS TO THE DIRT SENSOR THAT ADAPTSWASHING PARAMETERS TO DISH DIRT LEVELS. ••

A medium temperature programme, intended for

washing pans and dishes that are “normally” dirty,

using detergents which contain enzymes.

N/A = OPTION NOT AVAILABLE

WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAMME IS RUNNING.

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES N/A N/A YES YES YES YES YES YES YES YES YES YES YES20

* The softener unit is set in the factory

at level 4 (d4) as this satisfies the

requirements of the majority of users.

Regulate the setting of your water softener

unit according to the degree of hardness

of your water as follows:

IMPORTANT The dishwasher must ALWAYS be

off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same

time switch on the dishwasher by

pressing the "ON/OFF" button (a brief

audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds,

UNTIL an audible signal sounds. The

current water softener setting level will

be shown on the display.

3. Press the same button again to select

the required water softener level: each

time the button is pressed, the setting

will increase by one level. When you

have reached "d7", the display will go

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new

If any problem occurs, turn the

dishwasher off by pressing the

"ON/OFF" button and start the

procedure again from the beginning

WATER SOFTENER UNIT Depending on the source of the supply,

water contains varying amounts of limestone

and minerals which are deposited on the

dishes leaving whitish stains and marks.

The higher the level of these minerals

present in the water, the harder the water is.

The dishwasher is fitted with a water

softener unit which, through the use of

special regenerating salt, supplies

softened water for washing the dishes.

The degree of hardness of your water can

be obtained from your water supply

Regulating the water softener

with electronic programmer

The water softener can treat water with a

hardness level of up to 90°fH (French

grading) or 50°dH (German grading)

The settings are listed in the table below:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and

electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and recycling of this product, please

contact your local city office, your household waste disposal service or the shop where you

purchased the product.

The manufacturer declines all responsibility in the event of any printing mistakes in this

booklet. The manufacturer also reserves the right to make appropriate modifications to

its products without changing the essential characteristics.22

Touche "DEPART DIFFERE"

"ALLES in 1" ("3 in 1" - "4 in 1" - "5 in 1",

as fases do programa "AUTOMÁTICO"
