❐ The iron must not be left unattended while it is connected to the supply

❐ Remove the plug from the socket before lling the appliance with water or

before pouring out the remaining water after use.

❐ The appliance must be used and placed on a stable surface.

❐ When placed on its stand, make sure that the surface on which the stand

is placed is stable.

❐ The iron should not be used if it has been dropped, if there are visible

signs of damage or if it is leaking water. It must be checked by an

authorized Technical Service Centre before it can be used again.

❐ With the aim of avoiding dangerous situations, any work or repair that the

appliance may need, e.g. replacing a faulty mains cable, must only be

carried out by qualied personnel from an Authorised Technical Service

❐ This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without supervision.

❐ Keep the iron and its cord out of reach of children less than 8 years of age

when it is energized or cooling down.

CAUTION. Hot surface.

Surface is liable to get hot during use.

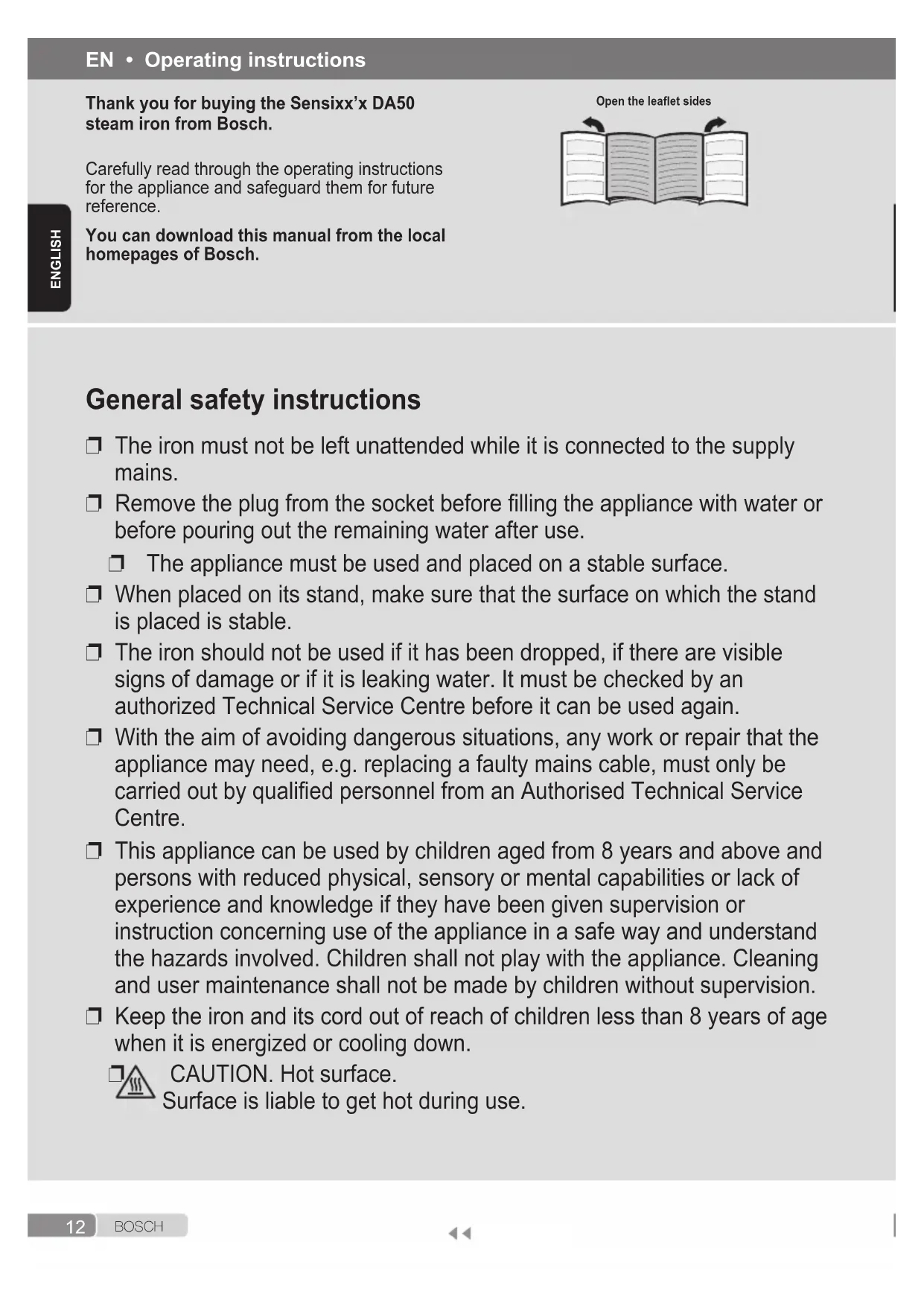

EN • Operating instructions

Thank you for buying the Sensixx’x DA50

steam iron from Bosch.

Carefully read through the operating instructions

for the appliance and safeguard them for future

You can download this manual from the local

homepages of Bosch. Open the leaet sides13

* Model dependent ENglISH Important notices

• This appliance has been designed exclusively

for domestic use and must not be used for

industrial purposes.

• This appliance must be used only for the

purposes for which it was designed, i.e. as

an iron. Any other use will be considered

improper and consequently dangerous.

• The manufacturer will not be held responsible

for any damage arising from misuse or

• This appliance reaches high temperatures and

produces steam during use, this could cause

scalds or burns in case of improper use.

- Do not touch the soleplate! Hold the iron by

- Do not leave the supply cord hanging over

the table or ironing board, to prevent the

appliance from falling.

- Do not iron clothing while it is being worn!

- Never spray or aim the steam at persons or

• Do not allow the power cable to come into

contact with sharp edges or with the soleplate

• Never rest the iron in a horizontal position

when the soleplate is hot. Rest it on its heel.

• Do not touch the appliance with wet hands

• This appliance is to be connected and used in

accordance with the information stated on its

characteristics plate.

• This appliance must be connected to an

earthed socket. If it is absolutely necessary

to use an extension cable, make sure that it

is suitable for 16A and has a socket with an

• The appliance must never be placed directly

under the tap to ll the water tank.

• Unplug the appliance from the mains supply

after each use, or if a fault is suspected.

• The electrical plug must not be removed from

the socket by pulling the cable.

• Never immerse the iron in water or any other

• Do not leave the appliance exposed to

weather conditions (rain, sun, frost, etc.).

Our goods come in optimized packaging. This

basically consists in using non-contaminating

materials which should be handed over to the

local waste disposal service as secondary raw

materials. Your local town council can give you

information about how to dispose of obsolete

This appliance is labelled in

accordance with European

Directive 2012/19/EU concerning

used electrical and electronic

appliances (waste electrical and

electronic equipment – WEEE).

The guideline determines the

framework for the return and recycling of

used appliances as applicable throughout

2. Shot of steam button

Remove any label or protective cover from

During it rst use the iron may produce certain

vapours and odours that will die away after a few

Using your appliance

1. Filling the water tank

 See the leaet sides

This appliance has been designed to use normal

• The addition of other liquids, (unless

recommended by Bosch) such as perfume,

will damage the appliance.

• Do not use condensation water from tumble

dryers, air conditioning systems or similar.

Any damage caused by the use of the

aforementioned products will make the

E Set the steam regulator (3) to the

position and unplug the iron from the

Tip: To prolong the optimum steam

function, you may mix tap water with

distilled water 1:1. If the tap water in your

district is very hard, mix tap water with

distilled water 1:2.

You can inquire about the water hardness

with your local water supplier.

2. Setting the temperature

 See the leaet sides

The temperature control (12) adjusts the

temperature of the soleplate (7).

Set the temperature control to the corresponding

position by lining it up with the temperature index

Temperature Suitable for:

The light (13) switches on while the appliance is

heating up and switches off as soon as the set

temperature is reached. If the temperature of the

hot iron drops, you can continue ironing while

the iron heats up again to the set temperature.

3. Ironing with steam

 See the leaet sides

The steam regulator (3) is used to adjust the

amount of steam produced when ironing.

Recommended position of

Tip: For better ironing results, iron the last

strokes without steam to dry the garment.

This can be used to remove stubborn

wrinkles or to press in a sharp crease or

1. Set the temperature control (12) to “max”.

2. Press the shot of steam button

repeatedly with intervals of at least 5 seconds.

 See the leaet sides

This can be used to remove creases from

hanging clothes, curtains etc.

1. Set the temperature control (12) to “max”.

2. Hang article of clothing on a clothes hanger.15 B O S C H* Model dependentENglISH 3. Operate the iron in a vertical position at a

distance of 10 cm / 4 in, and press the shot of

(2) repeatedly with pauses of

6. Ironing without steam

 See the leaet sides

This enables the iron to be used for dry

Set steam regulator (3) to the

position. DripStop 7. Drip protection *

 See the leaet sides

lf the temperature is set too low, the steam is

automatically switched off to avoid dripping.

There may be an audible click when this occurs.

 See the leaet sides

This can be used to remove stubborn

Do not use the spray function with silk. secure 9. “secure” auto shut-off

 See the leaet sides

The “secure” auto shut-off function switches

off the iron when it is left unattended, thus

increasing security and saving energy.

If your iron is equipped with “secure” function,

you can nd the text “auto off” on handle.

1. Plug in the iron.

2. Initial heating up process: this function will

be inactive for the rst two minutes in order

to give the appliance time to reach the set

3. The safety circuit will switch the appliance off

automatically and the indicator light (15*) will

start ashing in the following cases:

If the iron is not moved for 30 seconds

while resting on its soleplate or on its side.

If the iron is not moved for 8 minutes while

in the upright position.

4. To reconnect the iron, just move it about

 See the leaet sides

1. Switch the steam regulator (3) from to “max”

and back again several times (self- cleaning).

2. Empty the tank. Hold the iron with the point

down and shake lightly.

3. Store standing on the rear, not on the base.

4. Do not wrap the power cord (14) too tight!

Tips to help you save energy

Steam production consumes the most energy. To

help minimise the energy used, follow the advice

1. Start by ironing the fabrics that require

the lowest ironing temperature. Check the

recommended ironing temperature in the label

2. Regulate the steam according to the selected

ironing temperature, following the instructions

3 Only use steam if necessary. If possible, use

the spray function instead.

Try to iron the fabrics while they are still damp

and reduce the steam setting. Steam will be

generated from the fabrics rather than the

If you tumble dry your fabrics before ironing

them, set the tumble drier on the ‘iron dry’

4. If the fabrics are damp enough, turn off the

steam regulator (3) completely.

5. Stand the iron upright during pauses. Resting

it horizontally with the steam regulator on

generates wasted steam.

Cleaning & Maintenance

 See the leaet sides

E Attention! Risk of burns!

Always unplug the appliance from the

mains supply before carrying out any

cleaning or maintenance operation on it.

1. If the iron is only slightly soiled, pull out the

plug and allow the soleplate (7) to cool down.

Wipe the housing and the soleplate with a

damp cotton cloth only.16 B O S C H * Model dependent ENglISH 2. If the cloth is synthetic, it may melt due to the

high temperature on the soleplate, switch off

the steam and rub off any residue immediately

with a thickly folded, damp cotton cloth.

3. To keep the soleplate smooth, you should

avoid hard contact with metal objects. Never

use a scouring pad, or chemicals to clean the

soleplate. AntiCalc Multiple descaling system

 See the leaet sides a self-clean

Each time you use the steam regulator (3), the

“self-clean” system cleans the mechanism of

The “Calc’nClean” function helps to remove

scale particles out of the steam chamber. Use

this function approximately every 2 weeks if the

water in your area is very hard.

Unplug the iron from the mains socket, set

the steam regulator (3) to the

ll the water tank (11) with water.

Set the temperature control (12) to the “max”

position and plug in the iron.

After the necessary warm-up period, the light

(13) goes out. Then, unplug the iron (very

Set steam regulator to the “max” position.

Hold the iron over a sink. Press the “clean”

button (10) and shake the iron until

approximately one third of the water capacity

of the tank is evaporated. Boiling water and

steam will come out, carrying scale or

deposits that might be there.

Release the “clean” button, and gently shake

the iron for some seconds.

Repeat the steps 5 and 6 three times until the

Then plug the iron in and heat it up again until

the remaining water has evaporated.

Push the “clean” button a few times more to

Unplug the iron and let the soleplate (7) cool

down. Wipe the soleplate with a damp cotton

C “Calc’nClean” with descaling liquid *

For deep descaling, it is recommended to use

the descaling liquid especially developed by

Bosch. This procedure should be carried out

1. Fill the water tank (11) with tap water mixed

with a measure (25 ml) of the descaling liquid

2. Then follow the procedure described above in

section “Calc’nClean” (steps 2 to 9).

The descaling liquid may be purchased from our

after-sales service or specialist shops.

Name of accessory: TDZ1101

The “anti-calc” cartridge has been designed to

reduce the build-up of scale produced during

steam ironing, helping to extend the useful life of

your iron. Nevertheless the “anti-calc” cartridge

cannot remove all of the scale that is produced

naturally over time. TextileProtect “TextileProtect” fabric

 See the leaet sides The fabric protector (16 *) is used for

steam-ironing delicate garments at maximum

temperature without damaging them.

The fabric protector may be purchased from our

after-sales service or specialist shops.

Name of accessory: TDZ1550

StoreProtect “StoreProtect” *

The “StoreProtect” accessory (18 *) enables

an immediate and safe storage of the iron,

even with a hot soleplate (7).

This accessory may be purchased from our

after-sales service or specialist shops.

Name of accessory: TDZ175017

1. Temperature control (12) set to

2. The “secure”* system has been

activated (“auto off” indicator

lamp 15* ashes). The iron is set

1. Turn to a higher position.

2. To reconnect the iron, just move it about

1. The temperature is too high. 1. Turn the temperature control (12) down

and wait until the iron has cooled down.

2. Steam regulator (3) is set too

high in conjunction with a low

3. You have pressed the shot of

steam button (2) repeatedly

without waiting for 5 seconds

1. Turn the temperature control to a higher

setting (between “••” and “max”) and wait

until the light (13) goes out.

2. Set the steam regulator (3) to a lower

3. Wait 5 seconds between each press of

the shot of steam button.

1. Steam regulator (3) is set to

2. The temperature is too low.

Anti-drip system is activated.

1. Set the steam regulator to a higher

the iron for the rst

1. This may be caused by the

lubrication of some of the internal

1. This is normal and will stop after a few

1. No proper closing of

“Calc’nClean” system.

1. Actuate a few times the “clean” button

1. Traces of lime scale are coming

out of the steam chamber.

1. Carry out a cleaning cycle

(see “Calc’nClean” section).

If none of the above solves the problem, get in touch with an authorised technical service.18

B O S C H FraNçaISE Consignes de sécurité générales

Anbefalt innstilling for

10. Knapp “clean” (rengöring)

Anbefalt innstilling for

 Ver desplegable a self-clean
