Digiframe 7000SLT - Digital photo frame BRAUN - Free user manual and instructions

Product type	Digital photo frame
Brand	Braun
Model	Digiframe 7000SLT
Screen size	17.5 cm (7 inches)
Resolution	768 x 480 pixels
Aspect ratio	16:10
Power (input)	AC 100-240V, 50/60 Hz
Power (output)	DC 5V, 1A
Supported image formats	JPEG
Supported memory cards	SD, SDHC, MMC, MS
USB port	Mini USB (High Speed 2.0)
Main functions	Slideshow, calendar, alarm, touch menu
Transition effects	More than 10 effects (split, fade, etc.)
Image settings	Brightness, contrast, saturation, color (0-40)
OSD languages	French, English, German, Italian, Dutch, Portuguese, Swedish, Greek
Cleaning	Soft cloth, screen cleaning solution
Safety precautions	Indoor use, avoid humidity, do not block ventilation, do not expose to sunlight, turn off before inserting card/USB, do not disassemble
Package contents	Photo frame, user manual, AC/DC adapter, remote control, USB cable

Frequently Asked Questions - Digiframe 7000SLT BRAUN

How to insert the remote control battery?

Turn the remote control over, press the grooved part of the battery compartment cover and pull toward you. Insert a CR2025 lithium button battery respecting polarity (+). Close the cover.

How to start a slideshow?

Insert a memory card or USB device containing JPEG images. The slideshow starts automatically. You can also press the SLIDE SHOW button on the remote control.

What types of memory cards are supported?

This photo frame supports SD, SDHC, MMC and MS (Memory Stick) cards.

How to adjust the screen brightness?

Go to the Settings menu then Display. You can adjust contrast and brightness from 00 (low) to 40 (high).

What to do if the remote control does not work?

Check the battery (CR2025). Replace it if necessary. Make sure there is no obstacle between the remote control and the frame.

How to copy a photo to the internal memory?

In simple display mode, press SETUP to access the copy screen. Select the image and confirm with OK.

The frame displays no image, why?

Check that the card or USB device contains JPEG files. Make sure it is properly inserted. If the problem persists, format the internal memory in the settings.

How to set the time and date?

In the Settings menu, select Time/Date Setting. Use the ▲▼ buttons to choose year, month, day, hour, minute, second, then ◀▶ to adjust. Confirm with OK.

Can I use the frame as an alarm clock?

Yes, the frame has an integrated alarm clock. You can set it via the Settings menu (not detailed in the excerpt, but the manual mentions an incorporated alarm clock).

How to clean the screen?

Use a soft cloth (e.g., lens cleaning cloth). Dampen it slightly with a screen cleaning solution. Do not use abrasive products.

USER MANUAL Digiframe 7000SLT BRAUN

Top-down view of a black rectangular electronic device with a circular connector and a small white component, no visible text or symbols.

DEUTSCH 3

3. Erste Schritte

4.1 Karte und USB

Four-panel landscape collage showing a lake, karst mountains, a small house, and a river with boats (no text or symbols)

5. Datei

DEUTSCH 5

6. Kalender

Two identical line drawings of a vertical support structure with blue arrows indicating upward motion, no text or symbols present.

1.1 Remote Control....8
1.2 Right Side of Frame....5
1.3 Left Side of Frame....8

1. Installing & Replacing the Battery......8

2. Getting Started....9

3. Operating Instruction 9

4.1 Card and USB....9
4.2 Picture Mode 9

1. File ......10
2. Calendar 11
3. Setup 11
4. Stand Instruction.....12
5. Technical Specifications....12

Troubleshooting Guide....12

Features:

1. Support picture format: JPEG
2. Support memory card: SD/MMC/SDHC/MS
3. USB connection: Mini USB
4. Built-in calendar, clock and alarm clock
5. Support Touch Menu for easy navigation and setting
6. Adjustable slideshow speed and above 10 kinds of transition effects
7. Adjustable brightness, contrast, saturation
8. OSD languages: English, German, French, Italian, Spanish, Portuguese, Swedish, Greek

Packaging Check List:

Digital photo frame, 7000SLT or 8000SLT, User manual, AC/DC adapter, Remote control, Short USB cable (used to connect with USB device)

Introduction:

Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

Cautions

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Please power off the unit before inserting or removing a card or USB device. Failure to do so may cause damage to the card/USB and the unit.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

ENGLISH8

1 Product Diagram

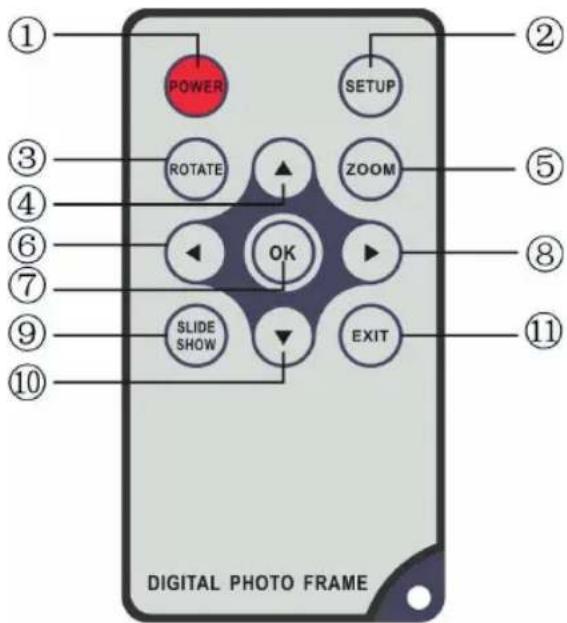

1.1 Remote Control

1. POWER_Switch On/Off
2. SETUP _Enter copy & delete interface.

3. Rotate _In the pause status of single picture, press ROTATE to revolve the picture 90° in counterclockwise each time.

4. ▲_ Functional selection button - top cursor.

5. Zoom_In the pause status of single picture, magnify picture display size.

6. ◀ Functional selection button - left cursor

7. OK_ Press to confirm. Play/pause: In single picture mode, press it to start slideshow; In slideshow mode, Press it to pause, then repress it to play.

8. ▶_ Functional selection button - right cursor

9. SLIDE SHOW_Press to start slideshow directly
10. ▼_ Functional selection button - bottom cursor.
11. EXIT _Press to return to upper page, or enter the main menu

1.2 Touch Buttons

1. Power
2. Menu
3. Up
4. Down
5. Play / Pause/OK
6. Left
7. Right
8. Return

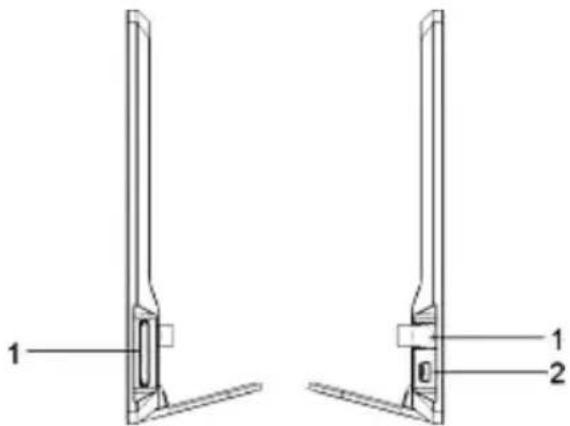

1.3 Right Side of Frame

1. SD/SDHC/MS/MMC

1.4 Left Side of Frame

1. DC 5V
2. MINI USB

2. Installing & Replacing the Battery

Place the upside of the remote control down, press down on the ridged area of the battery cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the positive "+" side facing you. Reinsert the tray.

Top-down view of a black rectangular electronic device with a white connector and a small circular component (no visible text or symbols)

ENGLISH 9

3. Getting Started

3.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side the frame.

Note: There are different positions for the digital photo frame stand. Please refer to "Stand Instruction".

3.2. Remove the protective film covering the LCD.

3.3. Remove the plastic battery insulator from the battery compartment and make sure the remote control has a battery inside. Please refer to "Installing & Replacing Battery" if you need a new battery.

3.4. Power on the unit by pressing the Power button on the remote control or at the front of the unit.

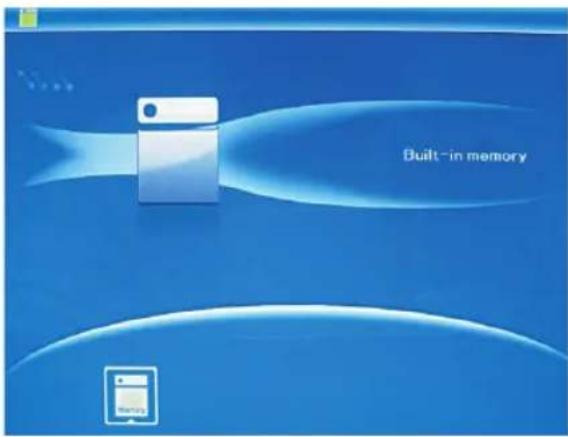

4. Operating Instruction

After turning on the unit, it will show the startup picture, press EXIT to get to the card select interface.

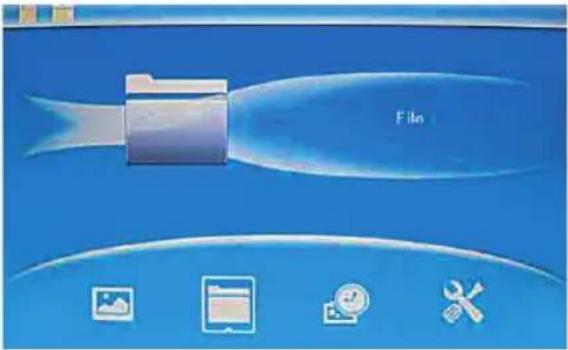

4.1 Card and USB

It supports SD/SDHC/MMC/MS and USB 2.0. After inserting a card or USB device, slideshow will play automatically, then press EXIT twice to access to photo, file, calendar and setup. Press OK to confirm.

Note:

Make sure there are supported picture files in the Card or USB device.

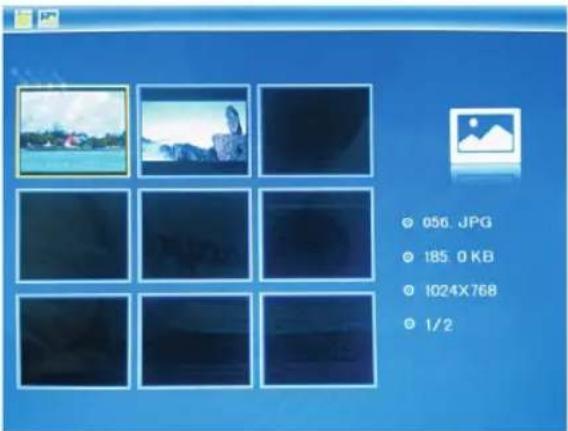

4.2 Picture Mode

Press EXIT to choose "MEMORY CARD" in the main menu. Highlight Photo, press OK to access to the nine-picture mode, use ▲▼◀▶ to choose the picture, press OK to play the picture in single window.

Press OK to start slideshow pictures in the selected slide mode.

ENGLISH10

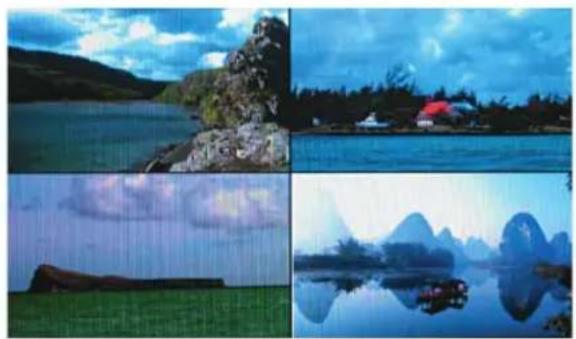

Change slide mode as follows: press SETUP to choose SLIDE MODE (single /triple/ four windows), select with ▲▼, press OK to confirm.

Four-panel landscape collage showing a lake, karst mountains, a small boat, and a misty lake under cloudy skies (no text or symbols)

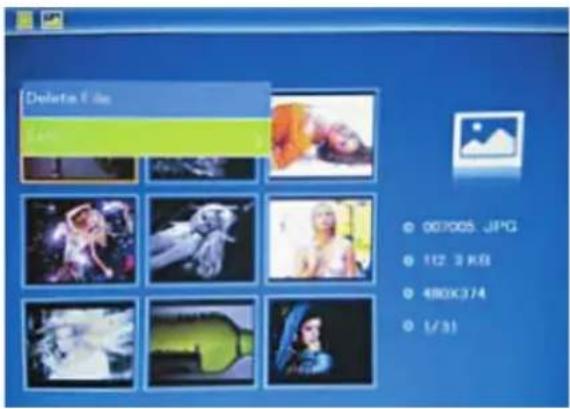

Copy & Delete function

In 9 - picture mode (8000SLT)/6-picture mode(7000SLT), use ▲▼◀▶ to select the picture you want to copy to the built-in memory, press OK to enter the single-picture mode, then press SETUP to enter copy interface, press OK to confirm.

In 9 - picture mode(8000SLT)/6-picture mode(7000SLT), use ▲▼◀▶ to select the picture you want to delete, then press SETUP to enter delete interface, press OK to confirm.

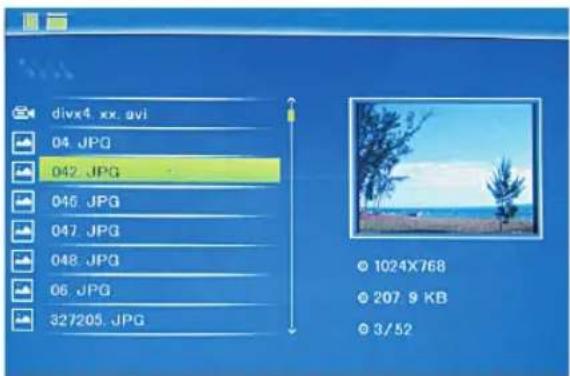

5. File

Press EXIT to choose "MEMORY CARD" in the main menu. Press File, then press OK to access to file interface. You can browse all the files in the memory card in this mode, and delete files in built-in memory or external device.

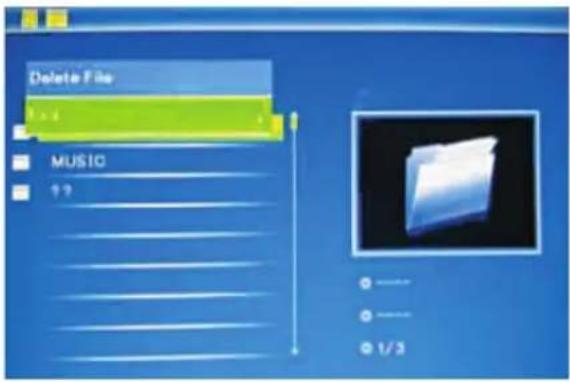

Delete function

Use ▲▼ to select the file you want to delete, then press SETUP to enter delete interface, press OK to confirm.

ENGLISH 11

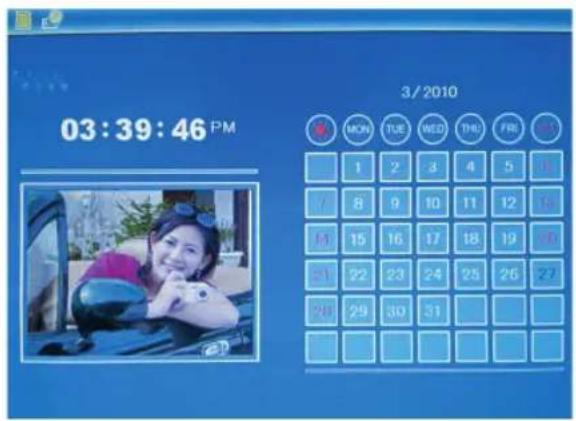

6. Calendar

Select Calendar from the main menu, press OK to enter. The time is displayed on the top of left side. under the time, the pictures in the memory card slidshow automatically.

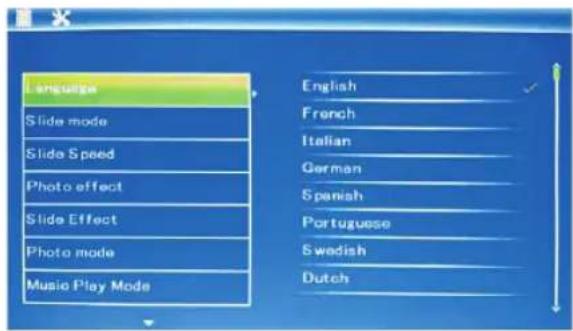

7. Setup

Select Setup from the main menu, and then press OK to access to Setup interface. Use ▲▼ to select the item you want to set up. Press OK to show the sub menu, select with ▲▼, then press OK to confirm.

7.1 Language: English, French Italian, German, Spanish, Dutch, Portuguese, Swedish, Greek

7.2 Slide mode: Single window, Four windows, triple windows

7.3 Slide speed: 3/5/15/30 seconds, 1/5/15/30 minutes and 1 hour

7.4 Photo effect: color, mono, sepia

7.5 Slide effect: random, Split Horizontal in/out, Jalousie, Split Vertical in/out, Radiation, Surround,

7.6 Photo mode: Auto fit, Optiomal, Full

7.8 Display

Contrast: Use ▲▼ to select between 00 (lowest) and 40 (highest).

Brightness: Use ▲▼ to select between 00 (lowest) and 40 (highest).

Saturation: Use ▲▼ to select a point between 00(lowest) and 40(highest).

Tint: Use ▲▼ to select between 00(most color) to 40(least color).

7.9 Set time/date: Press OK, choose setup items with ▲▼ as follows: Year, Month, Date, Hour, Minute, Second, press OK, use ◀▶ to set, Press Save Time to confirm.

7.10 Set time format: 12/24, Press OK, select with ▲▼, press OK, then use ▲▼ to set, press OK to confirm.

7.11 Format built-In memory: Press OK, choose No/Yes with ▲▼, Press OK to confirm.

7.12 Reset setting: Press OK enter, use ____ to select or unselect to reset all settings to default values, press OK to confirm.

7.13 Exit: Press to exit setup interface.

ENGLISH12

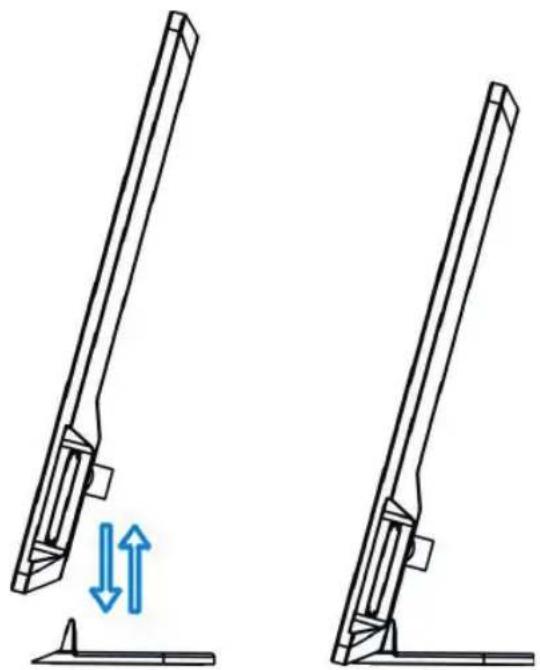

8. Stand Instruction

Insert the bracket into the slots of the digital photo frame. Please check and make sure the bracket is locked in place before standing the photo frame up. Please refer to the illustration shown below

Two identical line drawings of a mechanical lever with blue arrows indicating downward motion (no text or symbols)

9. Technical Specifications

Adapter

Input: AC 100-240V 50/60HZ

Output: DC 5V/1A

Picture Formats:

JPEG

Memory Cards:

SD/SDHC/MMC/MS

USB:

USB Host( high speed 2.0 connected with the short USB Cable)

Screen Parameter:

DigiFrame 8000 SLT:

Screen Size: 20 cm (8 inch) TFT

Aspect Ratio: 4:3

Resolution:800X600 Pixel

DigiFrame 7000 SLT:

Screen Size: 17.5cm (7inch) TFT

Aspect Ratio: 16:10

Resolution: 768x480 Pixel

10.Troubleshooting Guide

If you are having problems with your player, please consult both this guide and manual. If you need further assistance, please contact Technical Support.

- No power:

Please check whether the plug is inserted correctly.

- Remote control no function:

Please check whether the battery has power (the battery can be used for half a year in normal conditions). Replace with new battery if necessary.

- Can not read the CARD or USB:

Please confirm whether there is storage in the card or USB device.

Empty devices cannot be read.

- Can not play the file:

Please confirm if the file format is compatible with the player.

• Display too bright or too dark:

Please adjust the brightness or contrast in the setup menu.

• The color is light or no color:

Please adjust the color and contrast setup.

FRANÇAIS

Table des matières

Top-down view of a black rectangular electronic device with a white connector and arrow indicator (no text or symbols)

FRANÇAIS 15

3. Premiers pas

4.1 Carte et USB

Four-panel landscape collage showing a lake, karst mountains, a small house, and a river with boats (no text or symbols)

5. Fichier

FRANÇAIS 17

6. Calendrier

Two identical line drawings of a vertical support structure with blue arrows indicating upward motion (no text or symbols)

Top-down view of a black rectangular device with a white circular component and an arrow pointing upward (no visible text or symbols)

ITALIANO 21

4.1 Scheda e USB

Four-panel landscape photo showing a rocky lake, a red-roofed building, a blue lake with clouds, and a misty mountain range reflected in water.

ITALIANO 23

6. Calendario

Two identical line drawings of a mechanical lever with blue arrows indicating downward motion (no text or symbols)

Top-down view of a black rectangular device with a white lid and a small arrow pointing upward (no text or symbols visible)

ESPAÑOL 27

3. Primeros pasos

4.1 Tarjeta y USB

Four-panel landscape collage showing a lake, a red-roofed cottage, a misty mountain peak, and a green grassy field under a cloudy sky (no text or symbols)

ESPAÑOL 29

6. Calendario

Two identical line drawings of a mechanical support structure with blue arrows indicating downward motion (no text or symbols)

Top-down view of a black rectangular device with a white lid and a small protruding knob (no text or symbols visible)

NEDERLANDS 33

3. Beginnen

4.1 Kaart en USB

Four-panel collage showing a lake, karst mountains, a small village, and a scenic landscape with reflections in the water (no text or symbols)

5. Bestand

NEDERLANDS 35

6. Kalender

Two identical line drawings of a mechanical lever with blue arrows indicating downward motion (no text or symbols)

9. Technische specificaties

Adapter

Input: AC 100-240V 50/60 Hz

Output: DC 5V/1A

Fotoformaten:

JPEG

Geheugenkaarten:

SD / SDHC / MMC / MS

USB:

Top-down view of a black rectangular electronic device with a circular connector and a small white component, no visible text or symbols.

PORTUGUÉS 39

3. Primeiros passos

Four-panel landscape collage showing a lake, karst mountains, a small house, and a river with boats (no text or symbols)

PORTUGUÉS 41

6. Calendário

Two identical line drawings of a vertical support structure with blue arrows indicating upward motion (no text or symbols)

INNEHÅLLSFÖRTECKNING

1. Produktredovisning....44

4.1 Kort och USB

Four-panel landscape collage showing a lake, karst mountains, a small red-roofed building, and a misty lake with a small boat (no text or symbols)

Funktion koplera & radera

5. Fil

SVERIGE 47

6. Kalender

Two identical line drawings of a mechanical lever with blue directional arrows indicating motion or force (no text or symbols)

Top-down view of a black rectangular object with a small protruding knob and an arrow pointing upward (no visible text or symbols)

GREEK 51

3. Πρώτα βήματα

4.1 Káρτα και USB

Blue background with a stylized white object resembling a rocket or missile, no visible text or symbols.

Four-panel landscape photo showing a misty lake, karst mountains, and a small red-roofed structure under a cloudy sky (no text or symbols)

GREEK 53

6. Ημερολόγιο

Two identical line drawings of a mechanical lever with arrows indicating motion, no text or symbols present.
