USER MANUAL CAM4505 COBY

Snapp™ Digital Camcorder

Instruction Manual

ES

Camera Screen at a Glance 22

Taking a Photo 23

Camera Controls 24

Camera Options Menu 25

REVIEW MODE 27

Review Screen at a Glance 27

Review Mode Controls 28

Review Options Menu 29

CONNECTING TO A TV 32

Transferring Video and Photo Files 33

35

SETTING THE SYSTEM OPTIONS 36

USING THE INCLUDED SOFTWARE 39

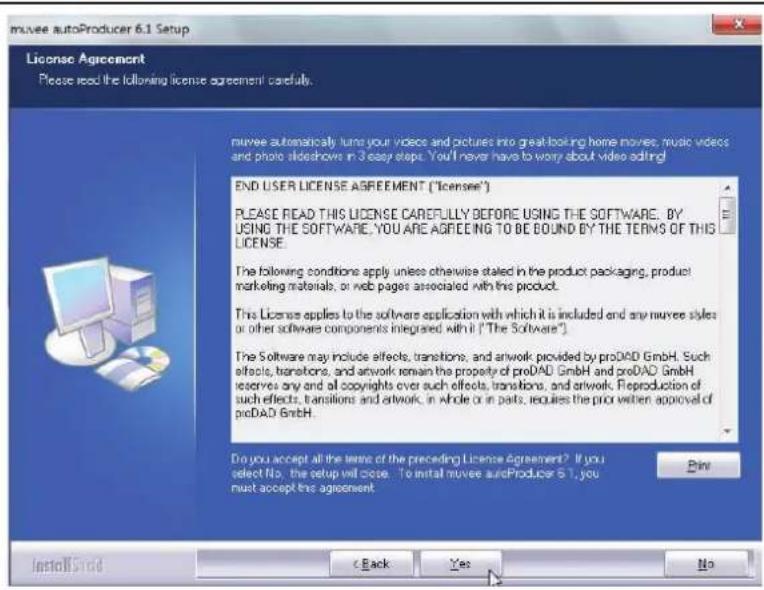

Installing muveeTM auto Producer. 40

Using muveeTM autoProducer 45

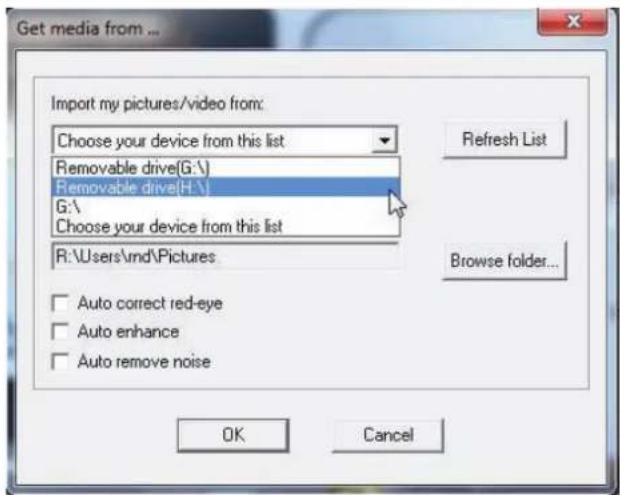

Making a muveeTM 46

Table Of Contents Page 3

WEBCAMERAFUNCTION 50

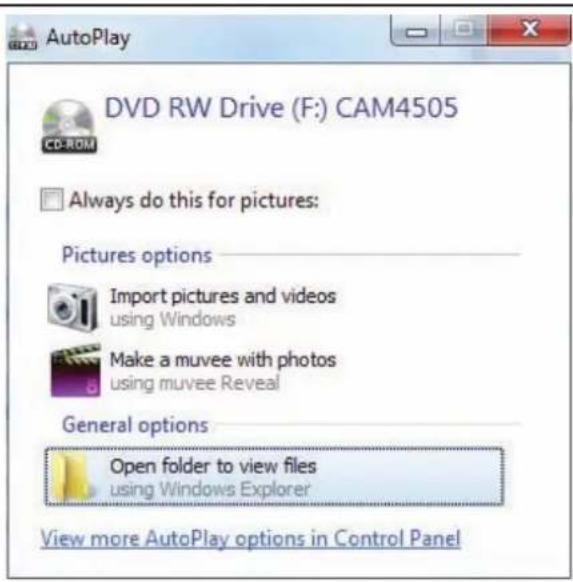

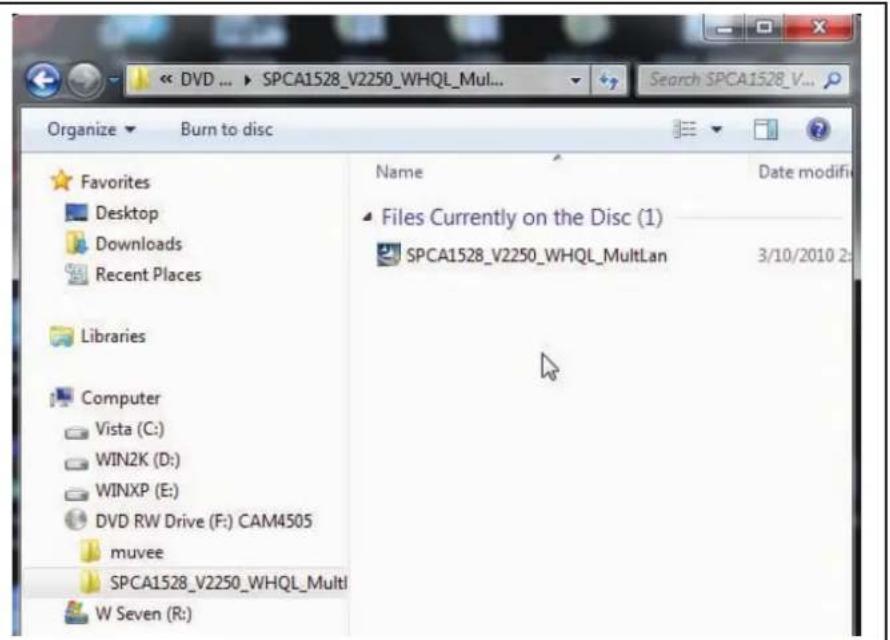

Installing the Web Camera Driver 51
Using the Web Camera 56

SPECIFICATIONS 57

TROUBLESHOOTING & SUPPORT 58

SAFETY & REGULATORY STATEMENTS 60
FCC Statement 61
Important Safety Instructions 62
Maintenance and Care 63

Table Of Contents Page 5

Thank You

Thank you for purchasing this product from Coby Electronics. For optimal performance and safety, please read this manual carefully. Before connecting, operating, or adjusting this product, please read the instructions completely. Please retain this manual for future reference.

Package Contents

Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product.

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to safely dispose of all packing materials after opening.

Main unit: CAM4505

AV cable +

USB cable

Hand strap

Pouch

Installation CD

Instruction Manual

Features

Brilliant 2.0" TFT LCD full color display
Over 2 hours of video recording (with SDHC card)†
+ Camera mode lets you take 3 MP photos*
Advanced features including web camera and digital zoom

View recorded videos and photos on a TV + with the included A/V cable

Edit video and upload to YouTubeTM with included software from muveeTM

Supports SD/SDHC cards up to 16 GB in size

Integrated Hi-speed USB 2.0 plug for fast file transfers

Rechargeable lithium-polymer battery

† 2 hours of video recording based on use with 4GB SDHC card. SDHC card not included. Actual record time may vary.
Function available in Windows only.
* 5MP interpolated resolution; 3MP optical resolution.

Camcorder at a Glance

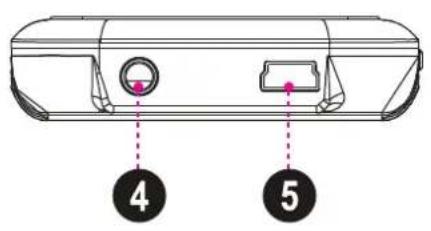

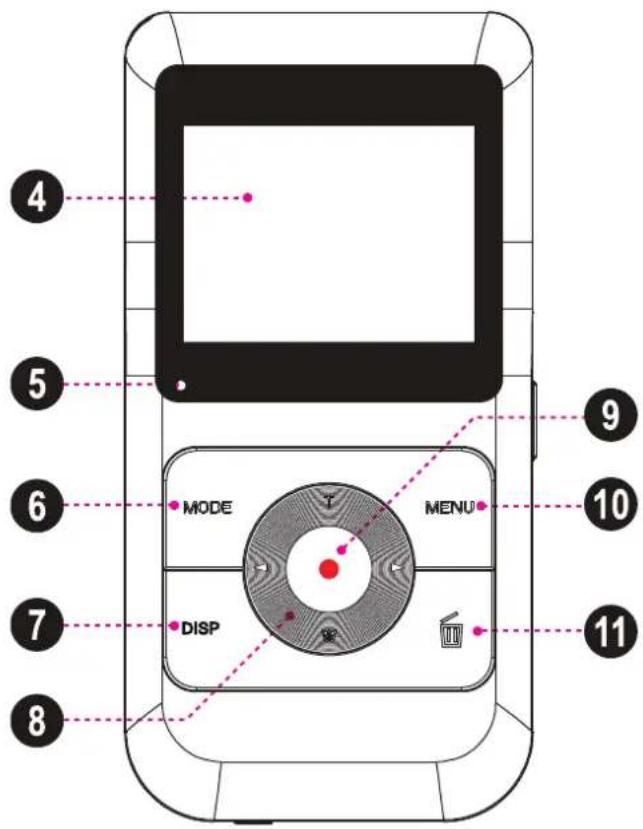

Part Name			Function Mode/Description
			Camcorder Camera Review

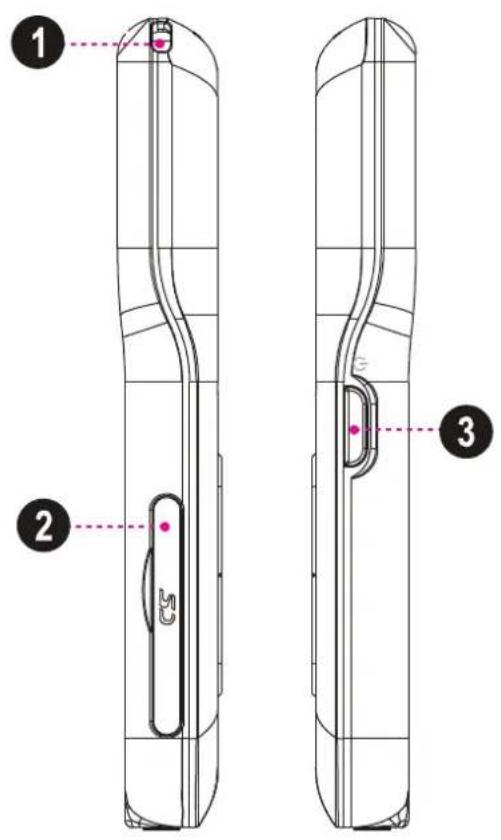

1	Strap mount Attach the included hand strap here.
2	SD card slot Load SD or SDHC memory		cards here.
3	[Power]		Press and hold to turn the camcorder on or off.
4	AV output connector		Connection to view your photos and videos on a TV. Use with the included A/V cable.
5	USB connector		Connection to charge/transfer files to a computer. Use with the included USB cable.

Part Name			Function Mode/Description
			Camcorder Camera	Review

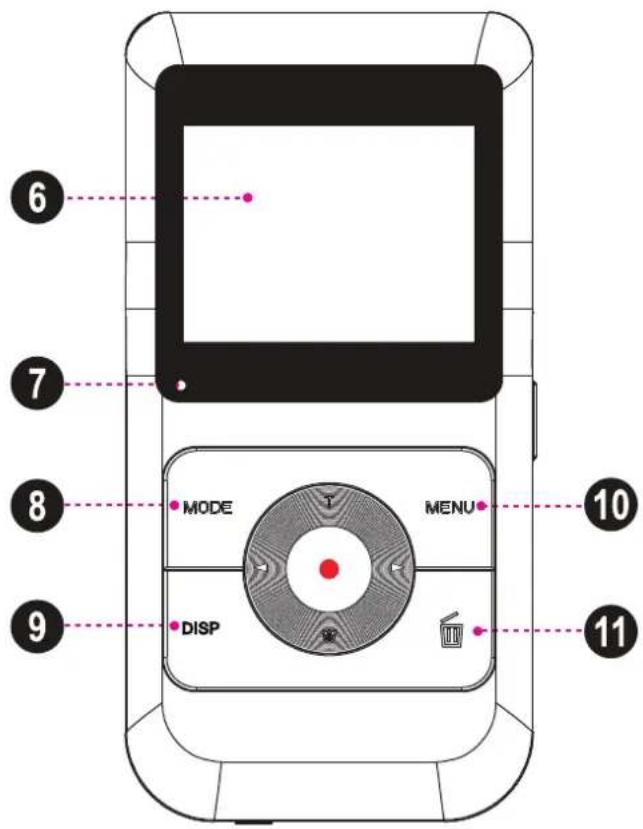

6 D	splay LCD screen.
7 C	Charge indicator		Lights red when the camcorder is charging. Lights green when the camcorder is fully charged.
8 [MODE]		MODE	Change the function mode.
			Change the connection mode when connected to a computer (camcorder, MSDC disk, PC web cam)
9 [DISP]		DISP	Change the movie record- ing size.	Change the photo resolu- tion.	Change the display mode (fullscreen, thumbnail).
					During video review only: Toggle the on-screen display.
10 [MENU]		MENU	Access the option menu. -- --
11 [DELETE]		@	-- -- Delete the selected file.

Part Name			Function Mode/Description
			Camcorder Camera	Review
12	[UP]	#	Increase the zoom level. Increase the zoom level.		Photo review only: Increase the zoom level.
			Menu: Browse the menu list.
	[DOWN]	#	Decrease the zoom level. Decrease the zoom level.		Photo review only: Decrease the zoom level.
			Menu: Browse the menu list.
	[LEFT]	#	-- -- View the previous file.
			Menu: Return to the previous screen.
	[RIGHT]	#	-- -- View the next file.
			Menu: Go to the next option screen.
13	[RECORD/OK]	#	Start or stop recording a video.	Take a photo.	Toggle “pan” mode when the zoom level is greater than 1. When “pan” mode is active, use the direction keys to pan around the magnified photo.

Part Name			Function Mode/Description
			Camcorder Camera Review

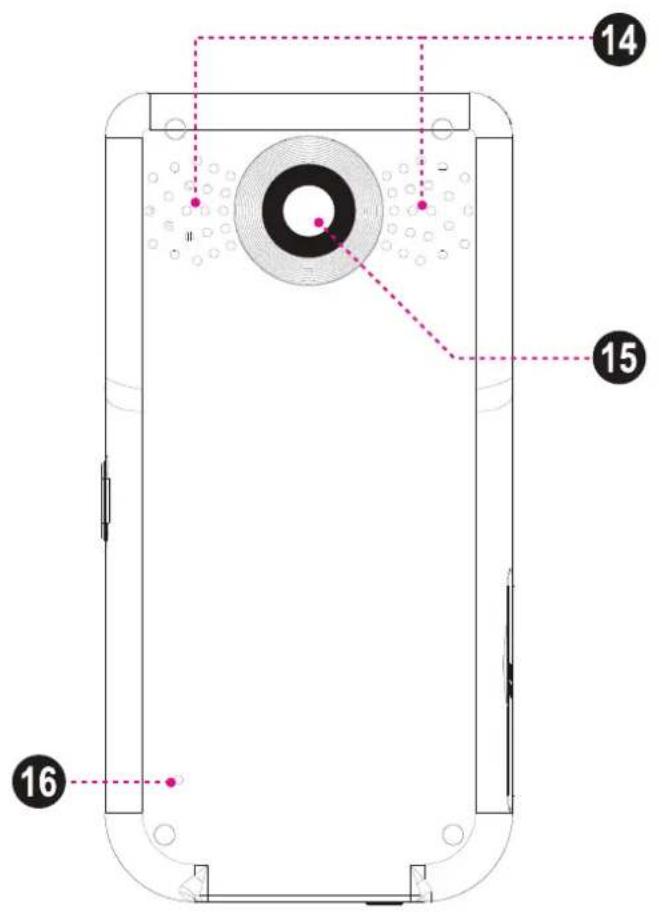

14 Speakers Sound output.
15	Lens		Shoot video and photos. Avoid touching or scratching the lens surface.
16 [RESET]		RESET	Reinitialize the unit. Gently press this button with a paper clip should the unit freeze or otherwise behave abnormally.

Camcorder At A Glance Page 15

Getting Started

Please read and complete the following steps to begin using your digital video camcorder.

Inserting a Memory Card

Use an SD/SDHC memory card to expand your digital video camera's available memory. The CAM4505 can accommodate memory cards of up to 16GB. Install a memory card by inserting it gently into the SD card slot on the leftside of the video camera.

To remove the memory card, press it further into the card slot and then release. The card should automatically eject from the slot. Grasp it by the edge and pull gently to fully remove.

To avoid data corruption, turn off the digital video camera before inserting or removing a memory card.

Do not attempt to place any object other than an SD memory card into the SD card slot. A compatible memory card should slide easily into the SD card slot; if you encounter resistance, do not attempt to force the card in.

For information on formatting a memory card, please see the "Setting the System Options" section of this manual.

Charging the Camcorder

Your camcorder has an integrated rechargeable battery. Upon initial use, the battery should be charged fully to ensure optimal performance and battery life. If the camcorder has not been used in a while, the battery may need to be recharged.

Turning the Camcorder On

To turn the camcorder on, press and hold until the screen turns on.

To turn the camcorder off, press and hold until the screen turns off.

Upon initial use, the battery should be charged fully to ensure optimal performance and battery life.

The battery used in this device may present a fire or chemical burn if mistreated. Do not disassemble, incinerate, or heat the battery. Do not leave the device in a place subject to direct sunlight, or in a car with its windows closed.

Do not connect the device to a power source other than that which is indicated here or on the label as this may result in the risk of fire or electric shock.

Function Modes

Your camcorder has three function modes.

Icon Function Mode
	Camcorder Mode. Select to record video clips.
	Camera Mode. Select to take photos.
	Review Mode. Select to play/view video and photo files.

Press the button to change the function mode.

The mode icon displayed at the top of the screen indicates the current function mode.

Camcorder Mode

Use Camcorder mode to shoot videos.

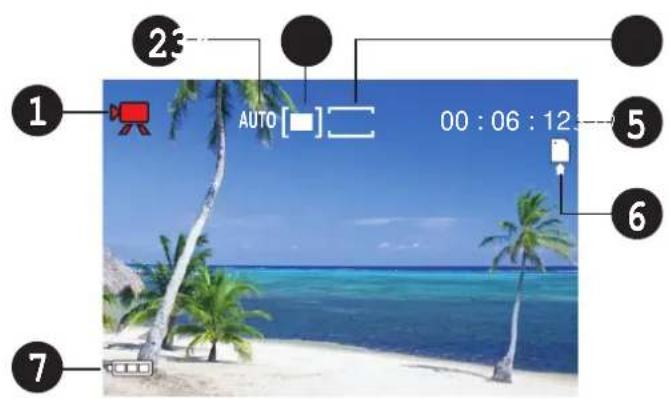

Camcorder Screen at a Glance

Indicator Icon		Description
1 Mode			Camcorder Mode. Press MODE to change.
2 White Balance		Auto	Auto
			Daylight
			Cloudy
			Fluorescent
			Tungsten
3 Metering		[◎]	Center
		[■]	Multi
		[○]	Spot
4 Video Resolution		640	640 x 480
		320	320 x 240
Indicator Icon		Description
5	Timer --		Displays the amount of recording time remaining when recording is stopped. Displays the elapsed recording time when recording.
6	Memory Card	--	Indicates that an SD memory card has been loaded.
7	Battery Level		Full
			Half
		☐☐	Low

Recording a Video

When the camcorder is in Camcorder mode:

Press to begin recording.

Press to stop and save the recording.

Recording will stop automatically when the memory card becomes full.

When the camcorder is recording, the total elapsed recording time is displayed in the upper right hand corner of the LCD screen.

When the camcorder is not recording, the estimated available recording time will be displayed in the upper right hand corner.

Camcorder Controls

Key Action
MODE	Press	Change the function mode.
◎	Press	Start or stop recording a video.
DISP	Press	Change the video size of the recording. The size indicator appears on the top of the screen. [640] = 640 x 480 [320] = 320 x 240 Note: A larger video size will result in larger file sizes.

Key Action
T	Press	Increase the zoom level. The zoom level will appear on the bottom right corner of the screen. Note: The quality of the image will decrease as the zoom level increases.
	Hold	Increase the zoom level quickly.
M	Press	Decrease the zoom level. The zoom level will appear in the bottom right corner of the screen.
	Hold	Decrease the zoom level quickly.
MENU	Press	Access the options menu.

Camcorder Options Menu

When the camcorder is in Camcorder mode, press MENU to access the camcorder options menu.

Press or No browse the menu items.

Press or to select an item and advance to the next screen.

Press to return to the previous menu screen.

Press MENU to exit the menu.

Option Description
Metering	Set the metering mode. Affects the exposure of the image. Center: Measures from the center of the screen. Multi: Measures across multiple zones. Spot: Measures from a small spot at the center of the screen.
White Balance	Set the white balance. Affects the color of the image.

Option Description
Movie Size	Change the video size of the recording. [640] = 640 x 480 · [320] = 320 x 240 ·
Frame Rate	Set the frame rate of the recording. High = 30 frames per second· Low = 15 frames per second·

Camera Mode

Use Camera mode to take photos.

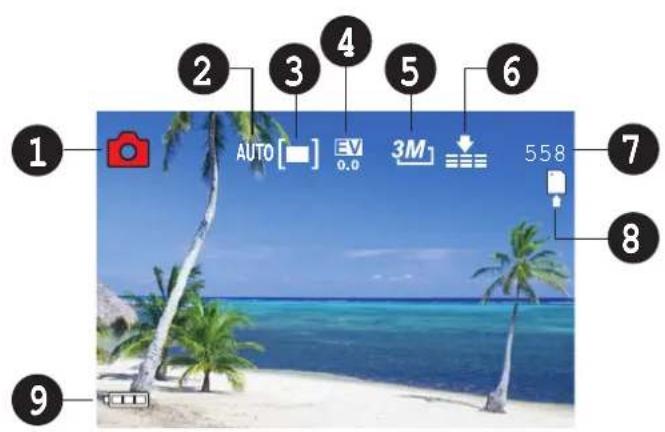

Camera Screen at a Glance

Indicator Icon		Description
1 Mode		Camera Mode. Press MODE to change.
2 White Balance		Auto	Auto
		Daylight
		Cloudy
		Fluorescent
		Tungsten
3 Metering		Center
		Multi
		Spot
4 EV Level		Exposure Value
5 Photo Resolution		5M	5 Megapixels = 2592 x 1944
		3M	3 Megapixels = 2048 x 1536
		1M	1 Megapixels = 1280 x 960
		VGA	VGA = 640 x 480
6 Com-pression Quality		Super Fine
			Fine
		Normal
7 Memory Capacity		--	Displays the number of photos remaining.
8 Memory Card		--	Indicates that an SD memory card has been loaded.
9 Battery Level			Full
			Half
		Low

Taking a Photo

When the camcorder is in Camera mode:

Aim the lens at the subject. Use the screen to frame the subject.

Hold the unit steady. Press to take the photo.

For best results, ensure that the subject is well lit. Image quality will suffer if photos are taken under low-light conditions.

Keep the unit and the subject as still as possible when taking photos under low-light conditions.

Camera Controls

Key Action
MODE	Press	Change the function mode.
◎	Press	Take a photo.
DISP	Press	Change the size of the photo. The size indicator appears on the top of the screen. [5M] = 2592 x 1944 · [3M] = 2048 x 1536· [1M] = 1280 x 960· [VGA] = 640 x 480 · Note: The [5M] setting uses software interpolation to achieve a resolution of 2592 x 1944

Key Action
T	Press	Increase the zoom level. The zoom level will appear on the bottom right corner of the screen. Note: The quality of the image will decrease as the zoom level increases.
	Hold	Increase the zoom level quickly.
M	Press	Decrease the zoom level. The zoom level will appear in the bottom right corner of the screen.
	Hold	Decrease the zoom level quickly.
MENU	Press	Access the options menu.

Camera Options Menu

When the camcorder is in Camera mode, press

MENU to access the camera options menu.

Press or No browse the menu items.
Press or to select an item and advance to the next screen.
Press to return to the previous menu screen.
Press MENU to exit the menu.

Option Description
Resolution	Set the photo resolution. Note: The [5M] setting uses software interpolation to achieve a resolution of 2592 x 1944.

Option Description
Quality	Set the quality of the saved photo image. Super-fine: Low compression results • in a large file size. Fine: Medium compression results in • a medium file size. Normal: High compression results in a small file size
Metering	Set the metering mode. Affects the exposure of the image. Center: Measures from the center of • the screen. Multi: Measures across multiple • zones. Spot: Measures from a small spot at • the center of the screen.
White Balance	Set the white balance. Affects the color of the image.
Exposure	Set the exposure level.A higher value results in a brighter • image.A lower value results in a darker image.
Driver Mode	Activate the self-timer or burst mode.Self-timer 2S: Pause 2 seconds after • pressing ⊙ to take a photo.Self-timer 10S: Pause 10 seconds • after pressing ⊙ to take a photo.Burst: Press ⊙ to take 3 photos in a row quickly.
Effect	Set a photo effect.
Date Stamp	Set a date/time overlay.

Review Mode

Use Review mode to view and play videos and photos that have been saved on your camcorder.

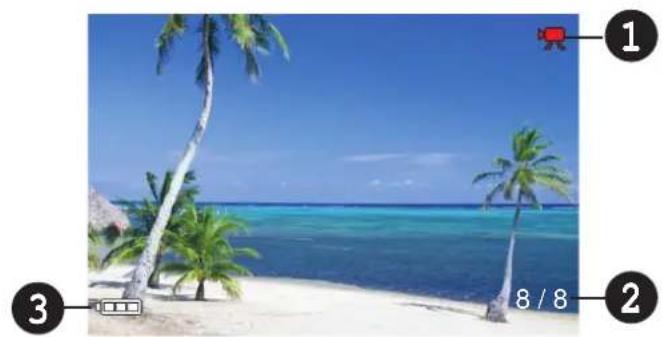

Review Screen at a Glance

Indicator Icon		Description
1 Video
2 File number		Current file / Total files
3 Battery Level

Review Mode Controls

Key Action
MODE	Press	Change the function mode.
DISP	Press	Change the display mode (full screen, thumbnail). Note: Full screen is the default display mode.
	Press	View/select the previous file.
	Press	View/select the next file.
	Press	Full screen mode: Increase the zoom level when a photo file is selected (press to decrease the zoom level). Note: Zoom will not work for video files.
	Press	Thamburger mode: Select the file above.

Key Action
M	Press	Full screen mode: Change to thumbnail mode.
	Press	Thamburger mode: Select the file below.
◎	Press	Full screen mode: Start playback when a video file is selected. Use the keys shown on•screen to control playback. Press MENU to stop the video and return to full screen mode.
		Thumb nail mode: Select and display the current file in full screen mode.
	Press	When you press , the “Delete One” menu will appear. Select “No” to cancel without · deleting the current file. Select “Yes” to delete the · current file. The file will be deleted, and you will have the option to delete the next file on the camcorder.
	Press	Access the options menu.

Review Options Menu

When the camcorder is in Review mode, press MENU to access the camera options menu.

Press or to browse the menu items.

Press or to select an item and advance to the next screen.

Press MENU to return to the previous screen and to exit the menu.

When the display mode is set to thumb-nail, the only option available is Delete File(s). To access all options, change the display mode to full screen.

Press DISP to change between full screen and thumbnail modes.

Option Description
Lock File(s)	Lock a file to keep it from being deleted. Lock/Unlock one: Lock or unlock the • current file. Lock All: Lock all files. Unlock All: Unlock all files.
Delete File(s)	Delete a file. One: Delete the current file. All: Delete all files.
Slide Show	Set and start slide show photo display. Interval: Change the time between • photos. Repeat: Set the slide show to repeat. Start: Start the slide show with the • options set above. Note: This option is not available for video files.

Option Description
Effect	Apply a special effect to the current photo. A copy of the photo with the effect will be created; the original photo will not be modified. Note: This option is not available for video files.
Rotate	Rotate the current photo. Rotate: Rotates the photo 90 degrees · clockwise. Save: Save the rotated photo. A copy of the rotated photo will be created; the original photo will not be modified.
Resize	Decrease the resolution of the current photo. A copy of the resized photo will be created; the original photo will not be modified. Note: This option is not available for photos taken at VGA size. This option is not available for video files.
Favorite Image	Set the current photo for use as the start up image. Selection: Select the current photo.· Note: After the Favorite Image selection has been made, change the “Start-up Image” option in the System Settings menu; the camcorder will display this photo during the power-on sequence. This option is not available for video files.
Date Stamp	Set a date/time overlay.

Connecting to a TV

To view your video and photo files on a bigger screen, use the included A/V cable to connect your camcorder to a television.

Locate the Composite Video input connec-1. tors on the TV.

Connect the cable's yellow RCA plug to the Composite Video In jack of the TV.

Connect the cable's white RCA plug to the white Audio In jack of the TV. (The red jack is unused.)

Turn the camera on. Connect the cable's 2. mini plug to the A/V output jack located on the bottom of the camcorder. The camcorder's screen will turn off automatically.

Turn on the TV. Set the TV's input source 3. mode to display the composite video signal. When the TV source mode is set properly, you will see the camcorder's display on the TV screen.

Press on the camera to place it 4. Review mode. Use the review mode controls to play videos or view photos on the TV.

Please refer to the documentation provided with your TV If you need help setting its input source mode.

Please refer to the documentation provided with your TV If you need help setting its input source mode.

The Video Out format of the camcorder can be changed in the System Settings menu. By default, the camcorder is set to be used in North America (NTSC format, 60 Hz refresh rate).

For more information, please refer to the section "Setting the System Options".

Managing Files on the Camcorder

Transferring Video and Photo Files

Connect your camera to a computer to transfer files from the camcorder to the computer.

Note: If you are planning to install the software on the included CD, please install these programs BEFORE connecting the camera to your computer.

Connect the large end of the included USB 1. cable to a USB port on the computer.

Connect the small end of the USB cable 2. to the USB connector on the bottom of the camcorder.

Turn the camcorder on; it will display a USB 3. icon labeled "MSDC". The computer will automatically recognize the camcorder as a removable disk.

If this is the first time you are making this connection, your computer will automatically install device drivers. Wait until the computer has completed installation of the drivers before proceeding.

If you have not made the web camera connection yet (PC CAM), you may see the message "Device driver software was not successfully installed". This is normal and will not affect operation of the camcorder. This message will not appear once the PC CAM connection is made; please refer to the section "Web Camera (PC CAM)" for more information.

Follow the prompt on the computer screen 4. to view files on the camcorder (e.g., "Open folders to view files").

If no prompt appears, you may view files on the camcorder via "My Computer" on a Windows computer, or via a Finder window on Mac OS X.

Use your computer's operating system com-5. mands to transfer files from the camcorder to your computer as you would with any external disk.

Use your mouse to drag and drop files from one window to another

Use your keyboard to copy/paste files (e.g., Ctrl-C/Ctrl-V)

If your computer has an SD card reader, you can simply remove the SD card from the camcorder and load it into the card reader to transfer/manage files.

When the camcorder is connected to a computer, you can also use the operating system commands to browse, delete, and move files on the camcorder.

The camcorder must be connected to a powered USB computer port. The camcorder will not work with low-power USB ports designed for use with keyboards/mice.

For best performance, connect the camcorder to a USB 2.0 Hi-speed computer port.

The first time you connect the camera to a computer, it may take a moment for the computer to recognize and install the appropriate drivers for the camera.

Deleting Files on the Camcorder

If you do not have immediate access to a computer, place the camcorder in Review mode to delete files.

Press MODE to place the camcorder in Review mode.

Press or to select a photo or video to delete.

Press to delete the file.

Setting the System Options

Access the System Settings menu to adjust the camcorder's system options.

To access the System Settings menu:

Press MENU. The mode options will appear.

Press 2 to select the System Settings tab.

Press or No browse the menu items.

Press or to select an item and advance to the next screen.

Press MENU to return to the previous screen and to exit the menu.

Option Description

Sounds

Customize the sound cues.

• Shutter: Turn the sound on/off when you take a picture.
• Start-up: Customize the sound when you turn on the camcorder. Choose "None" to turn the start-up sound off.
• Beep: Turn the sound on/off when you press a key.
  Volume: Set the loudness of the sound cues.

The System Settings tab can be accessed in all modes (Camcorder, Camera, and Review).

Option Description
Auto Review	After you take a picture, the camcorder can be set to display the results on screen immediately for your review. Off: Disable the Auto Review feature. 1 sec: Display the review results for one second. 3 sec: Display the review results for three seconds.
Auto Power Off	When the camcorder is idle, it can be set to turn off automatically in order to conserve battery power. 1min.: Turn the camcorder off after one minute of idle time. 3min.: Turn the camcorder off after three minutes of idle time. 5min.: Turn the camcorder off after five minutes of idle time

Option Description
Start-up Im-age	Customize the image that is shown on screen when you turn on the camera.Off: Do not display an image.●System: Show the default image.●My image: Show a custom image.●Note: The “My image” option is available only if you have saved a “Favorite Image” in Review mode. Please refer to the section “Review Mode > Review Options Menu” for more information.
Date & Time	Set the system clock.Press ➔ or ➔ to select a field.Press ➔ or ➔ to adjust the selected field.
Language	Set the menu display language.
USB	Set the default USB mode when the camcorder is connected to a computer. MSDC: USB disk mode. Use this • mode to transfer/manage files on the camcorder. PCCAM: Web cam mode. Use the • camcorder as a web cam (requires web cam driver installation). Charge: USB charge mode. Use this • mode to charge/power the camcorder. Note: You can change between USB modes by pressing MODE.
Video Out	Set the video out format. TV System: Change between NTSC • and PAL formats. The standard video system used in North America is NTSC. Refresh Rate: Change between 50Hz • and 60Hz. The standard refresh rate used in North America is 60Hz.

Option Description
Format	Reinitialize the internal memory or memory card. If a memory card is installed, the · memory card will be formatted. If there is no memory card, the · camcorder's internal memory will be formatted. FORMATTING WILL ERASE AND DESTROY ALL FILES/DATA. Make a backup copy of all your video and photo files before using this feature.
Reset All	Return all of the camcorder's options to their factory-default state.

Using the Included Software

For your convenience, the following software is included:

muveeTM autoProducer 6.1 Basic.

muvee autoProducer 6 is the latest release in the range of award-winning autoProducer software. With over 100 styles, there are many ways to personalize your home production. Whether you are trying to create a slideshow or a quick home movie – muvee autoProducer 6 brings a level of simplicity to the task. Add your photos and video, select a style, and let it automatically create and sync a movie to the beat of your music.

The minimum system requirements for this software are:

A computer running Windows 7, Windows ^+ Vista, or Windows XP.

A computer with an optical DVD/CD-ROM drive.

Processor: Intel Pentium III 1 GHz, AMD Athlon, or equivalent with MMX support

Memory: 512MB RAM

Other Requirements: Microsoft DirectX 9.0 or higher, Apple QuickTime (for MOV files)

For more information about DirectX, please visit the Microsoft support website: http://support.microsoft.com/kb/179113/.

For more information about Apple QuickTime, please visit the Apple website: http://www.apple.com/quicktime/download/.

Installing muvee™ autoProducer

To install muvee autoProducer 6.1 Basic:

Load the included software CD into your computer's optical DVD/ CD-ROM drive. When the AutoPlay window appears, click "Open folder to view files".

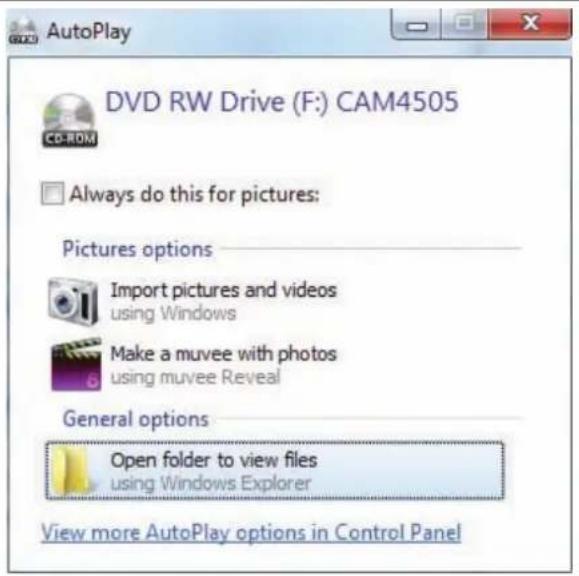

Note: If an AutoPlay window does not appear, open Windows Explorer and double-click the DVD/ CD-ROM drive icon to view its contents.

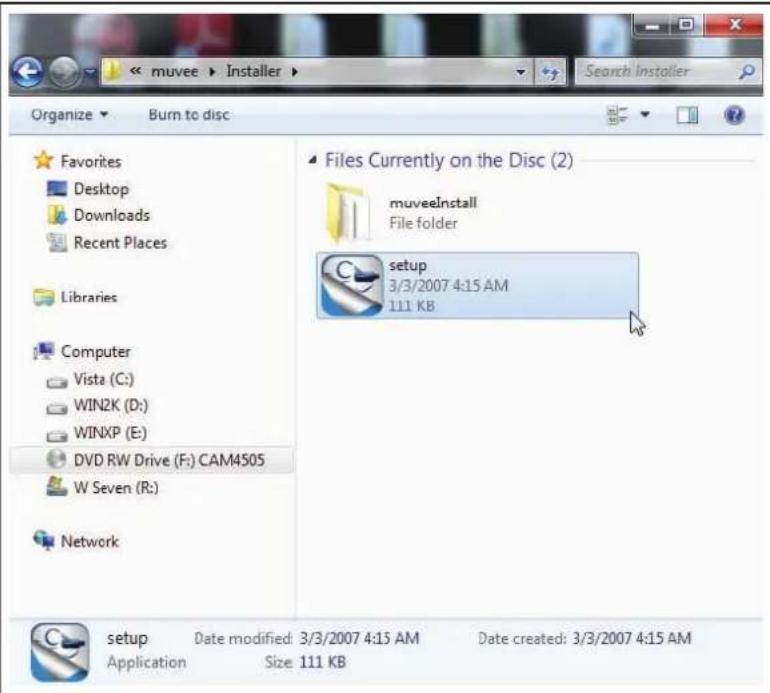

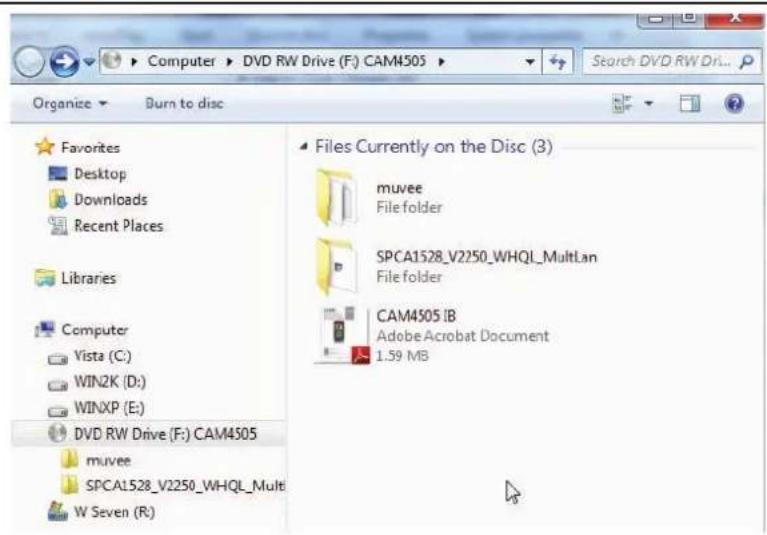

Double-click the folder "muvee" to view its contents, then double-click the folder "Installer" to view its contents.

Double-click the file "setup" to start the installer.

Follow the on-screen instructions to install the driver.

Restart your computer to complete the installation.

Using muvee™ autoProducer

muvee autoProducer allows you to get creative with your videos and photos. Whether you are trying to create a slideshow or a quick home movie – muvee autoProducer 6 brings a level of simplicity to the task.

To learn more about muvee autoProducer, press the "F1" key on your keyboard to view the Help files (or select "Help" from the menu bar).

The help documentation refers to the full version of autoProducer 6, not the Basic version that is included. The basic version of muvee autoProducer 6.1 has the following limitations:

Video files per muvee: 3 Add voiceovers: No

Pictures per muvee: 30 MPEG-1 and MPEG-2 output: No

Music tracks per muvee: 1 DVD burning: No

Add captions: No

Making a muveeTM

Start the program.1.From your computer's Start menu, click:All Programs → muvee → muvee autoProducer 6.1 → Home movies made easy!
Turn on the CAM4505 and connect it to yourcomputer using the supplied USB cable.	2.
Press MODE until the screen displays aUSB icon labeled "MSDC".
Add videos and photos from the CAM4505:4. Click on the “Import from Device” icon.a.	Video/Pictures Import video/pictures from a device
Click “From My Camera Device”b.	Video/Pictures From My Camera/Device... From My Camcorder...

Use the drop-down menu to choose the c CAM4505. The internal memory will appear as the first removable disk; the SD card (if loaded) is the second removable disk.

Click "OK".d.

To add a soundtrack to the project, click the $5. music icon.

Click on a style to choose a visual style for 6. this project.	Show all styles Back-in-Time Classic Extreme Music Video Journal Modern Multi-frame
Click the "make muvee" icon to finish creat-7. ing your muvee.	make muvee
To save and share your finished muvee, 8. click the muveeShare icon.

To upload videos to YouTube, you must have a valid YouTube account. To sign up for a free account, please visit http://www.youtube.com/create_account/.

Web Camera Function

Use your camcorder as a web camera (PC CAM mode).

The web camera function requires:

A computer running Windows 7, Windows Vista, or Windows XP.1.

A computer with an optical DVD/CD-ROM drive.2.

Installation of the included web camera driver.3.

The CAM4505 supports video only in web camera mode; the integrated microphone is disabled.

Installing the Web Camera Driver

To install the SPCA1528 PC Driver:

Load the included software 1. CD into your computer's optical DVD/CD-ROM drive. When the AutoPlay window appears, click "Open folder to view files".

Note: If an AutoPlay window does not appear, open Windows Explorer and double-click the DVD/CD-ROM drive icon to view its contents.

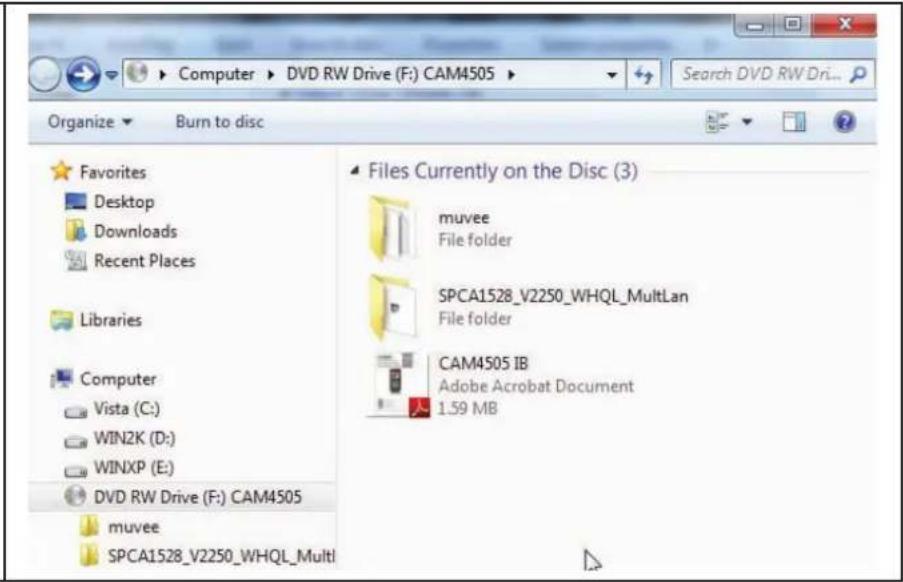

Double-click the folder "SPCA1528_V2250_WHQL_ MultLan" to view its contents.

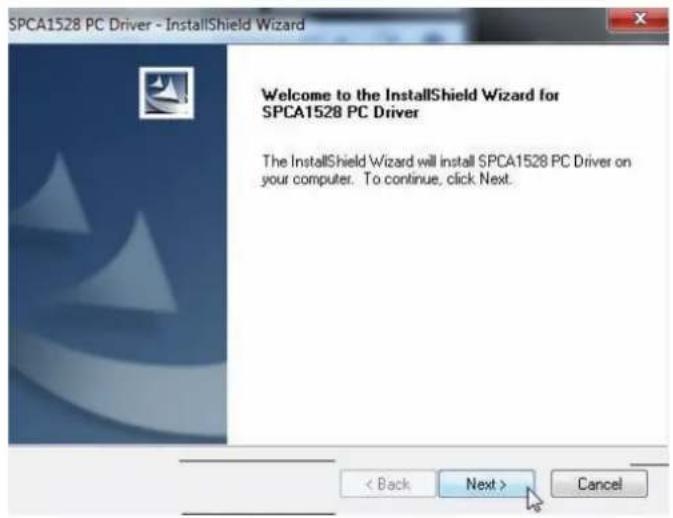

Double-click the file "SPCA1528_v2250_WHQL_MultiLan" to start the installer.

Follow the on-screen instructions to install the driver.

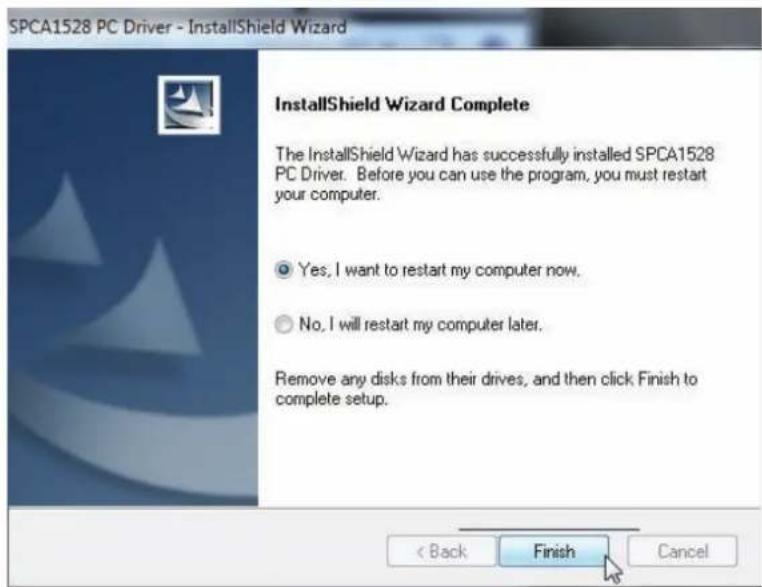

Restart your computer to complete the installation.

Using the Web Camera

After the web camera driver has been installed:

Connect the camcorder to your computer with the included USB cable.1.

Press MODE until the camcorder's display shows a USB icon labeled "PC CAM".

If this is the first time you are making this connection, your computer will automatically install device drivers. Wait until the computer has completed installation of the drivers before proceeding.

After the drivers are installed, your camcorder is ready for use as a web camera with other programs that support video.

The CAM4505 supports video only in web camera mode; the integrated microphone is disabled.

Specifications

Please visit www.cobyusa.com for the latest product information. Design, specifications, and manual are subject to change without notice.

Display Type 2.0" TFT LCD
Image Sensor 3.0 MP CMOS (2048 x 1)	536)
Video Resolution VGA (640 x 480), 30	fps QVGA (320 x 240), 30 fps
Zoom 4x digital
Memory 32 MB Flash
Removable Memory Support SD/SDHC	C (up to 16GB)
Video Format MJPEG (AVI)
Photo Format JPEG
A/V Output	3.5mm Composite Video/Mono Audio
Power	Rechargeable lithium-polymer battery

Troubleshooting & Support

If you experience a problem with this device, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and firmware updates. If these resources do not resolve the problem, please contact Technical Support.

Address COBY Electronics Technical Support

150 Knowlton Way

Savannah, GA 31407

Email [e-mail]

Web www.cobyusa.com

Phone [phone]: Monday-Friday, 8:30AM-9:00PM EST

Saturday, 9:00AM-5:30PM EST

718-416-3197: Monday-Friday, 8:00AM-5:30PM EST

Camera does not power on.

The battery level may be low. Connect the camera to a computer to charge.

The camera does not take pictures/video.

The camera's memory or memory card may be full. Delete several files and try again.

The memory card type may not be sup- ported. Make sure that you are using an SD or SDHC memory card 16GB or less in size.

The memory card format may not be sup- ported. Make sure that you are using a FAT- formatted card.

Image is blurry or out of focus.

Blurry images or video may result when the camera is not held steady during recording. Hold the camera steady and try again.

Blurry images or video may result when there is not enough light on the subject. Try recording in a brightly lit location.

Recorded images are not saved in memory.

Images will not save if the camera is turned off before data has finished processing. Be sure to allow adequate time for the image to save completely before turning off the video camera.

Safety & Regulatory Statements

CAUTION

WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

For Customer Use:

Enter below the serial number that is located on the rear of the unit. Retain this information for future reference.

Model No.

Serial No.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Important Safety Instructions

Read Instructions: All the safety and operating instruc-1. tions should be read before the product is operated.

Retain Instructions: The safety and operating instruc-2. tions should be retained for future reference.

HeedWarnings: All warnings on the product and in the 3. operating instructions should be adhered to.

Follow Instructions: All operating and usage instruc-4. tions should be followed.

Cleaning: Unplug this product from the wall outlet 5. before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Attachments: Use only attachments recommended by 6. the manufacturer. Use of other attachments may be hazardous.

Water and Moisture: Do not use this product near 7. water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).

Ventilation: Slots and openings in the cabinet are 8. provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer instructions have been adhered to.

Power Sources: This product should be operated only 9. from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.

Overloading: Do not overload wall outlets, extension 10. cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

Object and Liquid Entry: Never push objects of any 11. kind into this product through openings as they may tap dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Servicing: Do not attempt to service this product your-12. self as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service: Unplug this product from 13. the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in

performance—this indicates a need for service.

Replacement Parts: When replacement parts are 14. required, be sure that your service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check: Upon completion of any service or 15. repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.

Heat: The product should be situated away from heat 16. sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Maintenance and Care

Always secure the camera with the wrist 1. band when in use to prevent accidental damage to the camera.

Always store the camera in the pouch pro-2. vided to prevent scratches to the camera lens and screen.

To clean the lens:3.

Blow away the dust from the surface of a. the lens.

Gently wipe the lens clean with a micro-b. fiber cloth designed for cleaning lenses/ optical devices. If necessary, use lens cleaner ONLY. Never use organic sol- vents to clean the camera.

Never touch the lens.4.

This digital video camera is suitable for 5. environments between 0^ - 40^ (32°F-104°F). Do not expose the camera to extremely high temperatures, such as in a car parked in direct sunlight, or to excessive humidity.

To prevent condensation, keep the camera 6. in a sealed plastic bag when moving from a cold place to a warm place. The camera can be removed from the bag when it reaches the indoor temperature.

Legal and Trademark Notices

Coby is a registered trademark of Coby Electronics Corporation.

Snapp and the Snapp logo used are trademarks of COBY Electronics Corporation.

The YouTube logo used is a registered trademark of Google, Inc.
muvee and the muvee logo are trademarks of muvee Technologies
Pte. Ltd., Inc.

SDHC is a registered trademark of the SD Card Association.

USB is a registered trademark of the USB Implementers Forum, Inc.

All other trademarks and logos are property of their respective owners unless indicated otherwise.

Para instalar muvee autoProducer 6.1 Basic:

Correo Electronico [e-mail]

† 2 hours of video recording based on use with 4GB SDHC card. SDHC card not included. Actual record time may vary.
Function available in Windows only.
* 5MP interpolated resolution; 3MP optical resolution.

Pour installer muvee autoProducer 6.1 Basic:

Video/Pictures

Import video/pictures from a device

Video/Pictures

From My Camera/Device...

From My Camcorder...

Music

Address COBY Electronics Corporation Tech Support (Assistance Technique COBY Electronics Corporation)

150 Knowlton Way

Savannah, GA 31407

Courriel [e-mail]

Internet www.cobyusa.com

Heures Télephoniques 800-727-3592 ou 718-416-3197
Lundi-Vendredi:8:30-21:00 EST
Samedi:9:00-17:30 EST

Coby Electronics Corp.

1991 Marcus Ave, Suite 301

Lake Success, NY 11042

www.cobyusa.com

www.ecoby.com

Coby is a registered trademark of Coby Electronics Corporation. Printed in China.
