iCMPFM3B02 - Flat screen mount Chief - Free user manual and instructions

Product type	Flat screen wall mount
Brand	Chief
Model	iCMPFM3B02
Minimum VESA compatibility	100 x 100 mm
Maximum supported weight	56.7 kg (125 lbs)
Material	Steel
Stud spacing (wood)	40.6 cm (16 inches)
Supported wall type	Wood, concrete, concrete block, brick
Maximum drywall thickness	15.9 mm (5/8 in)
Number of required studs (wood)	2
Screw diameter (wood)	5.5 mm (7/32 in)
Anchor diameter (concrete)	7.9 mm (5/16 in)
Cable management	Yes, with integrated straps
Anti-theft device	Pre-drilled for padlock or cable (not included)
Screen locking	Yes, by latch and lock
Installation position	Wall mount, landscape orientation (standard)
Maintenance	Clean with a soft, dry cloth
Package contents	Wall plate, mounting brackets, screws, anchors, washers, spacer rings, manual

Frequently Asked Questions - iCMPFM3B02 Chief

What is the maximum weight that the iCMPFM3B02 mount can support?

The maximum supported weight is 56.7 kg (125 lbs) for models iCMPFM3 and iCLPFM3. Do not exceed this limit to avoid risk of injury or damage.

What are the VESA dimensions compatible with this mount?

The minimum mounting hole pattern is 100 x 100 mm. For the iCMPFM3 model, use the inner holes corresponding to this standard.

Is this mount compatible with all wall types?

It is designed for mounting on wood studs (spacing 40.6 cm), concrete, concrete block, or brick. For wood, use the provided screws; for concrete, use the appropriate anchors.

How to install the mounting brackets on the screen?

Place the screen face down on a protected surface. Choose the screws appropriate for the diameter of the mounting holes (4, 5, 6, or 8 mm). Use the spacer rings if necessary so that the brackets lie flat. Tighten the screws using a Phillips head screwdriver.

What is the procedure for fixing the wall plate to a concrete wall?

Drill pilot holes of 7.9 mm (5/16 in) to a minimum depth of 6.35 cm. Insert the provided anchor sleeves (E) using a hammer. Screw the screws (C) through the washers and the wall plate into the sleeves with a 12.7 mm (1/2 in) wrench.

Can I use this mount for a 65-inch screen?

This depends on the weight of the screen. Ensure that the total weight of the screen does not exceed 56.7 kg. Also check that the VESA pattern is at least 100 x 100 mm.

How to lock the screen in position against the wall?

After hanging the screen on the top rail, lower the latch (rest position). Then press the interface mounting brackets until they lock against the wall. A click indicates locking.

Is it possible to add an anti-theft device?

Yes, the mount is designed for installation of a padlock or anti-theft cable (not included). Route the cable through the holes located at the bottom of the interface mounting brackets.

How to manage cables behind the screen?

Use the provided straps to hold the cables against the mounting brackets. Pass the cables through the notch provided for this purpose, then close the straps for a neat appearance.

What if the provided screws do not fit my screen?

Select screws of appropriate diameter and length from the supplied set (FA to FO). The correct length is achieved when the base of the screw head protrudes from the washer by at least the diameter of the screw. Never use a screw that is too long and would bottom out in the hole.

USER MANUAL iCMPFM3B02 Chief

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® and Centris™ are trademarks of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8'' (15.9mm).

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7kg) for the iCMPFM3 and iCLPFM3 or 175 lbs (79.4kg) for the iCXPFM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

AVISOS Y PRECAUCIONES IMPORANTES!

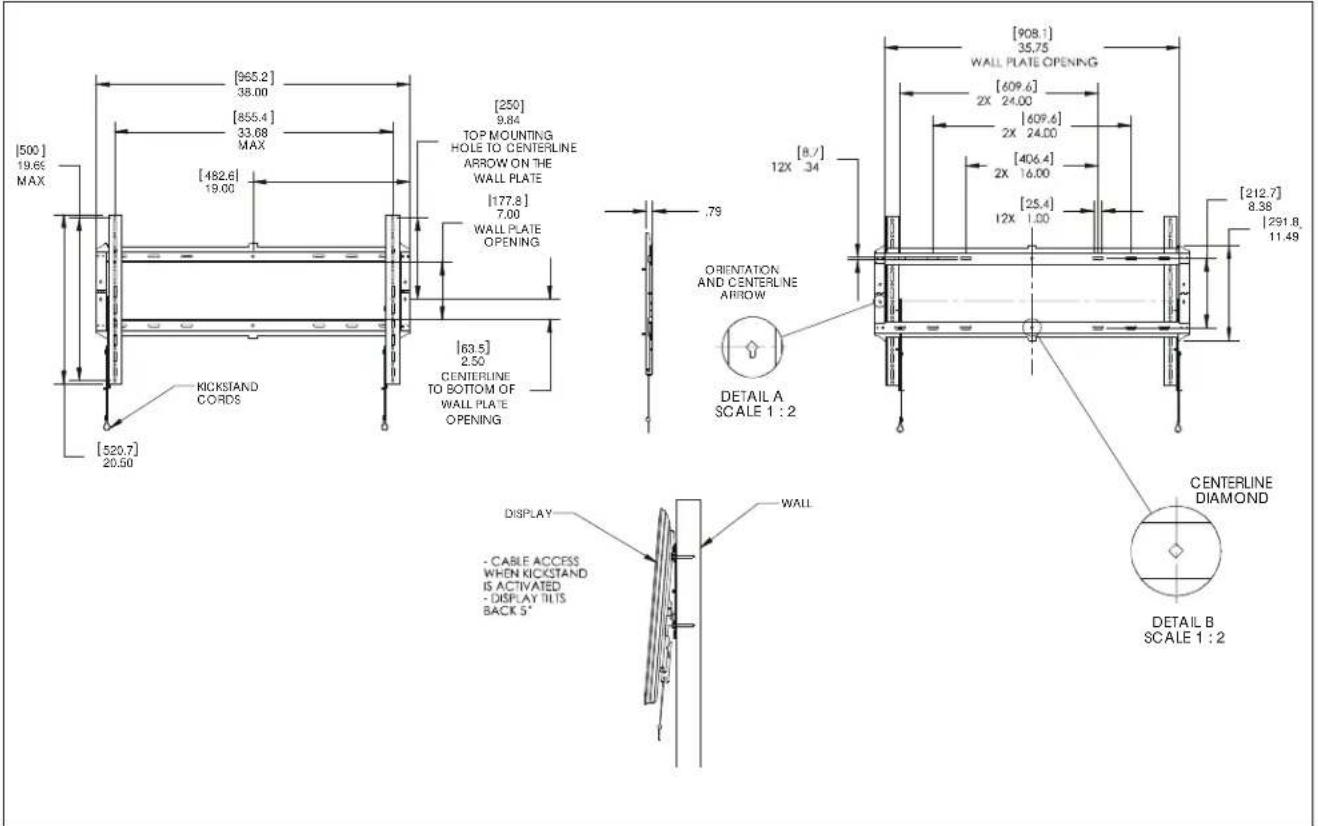

DIMENSIONS - iCMPFM3

DIMENSIONS - iCLPFM3

DIMENSIONS - iCXPFM3

Tighten Faserver
Apertar elemento de fiçao	Stram fastspanendingsbtag
Befestigungstaf festrochhen	Skuva à fiske
Apertar fixador	Krista klinnka
Serrare il fissaggio	Dolecje l'element mcoujancy
Bewestigung vostražan	Zajbyo Zuzhovoyu
Serrez les fixations	Baglantny Sklavnien
Coaxure 3acteowy	Rogzó meghozulaa
Lodon Fixerder
Afjotar elemento de fiçao	Lager fastspanendingsbtag
Befostigungstaf lõsen	Losa fõste
Dasapertar fixador	Irotta klinnka
Allentare il fissaggio	Pukuzowac elementmojoucy
Bewestigung lossträten	Xahápučov zuzhovoyu
Dasemozles fixations	Baglantny Gevazin
Ocnafuse 3acteowy	Rogzó hizalilasa
Philips Screwdriver
Destanilador Philips	Stesperiskaustaker
Kruzdschlitzschraubender	Kryskuvzmegal
Chave de fondas Philips	Ristpólarnuviavn
Cádavite a shila	Srubdkrj kryszakowy
Kruskopsdrahveendraser	Kozopál & Philips
Toumevis à pointe onctiforme	Philips Tornavida
Otraepna	Callagfej csaawhrzó
By Hand
Amano	Medhändon
Von Hand	Förhand
Cam a maior	Käslin
Amano	Rechnerie
Mét de hand	Mić to xćp
Alamain	El Ilé

	Pencil Mark
	Marcar com lapiz	Bya nitrmarie
	Stiftmarkearing	Pormmarkering
	Marcar com lapis	Rimasty markia
	Segno a matita	Oznacranie okwiem
	Potoodmertaken	Zjubodnić μe kujidji
	Marquage au crayon	Kalem liganti
	Mapka/Kapangpaua	Ceruzajekliks
	Orli Hole
	Portar	Borehul
	Bedrioch	Bora hali
	Fazer furo	Porausruška
	Praticare un tro	Owdr wencyrj
	Gat boren	Adroponi eritji
	Porozan trou	Matkap Deligi
	Oraeporte Tpoavposen	Lyukurlas
	Ajust
	Ajustar	Juslar
	Einstellen	Juslara
	Ajustar	Satalla
	Regolaro	Wyrregulowac
	Atstalien	Flipooquyirj
	Ajuster	Ayar
	Flpecnoco&urea	Balilhlas
	Hex-Head Wrench
	Lave de caba zea hexagonal	Sokkartet silevanegle
	Sechkarantachissel	Insoenydkel
	Chave de cabaqa sotadawda	Kluskofovalain
	Chave esagonale	Khuz 2 lism sazdioklatyn
	Zekantaleutil	Kholi üznyunnyi, kajakhi
	Clé à tété hexagonale	Altgen Kafali (Allen) Anahtar

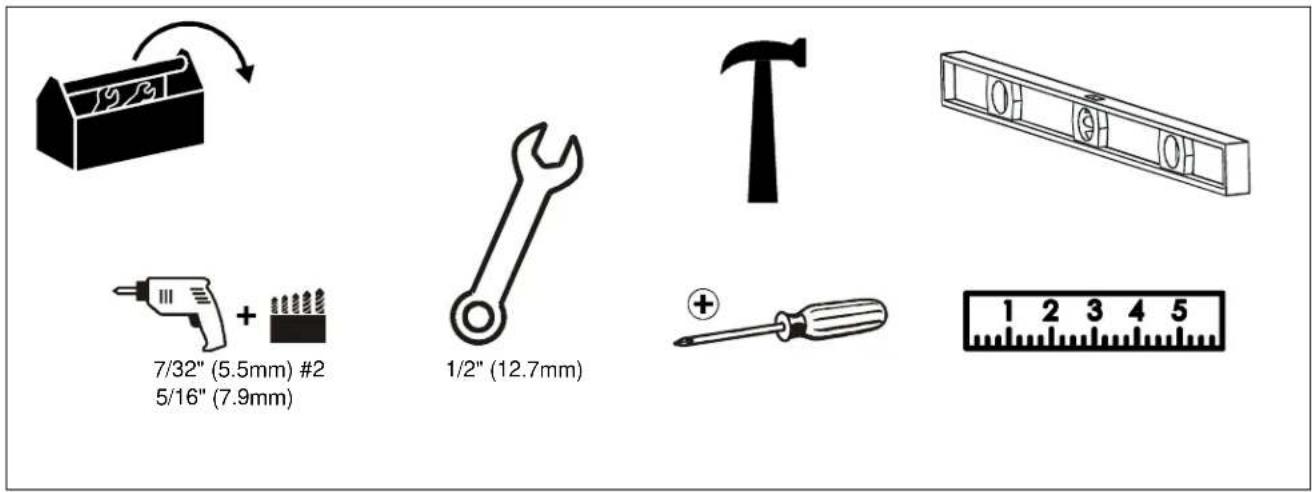

TOOLS REQUIRED FOR INSTALLATION

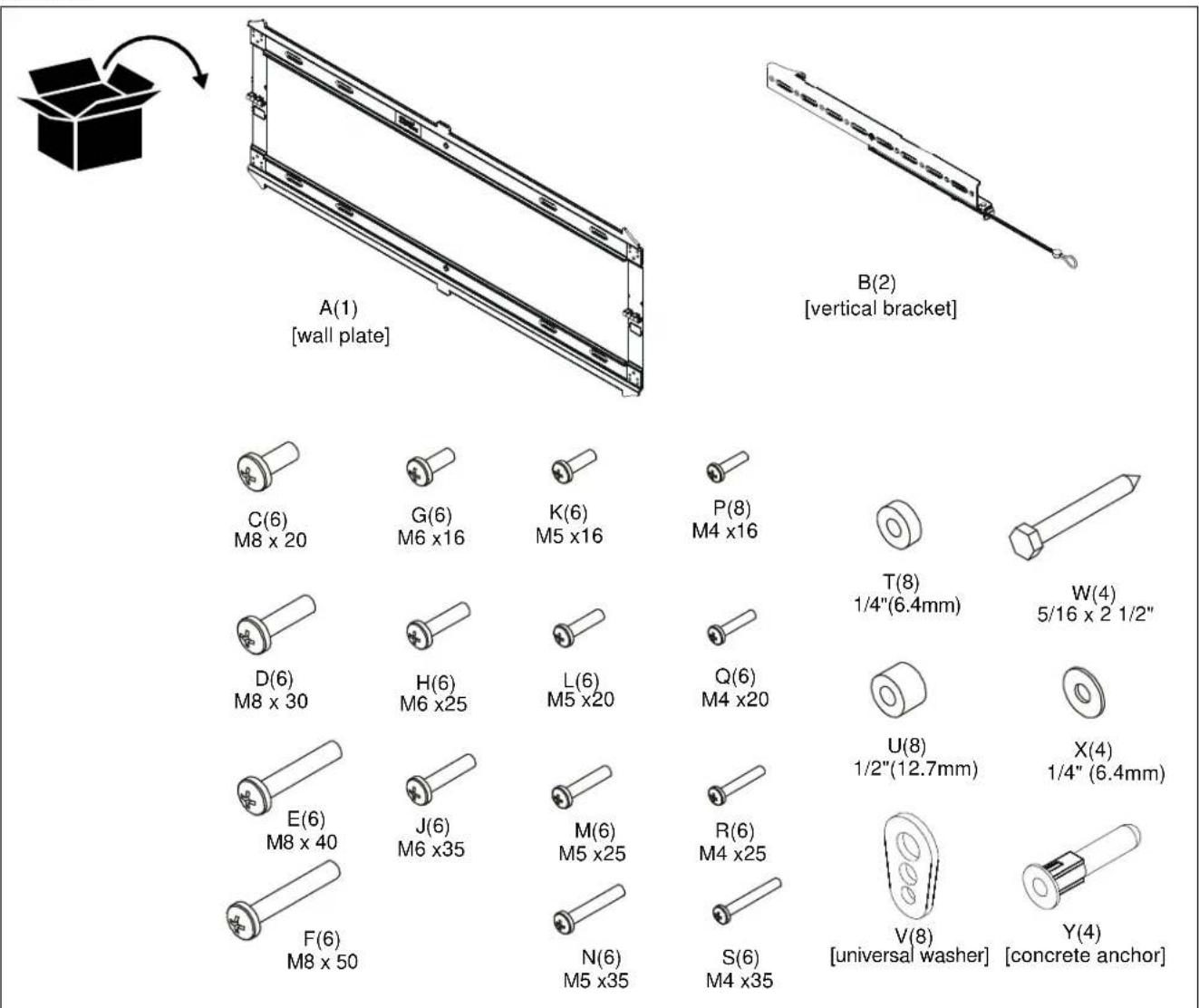

PARTS

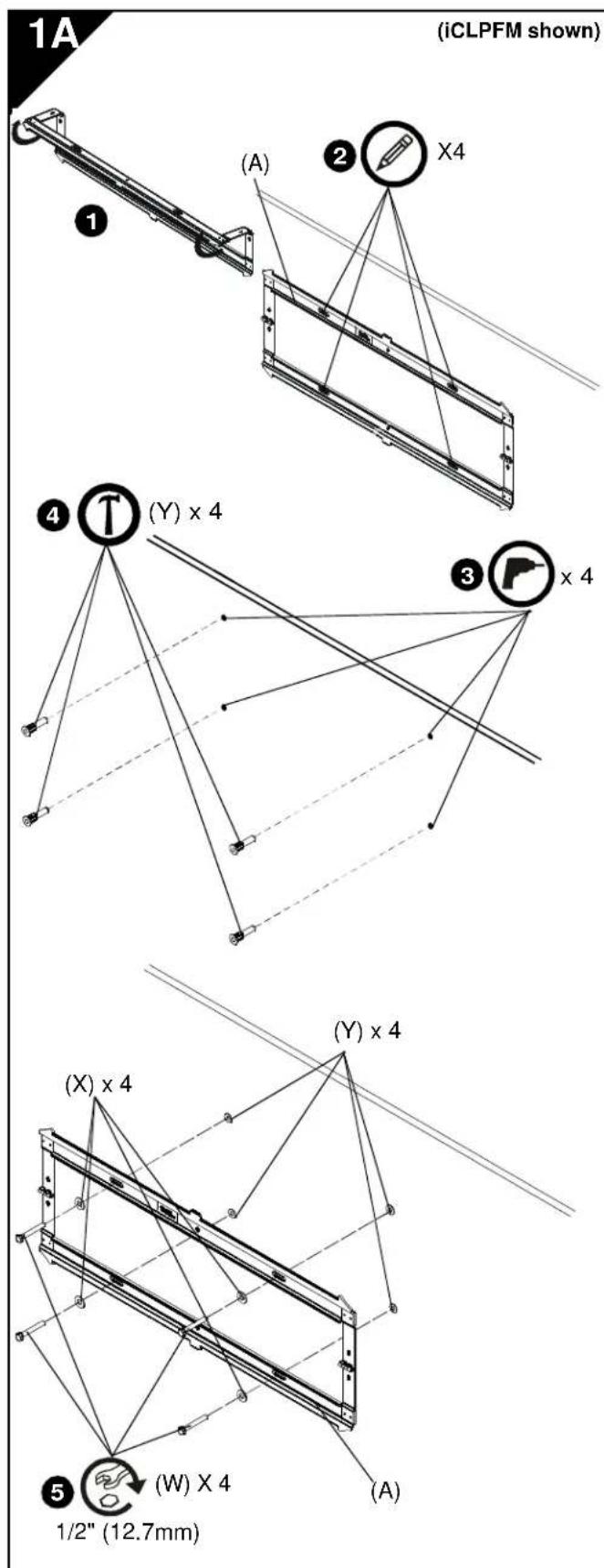

INSTALL WALL PLATE TO WALL - CONCRETE, CONCRETE BLOCK OR BRICK

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

1. Unfold wall plate (A) to prepare it for mounting to wall.
2. Level wall plate (A) and mark locations of pilot holes at desired mounting location.

NOTE: For the iCXPFM3, use the inner four holes on wall plate for installation.

1. Drill 5/16" (7.9mm) diameter pilot holes into wall at marked locations. Holes must be drilled at least 2 1/2 inches deep.
2. Install four concrete anchors (Y) into drilled holes. Use a hammer to tap anchors into holes.
3. Using 1 / 2'' (12.7mm) wrench, install screws (W) through flat washers (X), wall plate (A) and into concrete anchors (Y).

(B) × 2
(B) × 2

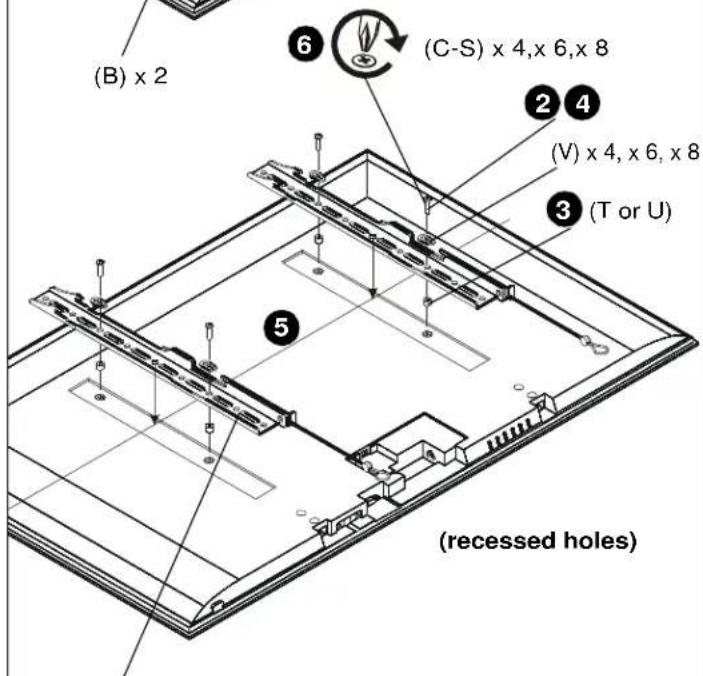

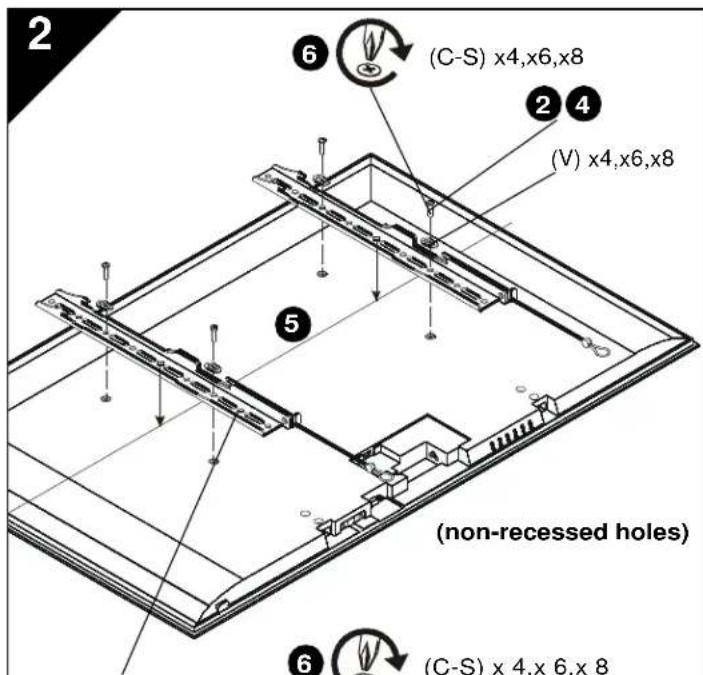

INSTALL BRACKETS TO DISPLAY

WARNING: The minimum hole pattern size is 100mm × 100mm for the iCMPFM3 and 200mm × 200mm for the iCLPFM3 and the iCXPFM3.

1. Lay display face down on protective surface.

CAUTION: Using screws of improper diameter may damage your display! Proper screws will easily thread into display mounting holes.

1. Select screw diameter by examining hardware (C-S) (8mm, 6mm, 5mm, or 4mm) and comparing with mounting holes on display.
2. Select spacers:

If mounting holes are not recessed and both brackets (B) can lay flat against display, then no spacers are required.
- If mounting holes are recessed, or if protrusions prevent brackets (B) from laying flat, then spacers (T or U) must be used. Select shortest spacer which will provide adequate fill. All spacers must be same length.

CAUTION: Using screws of improper length may damage your display! Proper screws will have adequate thread engagement without contacting bottom of display mounting holes.

1. Select screw length:

2. Using your hand, insert SHORTEST length screw of selected diameter (C, G, K or P) through bracket (B), universal washer (V), selected spacer (T or U, if required), into display mounting hole. Do NOT thread screw into hole at this time.

3. Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

4. Place brackets (B) on display, ensuring:

5. Upper hooks are towards top of display.

6. Center of brackets (B) are as close to the center of the back of display as possible after being installed. Center of bracket is indicated by the diamond-shaped hole.

7. Using Phillips screwdriver, carefully install selected screws through universal washers (V), brackets (B), and spacers (T or U, if required), into display.

8. Tighten all screws. Ensure all applicable display mounting holes (4, 6, or 8) are used.

INSTALL DISPLAY TO WALL PLATE

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7 kg) for the iCMPFM3 and iCLPFM3 or 175 lbs (79.4 kg) for the iCXPFM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

WARNING: Display may be very heavy! Ensure display can be safely lifted and maneuvered as required to install on wall plate. Failure to take adequate precautions can result in serious personal injury or damage to equipment!

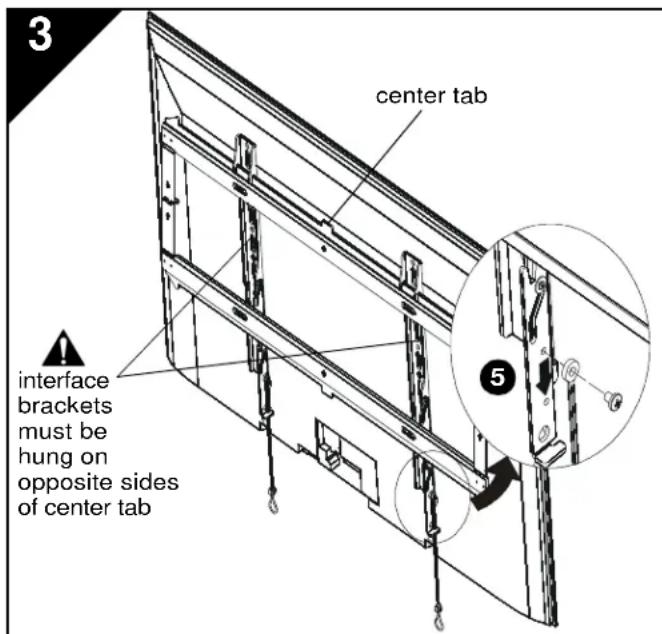

WARNING: Interface brackets must be hung on opposite sides of the center tab on wall plate!

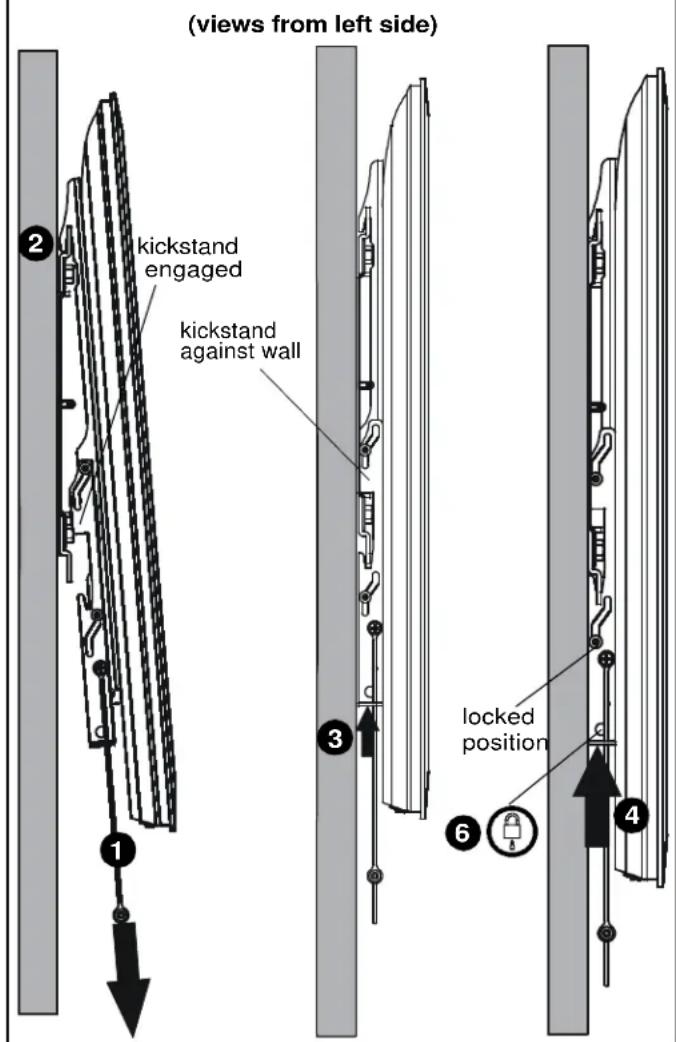

1. Make sure interface brackets are in the kickstand position by pulling down on handles as far as possible.
2. Hang display with brackets (B) on upper rail of wall plate (A). Kickstand should be engaged with lower portion of wall plate.

NOTE: Any cable management or rear display adjustments should be made when the display is resting on the kickstand.

1. Unlock kickstand by pushing up on interface brackets until kickstand rests against the wall.
2. Push up on the interface brackets further in order to lock display into position against wall.

NOTE: Straps can be either cut off or tucked behind display after installation is complete so that they will not be visible to the viewer.

1. (Optional) The straps can be moved to the lower screw holes on interface brackets in order to improve access to the straps on larger displays.
2. (Optional) Route padlock or cable lock (not included) through bottom holes on interface bracket to provide additional security.

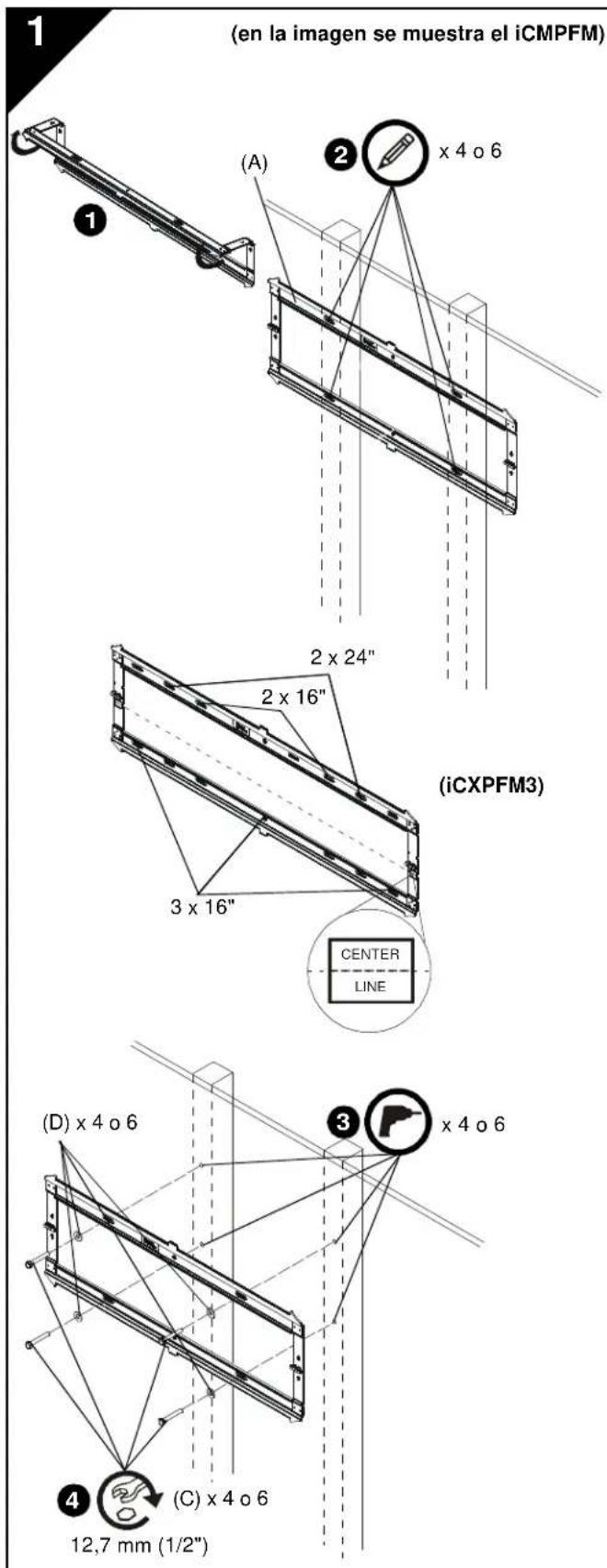

INSTALLACION DE LA PLACA DE PARED EN LA PARED: MONTANTES DE MADERA
