USER MANUAL MRC 4126 P AEG

GB Projection clock radio

Overview of the Components Page 3

Overview of the Components

Gamma di frequenza: UKW / FM 88,0 ~ 108,0 MHz

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with

these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks.

This refers to possible hazards to the machine or other objects.

This highlights tips and information.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and

keeptheinstructionsincludingthewarranty,thereceiptand,ifpossible,theboxwiththe

internal packing. If you give this device to other people, please also pass on the operating

• Toavoidtheriskofreoranelectricshock,youshouldnotexposethedevicetorainor

moisture. Consequently, do not use the device in the immediate vicinity of water - for

examplenearabathtub,aswimmingpoolorinadampcellar.

• Theapplianceisdesignedexclusivelyforprivateuseandfortheenvisagedpurpose.

This appliance is not fit for commercial use.

• Onlyconnectthedeviceataproperlyinstalledplugsocket.Payattentionthatthe

specified voltage corresponds to the voltage of the plug socket.

• Whenusingexternalmainssupply,payattentiontothecorrectpolarityandvoltage.

Always place the batteries in the correct direction.

risk for the user. Should the device become damaged, in particular the mains supply

cable,donotoperatethedeviceanylonger,butratherhaveitrepairedbyanexpert.

Check the mains supply cable regularly for damage.

• Forsafetyreasonsabrokenordamagedmainsleadmayonlybereplacedbyan

equivalent lead from the manufacturer, our customer service department or a similary

• Ifthedeviceisnotusedforalongerperiod,removetheplugconnectorfromtheplug

socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device

which carry dangerously high voltage levels.

Thesymbolwithanexclamationmarkshouldadvisetheuserofimportant

operation or maintenance instructions in the accompanying documentation.

Children and Frail Individuals

• Inordertoensureyourchildren‘ssafety,pleasekeepallpackaging(plasticbags,

boxes,polystyreneetc.)outoftheirreach.

Caution! Do not allow small children to play with the foil as there is a danger of suf-

• Thisdeviceisnotintendedtobeusedbyindividuals(includingchildren)whohave

restricted physical, sensory or mental abilities and/or insufficient knowledge and/or

experience,unlesstheyaresupervisedbyanindividualwhoisresponsiblefortheir

safety or have received instructions on how to use the device.

• Childrenshouldbesupervisedatalltimesinordertoensurethattheydonotplaywith

Special Safety Instructions

• Donotusethedeviceinlocationsthatareextremelyhot,cold,dustyormoist.

• Selectasuitablelocationfortheradiorecorder,suchasadry,at,non-slipsurfaceon

which it is easy to operate the machine.

• Keepthemainsleadawayfromheaters.

• Neverputaheavyobjectontheelectriclead.

• Keepthedeviceawayfromvases,baths,washbasinsetc.Ifliquidentersthedevicethis

may cause serious damage.

Overview of the Components

6 Battery compartment

7 LED for activated alarm function (AUTO)

8 MULTI JOG rotating bezel for setting the time

17 Function key for delayed switch-off (SLEEP)

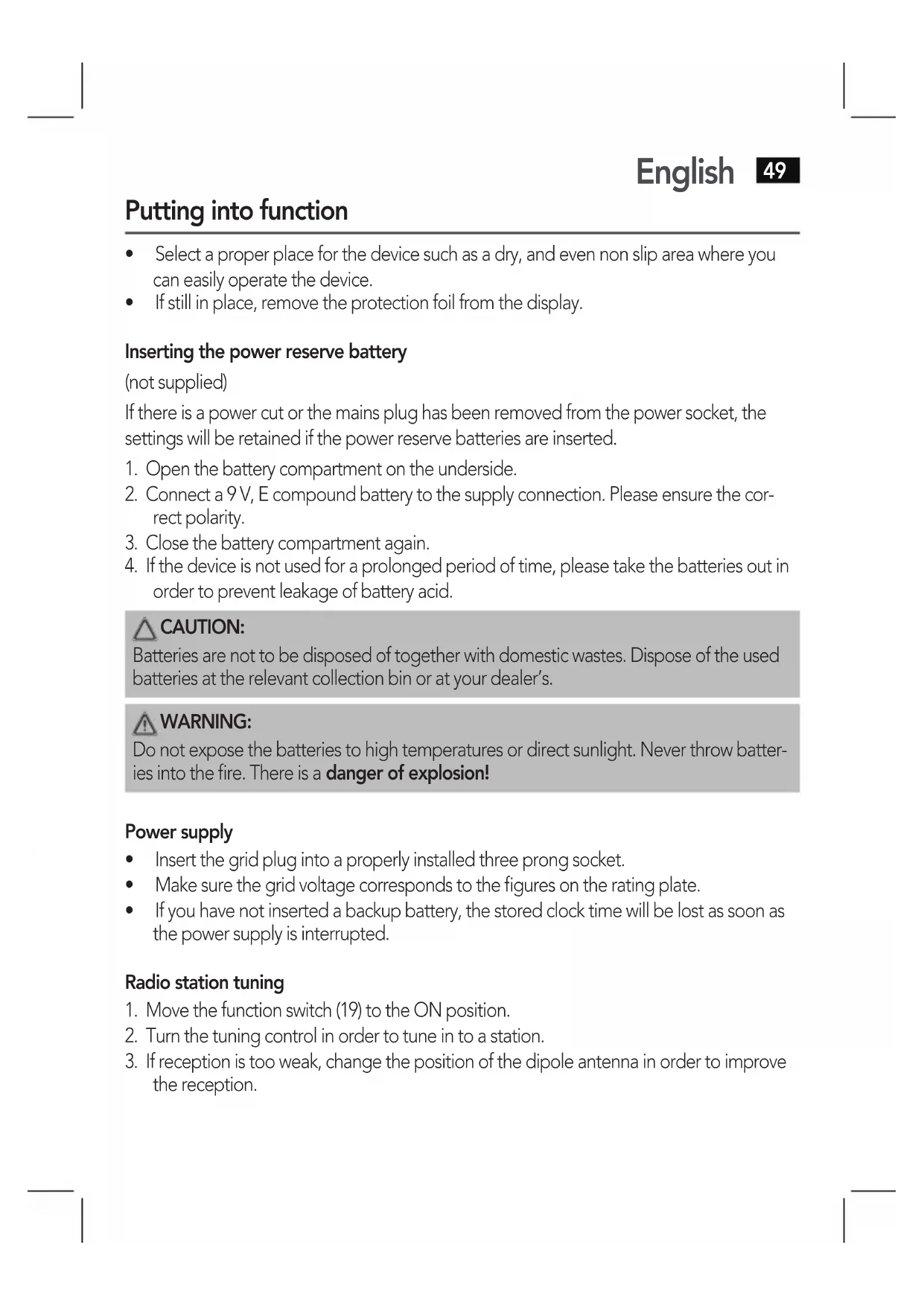

Putting into function

• Selectaproperplaceforthedevicesuchasadry,andevennonslipareawhereyou

can easily operate the device.

• Ifstillinplace,removetheprotectionfoilfromthedisplay.

Inserting the power reserve battery

If there is a power cut or the mains plug has been removed from the power socket, the

settings will be retained if the power reserve batteries are inserted.

1. Open the battery compartment on the underside.

2. Connect a 9 V, E compound battery to the supply connection. Please ensure the cor-

3. Close the battery compartment again.

4. If the device is not used for a prolonged period of time, please take the batteries out in

order to prevent leakage of battery acid.

Batteries are not to be disposed of together with domestic wastes. Dispose of the used

batteries at the relevant collection bin or at your dealer’s.

Donotexposethebatteriestohightemperaturesordirectsunlight.Neverthrowbatter-

ies into the fire. There is a danger of explosion!

• Ifyouhavenotinsertedabackupbattery,thestoredclocktimewillbelostassoonas

the power supply is interrupted.

Radio station tuning

1. Move the function switch (19) to the ON position.

2. Turn the tuning control in order to tune in to a station.

3. If reception is too weak, change the position of the dipole antenna in order to improve

the reception.English

The desired volume can be sent using the VOLUME regulator (18).

Setting of the Clock (24 h)

1. Set the adjustment switch SETTING (20) to the position “TIME”.

2. Turn the rotating bezel to the right to set the hours.

3. Turn the rotating bezel to the left to adjust the minutes.

4. Then, set the adjustment switch SETTING to “TIME” or “RUN”. The colon in the

The time of the projector needs to be set up separately. To adjust the time of day, please

proceed as described in the section “Projection”.

The device is switched off if the function switch (19) is in the “OFF” position.

Setting of the Alarm (24 h)

1. Set the adjustment switch SETTING (20) to the position “ALM”.

2. Turn the rotating bezel to the right to set the hours.

3. Turn the rotating bezel to the left to adjust the minutes .

4. Then, set the adjustment switch SETTING to “RUN”. The colon in the display is lit up.

Once the alarm times are set and a radio station has been selected, shift the function

selector(19)to“AUTO”.Adotlightsupinthedisplaynextto“AUTO”(7).

As soon as the alarm time is reached, the radio is switched on. The selected radio station

plays at the set volume.

• Ifyouwouldnotliketobewokenupbytheradio,turntheVOLUMEcontrol(18)tothe

“BUZZ” position until it locks in place.

• Insteadoftheradio,thebuzzergoesoffwhenthealarmtimeisreached.English

Turning off the Alarm

In order to turn off the alarm, move the function switch (19) to the OFF position.

The delayed switch-off function can be used when the switch is in the positions AUTO or

• WhentheSLEEPbutton(17)ispressedtheradioisswitchedoffafter59minutesor

1 hour and 59 minutes. The switch-off time can be adjusted by simultaneously pressing

With this device, you can project the time onto the wall or the ceiling.

• YoucanturnthefunctiononandoffwiththePROJECTIONON/OFFswitch(13).

• Takeholdofthegriprecesses(16)andpulltheprojector(14)upwards.

• Tilttheprojectortothedesiredposition.

• Arotatingknob(10)ontheundersideoftheprojectorcanbeusedtoadjustthesharp-

ness of the projected display.

The projector can only be lowered into the casing when the lens (1) with the help of the

FOCUS regulator (10) has completely been retracted.

Adjusting the time of the projector

Hours: Press the “T” key (9) and the “H” key (3) at the same time.

Minutes: Press the “T” key (9) and the “M” key (2) at the same time.English

Do not dip the appliance in water.

• Removetheplugbeforecleaning.

• Cleantheappliancewithaslightlyhumidclothwithoutanyadditives.

Power consumption:5 W Battery power reserve: 9 V-Block

Protection class: II Net weight: 0.47 kg

Frequency ranges: VHF / FM 88.0 ~ 108.0 MHz

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as

electromagnetic compatibility and low voltage directives, and has been constructed in

accordance with the latest safety regulationsEnglish

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points

provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human

This will contribute to the recycling and other forms of reutilisation of electrical and elec-

Information concerning where the equipment can be disposed of can be obtained from

CTC Clatronic Sp. z o.o.
