USER MANUAL AURA CARE OLIMPIA SPLENDID

T3. Tasto "Ion/UV"
T4. Tasto "Timer"

The main index of this manual is given on page “EN-3”

0 - WARNINGS

0.1 - GENERAL INFORMATION

First of all, we would like to thank you for choosing our appliance.

This document is confidential pursuant to the law and may not be reproduced or transferred to third parties without the explicit authorisation of the manufacturer.

The appliance may undergo updates and therefore have details different from those represented, without prejudice to the texts contained in this manual.

0.2 - SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.2.1 - Editorial pictograms

Service

Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE.

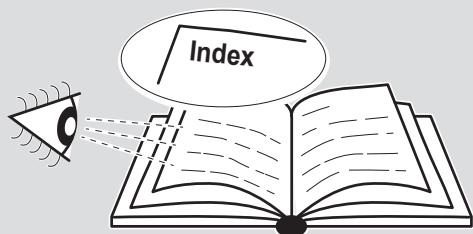

Index

Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety.

Failure to comply with them may result in:

• danger of injury to the operators
• loss of the warranty
• refusal of liability by the manufacturer.

Raised hand

Refers to actions that absolutely must not be performed.

Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

DANGER DUE TO HEAT

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

DO NOT COVER

Indicates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating.

WARNING

• Indicates that this document must be read carefully before installing and/or using the appliance.
• Indicates that this document must be read carefully before any maintenance and/or cleaning operation.

ATTENTION

• Indicates that there may be additional information in attached manuals.
• Indicates that information is available in the user manual or in the installation manual.

ATTENTION

Indicates that the assistance personnel must handle the appliance respecting the installation manual.

DISPOSAL

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances.

Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal.

Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

EN-2

MAIN INDEX

0 - WARNINGS 1

0.1 - GENERAL INFORMATION
0.2 - SYMBOLS

0.2.1 - Editorial pictograms 1

0.3 - GENERAL WARNINGS 3
0.4 - PROPER USE 7

1 - MAIN FEATURES AND FUNCTIONING 7

1.1- IDENTIFICATION OF MAIN PARTS 7
2-INSTALLATION 7
2.1 - WARNINGS 7

3 - USE OF THE APPLIANCE 8

3.1- CONTROL PANEL 8
3.2 - APPLIANCE PREPARATION 8
3.3 - USE 9

3.3.a - ON/OFF key 9
3.3.b - Fan speed 9
3.3.c - Ions/UV mode 10
3.3.d - Timer function 10
3.3.e - Wifi function 10

4 - MAINTENANCE AND CLEANING 10

4.1 - CLEANING 10
4.2 - FILTER MAINTENANCE 11
4.3- FILTER REPLACEMENT 11

5 - STORAGE 12

6-TECHNICAL DATA 12
7 - TROUBLESHOOTING 12

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.

Our appliances are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

1. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.

1. Keep the manual carefully for future reference.

2. After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.

EN-3

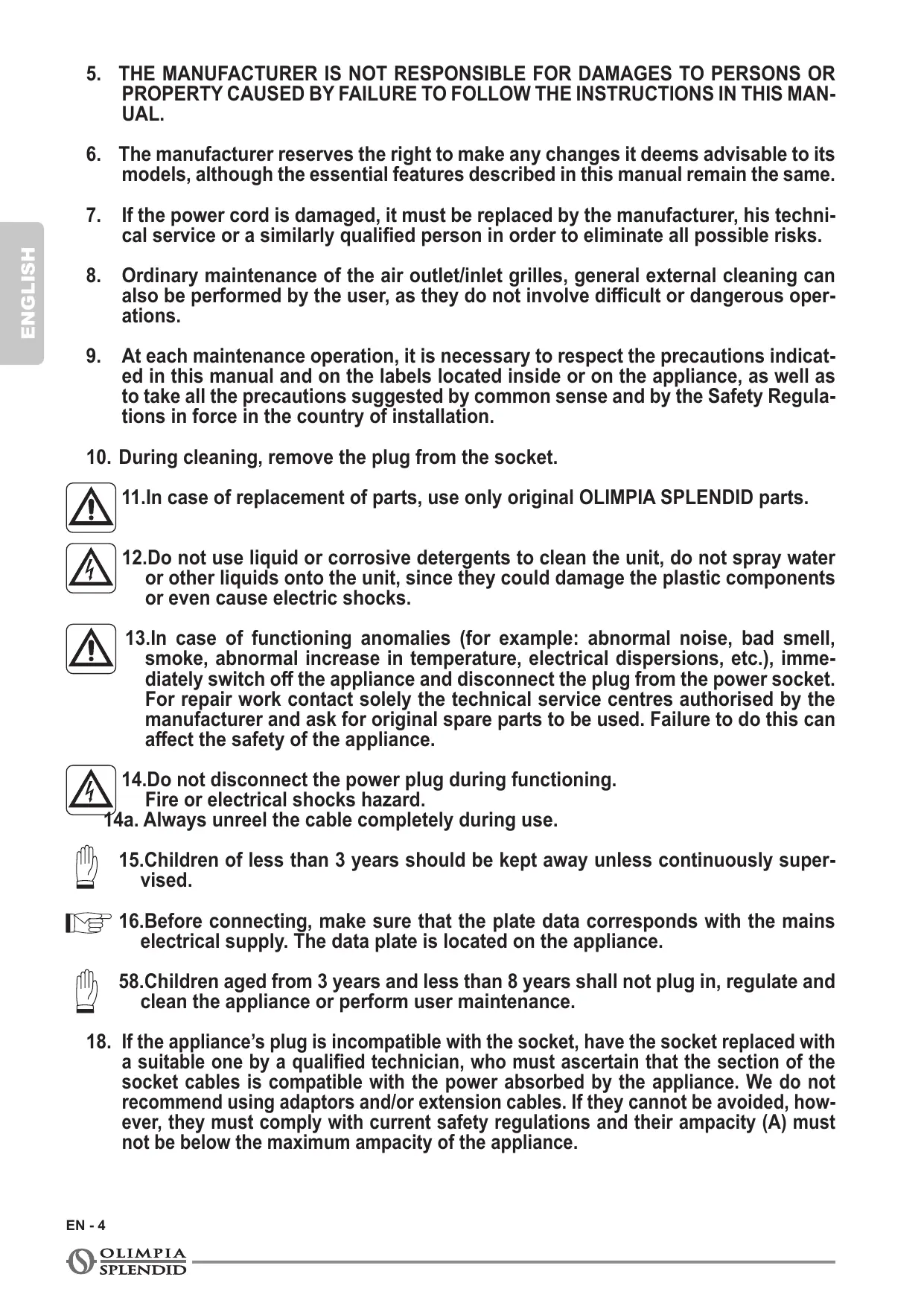

1. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.
2. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.
3. If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualified person in order to eliminate all possible risks.
4. Ordinary maintenance of the air outlet/inlet grilles, general external cleaning can also be performed by the user, as they do not involve difficult or dangerous operations.
5. At each maintenance operation, it is necessary to respect the precautions indicated in this manual and on the labels located inside or on the appliance, as well as to take all the precautions suggested by common sense and by the Safety Regulations in force in the country of installation.
6. During cleaning, remove the plug from the socket.

11.In case of replacement of parts, use only original OLIMPIA SPLENDID parts.

1. Do not use liquid or corrosive detergents to clean the unit, do not spray water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.

1. In case of functioning anomalies (for example: abnormal noise, bad smell, smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch off the appliance and disconnect the plug from the power socket. For repair work contact solely the technical service centres authorised by the manufacturer and ask for original spare parts to be used. Failure to do this can affect the safety of the appliance.

1. Do not disconnect the power plug during functioning. Fire or electrical shocks hazard.

14a. Always unreel the cable completely during use.

1. Children of less than 3 years should be kept away unless continuously supervised.

16.Before connecting, make sure that the plate data corresponds with the mains electrical supply. The data plate is located on the appliance.

1. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

2. If the appliance's plug is incompatible with the socket, have the socket replaced with a suitable one by a qualified technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.

19.DO NOT use the appliance near flammable objects, explosives and heat sources. Do not use this product under direct sunlight or near a heat source such as a stove, heater or radiator.

1. Always and only use the appliance in a vertical position.
2. Do not obstruct the air inlet and outlet grids in any manner.
3. Do not insert extraneous items in the air inlet and outlet grids as this will create the risk of electrical shocks, fire or damages to the appliance.

4. For correct use of the appliance NEVER:

5. Place it immediately underneath a mains wall socket.

6. Pull the power cable or the appliance itself to remove the plug from the mains socket.
7. Leave it expose to atmospheric agents (rain, sun, etc.).
8. Leave it plugged in when not in use.

9. Touch it with wet or damp hands.

10. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.

1. Do not position the appliance directly under an air conditioner in order to avoid that condensation drips inside the appliance. This unit shall not be exposed to dripping or splashing water.

2. Neither disassemble nor modify the appliance.

3. Repairing the appliance by yourself is extremely dangerous.
4. Always place the appliance on a stable, plane and levelled surface.
5. Leave at least 30cm of free space on both sides and behind the appliance and leave at least 50cm of free space above it. Do not place the device near curtains to avoid obstructing the air outlet (Fig.B-B1).
6. Do not use the appliance if it has been dropped or shows signs of damage.
7. The socket must be easily accessible so that the plug can be removed easily in an emergency.
8. Do not handle the plug with wet hands.
9. Do not excessively bend, twist, pull or damage the power cord.
10. Do not run the cord under carpeting, throw rugs or runners etc. Arrange cord away from traffic areas so that it will not be tripped over.
11. Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.

12. Do not use the appliance outdoors or on wet surfaces. Avoid dropping liquids on the appliance. Do not use the appliance near sinks and taps.

13. Do not immerse the appliance in water or in other liquids.

14. This appliance is not intended to be run via an external timer or with a separate remote control system.
15. Do not use the appliance in case of malfunctioning or faults, if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off, disconnect the plug from the socket and let it be checked by professionally qualified personnel.
16. This product is NOT suitable for use in hot and humid areas (kitchen, bathroom, etc).
17. The unit should not be adjusted or repaired by anyone except specialized technicians.
18. Install the appliance at at least 2 meters from other electronic devices (TV, radio, computer,DVD player, etc.) in order to avoid disturbances.
19. Avoid positioning the product outdoors. Do not blow air directly towards people, especially children and elderly.

43a.It is forbidden to dispose of or leave in the reach of children the packaging materials which could become a source of danger.

1. Make sure the plug is always completely inserted in the power socket.

2. This appliance contains an UV emitter. Do not stare at the light source.

3. Clean the appliance with a damp cloth; do not use abrasive products or materials. See the appropriate paragraph for the filters cleaning.
4. The most common cause of overheating is dust or lint deposit in the appliance. Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.
5. Do not use the appliance if insecticide gas has just been sprayed in the room or in the presence of burning incenses, chemical vapours or oily residues.
6. Do not use the appliance if the filter is not positioned correctly.
7. Disassembly, repair or reconversion performed by an unauthorized person could cause heavy damages and will cancel the manufacturer warranty.
8. If you no longer wish to use this appliance, it must be made inoperative by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.
9. This product is in compliance with the maximum permitted ozone concentration of 0,050 parts per million in volume (ppmv) in a period of 24 hours. The Health Canada Guideline 2010 (ISBN 978-1-100-16288-1) recommends that the maximum limit of exposition, based on an average time of 8 hours, is 0,020 ppmv or less when tested in a sealed and controlled room of approximately 30m^3 .

0.4 - PROPER USE

This appliance is only designed for domestic use or similar, not for commercial or industrial use.
- An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

1 - MAIN FEATURES AND FUNCTIONING

Air re-filtering system, effective for ash, hair, pollens, smoke and unpleasant odours removal.
The filter (2) is composed of:

• The pre-filter effectively blocks the impurities contained in air (hair, paper and other materials), considerably improving the HEPA filter duration.
• The HEPA filter filters 99,99% of the particles with a 0,3 micron diameter. It is specifically designed to remove dust, cigarette smoke, bacteria, soot, pollen and radioactive particles.
• The high quality active charcoals filter effectively removes the odours contained in air, such as formaldehyde, benzene, ammonia and water particles.

UV system: kills bacteria, viruses and germs.
- Negative ions generator: the appliance continuously emanates over 2 millions negative ions which help improving air quality in the environment.
Timer function: from 2h, 4h, 8h.
- Touch display.
- Keys press acoustic warning.
Connection via Wi-Fi.

1.1 - IDENTIFICATION OF MAIN PARTS (Fig.A)

1. Rear panel
2. Filter
3. Active charcoal filters
4. Display

5. Control panel

6. Appliance body
   6a. Air suction grid

7. Upper cover
8. Handle
9. Air outlet grid
10. UV light

2 - INSTALLATION

2.1 - WARNINGS

A failure to respect what follows may cause damages to the appliance.

a. Install the appliance on a flat, stable surface and on the floor.
b. The appliance must only be connected to earthed power outlets.

EN-7

c. Make sure that curtains or other objects do not obstruct the air suction filters.
d. The appliance must always be activated paying attention that there are no obstacles for air suction and output.
e. Do not use the appliance in places used as laundry rooms.
f. The appliance must only be installed in dry places.
g. The appliance must not be activated in the presence of dangerous materials, vapours or liquids.

3 - USE OF THE APPLIANCE

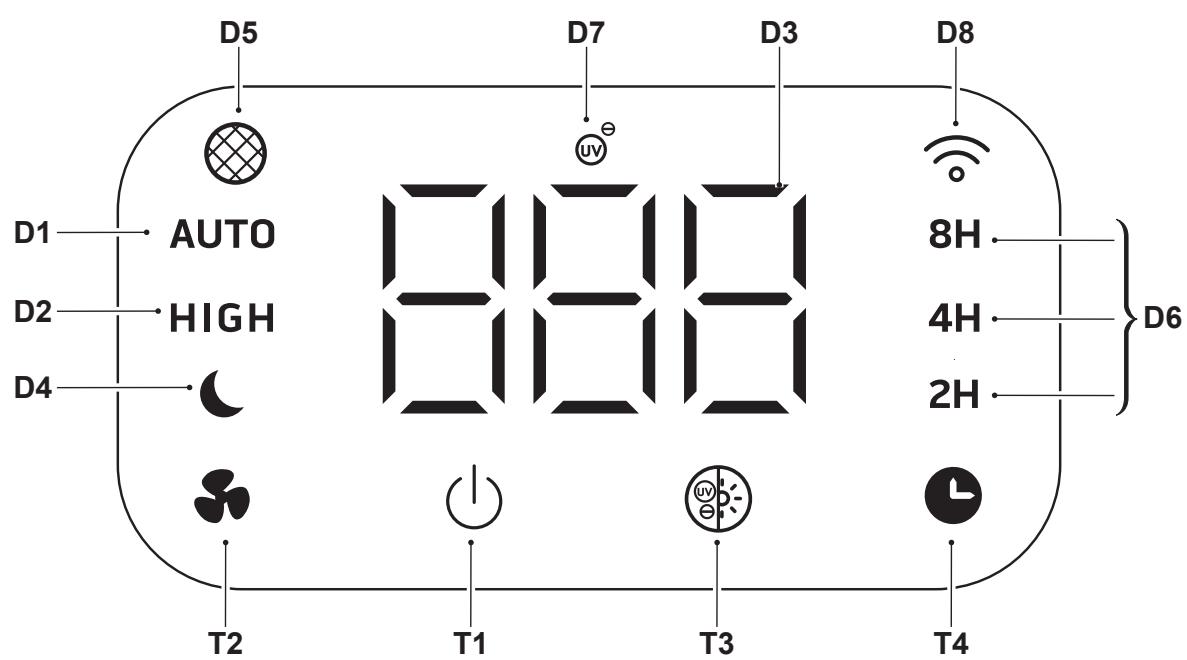

3.1 - CONTROL PANEL

T1. ON/OFF key
T2. Mode key

• "Auto"
  -Turbo
• "Sleep"

T3. "Ion/UV" key
T4. "Timer" key

D1. "Auto" mode LED
D2. "Turbo" mode LED
D3. Visualization of detected quantity of impurities
D4. "Sleep" mode LED
D5. "Filter to be replaced" warning LED
D6. "Timer" function LED
D7. "Ions/UV" mode LED
D8. "Wifi" function LED

3.2 - APPLIANCE PREPARATION

a. Remove the appliance from the packaging and make sure it is intact.
b. Select a stable, levelled and plane location where to place the appliance.

Make sure there is enough free space around the appliance to ensure correct air flow.

Respect the distances and spaces described in the paragraph "0.3 - General warnings".

c. Remove the rear panel (1) by pressing the lever (1a) and pulling it towards yourself.
d. Remove the filter from its bag before use.

EN-8

e. Correctly position the filter (2) in the appliance.
f. Position the rear panel (1) on the appliance body (6) by inserting the lower hooks (1b) in the specific seats (6b) first, then press the lever (1a) and push the panel (1) until you hook it (fig.C).

Do not use the appliance without the filter (2) or if the latter is dirty or worn-out

g. Use the specific handle (8) in order to move the appliance.

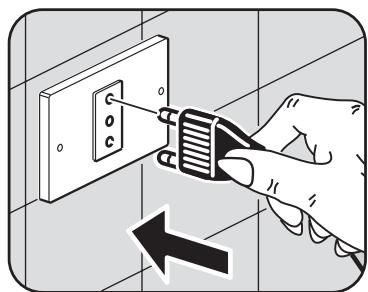

h. Insert the plug in the power socket, the appliance switches on the display for a few seconds and emits a beep.

Before electrically connecting the appliance, make sure the plate data correspond to those of the electricity distribution network.

3.3 - USE

Each time the keys are pressed, the appliance emits a "beep".

3.3.a - ON/OFF key

By pressing the ON/OFF (T1) key, the appliance switches on and the LED (D3) lights up on the display, detecting the quantity of impurities in the air (reference value “PM 2.5”).

During preheating (approximately 30 seconds), the UV lamp (10) changes colour following this sequence: Blue Cyan Green Yellow Orange Red Purple Blue ...

After the 30 seconds have passed, the UV lamp (10) changes to a single colour depending on the detected air quality.

Ex. Green lamp: good air quality, the appliance works in low mode.

Yellow lamp: medium air quality, the appliance works in medium mode.

Red lamp: low air quality, the appliance works in high mode.

To switch off the appliance, press the key ON/OFF (T1) again.

3.3.b - Fan speed

By pressing the mode key (T2), 3 different modes can be selected:

• "Auto" (Led D1)

adjusts fan speed based on air quality.

-Turbo" (Led D2)

the fan works at maximum speed.

• "Sleep" (Led D4)

once this mode is selected, after approximately 5 seconds the display switches off and the fan speed is automatically set to the minimum.

Press the key (T2) again or any other key to deactivate the mode.

3.3.c - Ions/UV mode

By pressing the key "ION/UV" (T3), it is possible to set the UV lamp (10) intensity following this sequence: Soft (low brightness) -> Standard (maximum brightness) -> Lamp off -> Soft -> ...

By pressing the key "ION/UV" (T3) for approximately 3 seconds, the function "IONS" activates. Press the "ION/UV" key (T3) again for approximately 3 seconds to deactivate the function.

3.3.d - Timer function

When the appliance is on, by pressing the key "Timer" (T4) the LED (D6) changes according to this sequence:

$$ \text {O f f} \dashrightarrow 2 \mathrm {h} \dashrightarrow 4 \mathrm {h} \dashrightarrow 8 \mathrm {h} \dashrightarrow \text {O f f} \dashrightarrow 2 \mathrm {h} \dashrightarrow \dots $$

When the desired value is set, the corresponding LED (D6) remains steady on.

3.3.e - Wifi function

Press the key "Timer" (T4) for approximately 5 seconds to activate the "Wifi" function; the LED (D8) starts to blink.

When the appliance connects with your smartphone, the LED (D8) stops blinking and remains switched on steadily on the display.

The instructions for connection to the WiFi network and for use oft he App are available on www.olimpiasplendid.com in the download area.

4 - MAINTENANCE AND CLEANING

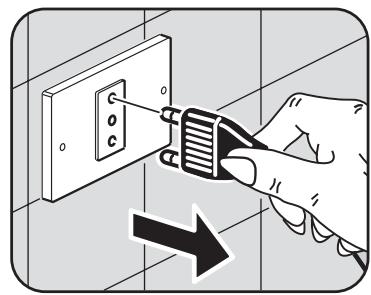

Before proceeding with any maintenance and cleaning operation, always make sure to disconnect the power plug from the socket.

Do not wash nor soak the appliance in water. Prevent water from entering in contact with the internal components of the appliance. Risk of electric shocks!

4.1 - CLEANING

a. Clean the appliance body (6) and the rear panel (1) with a wet cloth and with a mild detergent if necessary (fig.D).
b. Clean the air suction grid (6a), the air inlet and outlet grid with a brush. If necessary, blow compressed air for a more thorough cleaning (fig.D).

Do not use a chemically treated or antistatic cloth to clean the appliance.

EN-10

Do not use gasoline, solvent, polish or similar solvents.

These products could cause the breakage or deformation of the plastic surface.

Make sure the appliance is completely dry before reconnecting the plug to the power socket.

Do not allow dust too accumulate in order to avoid malfunctions.

4.2 - FILTER MAINTENANCE (Fig.E)

a. Remove the rear panel (1) by pressing the lever (1a) and pulling the panel towards yourself.
b. Remove the filter (2) by means of the two tabs (2a) and clean dust on the surface.

It is advised to sterilize the filter by exposing it to sunlight.

c. Use a soft cloth with a neutral detergent to clean the inside of the appliance (Fig.E).
d. Reposition the filter (2) inside the appliance making sure the tabs (2a) are positioned in the same way as before (Fig.F).
e. Reposition the rear panel (1) on the appliance body (6) by inserting the lower hooks (1b) in the specific seats (6b) first, then press the lever (1a) and push the panel (1) until you hook it.

Do not wash the filter.

Do not use a vacuum cleaner directly into contact with the filter.

4.3 - FILTER REPLACEMENT (Fig.H)

After approximately 2200 hours of operation, the warning LED "Filter to be replaced" (D5) blinks (red), indicating that the filter MUST be replaced (Fig.G).

Do not use the appliance without filter or if the latter is damaged.

Do not use the appliance beyond the 2200 h of operation without changing the filter.

a. Remove the rear panel (1) by pressing on the lever (1a) and pull towards yourself.
b. Extract the filter (2) by means of the two tabs (2a).
c. Replace the filter (2) with a new one.
d. Reposition the filter (2) inside the appliance making sure the tabs (2a) are positioned in the same way as before.
e. Reposition the rear panel (1) on the appliance body (6) by inserting the lower hooks (1b) in the specific seats (6b) first, then press the lever (1a) and push the panel (1) until you hook it.

After replacement of the filter, press the button (T2) for approximately 7 seconds; the appliance resets its usage time (2200 h).

5 - STORAGE

In case you have no intention of using the appliance for a long period of time, clean it as indicated in the previous paragraphs.
- Position the appliance in its original packaging and store it in a dry and fresh environment, far from direct exposition to sunlight.

Do not store the appliance in moist or particularly dirty environments.

6 - TECHNICAL DATA

Rated voltage	100-220V ~ 50/60Hz
Rated power	50W
Dimensions (mm)	302x273x534
Weight	5 Kg

7 - TROUBLESHOOTING

a. The appliance doesn't work when pressing the power button.

• The plug is not correctly inserted in the power socket.
• The power socket doesn't work.
• If the LED (D5) continues to blink, the filter must be replaced (2).

b. The appliance is particularly noisy.

• The appliance is not positioned correctly on the supporting surface.
• The supporting surface is not stable.

c. The outgoing air flow is particularly weak.

• The filter is dirty.
• There's no space on the sides of the appliance (minimum 30 cm).
• The air suction grid is dirty.
• The air suction grid is clogged or partially clogged.
• The air outlet grid is dirty.
• The air outlet grid is clogged or partially clogged.

d. Even after a certain use of the appliance, air quality doesn't improve.

• The filter is dirty.

e. The appliance emits bad smell.

• The appliance may emit bad smell when it is switched on for the first time after purchase.
• The appliance may emit bad smell it is switched on after a long period of inactivity.
• The filter is dirty.

If the smell persists or if a smell of burning can also be smelled, immediately disconnect the appliance from the power socket and contact the technical assistance service of the manufacturer.

TABLE DES MATIÈRES GÉNÉRALE
