USER MANUAL KEOR MULTIPLUG 800VA LEGRAND

KEOR MULTIPLUG 600 VA - 800 VA

FR FRANÇAIS 3
EN ENGLISH 17
ITALIANO 31
DEUTSCH 45
ES ESPÁÑOL 59
RU PUCCKN 73

Table des matieres

1. Introduction 4

1.1 Use of the manual 18
1.2 Guarantee terms 18
1.3 Copyright 18

2. Safety and Operating Instructions 19

3. Installation 21

4. Operation 23

4.1 Overview 23
4.2 Start-up procedure 24

4.2.1 Normal mode 24
4.2.2 Cold start 24

4.3 Shutdown 25
4.4 LED and Alarm Indicators 25

5. Troubleshooting 26

6. Warehousing and dismantling 27

6.1 Warehousing 27
6.2 Dismantling 27

7. Technical specifications 28

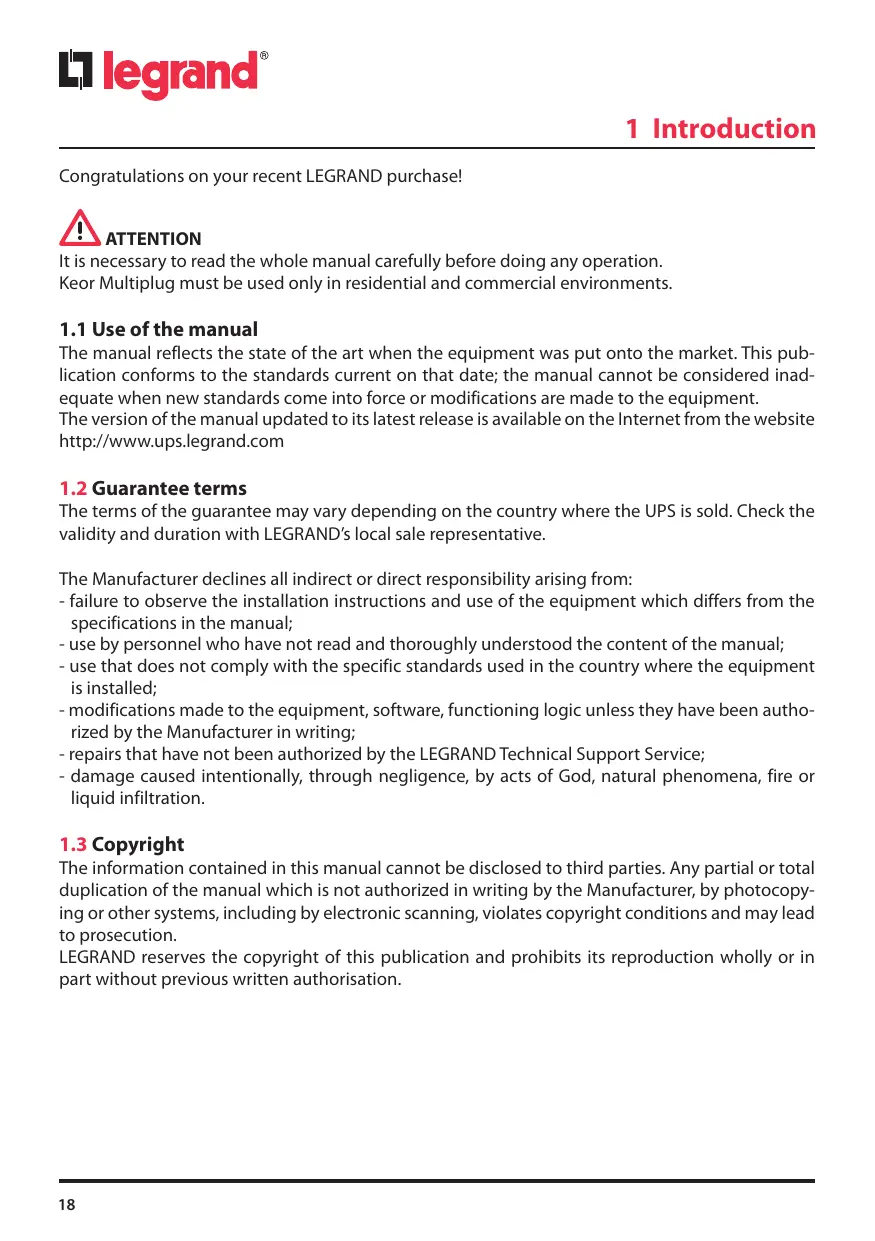

Congratulations on your recent LEGRAND purchase!

! ATTENTION

It is necessary to read the whole manual carefully before doing any operation. Keor Multiplug must be used only in residential and commercial environments.

1.1 Use of the manual

The manual reflects the state of the art when the equipment was put onto the market. This publication conforms to the standards current on that date; the manual cannot be considered inadequate when new standards come into force or modifications are made to the equipment.

The version of the manual updated to its latest release is available on the Internet from the website http://www.ups.legrand.com

1.2 Guarantee terms

The terms of the guarantee may vary depending on the country where the UPS is sold. Check the validity and duration with LEGRAND's local sale representative.

The Manufacturer declines all indirect or direct responsibility arising from:

• failure to observe the installation instructions and use of the equipment which differs from the specifications in the manual;
• use by personnel who have not read and thoroughly understood the content of the manual;
• use that does not comply with the specific standards used in the country where the equipment is installed;
• modifications made to the equipment, software, functioning logic unless they have been authorized by the Manufacturer in writing;
• repairs that have not been authorized by the LEGRAND Technical Support Service;
• damage caused intentionally, through negligence, by acts of God, natural phenomena, fire or liquid infiltration.

1.3 Copyright

The information contained in this manual cannot be disclosed to third parties. Any partial or total duplication of the manual which is not authorized in writing by the Manufacturer, by photocopying or other systems, including by electronic scanning, violates copyright conditions and may lead to prosecution.

LEGRAND reserves the copyright of this publication and prohibits its reproduction wholly or in part without previous written authorisation.

2 Safety and Operating Instructions

This section contains important safety and operating instructions that should always be followed during the installation, use and maintenance of the UPS.

• This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorized opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.
• Ensure that the mains supply voltage and frequency match those of the UPS (see the product label and the technical specifications on chapter 7).
• If any visible damage is found on the product during the unpacking operation, do not install the UPS but repack the unit and return it to your reseller or distributor.
• Before operating the UPS or connecting any load equipment, ensure the UPS is connected to a properly grounded mains socket.
• The load applied must not exceed the one indicated on the type label of the UPS.
• The ON/OFF button of the UPS does not electrically isolate the internal parts. To isolate the UPS, unplug it from the mains power socket.
• Do not attempt to open or disassemble the UPS; there are no user replaceable parts. Opening the case will void the warranty and introduces the risk of electric shock even when the mains plug is disconnected.
• Since the non-detachable power supply cable acts as a separation device, the mains power supply socket shall be installed near the UPS and shall be easily accessible.
• In case of a mains power supply failure, do not unplug the power supply cable. Earth continuity must be ensured to the connected loads.
• Do not plug non-computer-related items such as medical, life-support and house electric equipments to the UPS output.

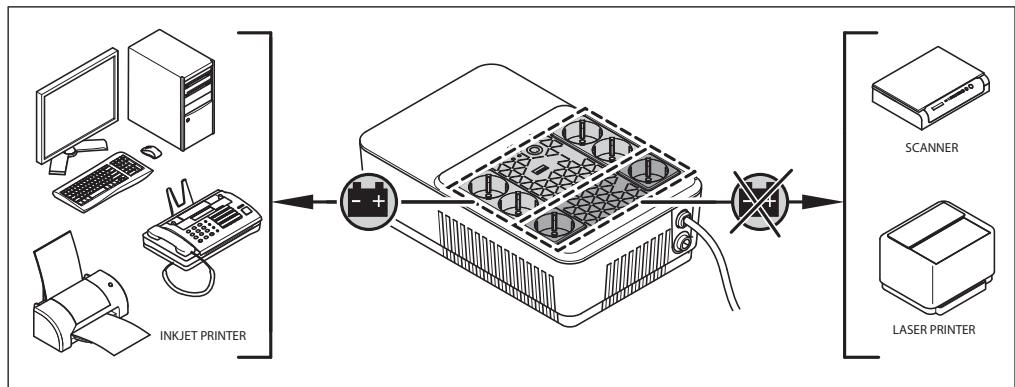

• Do not plug laser printers to the UPS back-up outputs because of their high start-up current.
• The UPS has its own internal energy source (batteries). If the UPS is switched on when no AC power is available, there is hazardous voltage at the output sockets.

The batteries inside the UPS are not user-replaceable. Servicing of batteries must be performed only by electrical hazard authorized personnel.

CAUTION: A battery can present a risk of electrical shock and burns by high short-circuit circuit current. Failed batteries can reach temperatures that exceed the burn thresholds for touchable surfaces. The following precautions should be observed when working on batteries:

a) Remove watches, rings or other metal objects.
b) Use tools with insulated handles.
c) Wear rubber gloves and boots.
d) Do not lay tools or metal parts on top of batteries.

e) Disconnect the charging source prior to connecting or disconnecting battery terminals.
f) Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any part of a grounded battery can result in electric shock and burns by high short-circuit current.

The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance (applicable to equipment and remote battery supplies not having a grounded supply circuit).

g) When replacing batteries, replace with the same type and number of batteries or battery packs.

CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

• The UPS has dangerous high voltages on its input and output connections. Contact with these voltages may be life threatening.
• In case of emergency, immediately turn off the equipment and disconnect the power cord from the AC power supply to disable the UPS.
• Do not allow any liquid or any foreign object to enter the UPS.
• The UPS is intended for indoor installation in a ventilated, controlled indoor environment with a range of temperature between 0^ (+32^) and +40^ (+104^) and non-condensing humidity < 95% .
• Do not install the UPS in locations with sparks, smoke and hazardous gas or where there is water and excessive humidity. Dusty, corrosive, and salty environments can damage the UPS.
• Do not plug the UPS input into its own output.
• Do not attach a power strip or surge suppressor to the UPS.
• Ensure that the cables connecting the loads to the UPS are not longer than 10 meters.

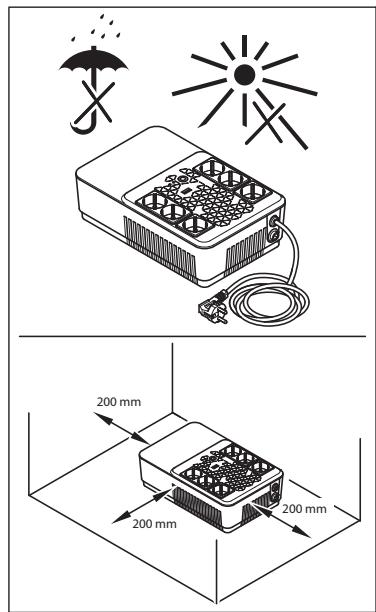

• Keep a clearance of 20~cm beyond the UPS rear panel. Avoid exposing it to direct sunlight or installing it near heat emitting appliances.
• Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
• Do not place the UPS near equipments that generate strong electromagnetic fields and/or near equipments that are sensible to electromagnetic fields.
• The battery of the UPS should be recharged every 2-3 months if unused. To do so, connect the power cable to a suitable grounded mains socket.

WARNING

The UPS is a category C2 products according to the EN 62040-2. In a residential environment, the equipment may cause radio interference, in which case the user may be required to additional measures.

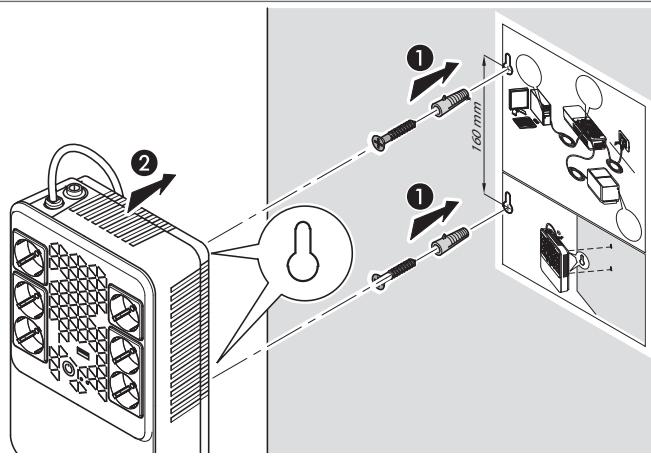

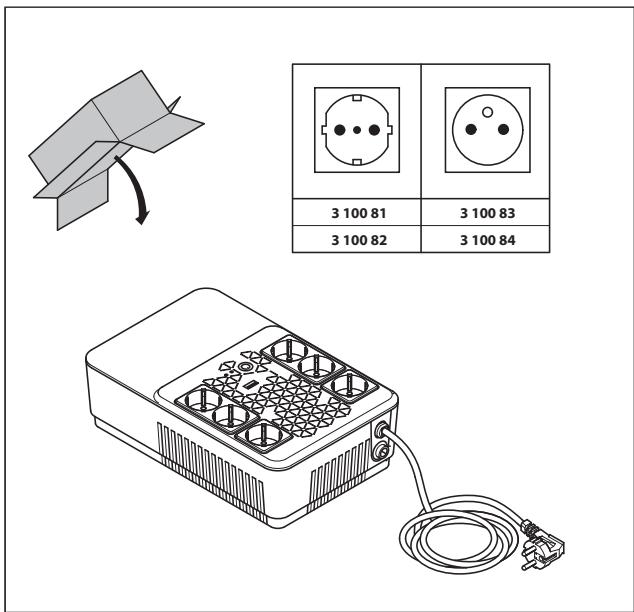

3 Installation

4 Operation

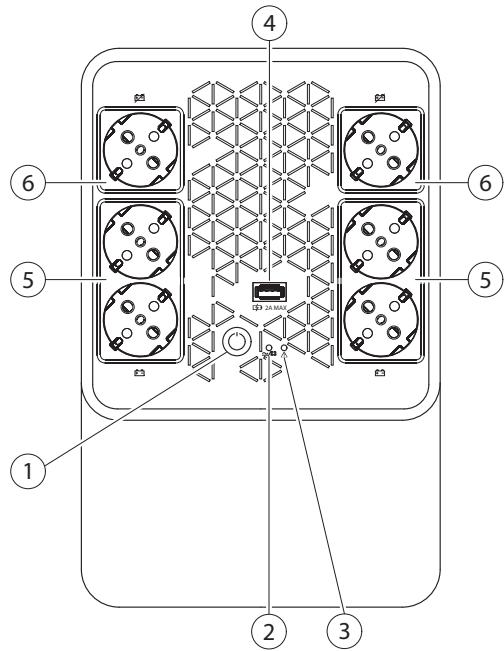

4.1 Overview

ITEM	DESCRIPTION
①	ON/OFF button
②	Normal mode/Battery mode LED (blue)
③	Alarm LED (red)
④	USB recharge port
⑤	Back-up outlets
⑥	Overvoltage protected outlets (no back-up)

4.2 Start-up procedure

4.2.1 Normal mode

1. Ensure that the mains power supply to be used has a suitable voltage/frequency and an upstream protection rated at either 10A or 16 A.

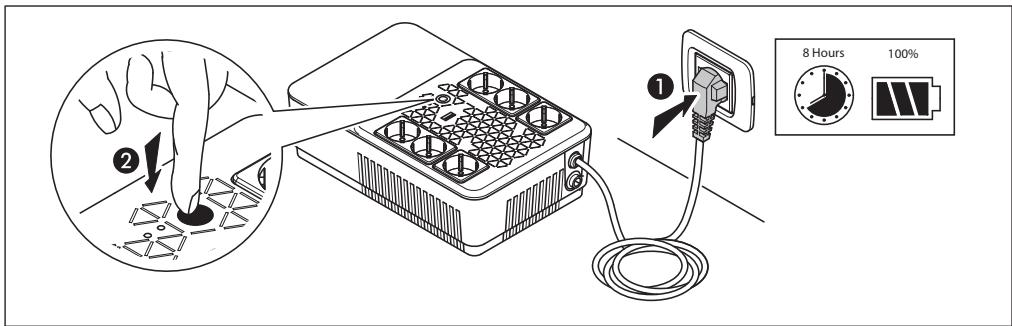

2. Plug the UPS power cord into the mains power supply socket. The blue led blinks for an instant.
3. The UPS recharges its battery each time it is connected to a mains power supply (even if it is powered down). In this stand-by condition, it is also possible to use the USB charger port. It is recommended to charge the battery at least 4 hours before connecting the loads.

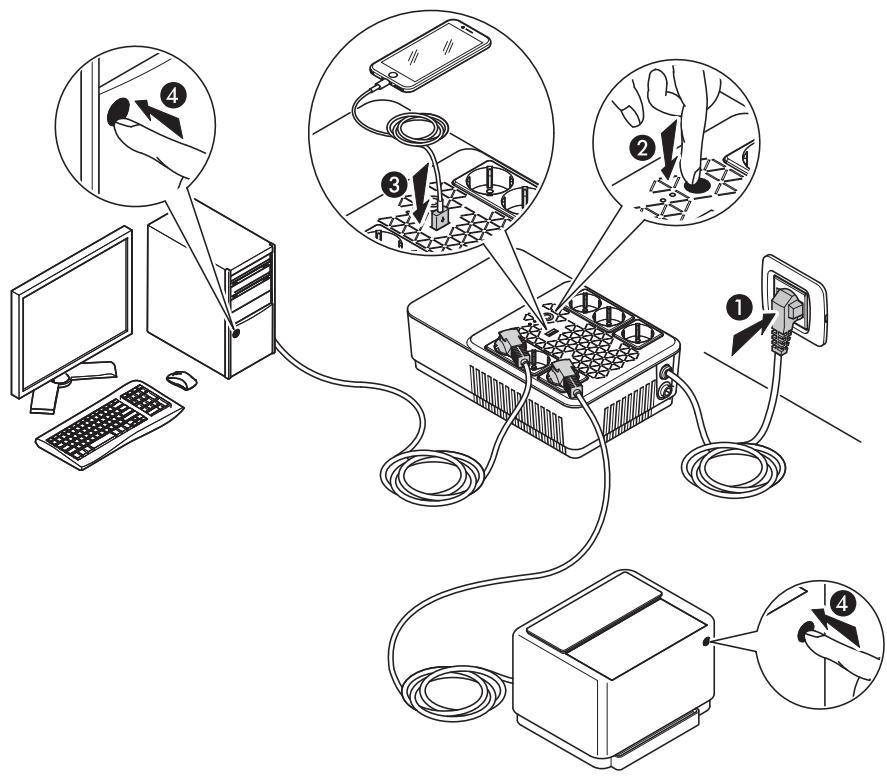

4. Connect the loads to the output sockets. There are two different type of output sockets:

5. 4 x back-up sockets: they are powered only when the UPS is on. If the mains power fail, the back-up sockets are battery powered.

6. 2 × overvoltage protected sockets: they are powered also when the UPS is off. These sockets provide protection only from overvoltages. If the mains power fail, these sockets are not powered.

Ensure that the power of the loads can be managed by the UPS.

1. Press the ON/OFF button to start-up the UPS and power the loads. The blue and red leds are lit for 3 seconds along with a 3 seconds long acoustic signal.

INDICATION

The UPS has the autorestart function. In case the mains power fail and the UPS reaches the end of the back-up time, the load is powered automatically when the mains power is back.

4.2.2 Cold start

1. Make sure the internal battery is fully charged.
2. Connect the loads in the back-up sockets.
3. Press the ON/OFF button to start-up the UPS and power the loads. The blue and red leds are lit for 3 seconds along with a 3 seconds long acoustic signal. After that, the blue led blinks once and there are two beeps.

INDICATION

The output frequency is set to 50Hz

4.3 Shutdown

1. Press and hold the ON/OFF button until the blue led turns off.
2. The UPS stops powering the back-up outlets.
3. Unplug the UPS from the mains power supply socket to stop powering also the overvoltage protected outlets.

4.4 LED and Alarm Indicators

NORMAL MODE/BATTERY MODE LED	ALARMLED	ALARM	UPS STATUS
Steady	OFF	OFF	The UPS is operating in normal mode
LED blinking every 3 seconds	OFF	OFF	UPS operating in battery mode with battery status 40%-100%
LED blinking every 3 seconds	OFF	1 beep every 10 seconds	UPS operating in battery mode with battery status 20%-40%
LED blinking every 2 seconds	OFF	1 beep every 2 seconds	UPS operating in battery mode with battery status <20%
Steady	OFF	Intermittent	Overload in normal mode
OFF	Steady	Continuously sounding	UPS shutdown due to prolonged overload
Steady	Steady	1 beep every 10 seconds	Battery fault
OFF	Steady	Continuously sounding	UPS fault (other than overload)

INDICATION	POSSIBLE CAUSE	SOLUTION
Alarm LED ON	UPS fault	Remove the loads from the UPS outlets. Turn off the UPS and disconnect it from the mains. Connect the UPS to the mains and turn on again. If the problem persists, contact the LEGRAND Technical Support Service.
Intermittent alarm sound with the UPS working in normal mode	Overload	Disconnect some non-critical loads from the UPS outlets until the overload ceases
The UPS doesn’t work in stored energy mode or the backup time is shorter than its intended performance	Low battery or battery fault	If the backup time remains unsatisfactory after 8 hours of battery charging, contact the LEGRAND Technical Support Service
The UPS is working normally but the loads are not powered	-	Check that all power cords are properly connected. If the problem persists, contact the LEGRAND Technical Support Service.
The UPS works on battery mode even though the mains power is available	The UPS fuse blew up	Replace the fuse with a new one (T5AL250V)
	The mains power supply socket is not supplying power to the UPS	Check that the UPS works on another socket. If so, have the initial mains power supply socket checked by a qualified electrician.
Strange noise or smell	UPS fault	Shut down immediately the UPS. Unplug the UPS from the mains socket and contact the LEGRAND Technical Support Service.

6.1 Warehousing

The UPS must be stored in an environment with a room temperature between +20^ (+68^) and +25^ (+77^) and humidity less than 95% (not condensing). The battery installed inside the UPS is lead/acid sealed and does not require maintenance (VRLA). The battery should be charged for 8 hours every 3 months by connecting the UPS to the mains supply socket. Repeat this procedure every two months if the storage ambient temperature is above +25^ (+77^) .

CAUTION

The UPS must never be stored if the battery is partially or totally discharged.

LEGRAND is not liable for any damage or bad functioning caused to the UPS by wrong warehousing.

6.2 Dismantling

DANGER

Dismantling and disposal operations may only be done by a qualified electrician. These instructions are to be considered indicative: in every country there are different regulations with regard to the disposal of electronic or hazardous waste such as batteries. It is necessary to strictly adhere to the standards in force in the country where the equipment is used.

Do not throw any component of the equipment in the ordinary rubbish.

Batteries must be disposed of in a site intended for the recovery of toxic waste. Disposal in the traditional rubbish is not allowed.

Apply to the competent agencies in your countries for the proper procedure.

WARNING

A battery may constitute a risk of an electric shock and high short-circuit current.

When working on batteries, the prescriptions indicated in chapter 2 are to be adhered to.

It is important to dismantle the various parts the UPS consists of. For these operations, Personal Protective Equipment must be worn.

Sub-divide the components separating the metal from the plastic, from the copper and so on according to the type of selective waste disposal in the country where the equipment is dismantled.

If the dismantled components must be stored before being properly disposed, be careful to keep them in a safe place protected from atmospheric agents to avoid soil and groundwater contamination.

For the disposal of electronic waste it is necessary to refer to the industry standards.

This symbol indicates that in order to prevent any negative effects on the environment and on people, this product should be disposed of separately from other household waste, by taking it to authorised collection centres, in accordance with the EU countries local waste disposal legislations. Disposing of the product without following local reg-

ulations may be punished by law. It is recommended to check that this equipment subject to WEEE legislations in the country where it is used.

	3 100 813 100 83	3 100 823 100 84
General characteristics
Nominal power (VA)	600	800
Active Power (W)	360	480
Technology	line interactive (VI)
Waveform	simulated sinewave (battery mode)
Transfer time	2-6 ms (typical)
Input characteristics
Connection	non-detachable cable 3x0.75mm² with German/French standard plug
Rated voltage	230 V
Range of voltage	170 V - 280 V
Rated frequency	50 / 60 Hz ± 5 Hz with auto-sensing
Rated current	2.8 A	3.5 A
Output characteristics
Outlets	4 x CEE 7/3 with battery back-up and overvoltage protection(3 100 81 / 3 100 82)2 x CEE 7/3 with overvoltage protection(3 100 81 / 3 100 82)4 x CEE 7/5 with battery back-up and overvoltage protection(3 100 83 / 3 100 84)2 x CEE 7/5 with overvoltage protection (3 100 83 / 3 100 84)USB Type A Female / 5 V - 1 A
Rated voltage	230 V ± 10% (battery mode)
Rated frequency	50 / 60 Hz ± 1 Hz with auto-sensing (battery mode)
Efficiency	up to 98%
Overload capacity	From mains:automatic shutdown after 5 minutes with load>100%automatic shutdown after 5 seconds with load>120%immediate shutdown for shortcircuitFrom battery: immediate shutdown
Battery
Number of batteries	1
Battery type	lead-acid sealed without maintenance (VRLA)
Unitary capacity	12 Vdc - 7.2 Ah
Rated Battery Voltage	12 Vdc
Backup time	10 min (calculated with one typical workstation)
Protection	against total discharge
Typical recharge time	4-6 hours
Communication and management
Interface	one pushbutton and two LEDs
Alarms	Visual (LED), Audible (buzzer)
Protections	Against overload, overvoltage and short-circuitReplaceable input fuse (T5AL250V)BackfeedOvertemperature
Mechanical characteristics
Dimensions W x H x D (mm)	190 x 89.5 x 296
Net weight (kg)	5	5,5
Environmental conditions
Operating temperature	+0 °C to +40 °C+32 °F to +104 °F
Operating relative humidity	<95% (non-condensing)
Storage temperature	+20 °C to +25 °C+ 68 °F to +77 °F
Noise level at 1 m	< 40 dB
IP code	IP 20
Reference directive and standards
Safety	2014/35/EU DirectiveEN 62040-1
EMC	2014/30/EU DirectiveEN 62040-2

Indices

1. Introduzione 32

m = 311 ;

5. UcTpaHHe HeuCnpaBHOCTei 82

6. Xpanenne n yTnnaa 83

6.1 Xpachenne 83
6.2Демонтах 83

7. Texhnueckne xapaKtepncnkn 84

POn3IpaBIAeM BAC c HeaBnM npNo6peTeHnEM npOyKuIN LEGRAND!

BHIMMAHNE

Ipeed BbINOHNHeHem IIO6bIX pa60 TcneDyET BHIMaTeJIbHO 3yUHTb HAcTOnJUe e pyKOBoDCTOB. IN5P Keor Multiplug npedHa3HaueH dIЯ npimHeHn rToIbKO B nOmeUeHnax JxNbIX N KOMMepuecknx 3dAHn.

1.1 O daHHOM PykoOboCTBe

B PykoBoDCTBe onncaHO o6OpydoBaHne NO COCToHnIO Ha MOMENT erO BbIXoJa Ha pbIHOK. DAnHbI JOKymeHT COOTBeTCTByET CTaHdApTaM, JeINCTBYUoIM B TO Bpemr. PykoBOcTBo He MOxet CUnTaTbCAY TpaTNBIm CIny BCJeDCTBNE BbIXoJa HObIx CTaHdApTOB IIN BHeCEHn I3MeHenn B o6OpydoBaHne.

Bercnny PykoBoDCTBa C HOBeiShmN O6HOBJIeHNa MNoCTyHa Ha caIte http://www.upslegrand.ru

1.2 TapaHTnHbIe 06a3aTeNbCTBa

ГараHTинье 6OB3aTeNbCtBA MOrT BApbIPOBaTbC8A 3aBUNMOCTN O T cPaHbI, B KOTOPO 6bln npoan IV5П. ПроверTe objem n CpOKn DeiCTBnrg rapaHTn B MeCTHOM ppeCTabNTbCTBe LEGRAND.

ПюиЗВоДиТь OTKa3ыBaETСОТ ЛIOБОй KOCBEHNO ИИnpЯМО OTBETCTBEHHOCTN BCJIeDCTBVE:

• Heco6nIOeHn yka3aHn IIO MOHTaJy u nCnoJIb3OBoHnO bOpdyoBaHn, xapaKTepeNCTnKn KOtOpOrO OTnuaIOTcR OYka3aHHbIX B hAcToIeM PykoBODCTBe;
• ькплуациооборюваняпрсогалOM, He n3yubuHm HactoJee PykoBoDCTBO;
• экглуатуци С hapушеним HopMaTиBньIx ДOKум entOB CTpaHbl, B KOTopoI yCTaHOBJIeHO obopудованe;
  -BHcEHHN I3MeHeHn B O6OpUdObaHne, PpOrpaMMHoe 0ecNeueHne n loRkny pa6oTbI, KOtOpBte He 6bln pa3peSeHbI PpOn3BODnteHem B NncbMehHOf oPMe;
• peMOHTa, BbIOnJIeHHOrO He cIyJaMn CnyK6bl TeXHnuecko NpIePxxkN LEGRAND;
• NOBpeJdeHn, INpuHHeHHbIX yMbIJIeHNO IIN IO XaIaNCTN, IOD Bo3JeCTBnEM O6cTOrTeNbCTB HeIpeOdoIIMo Cnbl, CTNXnHbIX 6eDCTBn, IONKapa IIN IONaDaHnJxNkOCTN.

1.3 ABtopckoe npaBO

PnubedeHnaBhactoJsemPykoBDCTBeHHOpMaunHeDOnJHa6bItbOCTynHtpeTbMlniZam.
UactuHoe nnnnoNHOe Bocnpoun3BeDeHne HactoJepo PykoBDCTBa nyTeM fOTOKOpOBaHnA,
cKaHINPOBaHnI npyHMn CnOc6aMn YBnEeTcHapuHem 3aKOHdaTeNbCTBa o6 ABTOPCKOM
npabe NpcecJeDuETcNo 3aKOHy.

KoMaHnIaLEGRANDЯBnEeTcO6NaTaTeMeA BTOpCKnx npaB n 3aIpeuaeT qacTuHoe nII IIOHoe BocPon3BeHeNHe DaHHoro pyKOBoDCTBa 6e3 CBOero NcMbEmHO rpa3peWeHn.

2 Mepb6e30nacnoctn npaBnla pa6oTbI c n3deennem

B daHnom pa3dene coepkataa Baxhnbie yka3aHnno Mepa6e3oNaChOCTn npabuHa pa6bti c n3deHnem, KOTOpbIe cJeDyET Co6NIODaTb npi MoNTaKe, NcNoJIb3OBAHnN o6ClyKbAHnN I5Pi.

• Mohtax DaHHoro I3dJIeNIOJKeH BbIINOLHrTcB KBaJIINΦUncIPOBaHHbIM 3JeKTPnKOM B COOTBeTCTBm C NHCtpyKcIeN IpOu3BOJntEJI. HenpaBUNbHaY cTaHOBka MOpET npINBeCTN K OnaCHoCTn BO3rOpAHnI INI NopAxeHnI 3JeKTPnueCKM TOKOM. IpeE HauJIOM MOHTaxa BHNMaTeJbHO I3yUHTE DaHHbIe IHCTpyKcIeN U yCNOBnI Ha MeCTe YcTAHOBKn I3dJIeNIA. He BckPbBAite KOpNc I He I3MeHnIte INI MoDInΦUncPyIte I3dJIeN3a NCKLIouHeHem CnyaeB, Yka3aHHbIX B IHCTpyKcIeX. OTKpbIBaTB n PEMONTIpOBaTB BCE I3dJIeNIA Legrand pa3peShaetc TOnbKO CneuaJInstam, POnIToTobJIeHHbIM u YPOINHomOeHHbIM KOMNaHnei Legrand. JIO6a HecaHKUIOHnpOBaHHa PA36OpKa I pMOHT I3dJIeN I HeABTOPu3OBaHHbIM nepCOHaJOM AByIeTc3aKOHbIM OCHOBaHmE K PpeKaUeHnIO rapaHTNIHO o6ClyJxBaHnIA, peMOHTI INI 3ameHbl. Pa3peShaetc NcONlb3OBAbT ToBJKO akceccyapbl npON3BOvctBa Legrand.
• Y6eDITecb B TOM,чTo HAnpJxHHe N uactota 3JIeKTPocetN COOTBeTCTBYIOT yKa3aHHbIM Ha nacnpToTHo Ta6JIuKHe IV5ПиВ TextHnuecknx XapakTepcntkKax (cM. rnaBy 7).
• Пиообнаруженилюбого вдимого повржденя BO Врм распakови n3denя, He yctанавли Bavte IV5П, aЗалakуITE u Bo3ВразITE erO npodabuy nIIN dinCTPN6bIoTopy.
• Ipeed nauajom pa60tbc IVbI nn noqkniuehenem liobn harpy3kn y6eintecb, yTO IVbI noqkliouen K npabunbHo 3a3emneHHo po3etke 3neKtpocTeN.
• Moцhoctb noqkIqueHHoH naRpy3Kn He noJxHa npeBbIaTb mozhoctb IVbI, kOTopayka3aHa Ha nacnpToHn Ta6JIuKe Ha 3aDneH CTOpOHe n3dEIny.
  KhoNka BKJI/OTKJI ha IV5n He Imeet ralbbaHuecko pa3Bra3Kn C BHyTpehHmN 3JeMeHTaMn 13dEInna. JIy n3OJauu N5Pi Heo6xOJMo OTCoeDINHt b erO OT 3JneKTpocEtN, BByTaUmb shHyp PntTaHn y3 p03eTkn.
  Kateropnueckn 3aippeaaetcBCKpbBaTb Kopnyc n pa36npaTb IV5P; OH He coepknt deTaeJe, 3ameHembix npb30BaTeJeM. BckpItne kopnyca Blueyet 3a co6oJ OTMeHy rapaHTnn N MoKeT npuBeCTN K nopaxeHHIO 3JIeKTpnueCKm TOKOM, daXe eCNI BuIka shHypa NITaHn I3BLeyeHa n3 po3ETKn.
• Послъкдя соедиеняслкгрocetю nCNoIb3yeTcH HeOTcoeDnHReMbO T NpHpyпитань,To po3ETka энкгрocetu ДOLЖHa paCnoIaratbcB HENOCpeDCTBeHHo6N30ctu OT N6bl TlrKo DoCTynHa.
  B cnuyae nCue3HOBeHnHa npXeHn 3NeKtpocTe H He BbHmMaIte BnJIky hHpya nItaHn I3 po3eKn. CneDyET o6ecneuTb HnpepbIBHoCTb ceIN 3a3emLeHn Ira NIOkJIIOUeHHbIX Harpy3OK.
  KbIxOyIbI3aIpeaTaTPOJKJIouaTbJIIO6oeO6OpUoBaHne,HeOTHOcJIueeCsK KomblIOTepHOMy: MeiunHckyo annapaTpy, cpeCTBa JxN3He06ecneueHn, 6bITOBbe 3JeKTPoPnp6opbl.
  K BbIXOHyBIM po3eTkAm c 6aTapeHNoi PoIePxxKo 3aIpeUaTeCn POnKlHouaTb Ja3epHbIe IpnHTepbl, NocKoJIbKy OHI IMeIoT BbICOKn IyCKOBON TOK.
• IV5П Имeel сбctвeHHь nuctoHnK 3JIeKtpOaHepRn - aKKyMnyTOpHbIe 6aTapeN. EcIn IV5П ВКЛIOUeH, KOrДa HAnpЯЖeHne B 3JIeKtpOceTn OTCyTCTByET, To Ha erO BbIXoJax npICyTCTByET onaCHOe HAnpЯЖeHne.

Batape Bnytpn N5N He npedHa3NaYeHbI dny 3aMeHbI NOlb30BaTeJIeM.

O6cnykmbaTb 6aTapei pa3pe7aetcra Tolbko nepcoHaNy, IMeIoUeMy COOTBeTCTByUoIyI nn donyck no 3JIeKtpo6e30nacHoctn.

OCTOPOXHO: BaTapei npedctabIeT pIck C ToKn 3peHn IopaxHeN 3neKTpueckm TOKOM N KOPOTKOro 3ambikaHn. HeicnpaBhIe 6TaapeuMOryT hArpeBaTbcI Do TEMpeaTypbl, cnoc6Hoi Bbl3BaTb Oxor. Co6JIouaIte cIeNyUoIe Mepb IpeoctOpoxHoCTn npn 6baaeeHn C 6 TaapeaMn:

Pro and Consumer Service

BP 30076-87002

LIMOGES CEDEX FRANCE

www.legrand.com
