Product type	Lithium jump starter and portable power supply
Models	NOMAD POWER 300 (37 Wh) and NOMAD POWER 400 (45 Wh)
Nominal voltage	12 V (for starting 12V lead-acid batteries)
Internal battery capacity	300: 37 Wh, 400: 45 Wh (Lithium NMC)
Main functions	12V emergency start, USB charging (phones, tablets), flashlight (3 modes), 12V power supply (NOMAD POWER 400)
Output ports	2 USB ports (USB 1, USB 2), 1 12V 5A output port (model 400), 1 smart jump start cable connector
Charge input port	USB-C (charge via USB charger or cigarette lighter adapter)
Protections	Overcharge, overheating, overcurrent, deep discharge, short circuit, reverse polarity
Recommended charging temperature	Above 10°C; do not charge below 0°C
Long-term storage	Charge between 60% and 80%; recharge to 100% every 6 months
Vehicle compatibility	Gasoline or diesel vehicles with a 12V lead-acid battery (6 cells of 2V)
Incompatibility	Do not start Lithium LiFePO4 batteries; do not use for non-rechargeable batteries
Device class	Class III (NOMAD POWER)
Maintenance and cleaning	Disconnect before maintenance; clean with a dry cloth; do not use solvents
Repairability	Maintenance by qualified personnel only; power cable non-replaceable (dispose if damaged)
Warranty	1 year (parts and labor), excluding normal wear and misuse
Standards and certifications	Compliant with European directives, EAC, British, Moroccan (CMIM)
Weight and dimensions	Not specified in the manual (compact and portable)

Frequently Asked Questions - NOMAD POWER 400 - 300 GYS

How to recharge the NOMAD POWER?

Use the provided USB-C cable with a USB charger (not included) or the cigarette lighter adapter (included) plugged into a 12V vehicle socket. Connect the USB-C end to the input port (4) of the booster. Charging is preferable at temperatures >10°C.

What is the internal battery capacity?

The NOMAD POWER 300 has a capacity of 37 Wh, the 400 of 45 Wh. Both use a Lithium NMC battery.

Can you start a vehicle with a Lithium LiFePO4 battery?

No, this booster is designed only for 12V lead-acid batteries. Do not use it on Lithium LiFePO4 batteries.

What to do if the Error light is steady?

A steady Error light indicates an internal voltage below 11.0V. Recharge the NOMAD POWER.

How to use the flashlight function?

Press the ON/OFF button (6) for 3 seconds to turn on the LEDs. Press briefly to change modes: normal, strobe, SOS.

How many starts can be performed?

Do not exceed 3 consecutive starts, with a 30-second interval between each attempt.

What to do in case of reverse polarity?

The booster emits a continuous beep and the Error light flashes. Disconnect the clamps immediately, check the connections and reconnect correctly (red on +, black on ground).

How to maintain the NOMAD POWER?

Always disconnect the device before maintenance. Clean surfaces with a dry cloth; do not use solvents. Only qualified personnel should perform repairs.

What are the long-term storage conditions?

Store the booster with a charge between 60% and 80%. Every 6 months, perform a full charge to 100% to preserve performance.

Does the warranty cover cables and clamps?

No, the warranty does not cover normal wear of parts such as cables, clamps, etc. It covers manufacturing defects for 1 year (parts and labor).

USER MANUAL NOMAD POWER 400 - 300 GYS

FR 2/3-7/38-40
EN 2/8-12/38-40
DE 2/13-17/38-40
ES 2/18-22/38-40
RU 2/23-27/38-40
NL 2/28-32/38-40
IT 2/33-37/38-40

NOMAD POWER 300

400

INTERFACE PRODUIT / PRODUCT INTERFACE / BEDIENFELD / INTERFAZ DEL PRODUCTO / HHTEPФЕИС APПAPATA / BEDIENING VAN HET APPARAAT / INTERFACCIA PRODOTTO

1	Prise pour cable de démarrage / Plug for jumper cable / Anschluss für Starthilfekabel / Conector para cable de arranque / Kaßelhöe rheiço stârpêra / Aansluiting voor de startkabel / Presa per cavo di avviamento
2	Port USB 5 V / 9 V / 12 V - 2A / USB port 5 V / 9 V / 12 V - 2A / USB-Port 5 V / 9 V / 12 V - 2A / Puerto USB 5 V / 9 V / 12 V - 2A / USB-prot 5 B / 9 B / 12 B - 2A / USB aansluiting 5V / 9V / 12V / - 2A / Porta USB 5 V / 9 V / 12 V - 2A
3	Port USB 5 V - 2A / USB port 5 V - 2A / USB-Port 5 V - 2A / Puerto USB 5 V - 2A / USB-prot 5 B - 2A / Porta USB 5 V - 2A
4	Port d'entrée 5 V - 2 A / Input port 5 V - 2 A / Eingang 5 V - 2 A / Puerto de entrada 5 V / 2 A / Bxodnoiden prot 5 B - 2 A / Ingang 5 V - 2 A / Porta d'entrata 5 V - 2 A
5	Port de sortie 12 V - 5 A (NOMAD POWER 400 uniquement) / Output port 12 V - 5 A (Nomad Power 400 only) / Ausgang 12 V - 5 A (nur am Nomad Power 400) / Puerto de salute 12 V - 5 A (Nomad Power 400unicamente) / Bvxodnoiden prot 12 B - 5 A (Toßko Nomad Power 400) / Uitgang 12 V - 5 A (uitsluitend voor de Nomad Power 400) / Porta di uscita 12 V - 5 A (Nomad Power 400unicamente)
6	Bouton ON/OFF / ON/OFF button / Ein-/Aus-Schalter / Botón ON/OFF / Knoptka ON/OFF (BKJI/BvIKJI) / ON/OFF knop / Tasto ON/OFF
7	Affichage LED / LED display / LED-Anzeige / Indicador LED / Cbvtoednoidbym dinçpèi / LED display / Scher-mo LED
8	Flash LEDs / LED flash / Flash LEDs / Flash LEDs / Cbvtoednoidbte VBpùsken / LED zaklamp / Flash LED

INSTRUCTIONS DE SECURITÉ

ANOMALIES, CAUSES, REMÉDES

CONDITIONS DE GARANTIE

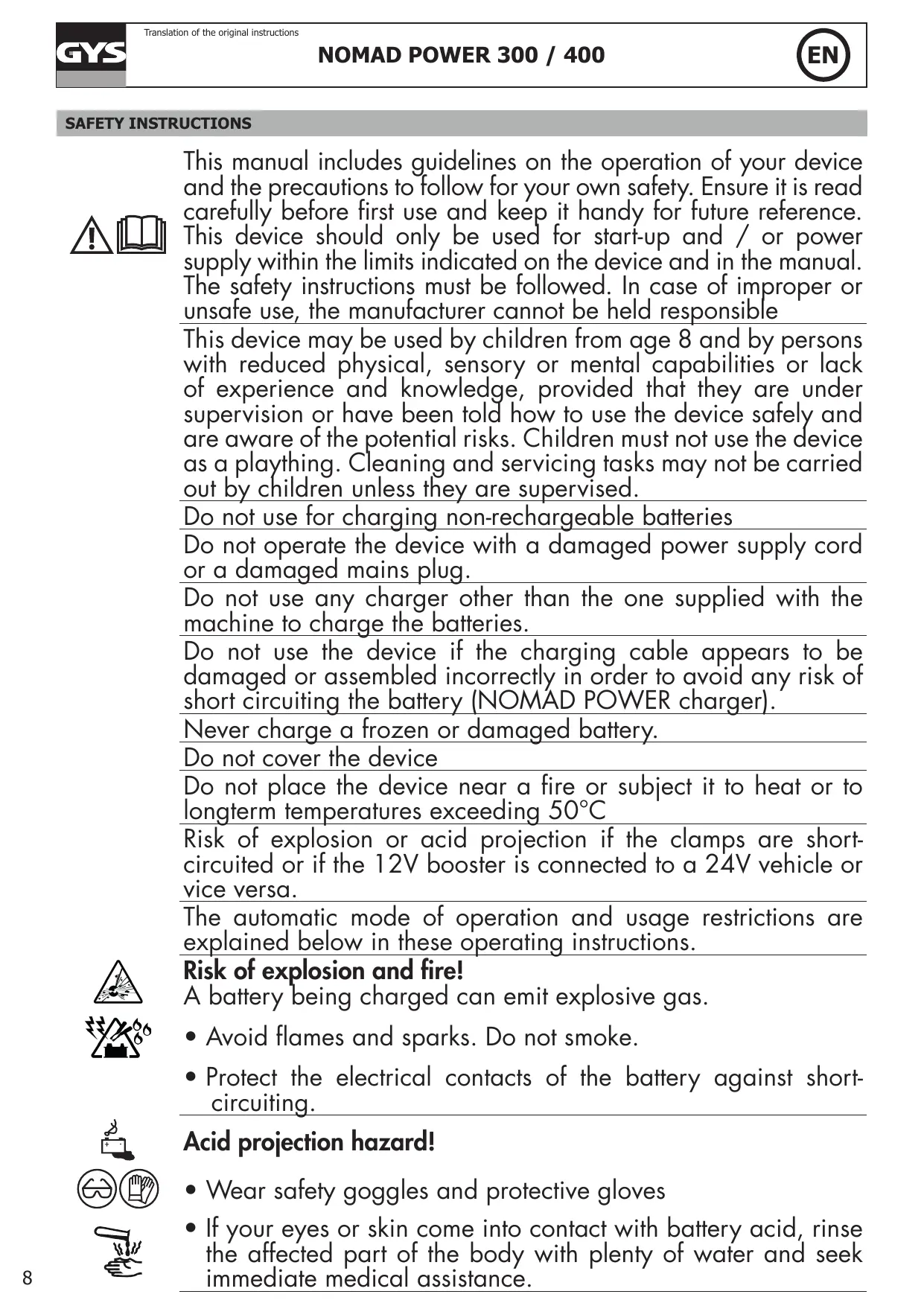

This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference. This device should only be used for start-up and / or power supply within the limits indicated on the device and in the manual. The safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held responsible

This device may be used by children from age 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and servicing tasks may not be carried out by children unless they are supervised.

Do not use for charging non-rechargeable batteries

Do not operate the device with a damaged power supply cord or a damaged mains plug.

Do not use any charger other than the one supplied with the machine to charge the batteries.

Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery (NOMAD POWER charger).

Never charge a frozen or damaged battery.

Do not cover the device

Do not place the device near a fire or subject it to heat or to longterm temperatures exceeding 50^ C

Risk of explosion or acid projection if the clamps are short-circuited or if the 12V booster is connected to a 24V vehicle or vice versa.

The automatic mode of operation and usage restrictions are explained below in these operating instructions.

Risk of explosion and fire!

A battery being charged can emit explosive gas.

• Avoid flames and sparks. Do not smoke.
• Protect the electrical contacts of the battery against short-circuiting.

Acid projection hazard!

• Wear safety goggles and protective gloves
• If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance.

Connection / disconnection:

• Disconnect the power supply before connecting/disconnecting the device to/from the battery.
• The terminal of the battery that is not connected to the car frame must be connected first. The other connection must be made on the car frame, far from the battery and the fuel line.
• After the start-up operation, disconnect the booster. First remove the chassis connection and then the battery connection, in the order shown.

Class III device (NOMAD POWER).

Entretien :

• The power supply cable cannot be replaced. If the cable is damaged, the device should not be used (NOMAD POWER charger).
• Service should be performed by a qualified person
• Warning! Always remove the power plug from the wall socket before carrying out any work on the device.
• Under no circumstances should solvents or other aggressive cleaning agents be used.
• Clean the device's surfaces with a soft, dry cloth.

C E

Regulations

• The device complies with European Directive.
• The certificate of compliance is available on our website.
• EAC conformity mark (Eurasian Economic Commission)
• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).
• Equipment in conformity with Moroccan standards.
• The declaration C_ (CMIM) of conformity is available on our website (see cover page).

Disposal:

• This product should be disposed of at an appropriate recycling facility. Do not dispose of in domestic waste.
• The battery must be removed from the device before the latter is discarded.
• The battery must be dropped off at a suitable recycling facility.
• The device must absolutely be disconnected from the power supply network before removing the battery.

PRODUCT DESCRIPTION

Thanks to its high-performance lithium-ion battery (300: 37 Wh, 400:45 Wh), the NOMAD POWER 300/400 performs 3 functions:
- Instant start of vehicles equipped with a 12V battery (6 cells of 2V), such as karts, motorcycles, cars, etc.

Do not start a Lithium LiFePO4 battery with this booster as it is equipped with a Lithium NMC battery whose voltage is not compatible.

• 12 V power supply for small electronic devices via their USB ports. Most of mobile phones, smartphones, portable gaming devices, MP3/MP4 players can be charged with the included accessories.
  Service lighting

	Start function
NOMAD POWER 300
NOMAD POWER 400

Extreme outside temperatures or mechanical problems on the vehicle (poor starter, no fuel or engine problems) can limit the booster's capacity.

OPERATION

1. Press the ON / OFF button (6). The display shows the remaining power and the activated output ports.
2. The display shows a percentage charge from 0% to 100% when the NOMAD POWER is fully charged.

RECHARGE THE NOMAD POWER before first use and after each use.

INTERNAL BATTERY CHARGING

It is best to charge the Nomad Power at a temperature >10^ . If the temperature is below 0^ , do not charge the Nomad Power. Place the Nomad Power in a temperate room for 1 hour before charging.

Before storing a NOMAD POWER for an indefinite period of time :

• Do not charge it to 100% , but rather between 60 and 80% .
• Every 6 months, perform a 100% charge to keep its performance intact.

OR

1 - Plug the USB cable to a charger with a USB output (not supplied)
2 - Plug the USB-C end of the cable to the input port (4) of the NOMAD POWER start the charge.

1 - Plug car adaptor to the car cigarette lighter socket.
2 - Plug the other end of the adapter to the input port (4) of the NOMAD POWER to start the charge.

STARTING THE VEHICLE

Emergency start function for petrol or diesel vehicles equipped with a 12V battery.

To start a vehicle, please process as follows:

The NOMAD POWER must be at least 80% charged to make a start. A full charge of the booster is recommended.

1	Connect the jumper cable to the NOMAD POWER connector (1).
2	1- Connect the red clamp to the (+) of the battery. 2- Connect the black clamp to the (-) of the battery.
3	SMART CABLE Start	If the lights «Start» and «Error» flash alternately in green and red, the product is ready.
		If only the «Error» light is on, the internal battery of the NOMAD POWER is too low. Charge the product.
4	30"	If the «Start» light becomes green and the «Error» light turns off, everything is ok. Make a start within 30 seconds. Do not exceed 3 starts with a time interval of 30s between each.
5		After starting, disconnect the smart start cable from its connector and remove the 2 clamps from the vehicle's battery terminals within 30 seconds. Leave the vehicle running.
6		If all 3 starts fail, check the «Error» light. A red «Error» light on is synonymous with an engine or connection problem.
7		After the start-up, if the internal battery is less than 80%, recharge the NOMAD POWER. Wait at least 30 minutes after starting the vehicle to charge the NOMAD POWER.

CHARGING MOBILE PHONES

1 - Plug your cable to the NOMAD POWER USB port 1 (2) or USB port 2 (3).
2 - Select the appropriate adaptor for your mobile phone or table and plug it in. The NOMAD POWER launches the charge automatically.

POWER SUPPLY (NOMAD POWER 400)

1 - Connect a 12 V power supply cable (not supplied) to the 12V
5 A output port (5).
2 - Link the power supply cable to the power socket of your
12 V electrical device.

FLASHLIGHT FUNCTION

Press the ON/OFF button (6) for 3 seconds to turn on the LEDs. Briefly press the button (6) to switch lighting modes (3 available modes: normal, stroboscope and SOS).

PROTECTIONS

This device is protected against overload, overheating, overintensity, deep discharge, short circuit and polarity reversal.

TROUBLESHOOTING, CAUSES, SOLUTIONS

	TROUBLESHOOTING	CAUSES	SOLUTIONS
1	No answer while pressing the ON/OFF button	The NOMAD POWER is discharged.	Charge the product.
2	Error>light fixed on the smart start cable.	Internal battery voltage < 11.0V.	Charge the product.
3	Error>indicator flashes + discontinuous beeper.	Short circuit.	Check that the clamps are properly connected and disconnect/reconnect the smart start cable.
	Error>indicator flashes + continuous sound signal	Reverse polarity.	Check that the clamps are properly connected and disconnect/reconnect the smart start cable.
	Error>indicator flashes + quick beep.	Overheating.	Disconnect the clamps from the battery and the NOMAD POWER and wait 5 minutes then reconnect.
	Fixed «Start» light + «Error» light fixed.	The clamps have been connected to the battery for more than 30 seconds.	Remove the 2 clamps from the vehicle battery terminals to protect the unit.

WARRANTY

The warranty covers faulty workmanship for 1 year from the date of purchase (parts and labour).

The warranty does not cover:

• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).

In case of failure, return the unit to your distributor together with:

• The proof of purchase (receipt etc ...)
• A description of the fault reported
