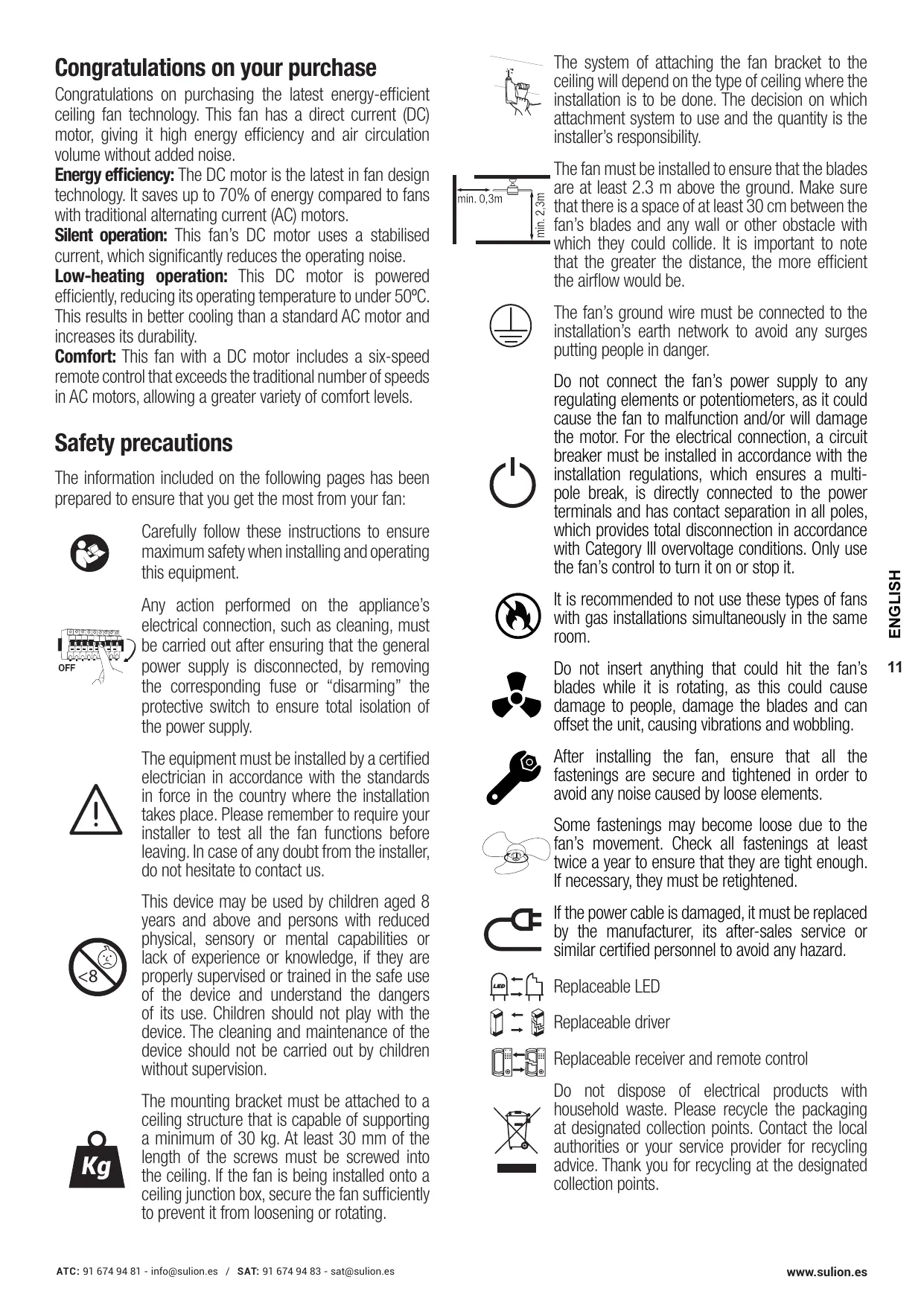

Congratulations on your purchase Congratulations on purchasing the latest energy-efficient ceiling fan technology. This fan has a direct current (DC) motor, giving it high energy efficiency and air circulation volume without added noise. Energy efficiency: The DC motor is the latest in fan design technology. lt saves up to 70% of energy compared to fans with traditional alternating current (AC) motors. Silent operation: This fan's DC motor uses a stabilised current, which significantly reduces the operating noise. Low-heating operation: This DC motor is powered efficiently, reducing its operating temperature to under 50°C. This results in better cooling than a standard AC motor and increases its durability. Comfort: This fan with a DC motor includes a six-speed remote control that exceeds the traditional number of speeds in AC motors, allowing a greater variety of comfort levels. Safety precautions The information included on the following pages has been prepared to ensure that you get the most from your fan: Carefully follow these instructions to ensure maximum safety when installing and operating this equipment. Any action performed on the appliance’s electrical connection, such as cleaning, must be carried out after ensuring that the general power supply is disconnected, by removing the corresponding fuse or “disarming” the protective switch to ensure total isolation of the power supply. The equipment must be installed by a certified electrician in accordance with the standards in force in the country where the installation takes place. Please remember to require your installer to test all the fan functions before leaving. In case of any doubt from the installer, do not hesitate to contact us. This device may be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly supervised or trained in the safe use of the device and understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision. The mounting bracket must be attached to a ceiling structure that is capable of supporting a minimum of 30 kg. At least 30 mm of the length of the screws must be screwed into the ceiling. ff the fan is being installed onto a ceiling junction box, secure the fan sufficiently to prevent it from loosening or rotating. ATC: 91 674 94 81 -info@sulion.es / SAT: 91 674 94 83 - sat@sulion.es : The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility. The fan must be installed to ensure that the blades & thatthere is a space of at least 30 cm between the £ fan's blades and any wall or other obstacle with — which they could collide. it is important to note that the greater the distance, the more efficient the airflow would be. F7 _ are at least 2.3 m above the ground. Make sure The fan's ground wire must be connected to the installation's earth network to avoid any surges putting people in danger.

Do not connect the fan's power supply to any regulating elements or potentiometers, as it could cause the fan to malfunction and/or will damage the motor. For the electrical connection, a circuit breaker must be installed in accordance with the installation regulations, which ensures a multi- pole break, is directly connected to the power terminals and has contact separation in all poles, which provides total disconnection in accordance with Category Ill overvoltage conditions. Only use the fan's control to turn it on or stop it. © Itis recommended to not use these types of fans

with gas installations simultaneously in the same room. Do not insert anything that could hit the fan's e blades while it is rotating, as this could cause damage to people, damage the blades and can offset the unit, causing vibrations and wobbling. ©, Aer installing the fan, ensure that all the fastenings are secure and tightened in order to avoid any noise caused by loose elements. Some fastenings may become loose due to the > fans movement. Check all fastenings at least “twice a year to ensure that they are tight enough. If necessary, they must be retightened. cŒ Ifthe power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similar certified personnel to avoid any hazard. {A2 ( Replaceable LED À = Ÿ Replaceabie driver Replaceable receiver and remote control Do not dispose of electrical products with household waste. Please recycle the packaging TX at designated collection points. Contact the local authorities or your service provider for recycling = advice. Thank you for recycling at the designated collection points. www.sulion.es ENGLISH

Note: The important warnings and instructions in this manual are not guaranteed to cover all possible conditions and situations that may arise. Products do not come with common sense, caution and care. Users must use the fan with due care and caution, employing common sense, to make good use of the fan. Device technical spectifications General Voltage and nominal frequency 220-240V-AC 50/60Hz Energy rating Class | Ingress protection IP44 Working temperature -20 -50°C Maximum ceiling slope angle on which it can be installed 15° Weight 5,5Kg Energy consumption in standby mode (W) <0,5 Service value measurement standard IEC 60879:2019 LED Power 24W Light output 2400lm Color temperature 3000,4000,5000K RGB No Light data measurement 360° ON/OFF cycles 10.000 Life hours 30.000h Dimmable Yes Light beam angle 120° CRI >80 This product have a light source of energy efficiency class F Fan No. of speeds 5 Power (W) 21 RPM 280 Airflow (m3/min) 150 Airflow (m3h) 9000 Max noise level (dB) 46 Service value SV ((m$/min)/W) 7,14 Maximum air speed (m/s) 2,78m/s À Sulion CIF 28763647 Calle Verano, 51 - 28850 Torrejôn de Ardoz - Madrid (ESPANA)

Preparing for setup Note: The estimated Setup time is 120 minutes. This product must only be installed by a certified electrician. Remove the fan from the packaging carefully, avoiding the use of knives which could scratch any part of it. Remove all the components. Place the motor on a cloth or soft surface so as not to damage its surface finish. Carefully handle the unit to make sure that its casing does not bend or get scratched. The fan must be mounted on the floor or a large enough table to prevent any component from falling off. Control remoto

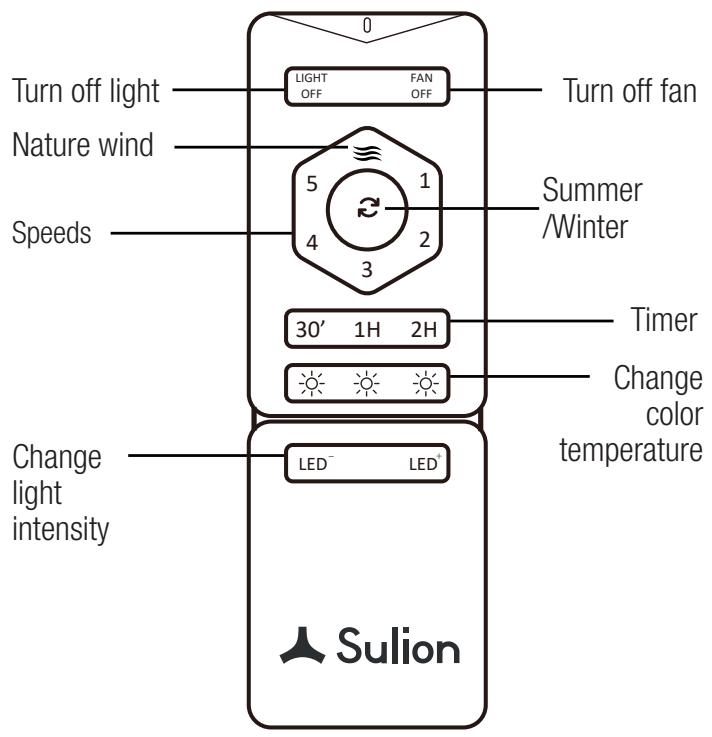

Turn off light —{ o.}—— Turn off fan Nature wind —— |_Summer Speeds Minter Timer Change >————— color Change temperature light intensity À Sulion

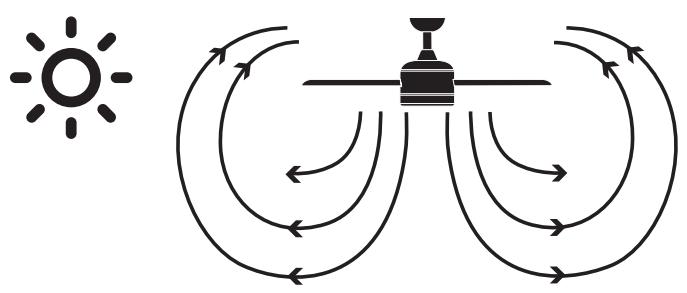

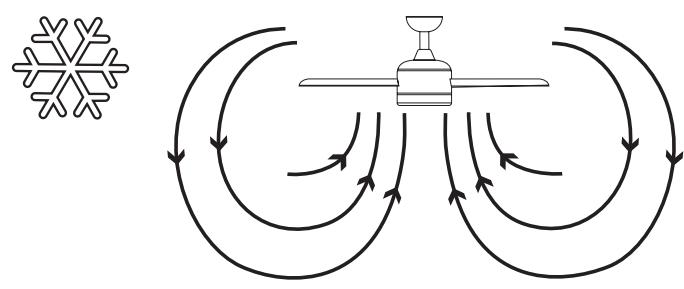

Timer: lf any button is pressed after a shutdown schedule has been selected, it will be cancelled. Nature wind: Increase and decrease the fan speed auto- matically, generating a breeze effect. To link this function, the fan must be previously turning at a certain speed. Pressing any button afterward will override this feature. ATC: 91 674 94 81 -info@sulion.es / SAT: 91 674 94 83 - sat@sulion.es Synchronisation of one or more fans with a single control: CAVEATI Prior to syncing, make sure the ceiling fans you don't want to sync to the same remote are turned off at the wall switch, otherwise they might be synced too, and once synced they can't be unsynchronized 1.- Switch on the power (wall switch) of the fans to be controlled, and then, within the next 10 seconds, press the remote control button FAN OFF for 2-5 continuous seconds. 2.- À “beep” type sound indicates that the connection has been made and the equipment can work normally. 3.- Now, the remote control and the fan receivers will have been synchronised. Turn off the power to the fans using the switch or the automatic switch and then turn them on again, this step is the one that closes the synchronisation process. Rotation direction: summer and winter The sliding switch controls the direction, whether clockwi- se or counterclockwise. Summer option/down - he downwards air current creates a refreshing effect as indicated in diagram A. Winter option/up - An ascending air current pushes hot air away from the fan area near the ceiling, as indicated in diagram B. This allows you to use less central heating. www.sulion.es ENGLISH

Troubleshooting Remote control malfunction 1.Make sure all connections are correctly made. 2.Make sure that the remote control contains batteries. 3.Make sure that all switches (main and isolation) are on.

4. Receiver resynchronization and remote control.

The receiver and remote for this fan are paired at the factory, they do NOT need to be paired once the fan is installed. Synchronization will only proceed due to a malfunction of the remote control. If you have questions before performing the resynchronization, contact Sulion. CAVEAT! Before syncing, if you have another ceiling fan in the same or another room that you don't want to sync, check that it is turned off at the wall switch, if not; it could be synced also with the same remote control and once synced it cannot be unsynchronized. Blade balancing kit: Balancing problems in fan operation Your fan box may include one of the following blade balancing kits. > 7 @ PS) <1 QI fe] él If you notice your fan is excessively swinging, you can use this kit to fix this. You will find the instructions on our website or in the following QR Code. À Sulion CIF 28763647 Calle Verano, 51 - 28850 Torrejôn de Ardoz - Madrid (ESPANA)

Maintenance and warranty information Maintenance and cleaning:

1. The fan's natural movement can cause certain con-

nections to loosen. Check the mounting bracket's con- nections, fastening parts and blade accessories twice a year. Make sure that they are securely fastened.

2. Regularly clean the fan to help keep it looking new

over the years. Do not use water to clean it, as this may damage the motor or the wood, or could cause an electrical shock.

3. Only use a soft brush or a microfibre cloth so as not

to scratch the finish. The veneer is sealed with a layer of lacquer to minimise discolouration or loss of shine.

4. The fan does not need to be oiled. The motor contains

bearings with permanent lubrication. Note: Failure to comply with these instructions results in the loss of the equipment warranty. Warranty service: The manufacturer's warranty covers real faults that may occur but not minor complaints, such as the noise gene- rated by the appliance, as all electric motors generate a certain amount of noise. Operating the fan with slightly loose components (le. screws that have not been tightened enough) or deformed blades due to excessively vigorous cleaning may cause excessive noise and wobbling that will not be covered by the warranty. Regularly retightening elements and non-ag- gressive cleaning are enough to prevent these problems. Controller: The appliance’s warranty will be invalid if it is installed for use with a wall controller or a solid-state dimmer. The pro- duct must only be used with the remote control supplied. Installing the fan: According to this warranty's terms and conditions, this fan can only be installed by a certified electrician. Fans that are installed incorrectly can be dangerous for people and very expensive to repair and will lose their warranty. This fan is designed for interior use only. It must be protec- ted and kept away from water and damp, otherwise, the warranty will be lost. The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility. Wobbling: All ceiling fans tend to wobble while operating. Movement of a couple of centimetres is perfectly acceptable and does not indicate any malfunction nor will it cause the fan to fall, as long as it is mounted to the ceiling correctly following the instructions in this manual. This ceiling fan has a com- pletely secure mounting system that uses steel brackets and ball joints to allow it to rotate and to prevent the trans- mission of vibrations to the ceiling structure. Please note that all ceiling fans are different, even the same model. ATC: 91 674 94 81 -info@sulion.es / SAT: 91 674 94 83 - sat@sulion.es Some may move more or less than others and it does not indicate that the fan is malfunctioning or there is a manu- facturing fault. Increased perception of noise when ope- rating at night: The manufacturer's warranty does not cover when the user perceives the fan's operating noise as being more apparent during the night when the surrounding area is quieter. In addition, the power supply may experience alterations that could cause the device to make more noise, which does not indicate any malfunctioning or manufacturing fault. Fan lighthing system: Except for extremely rare manufacturing defects, the fan's lights are not covered by the fan warranty. Noises and vi- brations can be greater when the lighting system is on. For example, the light diffuser can produce a slight buzz if it is not securely fastened. Once again, non-aggressive cleaning and regularly checking that elements are secu- rely fastened will prevent these disturbances. Glass light diffusers are covered by the warranty until the distributor warehouses and are subject to verification during shipping. Warranty: Sulion guarantees the correct functioning of the equipment andthe possible repars or supply of spare parts inthe event of manufacturing defects for up to 3 years from the date of sale. This warranty is 5 years for the LED diodes and 8 years for the DC fan motor. Sulion is not responsible for improper use. More info on warranty terms and conditions at: https://sulion.es/es/content/12-terminos-y-garantia www.sulion.es a ENGLISH

EC DECLARATION OF CONFORMITY

SULION declare under its own responsibility that the products listed below have been manufactured in accordance with the following European standards.
