| Product Type | Pedestal Fan |
| Brand | LANGUR |
| Model | SULION |
| Blade Diameter | 45 cm |
| Maximum Height | 140 cm |
| Weight | 5.2 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Rated Power | 55 W |
| Number of Speeds | 3 |
| Oscillation | Yes, 90° angle |
| Adjustable Tilt | Yes |
| Remote Control | Yes, included |
| Timer | Yes, up to 8 hours |
| Number of Blades | 5 |
| Main Material | ABS and Steel |
| Protective Grille | Yes, sturdy |
| Automatic Shut-off on Tipping | Yes |
| Maintenance and Cleaning | Dust with a soft dry cloth. Do not immerse. |
| Spare Parts Available | Yes, contact after-sales service |
| Protection Rating | IPX2 |
| Noise Level | ≤ 65 dB(A) |
| Warranty | 2 years |
Frequently Asked Questions - LANGUR SULION
User questions about LANGUR SULION
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual LANGUR - SULION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LANGUR by SULION.
USER MANUAL LANGUR SULION
In the event of any questions, incidents, or missing parts, before consulting with your retailer, call our customer service department at 916749481 email: info@sulion.es or with technical department at 916749483 email: sat@sulion.es. Before calling, note of the reference, name, IMP (located on the product sticker or next to the barcode on the box) and description of the problem. If you have photos or videos, fast resolution can help. Customer service opening times is from 9 a.m. - 6:30 p.m. from Monday- Thursday or 9 a.m. - 2 p.m. on Fridays. You can also contact us via email at info@sulion.es or our technical service at sat@sulion.es and on our web www.sulion.es, where you will find videos, instruction manuals and our FAQs.
ES
Download the userguide in our web: sulion.es/ean/8426107053961
FR
Pala / Blade - Ref. 2171395
PCB Led - Ref. 2171388
Kit receptor + mando / Kit receiver + RC - Ref. 2171371
Difusor / Diffuser - Ref. 2171401

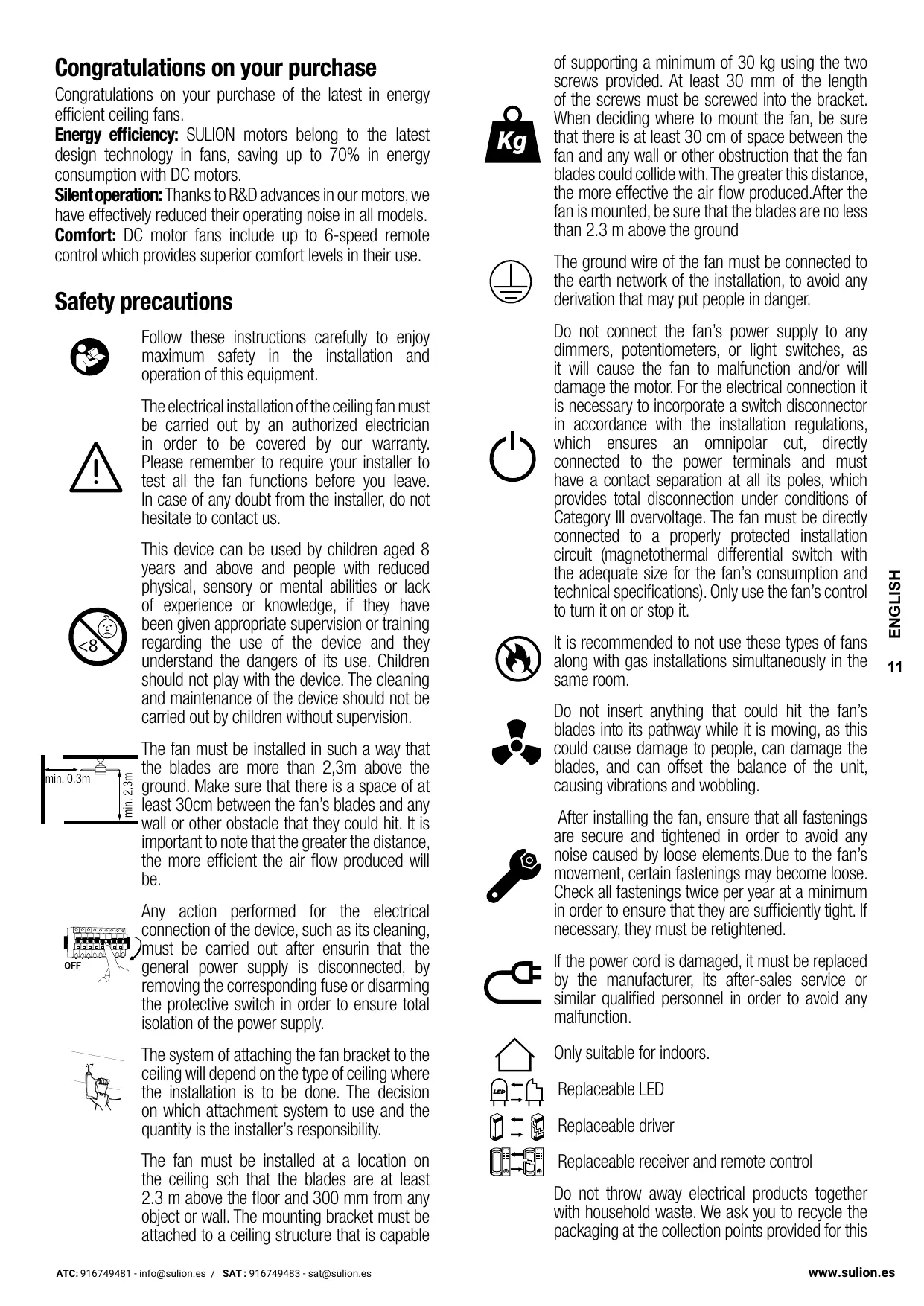

Congratulations on your purchase
Congratulations on your purchase of the latest in energy efficient ceiling fans.
Energy efficiency: SULION motors belong to the latest design technology in fans, saving up to 70% in energy consumption with DC motors.
Silent operation: Thanks to R&D advances in our motors, we have effectively reduced their operating noise in all models.
Comfort: DC motor fans include up to 6-speed remote control which provides superior comfort levels in their use.
Safety precautions
Follow these instructions carefully to enjoy maximum safety in the installation and operation of this equipment.
The electrical installation of the ceiling fan must be carried out by an authorized electrician in order to be covered by our warranty. Please remember to require your installer to test all the fan functions before you leave. In case of any doubt from the installer, do not hesitate to contact us.
This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they have been given appropriate supervision or training regarding the use of the device and they understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.
The fan must be installed in such a way that the blades are more than 2,3m above the ground. Make sure that there is a space of at least 30cm between the fan's blades and any wall or other obstacle that they could hit. It is important to note that the greater the distance, the more efficient the air flow produced will be.
Any action performed for the electrical connection of the device, such as its cleaning, must be carried out after ensurin that the general power supply is disconnected, by removing the corresponding fuse or disarming the protective switch in order to ensure total isolation of the power supply.
The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility.
The fan must be installed at a location on the ceiling sch that the blades are at least 2.3m above the floor and 300~mm from any object or wall. The mounting bracket must be attached to a ceiling structure that is capable
of supporting a minimum of 30kg using the two screws provided. At least 30~mm of the length of the screws must be screwed into the bracket. When deciding where to mount the fan, be sure that there is at least 30~cm of space between the fan and any wall or other obstruction that the fan blades could collide with. The greater this distance, the more effective the air flow produced. After the fan is mounted, be sure that the blades are no less than 2.3m above the ground
The ground wire of the fan must be connected to the earth network of the installation, to avoid any derivation that may put people in danger.
Do not connect the fan's power supply to any dimmers, potentiometers, or light switches, as it will cause the fan to malfunction and/or will damage the motor. For the electrical connection it is necessary to incorporate a switch disconnector in accordance with the installation regulations, which ensures an omnipolar cut, directly connected to the power terminals and must have a contact separation at all its poles, which provides total disconnection under conditions of Category III overvoltage. The fan must be directly connected to a properly protected installation circuit (magnetothermal differential switch with the adequate size for the fan's consumption and technical specifications). Only use the fan's control to turn it on or stop it.
It is recommended to not use these types of fans along with gas installations simultaneously in the same room.
Do not insert anything that could hit the fan's blades into its pathway while it is moving, as this could cause damage to people, can damage the blades, and can offset the balance of the unit, causing vibrations and wobbling.
After installing the fan, ensure that all fastenings are secure and tightened in order to avoid any noise caused by loose elements.Due to the fan's movement, certain fastenings may become loose. Check all fastenings twice per year at a minimum in order to ensure that they are sufficiently tight. If necessary, they must be retightened.
If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or similar qualified personnel in order to avoid any malfunction.
Only suitable for indoors.
Replaceable LED
Replaceable driver
Replaceable receiver and remote control
Do not throw away electrical products together with household waste. We ask you to recycle the packaging at the collection points provided for this
purpose. Contact local authorities or your provider for recycling advice. Thank you for recycling at the collection points provided for this manual.
Note: The important warnings and instructions indicated in this manual are not guaranteed to cover all possible conditions and situations
that may occur. It must be understood that common sense, precaution, and care are factors that cannot be included in all products. These factors can and must only be provided by the user who maintains and enjoys this fan.
Device technical specifications
General
| Nominal voltage and frequency | 220-240V~AC 50/60Hz |
| Protection category | Clase I |
| Protection index | IP20 |
| Work temperature | -5 ↔40°C |
| Maximun ceiling slope on which it can be installed | 0° |
| Weight | 2,5Kg |
| Power consumption in standby mode (W) | <0,5 |
| Service value measurement standard | EN 62879:2020 |
LED
| Wattage | 38W |
| Flux | 3800lm |
| Color temperature | 3000 - 6000K |
| RGB | No |
| Data measurement | 360° Sphere |
| N° of ON/OFF cycles | 10000 |
| N° of hours of lifespan | 30000h |
| Dimmable | Yes |
| Angle | 120° |
| CRI | >80 |
| This product have a light source of energy efficiency class | E |
Fan
| Speed | 6 |
| Power (W) | 12 |
| RPM | 1050 |
| Airflow (m3/min) | 143 |
| Airflow (m3/h) | 8600 |
| Max noise level (dB) | 52 |
| Service value SV ((m3 / min) / W) | 11,91 |
| Maximum air speed (m / sec) | 13,17m/s |
Preparing for installation
Note: The estimated installation time is 120 minutes. This product can only be installed by a certified electrician Carefully separate the fan's parts, avoiding the use of cutters or blades that could scratch any part of it.
Remove the fan from the packaging carefully, avoiding the use of knives which could scratch any part of it.
Remove all the components. Place the motor on a cloth or wet surface so as not to damage its surface finish. Carefully handle the unit to make sure that its casing does not bend or get scratched.
The fan must be mounted on the floor or a large enough table to prevent any component from falling off.
Instructions for synchronizing the receiver and the remote control
The control is already factory-linked with its rece
Make sure all connections are correctly made.
Make sure that the remote control contains batteries.
Make sure that all switches (main and isolation) are on.
The control of this fan have two mode of synchronization, Universal mode and Unit mode:
- Unit Mode:
This type of synchronization allows you to control two or more nearby fans independently, each with its remote control.
Synchronization:
The control of this fan does not require synchronization with the receiver, the control is already factory-linked with its receiver
- Universal Mode:
This type of synchronization allows you to control one or more nearby fans with the same remote control.
Synchronization:
1.-Connect the power (wall switch) of the fan or fans that you want to control, and then just within the following
15 seconds, press the key of the remote control 3 times.
2.-A "beep" sound indicates that the connection has been executed and the equipment can function normally.
3.-Now, transmitter and receiver of the fan / s will have been synchronized. Turn off the fan / s current using the switch or automatic and then turn it back on / s, this step is the one that closes the synchronization process.
It is not possible for a controller to forget a fan once it has been linked, if you want a fan to leave
to obey a command, another one must be linked to "overwrite it".

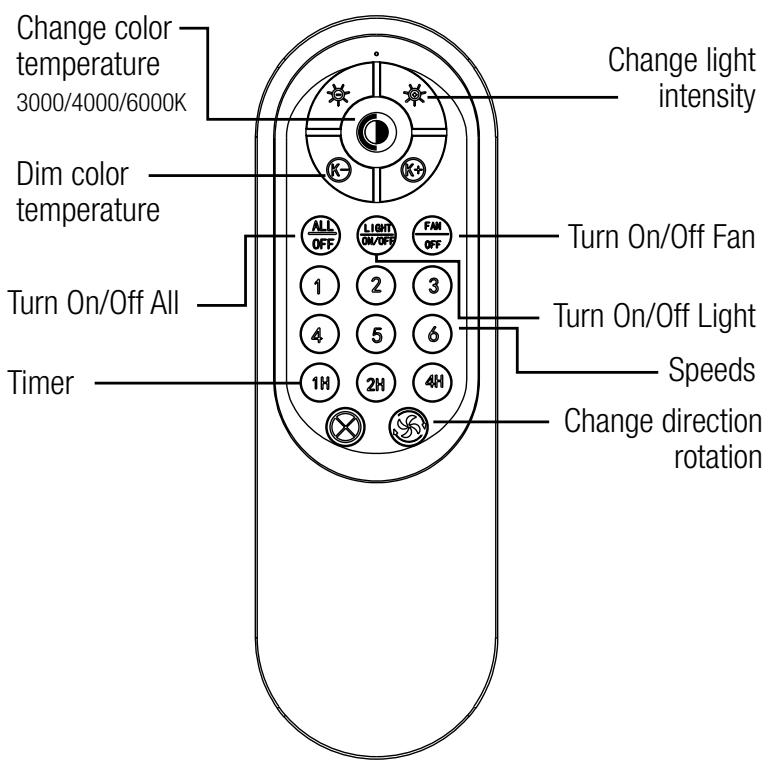

Remote control

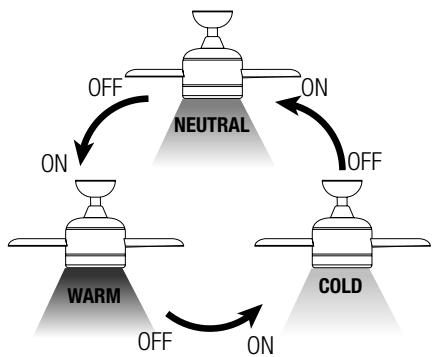

Light color temperature change
You can change the color temperature of the light, turning off and on, with the wall switch, the remote control or in case of being an IoT fan from your terminal.

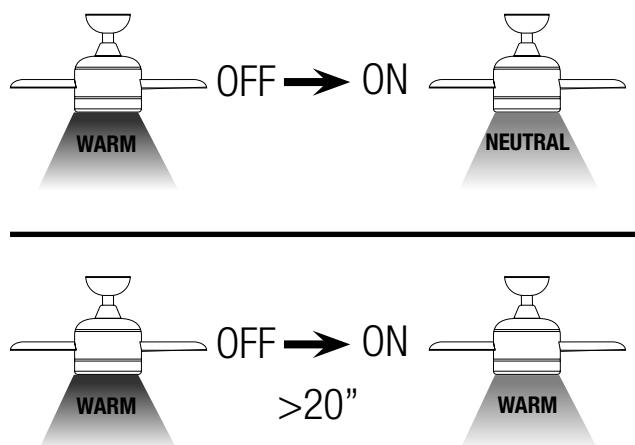

Memory function
Rotation direction: summer and winter
The sliding switch controls the direction, whether clockwise or counterclockwise.

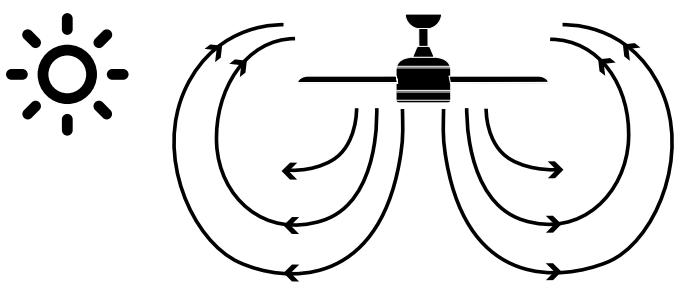

Summer option/down - he downwards air current creates a refreshing effect as indicated in diagram A.

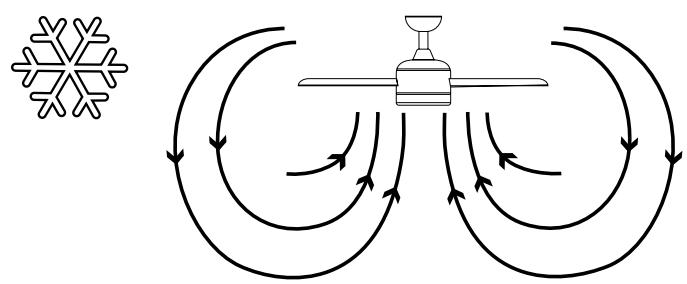

Winter option/up - An ascending air current pushes hot air away from the fan area near the ceiling, as indicated in diagram B. This allows you to use less central heating.
Maintenance and information of warranty Maintenance and cleaning:
- The fan's natural movement can cause certain connections to loosen. Check mounting connections, fastening parts, and blade accessories twice a year. Check that they are well fastened.
- Clean the fan periodically to help maintain its new appearance. Do not use water to clean it, as this may damage the motor or the wood, or could cause electrical shock.
- Use only a soft brush or microfiber cloth as to not scratch the finish. The veneer is sealed with a layer of lacquer to minimize discoloration or loss of shine.
- It is not necessary to oil the fan. The motor contains bearings with permanent lubrication.
- Note: Failure to comply with these instructions results in the loss of the equipment warranty.
6. Warranty service:
The manufacturer's warranty covers real failures that may occur but not minor complaints such as the noise generated by the device, as all electric motors generate a certain amount of noise.
Operating the fan with slightly loose components (screws not adequately tightened) or the deformation of blades due to excessively vigorous cleaning may cause excessive noise and wobbling, which will not be covered by the warranty. Taking regular care to retighten elements and clean carefully is enough to prevent these problems.
Control:
The device's warranty will be invalid if it is installed for use with a solid-state wall switch or dimmer. It must only be used with the remote control provided with the unit.
Fan installation:
According to the terms and conditions of our warranty, this fan can only be installed by a certified electrician. Fans that are installed incorrectly can be dangerous to people and very expensive to repair, and will lose their warranty. This fan is designed for interior use only, excluding moist areas and bathrooms. The supplier does not assume any liability for physical or bodily damage caused by the incorrect use or installation of the fan. If you are unsure, consult an electrician.
Wobbling:
All ceiling fans tend to wobble during their operation. A wobble of 2cm is perfectly acceptable and does not indicate any malfunction nor will it cause the fan to fall, as long as it was mounted to the ceiling correctly following the instructions in this manual. This ceiling fan has a completely secure mounting system that uses steel brackets and connecting spheres to allow it to rotate and to prevent the transmission of vibrations to the ceiling structure. Please note that even fans of the same model can have different wobbles, which is totally acceptable and does not imply any malfunction or manufacturing defect.
Increased perception of noise during nighttime operation:
The manufacturer's warranty does not cover the fact that during the night, when the surrounding environment is quieter, the fan's operating noise is more apparent. In addition, during the night, the power supply may experience alterations that may produce increased noise generated by the device, which does not indicate any malfunctioning or manufacturing defect in the device.
Fan lighting system:
Noises and vibrations can be greater when the lighting system is turned on. For example, the light diffuser can produce a slight buzz if not adequately attached. Once again, non-aggressive care and regular check to ensure that all elements are properly fastened will prevent these disturbances. Glass light diffusers are covered by the warranty to the distributor warehouses, and are subject to verification during delivery.
Warranty:
Manufactures guarantees the proper functioning of this equipment, repairs or spare parts of the model owing to faulty manufacture during 3 years after the surrender date, 8 years exclusively in the case of the fan motor. Responsibility will not be accepted, however, for damages or injury caused through misuse. For any claims the sale ticket must be presented. The company agrees to repair any defect or malfunction found in the item and any damages said defect or malfunction might directly provoke. If the reparation should fail to satisfy the customer and/or the object fail to present the optimum condition for the use to which it is destined the guarantee holder will have the right to the substitution of the acquired item for another identical characteristics or a complete refund of the purchase price. Terms and conditions of warranty www.sulion.es
SULION declare under our own responsibility that the products listed below have been manufactured in accordance with the following European standards.
Madrid, 16 / 06 / 2020
C. Schuller
CEO
LAMPARAS/SCHULLER SA
| RED 2014/53/EU |
| Article 3.1a |
| EN 60598-1:2015 + A1:2018 |
| EN 60598-2-1:1989 |
| EN 60335-1:2012 + A11:2014 + A13:2017 |
| EN 60335-2-80:2003 + A1:2004 + A2:2009 |
| EN 62233:2008 |
| EN 62471:2008 |
| EN 62493:2010 |
| Article 3.1b |
| EN 55014-1:2006 + A1:2009 + A2:2011 |
| EN 55014-2:1997 + A1:2001 + A2:2008 |
| EN 55015:2013 |
| EN 61000-3-2:2014 |
| EN 61000-3-3:2013 |
| EN 61547:2009 |
| EN 301 489-1 V2.1.1 |
| EN 301 489-17 V3.1.1 |
| Article 3.2 |
| EN 300 328 V2.1.1 |
| RoHS 2015/863/EU |
| ErP Directive 2009/125/EC |
| Regulation 2015/1428 |
| Regulation 2019/2020 |
