Product Type	Ceiling fan with LED lighting
Brand	SULION
Model	NANDO
Weight	8 kg
Power Supply	220-240 V~AC, 50/60 Hz
Maximum fan power	22 W
Number of speeds	6
Maximum air flow	200 m³/min (12 000 m³/h)
Sound level	38 dB
Maximum service value	9,09 (m³/min)/W
Integrated LED lighting	36 W, 3600 lm, 3000-6000 K, RGB, dimmable
Protection rating	IP20
Operating temperature	-5 to 40 °C
Maximum ceiling slope	15°
Minimum blade height from floor	2,3 m
Minimum lateral clearance	30 cm
Motor type	High efficiency direct current (DC)
Control	RF remote control + iLink app (Bluetooth 4.0)
Built-in speaker	3 W, Bluetooth
Special features	Breeze mode, Ifeel mode, timer, memory, summer/winter mode
Energy class of light source	F
Warranty	3 years (general), 5 years (LED), 8 years (DC motor)
Replaceable spare parts	LED, driver, receiver, remote control
Maintenance	Clean with a soft, dry cloth; check fastenings twice a year
Installation	By a qualified electrician, mandatory power cut-off

Frequently Asked Questions - NANDO SULION

How to synchronize the remote control with the fan?

To synchronize, turn off and then on the fan power via the wall switch. Within 15 seconds, press the © button on the remote for 10 seconds. If multiple fans need synchronization, make sure the others are off. Once the connection is established, turn off and on the power to finalize.

What to do in case of excessive fan wobble?

Use the balancing kit provided. Follow the instructions on the Sulion website or via the QR code in the manual. A wobble of less than 2 cm is normal. If the oscillation persists, check that the blades are securely fastened and that the ceiling mount is solid.

How to activate winter or summer mode?

Use the remote control button or the switch on the fan body to reverse the rotation direction. In summer mode (counterclockwise), air moves downward to cool. In winter mode (clockwise), warm air accumulated at the ceiling is redirected downward, reducing heating needs.

How to change the color temperature of the lighting?

You can change the light color via the wall switch, remote control, or the iLink app. The RGB lighting offers a wide choice of colors and whites (from 3000K to 6000K).

How to connect the fan to the iLink app?

Turn on the fan light, activate Bluetooth on your device, then look for the device 'Sulion Fan' in the list. Download the iLink app from Google Play or the App Store, open it and follow the steps to add the fan. Once connected, you can control all functions from your smartphone.

How to clean and maintain the fan?

Use a soft, dry cloth or a microfiber brush. Never use water as it could damage the motor or cause electric shock. Check the tightness of all fastenings at least twice a year. The motor does not require lubrication.

What does the warranty cover?

The 3-year warranty covers manufacturing defects, 5 years for LEDs and 8 years for the DC motor. It does not cover minor issues like normal noise, acceptable wobble, or damage caused by improper installation or harsh cleaning. Installation must be carried out by a qualified electrician, otherwise the warranty is void.

Can I install the fan myself?

Installation must be carried out by a qualified electrician in accordance with current standards. Improper installation can be dangerous and will void the warranty. The ceiling mount must support at least 30 kg and screws must penetrate at least 30 mm into the ceiling.

Why does the fan seem louder at night?

Noise perception increases at night because the environment is quieter. Additionally, variations in power supply can change the sound level. This phenomenon is normal and is not covered by the warranty. Check that all parts are tight to minimize vibrations.

What to do if the remote control stops working?

Check that the batteries are new and that the wall switch is on. If the problem persists, perform a resynchronization as described in the manual. If that does not solve it, contact Sulion customer service. Do not attempt to replace the receiver yourself without assistance.

USER MANUAL NANDO SULION

EN Do you have questions about the installation? Any problem or missing components? At Sulion we help you. Contact us, tell us your problem, the IMP and reference that you will find behind the control.

Customer service: Monday to Thursday from 9:00 a.m. to 6:00 p.m., Friday from 9:00 a.m. to 2:00 p.m. Time Spain

Download the userguide in our web: sulion.es/ean/8426107020284

FR

Pala / Blade - Ref. 2173658

PCB Led - Ref. 2173641

Kit receptor + mando / Kit receiver + RC - Ref. 2173689

Difusor / Diffuser - Ref. 2173665

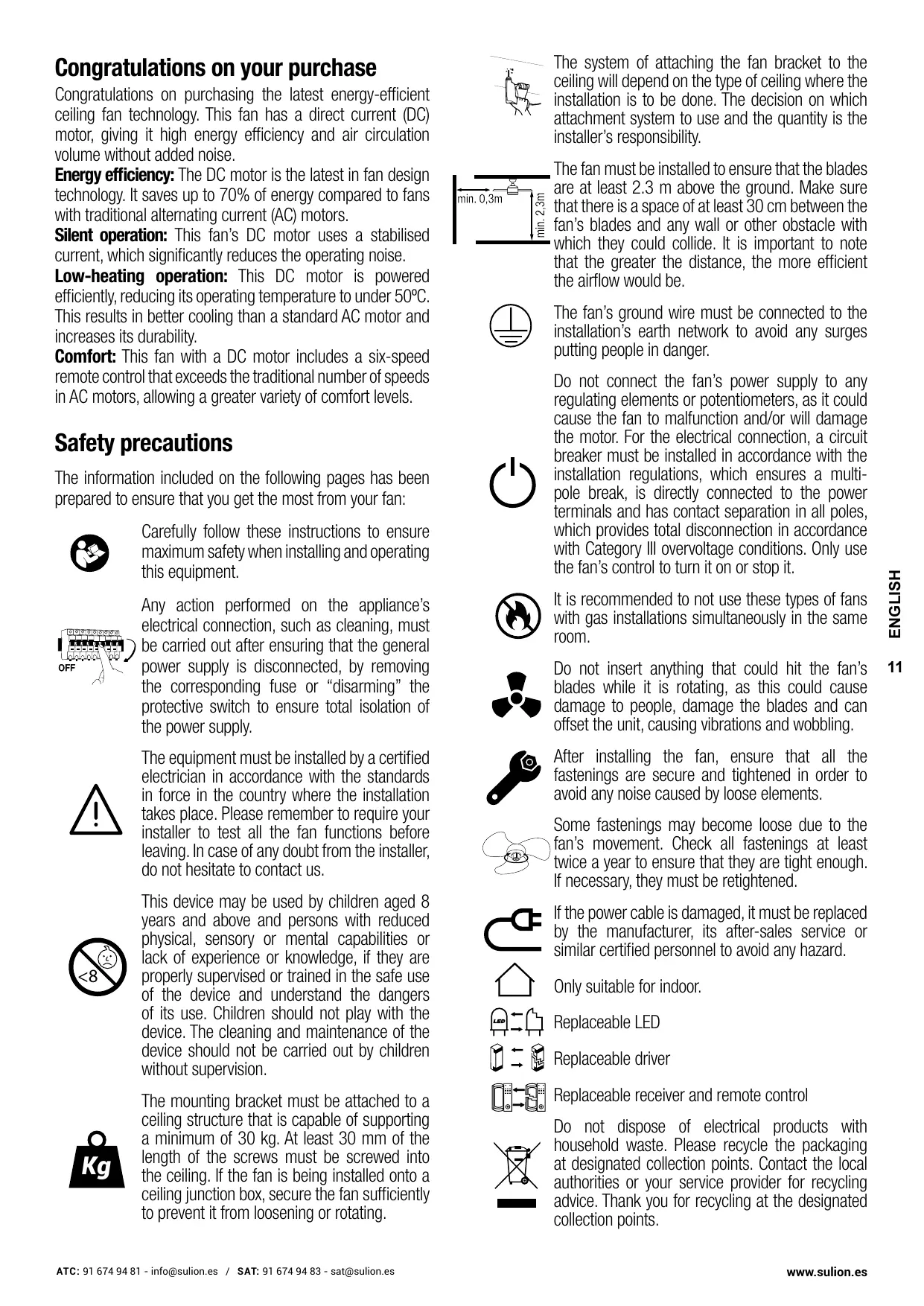

Congratulations on your purchase

Congratulations on purchasing the latest energy-efficient ceiling fan technology. This fan has a direct current (DC) motor, giving it high energy efficiency and air circulation volume without added noise.

Energy efficiency: The DC motor is the latest in fan design technology. It saves up to 70% of energy compared to fans with traditional alternating current (AC) motors.

Silent operation: This fan's DC motor uses a stabilised current, which significantly reduces the operating noise.

Low-heating operation: This DC motor is powered efficiently, reducing its operating temperature to under 50^ . This results in better cooling than a standard AC motor and increases its durability.

Comfort: This fan with a DC motor includes a six-speed remote control that exceeds the traditional number of speeds in AC motors, allowing a greater variety of comfort levels.

Safety precautions

The information included on the following pages has been prepared to ensure that you get the most from your fan:

Carefully follow these instructions to ensure maximum safety when installing and operating this equipment.

Any action performed on the appliance's electrical connection, such as cleaning, must be carried out after ensuring that the general power supply is disconnected, by removing the corresponding fuse or "disarming" the protective switch to ensure total isolation of the power supply.

The equipment must be installed by a certified electrician in accordance with the standards in force in the country where the installation takes place. Please remember to require your installer to test all the fan functions before leaving. In case of any doubt from the installer, do not hesitate to contact us.

This device may be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly supervised or trained in the safe use of the device and understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.

The mounting bracket must be attached to a ceiling structure that is capable of supporting a minimum of 30kg . At least 30mm of the length of the screws must be screwed into the ceiling. If the fan is being installed onto a ceiling junction box, secure the fan sufficiently to prevent it from loosening or rotating.

The system of attaching the fan bracket to the ceiling will depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility.

The fan must be installed to ensure that the blades are at least 2.3m above the ground. Make sure that there is a space of at least 30~cm between the fan's blades and any wall or other obstacle with which they could collide. It is important to note that the greater the distance, the more efficient the airflow would be.

The fan's ground wire must be connected to the installation's earth network to avoid any surges putting people in danger.

Do not connect the fan's power supply to any regulating elements or potentiometers, as it could cause the fan to malfunction and/or will damage the motor. For the electrical connection, a circuit breaker must be installed in accordance with the installation regulations, which ensures a multipole break, is directly connected to the power terminals and has contact separation in all poles, which provides total disconnection in accordance with Category III overvoltage conditions. Only use the fan's control to turn it on or stop it.

It is recommended to not use these types of fans with gas installations simultaneously in the same room.

Do not insert anything that could hit the fan's blades while it is rotating, as this could cause damage to people, damage the blades and can offset the unit, causing vibrations and wobbling.

After installing the fan, ensure that all the fastenings are secure and tightened in order to avoid any noise caused by loose elements.

Some fastenings may become loose due to the fan's movement. Check all fastenings at least twice a year to ensure that they are tight enough. If necessary, they must be retightened.

If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similar certified personnel to avoid any hazard.

Only suitable for indoor.

Replaceable LED

Replaceable driver

Replaceable receiver and remote control

Do not dispose of electrical products with household waste. Please recycle the packaging at designated collection points. Contact the local authorities or your service provider for recycling advice. Thank you for recycling at the designated collection points.

Note: The important warnings and instructions in this manual are not guaranteed to cover all possible conditions and situations that may arise. Products do not come with common sense, caution and care. Users must use the fan with due care and caution, employing common sense, to make good use of the fan.

Device technical specifications

General

Voltage and nominal frequency	220-240V~AC 50/60Hz
Energy rating	Class I
Ingress protection	IP20
Working temperature	-5 ↔40° C
Maximum ceiling slope angle on which it can be installed	15°
Weight	8 kg
Energy consumption in standby mode (W)	<0,5
Service value measurement standard	IEC 60879:2019

LED

Power	36 W
Light output	3600 lm
Color temperature	3000-6000 K
RGB	Yes
Light data measurement	360°
ON/OFF cycles	10.000
Life hours	30.000
Dimmable	Yes
Light beam angle	120°
CRI	>80
This product have a light source of energy efficiency class	F

Fan

No. of speeds	6
Power (W)	22
RPM	240
Airflow (m3/min)	200
Airflow (m3/h)	12000
Max noise level (dB)	38
Service value SV ((m3/min)/W)	9,09
Maximum air speed (m/s)	2,6 m/s

Speaker

Power	3W
Control	Bluetooth

Bluetooth

Bluetooth	4.0
Control frequency	2,4Ghz

Preparing for setup

Note: The estimated Setup time is 120 minutes. This product must only be installed by a certified electrician.

Remove the fan from the packaging carefully, avoiding the use of knives which could scratch any part of it.

Remove all the components. Place the motor on a cloth or soft surface so as not to damage its surface finish.

Carefully handle the unit to make sure that its casing does not bend or get scratched.

The fan must be mounted on the floor or a large enough table to prevent any component from falling off.

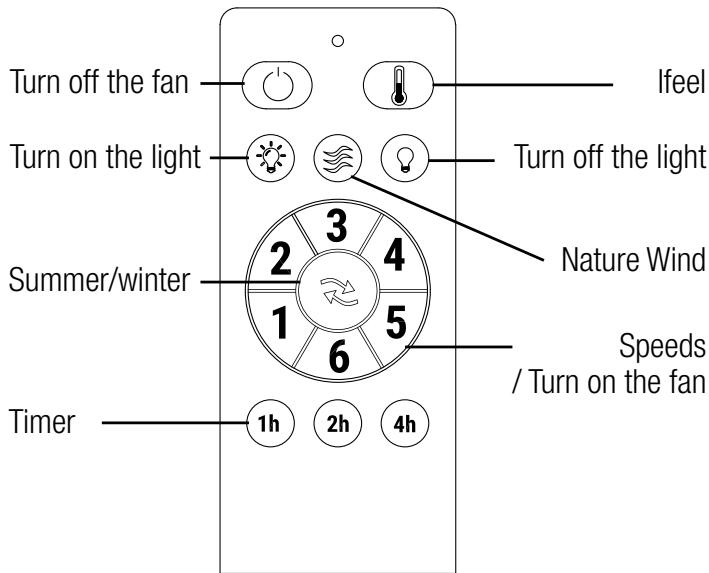

Remote control

Timer: If any button is pressed after a shutdown schedule has been selected, it will be cancelled.

Nature wind: Increase and decrease the fan speed automatically, generating a breeze effect. To link this function, the fan must be previously turning at a certain speed. Pressing any button afterward will override this feature.

Ifeel mode. Automatically changes the fan speed based on the ambient temperature.

If T^a < 19^ C -->Speed 1

If Ta 19^ - 26^ -->Speed3

If T^a≥ 26^ -->Speed 6

Synchronisation of one or more fans with a single control:

CAVEAT! Prior toSyncing, make sure the ceiling fans you don't want to sync to the same remote are turned off at the wall switch, otherwise they might be syncsed too, and once Synced they can't be unsynchronized

1.- Switch on the power (wall switch) of the fans to be controlled, and then, within the next 15 seconds, press the remote control button for 10 continuous seconds.

1. • The connection has been made and the equipment can work normally.
     3.- Now, the remote control and the fan receivers will have been synchronised. Turn off the power to the fans using the switch or the automatic switch and then turn them on again, this step is the one that closes the synchronisation process.

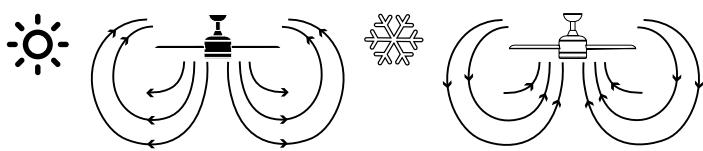

Rotation direction: summer and winter

The sliding switch controls the direction, whether clockwise or counterclockwise.

Summer option/down - he downwards air current creates a refreshing effect as indicated in diagram A.

Winter option/up - An ascending air current pushes hot air away from the fan area near the ceiling, as indicated in diagram B. This allows you to use less central heating.

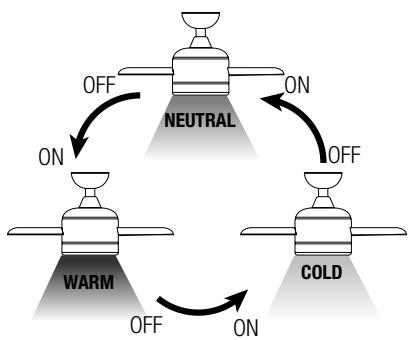

Light color temperature change

You can change the color temperature of the light, turning off and on, with the wall switch, the remote control or in case of being an IoT fan from your terminal..

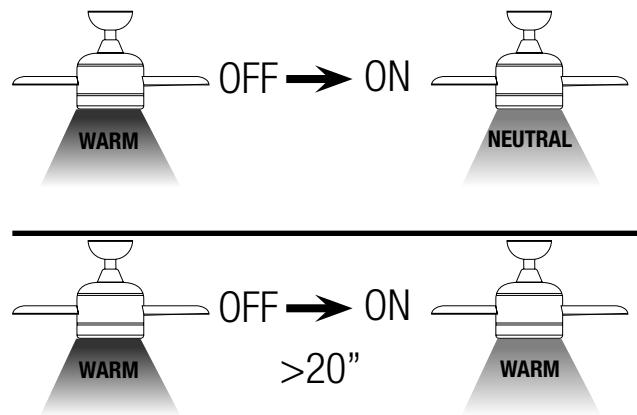

Memory function

App

You can select the kind of lighting you prefer for each momento (warm, cold, specific color...) also music played with your device (pone, laptop, Tablet...) will sound through the speaker of the fan.

Installation

1. Turn on the light of the fan
2. Activate the Bluetooth from your device (phone, laptop or Tablet).
3. Search the device "Sulion Fan" in the list of available devices for pairing
4. Download the iLink APP from Google Play or Apple Store

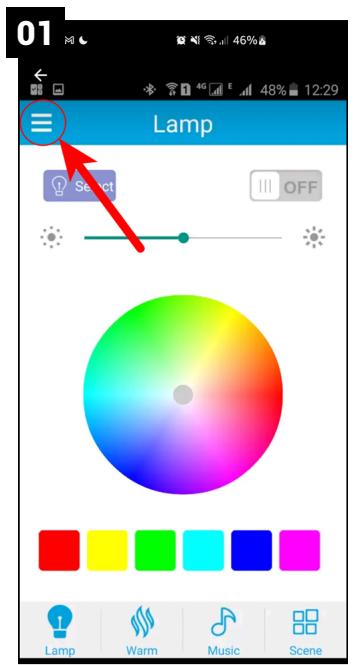

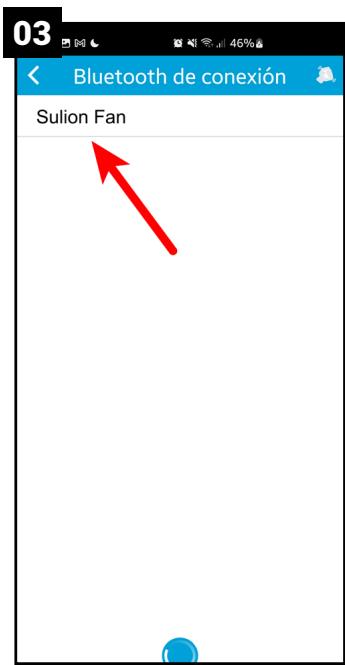

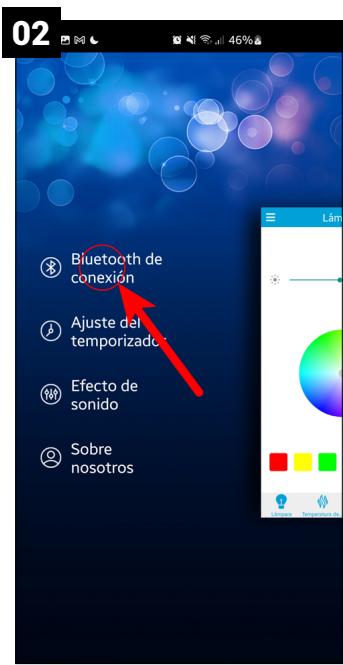

5. When opening the APP select Configuration 01 and open Bluetooth connection 02, in the new screen search for "Sulion Fan" 03 for adding it in the APP.
6. Once the previous step is finished you can control the fan completely from the device, there is no need to repeat steps 3,4 and 5

App Functions:

• Lamp: Allows to turn ON and OFF the light of the fan, also can change the light into RGB colors.

• Color temperature: Allows to change and control different tones of white light.

• Music: Allows to play any song stored in the device. Once the fan is paired, the music can also be played from other APPs and from internet browser.

Scene: Allows to change among different preselcted scenes.

Note: If you want to play music from the device or with an APP, light mustn't be switched off from the remote controller, it should be turned off from the APP.

Troubleshooting

Remote control malfunction

1.Make sure all connections are correctly made.
2.Make sure that the remote control contains batteries.
3.Make sure that all switches (main and isolation) are on.
4. Receiver resynchronization and remote control.

The receiver and remote for this fan are paired at the factory, they do NOT need to be paired once the fan is installed. Synchronization will only proceed due to a malfunction of the remote control. If you have questions before performing the resynchronization, contact Sulion.

CAVEAT! Beforeyncing, if you have another ceiling fan in the same or another room that you don't want to sync, check that it is turned off at the wall switch, if not; it could beynced also with the same remote control and onceynced it cannot be unsynchronized.

Blade balancing kit / Balancing problems in fan operation

Your fan box may include one of the following blade balancing kits.

If you notice your fan is excessively swinging, you can use this kit to fix this. You will find the instructions on our website or in the following QR Code.

Warning: APP operation problem

Make sure no other device is bluetooth paired to the fan.

Speaker bluetooth Connection

1. Turn on the light of the fan
2. Activate the Bluetooth from your device (phone, laptop or Tablet).
3. Search the device in the list of available devices for pairing

Once the fan is paired, the music can be played from the device.

Maintenance and warranty information Maintenance and cleaning:

1. The fan's natural movement can cause certain connections to loosen. Check the mounting bracket's connections, fastening parts and blade accessories twice a year. Make sure that they are securely fastened.
2. Regularly clean the fan to help keep it looking new over the years. Do not use water to clean it, as this may damage the motor or the wood, or could cause an electrical shock.
3. Only use a soft brush or a microfibre cloth so as not to scratch the finish. The veneer is sealed with a layer of lacquer to minimise discolouration or loss of shine.
4. The fan does not need to be oiled. The motor contains bearings with permanent lubrication.

Note: Failure to comply with these instructions results in the loss of the equipment warranty.

Warranty service:

The manufacturer's warranty covers real faults that may occur but not minor complaints, such as the noise generated by the appliance, as all electric motors generate a certain amount of noise.

Operating the fan with slightly loose components (i.e. screws that have not been tightened enough) or deformed blades due to excessively vigorous cleaning may cause excessive noise and wobbling that will not be covered by the warranty. Regularly retightening elements and nonaggressive cleaning are enough to prevent these problems.

Controller:

The appliance's warranty will be invalid if it is installed for use with a wall controller or a solid-state dimmer. The product must only be used with the remote control supplied.

Installing the fan:

According to this warranty's terms and conditions, this fan can only be installed by a certified electrician. Fans that are installed incorrectly can be dangerous for people and very expensive to repair and will lose their warranty. This fan is designed for interior use only. It must be protected and kept away from water and damp, otherwise, the warranty will be lost.

The system of attaching the fan bracket to the ceiling will

depend on the type of ceiling where the installation is to be done. The decision on which attachment system to use and the quantity is the installer's responsibility.

Wobbling:

All ceiling fans tend to wobble while operating. Movement of a couple of centimetres is perfectly acceptable and does not indicate any malfunction nor will it cause the fan to fall, as long as it is mounted to the ceiling correctly following the instructions in this manual. This ceiling fan has a completely secure mounting system that uses steel brackets and ball joints to allow it to rotate and to prevent the transmission of vibrations to the ceiling structure. Please note that all ceiling fans are different, even the same model. Some may move more or less than others and it does not indicate that the fan is malfunctioning or there is a manufacturing fault.

Increased perception of noise when operating at night:

The manufacturer's warranty does not cover when the user perceives the fan's operating noise as being more apparent during the night when the surrounding area is quieter. In addition, the power supply may experience alterations that could cause the device to make more noise, which does not indicate any malfunctioning or manufacturing fault.

Fan lighting system:

Except for extremely rare manufacturing defects, the fan's lights are not covered by the fan warranty. Noises and vibrations can be greater when the lighting system is on. For example, the light diffuser can produce a slight buzz if it is not securely fastened. Once again, non-aggressive cleaning and regularly checking that elements are securely fastened will prevent these disturbances. Glass light diffusers are covered by the warranty until the distributor warehouses and are subject to verification during shipping.

Warranty:

Sulion guarantees the correct functioning of the equipment and the possible repairs or supply of spare parts in the event of manufacturing defects for up to 3 years from the date of sale. This warranty is 5 years for the LED diodes and 8 years for the DC fan motor. Sulion is not responsible for improper use.

More info on warranty terms and conditions at: https://sulion.es/es/content/12-terminos-y-garantia

EC DECLARATION OF CONFORMITY

SULION declare under its own responsibility that the products listed below have been manufactured in accordance with the following European standards.
