USER MANUAL CIRRUS PLUS BWT, A6X BWT

INTERVENTIONS PLUMBING.

Thank you for your trust in BWT by purchasing this softener.

IMPORTANT: before any hydraulic or electrical connection, commissioning, use or mainte- nance, please read carefully this manual. The non-compliance with its instructions may void warranty.

REQUIREMENTS FOR USE USE This device is not designed for treating non- drinking water. Therefore, if it delivers drinking water, it must exclusively be connected to a water supply already in compliance with the requirements set by the applicable standards.

UNPACKING Check that the device and its packing have not been damaged during transportation. Do not use the device in case of any visible damage, and contact the vendor.

LOCATION The device location shall be:

+ flat, clean, dry, properly ventilated and not accessible to unauthorized persons.

+ protected from bad weather, heat sources and chemical product vapors.

INTERVENTIONS The owner of the appliance holds the responsi- bility for making sure that any installation, care or maintenance work is carried out by a duly authorized person, with proper skills and tools, and fully aware of this manual content.

The work shall be performed according to the state of art and the standards applicable in the room where the device is installed, especially regarding plumbing, electricity and handling of chemical products (see here-below).

PLUMBING It is especially important to fit efficient water- hammer arresters if the softener input and/ or output are connected to devices likely to generate water-hammer effects (for example, solenoid valves).

ELECTRICAL CONNECTION Avoid any intermediate connecting device {extension cord, power strip) between the device

and the wall outlet. Check the circuit compliance towards all appli- cable electricity standards, especially regarding electrical grounding as well as electrical safety. Do not try to connect the device if its power supply wire is damaged. Please contact the vendor in order to get a new complete set of wire + transformer.

Before plugging the device to the wall outlet, cut off the power on this outlet by using the concerned circuit breaker or by removing the concerned fuse.

Ifthe device is installed close to any equipment with high electromagnetic parasites emissions {such as a high power transformer) it is neces- sary to reinforce its standard protection towards usual parasites by the proper parasite arrester system and a shielded wire.

Do not open the electrical controller of the device without the proper qualification. Elec- trocution hazard.

CHEMICAL PRODUCTS HANDLING Chemicals may be necessary for certain servicing operations. The user shall be fully aware of any hazard involved in those and use the proper personal or collective protective equipment accordingly.

The unit's surfaces must not be cleaned with any alcohol or alcohol-based product, nor with any product containing plastic solvents.

INTEGRITY OF THE DEVICE The unit must not be modified or tuned without the manufacturer’s prior written approval.

APPLICABLE STANDARDS This device is in compliance with:

+ Directive 2014/30/UE on electromagnetic compatibility.

+ Directive 2014/35/UE on electrical equipment intended for use within certain voltage limits.

+ Directive 2006/42/UC dated 17/05/2006 on machinery, and amending Directive 98/37/EC

+ Directive RED 2014/53/UE making radio equipment available on the market.

+ Directive 2011/65/UE dated 08/06/2011 on the restriction of the use of certain hazardous substances in electrical and electronic equip-

ment, amending Directive 2002/95/EC

+ This product is subject to Directive 2014/68 JEU of 15/05/2014 relating to pressure equip- ment. It meets the requirements of Article 4 point 3 (design and manufacture in the state of the art in use) but does not fall into categories I'to IV and, as such, is not concerned by the CE marking for pressure equipment.

+ Protection against pollution of potable water in water installations and general requirements of devices to prevent pollution by backflow (In accordance with the legislation in force).

+ EN 973 standard for sodium chloride type A for the regeneration of ion exchangers used to soften drinking water.

+ The acoustic pressure level is below 70 dB.

+ [garbage bin pictogram] this

symbol proves that the device

complies with the European Di-

rective on Waste Electronic and

Electrical Equipment (WEEE):

electrical and electronic components shall be separately thrown to proper trash bins, and their disposal, compliant with instructions, will support the reduction of bad consequences as well as possible hazards towards environment and human health.

WARRANTY The warranty complies with the local laws of the country where the device is sold, with possible add-ons provided by its brand.

Please look for details on the website of your brand vendor, most of the time on the pages dealing with Service.

The warranty is voided in the following cases:

-_ installation on non-drinking water

= non compliance withthe requirements ofthis chapter -_ non compliance with the installation instruc- tions (see & INSTALLATION PROCEDURE)

-_non compliance with the maintenance instruc- tions (see $ ROUTINE & ADVANCED MAINTENANCE) = non compliance with environmental specifi- cations (see & TECHNICAL FEATURES)

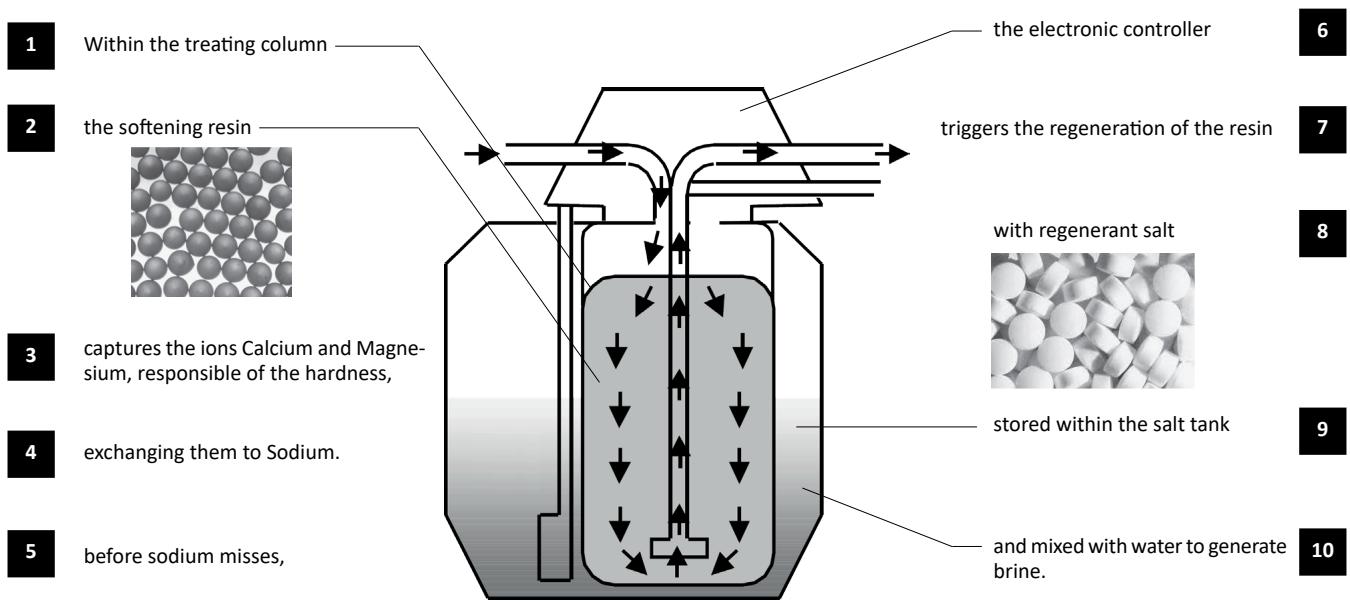

SOFTENER WORKING PRINCIPLE A softener works as shown in the diagram here below:

E Within the treating column ——— BE it

captures the ions Calcium and Magne- sium, responsible of the hardness,

exchanging them to Sodium.

before sodium misses,

Code P0011144GR - Rev 10 - 05/03/2019

_— the electronic controller

triggers the regeneration of the resin

with regenerant salt

stored within the salt tank

___ and mixed with water to generate po | brine.

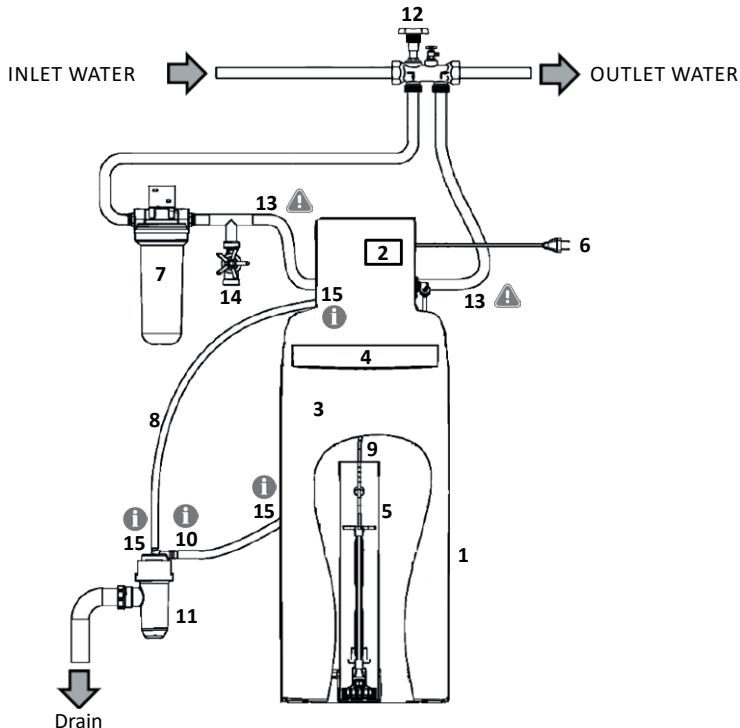

INSTALLATION — OVERVIEW

E The softener installation involves the elements listed and pictured here below. Please refer to the Scope of Delivery sheet, which specifies which elements are delivered with your softener.

13. Hoses In/Out mandatory À, 14. Tap for gardening usage 15. Clamps @

It is under the installer’s responsibility to make sure that the installation does not generate any water hammer which could damage the proper work of the softener.

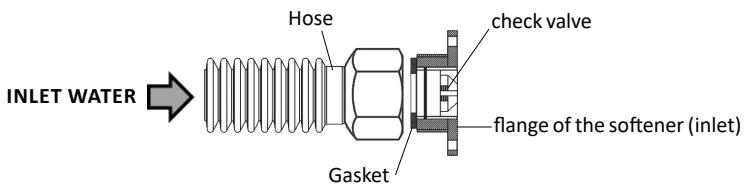

Our softeners are equipped with a check valve on the water inlet connection flange. The check valve may exit the flange under extreme operating and mounting conditions. To avoid this phenomenon, it is mandatory to connect the softener with flexible hoses (according to

diagram here below). Hose check valve

CAUTION : Do not insert a reduction or an u

adapter between the softener connection flange INLET WATER [= | |

and the flexible hose. The flexible hose of the WU ange ofthe softener (inlet) same diameter as the flange must have a gasket }

that keeps the check valve locked in its housing. Gasket /

INSTALLATION PROCEDURE The numbers in bold refer to the marks in chapter INSTALLATION - OVERVIEW Tighten the hydraulic block Check the network pressure

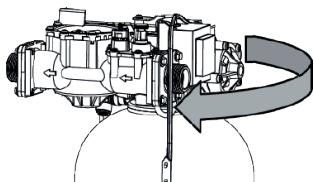

The preliminary tightening of the hydraulic block upon the vessel is | The pressure shall be between 1.5 et 7 bars. Above 5 bars, install a

crucial because untightening during transportation may have occurred. | pressure reducer. Check the power outlet Insert a tap for non-softened water (14) Check that there is a power outlet of 230 V at less than 1.20 meters. | In case you need to keep raw water (for example for gardening, etc.) Install the pre-filter (7) Install the by-pass (12) \ Note: the shown by-pass is wall-mounted single block brass by-pass + L mn

Place and connect the filter upstream from the softener. Le

Comply with the water flow direction as shown on the filter head. - |

Fix the filter head on the wall with the bracket, without tighteningtoo | !Stallthe bypass on the pipe complying with the water flow direction. much the screws on the filter head. Turn the bypass tap into the softener by-pass position.

Code P0011144GR - Rev 10 - 05/03/2019

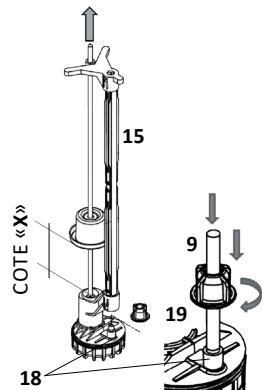

Put the softener (1) in place Set and connect the brine valve (5) icein : ; na Place the device in its definitive position (see dimensions on the Scope # 17

of Delivery sheet) The floor shall be clean and horizontal. The controller unit (2} and the lid shall remain accessible.

Open the salt lid (4), remove the cap (17), then the brine valve (5) from its well (16). Set the float height (X), rod pulled, at the value provided on your Scope of Delivery sheet.

Check that the brining tube (9) is cut straight on its ends, put it onthe sheath (15), then tighten it on the fitting located on the brine valve foot (18), using the fly nut (19). Put the brine valve (5) back into the bottom of the well (16), pass the brining tube (9) through the hole of the cap (17), then put this cap back upon the well (16).

Pass the brining tube (9) through the dedicated hole in the salt tank, making sure that this tube does not bend anywhere.

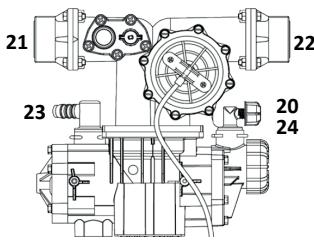

Connect the hydraulic block Connect drain outlets.

@ Connect the drain tube (8) to the upper fitting of the siphon (11) and tigh- ten it with a hose clamp (Serflex type). The siphon ensures the mandatory Doug : protection of the domestic water circuit É against sewage backflow. 10 E @ Connect the tube of the salt tank © overflow (10) to the side fitting of the d siphon (11), respecting a slope of mini-

mum 2% (2 cm per meter) from the tank LS overflow to the siphon. Then tighten it Connect the brining tube (9) to the quick fitting (20). with a hose clamp (Serflex type). Connect the in and out flexible hoses (13) respectively on the flange | _ The overflow must take benefit of gravity and follow a simple and short fittings (21) and (22) of the hydraulic block. way. If not possible, install a lift pump compatible with salted water.

Connect the drain tube (8) onthe splined fitting (23) andtightenitwith | Connect the siphon (11) to the drain by a rigid PVC tube with a a hose clamp (Serflextype). Connect the plug of the chlorination cell if | diameter of 40 mm, tightened on the fitting (25). vour softener has this option (24).

Complete the connections and purge the air.

Before opening the water inlet into the installation, purge and rinse properly the pipes upstream from the bypass. Connect the inlet and outlet flexible hoses (13) to the network pipe, by paying attention to the water flow direction. Progressively open the bypass tap (or the upstream cutting valve of the installation).

Purge the remaining air by using the purging screw upon the filter (unscrew it, then screw it back once the air is purged). Plug the softener to the electricity outlet.

SETTING Atits first start-up, the device displays after a few seconds the message SERV, first step of the setting, which uses 5 keys:

Key Name Function Activates the menu with a long press (5 seconds)

> Right + Move from left to right digits (example: hours to minutes) + Enter into a menu + Setting validation

+ A long press (5 seconds) triggers a manual regeneration. During this process, a brief press forces the trigger of the next step.

The following steps are necessary and sufficient to set the softener. You just need to knowthe hardness ofthe raw water (concentration in lime scale), measured before or known from the public water distribution network. First press 3 seconds on the key M, until the message LANG appears on the display.

Code P0011144GR - Rev 10 - 05/03/2019

. Message Stepn displayed Purpose How to do Default value is French LANG Change language if necessary OK to change 7 €M to cancel 1 VA 0 sciect Language selection OK to confirm €M to cancel v io chance HOUR . > go to minutes 00:00 Time setting : hours Ko €M to cancel 2 v io chance MIN ee > 1 go back to hours 15:00 Time setting: minutes. OK on €M to cancel nPESAT VA 0 sciect 3 we Specify the type of salt for some devices OK to confirm €M to cancel VOLUME VA 0 sciect 4 pes Specify the resin volume within the softener,inliters.… | OK to confirm €M to cancel HARDN Hardness unit choice: va to select + “or"du to confirm €M to cancel $ IN Enter the inlet hardness Mu to select 30°F (unit may be °dH) PAT to cancel VA 0 sciect our Enter the outlet hardness ok ! SF (unit may be *dH) PAT to cancel COMMISSIONING fist turn ounterclackuise re sb (26) NOTE: it is under the user's responsibility to its maximum. Then screw the knob (27) until it define the residual hardness compatible with the RINSING reaches its lowest level. Thus the outlet water equipmentinstalled downstream ofthe softener.

The softener displays the message: REGE? Press the OK key (once or 3 times, depending on your model). REGE 1 is displayed and a complete regeneration starts.

Progressively open the bypass tap => water flows from the hydraulic block to the drain through the evacuation tube. Letit flow in order to fully rinse the softener.

Stop this rinsing by pressing OK during 5 seconds. Then SERV is displayed on the screen:

RESIDUAL HARDNESS SETTING The hardness is measured in degrees (French or German *dH degrees)

1° = 10 milligrams of ‘lime scale” in one liter of water

The hardness measurement is done with a kit of reactive stripes or colored reactive liquid. See further, in the chapter Routine maintenance.

it is possible to blend the softened water pro- duced by the device with raw water, using a blending unit located on the rear side of the hydraulic block, in order to reach a residual hardness of few degrees (value depending on the country habits).

is fully softened (hardness =0°)

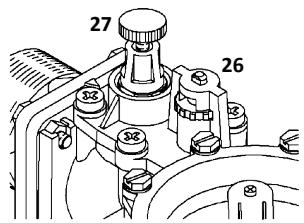

Then turn clockwise the knob (26) of half a turn. The outlet water is then slightiy blended with raw water.

Slightiy open any tap downstream from the softener (or use the sampling tap of the bypass) and measure the water hardness at this point. Use the knob (26) to tune the hardness for low consumption flow rates:

= Clockwise to increase it

= Counterclockwise to reduce it

For hardness tuning at high flow rates, largely open a tap downstream of the softener and measure again the hardness.

Use this time the knob (27) to tune the hardness: = Unscrew to increase it

- Screw to decrease it

Code P0011144GR - Rev 10 - 05/03/2019

OPERATION SALT REFILL The device uses regenerating salt, dedicated to softening. The salt tank bottom shall always be covered by solid salt over its whole surface. Please refer to the Scope of Delivey sheet in order to know the salt storage capacity of vour softener, and to the chapter TECHNICAL FEATURES to know its salt consumption per regeneration.

Concerning the softeners with salt level follow- up by smartphone app:

After every salt refill, enter the salt level so that the app may follow it up.

+ Check the salt level once the refill is done, on the scale inside the salt tank

+ Press 5 seconds the > key to see LEVEL on the display

+ Select the salt level with Ÿ and # keys

+ Confirm with OK E AUTOMATIC DISPLAYED MESSAGES The displays shows: © an upper information line © a lower information line © a bargraph with 10 segments, showing the remaining autonomy of the softener before the next regeneration, by steps of 10%. The graph inthis example shows 70% remaining autonomy For each operation step of the device, the dis- played messages are as follows:

MANUAL REGENERATION At any time, it is possible to trigger the rege- neration of the softener, via the long press (5 seconds) on the OK key.

Ifthis is done for a test purpose, it is possible to manually go from one step to the next by briefly pressing the OK key.

SALT ALARM ACKNOWLEDGEMENT When no salt is left in the tank, the device displays the alternate words SALT and CHECK. Once the salt refill is done, you may just wait for the next regeneration to let this alarm disappear. It is recommended though to acknowledge immediately the alarm, following these steps: + Proceed with a long press (5 seconds) on the Mkey

+ Then brief press this M key to go through

SERV Alternate 968 | The device is in service: it delivers softened water. 12:30 with 12:30 | Its treatment autonomy before regeneration is here 968 liters REMPL Water is being poured into the salt tank (see chapter AD- 375 VANCED SETTING), it will end in 375 seconds. SAUM The brine is under preparation in the salt tank for the next 180 regeneration; this step will end here in 180 minutes. REGE 1 The softener is going through its first active regeneration step, 00:45 which will end here in O minutes and 45 seconds. REGE 2 The softener is going through its second active regeneration 1835 step, which will end here in 18 minutes and 35 seconds. REGE 3 The softener is going through its third active regeneration step, 02:15 which will end here in 02 minutes and 15 seconds. cuecx Altemmate gagr | The softener detects a lack of salt and advises to check the salt level in the salt tank. STD-&Y Alternate 968 | The regeneration function is OFF (see Stand-By mode next h page). The softener delivers soft water as long as its autonomy 12:30 with 12:30 ; se allows it (here: autonomy of 968 liters).

the menus until the display shows this one: CHECK / SALT (alternate)

+ Press once on Ÿ or  keyto make OFF appear

on the lower line + Press OK to confirm

This might be useful, for example, while you are waiting for the intervention of a technician in case of technical problem. Therefore:

+ Proceed with a long press (5 seconds) on the Mkey

+ Then briefly press this M key to go through the menus until the display shows this one:

+ Press M during 5 seconds to quit the menu:

the alarm shall disappear

POWER CUT STD-BY off

In case of a power cut during a regeneration, this process restarts at the beginning of the ongoing step. In case of a power cut during service, the softener will restart also in service.

STAND-BY MODE Itis possible to prevent the softener from going through a regeneration, automatic or manual

+ Press once on Ÿ or # key to make ON dis- played on the lower line

+ Press OK to confirm

The display shows then the message STD-BY alternating with the softener autonomy value. To cancel this function, you just have to come back to this STAND-BY menu and turn the lower line into OFF.

Accessed by the code 23, then the browsing works in the same way as the regular setting mode. The intervention on the advanced setting shall be done by a trained professional. Any mistake can disturb the work of the device and is under its author's responsibility.

Step n° Display Purpose Action PASSW ? WA to change 0 00 Enter the password to go through the advanced setting. OK to confirm Æ€M to cancel PROPR V to turn on / off 1 Enable / disable the proportional regeneration. OK to confirm n Æ€M to cancel CAPA Modify the softening capacity of the device, which has been automati YA to change 2 80 cally set once the resin volume was selected (step 3 of regular setting). | OK confirm Æ€M to cancel CONSU Adjust the water consumption per full regeneration. VA to change 3 71 Only for devices with the salt level fol by smartphi 9K to confirm nly for devices with the salt level follow-up by smartphone app. EM to nca à SAUT Adjust the salt consumption per full regeneration. SA 10 change 2000 Only for devices with the salt level follow-up by smartphone app. EM to cancel VOL Ok s 856 Volume of softened water (read only info). Here: 856 liters. ÆM to go to next step PEAKFL Peak flow recorded since the last regeneration (read only info). Here: 6 1068 1068 liters per hour. EM to go to next step N REGE VA to change 7 ue Number of regenerations done since the commissioning. May be reset. | OK to confirm Æ€M to cancel CHLOR VA to change 8 Enable / disable the chlorination function OK to confirm of Æ€M to cancel VA to change 9 ALARME | sait lack alarm enabled / disabled OK to confirm of Æ€M to cancel

Code P0011144GR - Rev 10 - 05/03/2019

SAFEL Safe level value = remaining capacity value which triggers the regene- WA to change 10 ‘ OK to confirm 250 ration once reached. Æ€M to cancel REGET . VA t0 change a 500 Time of regeneration start. OK to confirm * Æ€M to cancel VA to change D PRESS Water network pressure, To be set for proportinal regeneraton | Ouh confnn purpose: Æ€M to cancel FULRG Frequency of the full regenerations (to prevent from loss of capacity | W4 to change 13 5 occurring with time), for the softeners with proportional regeneration_ | OK to confirm function. Here: one full regeneration every 5 regenerations. Æ€M to cancel Setting of each regeneration step durations. io enter the menu, otherwise ja srePs The followings step durations can be adjusted (one submenu for each} | ÉA {0 change Backwash (BACKW) ; aspiration (ASPI) ; fast rinse (FAST) ; brine pre- ang paration (propor. regen.) (BRINE) ; tank refill (propor. regen.) (REFILL) | OK to confirm ; Æ€M to cancel FORCED Turn ON or OFF the automatic forced regeneration after a long time | VA t° 2ctivate 15 ï OK to confirm NONE without water consumption Æ€M to cancel RESET VA to turn ON 16 Reset back on initial factory settings OK to confirm (twice) OFF Æ€M to cancel

ROUTINE & ADVANCED MAINTENANCE ROUTINE MAINTENANCE This maintenance level may be handled by anybody having carefully taken into account the following guidelines. It is highly recommended to follow them so that the softener keeps its performances in the long term:

Maintenance guidelines Frequency and consumables

Every week, or if alarm. Refil as far as needed. Concerning the devices with the salt level follow-up by smartphone app: Keep in mind to enter the salt level reached after refil, as explained in

the chapter OPERATION Check the salt level in the tank

Setting check Check the time on the display.

The seasonal time change is not automatic. Change the time following

Time change the procedure explained in the chapter SETTING.

Change the filter element of the filter (7) There are various models of filters. To change the filter element:

. Cut the water upstream and downstream + Let the pressure drop with the purge screw upon the filter Every 6 months or more often if you notice a significant pressure drop . Unscrew the filter transparent bowl and remove the filtering at the taps. consumable + Replacitbyanew one + Screwthe bowl back, tightening it gently Once a year: Overall checkup, cleaning, protection - Pack AQA clean including: . Use the AQA clean pack or equivalent, providing the adapted . Hardness kit products and specifying their proper use in its manual. + Cleaning liquid + Checktherawwaterhardness upstreamandthesoftenedwater + Resin protector hardness downstream of the device, using the analysis kit. - Standalone hardness kit

- Standalone cleaning liquid

ADVANCED MAINTENANCE For a durable performance of the device, the following key points shall be yearly checked by a professional. Please read the manufacturer's web pages dealing with Service, to find the proposed service contracts and the checks they include. MAINTENANCE CHECK LIST = Check the water hardness up- and downstream from the softener = Check controller settings = Check and clean (if needed) the brining line (replacement if worn or damaged) = Check and clean (if needed) the salt tank = Check inner components (replacement if worn or damaged) 0 inlet filter Injector Moving parts: solenoid valves, membrane, inner valve shaft Wire of the water meter Chlorination cell (on models with this option) © Proportional regeneration block (on models with this option) = Check tightness and integrity of the in- and outlet flexible hoses (replacement if damaged) = Check the regeneration steps = Check the overall tightness ofthe softener and its satellites

Code P0011144GR - Rev 10 - 05/03/2019

TROUBLE SHOOTING Root causes

The displays shows alternative CHECK

and SALT There is not enough salt left in the tank OR The device detects a regeneration flaw.

Refill the tank with salt.

If it does not look to need refill, contact the tech- nical service.

The time on the display is not correct

The seasonal time change has not been done OR

À power cut occurred and the data recovery did not work (battery KO).

Reset the timing (see chapter SETTING).

Ifthe problem comes up again, contactthe technical service.

The power is off oR There is an electric or electronic failure.

Checkthe power outlet where the device is plugged.

If the power outlet works, contact the technical service.

Water flow through the evacuation tube (8)

The device is regenerating (which means that there is no problem)

OR The internal components meet a failure.

Check that the device displays REGE 1, REGE 2 or REGE 3.

If not, contact the technical service.

Water overflow from the salt tank (10)

The brining chain does not properly close or leaks.

Check the connection between the bring tube (9) and the brine valve (5). Ifthe problem remains, contact the technical service.

The water delivered by the device does no longer look softened (lime scale coming back, etc.)

Many possible root causes. Step through all the checks on next column

Measure the residual hardness once first, then after each of the following steps until the result is OK. Check that the bypass is open to direct the water to the softener. If not, change its position.

Check that there is still salt in the tank. Ifnot, refil it. Check if the type of salt is well selected in the programming.

Check that the filter element is not clogged. If so replace it.

Go again through the blending procedure (see chapter COMMISSIONING)

Ifthe problem remains, contact the technical service.

ENVIRONMENT FEATURES TECHNICAL FEATURES Features Unit All devices v 230 +10% /-15% Power voltage ñ ET 2 3

Maximal pressure bar 7 Recommended minimal pressure bar 2 Minimal water temperature ec 1 Maximal pressure temperature °C 35 Ambient air minimal temperature °C Frost free Ambient air maximal temperature ec 40

OPERATIONAL FEATURES Resin volume liters 5 10 16 18 20 2 28 Salt consumption per regeneration kg 0,50 125 2,00 225 2,50 275 3,50 Softening capacity for 15'Fhardness drop | ter 1650 2300 4800 5200 5300 5900 7500 of (around 8.5 *dH) Softening capacity for 20‘fhardness drop | jiters 1250 1800 3600 3900 4000 4400 5600 of (around 11 "dH) Softening capacity for 25'fhardness drop | jiters 1000 1400 2900 3100 3200 3500 4500 of (around 14 dH) Softening capacity for 30*fhardness drop | jiters 800 1200 2400 2600 2700 2900 3700 of [around 17 ‘dH) Softening capacity for 35'fhardness drop | jiters 700 1000 2100 2200 2300 2500 3200 of (around 19.5 *dH) Softening capacity for 40‘fhardness drop | jiters 600 900 1800 1900 2000 2200 2800 of (around 22.5 *dH) Average water consumption per rege- | frere 50 60 70 70 100 100 0 neration Electrical consumption in service VA 6 Electrical consumption in regeneration_ | VA 25

{1)- The above data are given for a network water pressure of 3 bars and the factory settings.

{2)- The softening capacity in the above board is the volume 100% treated.

Code P0011144GR - Rev 10 - 05/03/2019

1° = 10 milligram kalk in 1 liter water. 1°dH = 178%

CHECK / ZOUT (wisselend)
