USER MANUAL EasyPlus 1888 GARDENA

Irrigation recommendations

Setting

Application recommendation

Every 4 - 24 hrs

GARDENA Micro-Drip-System

Every 24 - 72 hrs

GARDENA Sprinkler

Blue area

GARDENA Outdoor Cooling Mist Set

Translation of the original instructions.

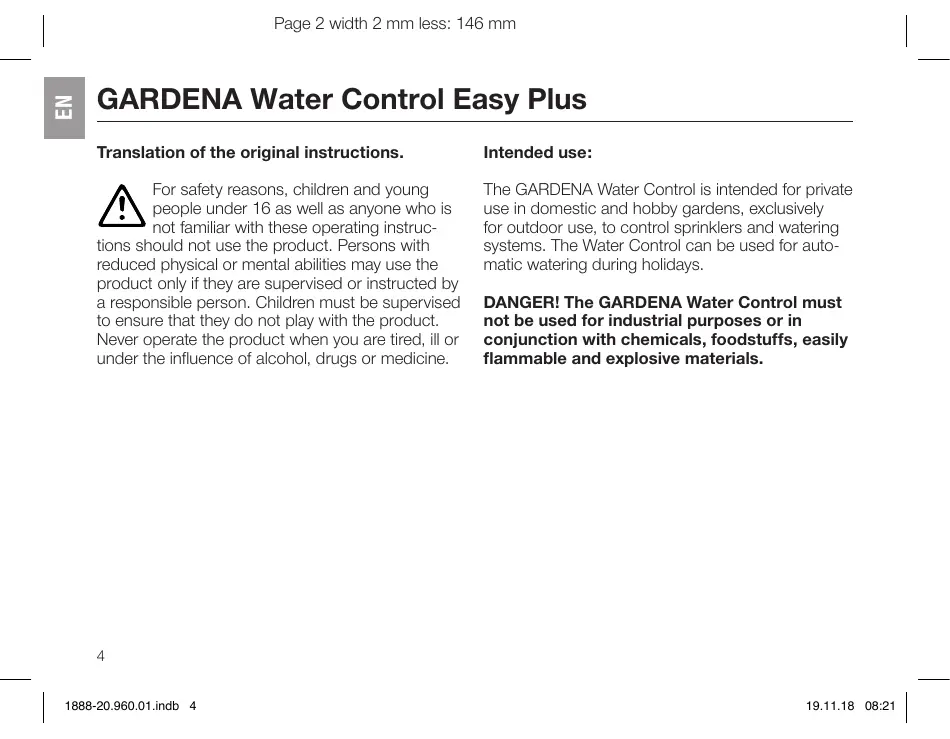

For safety reasons, children and young people under 16 as well as anyone who is not familiar with these operating instruc

tions should not use the product. Persons with reduced physical or mental abilities may use the product only if they are supervised or instructed by a responsible person. Children must be supervised to ensure that they do not play with the product. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.

Intended use:

The GARDENA Water Control is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. The Water Control can be used for automatic watering during holidays.

DANGER! The GARDENA Water Control must not be used for industrial purposes or in conjunction with chemicals, foodstuffs, easily flammable and explosive materials.

1. SAFETY

Important!

Read the operator's manual carefully before use and keep for future reference.

Battery:

To ensure the Water Control runs safely, only a 9V alkaline manganese battery (alkaline) type IEC 6LR61 must be used!

In order to stop the Water Control from failing because of a weak battery if you are away for a long time, the battery must be replaced when the LED flashes red.

Setting up:

The Water Control may only be set up vertically with the sleeve nut to the top to prevent water penetrating into the battery compartment. The minimum water output to ensure that the Water Control functions correctly is 20 - 30l / h For example, at least 10× 2 -litre Drip Heads are required to control the Micro-Drip-System. The max. temperature for the water flow is 40^

Avoid tensile strain.

Do not pull the hose connected to the Water Control.

CAUTION! If the control section is removed when the valve is open, the

valve remains open until the control section is reattached.

DANGER! Cardiac arrest!

This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

DANGER! Risk of suffocation!

Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

A video of the commissioning and setting processes is available here:

2. INITIAL OPERATION (Fig. A-C)

4. MAINTENANCE (Fig. D)

5. STORAGE

To put into storage:

→ The product must be stored away from children.
To preserve the battery, it should be removed (Fig. B).
Store the controller and the valve unit in a dry, enclosed and frost-free place.

Disposal: (in accordance with RL2012/19/EC)

The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations.

3. FUNCTION AND SETTING

(Fig. E)

Once the duration and frequency have been set, the values will be applied 5 seconds later. The green LED will flash three times to confirm this. The first watering operation commences. This will be the watering start time from now on. If you want watering to commence later than this, press the +1h button repeatedly within the 5-second time window until the desired start time has been set.

IMPORTANT!

Dispose of the product through or via your municipal recycling collection centre.

Disposal of the battery:

Please return a flat battery to a GARDENA dealer or dispose of it properly at your nearest recycling centre.

Dispose of the battery only when discharged.

6. TROUBLESHOOTING

Problem	Possible Cause	Remedy
Manual watering is not possible using the button	Low battery is continuously displayed: LED next to start delay lights up red.	→ Insert a new (alkaline) battery.
	Tap is turned off.	→ Turn the tap on.
	Controller is not connected.	→ Mount the controller on housing.
Watering program is not being undertaken (no watering)	Program entry/modification during or just before the start pulse.	→ Make program entry/modification outside the programmed start times.
	Valve was opened manually previously.	→ Avoid possible program overlaps.
	Tap is turned off.	→ Turn the tap on.
	Controller is not connected.	→ Mount the controller on housing.
	Low battery is continuously displayed: LED next to start delay lights up red.	→ Insert a new (alkaline) battery.
	Minimum pressure of 0.5 bar not available.	→ Ensure a pressure of at least 0.5 bar.
	LED lights up orange.	→ Pay careful attention to the blue and grey settings and keep them completely separate.
Water Control does not close	Minimum quantity of water drawn is less than 20 l/h.	→ Connect more drip heads.
	Valve soiled.	→ Flush in the opposite direction to the normal flow direction.

7. TECHNICAL DATA

Water Control	Value /Unit	Water Control	Value /Unit
Min./max. operating pressure	0.5 bar/12 bar	Max. liquid temperature	40 °C
		Battery required	1 x 9V alkaline manganese Typ IEC 6LR61
Operating temperature range	5 °C to 50 °C
Flow medium	Clear fresh water	Operating time of the battery	approximately 1 year

8. ACCESSORIES

GARDENA Anti-theft device

Art. 1815-00.791.00 from the GARDENA Service

9. SERVICE/WARRANTY

Service:

Please contact the address on the back page.

Warranty:

In the event of a warranty claim, no charge is levied to you for the services provided.

GARDENA Manufacturing GmbH offers a 2-year warranty for this product (from the date of purchase) if the product has been used exclusively for private purposes. This manufacturer's warranty does not apply to used products purchased from a secondary market. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults. This warranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

• The product was used for its intended purpose as per the recommendations in the operating instructions.

• Neither the purchaser nor a third party has attempted to repair the product.

• Only original GARDENA spare and wear parts were used.

Normal wear and tear of parts and components, optical changes, as well as wear parts and consumables, are excluded from the warranty.

This manufacturer's warranty does not affect warranty entitlements against the dealer/retailer.

If problems arise with this product, please contact our Service department. In the event of a warranty claim, please send the defective product together with a copy of the purchase receipt and a description of the defect, sufficiently stamped, to the GARDENA service address on the back page.

Consumables:

Faults which occur as a result of incorrectly installed or leaking batteries are not covered by the guarantee.

Damage caused by frost is not covered by the warranty.
