Product type	Submersible drum pump
Brand	RIBIMEX
Model	PRPVF350
Power supply	230 V ~ 50 Hz
Power	400 W
Max flow rate	3000 L/h
Max pressure	0.5 bar
Max delivery height	10 m
Max immersion depth	5 m
Minimum liquid height for suction	5 cm
Max particle diameter	3 mm
Connection diameter	1" (25.4 mm)
Net weight	4.6 kg
Max liquid temperature	35 °C
Control type	Automatic with float switch
Thermal protection	Yes, with automatic reset
Intended use	Clear water, rainwater, basement or drum drying
Body material	Technical plastic
Noise level	Not specified
Required safety device	DDR 30 mA
Maintenance	Rinse with clear water, frost-free storage

Frequently Asked Questions - PRPVF350 RIBIMEX

How to install the PRPVF350 pump?

Place the pump vertically on a stable surface in the water. Make sure the float can move freely. Connect the discharge hose to the outlet (7) using the supplied tubes. Then plug it into a circuit protected by a 30 mA RCD. The pump must be submerged before starting.

What is the minimum water height for the pump to operate?

The pump can suck down to a minimum height of 5 cm. The float automatically stops the pump when the level reaches about 5 cm.

How to adjust the float?

Use the adjustment clip (6) located at the top of the pump to shorten or lengthen the float cable. This changes the start and stop levels. A shorter cable starts and stops the pump at higher levels.

What to do if the pump does not start?

First check the mains power supply. Make sure the float is in the high position and not stuck. If the problem persists, clean the suction openings. Do not disassemble the pump; contact an approved service center.

Can I use the pump for dirty water?

No, this pump is designed for clear water with particles smaller than 3 mm. It should not suck corrosive, flammable liquids, grease, oil, or wastewater.

How to maintain the pump?

After each use, rinse the pump with clear water. Before winter, drain it completely and store it in a dry, frost-free place. Clean the plastic parts with a soft cloth, without solvents or abrasives.

Can the pump run continuously?

No, avoid running the pump for more than 24 hours in a row. It is not designed for continuous use. In automatic mode, the float manages the on/off cycles.

What are the important safety instructions?

Always use a residual current device (RCD) of 30 mA. Never carry the pump by the cable. Disconnect before any maintenance. Keep children and animals away. Do not run the pump dry.

What to do in case of motor overheating?

The pump is equipped with thermal protection that automatically shuts off in case of overheating. Wait for the motor to cool down for it to restart. If this happens frequently, check that the water is not too dirty or too hot (>35°C). Disconnect the pump and clean the impeller if necessary.

How to store the pump in winter?

Drain the pump carefully to avoid frost damage. Clean it with clear water and store it in a dry place, out of reach of children. Store it up high or under lock and key.

USER MANUAL PRPVF350 RIBIMEX

Green outdoor spray gun with a clear lever and handle, no visible text or symbols

Carefully read this instruction manual before operating this appliance.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

Warning: This pump is not intended for swimming pools.

Under no circumstances should it be used for the cleaning or maintenance of swimming pools.

This pump is not intended for pumping drinking water.

Illustration of a water tap with a submerged object and pipe, surrounded by plants and grass (no text or symbols)

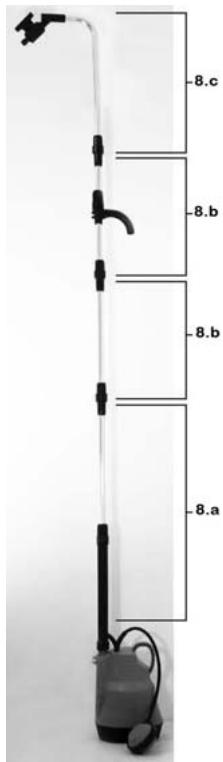

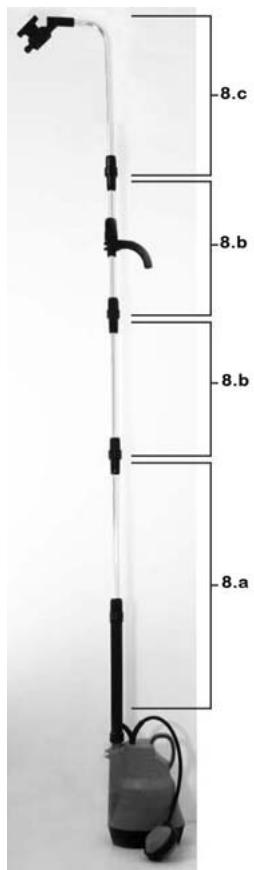

Fig.3

8.c 8.b 8.b 8.a

Fig.2

EN - Original Instructions

I. Parts List

II. Characteristics

III. Safety instructions

IV. Getting Started

V. Operation

VI. Maintenance and Storage

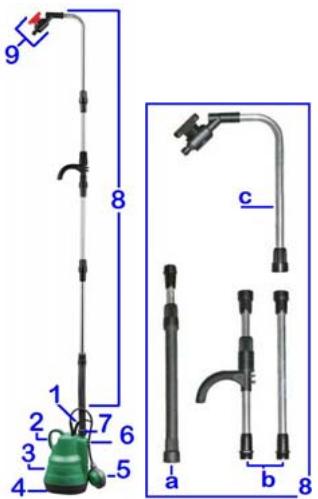

I. PARTS LIST

1. Power cable
2. Carrying handle
3. Pump body
4. Suction base
5. Float switch
6. Float switch lock
7. Hose Connection
8. Tubes
   8.a- Telescopic tube
   8.b- Extension tubes
   8.c- Outlet tube
9. Connector with stop valve

9 8 1 2 3 4 5 6 7 a b c 8

Fig.1

II. CHARACTERISTICS

Reference	PRPVF350/1 / 511816
Model / Type	Q1CP-400R
Voltage & frequency	230V ~ 50Hz
Power	400W
Max Delivery capacity	3000 l/h
Max. pressure	0,5bar
Max. delivery height	10m
Max. submersion depth	5m
Min. water level for operation	5cm
Particle size (max)	3mm
Hose connection diameter	1”
Weight approx.	4,6kg
Liquid temperature (max.)	35°C

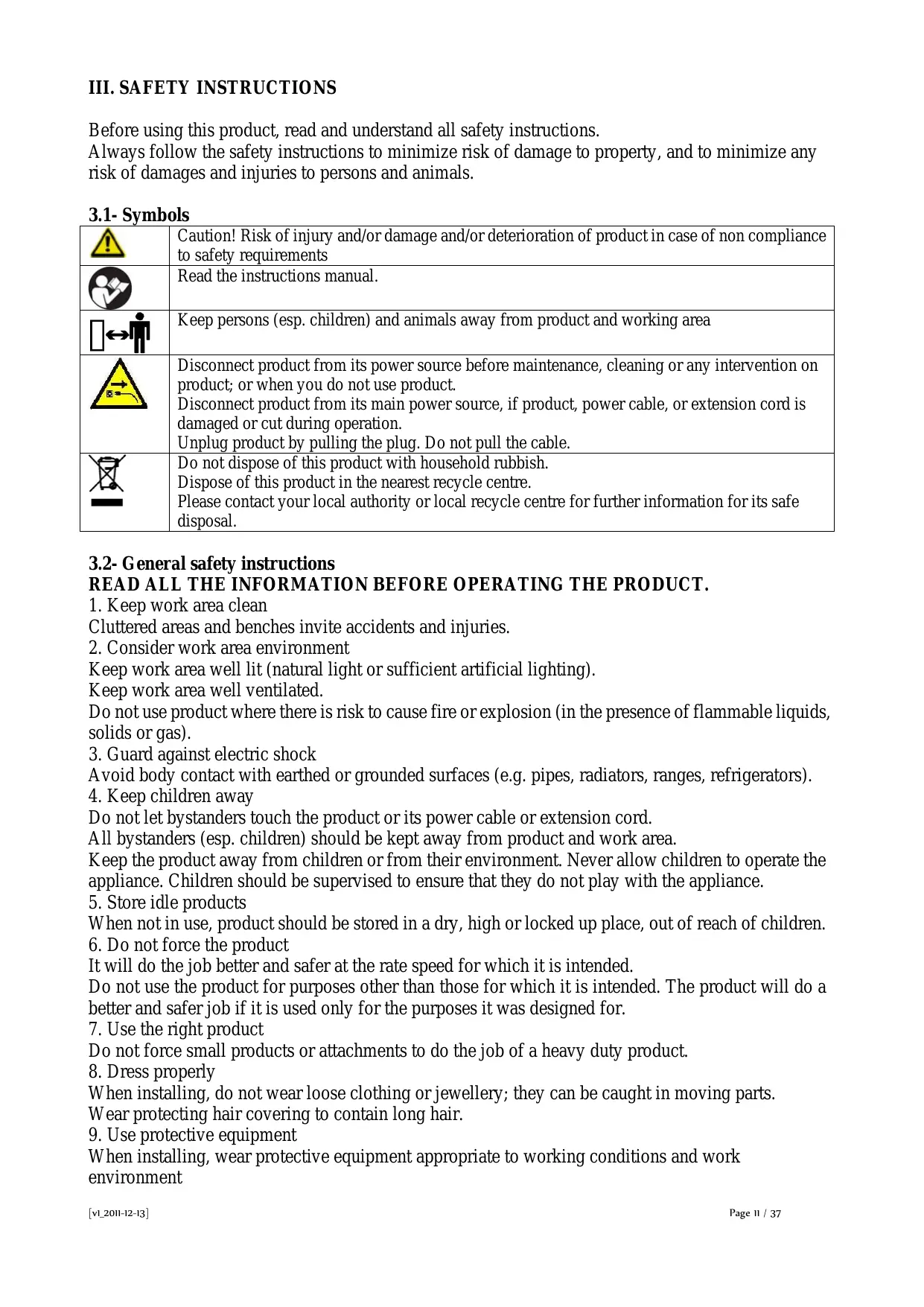

III. SAFETY INSTRUCTIONS

Before using this product, read and understand all safety instructions.

Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to persons and animals.

3.1- Symbols

	Caution! Risk of injury and/or damage and/or deterioration of product in case of non compliance to safety requirements
	Read the instructions manual.
	Keep persons (esp. children) and animals away from product and working area
	Disconnect product from its power source before maintenance, cleaning or any intervention on product; or when you do not use product.Disconnect product from its main power source, if product, power cable, or extension cord is damaged or cut during operation.Unplug product by pulling the plug. Do not pull the cable.
	Do not dispose of this product with household rubbish.Dispose of this product in the nearest recycle centre.Please contact your local authority or local recycle centre for further information for its safe disposal.

3.2- General safety instructions

READ ALL THE INFORMATION BEFORE OPERATING THE PRODUCT.

1. Keep work area clean

Cluttered areas and benches invite accidents and injuries.

1. Consider work area environment

Keep work area well lit (natural light or sufficient artificial lighting).

Keep work area well ventilated.

Do not use product where there is risk to cause fire or explosion (in the presence of flammable liquids, solids or gas).

1. Guard against electric shock

Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

1. Keep children away

Do not let bystanders touch the product or its power cable or extension cord.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the appliance.

1. Store idle products

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of a heavy duty product.

1. Dress properly

When installing, do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

1. Use protective equipment

When installing, wear protective equipment appropriate to working conditions and work environment

Wear protective helmet, safety goggles, ear mufflers, face or dust mask, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

1. Do not abuse the power cable

Never carry the product by the cable or yank it to disconnect it from the socket.

Keep the cable away from heat, oil and sharp edges.

Inspect product cable periodically and if damaged have it repaired by an authorized service facility.

Inspect extension cords periodically and replace, if damaged.

1. Do not overreach

Keep proper footing and balance at all times.

1. Maintain product with care

Keep product clean for better and safer performance.

1. Disconnect product

When not in use, before servicing and when changing accessories.

1. Avoid unintentional starting

Ensure switch is off when plugging in.

1. Use of extension leads

When product is used with extension cord, ensure that extension cord withstands product ratings.

If used outdoors, use only extension cords intended for outdoor use.

1. Stay alert

Watch what you are doing. Use common sense.

Do not operate product when you are tired, under the influence of alcohol, prescription medicines or drugs.

1. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Defective switches or other part that is damaged should be properly repaired or replaced by an authorized service centre. Do not use the product if the switch does not turn it on and off.

2. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

1. Have your product repaired by a qualified person

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorized service centre is recommended.

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

1. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

3.3- Special warnings when using the pump

1. Become familiar with the controls and the proper use of the product.

2. The use of this product by children is forbidden.

3. Only well-instructed adults should operate the product. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

4. If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.

If the power cable or extension cord is damaged or cut during operation, immediately disconnect plug from its main power source. Do not touch the cable or extension cord before unplugging from main power.

1. Take care that electrical connection is made within dry area and protected from flooding.

2. Before connection, check that your power source voltage matches the data indicted on the product (see characteristics).

3.4- Safety prescriptions

1. The supply voltage should correspond to that given on the description label (230 V-50Hz).
   Do not use any other type of power supply.
2. The pump should be supplied by a circuit containing a residual current circuit breaker (RCCD) with a sensitivity not exceeding 30 mA.
   Consult a qualified electrician.
3. The supply cable should be checked periodically and before each use to see if there are any signs of ageing or damage.
   If the pump is not in good condition, do not use it. Have it repaired by an authorized centre.
4. If an extension is used, ensure that it is officially approved. Keep it well away from sharp edges, heat sources and combustibles.
5. The plug-in connector for the extension should be of the 2 pole + earth type of 10-16A/250V, in accordance with CEE standards. The wire section in the cable should be equal to or greater than 1mm^2 . The cable should not be lighter than cables of H05 RN-F type.
6. When disconnecting the power cable from the socket, always grip the plug itself and not the cable.
7. If the pump is used for emptying a pond, it should not be used when there are people in the pond.
8. When the pump is immersed, handling should not be carried out using the power cable, but using a device (for ex. a rope) connected to the carrying handle.
9. Do not use power cable or float switch cable for carrying or hanging up the pump. Use the handle.

Before any intervention on product, ensure that product is disconnected from its power source.

4.1- Unpacking

• Remove product from its packaging.
• Check that product and accessories are not damage

4.2- Connecting the evacuation hose

1. Screw one or several tubes (8) (depending on depth of your tank) provided onto the pump outlet (Fig.2).
2. Connect the discharge hose on to the hose connection (9)
3. Fig.3 shows an example of installation and use.

Illustration of a fishbowl with a water tank and a submerged object, surrounded by plants and grass (no text or symbols)

Fig.3

-8.c -8.b -8.b -8.a

Fig.2

4.3- Adjusting the floating switch

1. The float switch (5) enables the automatic start of the pump.
   When the water rises to reach approximately 50cm, the pump starts up.
   When water level has lowered to approximately 5cm, the pump will stop automatically.
2. By shortening the length of the cable between the pump and the float, it is possible to modify the water heights that trigger starting and stopping of the pump.
3. To adjust the cut-in/cut-out height, fix the float switch cable to the float switch lock (6) provided for this purpose, located at the top of the pump.
4. Adjust the cable to the required length

4.4- Start-up

Note: Before use, clear the outlet line

Observe and respect minimum water level and max delivery height

1. The pump must be in a vertical position: ensure that it is stable during operation.
2. Ensure that the float switch can move freely.
3. The suction holes must never be obstructed. It is therefore preferable that the pump should never be placed directly on the ground or on the bottom of the well, pond or vessel.
   For example, use a brick to support the pump.

Warning: to dry out premises (cellar draining for example) it will be necessary to place the pump below floor level.

V. OPERATION

5.1- Intended use

1. Cellar/tank drainers pumps are submersible pumps intended for domestic use.
   They should be used only for drying out flooded premises or for pumping water out of wells or cellars or tanks.
2. This pump is designed to suck up clear water with particles in suspension that are less than 3mm in diameter.
3. The pump is fully submersible: the immersion depth must not exceed 5m (refer to the technical characteristics table).
4. The pump should not be used for sucking up liquids or materials that are corrosive, combustible or explosive; fats, oils, waste water from toilet...
5. The temperature of liquids sucked up should not exceed 35^ C.
6. Any other use, other than that described in the instructions, is likely to damage the pump and to put the user in serious danger.

5.2- Operation

5.2.1- In automatic functioning mode,

Connect pump to mains power.

The pump will start and stop as soon as the float switch reaches the pre-set heights (see 4.3)

5.2.2- In manual functioning mode,

Connect pump to mains power.

Raise the float switch to start the pump, lower it again to stop the pump.

In this case, the minimum pumping water height may be reduced.

5.2.3- Warning!

Never operate the pump empty (without water).

The pump is not designed for continuous operation! (e.g. continuous water circulating operation).

Avoid running pump for more than 24 hours.

The submersible pump must be immersed before switching on.

Place pump into water, then let it purge the air (air bubbles) then only you can connect it.

In automatic functioning, the filling-up time before float switch operates is enough to purge the air.

5.3- Advise for users

1. if discharge stops although the pump continues to function, switch it off immediately.
   Unplug the pump from the mains and check to see what is causing the problem.
   Never attempt to remove the turbine when the pump is still connected to the power supply.
2. The pump is fitted with a motor protected by a thermal safety with auto reset.
   In the event of overheating, the motor stops automatically. As soon as the temperature returns to normal, the motor restarts.
   Never place hands anywhere near the turbine during this phase. If remedial action is necessary, always unplug the pump from the power supply first.
3. The pump is also fitted with an automatic bleed device to evacuate any air that might have got into the suction circuit.
   When the water level drops below the vent located in the middle of the pump body, water is evacuated by this hole so as to automatically bleed the circuit: this is not a fault, but corresponds to a normal function of the pump.

Before any intervention on product, ensure that product is disconnected from its power source.

6.1- Maintenance

• In winter the pump must be thoroughly drained or kept in "frost free" conditions.
• Regularly rinse out the pump with clean water, including the suction circuit.
• Avoid pumping liquid containing abrasive materials such as sand.
• Before each re-use, ensure that all parts of the pump are in good working order.
• Clean plastic parts with a soft clean cloth.
• Do not use aggressive cleansers (solvents or abrasive cleansers), or an abrasive sponge.

6.2- Breakdown

Never attempt to dismantle the pump.

If necessary, have it checked and repaired by an authorized centre (consult your dealer).

Incidents	Causes	Remedies
Pump does not start	- No supply from mains- Floater does not switch	- Check mains power supply- Bring floater in a higher position
No flow	- Inlet is clogged- Pressure hose in bent	- Clean inlet water jet- Reset hose
Pump does not switch off	- Floater can not sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet is clogged- Reduced pumping capacity by dirty and abrasive water	- Clean inlet- Clean pump and replace worn-out parts
Pump switches of after short operating period	- Thermal cutout stops pump due to dirty water.- Water too hot. Thermal cutout stops pump	- Remove mains plug. Clean pump and shaft- Make sure that a water temperature of max. 35°C is not exceed

6.3- Storage

Product must be stored in a dry location. Always lock up product and keep out of reach of children

6.4- Disposal

Do not dispose the product with household garbage. Do not throw into the environment.

Dispose of the product in a collection centre for waste of electrical and electronic equipment, or a waste drop-off centre; or seek advice from your local municipality.

Disposal of the product, accessories and packaging should be carried out according to local regulations governing environment protection.

Illustration of a water tank with a submerged object and pipe, surrounded by plants and grass (no text or symbols)

Fig.3

8.c 8.b 8.b 8.a

Fig.2

Illustration of a fishbowl with water flowing through it, surrounded by plants and aquatic plants (no text or symbols)

Fig.3

8.c 8.b 8.b 8.a

Fig.2

Illustration of a water tap with a submerged object and pipe, surrounded by plants and grass (no text or symbols)

Fig.3

8.c 8.b 8.b 8.a

Fig.2
