USER MANUAL 035984F,85F,86F,87F ROTHENBERGER

Attention, parties chaudes

PAYS AUXQUELS CET APPAREIL EST DESTINE : FRANCE

CONSIGNES DE SÉCURITÉ

035984F, 85F, 86F, 87F

035984F, 85F, 86F, 87F

90-388-2010-08

Rothenberger Industrial Gasheizstrahler

Gasperaterichtlinie 90/396/EEC

EN461:1999 +A1:2004

Instructions for use

CE0359

Version FR :

Gas G31 (Propane)

CAT. 13P (37)

37 mbar

G 1/2"

Type of gas	Propane G31, 37 mbar
Gas category, feed pressure	I3P (37), 37 mbar
Injector	1.1 mm
Total heat input	2.50–4.20 kW (0.2–0.34 kg/h)

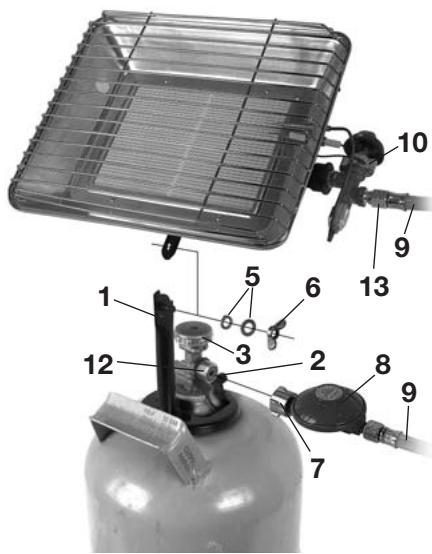

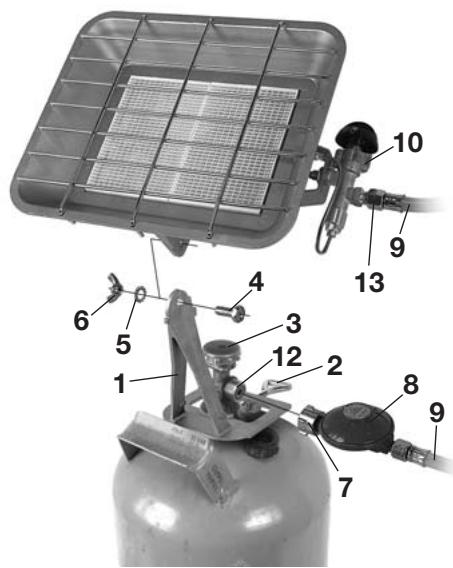

FEATURES

1. Mounting bracket
2. Mounting screw
3. Cylinder valve
4. Fixing screw
5. Washer and spring washer
6. Wing nut
7. Regulator connector
8. 37 mbar constant pressure regulator
9. Hose
10. Gas tap
11. Piezo ignition button (035985F & 035987F only)
12. Cylinder connector
13. Appliance connector

PACK CONTENTS

1. Space heater, 37 mbar with 1/2 BSP screw thread connection (right)
2. Gas pressure regulator, (37 mbar pressure reduction, 1.5 kg/h capacity), art. no. 035921F
3. Gas hose, 500 mm, with 1/2'' BSP screw thread connectors (right) M20x150
4. Mounting bracket with wing nut, screw, washer and spring washer
5. Mounting screw
6. Piezo ignition with nut and wire (035985F & 035987F only)

SCOPE OF USE

This appliance may only be used for space heating. THIS APPLIANCE IS NOT FOR DOMESTIC USE. THIS APPLIANCE MUST ONLY BE USED OUTDOORS. This appliance must be installed in accordance with such regulations as are in force.

Only for outdoor use

Caution, hot parts

COUNTRY OF DESTINATION: FRANCE

SAFETY INSTRUCTIONS

• In the event of a gas leak (smell of gas) close the cylinder valve and keep the appliance well away from sources of ignition. Locate the source and repair the leak before operating the appliance. Never use a flame to locate the source of a leak; use a soapy solution instead.
• Use only in a well ventilated area.
• The appliance shall not be used in basements or below ground level.
• If the appliance is not to be used for a period of time disconnect it from the cylinder and store it in a cool, dry place out of the reach of children.
• THIS APPLIANCE MAY ONLY BE USED OUTDOORS.
• Isolate the appliance from the cylinder by closing the cylinder valve when the appliance is not in use.
• To prevent the risk of damage avoid twisting the flexible tubes and hoses. The hose may not be twisted when connected.
• Position the appliance well away from walls, inflammable materials and sources of ignition.
• This appliance must be used with a hose and regulator as described in this manual.
• Check the hose regularly for signs of damage. Replace damaged hoses.
• The appliance becomes very hot when in use. Do not touch any part of the appliance that is hot. Allow the appliance to cool down completely before transport, disassembly or storage.
• Never move the appliance when it is in use. Allow it to cool down completely before transport.
• Never attempt the move or lift the appliance and gas cylinder assembly by lifting parts of the appliance. Always use the gas cylinder's handle.
• Never ignite the appliance by applying a flame to an area close to the injector.
• Never remove the safety grill or dismantle and/or modify the appliance.
• Keep children well away from the appliance.
• Never leave the appliance unattended.
• Never use the appliance if the ceramic element is damaged or broken.

REGULATOR AND HOSE

Use only the hose and hose connector provided. If a replacement is necessary, please contact either our Customer Service Department or your local gas dealer. The use of unauthorised or modified parts can create unsafe conditions and could result in serious injury to the user. It is recommended that the regulator is changed within 5 years of the date of manufacture. The hose used must conform to the relevant standard for the country of use. The length of the hose must be max. 0.5 metres when the appliance is fitted to a gas cylinder as described in this manual. Worn or damaged hoses must be replaced. Ensure that the hose is not obstructed, kinked, or in contact with any part of the appliance other than at its connection.

ASSEMBLY

ATTACHING THE MOUNTING BRACKET TO THE APPLIANCE

Attach the appliance to the mounting bracket using the wing nut, washer, spring washer and screw provided for this purpose. Refer also to the photo on page 18 of this manual.

ATTACHING THE PIEZO IGNITION DEVICE (ART. NO. 035987F ONLY)

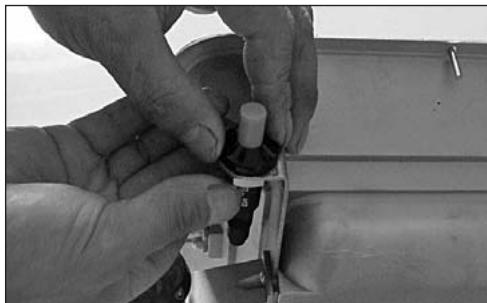

• Insert the Piezo ignition device into the Piezo ignition bracket and secure it using the nut provided.

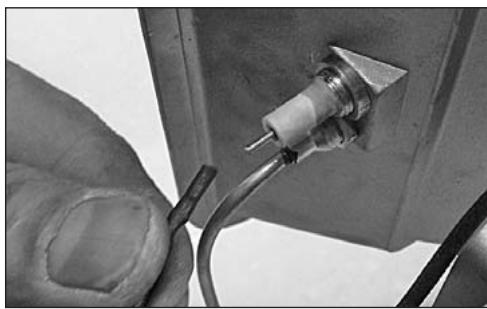

• Connect the Piezo ignition device to the ignition needle using the wire supplied.

FITTING AND CONNECTING THE APPLIANCE TO A GAS CYLINDER

The appliance may only be fitted to 13kg propane gas cylinders.

• Place the mounting bracket on to the collar of the gas cylinder.
• Tighten the mounting screw so that so that it engages with the collar of the gas cylinder and so that the appliance and the mounting bracket are securely fixed on the gas cylinder.
• Make sure that the gas cylinder valve and the appliance valve are closed.
• Check the condition of the hose and the pressure regulator each time you use the appliance. Do not use a hose or regulator that show any sign of damage or deterioration.
• Connect the pressure regulator to the gas cylinder.
• Connect the gas hose to the pressure regulator and to the appliance connector. Make sure that the hose is routed in such a way so that it is not twisted or subject to strain and so that it can not come into contact with any parts of the appliance that may become hot.
• Open the gas cylinder valve. Check that all connections are air-tight. If necessary use a leak detector spray or a soapy solution. If necessary, tighten the connections. Do not use the appliance if you suspect that the system may be leaky.

USING THE APPLIANCE

Proceed as follows to light the appliance and adjust the flame:

• Place the appliance and gas cylinder assembly outdoors on a level and stable surface, well away from any inflammable materials.
• Open the gas cylinder valve by turning the knob anti-clockwise.
• Push and hold the appliance's knob and turn it to the highest setting.
• Models 035985F & 035987F: Push the Piezo ignition button.
• Models 035984F & 035986F: Light the appliance by applying a gas lighter to the section of the ceramic grille furthest away from the valve.
• Hold the appliance's knob depressed for approximately 20 seconds. If the flow of gas stops, repeat the steps above.
• Once the flame is established the flame can be adjusted as required by turning the valve.
• To switch off the appliance extinguish the flame by closing the cylinder valve and subsequently close the appliance valve.

MAINTENANCE AND CLEANING

CHANGING THE GAS CYLINDER

• The gas cylinder may only be changed outdoors, well away from sources of ignition and other persons.
• Close the gas cylinder valve and the gas appliance valve.
• If the appliance has been in operation allow it to cool down completely.
• Unscrew and remove the gas regulator.
• Unscrew the mounting screw and remove the mounting bracket and the appliance from the gas cylinder's collar.
• Proceed as described in the 'Fitting and connecting the appliance to a gas cylinder' section.

CLEANING

• The appliance must be thoroughly cleaned before it is put away, especially if the appliance is not to be used for a longer period.
• Allow the appliance to cool down completely before cleaning.
• Clean the appliance with water and a mild detergent.
• If the burner or any of the tubes are clogged, use compressed air to remove the cause of obstruction.
• Store the appliance in a dry place and away from dust. If possible put it back in its original packaging.

TROUBLESHOOTING

PROBLEM	CAUSE	CORRECTIVE ACTION
The appliance does not ignite	Not all necessary valves are open	Open the gas cylinder valve and the appliance valve
	Gas cylinder empty	Replace the gas cylinder
	Pressure regulator defective	Replace the pressure regulator
	Injector blocked or clogged	Clean or replace the injector
Flame very weak, unsteady, yellow...	Gas cylinder almost empty	Replace the gas cylinder
	Pressure regulator defective	Replace the pressure regulator
	Injector blocked or clogged	Clean or replace the injector
Gas leaks from a valve	Faulty valve	Have the appliance repaired by a competent person
	Pressure regulator defective	Replace the pressure regulator

Worn out appliances must be recycled at a suitable recycling facility. Do not dispose of with the household waste. Contact your local authority for more information. Dispose of packaging according to type and in accordance with local regulations.

CE

EC-Declaration of Conformity

We, WALTER WERKZEUGE SALZBURG GmbH, Gewerbeparkstrasse 9, 5081 Anif, Austria

declare that the design and construction of the following appliance, in the form supplied by us, comply with the basic health and safety requirements of the appropriate EC directives.

This declaration covers the appliance only in the condition in which it was supplied by us. It does not cover parts subsequently fitted by the user or modifications made after purchase.

Product description / function:

Type / model identifier:

Serial number / Lot number:

Trade name:

Appropriate EC directives:

Applicable harmonised standards:

Gas space heaters

035984F, 85F, 86F, 87F

90-388-2010-08

Rothenberger Industrial Gas space heaters

Gas Appliances Directive 90/396/EEC

EN461:1999 +A1:2004

Anif, 01-08-2010

Mag. Bart Duquenne Product Manager

Oliver Hahn Purchasing Manager and person responsible for technical documentation

Technical documentation is available from: WALTER WERKZEUGE SALZBURG GmbH Gewerbebarkstrasse 9, 5081 Anif-Austria
