USER MANUAL SILK EPIL 9 FLEX SE 9-041 3D BRAUN

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow indicating flow or movement.

Illustration of a hand pressing a button with a sun icon and an upward arrow (no text or symbols)

max. 3 mm

Illustration showing two-step abdominal massage technique: foot and ankle with finger placement (no text or symbols)

Diagram of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Illustration of a person applying a small object to their face (no text or symbols)

Illustration of a person holding a small object, possibly a medical or cosmetic device, with no visible text or symbols.

Illustration of a medical device with internal components and a close-up of a person's face (no text or symbols)

Illustration showing hands holding a transparent container with a house-shaped structure above it, illustrating a storage or storage process.

Line drawing of a hand holding a mechanical component with no visible text or symbols

Illustration of a hand using a tool to brush through a bowl containing food items, with arrows indicating motion (no text or symbols)

Diagram of a food preparation setup with a bowl and tray, showing a downward arrow indicating a process (no text or symbols present)

B

Three-step illustration showing a textured circular component being processed into a mechanical device, with no visible text or symbols.

Illustration showing two-step medical procedure: one with a tool on skin, the other with a bandage and circular markings (no text or symbols)

Diagram illustrating a three-step process of cleaning a surface with water droplets, showing hand positioning and color change.

Illustration showing three steps of a hairbrush cleaning process: initial drop, circular brush pattern, and final step with labeled parts.

C

Illustration showing five steps of a dental procedure: using a toothbrush, applying material to a patient's arm, and receiving the product.

Illustration showing four steps of hairbrush cleaning: cutting, pressing, holding, and finishing with a brush.

Illustration showing a hand using a tool to press down a device with 'click!' instructions, including steps 1 and 2.

D
Travel lock

E
SensoSmart - pressure control

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk-épil 9 Flex.

Before using the appliance, please read the user manual carefully and keep it for future reference.

Important

• This appliance is provided with a Safety Extra Low Voltage plug-in power supply (8). To avoid risk of electric shock, do not exchange or manipulate any part of it.
• Only use a Braun power supply, type D-492-C.
• Do not open the appliance!
• This appliance is suitable for use in a bathtub or shower. For safety reasons, it can only be operated cordless.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children.

Warnings

• For hygienic reasons, do not share this appliance with other persons.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

Description

1a High-frequency massage cap
1b Skin contact cap
2 Epilation head
3 Smart/SensoSmart™ light
4 Power button
5 Speed button
6 Charging light
7 Release button
8 Power supply

9 Precision cap
10 Trimmer comb (3 mm)
11 Shaver head
12 Brush adapter
13 Exfoliation brush with protective cap *
14 Deep massage pad*

* not with all models

Power button

Press the power button (4) to turn the appliance on and off.

When it is switched on, the Smart light (3) shines to provide good visibility of fine hairs.

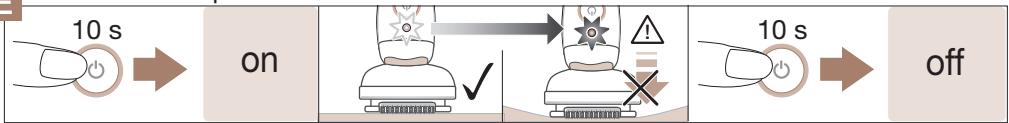

SensoSmart™ pressure control (E)

The SensoSmart light (3) turns red when you apply too much pressure. This function has been developed to provide best epilation results when using the massage cap (1a).

To activate it, press and hold the power button (4) until the white and red flashes stop (10 seconds).

Proceed the same way to disable this function.

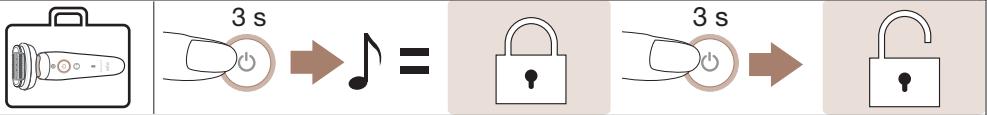

Travel lock (D)

To activate the travel lock, press the power button 3 seconds until a beep confirms successful activation. To unlock the device, press the power button again 3 seconds. Release the power button, when the appliance starts running. Unlocking can also be done via charging.

Speed button

Press the speed button (5) to switch between

Speed II: power mode (default) and

Speed I: gentle mode

How to replace heads

Turn off the appliance, press the release button (7) and take off the head. Attach a different one.

Charging

Before use, charge the appliance for 2 hours using the power supply (8).

Charging light (6)

Flashing white:	charging in progress
White for 5 seconds:	fully charged
Yellow:	approx. 15 min charge left
Flashing yellow:	please recharge

Operation time is up to 50 minutes when used within 24 hours after charging. Recharge when the yellow charging light comes on or when the motor has stopped completely. A 15-minute quick charge will provide 10 minutes operation time.

The best temperature range for charging, using and storing the appliance is between 15°C and 35°C.

Beyond this range, charging might take longer. The built-in rechargeable battery can be replaced at an authorized Braun Service Centre when it has reached the end of its useful life.

Epilation (A)

Tips for beginners

• If you have not used an epilator before, it may take some time for your skin to adapt to epilation. In the beginning, epilate on a weekly basis to help reduce the discomfort.
• First time users should epilate in the evening so that reddening can disappear overnight. To relax the skin, we recommend applying a moisturizing cream after epilation.
• Epilation is easier and more comfortable when the hair is between 0.5–3 mm long. If hairs are longer, we recommend that you shorten them.
• Exfoliation avoids ingrown hairs and provides optimum conditions for epilation.
• We recommend using the massage cap with the SensoSmart function activated.

Getting prepared

Dry usage: Your skin must be dry and free from grease or cream.

Wet usage: Make sure your skin is very moist to achieve optimum gliding conditions for the appliance. Make sure that the epilation head (2) is clean and provided with a cap.

How to epilate

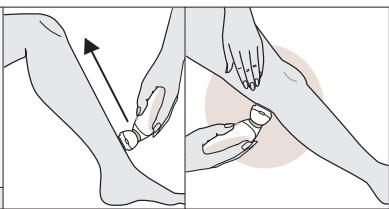

Always stretch your skin while epilating. Guide the appliance in a slow, continuous movement without pressure against the hair growth in the direction of the light.

Depending on model, there are various epilation caps available:

Massage cap (1a):

for best comfort

Skin contact cap (1b):

for increased efficiency

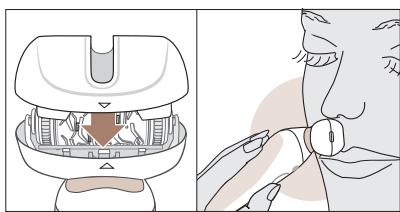

Precision cap (9):

for smaller epilation areas, e.g. face

Legs:

When epilating behind the knee, keep the leg stretched out straight.

Sensitive areas:

First thoroughly clean and carefully dry sensitive areas to remove residues (like deodorant). When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive after epilation, avoid using irritating substances such as deodorants with alcohol.

Face:

Before epilating, clean your skin thoroughly with a disinfecting toner containing alcohol. Stretch the skin with one hand and slowly guide the epilator with your other hand in the direction of the light.

Cleaning the epilation head

After use, turn off the appliance and clean the epilation head:

Remove the cap (1a/b). Brush out the tweezers while turning the tweezer element manually. Take off the epilator head and gently tap it to remove hairs from inside the head.

If a thorough clean is needed, you may hold the appliance with the epilation head under hot running water. Then take off the epilation head and shake off remaining water. Make sure it is dry before reattaching.

General information on epilation

All methods of hair removal from the root can lead to irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin.

In general, skin reactions and the sensation of pain tend to diminish considerably with repeated use. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician.

To minimize the risk of infection or inflammation due to bacteria penetrating the skin when it comes to micro-injuries, thoroughly clean the epilation head and your skin before each use.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, candida or immune deficiency.

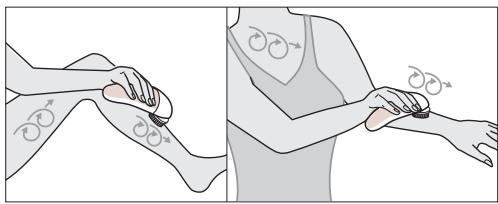

Body treatment (B)

The exfoliation brush (13) helps avoid ingrown hair by removing dead skin cells. It also improves epilating results when used 1-2 days before epilation. The deep massage pad (14) helps improve the skin appearance.

You may use the exfoliation brush/ deep massage pad on a weekly basis on wet skin during your shower routine with your preferred body scrub or shower gel.

The deep massage pad may even be used more frequently with body lotion or massage oil.

When using the appliance in a bathtub, do not immerse it fully in water since this will not provide optimum results.

How to use

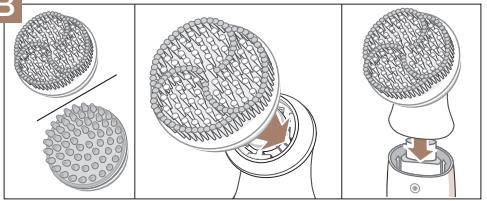

Attach the brush adapter (12) provided with brush (13) or pad (14). Slowly guide the appliance in a circular motion over your skin to gently refine it. Avoid holding it on the same skin area for prolonged time. Do not use it on your face.

Cleaning

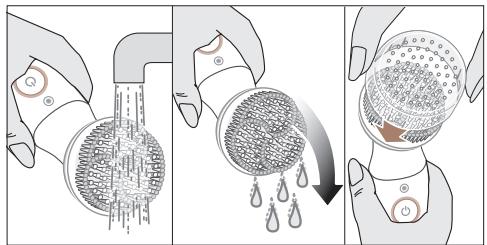

After use, rinse the brush/pad (13/14) under running water. If needed, you may use some liquid soap for more thorough clean.

The silicone cap on the deep massage pad (14) needs to be removed to make sure there is no more water left inside.

Before storing the exfoliation brush (13), attach the protective cap.

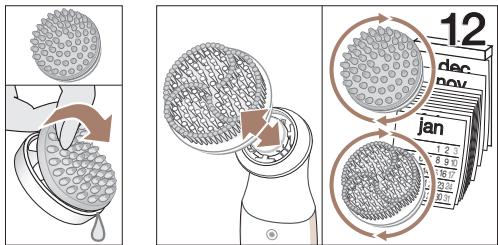

With weekly use, we recommend that you replace the brush/pad after 12 months. Refills (ref. no.79 Spa) are available from your retailer or Braun Service Centres or via www.service.braun.com.

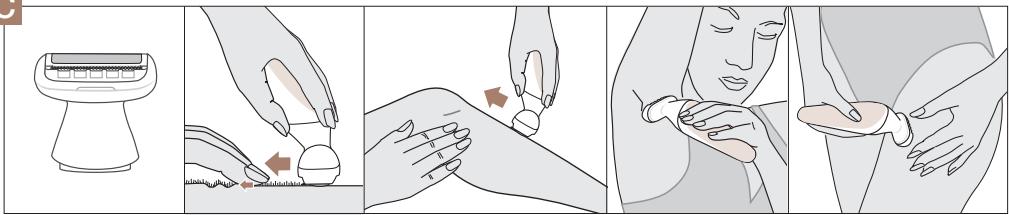

Shaving (C)

The shaver head (11) is designed for a fast and close shave of legs, underarms and bikini area. Shave on dry skin to obtain best results.

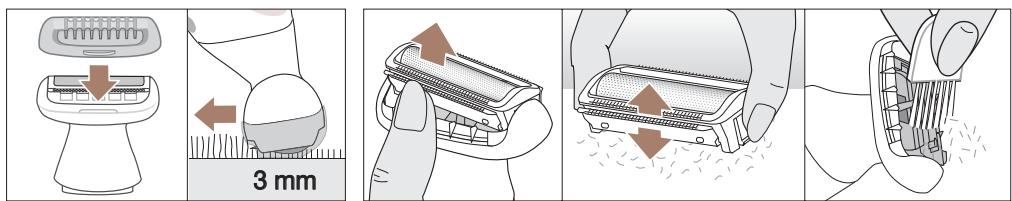

For trimming hairs to 3 mm length, attach the trim-mer comb (10) and guide it flat over the skin, with the opening against the direction of hair growth.

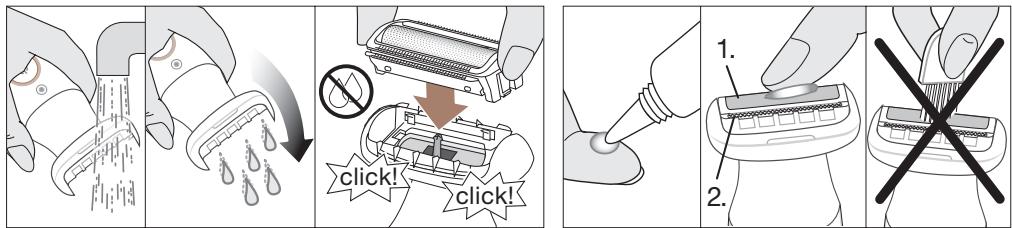

Cleaning

Do not clean the shaver foil with the brush as this may damage it. Remove the shaver foil unit (11a) as shown on page 5. Tap it on a flat surface. Clean the shaver head with the brush or under running water. Reassemble in dry condition. Lubricate it regularly (1. foil / 2. trimmers).

Disposal

This product contains batteries and recyclable electronic waste. To protect the environment, do not dispose of it in the household waste, but take it to appropriate local collection points.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia and New Zealand only: In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/

ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be

exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.
