USER MANUAL CL-IK123S COSYLIFE
CONDITION DE GARANTIE
EN This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
GARANTIEVOORWAARDEN
Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

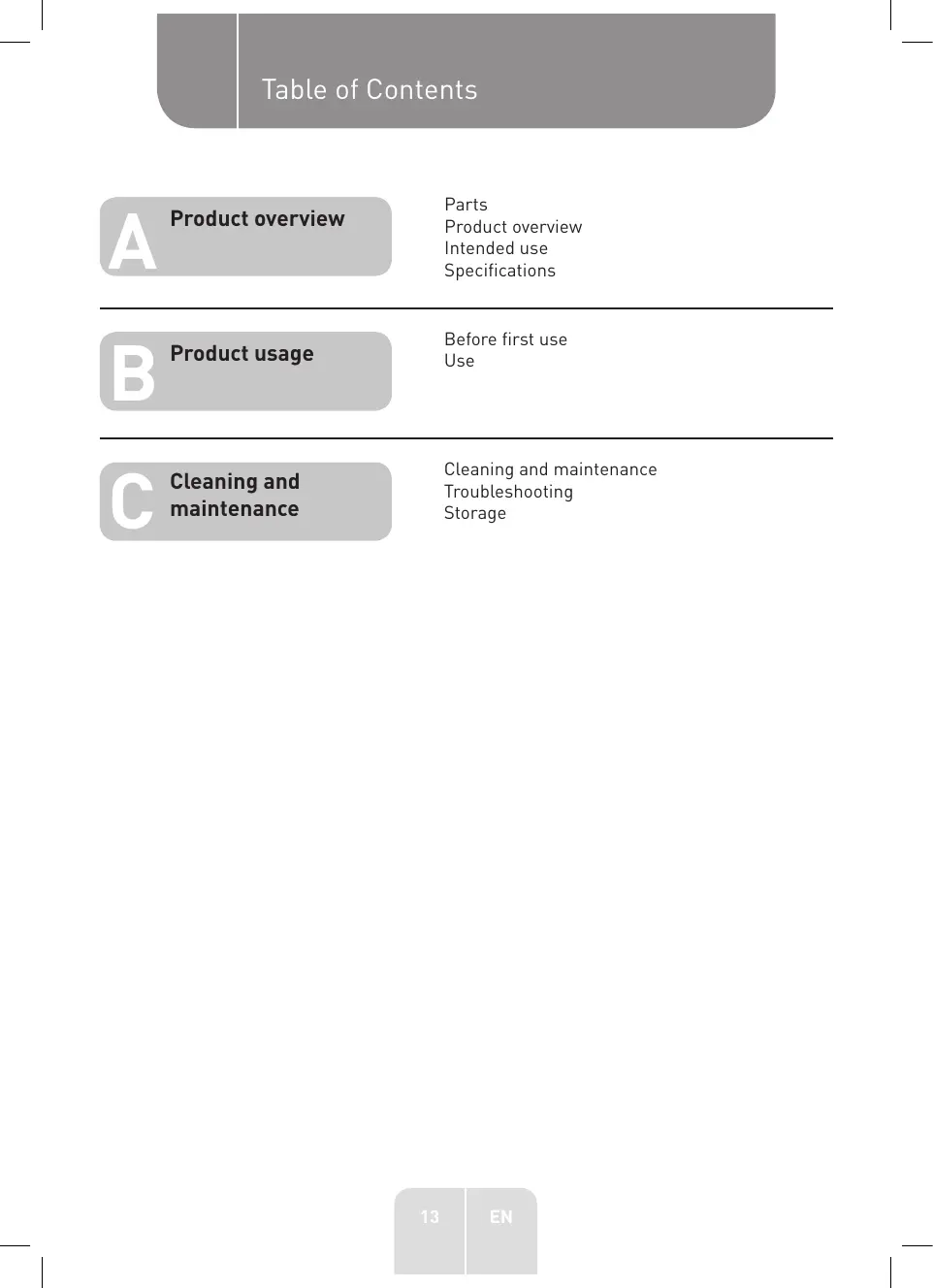

Table of Contents
Parts
Product overview
Intended use
Specifications
Before first use
Use
Cleaning and maintenance
Troubleshooting
Storage
Parts
A Ice basket
B button
C button
D button - small ice cubes
E button - large ice cubes
F button
6 button
Power cable with plug
Ice scoop
Water outlet (bottom)
Maximum water level mark (internal) - MAX
Viewing window
Product overview
- Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This unit has been designed to make ice cubes. Do not use it for any other purpose.
Any other use may damage the unit or cause injury.
Specifications
| Model: | 978418 |
| Operating voltage: | 220-240 V~, 50 Hz - 1 A |
| Power consumption: | 120 W |
| Capacity: | 2.1 L |
| Protection class: | Class I |
| Refrigerant: | R600a (21 g) / SN/N |
B Product usage
Before first use
Unpack all the parts.
- Upon unpacking, check that everything is complete and that no transport-related damage has occurred. If your goods are damaged or incomplete, please contact our after-sales service.
- Clean the unit and its components ( Cleaning and maintenance).
Use
1 Open the lid. Remove the ice basket.
2 Fill the water tank with drinking water.
3 Note: Do not fill above the MAX water level mark.
4 Reinsert the ice basket. Close the lid.
5 Connect the power plug to an appropriate mains socket.
6 Press on the control panel.
The default size setting is. The indicator will be lit.
Press the button to switch the size setting to small. The indicator will then turn on.
The indicator lights up when the ice basket is full. The unit will automatically stop producing ice. Note: Once the ice has been removed from the container, the unit will automatically restart ice production after approx. 5 seconds.
To remove the ice: open the lid. Remove the ice basket.
11 Remove the ice cubes using the ice scoop.
12 Once you have obtained the desired amount of ice, press to stop ice production. Unplug the power plug from the mains socket.
To drain water from the unit: move the unit forwards until it hangs at least 10cm off the edge of the countertop.
14 Unscrew the water outlet (bottom) anticlockwise.
Note : You can stop the ice production process at any time by pressing the button.
| Indicator light | Description |
| ( flashing) | Standby Mode |
| (steadily lit) | On |
| The ice basket is full. Ice production has been stopped.
• To remove the ice: open the lid. Remove the ice basket.
• Remove the ice cubes using the ice scoop.
• Reinsert the ice basket. Close the lid. |
| The large ice cube size has been selected. |
| The small ice cube size has been selected. |
| Not enough water in the water tank.
• To fill with water: open the lid. Remove the ice basket.
• Fill the water tank with water.
• Reinsert the ice basket. Close the lid.
Please note:
• Do not fill above the MAX water level mark.
• When the water tank is full, press to restart ice production. |
Please note:
Only use drinking water.
- Do not fill the water tank beyond the MAX water level mark.
- Ice can remain solid inside the unit for up to 18 hours, depending on the ambient temperature.
WARNING
- Before use, make sure that the water outlet at the bottom has been securely closed.
- Make sure that the unit is level and on a stable table or surface, to prevent it from malfunctioning.
- If the unit has been moved, let it stand for 30 minutes before connecting it to the power supply. Liquids inside the compressor must be left to settle before use.
- To ensure good ventilation, leave a gap of approximately 20 ~cm on all sides of the unit.
- Before using the unit for the first time after transportation or an extended storage period, leave it to settle for 2 hours after levelling and positioning the unit in the right place.
- The unit must be placed on a dry, level surface with sufficient ventilation, away from any heat sources, such as ovens or heaters.
- Do not fill the water tank with hot water. This may damage the unit. Fill the water tank with water at room temperature or lower.
- Do not use the unit in a very cold environment (less than 5^ ).
Cleaning and maintenance
WARNING
- For hygiene reasons, the unit must be cleaned before and after each use.
- Do not use organic solvents, boiling water, cleaners, or strong acids or alkalis, etc., to clean the unit.
- Do not clean the evaporator.
WARNING
- Before cleaning or maintaining the unit, make sure that it has been switched off and unplugged from the mains socket. Then let it cool completely.
-
Never immerse the unit in water or any other liquid.
-
Clean the unit with a soft, slightly damp cloth. Make sure that no moisture gets inside the unit while cleaning it.
- Never use corrosive cleaners, wire brushes, abrasive scouring pads or metal/sharp tools to clean your unit.
- Thoroughly dry the unit after cleaning it.
- Store the unit in a cool, dry place, out of the reach of children and pets.
Troubleshooting
| Problem | Possible causes | Solution |
| The indicator is lit. | ·Low water level or no water.
·The water inlet on the lower part of the water tank is blocked. | ·Stop ice production. Fill with water.
Press to restart ice production.
·Clean the water inlet. |
| The indicator is lit. | ·The ice basket is full. The infrared light is blocked by ice.
·The infrared light-emitting diode and/or the infrared light-receiving diode is/are not working. | ·Remove the ice from the ice basket.
·Remove any foreign object from the infrared light emitting and receiving diodes. Restart the unit. |
| The indicators are lighting up simultaneously. | ·The ice cube tray is not in the correct position. | ·Unplug the unit, then plug it back in. Restart the unit. |
| The ice cubes are stuck. | ·It is taking too long to make ice.
·The water in the water tank is too cold. | ·Stop ice production. Restart the unit once the ice has melted.
·Fill the water tank with water at a temperature between 8 and 25 °C. |
| Ice production appears normal, but no ice is being produced. | ·The ambient temperature or the water temperature is too high. | ·Start ice production in an environment with an ambient temperature below 32 °C. Fill the water tank with fresh water. |
| Low ice production. | ·Low heat dissipation.
·The water temperature is too high.
·The ambient temperature is too high. | ·To ensure good ventilation, leave a gap of 20 cm on all sides of the unit.
·Fill the water tank with water at a temperature between 8 and 25 °C.
·Use the unit in an environment with an ambient temperature between 10 and 32 °C. |
Storage
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
