CL-R8PEXT - Raclette Grill COSYLIFE - Free user manual and instructions

Product type	Raclette-Grill
Brand	COSYLIFE
Model	CL-R8PEXT (992343)
Power supply	230 V~, 1200 W, 50-60 Hz, Class I
Included parts	2 On/Off buttons, 4 grill plates, 1 plastic clip, 8 raclette pans, 8 wooden spatulas
Grill usage	Extended grill or combined (assembly with clip); 5 minutes preheating; non-stick surface
Operation	Place on stable, heat-resistant surface; plug into grounded socket; press On button (I); add butter to grease; cook on plates or in pans under the grill
Cooking tips	Cut meat into small pieces; melt cheese in pans; serve with potatoes, shallots, pickles, ham, etc.
Cleaning	Plates and pans washable with warm soapy water; exterior surface with damp cloth; do not immerse appliance; do not use abrasives
Maintenance	Clean after each use; dry completely before storage; store in a cool, dry place, out of reach of children
Safety	Caution: hot surfaces; do not cut on plates; use wooden or nylon utensils; do not use metal utensils; unplug before cleaning; wait for complete cooling
Warranty	2 years from date of purchase, upon presentation of receipt (manufacturing or material defects)
Storage	Keep the packaging for long-term storage; always unplug before storing

Frequently Asked Questions - CL-R8PEXT COSYLIFE

How to use the appliance for the first time?

Before first use, heat the appliance empty for 10 minutes at high temperature to eliminate protective substances. Some smoke or odor is normal. Ventilate the room. Let the plates and pans cool before cleaning.

How to assemble the grill plates for an extended surface?

For an extended surface, remove the plastic clip and unfold the plates. For a combined grill, assemble two sets of plates with the plastic clip to fix them.

What utensils to use on the grill plates?

Use the provided wooden spatulas or nylon utensils. Never use metal or sharp utensils to avoid scratching the non-stick coating.

Can you cut food on the grill plates?

No, it is dangerous to cut on the plates as they may tip over. Do not place hot utensils on the surface.

How to melt raclette cheese?

Place a slice of cheese in a pan, insert the pan under the grill plates into the slots. The cheese will melt under the heat. Serve traditionally with jacket potatoes.

The appliance emits smoke or odor, is this normal?

During first use, slight smoke and odor are normal due to combustion of manufacturing substances. Ventilate the room. If it persists after several uses, check that the appliance is clean.

How to clean the grill plates and pans?

Let them cool, then wash with warm soapy water. Do not use hard or sharp objects to preserve the non-stick coating. The exterior surface can be cleaned with a damp cloth. Never immerse the appliance in water.

Is the appliance under warranty?

Yes, the appliance has a 2-year warranty from the date of purchase against manufacturing defects. Warranty requires presentation of the receipt and does not cover damage due to misuse.

Can the appliance be used with frozen cheese?

Yes, but cooking time will be much longer than with cheese at room temperature. It is recommended to defrost the cheese beforehand for even cooking.

How to store the appliance after use?

Unplug the appliance and let it cool completely. Clean and dry it. Store in a cool, dry, dust-free place, out of reach of children. Keep the packaging for long-term storage.

USER MANUAL CL-R8PEXT COSYLIFE

Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

A Product overview

Parts Specifications

B Product usage

Before first use Using the Raclette Grill Operation

Cleaning and maintenance

Cleaning and maintenance Storage

Parts

A On/Off Switch x 2
B Grill Plates x 4
Plastic Clip
D Raclette Pans x 8
E Wooden Spatulas x 8

Specifications

Model:	992343 - CL-R8PEXT
Electrical data:	230V~ 1200W
Electrical class:	Class I
Frequency:	50-60Hz

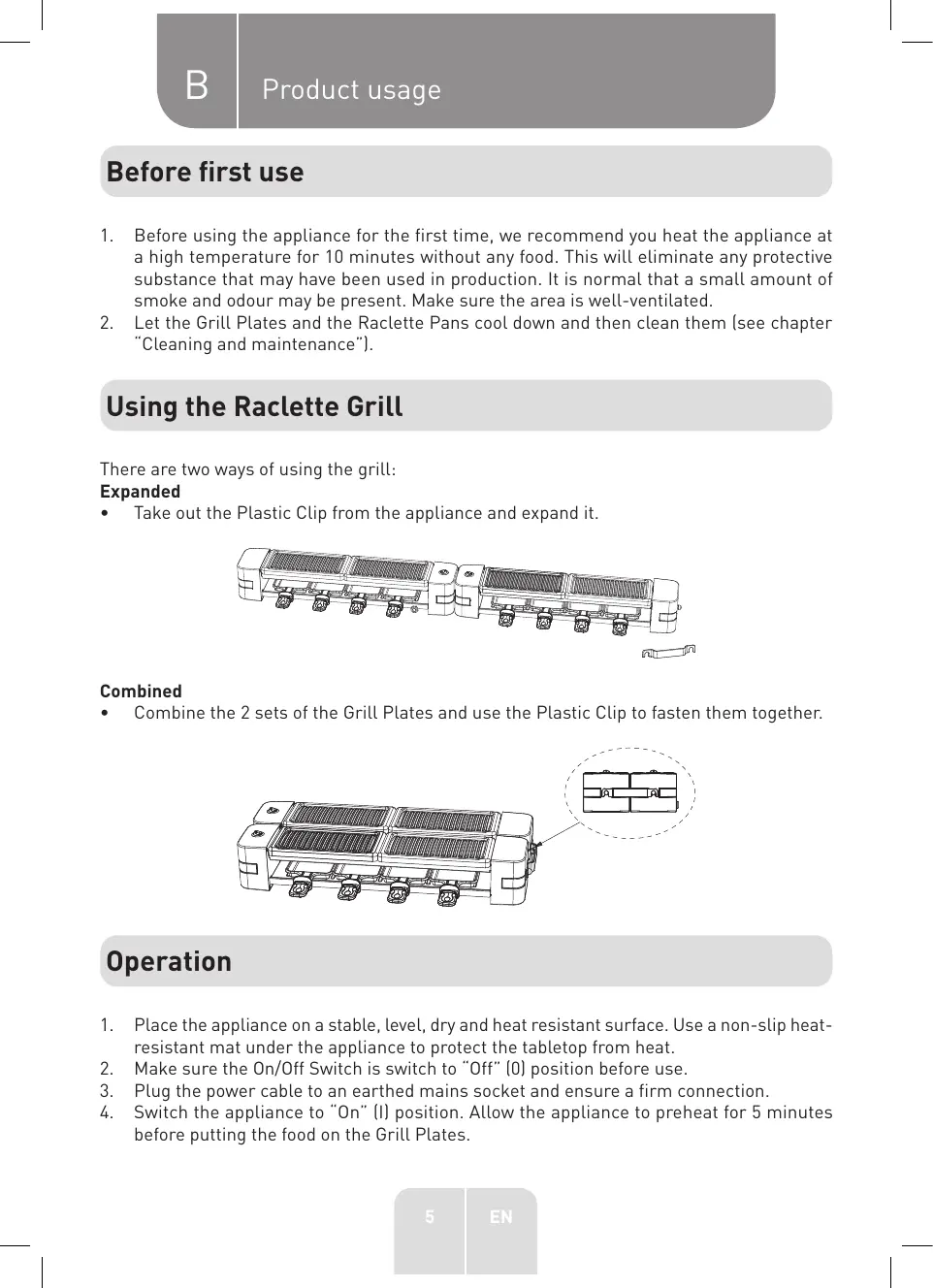

Before first use

1. Before using the appliance for the first time, we recommend you heat the appliance at a high temperature for 10 minutes without any food. This will eliminate any protective substance that may have been used in production. It is normal that a small amount of smoke and odour may be present. Make sure the area is well-ventilated.
2. Let the Grill Plates and the Raclette Pans cool down and then clean them (see chapter "Cleaning and maintenance").

Using the Raclette Grill

There are two ways of using the grill:

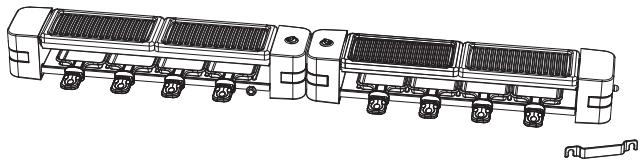

Expanded

Take out the Plastic Clip from the appliance and expand it.

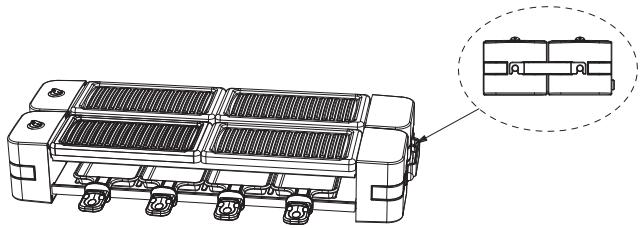

Combined

• Combine the 2 sets of the Grill Plates and use the Plastic Clip to fasten them together.

Operation

1. Place the appliance on a stable, level, dry and heat resistant surface. Use a non-slip heat-resistant mat under the appliance to protect the tabletop from heat.
2. Make sure the On/Off Switch is switch to "Off" [0] position before use.
3. Plug the power cable to an earthed mains socket and ensure a firm connection.
4. Switch the appliance to "On" (I) position. Allow the appliance to preheat for 5 minutes before putting the food on the Grill Plates.

B Product usage

CAUTION:

• Beware of hot surfaces. Do not touch the Grill Plates or the Raclette Pans when operating.

• If you combined the 4 Grill Plates together, make sure you have put the Plastic Clip on to fasten the whole unit.

• To start cooking, grease the Grill Plates and Raclette Pans slightly with butter.

• Place the food on the Grill Plates to cook. If you also need to use the Raclette Pans, place the food on the pans and put the pans under the Grill Plates (lower grill slots).

CAUTION:

It is dangerous to cut the food on the Grill Plates as the plates may tip over.
- Do not rest utensils on the Grill Plates as the surface will be extremely hot.

NOTE:

• Use the Wooden Spatulas provided or nylon utensils on the Grill Plates to protect the non-stick surfaces from scratches. Do not use metal or sharp utensils.

• Cooking time will depend on the thickness of the food. We recommend you turn the food occasionally and check while cooking.

• When finish cooking, Switch off the appliance and unplug the power cable from the mains socket. Wait until the appliance is completely cool before moving or cleaning it.

Cooking tips:

Cut the meat into little pieces in order to reduce the cooking time.
- Place a slice of cheese in a Raclette Pan, and then place the pan under the Grill Plates (lower grill slots) and the cheese will melt. The melted cheese is traditionally eaten together with jacket potatoes. The combination of melted cheese with shallots, gherkin, ham, pepperoni, a French stick and white wine is also very tasty.
- Your Raclette-Party-Grill can also give the prepared food a crisp crust. Place the food in a Raclette Pan. Add a slice of tomato or mushroom. Then add a little cheese or a slice of cheese. Place the Raclette Pan under the Grill Plates (lower grill slots). When the food gets a dark colour, remove it from the Raclette Pan. Allow the melted cheese to cool slightly before serving.
If cheese is frozen, the heating time will be much longer than that under room temperature.
- Clean the appliance after each use to prevent any food residue from accumulating (See chapter "Cleaning and maintenance").

Cleaning and maintenance

• Before cleaning the appliance, always make sure that the power plug has been removed from the mains socket. Allow the appliance to cool down before cleaning.
• The Grill Plates and the Raclette Pans can be washed in hot soapy water. Never use hard or sharp objects to clean them as the non-stick coating can be easily damaged or scratched.
• You can clean the exterior of the appliance with a damp cloth and dry afterwards. Never immerse the appliance in water. Do not use abrasive cleaners as they can cause damage to the material.
• Allow the appliance to dry thoroughly before storing it away.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Merci!

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.
