USER MANUAL CL-BL8175 COSYLIFE
Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

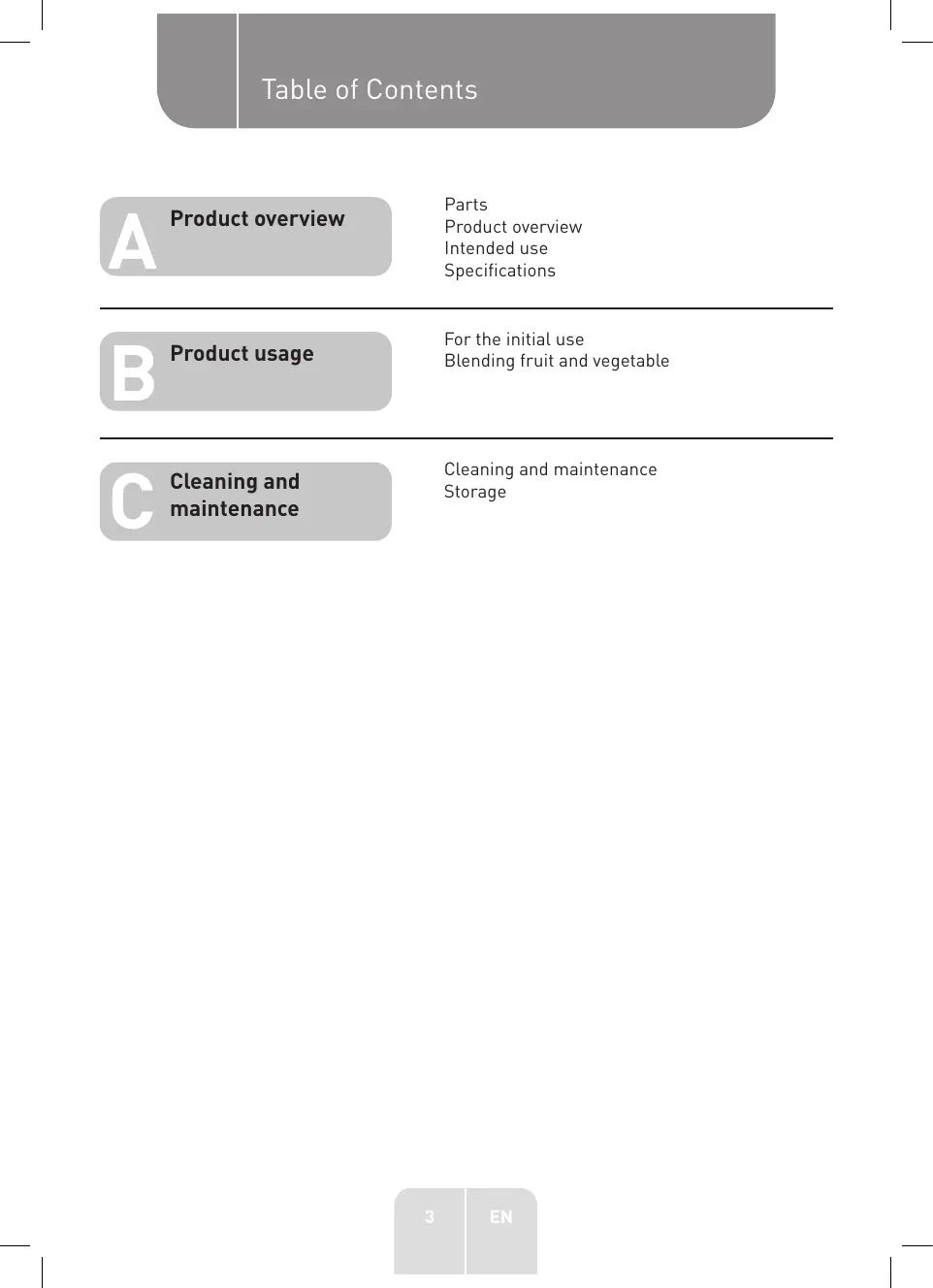

Table of Contents
Parts
Product overview
Intended use
Specifications
For the initial use
Blending fruit and vegetable
Cleaning and maintenance
Storage
Parts
Jar cover
B Spout
Glass jar
D Blade assembly
Measure cup
Handle
Motor unit
Switch knob
Base
Foot
Product overview
- Unpack and remove all labels from the unit except the nameplate. Please check that all parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This unit has been designed exclusively for kneading and mixing food in private homes.
Any other use may damage the unit or cause injury.
Specifications
| Model: | 988751 - CL-BL8175INOX |
| Operating Voltage: | 220-240V ~ |
| Frequency: | 50-60Hz |
| Electric power: | 800W |
| Capacity: | 1.75L |
| Protection class: | II |
For the initial use
- Unpack the appliance and place all parts on a horizontal surface.
- Immerse jar, jar cover, in warm soapy water and rinse them and dry. Never immerse motor unit in water for cleaning to prevent the risk of electric shock.
CAUTION! The blade is very sharp, handle with great care.
- The correct assembly way will be described in detail in below sections.
Before assembling the jar, be sure the power cord is unplugged from the power outlet and the Switch knob is on the 0 position.
The jar is suitable for making mixture which the juice and pulp are mixed.

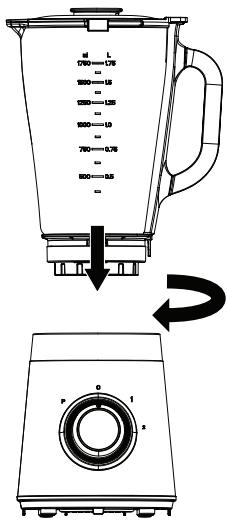

For attaching Jar, place the Jar into the motor unit directly in place (see fig.1).
Note: make sure the Jar is assembled into the motor unit properly, there is interlock switch on the position, if the Jar is not assembled properly, the blender will not operate.
Fig.1
Blending fruit and vegetable
- Before attaching the power cord into the outlet, make sure the Switch knob is on the 0 position.
- Peeled or cored the fruit or vegetables and then cut it into small dices, put the food piece into the Jar. Usually certain amount of purified water has to be added to facilitate the smooth running of appliance. The proportion of the food and water is 2:3. The amount of mixture should not exceed the max level (1.75L) as indicated on the Jar.
Note: never use boiling liquids or run the appliance empty. The Jar can be used for breaking up ice.
- Attach the Jar cover to the Jar. Turn the Jar cover clockwise until it clicks into place.
-
Turn the Switch knob to the desired setting, there are four settings: P, 0, 1, 2.
-
P (pulse function for short, powerful bursts)
- 0 (power off)
1 (low speed)
- 2 [high speed]
Turn the switch knob to P position and hold it to pulse actuate motor for delicate chopping. Release it to return the 0 position. Turn the switch knob to 1 or 2 position to select low or high speed. Turn the switch knob to the 0 position to stop.
- The consecutive operation time shall less than 3 minutes. Minimum 1 minute's rest period is required between two consecutive cycles.
- Turn the Switch knob to 0 position once the mixture has been blended to your desired consistency.
- Remove the Jar from the Motor Unit by turning it anticlockwise and taking it upwards. Carefully remove the Jar cover by turning it anticlockwise, then pour and serve.
Cleaning and maintenance
-
The Auto Clean feature can clean the blender and blade assembly easily, rapidly in complete safety.
-
Pour a little warm soapy water into the Jar and turn the Switch knob to P position for a few seconds.
-
Remove the Jar from the motor unit by turning it anticlockwise and directly taking it upwards. Rinse the Jar, Jar cover under running water.
-
Wiping the outer surface of Motor Unit with a damp cloth, do not use abrasive cleansers. Never immerse in water for cleaning.
-
Dry all parts and then replace them.
-
For complete cleaning, you can take out the blade assembly at the bottom of jar carefully. Take it out by turning it anticlockwise. Then put the detachable accessories into Dishwasher for clean, they are dishwasher safe components, but the temperature setting shall not exceed 70^ .
-
If any problem has been encountered during use never disassemble the Motor Base by yourself, no user serviceable parts inside. Contact only the authorized service facility for examination and repair.
Storage
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
Merci!
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
