USER MANUAL VAL-CH20 VALBERG
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

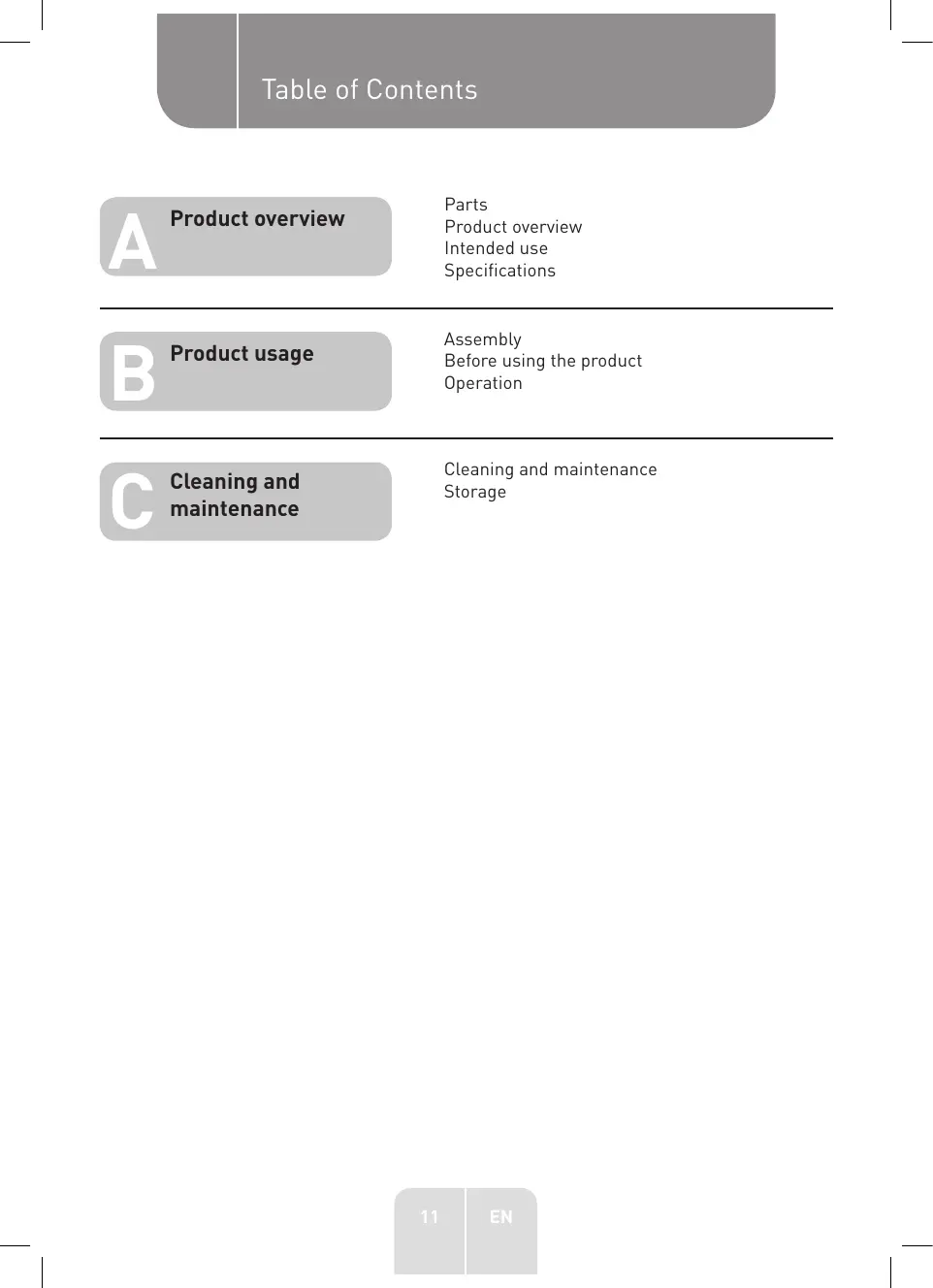

Table of Contents
Parts
Product overview
Intended use
Specifications
Assembly
Before using the product
Operation
Cleaning and maintenance
Storage
Parts
Air outlet
B Handle
Power dial
0-Off
C - I - Low power (800 W)
- II - Medium power (1200 W)
III-High power (2000 W)
D Temperature dial - MIN / MAX (low to high power)
E Feet (x2)
Air inlet (on the bottom)
Screw [x2]
Product overview
- Unpack and remove all labels from the unit. Please check that all the product's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This product is for domestic use only. It has not been designed for industrial or professional use.
Any other use may damage the product or cause injury.
Specifications
| Model: | 973766 - VAL-CH20 |
| Operating voltage: | 220-240V~,50Hz |
| Power: | Low – 800 W
Medium – 1200 W
High – 2000 W |
| Current: | 10 A (maximum continuous draw) |
| Dimensions (W x D x H): | 530 x 170 x 380 mm |
| Weight: | 2.70 kg |
| Protection class: | Class I |
| Protection class (IP): | IP20 |
This product complies with the requirements imposed by directives 2014/35 / EC (repealing the Directive 73/23 / EEC as amended by Directive 93/68 / EEC) and 2014/30 / EC (repealing the Directive 89/336 / EEC).
| Information requirements for electric local space heaters | P |
| Model identifier(s): VAL-CH20 |
| Item | Symbol | Value | Unit |
| Heat output | | | |
| Nominal heat output | Pnom | 2.0 | kW |
| Minimum heat output (indicative) | Pmin | 0.8 | kW |
| Maximum continuous heat output | Pmax, c | 2.0 | kW |
| Auxiliary electricity consumption | | | |
| At nominal heat output | elmax | N/A | kW |
| At minimum heat output | elmin | N/A | kW |
| In standby mode | eLSB | 0 | W |
| Manual thermal load control with a built-in thermostat | No |
| Manual thermal load control with room and/or outdoor temperature feedback | No |
| Electronic thermal load control with room and/or outdoor temperature feedback | No |
A Product overview
Fan-assisted heat output No
Type of heat output/room temperature control (select one)
Single-stage heat output with no room temperature control No
Two or more manual states with no room temperature control No
Room temperature control with a mechanical thermostat Yes
With an electronic room temperature control No
Electronic room temperature control and a daily programmer No
Electronic room temperature control and a weekly programmer No
Other control options (multiple selections possible)
Room temperature control with a presence detector No
Room temperature control with an open-window sensor No
With remote control option No
With delayed start control No
With a limited operating time No
With a black globe sensor No
ELECTRO DEPOT
1 route de Vendeville
59155 FACHES-THUMESNIL-FRANCE
Note:
For electric local space heaters, the measured seasonal space heating energy efficiency = cannot be less than the declared nominal heat output value of the unit.
Assembly
- Turn the heater upside down and place it on a protected surface to avoid scratching it.
- Remove the 2 screws from the underside of the heater.
- Align the hole on the feet with the screw holes on the heater. The open edge of the feet should be facing outwards. Insert the screws and tighten them until they are securely fastened in place.
- Turn the heater upright.
Before using the product
WARNING!
- Correctly connect the unit and do not leave it within the reach of unsupervised children.
It is normal for heaters to emit an odour and smoke when they are turned on for the first time or have not been used for a certain period of time. This will disappear after a short while.
-
The heater must always be placed in an upright position on a horizontal surface. If the heater tips over, turn it upright immediately.
-
Place the heater on a stable, heat-resistant and non-combustible horizontal surface that is at least 30~cm (sides and rear) and 50~cm (front) clear of objects such as walls, furniture and curtains.
- Never place the heater below electrical sockets.
- The heater is suitable for use in a 10 - 15m^2 space, such as a living room or office.
- Do not use the heater in a bathroom or near to a swimming pool or other body of water. The heater must never become wet. Do not use the heater in wet or humid conditions.
- Make sure the air inlets are unobstructed. Do not cover the heater's air inlet or outlet vents/grilles.
Operation
- Fully unwind the power cable.
- Check the heater's rating plate for the correct voltage. Make sure the temperature dial is in the MIN position and the power dial is set to the off position (0). Connect the plug to a mains socket with a suitable voltage.
- Turn the temperature dial clockwise towards the MAX mark until you hear a clicking sound and the heater starts to work. Turn the temperature dial up to increase the temperature.
- Turn the power dial to select the power level: I (low), II (medium) or III (high).
- Turn the temperature dial anticlockwise towards the MIN mark to decrease the heater temperature.
B Product usage
- To turn the heater off, turn the temperature dial anticlockwise as far as it can go (MIN position) and turn the power dial to the off position (0). Unplug the unit from the mains socket.
NOTE:
- When turning the temperature dial up, the clicking sound indicates that the thermostat is starting to work and the desired function is activated. Similarly, when turning the temperature dial down, the click indicates that the thermostat has turned off and the function is deactivated.
Heater safety features
- The heater has a built-in overheating protection mechanism. A safety switch will cut off the power if the heater overheats (e.g. the air inlets/outlets are totally or partially blocked). Turn the power dial to the off position (0) and the temperature dial to the (MIN) position. Unplug the plug from the mains socket. Wait 30 minutes for the heater to cool down.
- Remove the source of overheating (e.g. a blockage in the vent holes/grilles or excessive dust or dirt on the unit).
- Turn the heater back on.
NOTE: If overheating continues or the unit repeatedly malfunctions, return the heater to an approved service centre.
Cleaning and maintenance
WARNING!
- Before cleaning, always turn off and unplug the heater and allow it to cool down sufficiently.
- Do not use flammable or abrasive detergents such as benzene or white spirit to clean the heater.
-
Never immerse the heater, power cable or plug in water.
-
Clean the exterior with a damp, soft cloth. Thoroughly dry the heater before using it again.
- If you do not plan on using the heater for a long period of time, we recommend removing the feet and storing it in its original packaging in a cool, dry place, away from direct sunlight, excessive dust and dirt.
Storage
- Always unplug the unit from the mains before storing it. Wait until the heater has cooled down before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
Bedankt!
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
