USER MANUAL CL-EXM15X COSYLIFE

Thank you! Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, & recommended by ELECTRO DEPOT, s; you are getting a top-quality, easy-to-use p that won't Let you down. We're confident your new device will be a pleasure to use Welcome to ELECTRO DEPO TRO DEPOT

ble of Contents Parts Product usage Caractéristiques Before first use Making espresso Making hot water Heating/frothing milk Changing the dispensing amount Cleaning and maintenance Troubleshooting Storage

Product overview Before using the unit, carefully read both the Manual and Regulatory Warnings booklet. Keep these instructions for future reference and pass them onto any new owners of the unit. Parts d [a] Control panel 6 Drip plate à O Power button CF] Drip tray (@) 1 cup of coffee button Ce] Water tank cover (©) 2 cups of coffee button CH] Handle © Steam button C1] Water tank ô Control knob (] Steam handle Oz pe metal ter Cour [o] Filter holder CL] Measuring spoon L _ Product usage + This appliance is designed for brewing coffee and boiling water and must not be used for any other purpose. It is intended for household use only and should not be used for commercial purposes. Any other use may damage the product or cause injury. Specifications Model: Supply voltage: Power consumption: Capacity: Protection class:

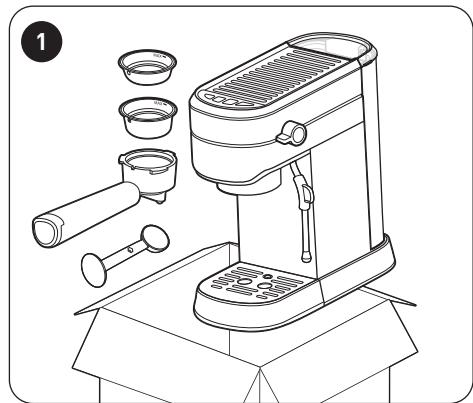

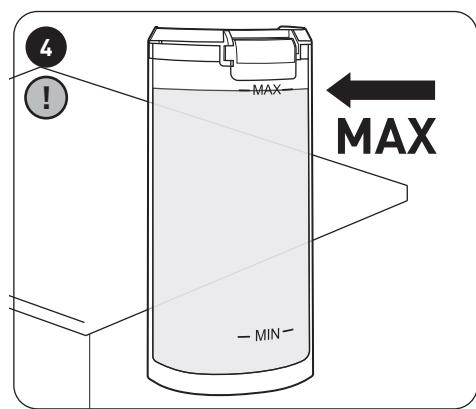

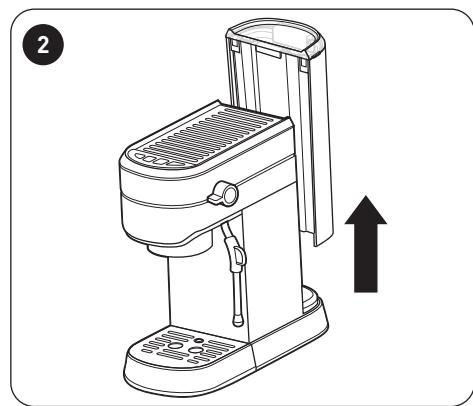

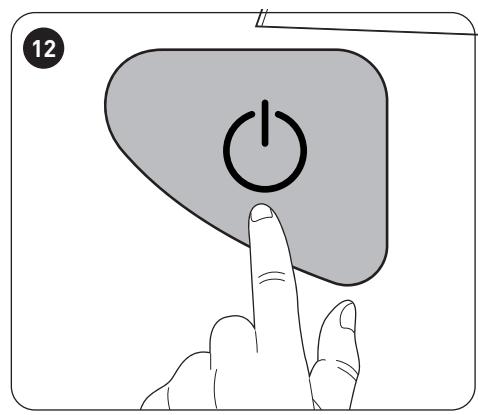

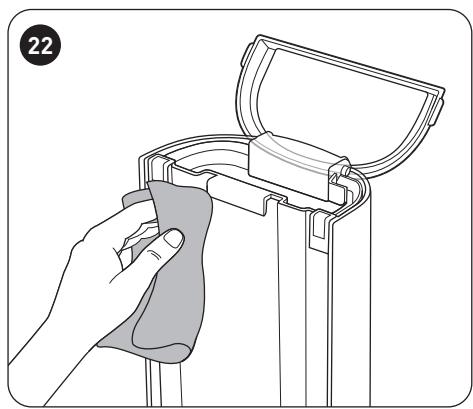

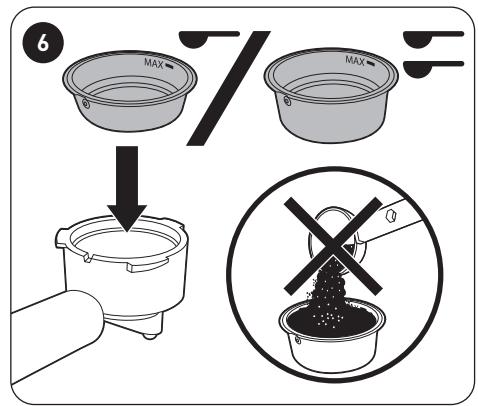

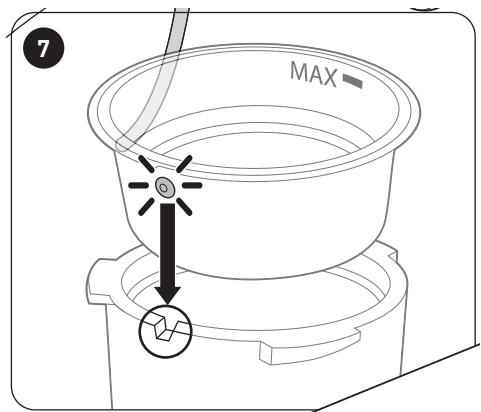

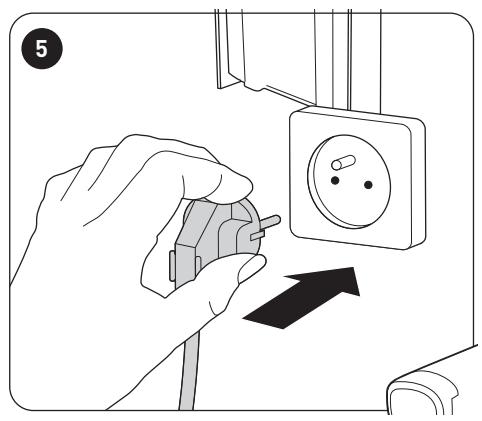

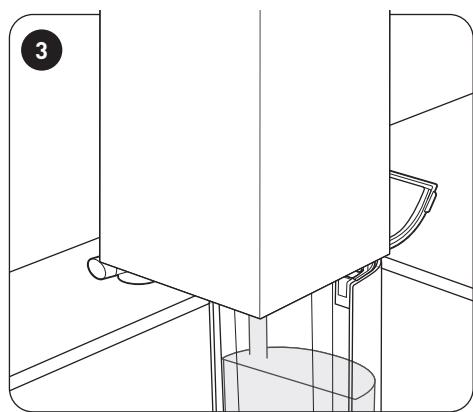

Product usage Before first use Place the unit on a stable, level, non-slip, heat-resistant surface. Do not position the unit near the edge of a countertop where it could accidentally fall off. Do not place the unit on a hot surface such as a stove. Unwind the power cord fully. Clean the unit to remove any residues from the manufacturing process. The appliance may give off a slight odour when you start using it. This is normal due to its newness and does not indicate a manufacturing defect or danger.

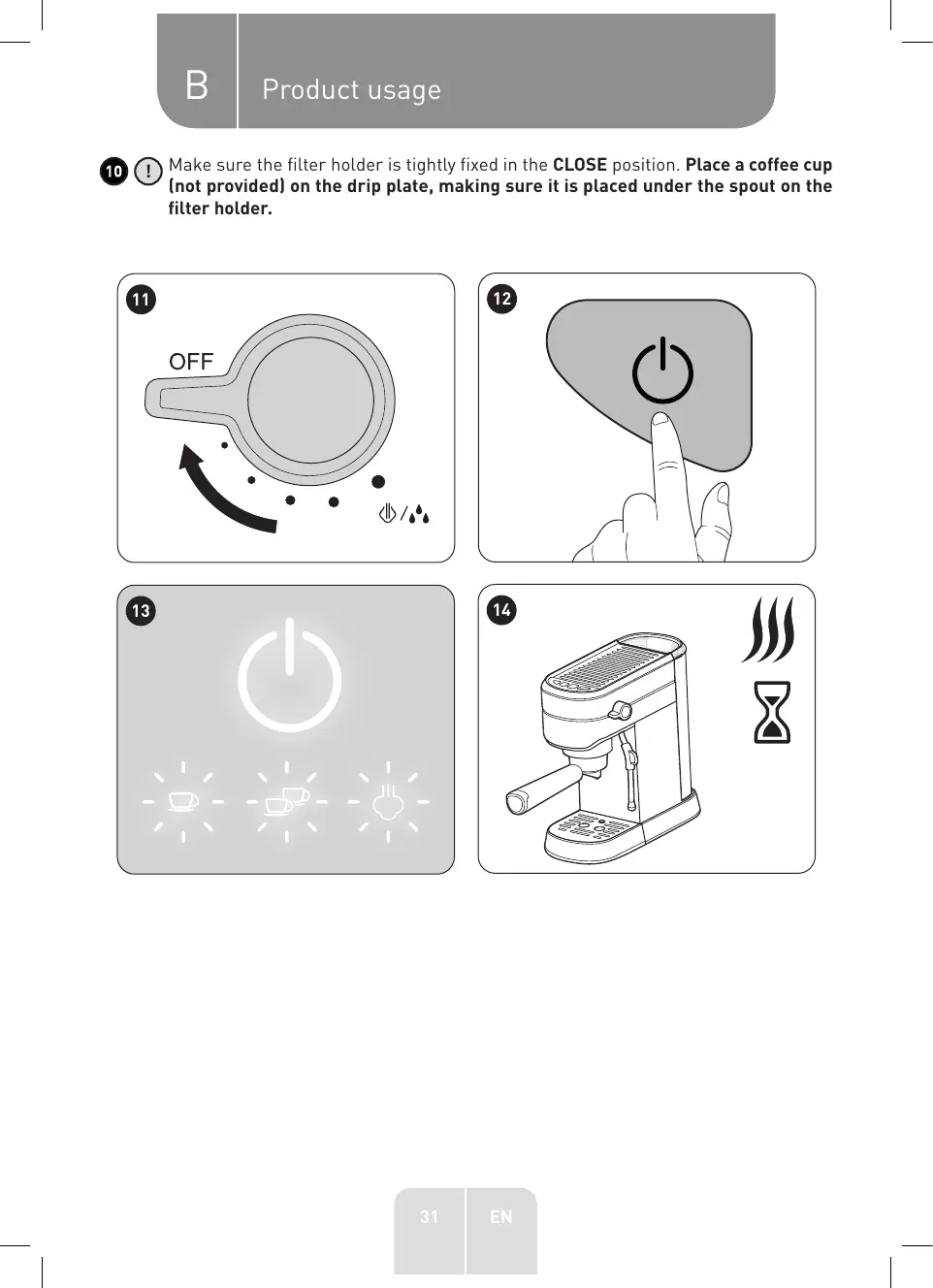

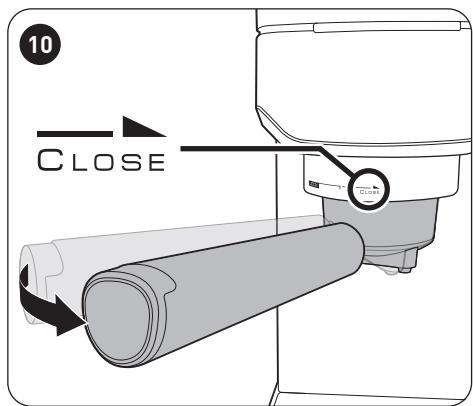

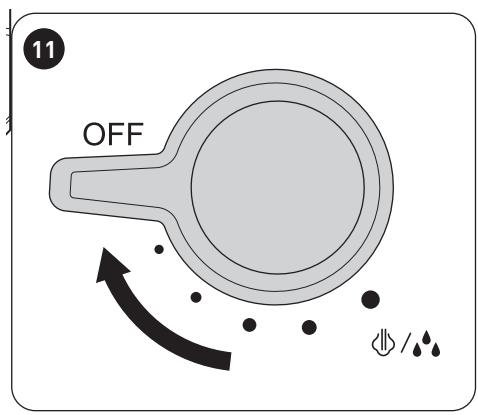

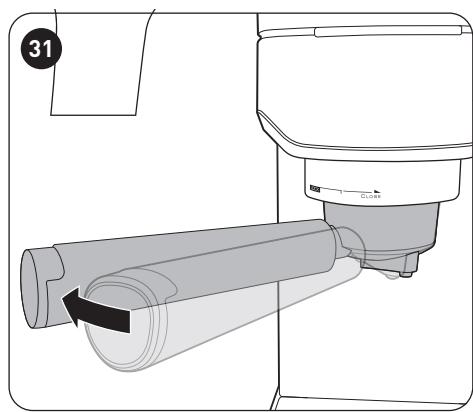

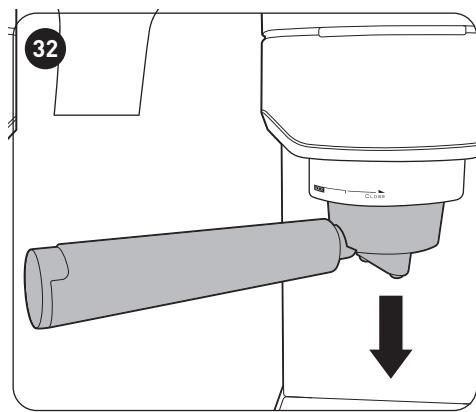

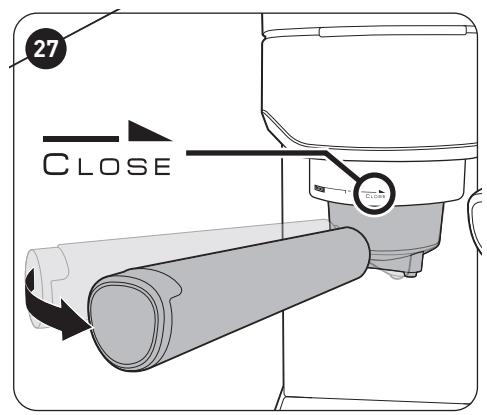

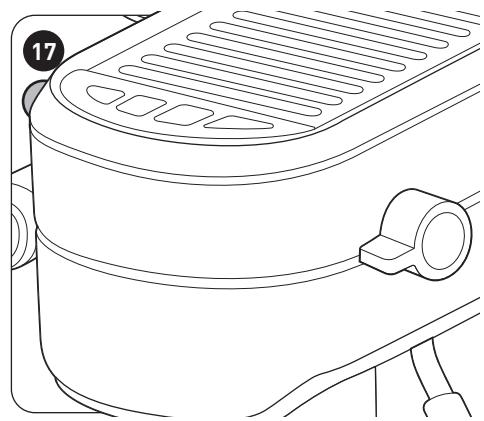

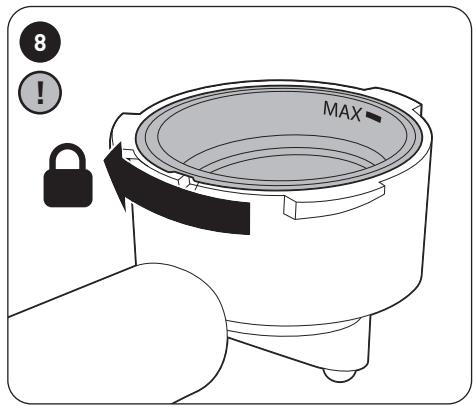

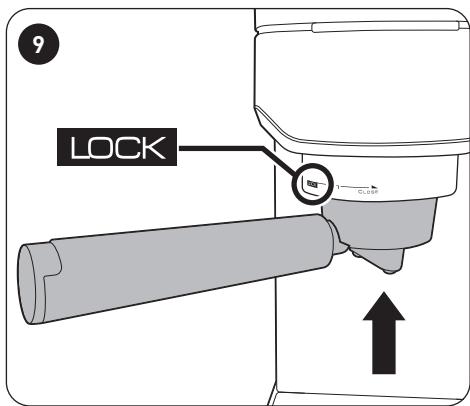

Product usage Co] © Make sure the filter holder is tightly fixed in the CLOSE position. Place a coffee cup {not provided] on the drip plate, making sure it is placed under the spout on the filter holder. OFF

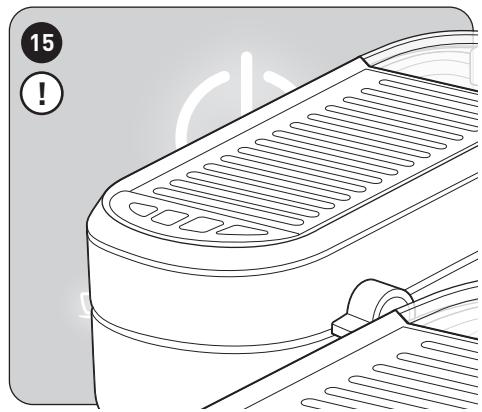

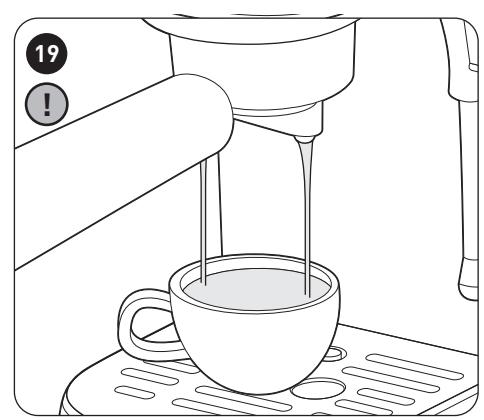

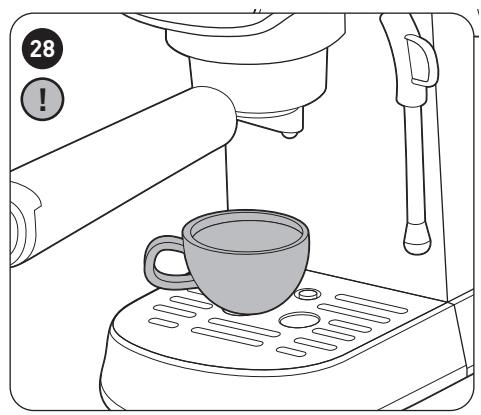

Product usage 71@) Place a coffee cup (not provided] on the drip plate, making sure it is placed under the spout on the filter holder. seconds as the water pumps through the coffee machine. FAN On initial use or when there is air in the unit, a noise may be heard for about 20

WARNING: If there is not enough water in the coffee maker's water tank, it will

stop dispensing water and the control panel indicator lights will flash. Once the tank has been refilled, wait a few minutes for the machine to initialise.

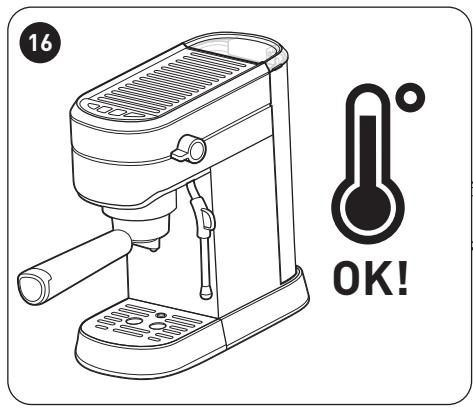

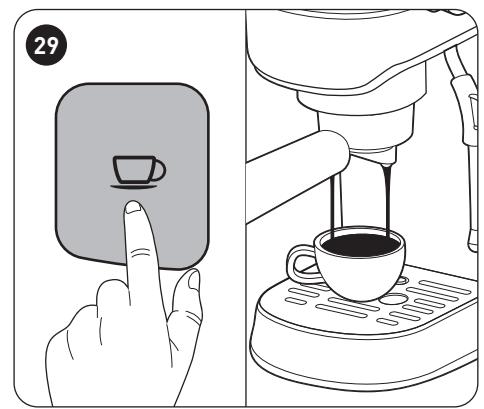

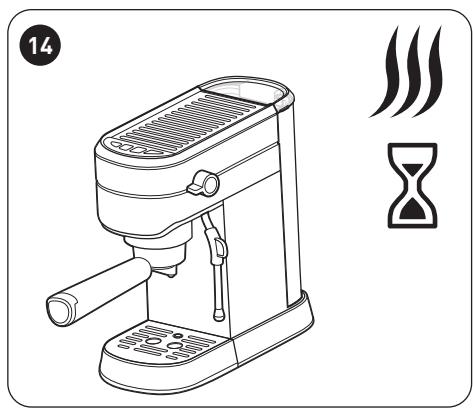

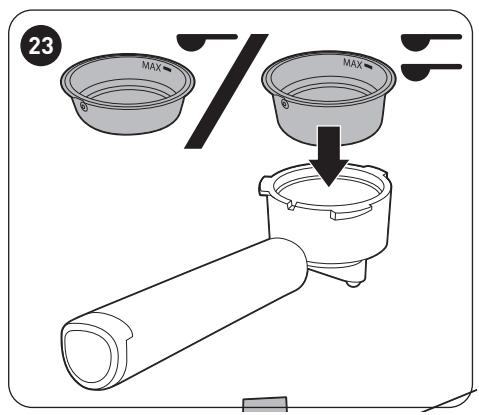

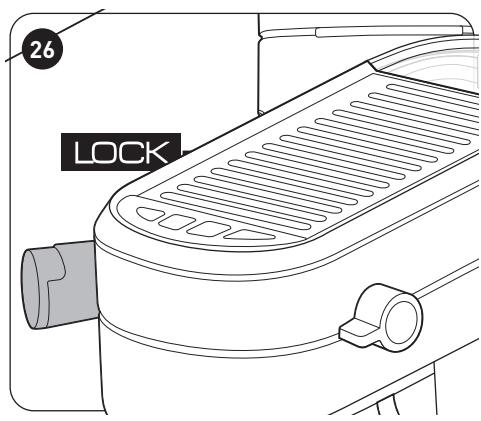

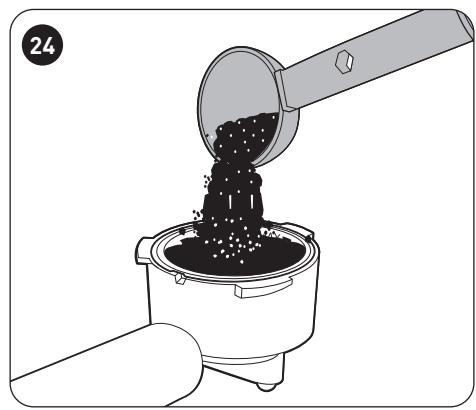

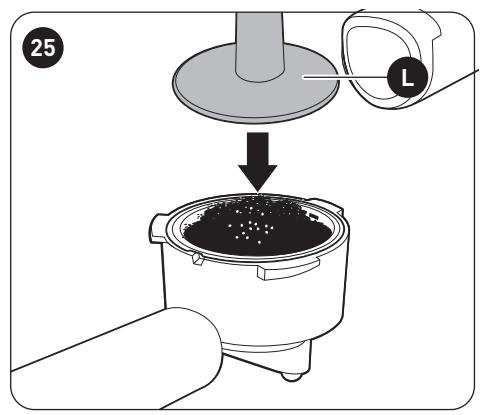

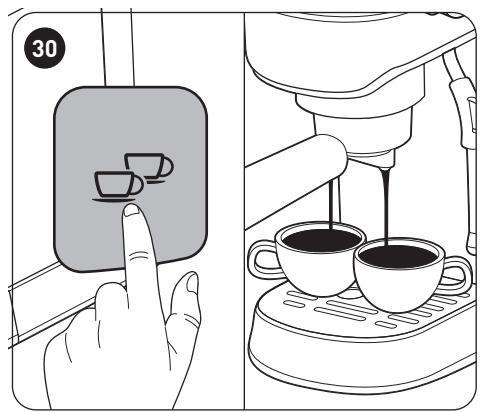

ü Product usage Making espresso + For best results, always preheat the machine as shown in steps [2] - C6]

(10) Do not leave the coffee maker unattended whilst brewing coffee, as you may need to reposition the cup to catch the coffee being dispensed or prevent the coffee from spilling out of the cup. À beep will sound to inform you that your coffee is ready when it has finished dispensing from the filter holder spout.

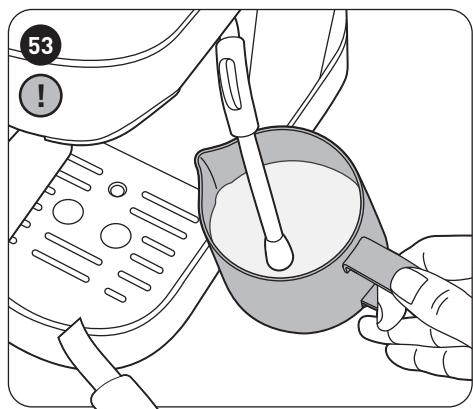

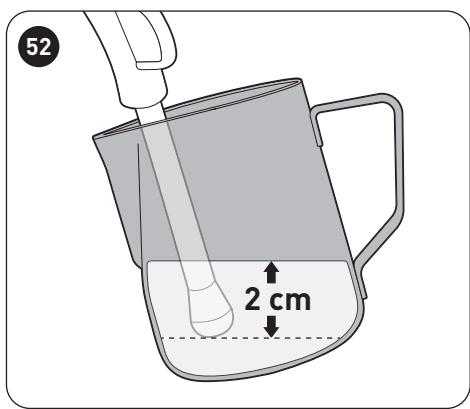

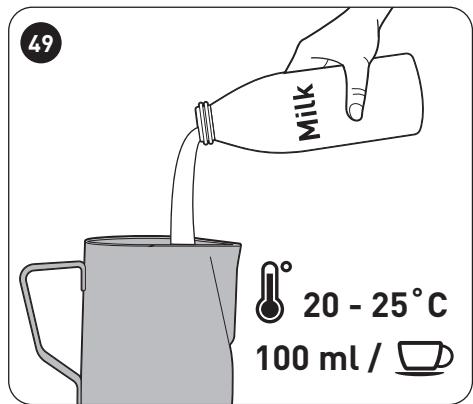

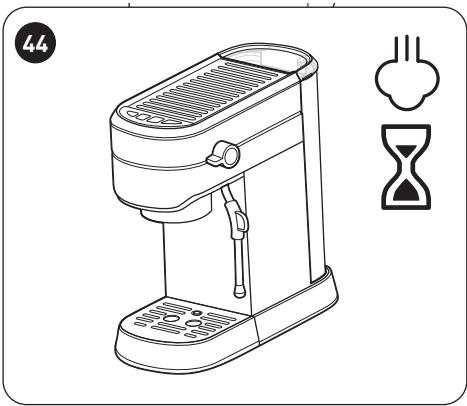

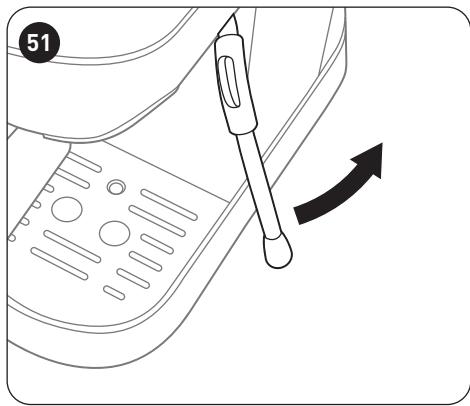

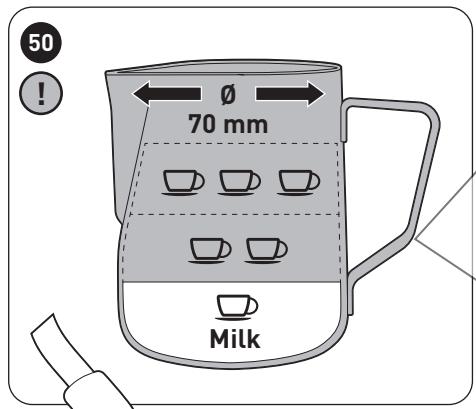

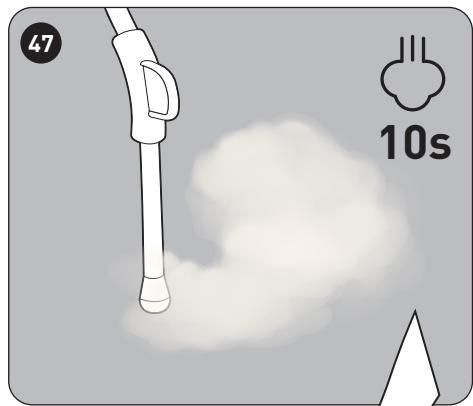

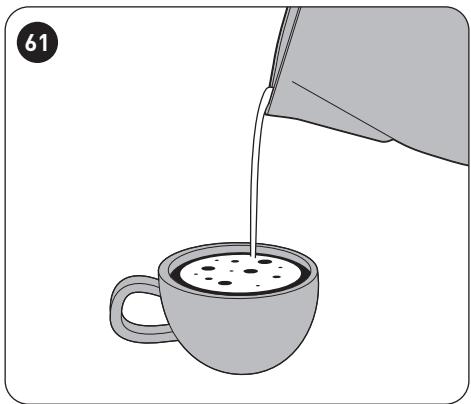

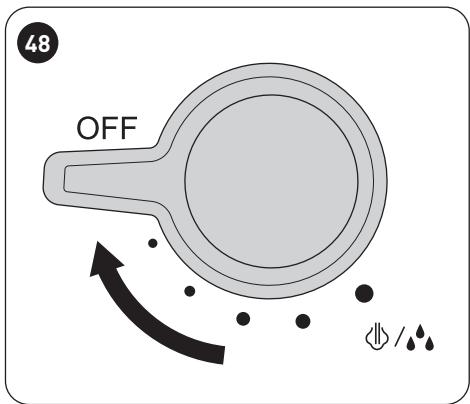

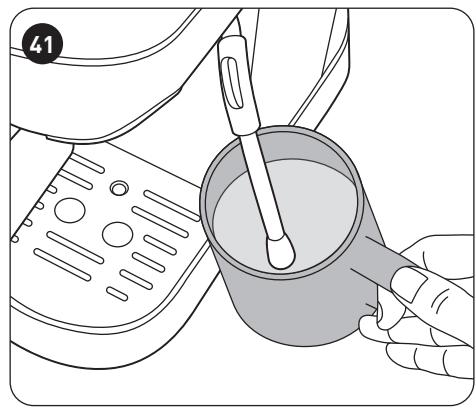

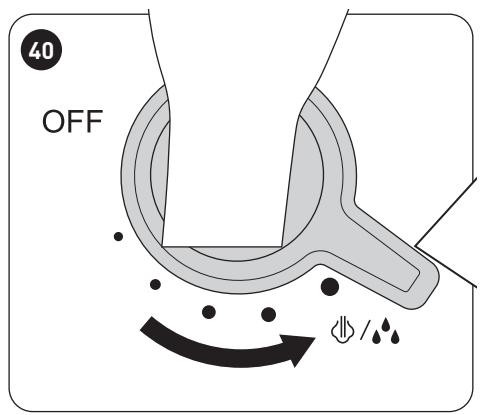

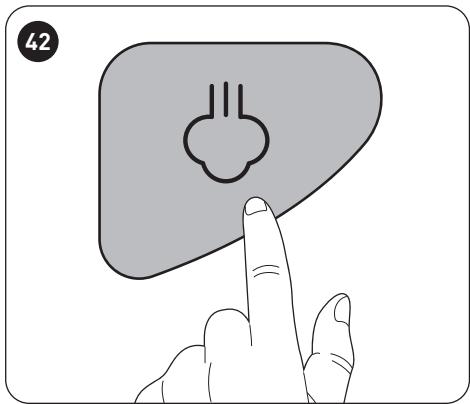

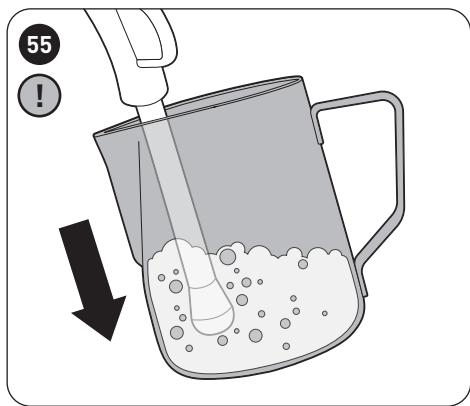

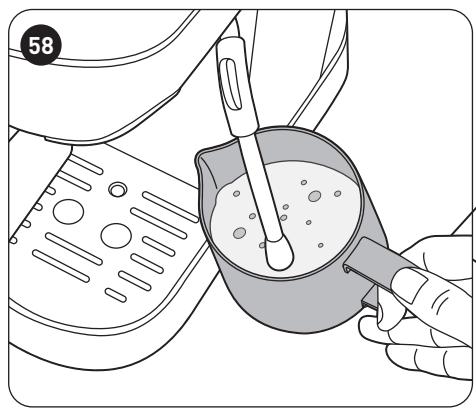

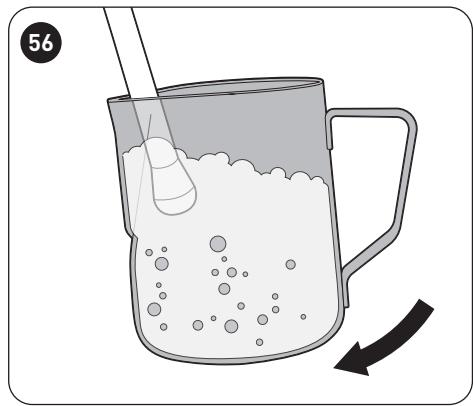

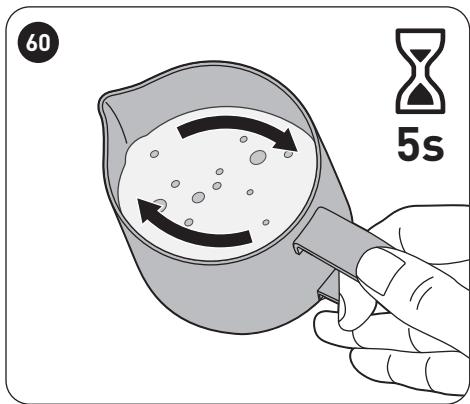

Product usage OFF Heating/frothing milk Use this function to heat and froth milk for a latte or cappuccino. Do not overfill the milk jug as the milk volume increases when you add steam to heat and froth it. ÉT:) L F3] Choose a cup that is large enough to contain the total volume of the coffee and milk required for your latte or cappuccino. end of the steamer where the nozzle releases steam FAN CAUTION: Hot steam can cause burns! Keep your hands and face away from the + Follow steps @ - G:: then @- ©: preheat the machine.

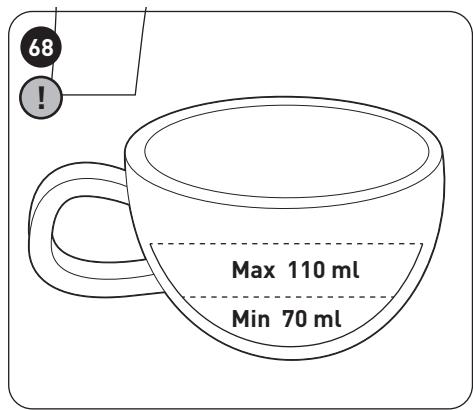

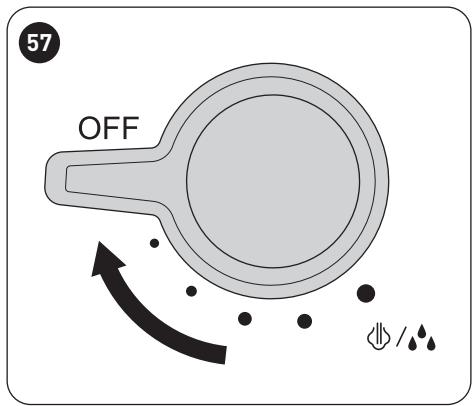

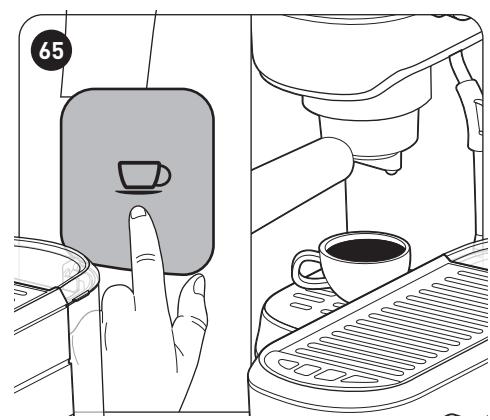

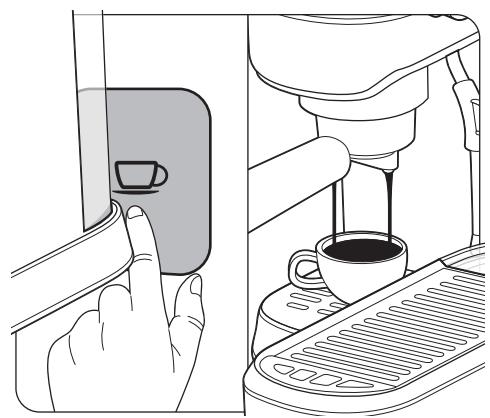

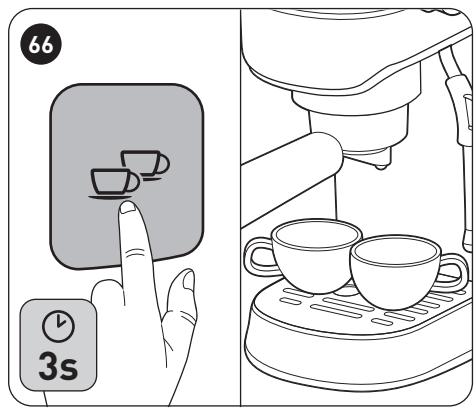

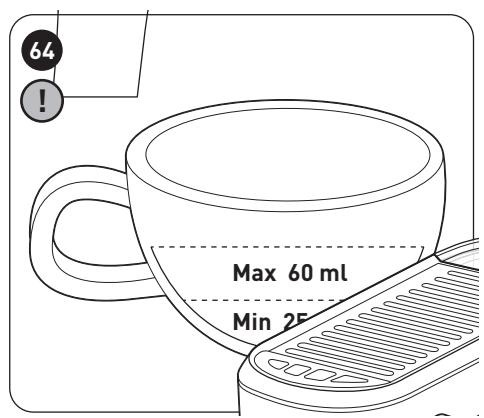

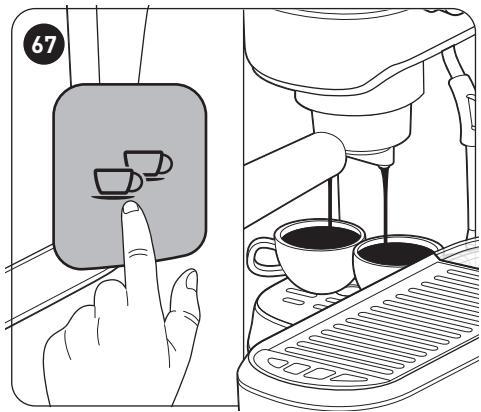

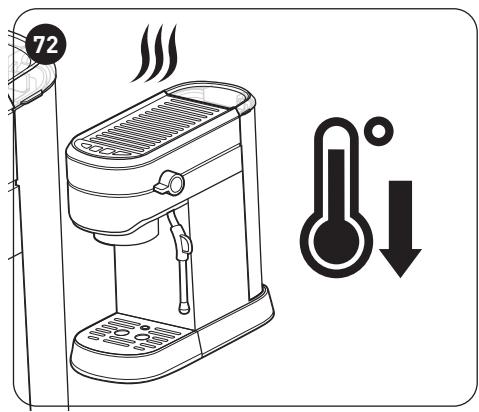

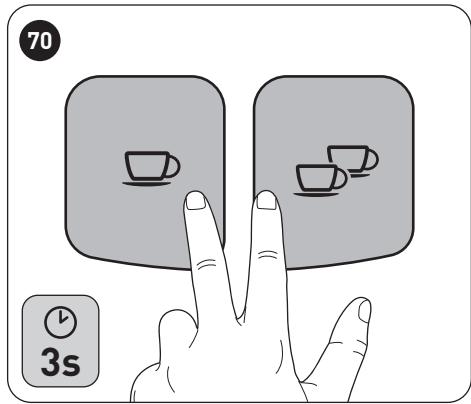

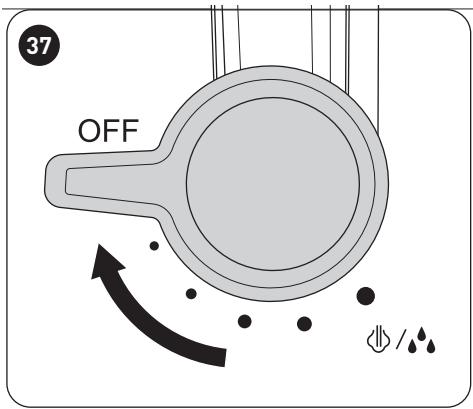

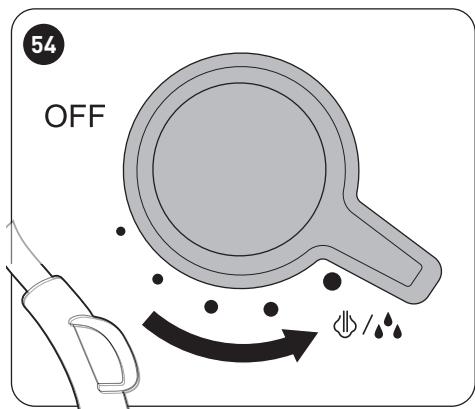

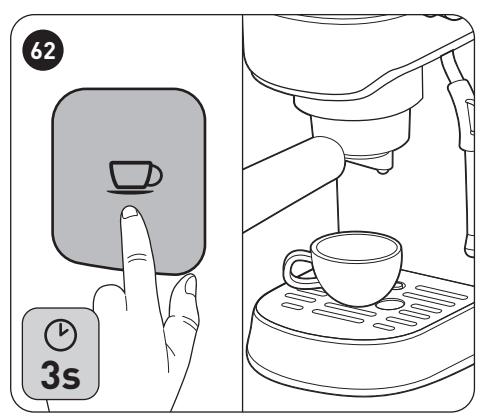

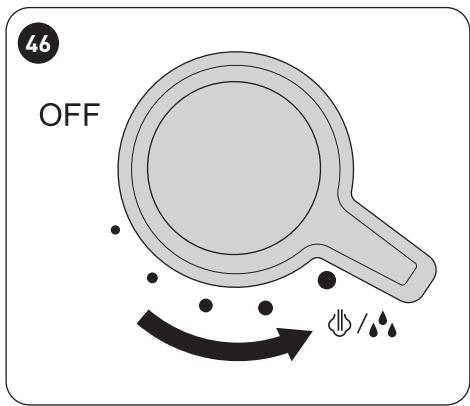

Product usage © After using the steamer, you can start making another cup of coffee straight away. However, ifthe control panel lights flash quickly, the water temperature is too high. Place an empty jug under the steam nozzle. Turn the control knob to the hot water setting 444 and the hot water will run out until the temperature has sufficiently reduced. When the pump stops, turn the control knob to the OFF position and now you can resume making coffee. Alternatively, if you do not want another coffee, press either of the coffee cup buttons to cancel heating. NOTE: If the control panel lights continue to flash, turn off the unit, wait a few minutes and then turn it back on again. Changing the dispensing amount Dispensing a single cup S\\

Product usage Standby mode + Ifno operation is undertaken for a period of time (ranging from 30 seconds to 3 minutes depending on the last operation undertaken], the coffee maker will automatically turn off. + To reactivate the coffee machine, press the 1/2 cups or steam button on the control panel.

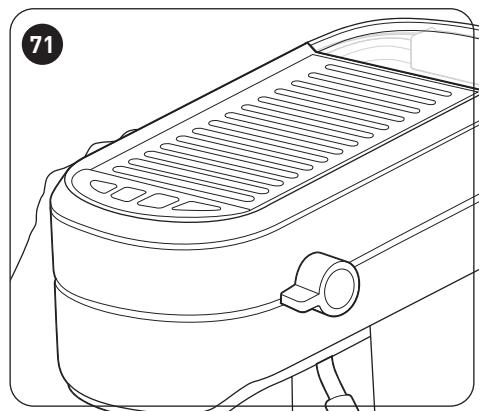

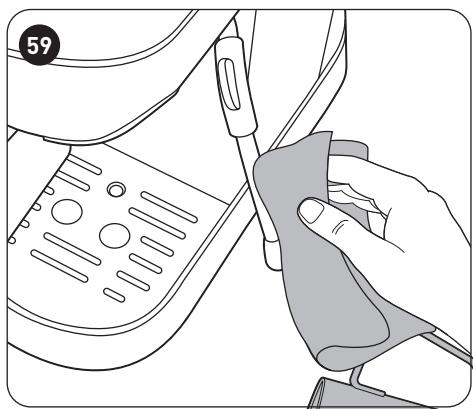

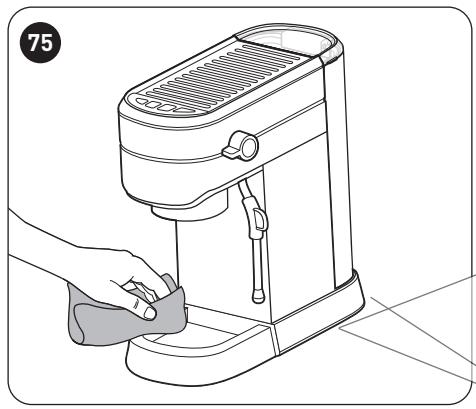

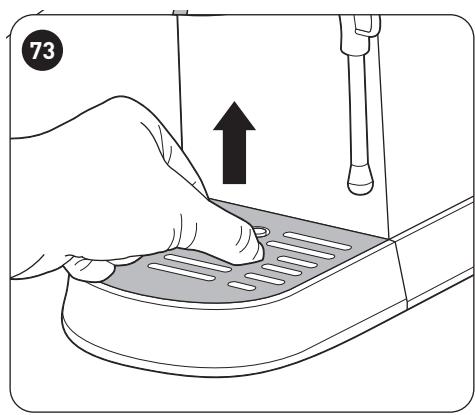

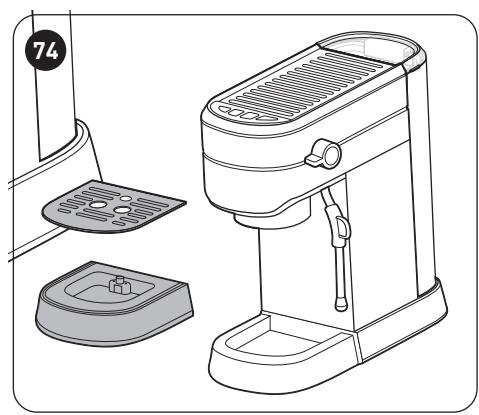

Cleaning and maintenance Cleaning and maintenance WARNING! - To prevent the risk of electrocution, unplug the unit from the wall socket before cleaning. + Allow the unit to cool down completely before cleaning. + Do not immerse the appliance, power cable or plug in water or any other liquids as they contain electrical components. + Never use solvents, chemical or abrasive cleaning agents, wire brushes, sharp objects or scouring pads to clean the appliance.

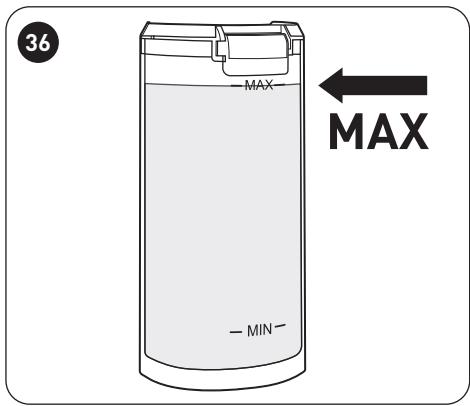

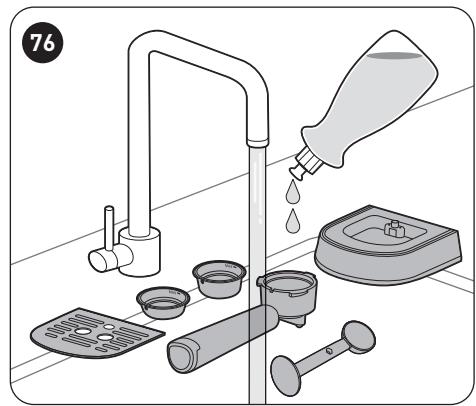

Cleaning and maintenance + Dry all parts thoroughly and reassemble before using the unit. Descaling the coffee maker WARNING! + Regular descaling will improve the coffee maker's lifespan. + The frequency required for descaling will vary depending on the hardness of the water and the amount you use the coffee maker. + Only use descalers that are made for this specific purpose and follow the manufacturer's instructions carefully. + Using filtered water will reduce the amount of scale in the coffee maker. After 500 coffee cycles, all indicator lights will flash 5 times to alert you that coffee maker requires descaling. This alert will keep appearing each time you turn on the coffee maker until it is descaled. + Fillthe water tank up to the MAX mark (1L] and then add the descaler as per manufacturer's instructions. + Follow the steps @-@ to preheat the coffee maker.

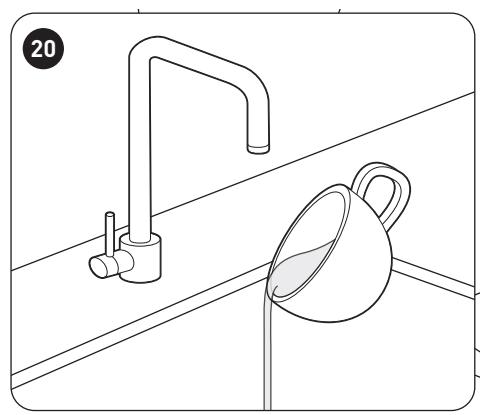

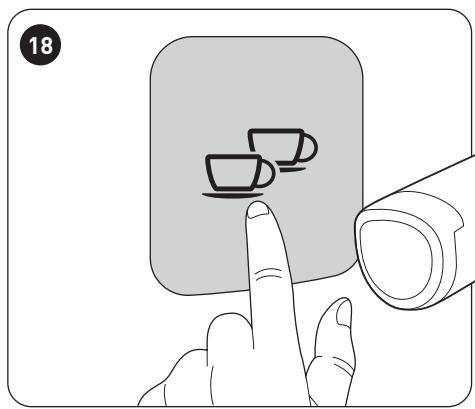

Cleaning and maintenance + Press the Ci? button to run a 2-cup cycle. Then turn off the coffee maker for 5 minutes. Repeat this step 3 times. + Empty the water tank of the descaling solution. + Fillthe water tank with distilled water. Press the ©? button to run a 2-cup cycle. Then repeat this step 2-3 times to flush through any residues from the descaler solution. e After finish descaling, you need to cancel the descaling warning: Simultaneously hold and press the ©, Ch? and 5 buttons for 3 seconds. NOTE: Avoid pouring the water/descaler solution into an enamelled water basin. Do not reuse the same solution. In case of unsatisfactory results, repeat the steps above. + Alternatively, you can follow the steps above and clean the coffee maker with a vinegar solution comprising 3 cups of white vinegar and then water up to the MAX mark (1L]. Troubleshooting Problem Possible cause Solution Water Leaks from + There is too much + Empty and clean the drip tray. If this the bottom of the water in the drip tray. does not resolve the issue, contact your coffee maker. nearest service centre. Water Leaks out + Coffee grounds on + Remove excess coffee grounds. of the side of the the filter rim are metal filter or filter preventing a tight holder. seal around the filter. The coffee tastes + incorrect cleaning. + Clean the coffee maker as shown in the vinegary. Before First Use section. + The coffee is stored + Store coffee power in airtight jars in a in a hot or wet cool, dry place such as a fridge. environment or for too long and has gone off.

C Cleaning and maintenance Problem Possible cause Solution The coffee maker + The power is + Plug the power plug into a wall socket, is not turning on. incorrectly making sure that the plug is firmly connected. secured into place. The steamer is not + Thesteamerhasnot + Press the steam button to activate the frothing the milk. preheated. steamer and wait until it stops flashing and lights up steadily on the control panel. + The containeristoo + Use a tall, narrow jug. large and not the correct shape. + The wrong type of + Use whole or semi-skimmed milk. milk is used. Storage WARNING! Before storing the appliance, unplug it from the wall socket and allow it to cool completely. e If you do not plan to use the appliance for a long time, we recommend that you clean it and then store it in its original packaging in a cool, dry place, away from direct sunlight, excessive dirt and dust, and out of the reach of children or pets.
