USER MANUAL WF 1014 B AID W180C VALBERG

WARRANTY CONDITION This product is guaranteed for a period of 2 years from the date of purchase* against any failure resulting from a manufacturing or material defect. This warranty does not cover defects or damage resulting from incorrect installation, improper use or abnormal wear of the product. *as shown on the sales receipt.

Thanks! ng this VALBERG product. ommended by ELECTRO DEPOT, VALBERG branded products are easy to use, reliable, and of an impeccable standard. With every use of this appliance, you can be sure of complete sat Welcome to ELECTRO DEPOT. Visit our website: www.electrodepot.fr Table of contents Overview of the appliance Description of the washing machine Using the appliance Before using the washing machine Emergency door opening Before the first wash cycle Preparation of the washing Detergents and additives Installation Auto Dosing operation guide Control panel Useful information Care and maintenance Troubleshooting guide Fault code After-sales service Transport/handling Electrical connection Precautions and general recommendations

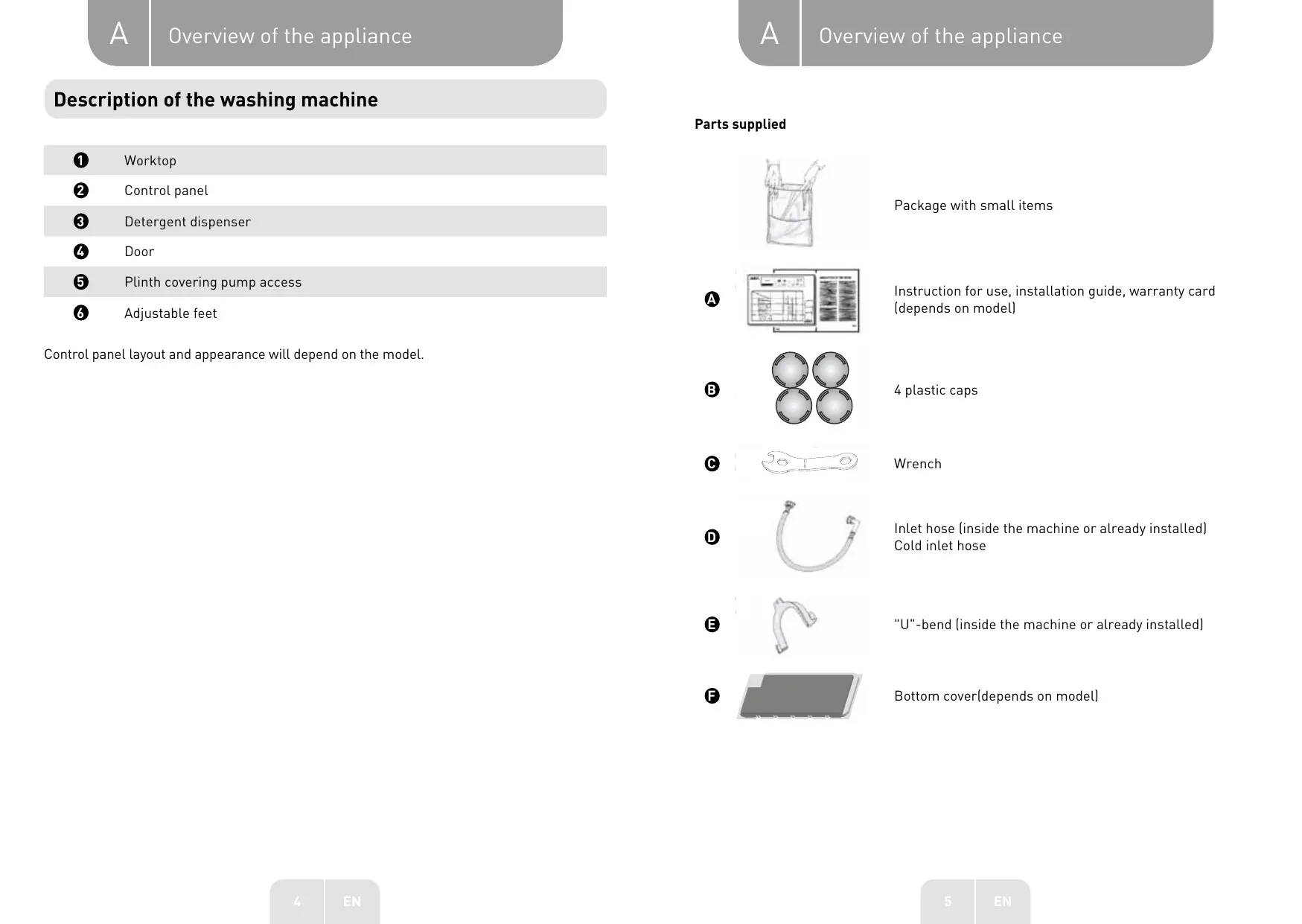

A Overview of the appliance A Overview of the appliance Description of the washing machine Parts supplied Worktop Control panel Package with small items Door

Plinth covering pump access : : : à g pump Instruction for use, installation guide, warranty card O Adjustable feet (depends on model) Control panel layout and appearance will depend on the model. (6) 4 plastic caps Wrench D) { # Inlet hose (inside the machine or already installed) 4 Cold inlet hose “U"-bend (inside the machine or already installed] Bottom cover(depends on model]

Using the appliance Before using the washing machine Removing the packaging and inspection After unpacking, ensure that the washing machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Service or your local retailer. Check that the accessories and supplied parts are all present. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous. Remove the transport bolts The washing machine is fitted with transport bolts to avoid any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed. After their removal, cover the openings with the 4 enclosed plastic caps. Install the washing machine Move the appliance without Lifting it by the worktop. Install the appliance on a solid and level floor surface, preferably in a corner of the room. Ensure that all four feet are stable and resting on the floor and then check that the washing machine is perfectly level (use a spirit Level]. Ensure that the ventilation openings in the base of the washing machine (if available on your model) are not obstructed by a carpet or other material. . Water inlet Connect the water supply inlet hose in accordance with the regulations of your Local water company. Water inlet - Depending on models: Single inlet - Cold water only Dual inlet - Hot and cold water Water tap: 3/4 threaded hose connector Using the appliance

+ Connect the drain hose to the siphon or hook it over the edge of a sink by means of the «U» bend supplied. +__lfthe washing machine is connected to an integrated drainage system, ensure that the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect]. + Fixthe drain hose securely to prevent scalding during machine drainage.

6. Electrical connection

+ Electrical connections must be carried out by a qualified technician in compliance with the manufacturer's instructions and current standard safety regulations. + Data regarding voltage, power consumption and protection requirements is given on the inside of the door. +__The appliance must be connected to the mains by means of a socket with an earth connection in accordance with current regulations. The washing machine must be earthed by Law. The manufacturer declines all liability for damage to property or injury to persons or animals due to non-compliance with the directions given above. + Do not use extension leads or multiple sockets. Make sure the capacity of the socket is powerful enough to drive the machine during heating. +__ Before any maintenance on the washing machine disconnect it from the mains supply. + After installation, access to the mains plug or to disconnection from the mains supply must be ensured at all times via a double-pole switch. +. Do not operate the washing machine if it has been damaged during transport. Inform After-Sales Service. +. Mains cable replacement is only to be carried out by After-Sales Service. + The appliance must only be used in the household for the prescribed uses. Minimum housing dimensions: Width: 615 mm Height: 855 mm Depth:referto programme chart

Using the appliance Emergency door opening In case of failure to open the door due to power outage or other special circumstances, the door Lock lever at the drainage pump door can be used for emergency opening. NOTE

1. Do not operate w he machine is working normally;

2. Before operation, please make sure that the inner barrel

has stopped turning, without high temperature, and the water level is lower than the clothing inlet. If the water level is higher than the clothing inlet, drain off water through the drain-away pipe (if available] or by slowly unscrewing the filter.

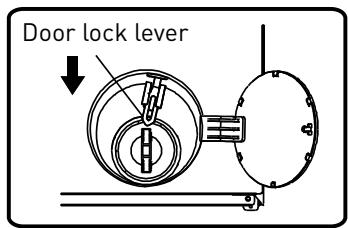

3. Operation method: Open the cover of drainage pump

door, pull down the Lock lever with the help of a tool, and then the door can be openedlindicated in the figure). Door Lock lever Using the appliance Before the first wash cycle To remove any residual water used during testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry.

3. Pour a Little detergent (about 30 ml) into the middle detergent compartment .

4. Select and start a short programme (see separate quick reference guide).

Preparation of the washing

1. Sort the Laundry according to.

< Type of fabric / care Label symbol Cottons, mixed fibres, easy care/synthetics, wool, handwash items. + Colour Separate coloured and white items. Wash new coloured articles separately. + Loading Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum. + Delicates Wash small items (e.g. nylon stockings, belts etc.] and items with hooks {e.g. bras) in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains with the rings inside a cotton bag.

2. Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and tub.

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together. Stain removal Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the programme.

Using the appliance + To remove red wine, coffee, tea, grass and fruit stains etc. add a stain remover to the middle detergent compartment. + Pre-treat heavily-soiled areas with stain remover if necessary. Dyeing + Only use dyes that are suitable for washing machines. + Follow the Manufacturer's instructions. + Plastic and rubber parts of the washing machine can be stained by dyes. Loading the laundry

2. Load the articles one at a time Loosely into the drum, without overfilling. Observe the load

sizes given in the quick reference guide. NOTE Overloading the machine will result in unsatisfactory washing results and creased laundry.

Using the appliance Detergents and additives Always use high efficiency, Low foam detergent for a front load machine. The choice of detergent depends on: + Type of fabric (cottons, easy care/synthetics, delicate items, wool]. Note: Use only specific detergents for washing wool + Colour +__ The wash temperature + __ Degree and type of soiling REMARKS Any whitish residues on dark fabrics are caused by insoluble compounds used in modem phosphate-free powder detergents. If this occurs, shake or brush out the fabric or use liquid detergents. Use only detergents and additives specifically produced for domestic washing machines. When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descalers could contain products which could damage your washing machine. Do not use any solvents (e.g. turpentine, benzine]. Do not wash fabrics that have been treated with solvents or flammable liquids. Dosage Follow the dosage recommendations on the detergent pack. They depend on: + Degree and type of soiling + Size of wash Follow the detergent manufacturer's instructions for a full load; Half load: 3/4 the amount used for a full load; Minimum load [about 1 kg]: 1/2 the amount used for a full load; + Water hardness in your area (ask for information from your water company]. Soft water requires Less detergent than hard water.

Le Using the appliance NOTE Too much detergent can result in excess foam formation, which reduces washing efficiency. If the washing machine detects too much foam, it may prevent spinning. Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses. Where to put detergent and additives The detergent drawer has three compartments {fig. « À » ] Detergent compartment © + Detergent + Stain remover +__ Water softener (water hardness class 4) Softener compartment & + Fabric softener Pour additives only up to the «MAX» mark. Powder detergent compartment When the auto dosing function is cancelled, please place the detergent into this compartment. Le Using the appliance NOTE + Keep detergents and additives in a safe, dry place out of the reach of children. + To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the special detergent ball or bag supplied with the detergent and place it directly inside the drum. + When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines. Descalers could contain compounds that can damage parts of your washing machine. + Do not use any solvents in the washing machine (e.g. turpentine, benzine).

Using the appliance Installation + Noise, excessive vibrations and water leakages can be caused by incorrect installation. + Never move the appliance by Lifting it by the worktop. + Read this «installation guide» before operating. + Keep this «installation guide» for future reference. + Read the general recommendations about disposing of packaging in the instruction for use. Before using the washer, please remove transport bolts! IMPORTANT Transport bolts which are not removed can cause damage to the appliance. © Screw off all transportation bolts for approx. 30mm with wrench following the direction of arrow shown (not fully screw it off]. @ Push four transportion bolts on horizontal direction inward and loose transportation bold. Using the appliance © Pull out transportation bolt together with rubber part and plastic part.

@ To ensure safety and reduce noise, you should install the transportation bolt cover supplied with the unit (see the annex accompanying the unit]. Lean and place the transportation bolt into hole and press it following the shown direction until it clicks. IMPORTANT Keep the transport bolts and the wrench for future transporting of the appliance and in this case refit the transnort bolts in reverse order.

Using the appliance Adjustment of the feet The appliance must be installed on a solid and level floor surface [if necessry use a spirit Level]. If the appliance is to be installed on a wooden floor, distribute the weight by placing it on a 60xé0cm sheet of plywood at least 3cm in thickness and secure it to the floor. If the floor is uneven, adjust the 4 leveling feet as required; do not insert pieces of wood etc. under the feet. @ Slacken the Locknut clockwise (see arrow] using the wrench. Lower Higher IMPORTANT Tighten the locknut by turning it anti-clockwise towards the appliance casing. max 20 mm Using the appliance Install bottom cover To realize quieter operation, a bottom cover is supplied with the unit (only applies to some of the washers]. After installing the cover at the bottom of the washer, the noise Level will be greatly reduced. Please ask for advice from specialists before installing the cover, nevertheless, the machine can be used without the bottom cover. @ Noise-Reduction Bottom Plate Installation Instructions

Stick acoustic wool to the side of bottom cover plate with the letter of «PUMP». Tilt the washer by 30»-40°, when installing the bottom cover, please face the side with sound insulation upwards and attach ‘PUMP at the corner of the cover to the position of the pump in the washer.

Right-angle impression Before installing the noise-reduction bottom plate, align and paste the acoustic absorption wool with and along the right-angle impression on bottom plate [this procedure is unnecessary for some of the models without acoustic absorption wool]. Remove surface paper on double sided tape at four sides of the bottom plate.

Using the appliance Incline the machine to an angle of 40° and let the side with right-angle notch face towards frost of the washing machine, as shown in the figure. Insert the side with oblique-angle notch between two foot screws at back of the washing machine completely in place. Then, install the bottom plate and ensure that it contacts with bottom of the washing machine closely. (4) Press the double sided tape on four sides manually to secure the noise-reduction plate to the machine body firmly. Connect the water supply inlet hose @ the water inlet hose is not already installed, it must be screwed to the appliance.The blue marked hose is only for cold water. Depending on the model, the hot waterhose marked with red should also be connected, for models having dual inlets. Hot [Depending on models} Cold © Screw by hand the inlet hose onto the tap, tightening the nut. Using the appliance IMPORTANT e No kinks in the hosel + The appliance must not be connected to the mixing tap of an un-pressurized water heater. + Check water-tightness of connections by turning the tap completely on. e Ifthe hose is too short, replaça it with a suitable length of pressure resistant hose (1000 kPa min). + Check the inlet hose regularly for brittleness and cracks and replace if necessary. + The washing machine can be connected without a non- return valve. Connect the drain hose @ n case the drain hose is installed as shown below: Unhook it only from the right clip (see arrow]

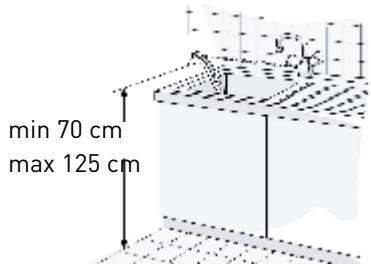

Using the appliance @® Connect the drain hose to the Drain or hook it over the edge of a sink by means of the «U» bend. Fit the «U» bend E, if not already installed, at the end of the drain hose. NOTE e Ensure that there are no kinks in the drain hose. - Secure the hose so that it cannot fall down. After wash phase, machine will drain out hot water. ° Small hand basins are not suitab + To make an extension use a hose of the same type and secure the connections with clips. + Max. Overall drain hose length: 2.50 m. min 70 cm max 125 Ï Using the appliance Auto Dosing operation guide : Ai-dose This product has an auto dosing feature to automatically add the right amount of detergent/softener to a wash. You can adjust the amount Lo) automatically dispensed by selecting Little medium or large depending upon . the strength of the washing needed. When the «Auto» option is selected, Ai -dose the washing machine will intelligently judge the amount of detergent and softener according to the weight of the Laundry. If you dont want to use the «Auto» option, please deselect it and add detergent and softener manually. Adding of detergent/softener æ Softener compartment EN] Detergent compartment es Powder detergent compartment When the auto dosing function is cancelled, please place the detergent into this box Auto Dosing operation steps + When the washing machine is used for the first time, the auto dosing function of both the detergent and softener is switched on by default.The washing machine will remember the last chosen option when being started. + To activate the function press the «Detergent» button. Press the detergent switch repeatedly to cycle through to the off position [not Lit]. + Whenthe icons 8 are light up, this indicates that the amount of detergent/ softener is insufficient. Piease top up as necessary. The maximum amount needed to fill the reservoirs is 0.65Lof detergent or 0.35L of softener.

Using the appliance Using the appliance Precautions

1. Itis recommended that you use low-foaming detergent

2. Please do not overfill the detergent/softener reservoirs as they may overflow

3. After filling, please ensure that the detergent drawer is fully closed before starting the

4. Please remove or secure the detergent drawer before installing, moving, handling, and

adjusting the washing machine. This is to avoid the inconvenience caused by an overflow of the detergent and softener. VMC automatic A Large mn Mecium MN Little NOTE If you want to add detergent/softener manually, please make sure that the «auto dosing» feature is switched off. Repeatedly press the detergent/softener button until the indicator light is extinguished. Settings If necessary, please set the program according to the steps below. Detergent Auomae Large Medium Lie The amount of detergent can be varied as needed, by repeatedly pressing the Detergent button to cycle through the following options : Automatic - Large - Medium - Little - off. The default setting is Auto. Softener Automate! Large Medium Lite The amount of softener can also be varied as needed, by repeatedly pressing the Softener button to cycle through the following options : Automatic - Large - Medium - Little - off. The default setting is Auto. Adding detergent and softener

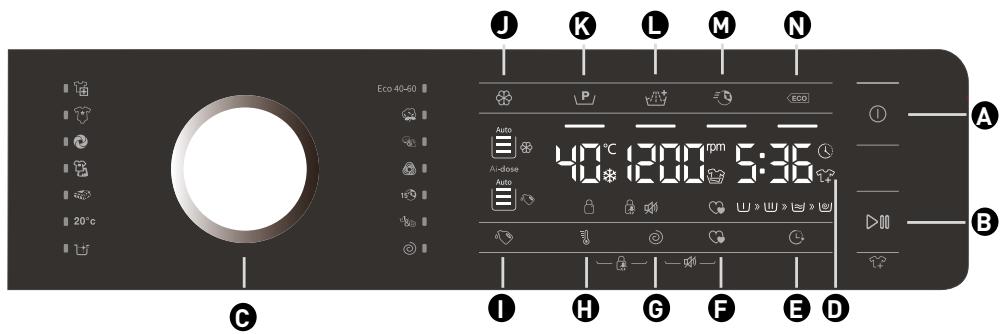

Using the appliance Using the appliance Control panel This washing machine is equipped with automatic safety functions which detect and diagnose at an early stage and react appropriately. Ifthe display © /ÉB icons flash, it indicates that the amount of detergent/softener is insufficient. Please top up to a maximum of 0.65L of detergent or 0.35L of softener. Re-adding of detergent/softener “On/Off" button "Start/Pause" button Program selector Program and function status display window “Delay End“ button “*Favourite" button “Spin” button "Temp." button “Detergent" button

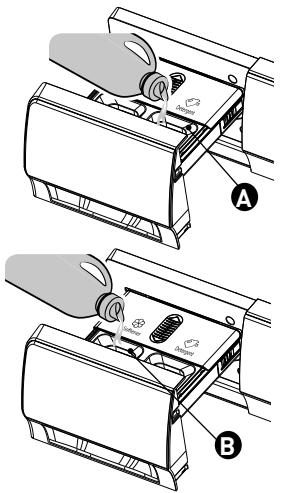

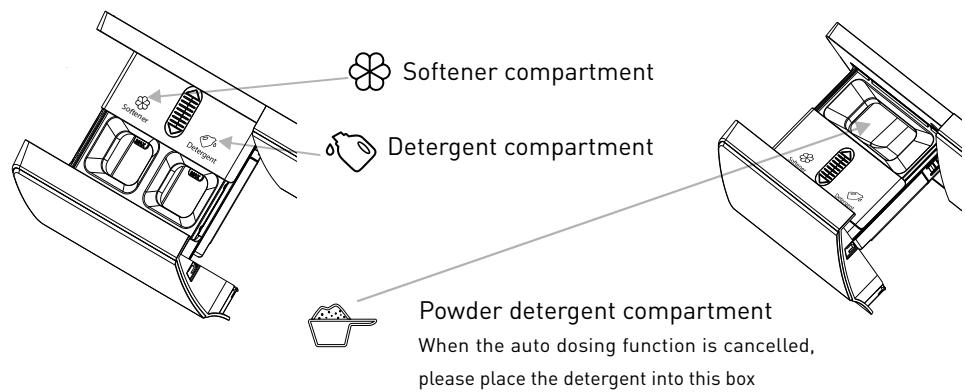

1. Slide to open the detergent drawer. “Softener" button

2. Add an appropriate amount of detergent to the automatic detergent compartment @.

3. Ifnecessary, add an appropriate amount of softener to the automatic softener compartment (.

(L) [N] “Energy saving" button

Using the appliance Add detergent, close the door and set the program Load the clothes to be washed m the drum and close the door. Add the detergent into the relevant compartments for the type of program you are going to select, Add detergent as described in Auto Dosing operation guide.

1. Press the «On/Off' button.

2. Press program selection button to required program, start up and default the program as

5. After starting the program, display window displays program length (hours: minutes),

washing temperature and additional function options in sequence. Addition function selection Atstandby state, press «Prewash» ,»Extra Rinse»,»Power save», «Time save»button to select additional function for current program. Select the function , and then corresponding icon ligbts up. After starting up, program cannot be changed. Pre-wash \P Select the function to conduct pre-wash so as to enhance washing effects and better remove stains. This function is suitable for heavy dirt clothes. Power Save The Power Save indication Lamp is on after the function is selected, and the indication Llamp wilL be off after the program ends. The Power Save function is only added under the standby state of its applicable program, that is, before the program is started. After the program is started, the function cannot be selected. The actual temperature be reduced by 5°C and the main wash time be reduced after the function is selected.

Extra Rinse ty After set the function of Extra Rinse, the program runs the rinsing process once again before running the softening, and the total running time of the program increases accordingly. Time Save After pressing this function button,the program time will be shortened according to the setting,and the program time will be increased back to the original setting by pressing the Using the appliance Time Save button again. After the program starts,the indicator ligbt is always on. This function is only added under the standby state of its applicable program, that is, before the program is started. After the program is started, the function cannot be selected. After tbis function is selected, the determined main washing time will be reduced by 15 mins. Inlet water warning À If tap is not opened, or water pressure is over Low, inlet water fault icon will display, and display screen will prompt “F01 "to give alarm. Drainage warning & Ifthe pipe is squeezed, drainage will not be smooth. In case of failing to completely drain for long time, drainage fault icon will display, and display screen will prompt “F03" to give alarm Door Lock Icon ô After the program starts the Door Lock icon will light up and the door will be locked. After completing program, door lock unlocks automatically. During pause, if door opening condition can be met halfway, the door Lock will unlock and its indicator Light will go out. When door lock indicator light flashes, door shall not be opened forcibly s0 as to avoid personal injury. Delay End Function Delay End function allows to run the machine at the consumers' convenience, for example, at night when electricity is cheaper. + Only under the standby mode, this button is valid for selecting the reservation time. + After the reservation function is selected, the time will increase Lh when each time the reservation button is pressed. Before reservation, if the program time does not satisfy the integral multiple of Lh, it shall be completed by pressing the reservation key for the first time, and then the time increases Lh when each time the reservation button is pressed. lfthe reservation is selected, before the program runs, the current reservation can be canceled by turning the button to select other programs. + The delay time must be longer than the wash program length as the delay time is the time program will finish. For example: if the selected program time is 02:28, the delay time selected must be between 03:00 and 24:00. + When the reservation process is operated, the icon of ‘reservation time’ will be on. When the reservation process startup, the icon of ‘reservation time’ will flash.

Using the appliance + Long press the Delay End button,the reservation time jumps fast. Favourite

1. Press the “On/Off “button to tum on the machine;

2. Select the washing program;

3. Select parameters{washing temperature ,spin speed,etc);

4. Press Favourite button for 3 seconds;

5. Favourite is stored{only one program can be stored},select Favourite when using tbis

program,press “Start / Pause"to start;

6. When the user uses it for the first time, ifhe/she has never Long pressed the Favorite button

to collect programs, he/she can short press the Favorite button and then the cotton linen program and its default settings will be collected by default;

7. Short press Favourite button,then the symbol is on. Repeat the same operation or press

other buttons to exit this program, the symbol is off;

8. After selecting other functions, long press 3 seconds to override the original program.

Mute Function cd When the machine is in the state of holding, pause or operation, press “Spin+Favourite" buttons for 2 seconds, the Mute icon will Light up. All the buzzing will be turned off except the alarms. When the machine is in the mute state, press "Spin+Favourite" buttons for 2 seconds, the Mute icon will turn off. All the buzzing will be activated. Softener & detergent © release

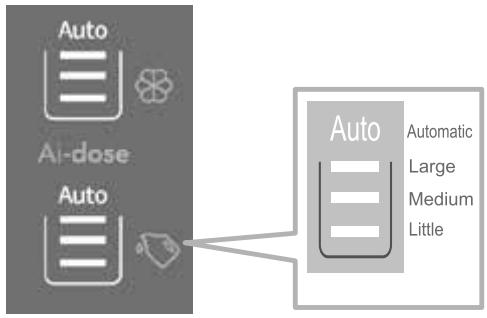

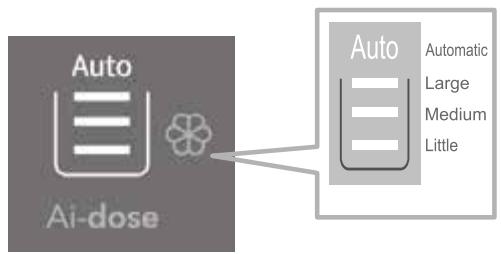

1. Select to turn on or off softener/detergent release and set the release volume;

2. Itis active in the standby mode. After this key being pressed, the softener/detergent volume

Will be selected in a cycle mode in accordance with Automatic: -Large -Medium -Little -off;

3. The softener/detergent release selection will be memorized, that is, after selection and

operation by the user, the release volume for the next time will be that of selected in the last time;

4. When the user uses the machine for the first time, it is defaulted that the softener/detergent

release is turned on and the release volume is automatic;

5. When the softener/detergent release is turned on, if it is detected that the amount of softener/

Using the appliance detergent in the release box is too small, the softener adding indicator on the display will be turned on, and the selected volume indicator will flash in a frequency of 2 Hz. Automatic weigtting Washing machine displays “--- " after startup, indicating that it is weighing automatically. It will adjust program Length (hours: minutes) automatically according to weight of clothes. Child Lock io) To strengthen the safety of children, this machine is equipped with Child Lock function. When the programme starts, press “Temp.+Spin"button for 3 seconds. Child Lock icon will light up, and then Child Lock is set up. Repeat the same operation, the Child Lock will be released. + When the Child Lock is set, all function buttons will be shielded. + When you turn the machine off by pressing the “On/Off” button, child lock is released. + After completing program, child Lock will automatically unlock. To Start the Program After you have selected your options and placed detergent within the detergent dispenser, turn on the water tap and press the "Start /Pause" button. The screen will display the current program progression with icons from Left to right. 1t also displays the remaining program time. To Cancel the Program or Reselect the Options

1. Press the “On/Off “button for 2 seconds to turn off the machine.

2. Press the “On/Off “button to turn on the machine. Select the new program and options.

3. Press " Start /Pause"to start the new program without adding any extra detergent.

End of the Program When program finished its running, it will display “End”. If no operation is taken in 2 minutes, the machine will turn off automatically.

1. Press “On/Off" button for 2 seconds to turn off the machine;

3. Open the door and take the washed clothes out; 4. Slightly open the door to remove moisture

in the drum. Reload in Process TP If you want to reload clothes in the process of washing, please press "Start/Pause" button.

Using the appliance + Ifreload icon ® light up, the door can be opened in the process, remaining time and the Door Lock icon in display will flash. Then the Door Lock icon will go out, and the door can be opened. + If reload icon ? doesn't Light up, the Door Lock icon doesn't flash, it indicates that current temperature is over 50°C or you have passed the time for reloading in the process, namely no clothes allowed to load into the machine. Programe Instructions

1. The eco 40-60 programme is able Le clean normally soiled cotton laundry declared to be

washable about 40°C to 60°C, together in the same cycle.and that this programme is used to assess the compliance with the EU ecodesign legislation.

2. The power consumption of the off-mode is 0.49W,and the Left-on mod e is 0.49W.

3. The most efficient programs in terms of energy consumption are generally those that

perform at Lower temperatures and longer duration.

4. Loading the household washing machine up to the capacity indicated by the manufacturer

for the respective programs will contribute to energy and water savings.

5. Correct use of detergent, softeners and other additives. Do not apply excessive detergent.

This may affect the washing results adversely.

6. Periodic cleaning, including optimal frequency, and limescale prevention and procedure.

7. Noise and remaining moisture content are influenced by the spinning speed: the higher

the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

8. The product information and GR code are reflected in the energy consumption label, the

product registration information can be obtained by scanning the QR code.

9. The information of standard programs.

Rated Maximum Program (Water Remaining sas Er = un ne Ge RS GS er ee JE, ter ne CE Eu Ê um 0 su vm Ed = 25 OH 2% 07 Hu» ww Gaon DO 6m 6e où æ se we Cotton 60 10 55 240 1.55 78 53.00 1400 Using the appliance Mix 40 5 38 1:58 075 67 45.00 1400 Quick 15° 40 1 38 0:30 033 22 55.00 800 Cold wash 20 10 20 1:50 020 85 51.00 1400 The values given for programs other than the eco 40-60 program are indicative only.

C Useful information Care and maintenance Appliance exterior and control panel + Can be washed down with a soft, damp cloth. + A Little neutral detergent {non abrasive] can also be used. + Dry with a soft cloth. Door seal + Clean with a damp cloth when necessary. + Check the condition of the door seal periodically. Detergent dispenser

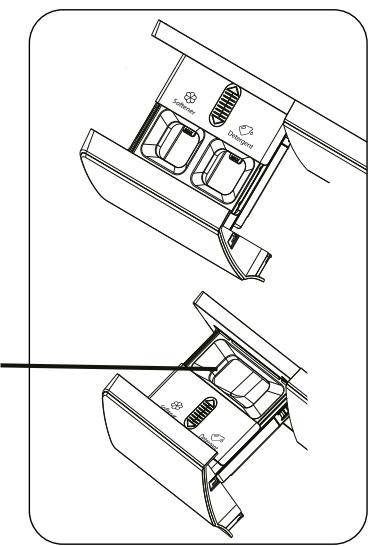

1. While holding down the release Lever on the inner of the drawer, slide open the drawer and

remove it from the machine.

2. Open the lids of both compartments, add water and shake to loosen/remove soap residue.

3. Clean the cap valves of both compartments with a soft brush.

C Useful information

4. Clean the drawer components under running water using a soft brush.

5. Clean the drawer recess within the machine using a soft brush. Make sure to clean the cap

valves to prevent clogging.

6. Once cleaning is complete, slide the drawer back into position ensuring it moves freely into

its fully retracted position. Filter We recommend that you check and clean the filter regularly, at least two or three times a year. Especially: + lfthe appliance is not draining properly or if it fails to perform spin cycles. + lfthe pump is blocked by a foreign body (e.g. buttons, coins or safety pins). IMPORTANT Ensure that the water has cooled before draining the appliance. . Stop the appliance and unplugit.

2. Insert removal tool Like slotted screwdriver into the small opening of bottom baffle, press

the bottom baffle downward with much strength and open it.

C Useful information C Useful information 3. Put a flat container under filter door and then drain with emergency drain pipe (see [draining Mesh filter for water connection residual water] for specific operation methods). Then, loosen filter anticlockwise and completely Check and clean regularly. unscrew and remove the filter. : : : : à For washing machines with an inlet hose as shown on pictures,

1. Close the tap and loosen the inlet hose on the tap.

4. Clean the filter and the filter chamber. 2. Clean the internal mesh filter and screw the water inlet hose back onto the tap.

3. Now unscrew the inlet hose on the rear of the washing machine.

5. Check that the pump rotor moves freely. 4. Pull off the mesh filter from the washing machine connection with universal pliers and ciean it.

5. Refit the mesh filter and screw the inlet hose on again.

6: Re-insert the filter and screwit in clockwise as far as it will go. 6. Turn on the tap and ensure that the connections are completely water-tight.

7. Reinstall the plinth.

‘ay g +£ | : (ads ee LC Water supply hose Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same typelavailable from After-Sales Service or specialist dealer].

C Useful information Troubleshooting guide Depending on the model, your washing machine is equipped with various automatic safety functions. This enables faults to be detected in good time and the safety system can then react appropriately. These faults are frequently so minor that they can be resolved within a few minutes. The washing machine will not start, no indicator Llamps are on. Check whether: + The mains plug is inserted into the socket and the power switched ON’. + The wall socket is functioning correctly [use a table Llamp or similar appliance to test it]. The washing machine will not start. Check whether: + The door is property closed ; + The «Start/Pause» button has been pressed; + The «Water tap closed» indication Lights up. Open the water tap and press the «Start/ Pause» button. The appliance stops during the programme [varies depending on model) Check whether: + Check if there is too much foam inside, machine enters kill-foam routine. The machine will run again automatically after a period. + The washing machine's safety system has been activated (see «Fault description table»). Residue from detergent and ad Check whether: ives Left in the detergent drawer at end of wash. + The cover grid of the softenercompartmentand the cover grid of the detergent compartment are correctly installed in the detergent dispenser and all parts are clean (see «Care And Maintenance»); + Sufficient water is entering. The mesh filters of the water supply could be blocked [see «Care and Maintenance»]; C Useful information Machine vibrates during spin cycle. Check whether: + The washing machine is Level and standing firmly on ail four feet; + The transport bolts have been removed. Before using the machine, it is imperative that the transport bolts are removed. Final spin results are poor. The washing machine has an imbalance detection and correction system. If individual heavy items are Loaded (e.g. bathrobes), this system may reduce the spin speed automatically or even interrupt the spin completely if it detects too great an imbalance even after several spin starts, in order to protect the washing machine. + Ifthe laundry is still too wet at the end of the cycle, remove some articles of laundry and repeat the spin cycle. + Excessive foam formation may prevent spinning. Use the correct amount of detergent. + Check that the spin speed selector has not been set to «D». If your washing machine has a time display: the programme time Initially displayed is lengthened | shortened by a period of time: This is a normal capacity of the washing machine to adapt to factors that can have an effect on the wash programme time, e.g.: + Excess foam formation; + Load imbalance due to heavy items of laundry: + Prolonged heating time due to reduced inlet water temperature; Because of influences like these, the time remaining in the programme run is recalculated, and updated if necessary. In addition, during the filling phase, the washing machine determines the load and if necessary adjusts the initial programme time displayed accordingly. During such update periods, an animation appears on the time display. For Models with Single Inlet Fix the inlet hose to the cold water tap and to the inlet valve on the rear side of the machine as Ensure that: ALL connections are tightly fixed. Do not allow children to operate, crawl on, be near or inside your washer. Note that during the wash cycles, the surface temperature of the porthole door may increase. Close supervision of children is necessary when the appliance is used near children.

C Useful information Fault code The washer stops when the program is running. The display window shows fault code «FO1», «F03», «F13», «F14», «F24», else fault codes from «F04»to «F98» or «Unb». Fault Code List Displayed on Display Window Fault Description “F01" Water inflow fault “F03" Drainage fault “F13" Door Lock fault “F4 Door unlock fault “F24" Overflow or too much foam. else fault code, “FO4-F98" Electronic module fault. “Unb" Unbalance alarm «F01» displayed on screen The machine is not fed with water or insufficient water. Check: + Faucet is fully open and has enough water pressure. + Water inlet pipe is knotted or not. + Filtering net of water inlet pipe is blocked or not [refer to maintenance and repair]. + Water pipe is frozen or not. Press «Start/Pause» key after fault is removed. If fault occurs again, please contact with after-sale service (refer to after-sale service.)]. «F03» displayed on screen The washer is not emptied. The washer stops the program being executed. Shut down the machine and disconnect power supply. Check: + Drain pipe is knotted or not. + Filter in drain pump is blocked or not [refer to the cleaning of filter in drain pump) IMPORTANT Ensure that the water has cooled before draining the appliance. C Useful information + The drain hose is frozen up. Plug in the appliance again. Select and start the «Spin « program or push the «On/off « button for at least 3 seconds and restart the desired program. Ifthe fault occurs again, please contact After-Sales Service (see «After-Sales Service»). If fault code «F13» is shown Door lock is abnormal. Start program for 3 times to check whether the door is closed. Open or close it again. After fault is removed, press «Start/Pause» key. If fault occurs again, disconnect power supply and contact with after-sale service. If fault code «F14» is shown Door open fault. Action: Press «Start/Pause» button. The washing machine will try to open the door. The alarm will not be removed until the door is unlocked. Or, press the «On/Off» button to restart the washing machine, and the alarm will be removed. If fault code «F24» is shown Water level reaches overflow level. Remove it by pressing «Start/Pause « button and drain away water. Select and start required program. If fault occurs again, disconnect power supply and contact with after-sale service. If else fault code «F04» to «F98» is shown Electronic module fails. Press the «On/off « button for 2 seconds to turn off the machine. After fault is removed, press «On/off « button. If fault occurs again, disconnect power supply and contact with after-sale service. If fault code «Unb» is shown Unbalance alarm shall be solved by the following methods.

Press the «On/Off « button for 2 seconds for shutdown, open the door, shake the clothes and put them back into the washing machine, then select the spin program to dry again.

2. Too light-weighted laundry.

Press the «On/Off « button for 2 seconds for shutdown, open the door, put in one or two towels, and then select the spin program to dry again.

C Useful information After-sales service Before contacting After-Sales Service:

1. Try to remedy the problem yourself [see «Troubleshooting Guide»).

2. Restart the programme to check whether the problem has solved itself.

3. Ifthe washing machine continues to function incorrectly, call After-Sales Service.

Transport/handling Never Lift the appliance by the worktop when transporting.

3. Disconnect the inlet and drain hoses.

4. Eliminate all water from the hoses and from the appliance (see «Removing the Filter»,

6. The machine is over 55 Kg in weight, two persons are needed to move it.

Electrical connection Only use a socket with an earth connection. + Do not use extension leads or multi sockets. + Electric supply must be adequate for the machine's 10 À Current Rating. + Electrical connections must be made in accordance with Local regulations. + The electrical power cable must be replaced exclusively by a licensed electrician.

C Useful information Precautions and general recommendations

+ The packaging material is entirely recyclable, and marked with the recycling symbol &. Adhere to current local regulations when disposing of packaging material.

2. Disposing of packaging and scrapping old washing machines

+ The washing machine is built from reusable materials. It must be disposed of in compliance with current local waste disposal regulations. + Before scrapping, remove all detergent residues, break the door hook, and cut off the power cable so that the washing machine is made unusable. This appliance is marked according to the European directive on Waste is Electrical and Electronic Equipment (WEEE). By ensuring that this product disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by B ppropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for there cyclingof electrical and electronic equipment. Disposal must be carried out in accordance with Local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

3. Location and surroundings

+ The washing machine must only be installed in enclosed spaces. Installation in the bathroom or other places where air is humid is not recommended. + Do not store flammable fluids near the appliance.

+ Do not leave the appliance plugged in when not in use. Never plug or unplug the power from the mains supply, if your hands are wet. + Turn off the tap. Before any cleaning and maintenance, switch off the machine or disconnect it from the mains. + Clean the outside of the washing machine with a damp cloth. Do not use abrasive detergents. + Never open the door forcibly or use it as a step.
